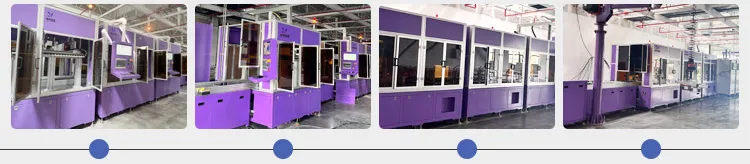

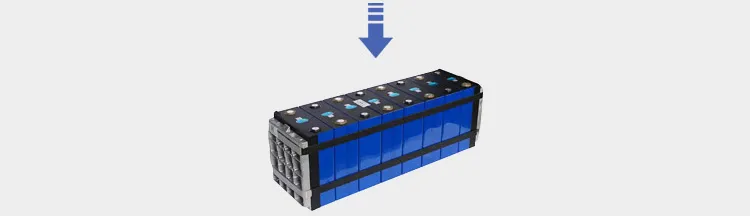

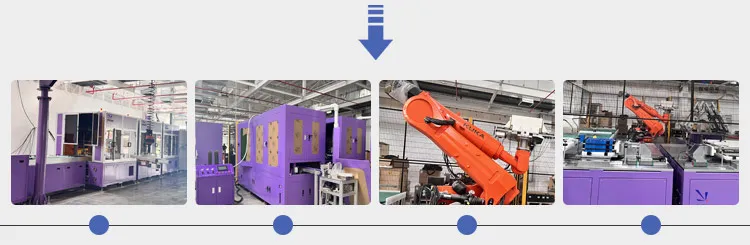

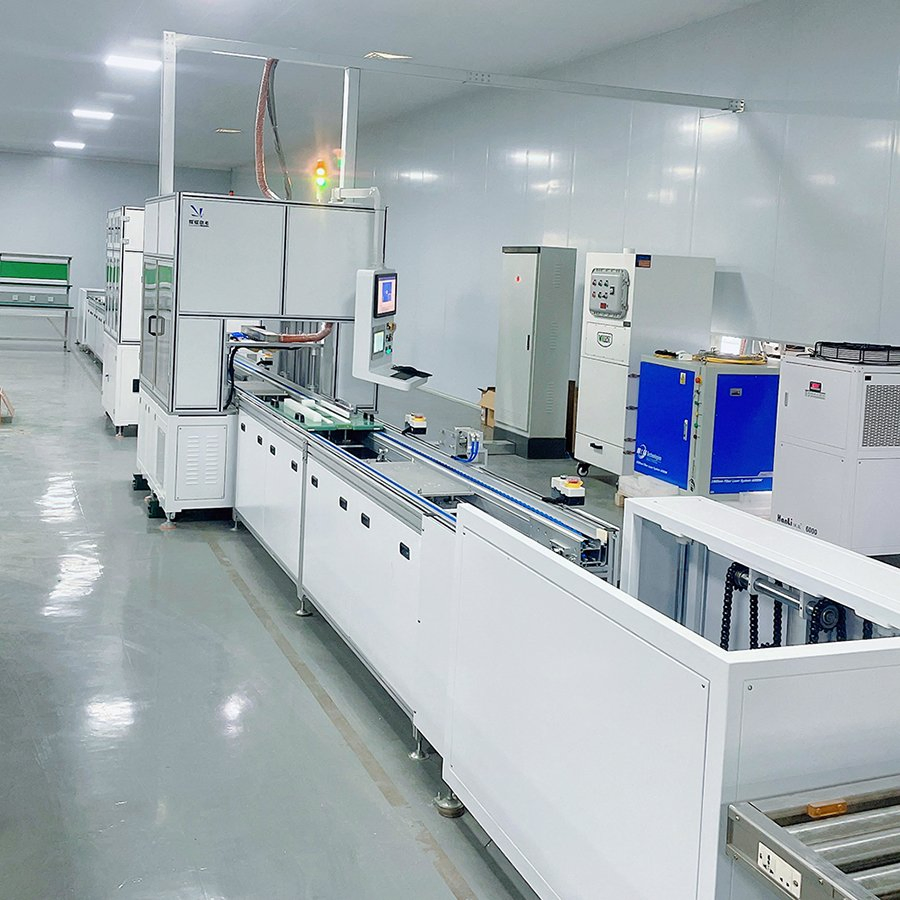

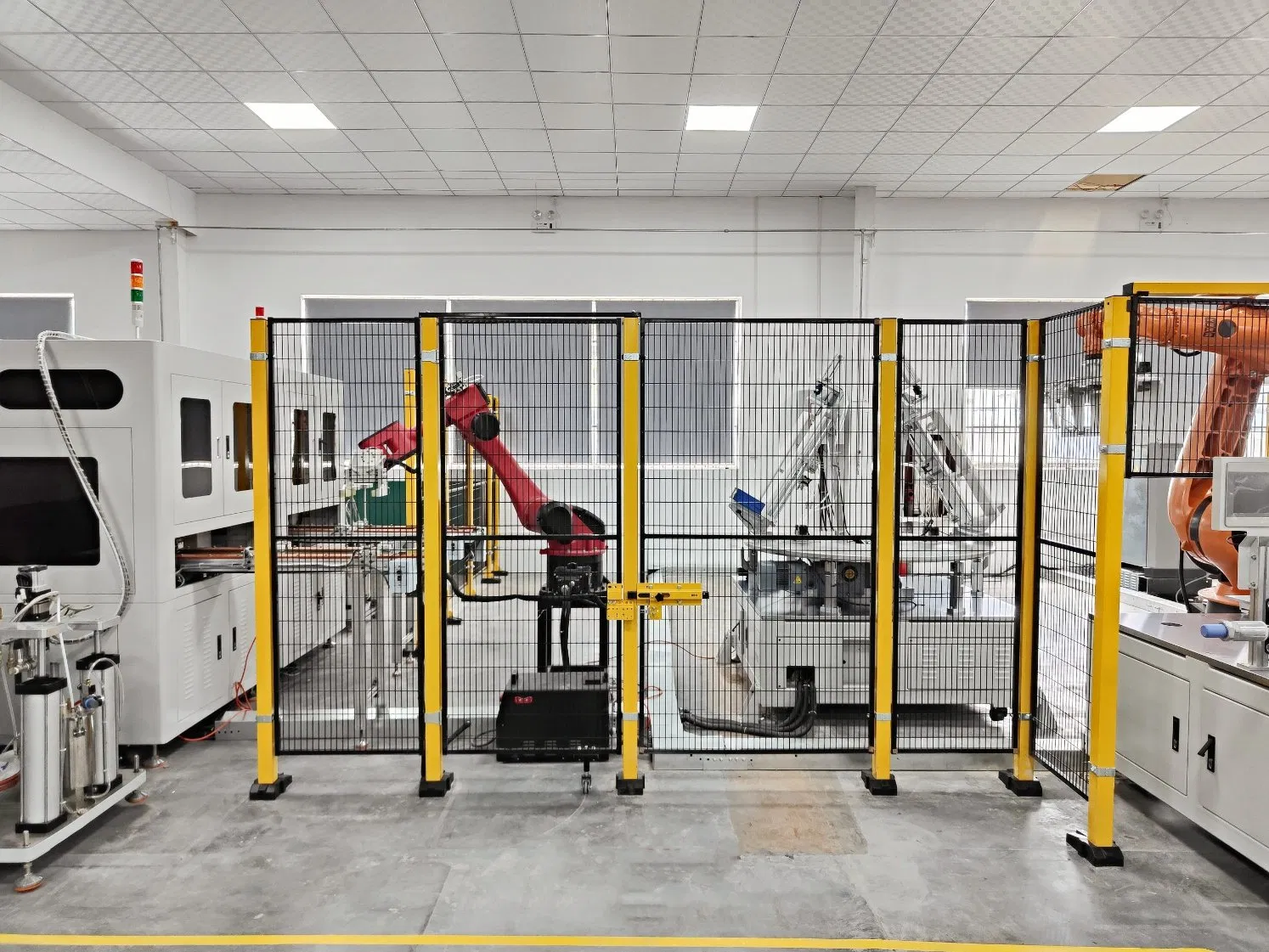

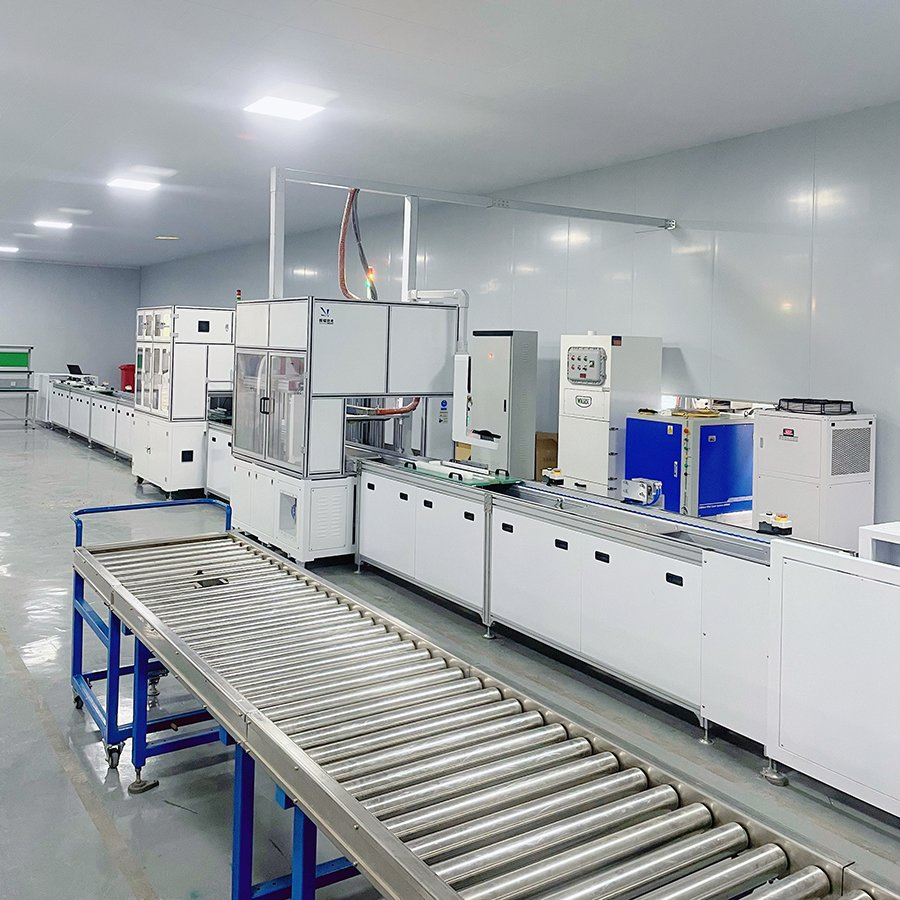

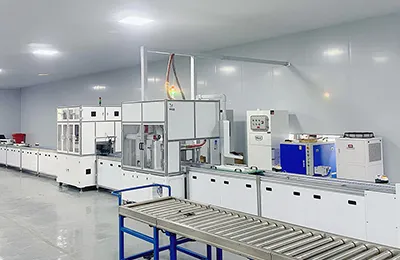

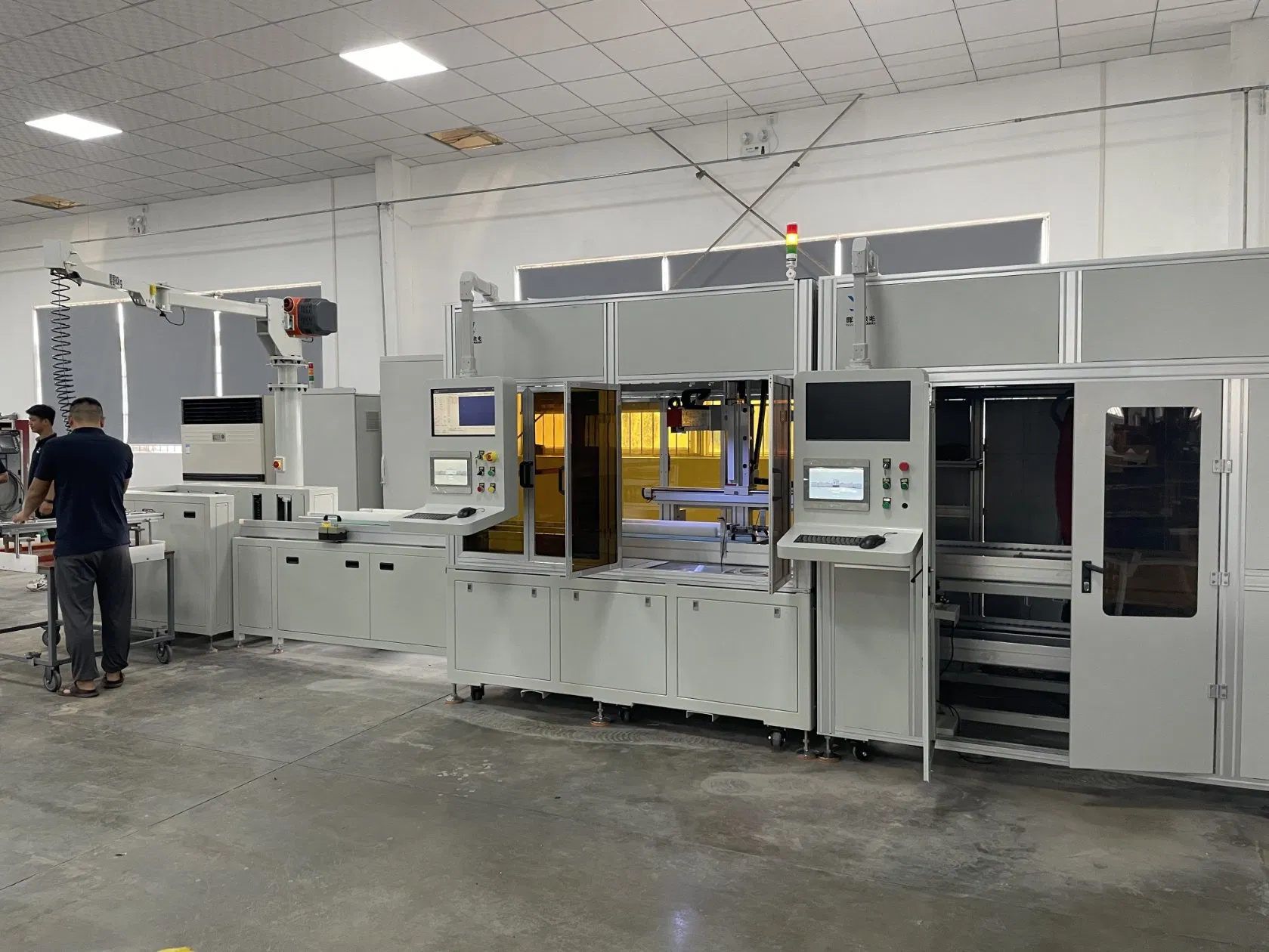

Lithium battery module assembly process including:

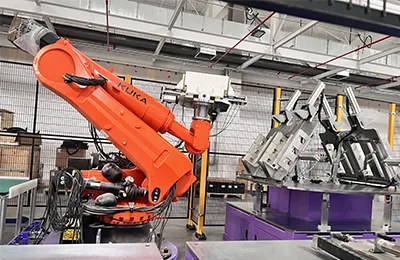

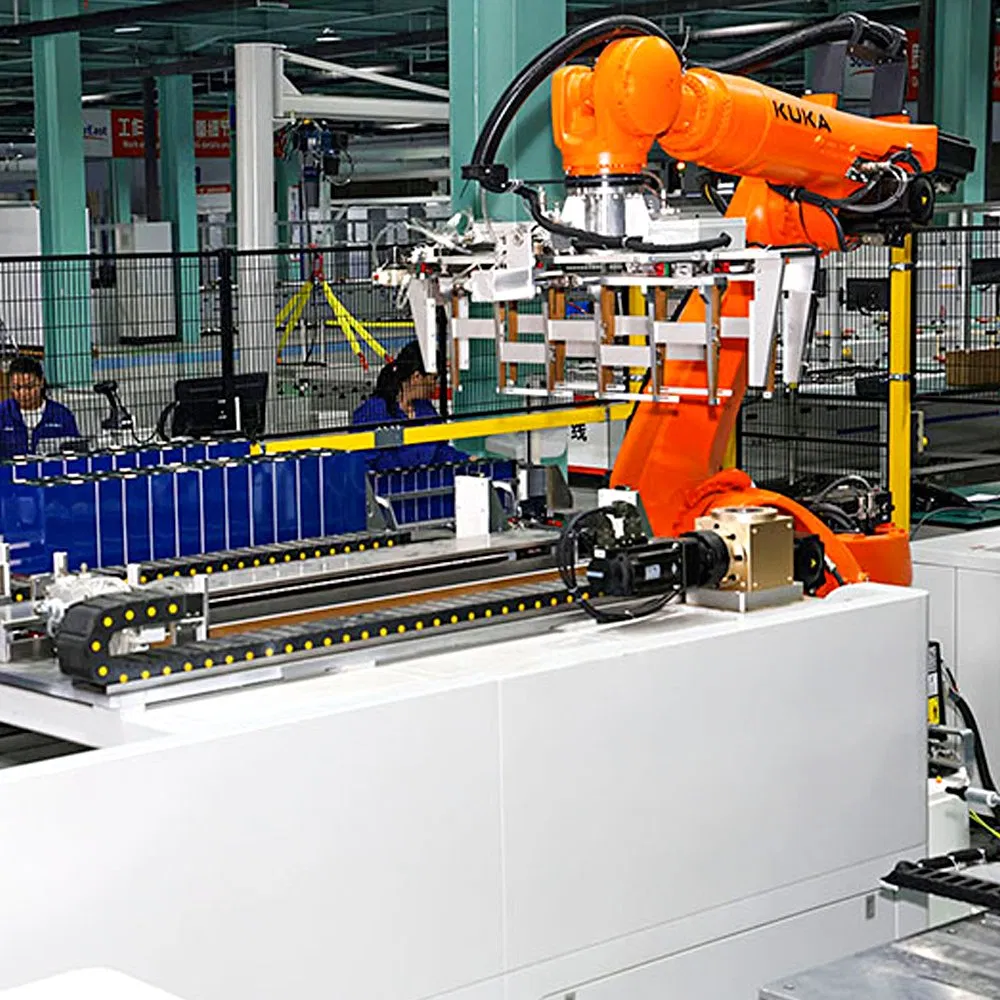

1.Online cantilever crane | 2.Plasma cleaning and gluing machine | 3.Module stacking machine with robot | 4.Module pressing machine | 5.Pole photograph | 6.Laser cleaning machine | 7.Laser welding machine | 8.Offline cantilever crane
Compatible with a variety of sizes of module specifications, quick type change
Realize intelligent chemical station and reduce the labor load of personnel
The battery cell section is flexibly associated with the module welding section and can be operated independently

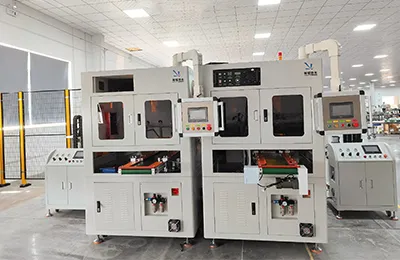

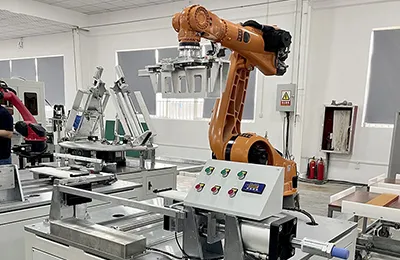

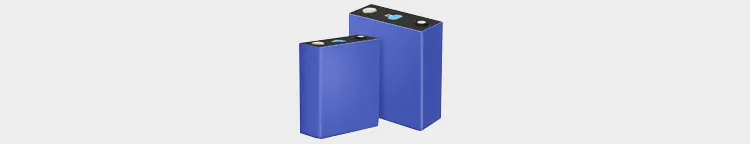

The cell section is equipped with cell sorting, plasma cleaning, cell gluing, cell stacking, etc.
The welding section has the functions of loading module scan code binding, pole cleaning (photograph), laser welding, post-welding EOL detection, etc.
| XYZ Travel | Customizable | R Axis | Optional, 360° rotation |
| Position Accuracy | ±0.02mm | Repeatability Accuracy | ±0.01mm |
| Motion Source | Step motor or Servo motor | Max Speed | 500mm/s |
| Cooling Method | Water cooling | Laser Wavelength | 1080nm |
| Observation System | CCD system | Welding Penetration | 0.1~3.0mm |
| Environmental Requirements | No vibration, interference and ventilation | ||
The application range of lithium battery module assembly production line is very wide, including electric vehicles, energy storage equipment, solar photovoltaic and other fields.
