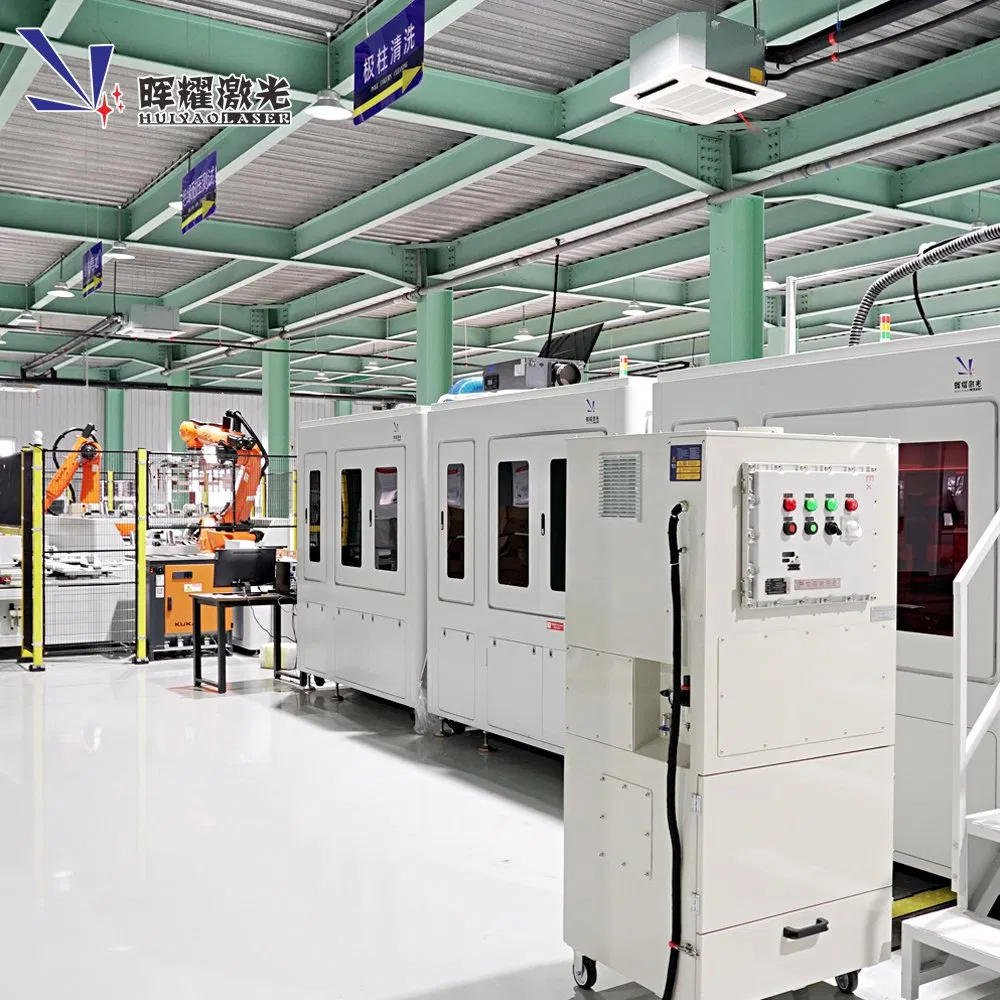

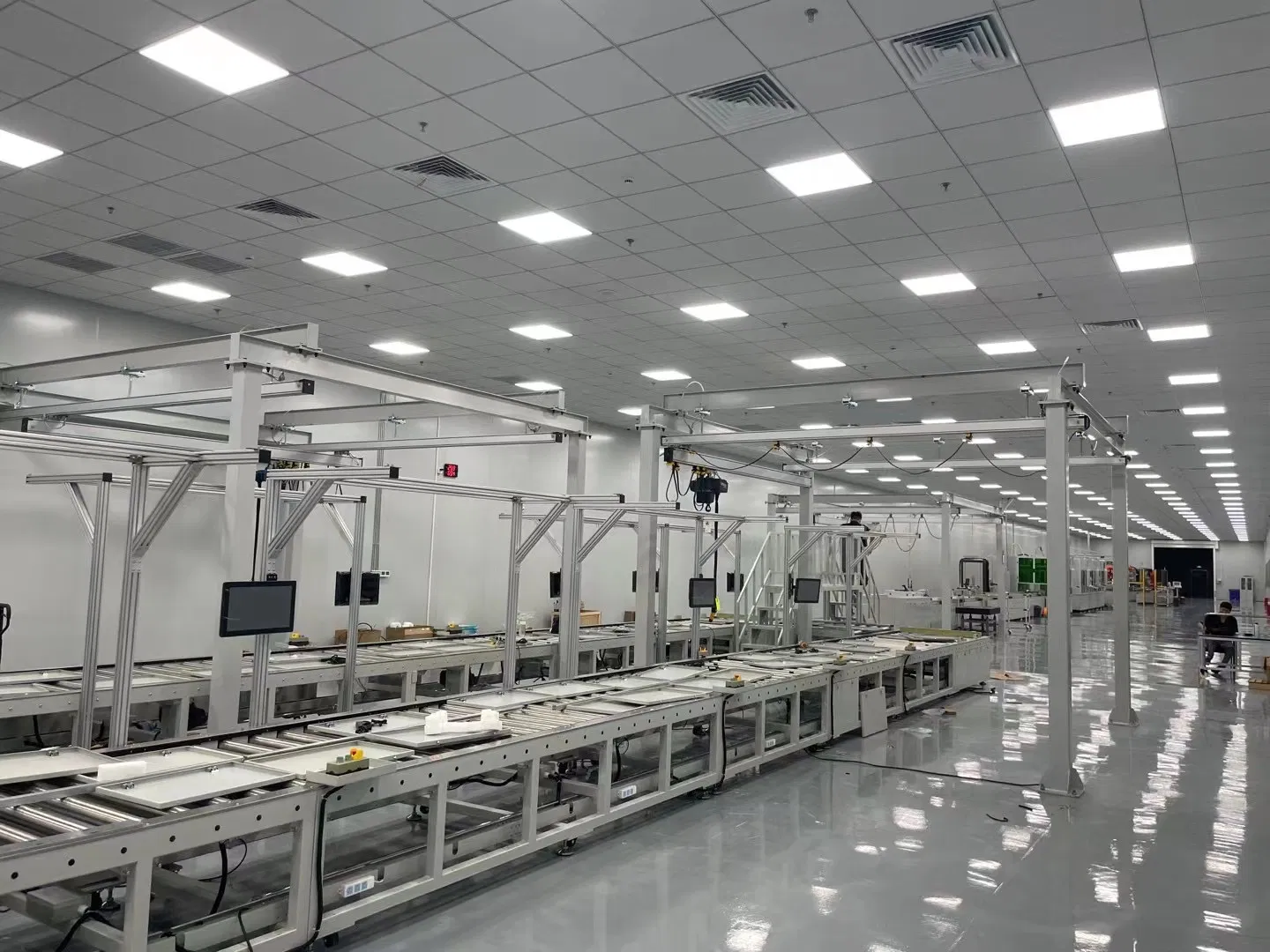

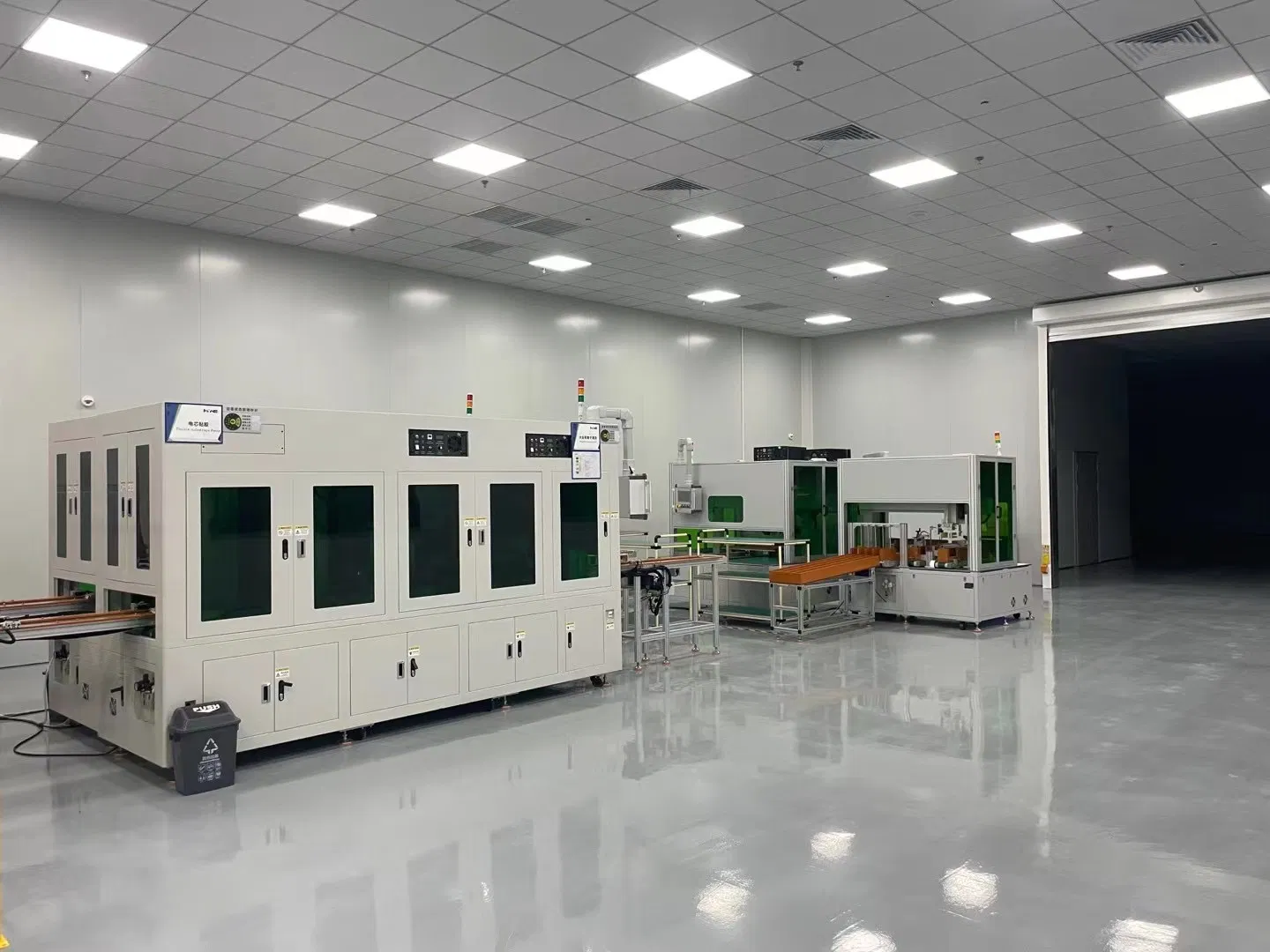

Lithium battery component integration

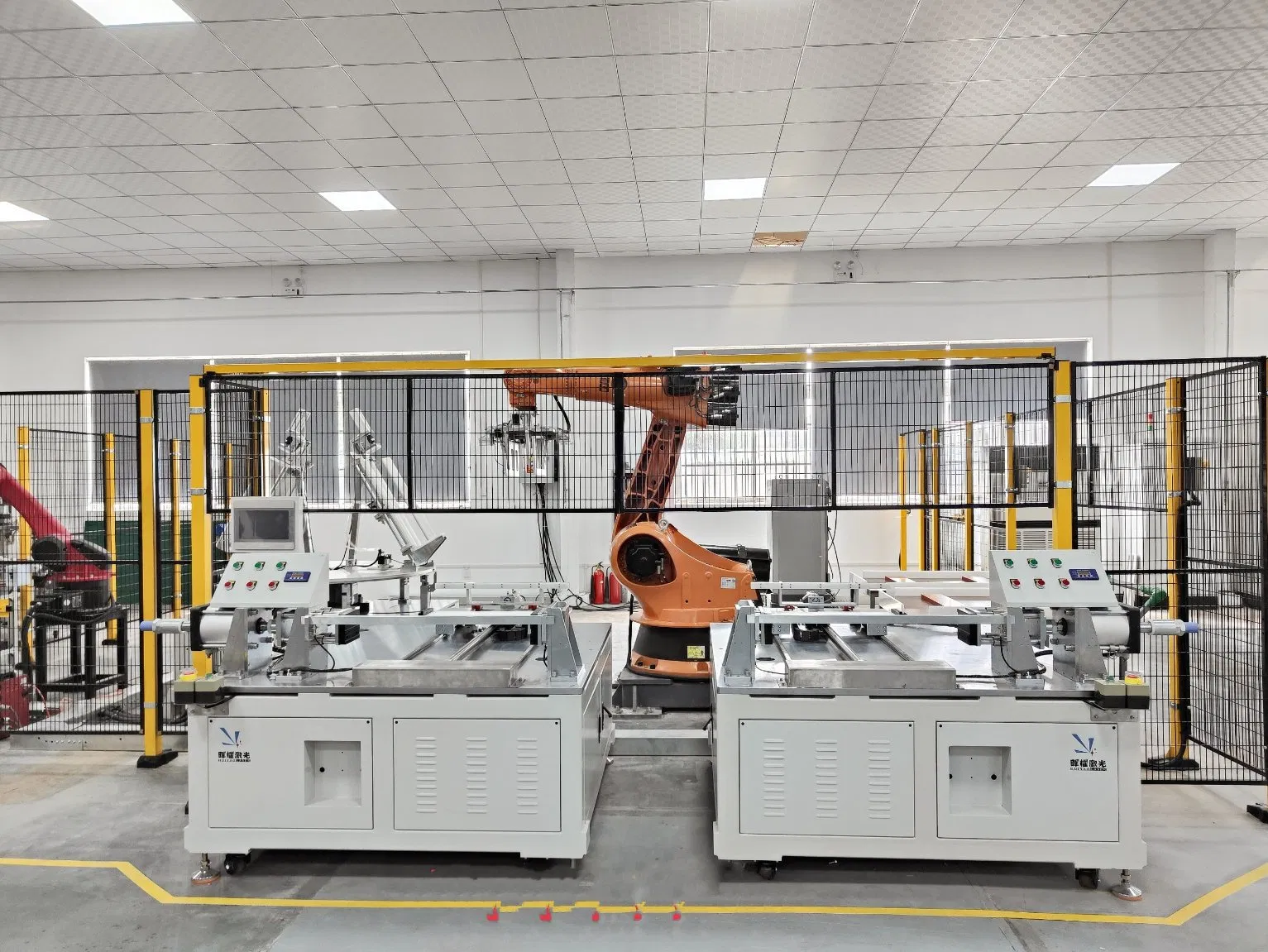

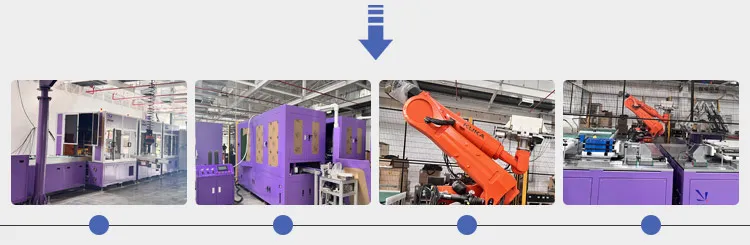

1. Online cantilever crane | 2. Plasma cleaning and gluing | 3. Module stacking with robot | 4. Module pressing
5. Pole photograph | 6. Laser cleaning | 7. Laser welding | 8. Offline cantilever crane

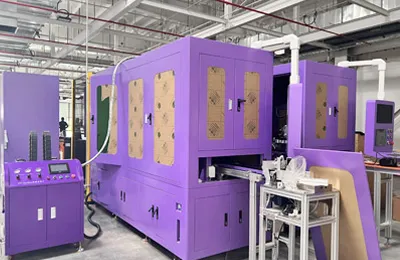

Compatible with a variety of sizes of module specifications, supporting quick type change for diverse production needs.
Realize intelligent chemical station operation to significantly reduce the labor load of personnel and increase safety.

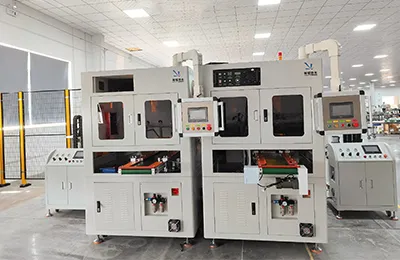

Flexible association between the battery cell section and the module welding section, allowing for independent operation.

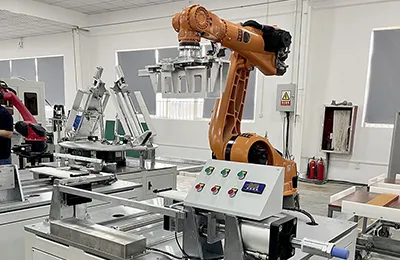

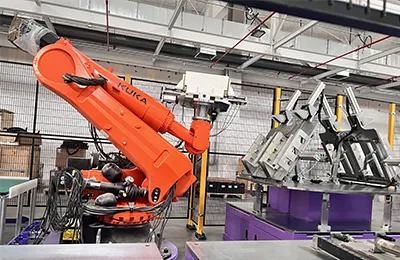

Advanced cell section equipment including cell sorting, plasma cleaning, gluing, and automated stacking systems.

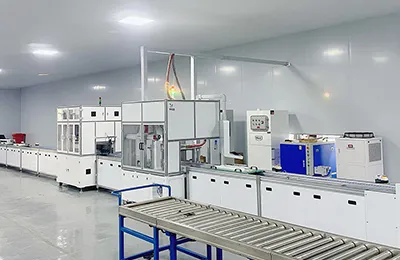

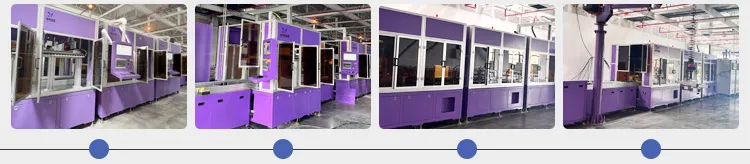

Integrated welding section functions: loading module scan code binding, pole cleaning/photograph, laser welding, and post-welding EOL detection.
| XYZ Travel | Customizable |
| R Axis | Optional, 360° rotation |
| Position Accuracy | ±0.02mm |
| Repeatability Accuracy | ±0.01mm |
| Motion Source | Step motor or Servo motor |
| Max Speed | 500mm/s |
| Cooling Method | Water cooling |
| Laser Wavelength | 1080nm |
| Observation System | CCD system |
| Welding Penetration | 0.1~3.0mm |

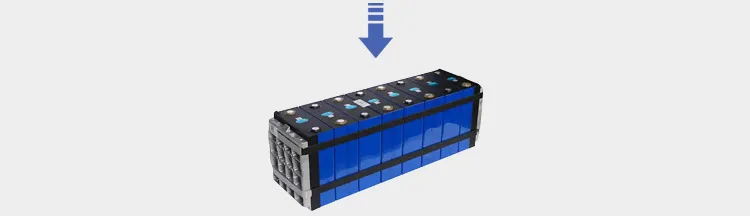

The application range of lithium battery module assembly production line is very wide, including electric vehicles, energy storage equipment, solar photovoltaic, and other new energy fields.

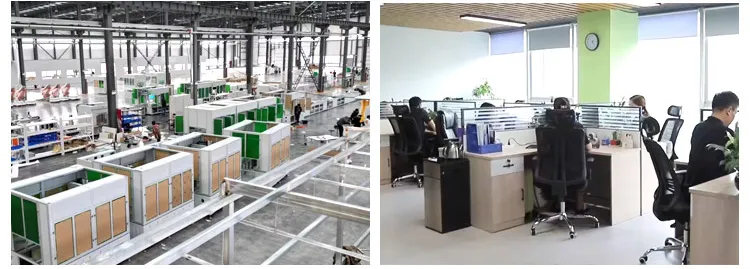

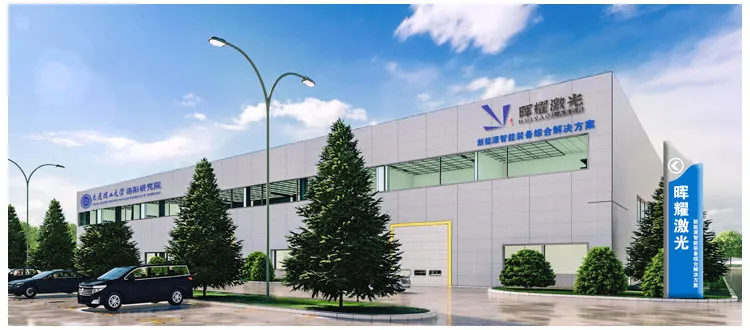

Our company is a high-tech enterprise specializing in research, development, manufacturing, and sales of equipment in the new energy industry. We cover an area of more than 10,000 square meters with multiple automated production lines and advanced processing equipment. We hold ISO45001, ISO9001, and environmental management system certifications, ensuring reliable products and high-quality services for automobiles, electronics, and aviation industries.
We provide professional engineering support and standard export wooden box packaging. We export to many countries worldwide, including the USA, Mexico, Turkey, Serbia, Vietnam, and South Africa.
