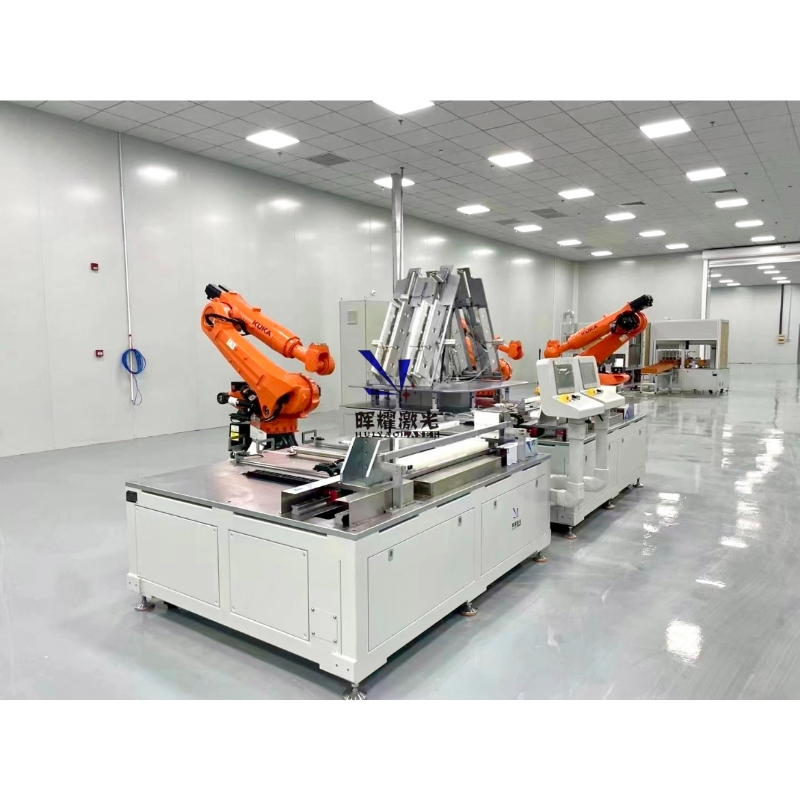

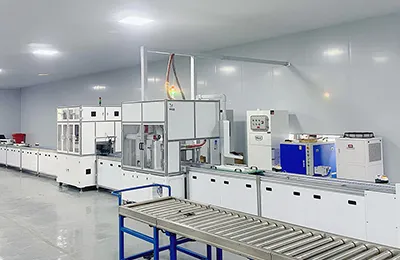

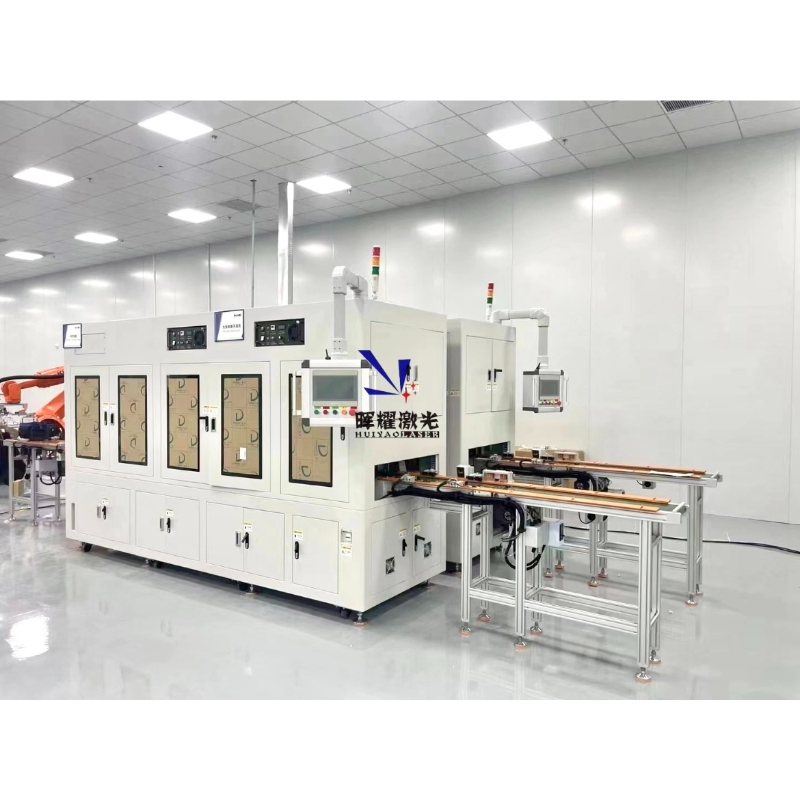

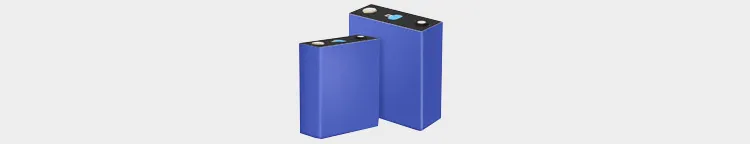

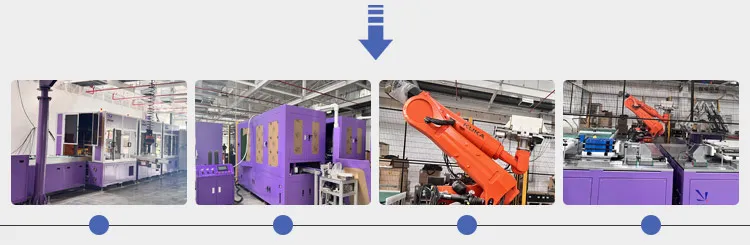

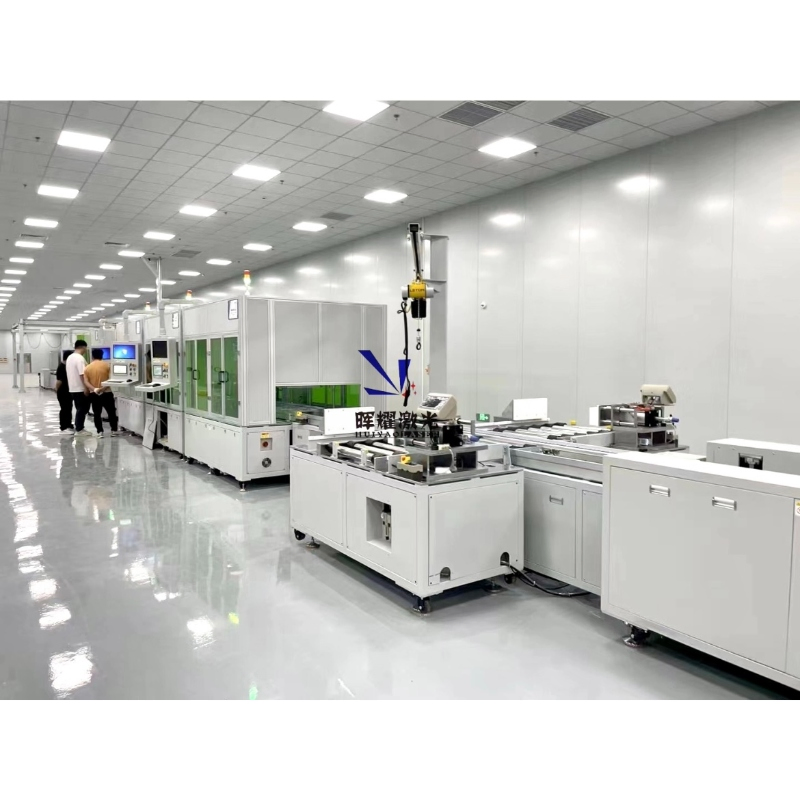

Lithium battery manufacturing flow and assembly stages:

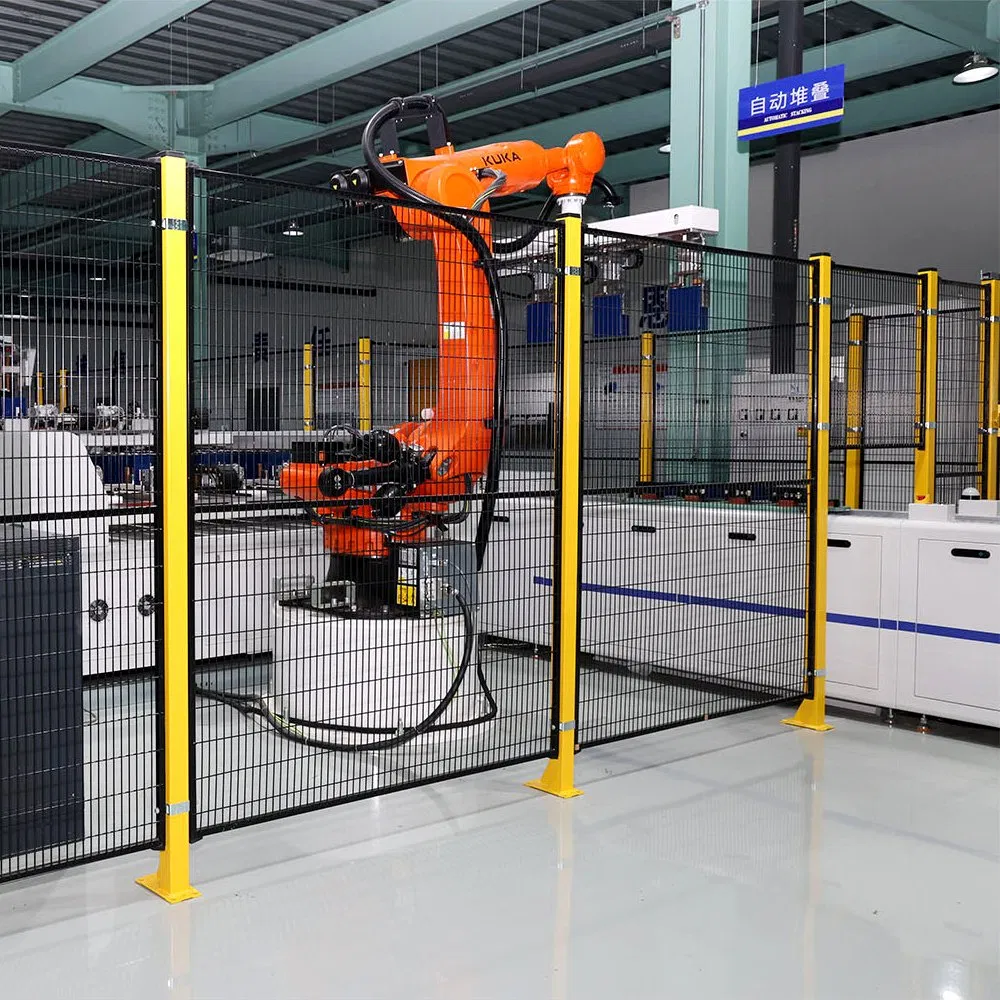

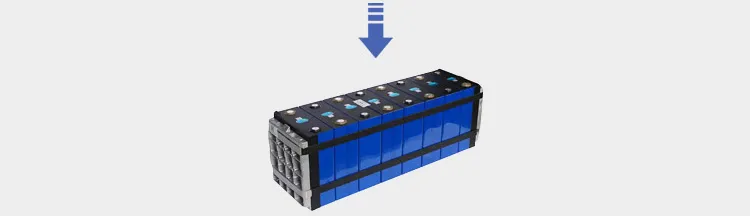

1. Online cantilever crane | 2. Plasma cleaning and gluing | 3. Module stacking with robot | 4. Module pressing
5. Pole photograph | 6. Laser cleaning | 7. Laser welding | 8. Offline cantilever crane
Compatible with a variety of sizes of module specifications, allowing for quick type change over during production.

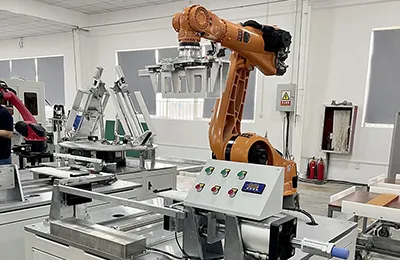

Realize intelligent chemical stations and significantly reduce the labor load of personnel through advanced robotics.
The battery cell section is flexibly associated with the module welding section and can be operated independently for maintenance.

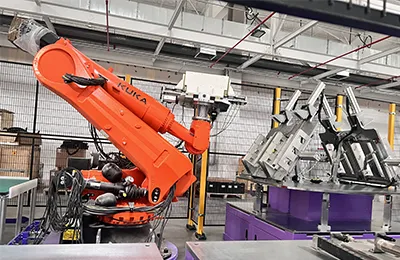

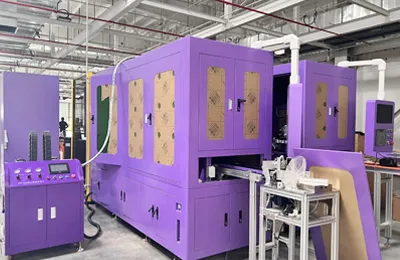

Equipped with cell sorting, plasma cleaning, cell gluing, and precise cell stacking capabilities.

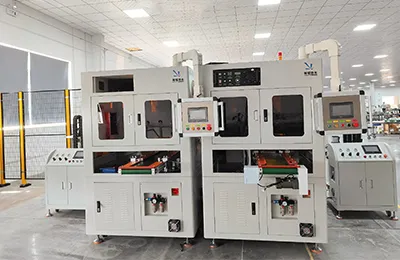

Functions include loading module scan code binding, pole cleaning (photograph), laser welding, and post-welding EOL detection.
| XYZ Travel | Customizable |
| R Axis | Optional, 360° rotation |
| Position Accuracy | ±0.02mm |
| Repeatability Accuracy | ±0.01mm |
| Motion Source | Step motor or Servo motor |
| Max Speed | 500mm/s |
| Cooling Method | Water cooling |
| Laser Wavelength | 1080nm |
| Observation System | CCD system |
| Welding Penetration | 0.1~3.0mm |
The application range of lithium battery module assembly production line is very wide, including electric vehicles, energy storage equipment, solar photovoltaic and other fields.
We provide professional engineering support and standard export wooden box packaging. Our products are exported globally to countries including the USA, Mexico, Turkey, and various regions in Southeast Asia and Europe.

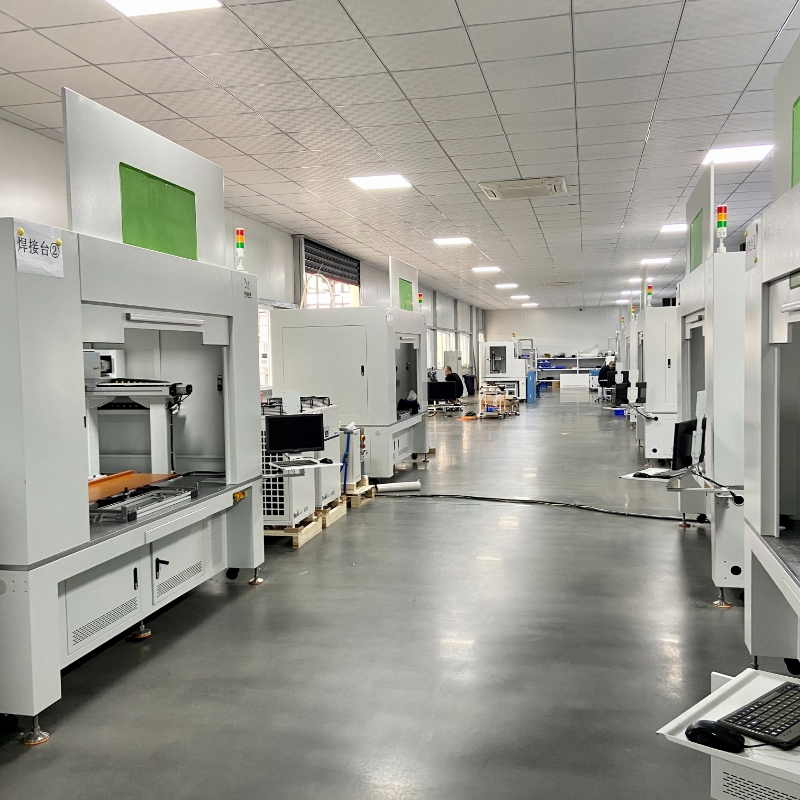

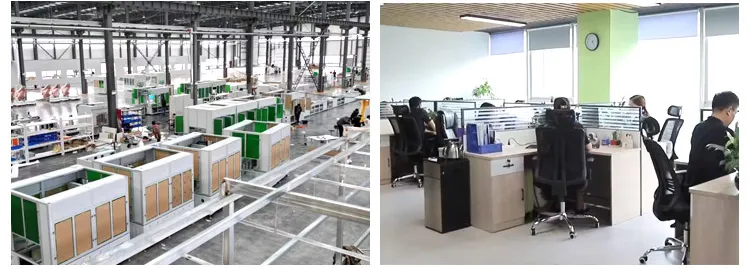

We have our own research, development, and production base. All products are calibrated by laboratory professionals before leaving the factory to ensure the accuracy of test results.
The product guarantee period is 12 months, and we provide a lifetime repair guarantee. Our technical department responds within 24 hours to solve any technical issues.
Yes, we can equip transformers and plugs according to different countries' local requirements and power standards.
We accept T/T, L/C, and D/P. For packing, we use standard international export wooden boxes to ensure safety during transport.
We provide detailed videos for installation and operation. If required, we can also arrange engineers to visit the customer's site for on-site equipment operation training.
Yes, we can print your logo on both products and packages, and the color of the equipment can be customized if the order meets our MOQ.
