Fast Axis Flow CO2 Laser Industrial Laser Cutting System

1 / 5

Fast Axis Flow CO2 Laser Industrial Laser Cutting System

Customization:	Available
After-sales Service:	7X24 Hours
Warranty:	1

Send Inquiry

Product Description

Basic Information

Application

Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Advertising Industry

Cooling System

Water Cooling

Technical Class

CO2 Laser

Applicable Material

Nonmetal

Structure Type

Desktop

Laser Technology

Laser Cutting

Origin

China

Specification

1300*2500mm

Product Overview

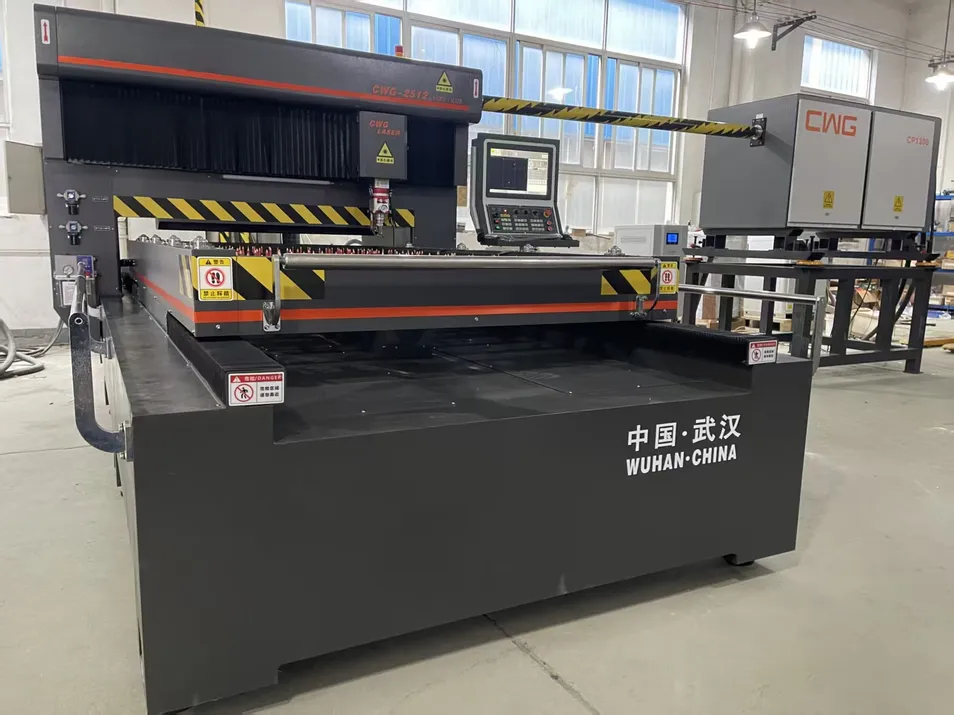

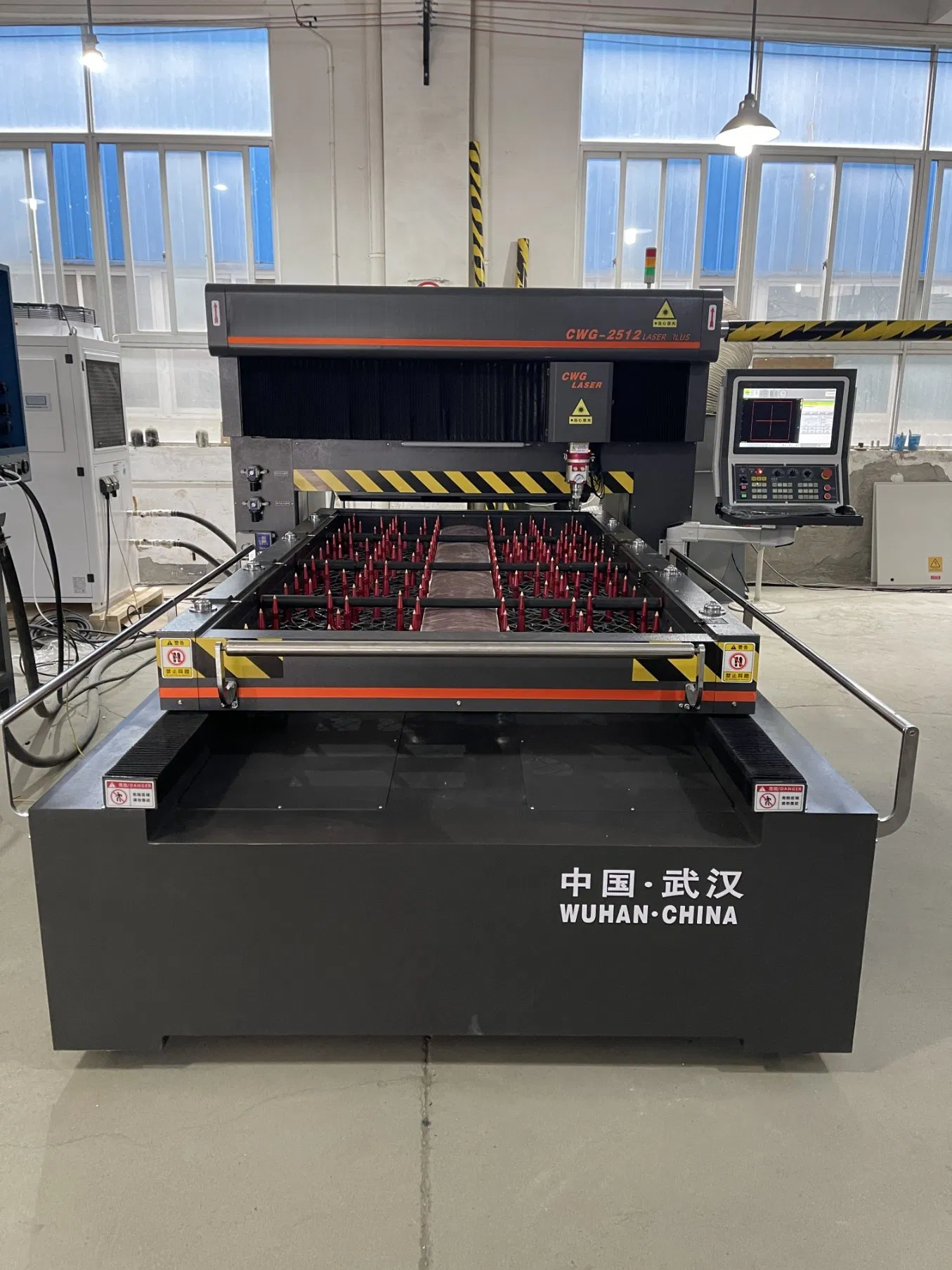

CO2 laser cutting machine with gantry structure ensuring high stability.
Constant structure ensures optical path stability via Y-axis movement.

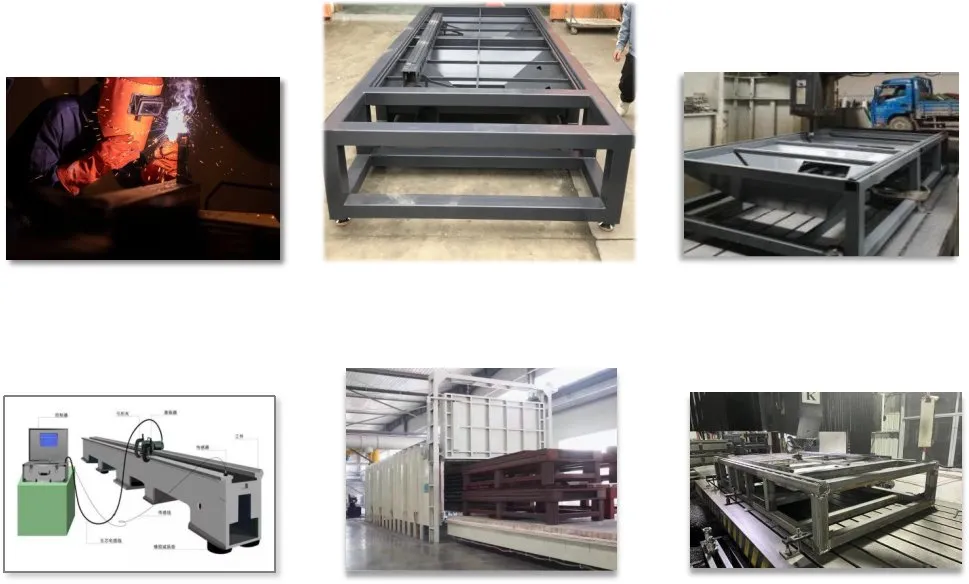

Welding structure and tempering for high strength and rigidity.
Stress eliminated by tempering and vibration aging for precision.
Z-axis with contact type inductance sensor for automatic surface tracking.
Automatic tracing-edge functionality.
Full protection and lubrication for transmission systems.
Strict anti-interference standards for reliable operation.
Imported precision ball screws for X/Y/Z axis.
Professional customized PA-8000 CNC system.

Technical Specifications

Seq	Item	Parameter
1	Processing area (L * W)	2500mm×1250mm
2	X axis travel	2500mm
3	Y-axis Travel	1250mm
4	Z axis travel	120mm
5	X, Y axis positioning accuracy	±0.02mm/m
6	X, Y axis repeat positioning accuracy	±0.02mm
7	X-Y axis positioning speed	50m/min
8	Numerical control system	PA-8000
9	Power Supply	380V/50Hz
10	Working bed max load weight	300kg
11	Machine weight	55000kg (Total)

Machine Details & Components

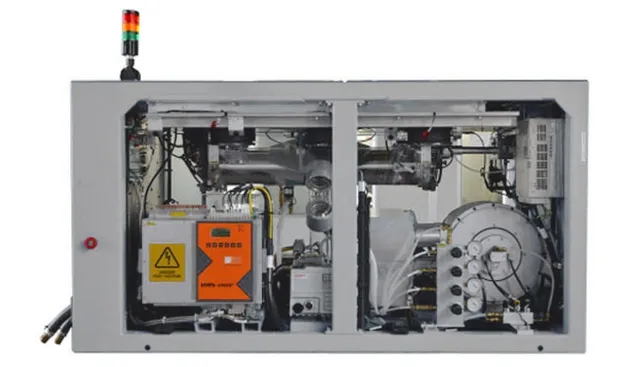

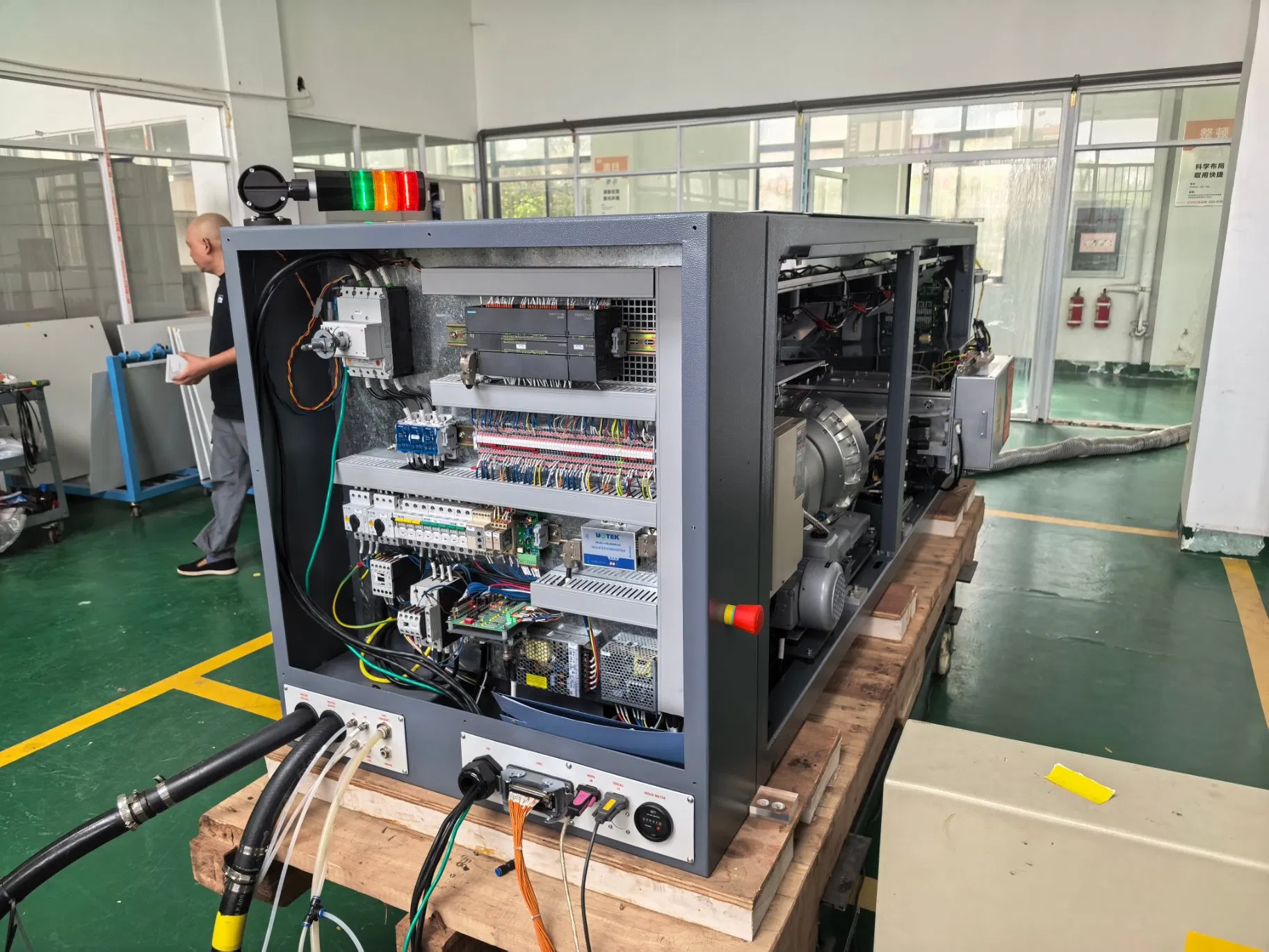

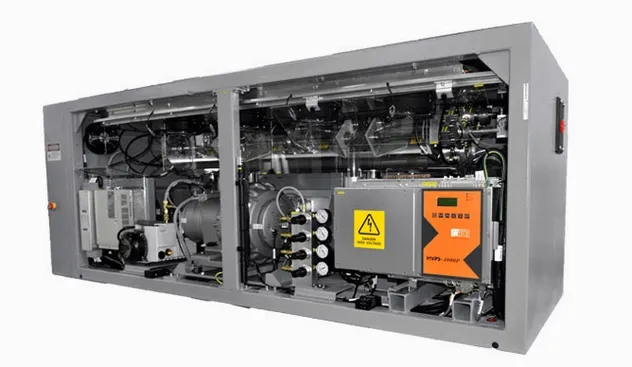

Laser Source Specification

Specification	CP1300/1800/2400
Laser power range(W)	50-1300/1800/2400
Wave length(μm)	10.6
Polarization	45° linear polarization
Beam quality (M2)	< 2.4 (typical 2.1 to 2.3)
Pulse frequency (KHz)	0-2
Beam diameter (mm)	14.5mm@1/e2, 19mm full beam
Gas composition	CO2:N2:He = 4%:28%:68%
Ambient temperature	Max. 40℃, Min. 10℃
Coolant	Distilled water (with 35% Antifreeze)

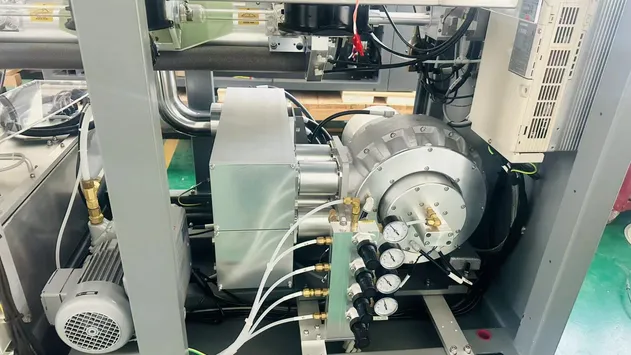

Advanced Structural Advantages

Integrated structure design for minimized installation volume.
Precision machined aluminum alloy end plates for thermal stability.
No-deformation light bridge to eliminate temperature-based resonator distortion.
Suspension installation technology to eliminate vibration effects.
Oil-free turbine system to prevent pollution of mirrors and discharge tubes.
Intelligent gas mixing unit to reduce operational costs.
DC excited high voltage power supply with strong anti-interference.
Fast response and high peak pulse for superior drilling quality.
Reliable 24-hour full power stable operation.

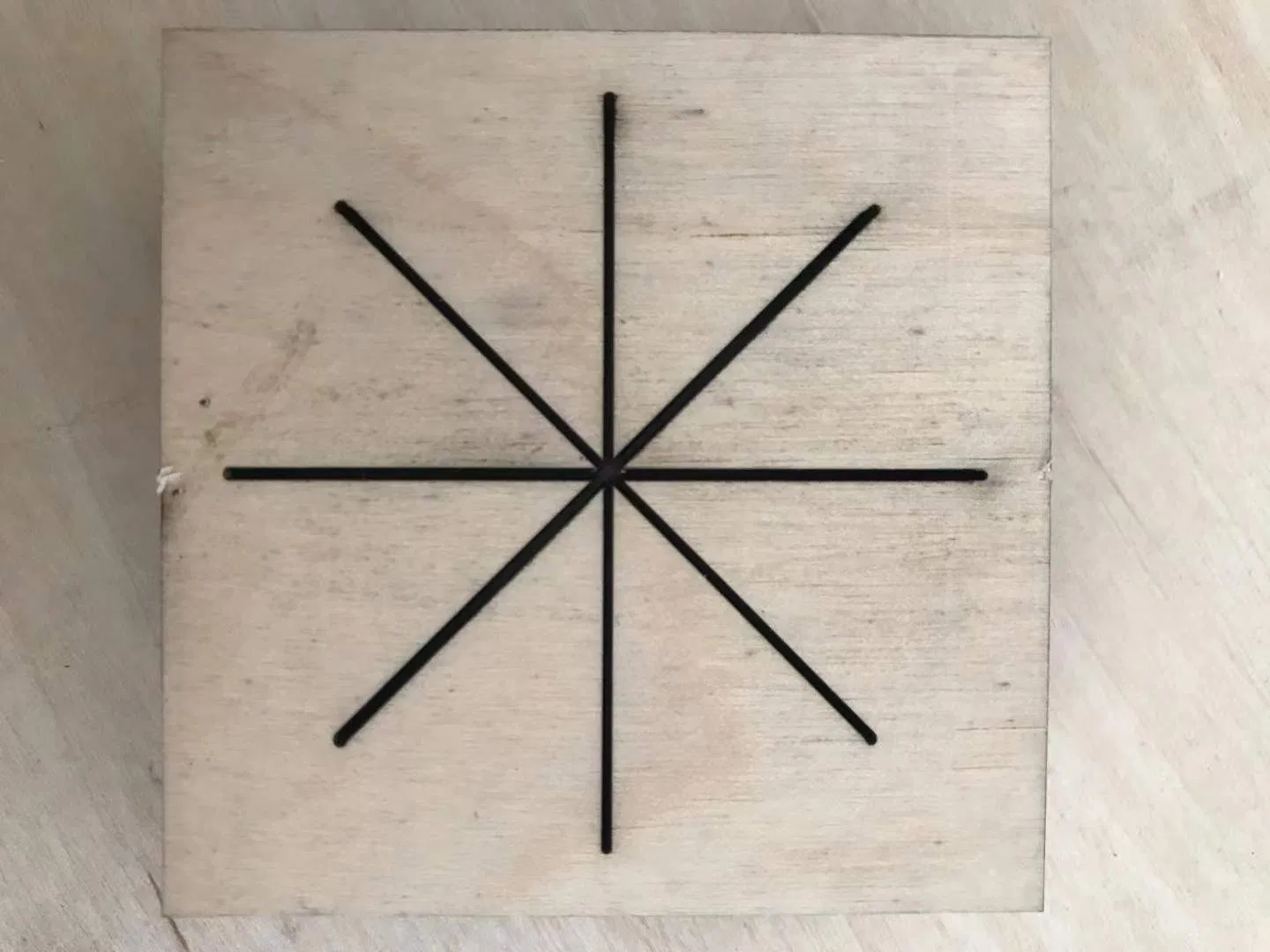

Processing Samples

Professional Capabilities

We expertly merge the production of laser cutting, welding, and cleaning machines. We are passionately committed to delivering unparalleled quality in state-of-the-art equipment and exceptional customer service, ensuring unwavering dedication to clients' satisfaction.

Frequently Asked Questions

What materials can this CO2 laser machine cut?

The machine is specifically designed for nonmetal materials, making it ideal for industries such as advertising, shoemaking, and home appliances.

How does the Z-axis tracking system work?

It utilizes a contact-type inductance sensor that automatically tracks the surface of the plate during cutting to maintain a stable distance between the nozzle and the material, even if the surface is uneven.

What are the benefits of the PA-8000 CNC system?

The PA-8000 is a professional customized system that offers efficient perforation, sharp angle processing, and advanced laser control capabilities.

What type of cooling system is required for operation?

The system uses a water cooling method involving distilled water mixed with approximately 35% antifreeze to ensure thermal stability and protect the resonator.

Is the machine suitable for continuous industrial use?

Yes, the machine is designed for stable operation for 24 hours under full power, supported by high-quality components like imported precision ball screws and oil-free turbines.

How does the machine save on gas consumption?

It features an intelligent gas mixing unit that regulates consumption based on actual power needs, eliminating the need for expensive pre-mixed gases and reducing operational costs.
