Basic Specifications
| 57IC09/57IC22/57IC30 |
Two-Phase |
| HB-Hybrid |
Control, Driving |
| 4 |
Driving |
| Magnetic-Electric |
ISO9001, Ce, RoHS |
| Integrated Motor System for Automatic Crawling |
| Green Export Package |
NEMA |
| China |
8501310000 |
| 1,000,000 PCS/Year |

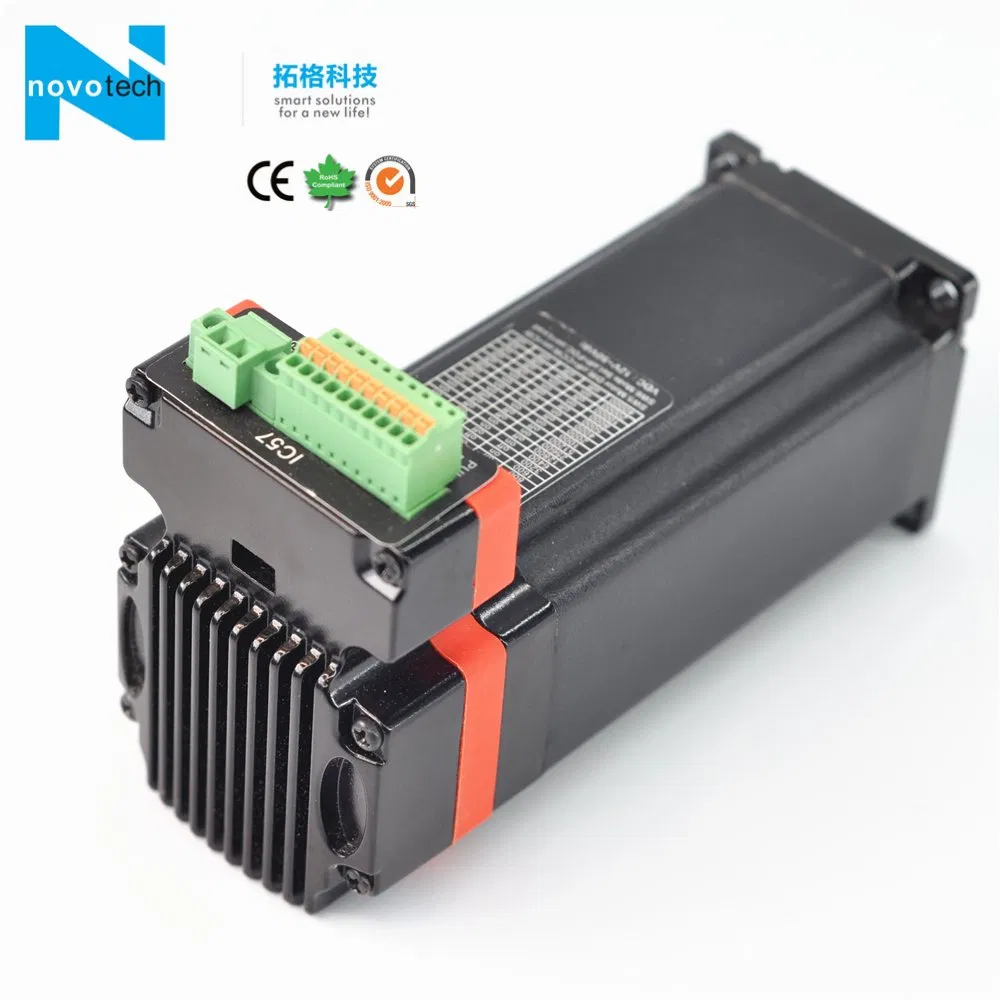

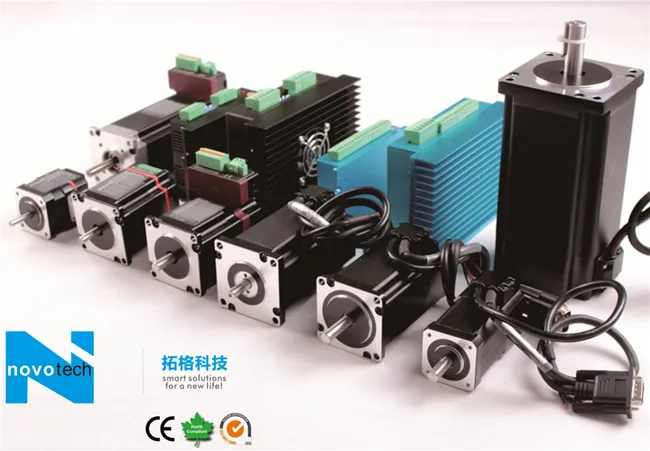

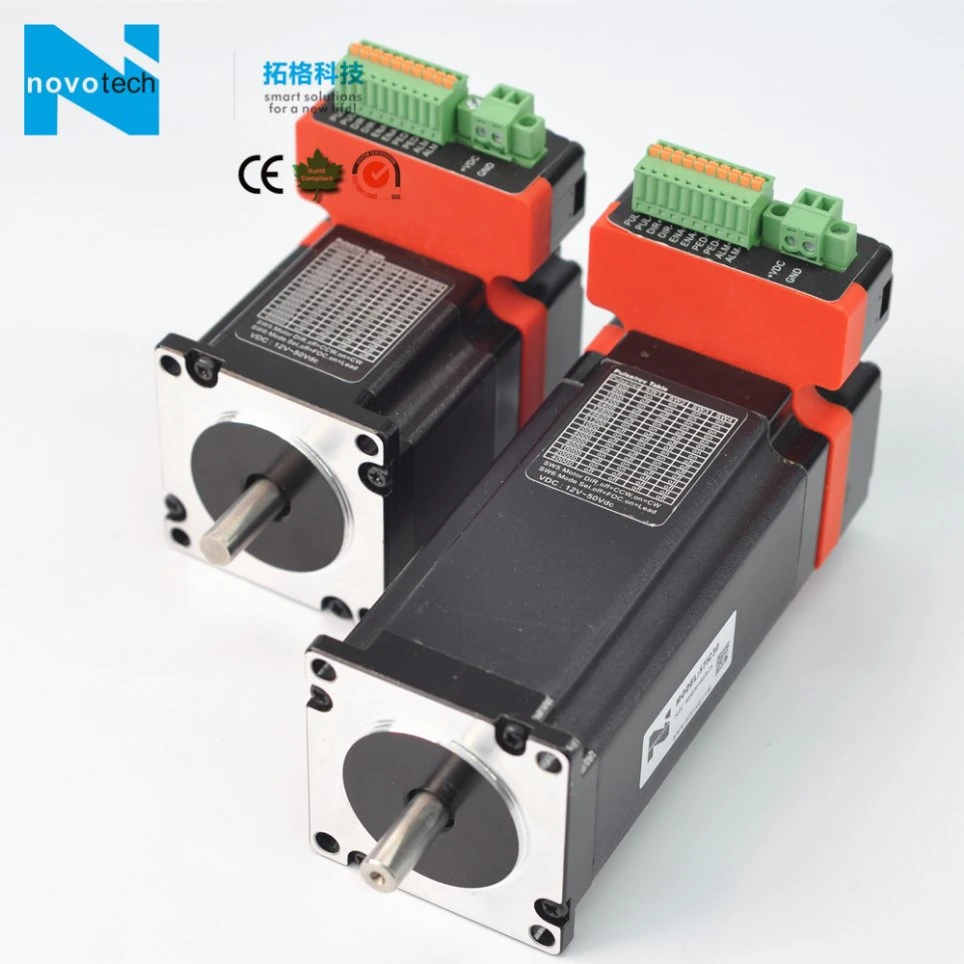

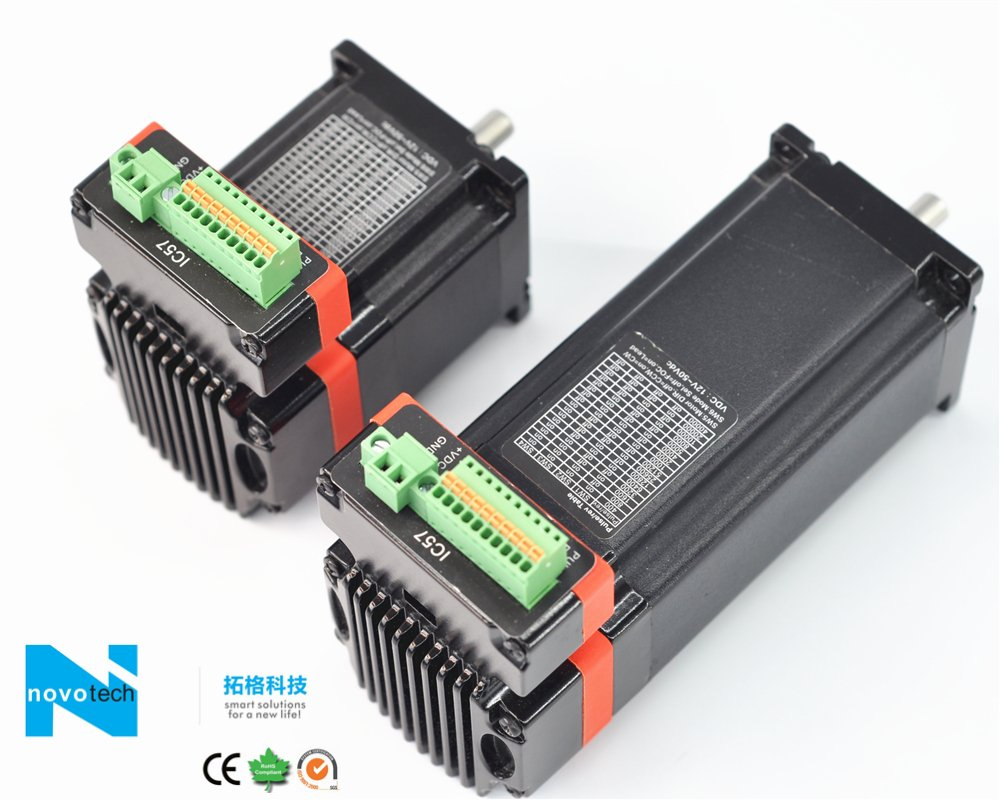

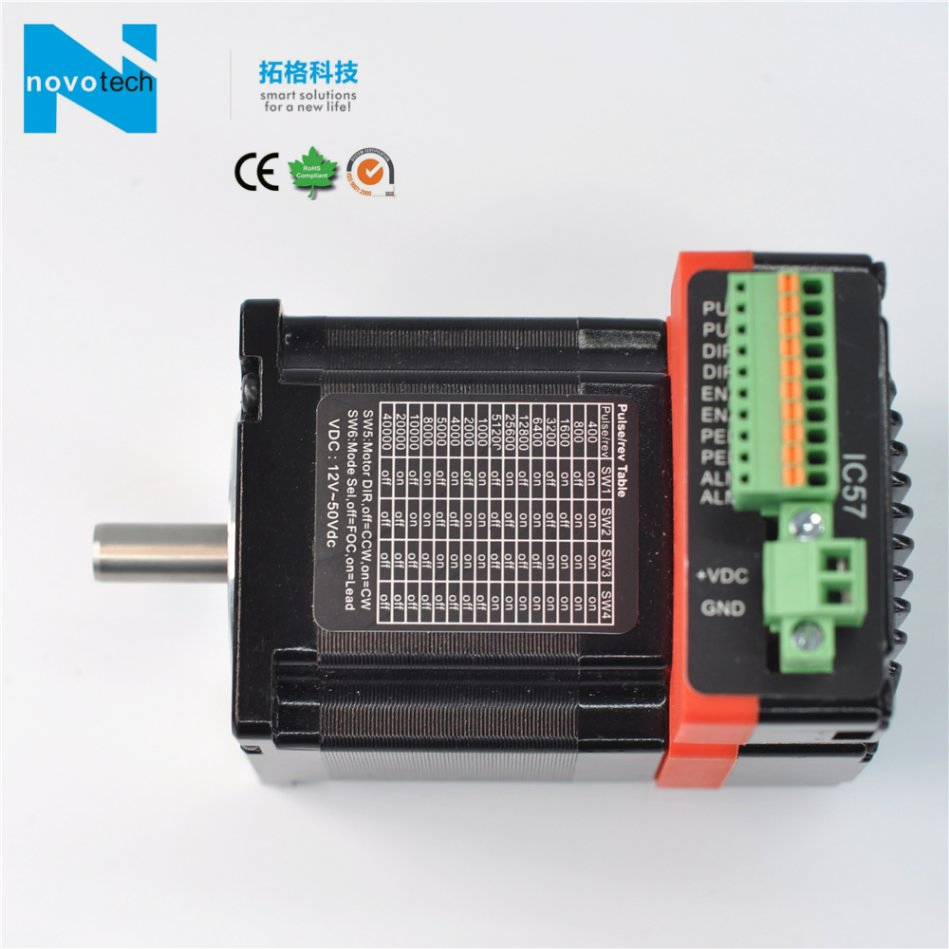

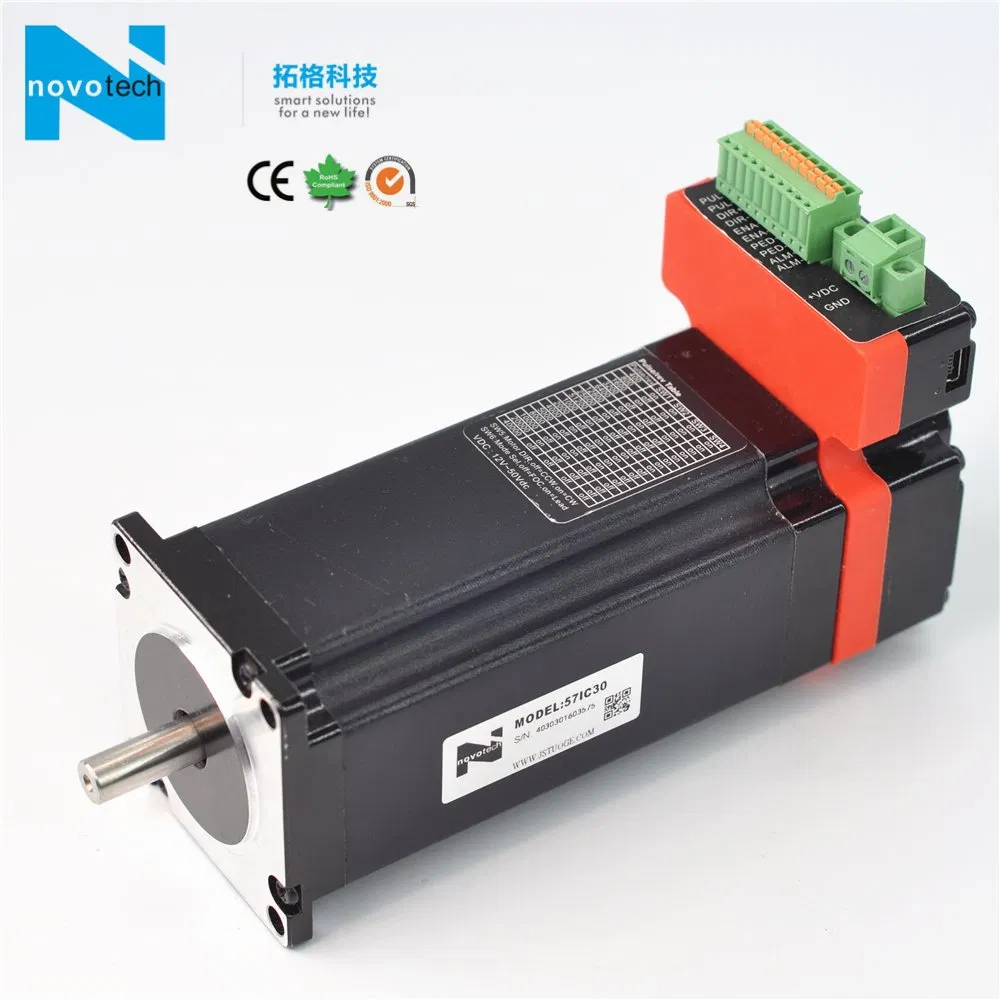

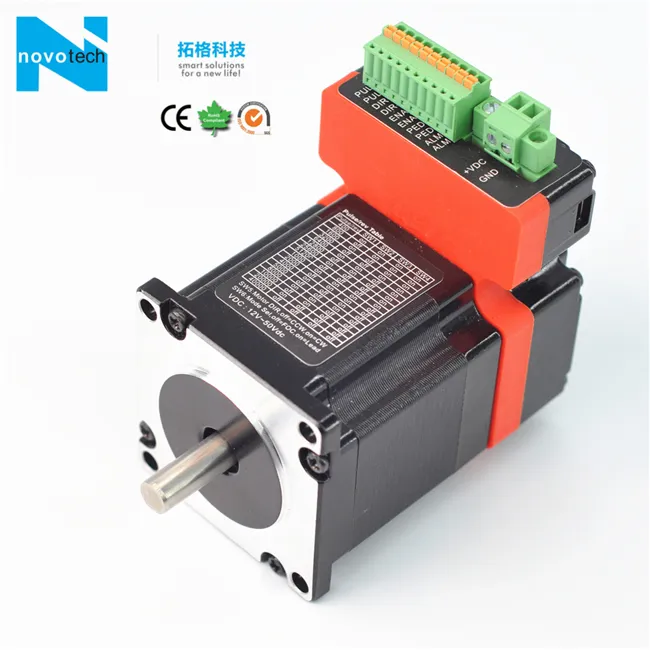

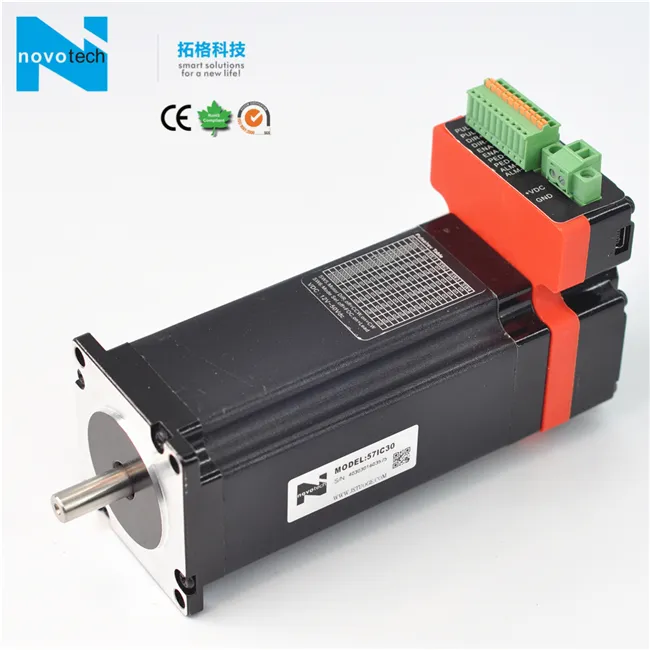

DC Motor Mechanical Electronic System
Technical Features
Operating voltage: DC input voltage 15VDC to 50VDC, recommended working voltage 36V.
The max continuous output current is 8.2A, the max peak current is 13A (advanced overload capacity).
FOC magnetic positioning control and space vector pulse width modulation (SVPWM) closed-loop technology.
Advanced variable current and frequency conversion technology reducing heat and vibration.
The number of pulses per cycle can be set via debug software or dial switch (max subdivision 51200).
The max pulse frequency of control instruction is 500KHz (factory default is 200KHz).
Signal input interface level is 4.5 to 28V compatible.
Performance: smooth speed, small overshoot, low tracking error, and low heat generation.
Driver Model Selection Guide
| Holding Torque |
1.0N•M |
2.2N•M |
3.0N•M |
1.0N•M |
1.5N•M |
| Vector Max Current |
6A |
6A |
8.0A |
5.6A |
5.6A |
| Control Scheme |
Pure vector FOC control, quick start/stop point(PM) control, power angle control |
| Step Angle / Poles |
1.8°/50 pairs pole |
1.2°/50 pairs pole |
| Operation Voltage |
15-50Vdc (36Vdc recommended) |
| Protection |
Overcurrent, overvoltage (68Vdc±2), undervoltage, and tracking error alarm |

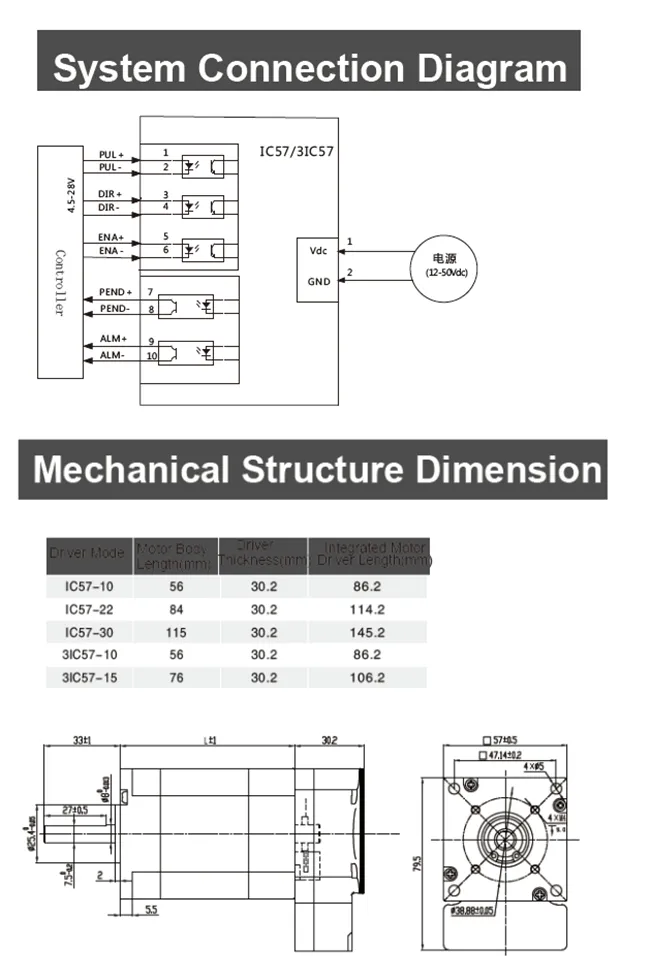

Dial Switch Settings (Pulse/Rev)
| Default | ON | ON | ON | ON |
| 1600 | ON | OFF | ON | ON |
| 6400 | ON | ON | OFF | ON |
| 12800 | OFF | ON | OFF | ON |
| 51200 | OFF | OFF | OFF | ON |
| 10000 | OFF | ON | OFF | OFF |
Industrial Applications
Suitable for laser equipment, medical equipment, 3D printers, small engraving machines, electronic processing equipment, automatic crawling equipment, CNC machine tools, packaging equipment, and robotics. Ideal for low noise and high-speed requirements.
Packaging & Services
Shipping: Standard export cartons with shock-absorbing EPE foam and waterproof cardboard packaging.
Service Standards:
- Quick response to technical inquiries.
- Lead time: 2-5 days for samples; mass production varies by quantity.
- Warranty: 18 months with life-long maintenance support.
- Customization: Available based on voltage, torque, and body length requirements.
Frequently Asked Questions
Q1: How to choose the suitable stepper or servo motor?
Key factors include motor size, length, holding torque, voltage, and current. Once these parameters are confirmed, we can recommend the ideal model for your application.
Q2: Can I match a model if I am currently using a different brand?
Yes, you can provide the specifications or the model number of your current motor, and we will help you find a suitable high-performance alternative.
Q3: How is the quality of the industrial components guaranteed?
We utilize an integrated quality control system, including IQC (Incoming), IPQCS (In-process), FQC (Final), and OQC (Outgoing) stages to ensure every part meets strict tolerances.
Q4: What are the main advantages of these motor systems?
Our products feature competitive pricing, fast delivery, and high durability. They are known for smooth finishes, strict tracking accuracy, and long service life.
Q5: Is customization available for specific requirements?
Yes, we accept product customization. We can adjust parameters such as current, torque, and physical dimensions to meet your specific automation needs.
Q6: What is the warranty period for these products?
We provide an 18-month warranty period and offer life-long maintenance services for all our motor and driver products.
