| Parameters | Type A | Type B | Type C |
|---|---|---|---|
| Mesh Width | ≤2000 | ≤3000 | ≤4000 |
| Horizontal Wire Spacing | ≥50mm | ≥50mm | ≥50mm |
| Number of Solder Joints | 21 | 31 | 41 |
| Transformer | 125KVA*11 | 125KVA*16 | 125KVA*21 |
| Welding Mesh Material | Cold-rolled ribbed/cold-rolled plain round (rebar) | ||
| Welding Wire Diameter | 6-12 | 6-12 | 6-12 |
| Welding Speed | 45-60 times/Min. | 45-60 times/Min. | 45-60 times/Min. |

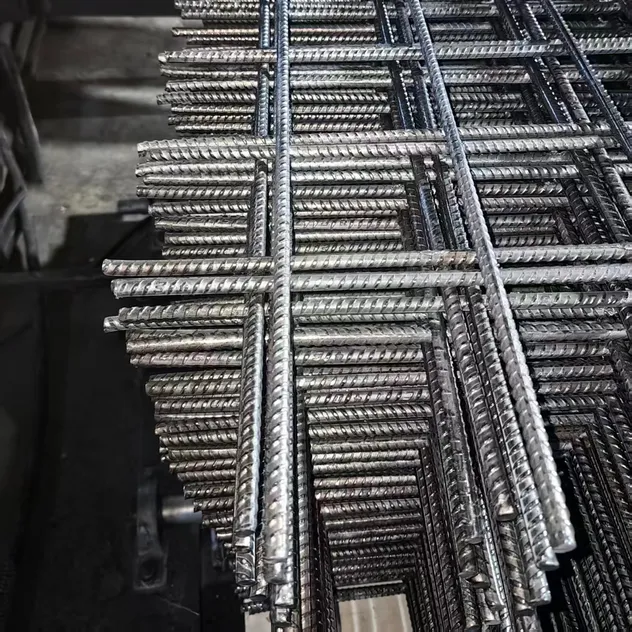

| Outbound Mesh Type | Mesh Panel | ||

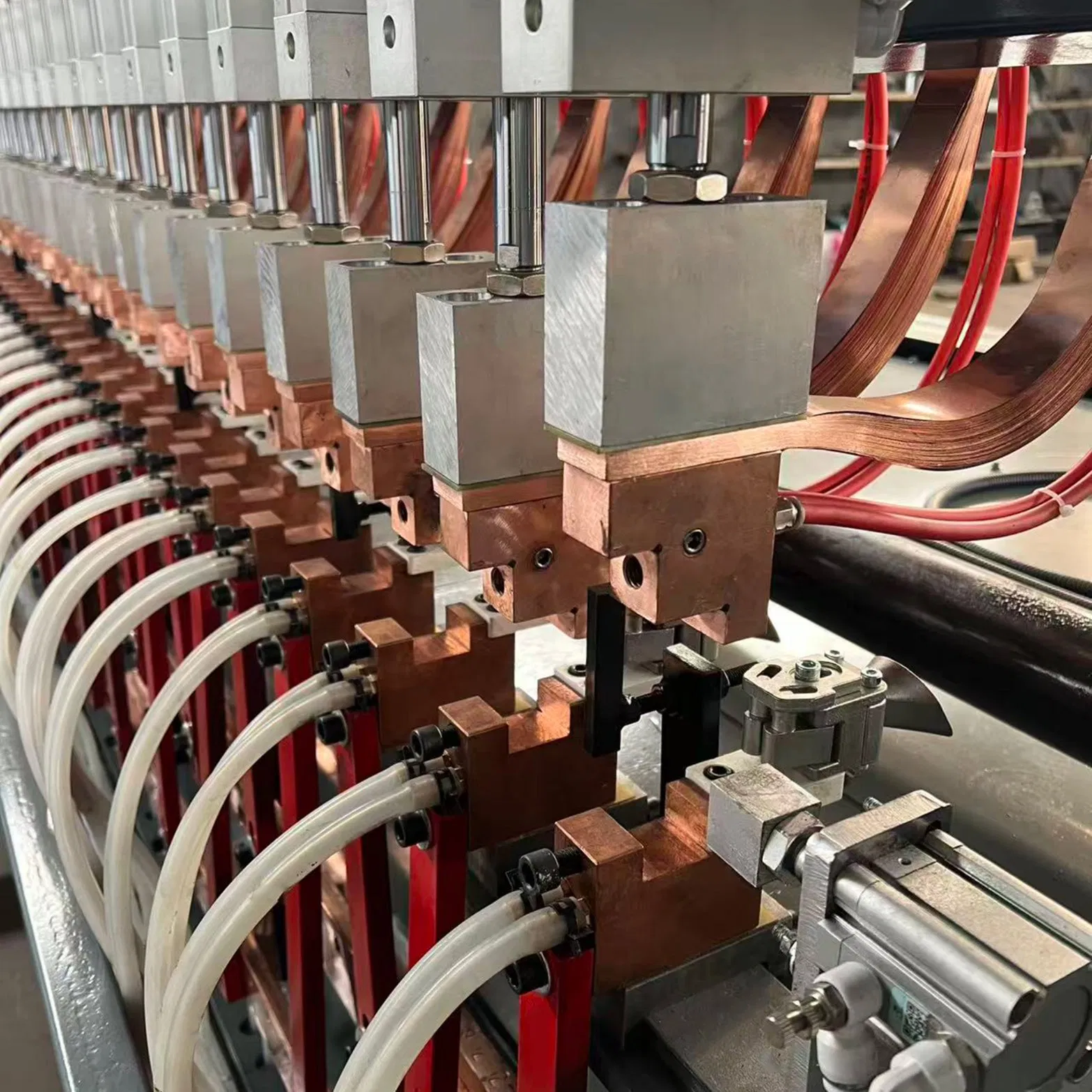

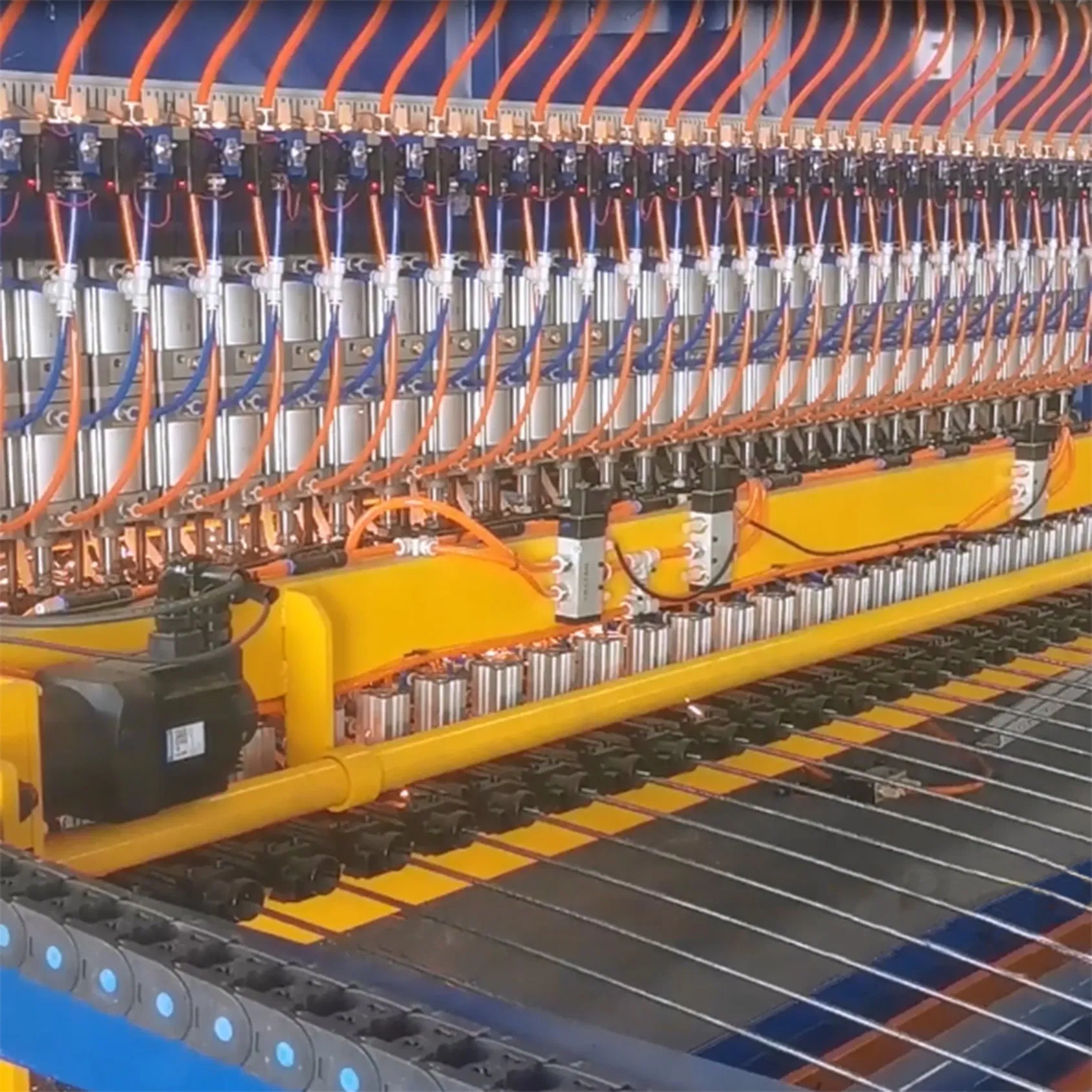

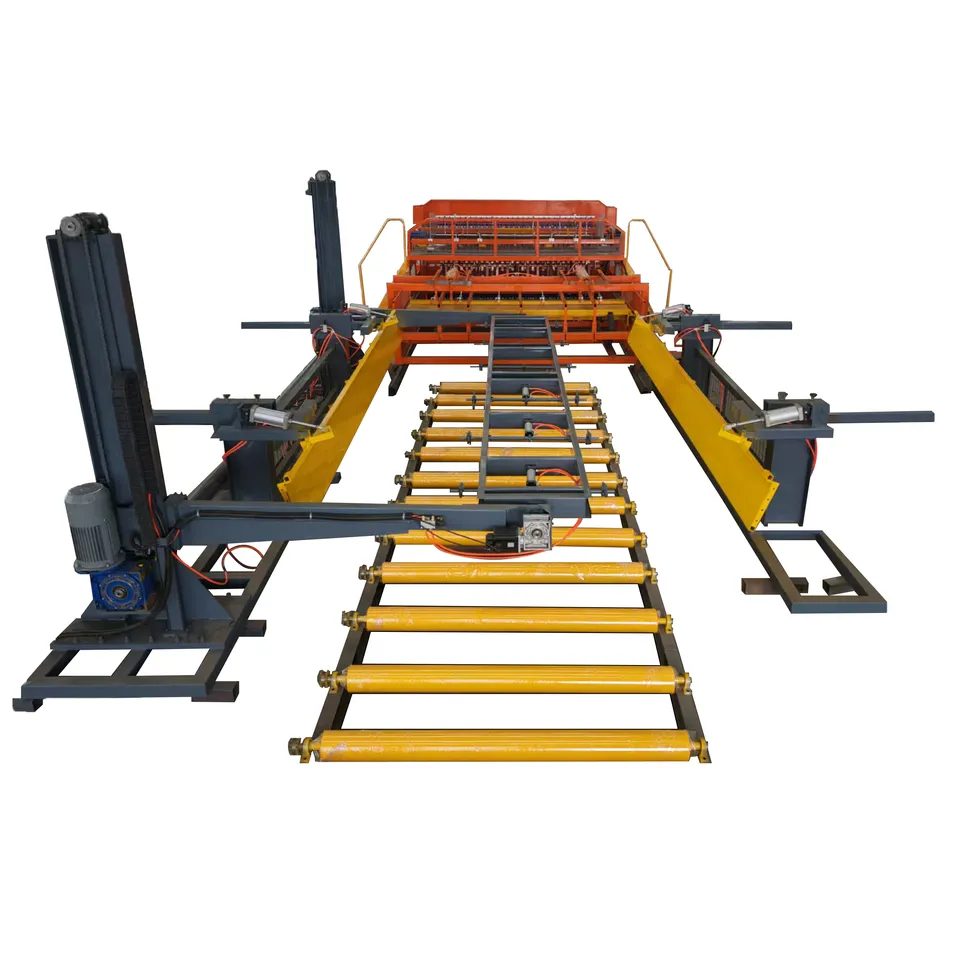

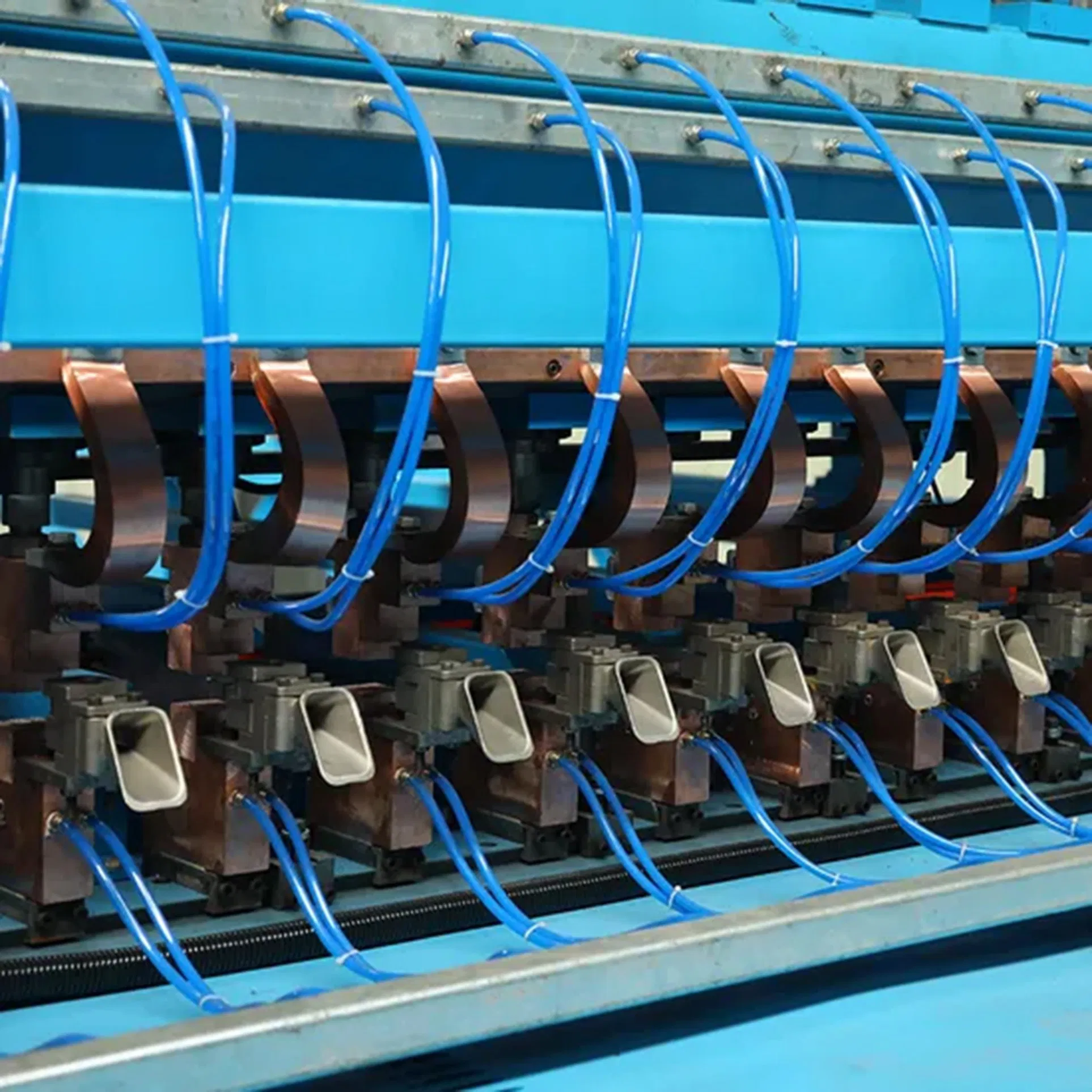

Welding System: Electrode assembly with copper tips and arms, high-temperature resistant and conductive. Includes welding transformer for stable current.
Wire Feeding Mechanism: Longitudinal and transverse feeding rollers driven by motor for uniform spacing; includes straightening mechanism.
Forming & Positioning: Frame with positioning grooves and limit devices to define precise mesh size.
Electrical Control System: PLC controller for coordinated actions, including operation panel, relays, and contactors.

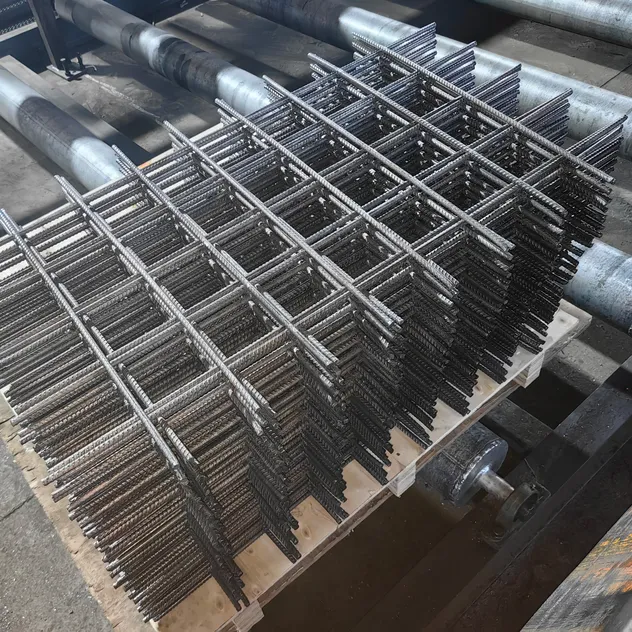

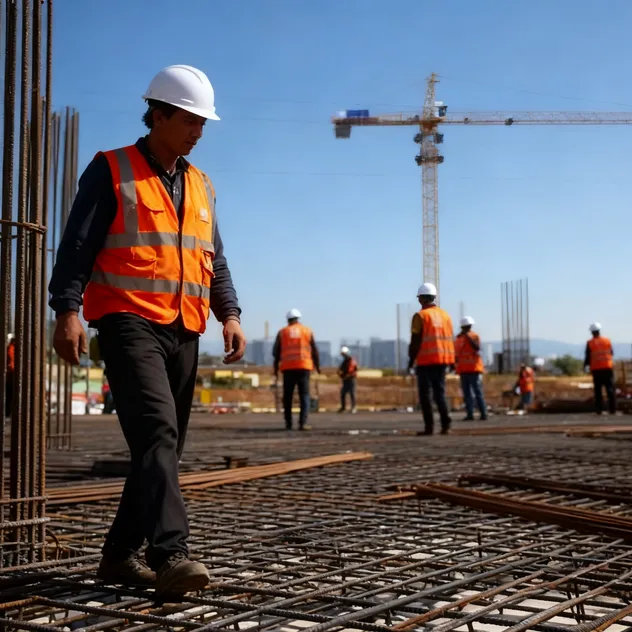

Building Construction

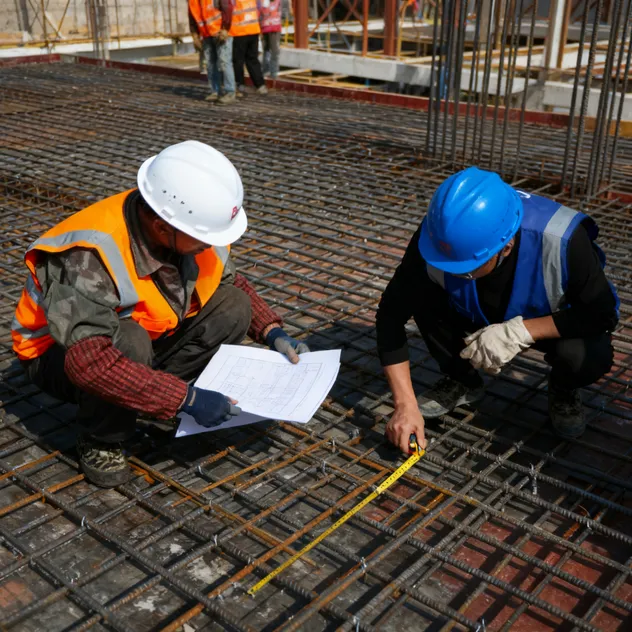

Road and Bridge Engineering

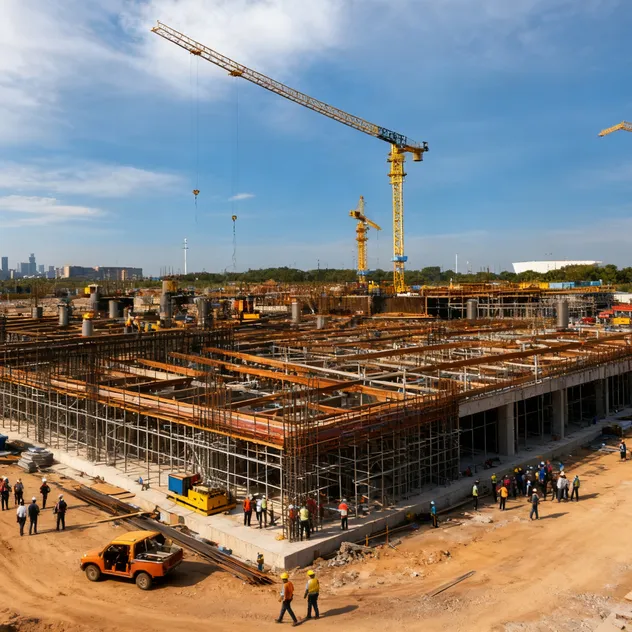

Foundation Engineering
Our company has specialized in wire mesh welding machines and wire mesh products for over 20 years. We supply machines and wire mesh to production factories, construction companies, and end users worldwide.

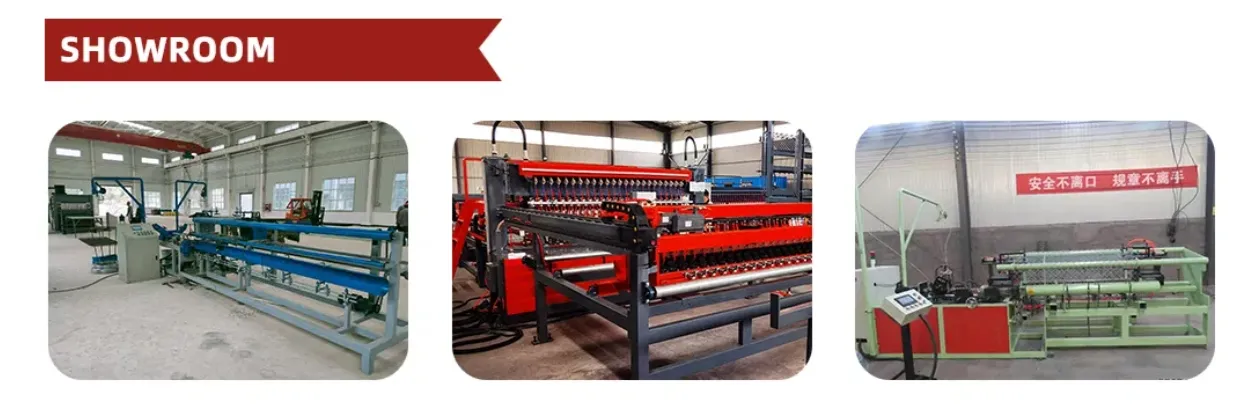

Main products include: pneumatic steel mesh machines, mechanical steel mesh machines, fence mesh machines, chain link fence machines, fully-automatic welded wire mesh machines, wire drawing machines, and more. We provide complete production line solutions tailored to your workshop requirements.
