PROFESSIONAL MANUFACTURER OVERVIEW:

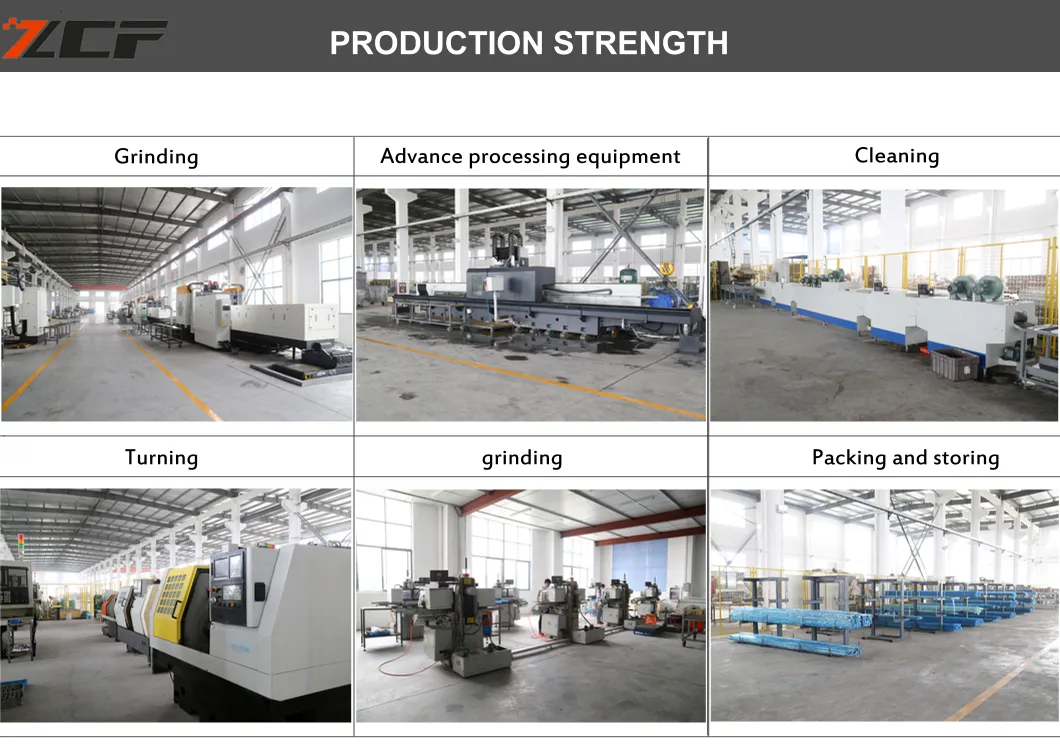

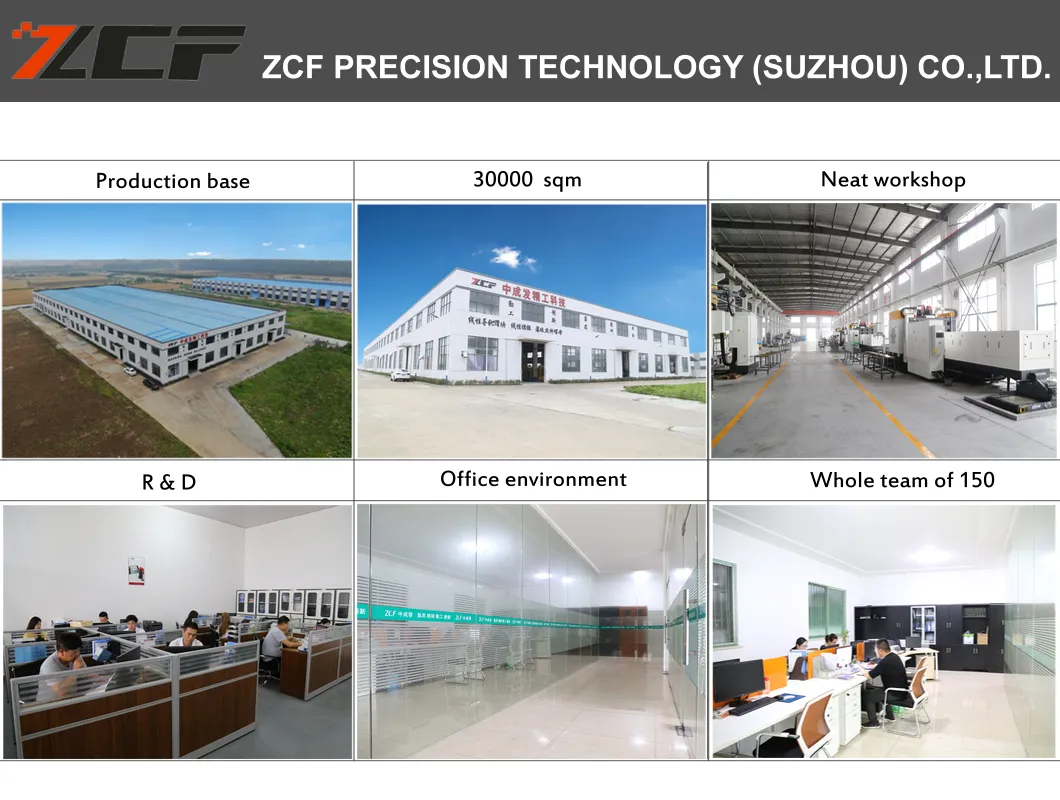

A leading specialist in Linear Guides, Linear Modules, and Ball Screws. Our facility covers over 33,333 square meters with advanced production capabilities. With over 10 years of industry experience, we have established a strong brand presence by manufacturing products to international standards for a worldwide customer base.

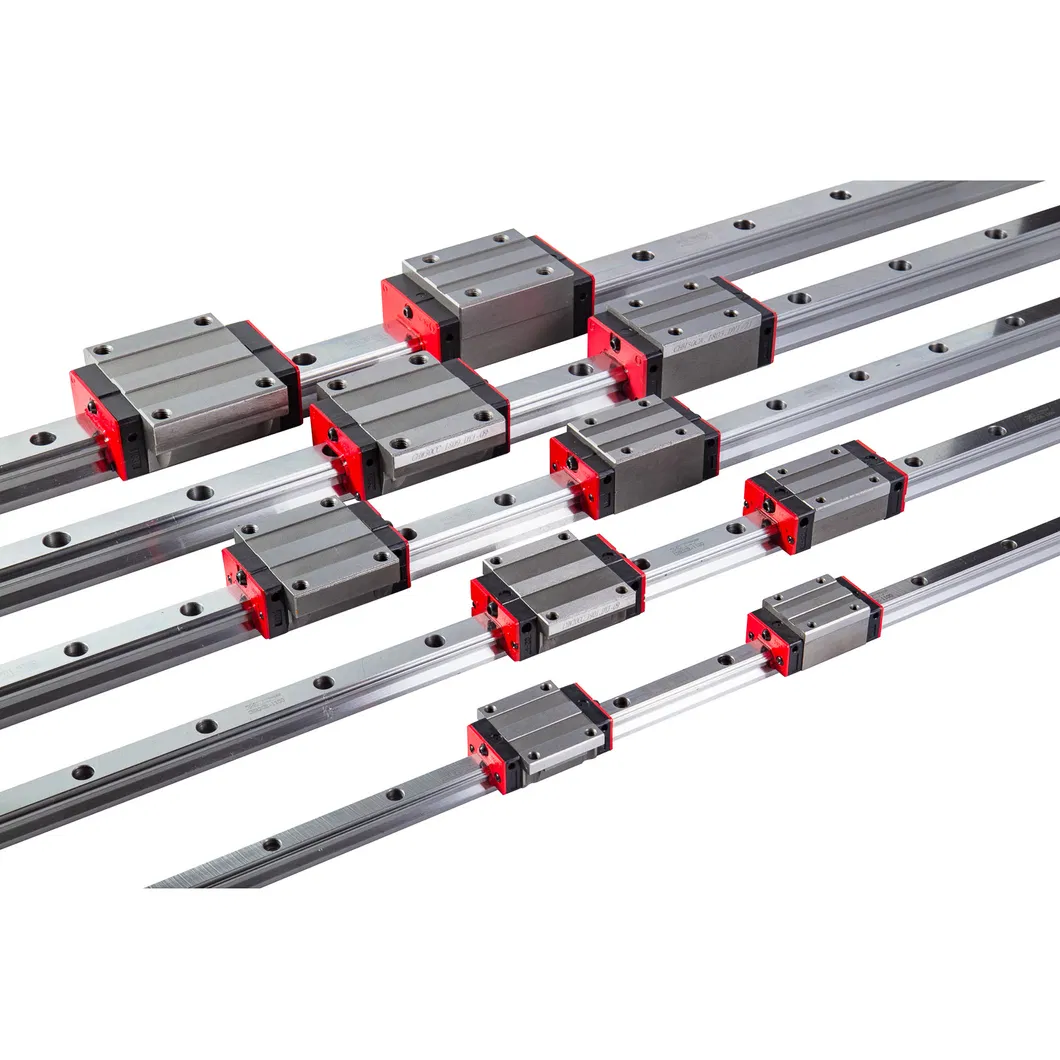

CH Series linear guides are available in five accuracy levels: Common (C), High (H), Precision (P), Super-Precision (SP), and Ultra-Precision (UP). Users can select the appropriate level based on their equipment's specific requirements.
| ACCURACY LEVEL | COMMON | HIGH | PRECISION | HIGH-PRECISION | ULTRA-PRECISION |
|---|---|---|---|---|---|
| (C) | (H) | (P) | (SP) | (UP) | |
| TOLERANCE OF H | ± 0.1 | ± 0.03 | 0- 0.03 | 0- 0.015 | 0- 0.008 |
| TOLERANCE OF N | ± 0.1 | ± 0.03 | 0- 0.03 | 0- 0.015 | 0- 0.008 |
| TOLERANCE OF MUTUAL H | 0.02 | 0.01 | 0.006 | 0.004 | 0.003 |
| TOLERANCE OF MUTUAL N | 0.02 | 0.01 | 0.006 | 0.004 | 0.003 |
1. Product Applications:
2. Size Selection: Based on load status and Ball Screw pairing. For instance, if the external diameter of the screw is 35mm, select CH35.
Proper lubrication is essential to reduce friction, prevent burns, minimize wear, and prolong fatigue life. It also serves as a critical rust prevention measure.
