Basic Info.
Model NO.
57IC09/57IC22/57IC30
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Certification
ISO9001, Ce, RoHS
Name
Integrated Motor System for Automatic Crawling
Transport Package
Green Export Package
Production Capacity
1000000 PCS/Year
Product Description

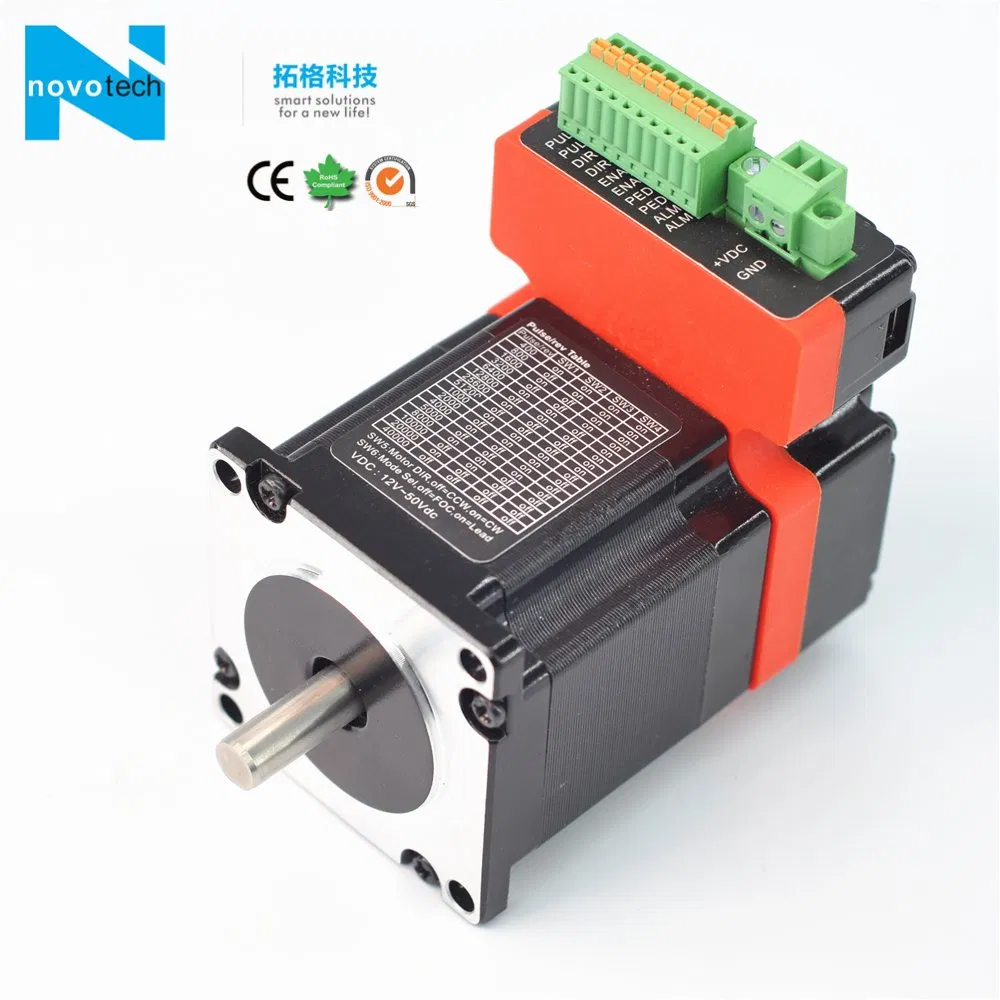

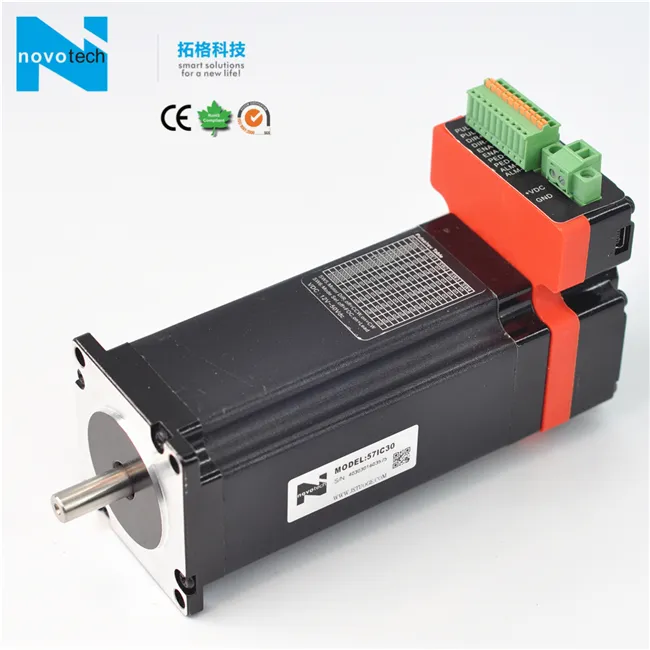

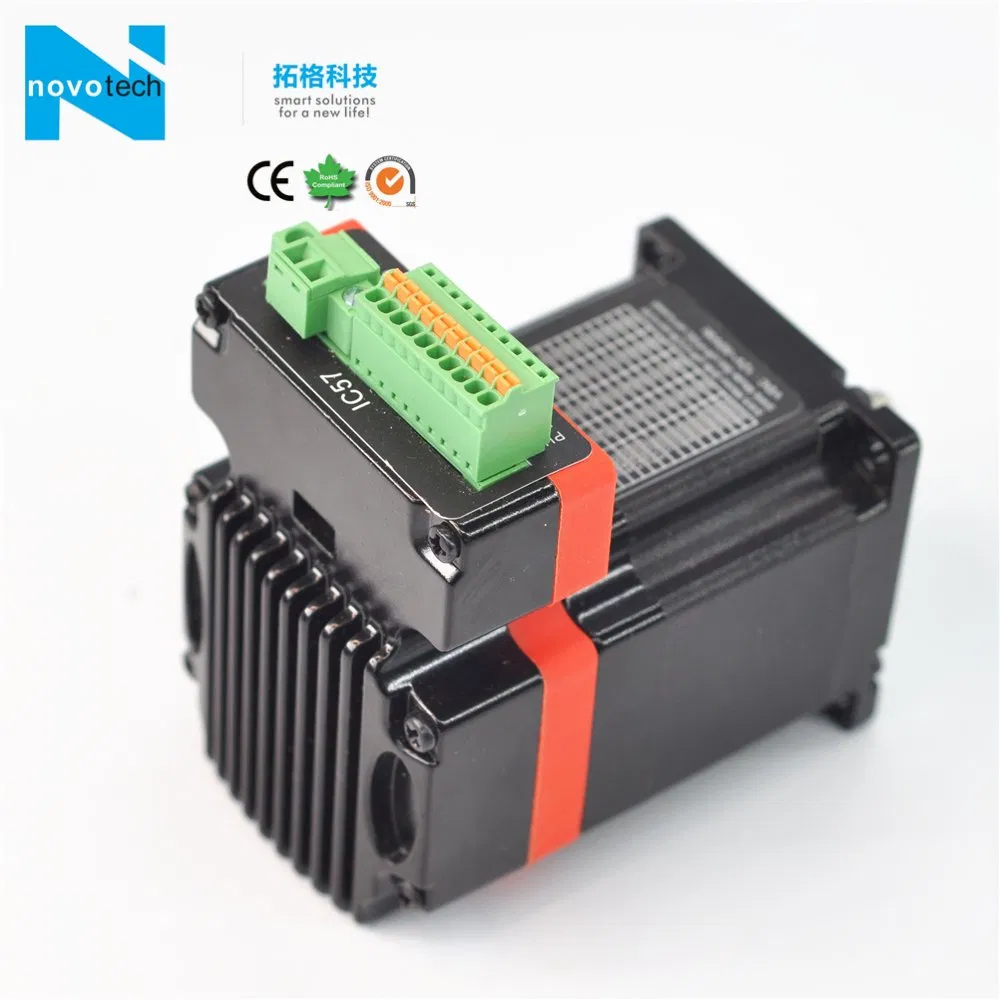

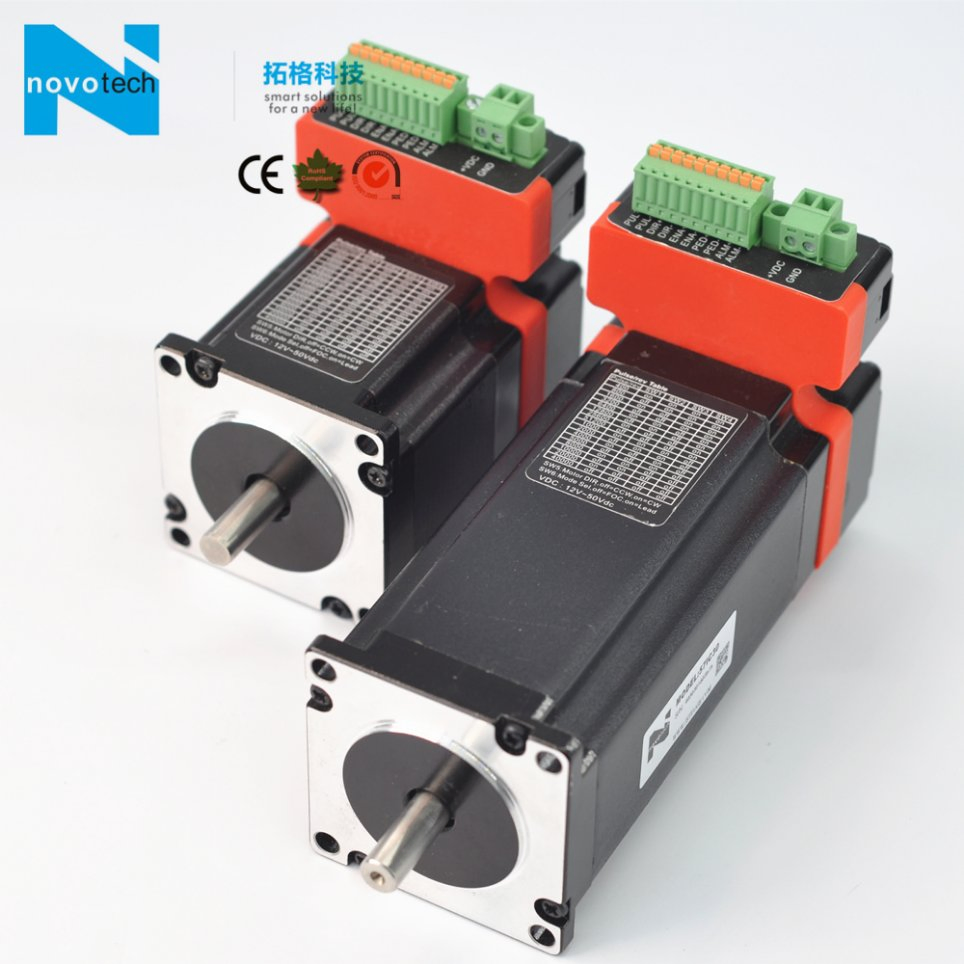

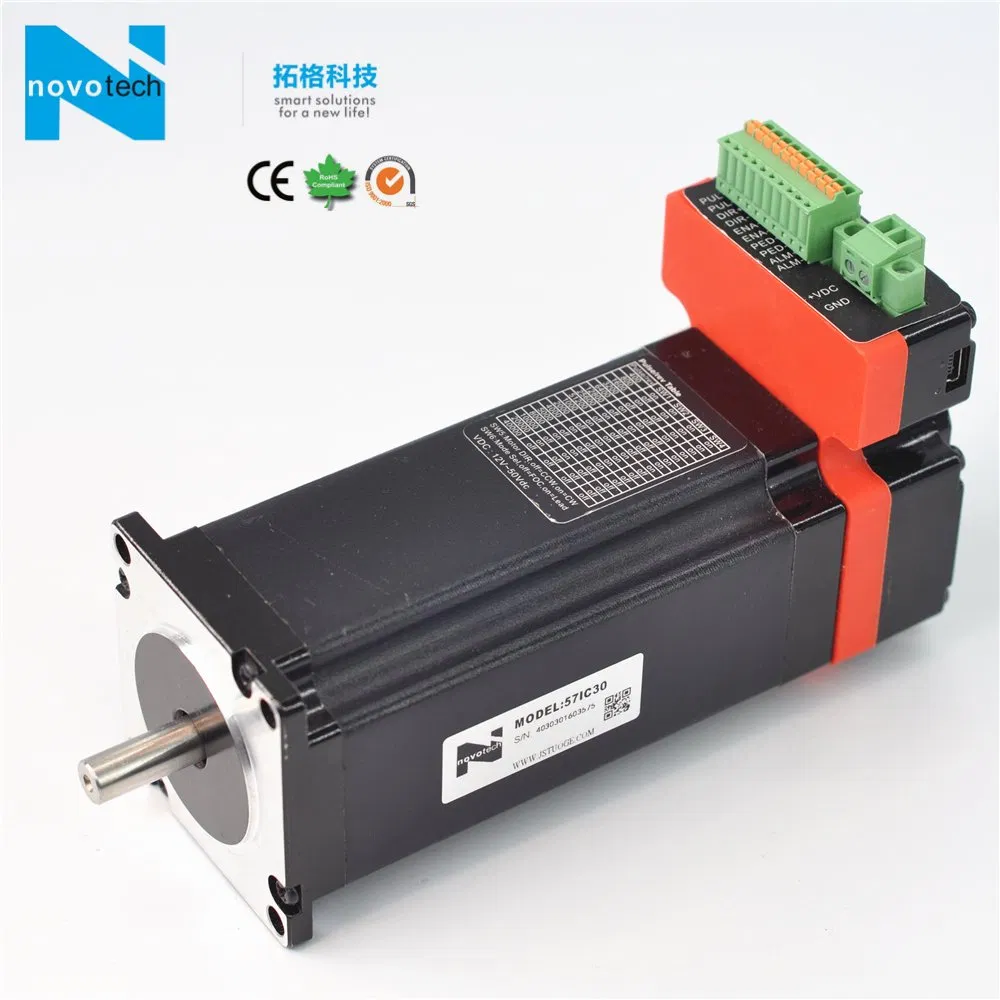

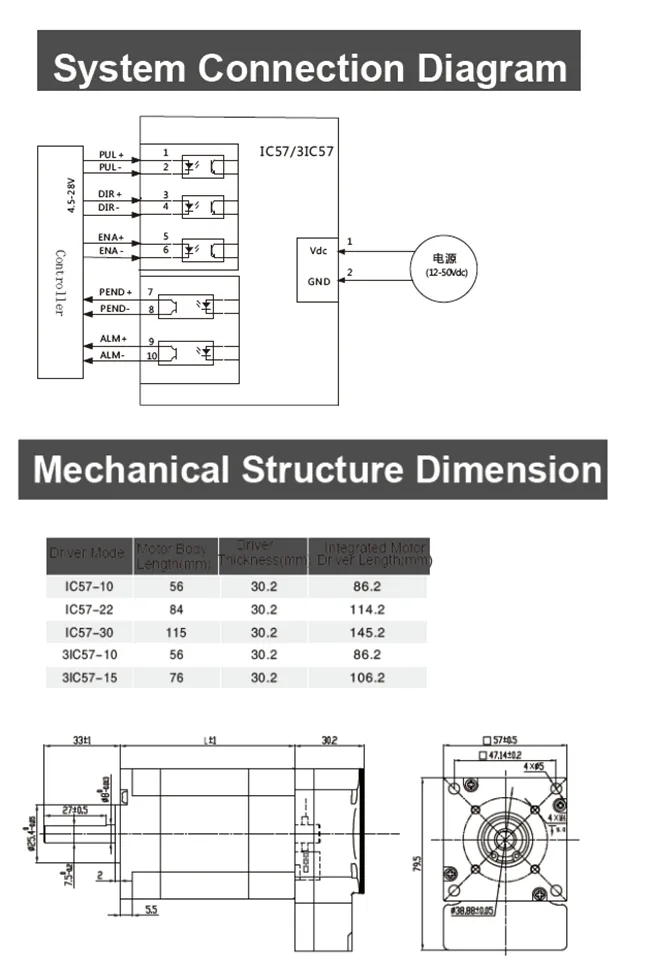

Integrated Motor System For Automatic Crawling Equipment
57IC09/57IC22/57IC30 Features
Operating voltage: DC input voltage 15VDC to 50VDC, recommend working voltage 36V
The max continuous output current is 8.2A, the max peak current is 13A (advanced overload capacity of step servo)
Using FOC magnetic positioning control technology and space vector pulse width modulation (SVPWM) closed-loop control technology
Using advanced variable current technology and frequency conversion technology, effectively reducing heat and vibration of motor and driver
The number of pulses per cycle (subdivision) can be set by the debug software or the dial switch setting, the max subdivision no. is 51200.
The max pulse frequency of control instruction is 500KHz (factory default is 200KHz)
Pulse, direction and enable signal input interface level is 4.5 to 28V compatible
Performance: smooth speed, small overshoot, good output strength in medium and high speed, small tracking error, low heat of motor and driver
Driver Model And Selection Guide
| Motor Type |
57IC09 |
57IC22 |
57IC30 |
5731C10 |
5731C15 |
| Holding Torque |
1.0N•M |
2.2N•M |
3.0N•M |
1.0N•M |
1.5N•M |
| Vector Maximum Current |
6A |
6A |
8.0A |
5.6A |
5.6A |
| Drive Control Scheme |
Pure vector FOC control scheme, quick start and stop point(PM) control scheme, power angle control scheme |
| Step Angle / Motor Pole Pairs |
1.8°/50 pairs pole |
1.2°/50 pairs pole |
| Recommended application |
Operation smooth in low-speed, and output strength is good in high-speed, low temperature rise, small vibration, excellent anti-interference ability and EMC effect |
| Operation voltage |
15-50Vdc, 36Vdc recommend |
| Overvoltage Protection Voltage |
68Vdc±2 |
| Voltage control method |
32 bits DSP Vector closed-loop control technology |
| Protection |
Overcurrent, overvoltage, undervoltage and tracking error tolerance alarm |
Dialing Switch Settings
| Pulse/Rev. |
SW1 |
SW2 |
SW3 |
SW4 |
| Default | ON | ON | ON | ON |
| 800 | OFF | ON | ON | ON |
| 1600 | ON | OFF | ON | ON |
| 3200 | OFF | OFF | ON | ON |
| 6400 | ON | ON | OFF | ON |
| 12800 | OFF | ON | OFF | ON |
| 25600 | ON | OFF | OFF | ON |
| 51200 | OFF | OFF | OFF | ON |
Note: All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length, the application area.
Application
Suitable for all kinds of small and medium-sized automation equipments and instruments. Such as: laser equipment, medical equipment, 3D printer, small and medium-sized engraving machine, electronic processing equipment, automatic crawling equipment, special CNC machine tool, packaging equipment and robot. It is especially useful for users who expect low noise and high speed applications.
Packaging and shipping
Outer packing: Standard export carton with required shipping marks
Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
As per the clients requirements
Our service
Working time: 8:00 a.m - 10:00 p.m. Any questions, please tell us freely, we will be reply you asap.
Lead time: For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.
Warrantity period: 18 months and Life-long maintenance service for the product.
We accept products customize.
FAQ
How to choose the suitable stepper or servo motor?
There are several important items: size, length, holding torque, voltage, current etc. After confirm them, we can choose the suitable one for you.
Any other methods to finalize the model?
Sure, you can send us the model you are using, we can help you find the suitable one.
How to guarantee the Quality of Industrial Parts?
We have an integrated system for industrial parts quality control including IQC, IPQCS, FQC and OQC to control each process of production.
What's the Advantage of Your Parts for Industry Products?
Our products offer competitive prices, fast delivery, and high quality. They feature strict tolerance, smooth finish, and long service time.
What is the typical lead time for orders?
For samples, 2 to 5 days is standard. For mass production, the lead time depends on the specific quantities required.
What is the warranty period for these integrated motor systems?
We provide an 18-month warranty period and offer life-long maintenance services for our products.
