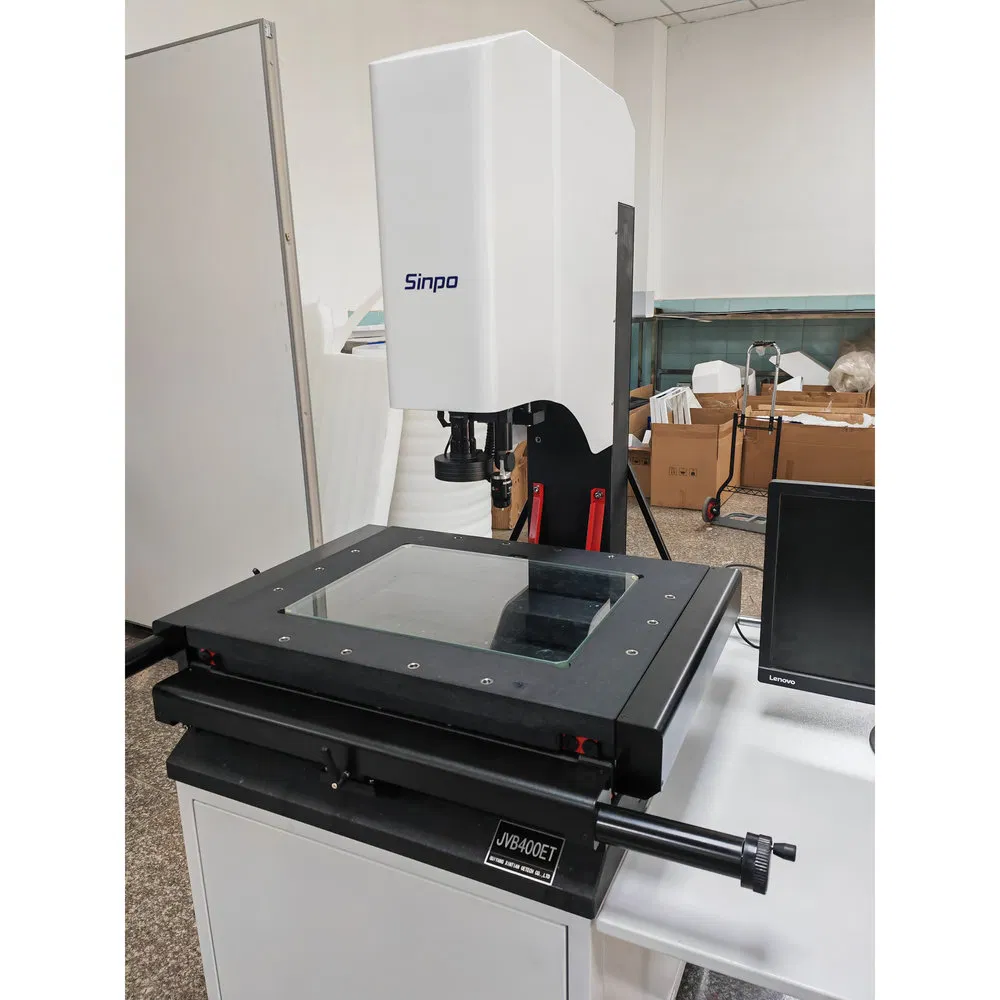

Smart Control Automated Dimension Analysis JVB400CS Automatic Vision Measuring System for Small Precision Parts

Customization:	Available
Type:	2D Video Measuring System
Operate Method:	CNC

i

Basic Information

Model NO.	JVB400CS
Product Name	Fully Automatic Vision Measuring Instrument
Measuring Stroke (mm)	400×300×200
Instrument Dimensions (mm)	900×1140×1730
Instrument Weight (kg)	450kg
Machine Load Capacity (kg)	30kg
Resolution	0.5μm (0.1μm optional)
Measurement Accuracy (X, Y)	≤(2.5+L/200)μm
Measurement Accuracy (Z)	≤(5.0+L/200)um
Measurement Speed(mm/s)	MAX: 300mm/s
CCD	230W High-Resolution Industrial Color CCD
Production Capacity	5000 Units/Year

D

Product Description

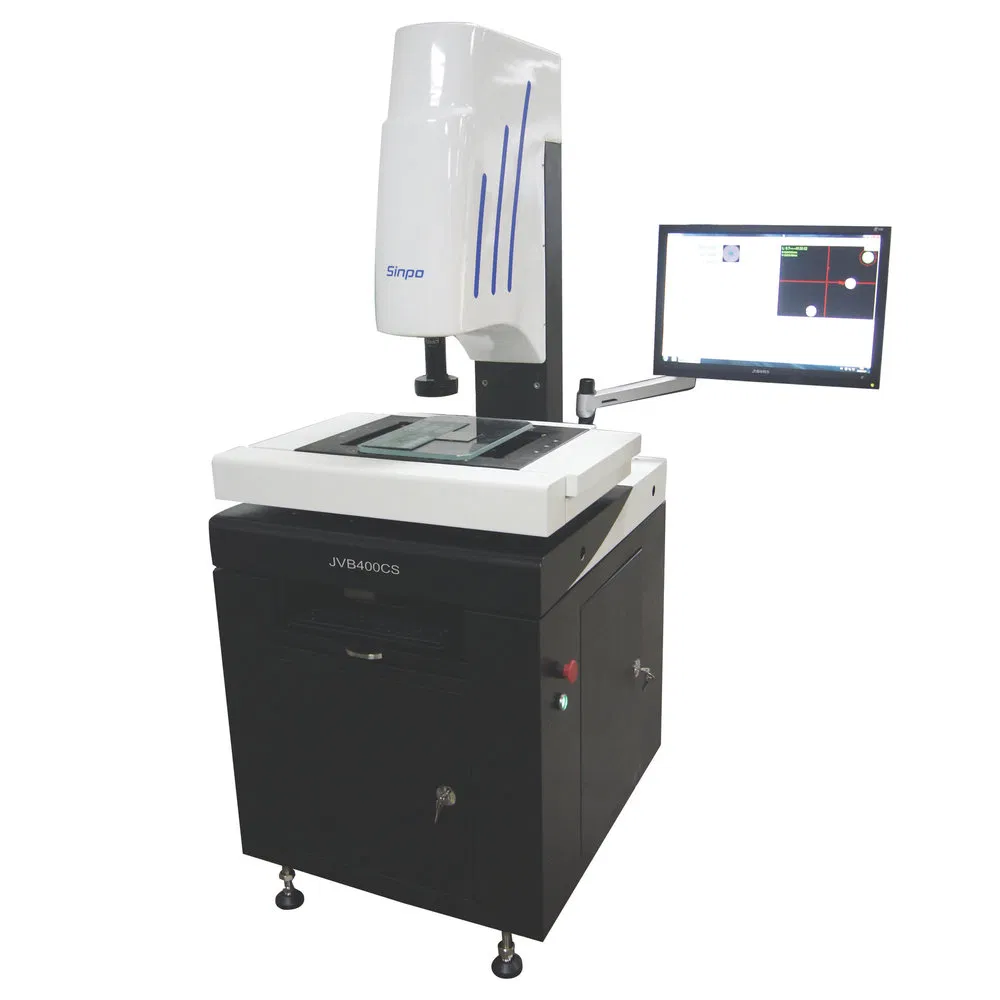

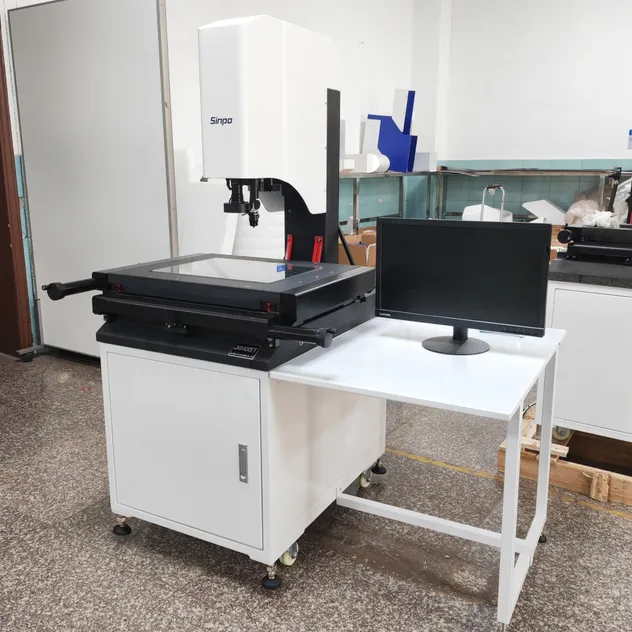

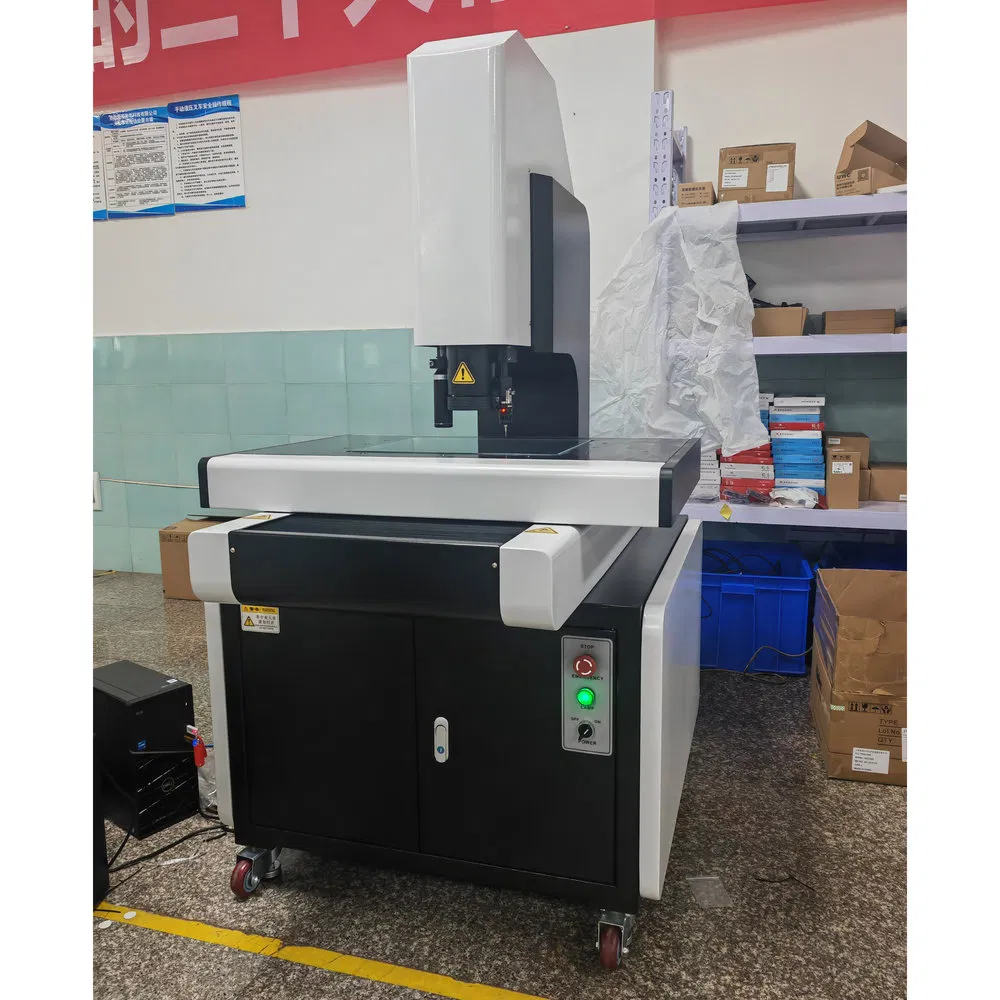

VIDEO MEASURING MACHINE
This high-precision video measuring machine is designed for fast, automatic dimensional and geometric tolerance inspection. Built on a high-stability granite base and stage with directly mounted linear guides, it delivers excellent rigidity, long-term accuracy, and repeatability.

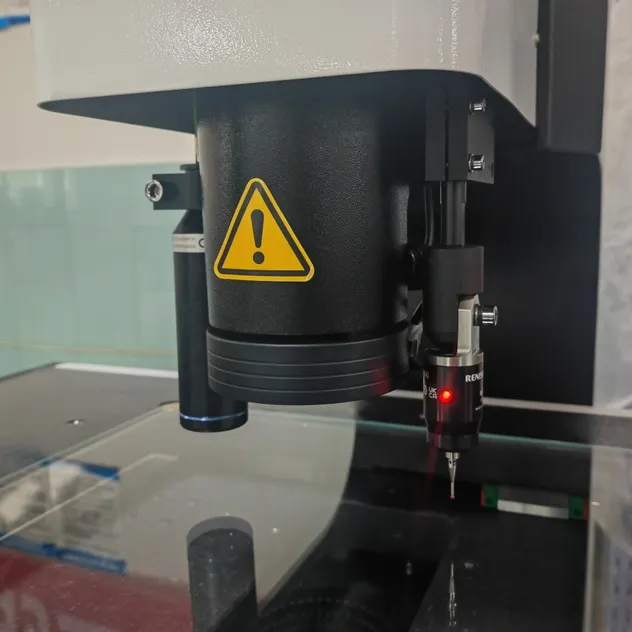

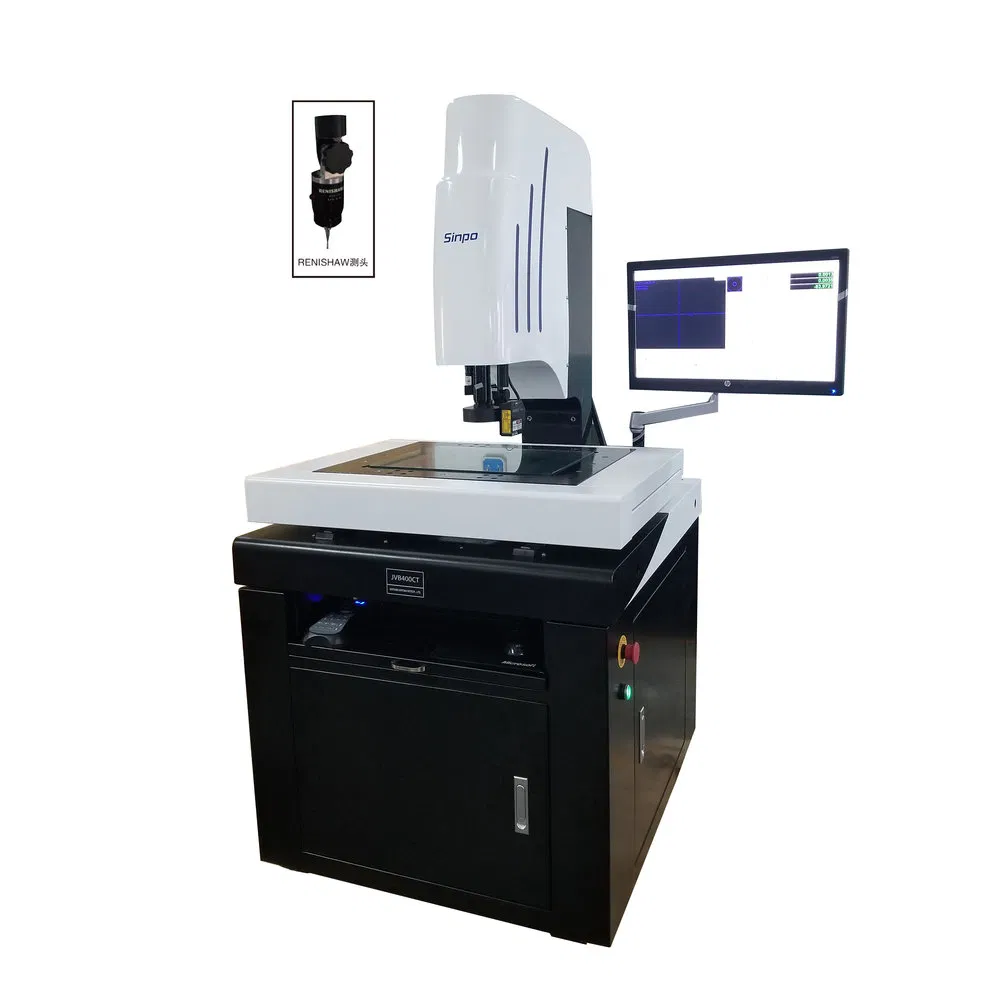

The system integrates a high-resolution industrial color CCD camera with a fully automatic motorized zoom lens, enabling flexible 2D and 3D measurement of precision parts. With an optional touch-trigger probe and laser sensor, it extends traditional 2D optical measurement into full 3D coordinate measurement for complex profiles, form, and position tolerances.

F

Product Features

The exterior design incorporates an integrated industrial aesthetic, facilitating installation and adjustment.
It features a dedicated moving structure for the anti-fixed guide rail worktable.
Self-developed continuous zoom objective lens for rapid changes in image magnification.
Modular integrated circuit design for easy upgrades and maintenance.
User-friendly software, stable and reliable, integrating with various data management systems.
Optional contact or laser probes for automatic measurement of spatial coordinate points (3D contour).

S

Technical Specification

Repeatability	2.0um
Zoom Objective	0.7X-4.5X Fully Automatic Zoom
Image Magnification	28X-180X
Raster Display Resolution	0.5μm Metal Grating Ruler
Total Power (W)	1000
Surface Light	Programmable, Multi-Angle Six-Ring Eight-Zone White LED
Contour Light	Programmable, Continuously Adjustable White LED

A

Application & Models

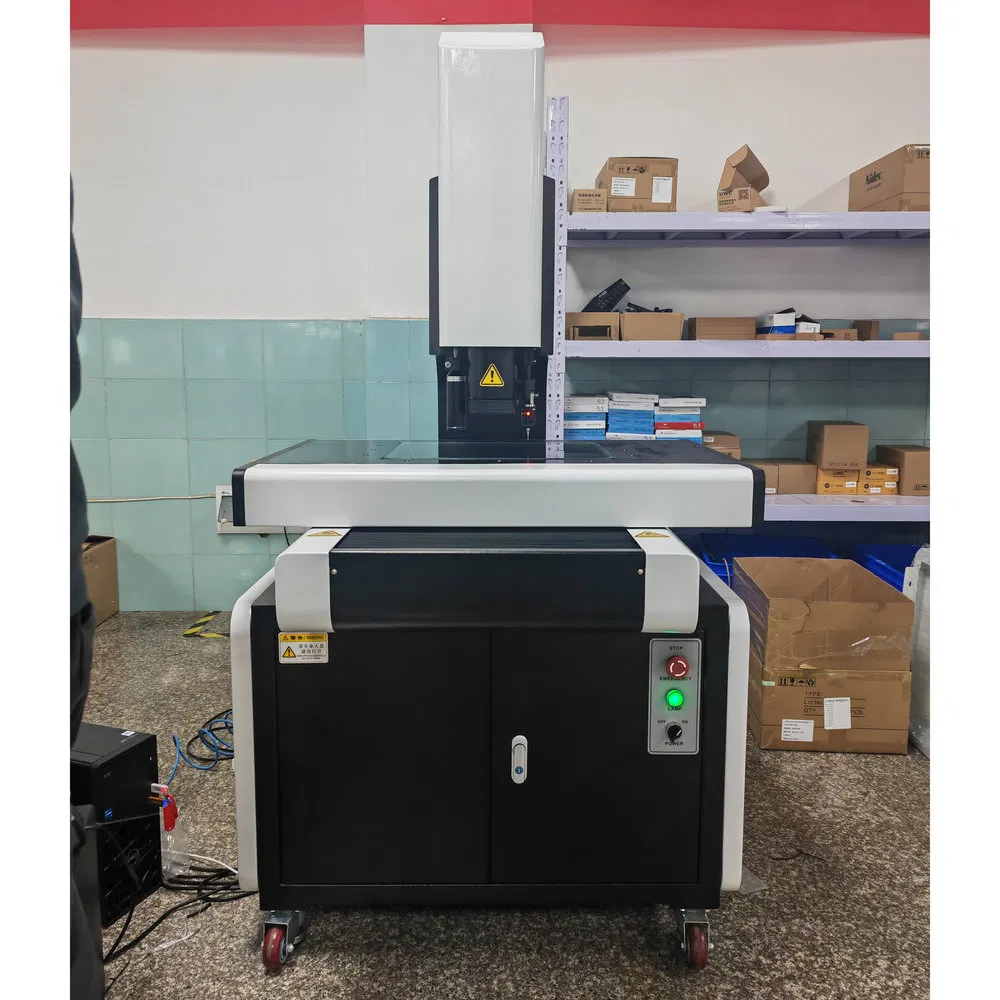

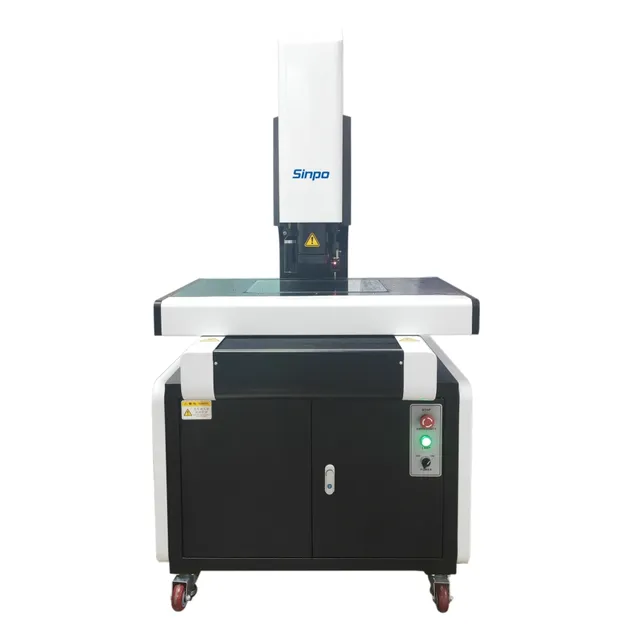

This CNC Vision Measuring Machine is a fully automatic instrument designed for efficiency and programmability. It utilizes servo motors for all three axes (X, Y, Z), enabling high-speed, automated movements controlled via joystick or software.

It is ideal for precision electronics, semiconductors, automotive parts, molds, medical devices, aerospace components, and metal & plastic parts inspection. The tiered product line provides a comprehensive solution from manual basic measurement to fully automated, high-throughput inspection.

?
