1.1 Technical Parameters:

• Equipment capacity: ≥10PPM
• Final excellent rate: ≥99.8% (equipment related)
• Equipment failure rate: ≤ 2%
• Laser output power stability: ≤±1%
• Adjustment accuracy: ≤0.5mm
• Welding track edited by automated software with parameter modification authority

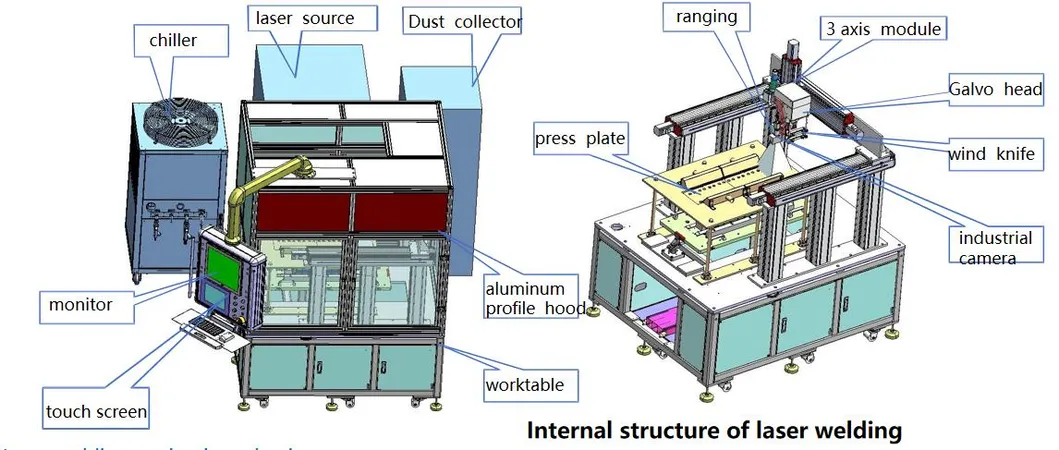

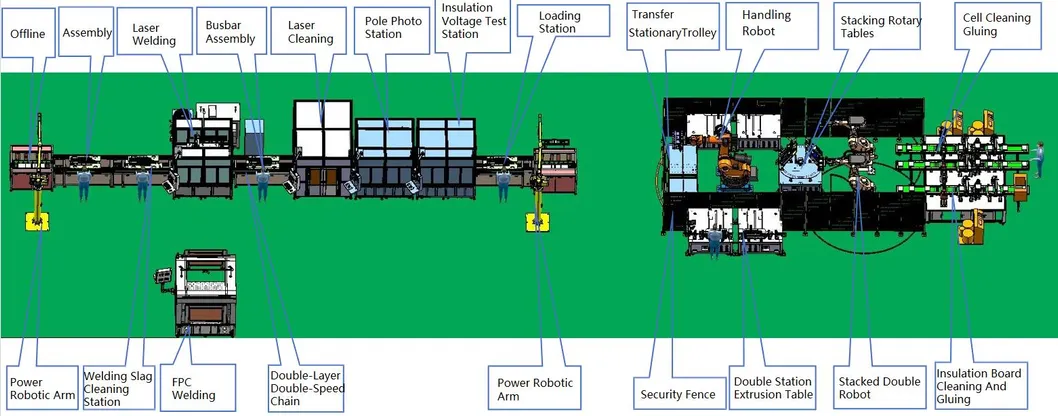

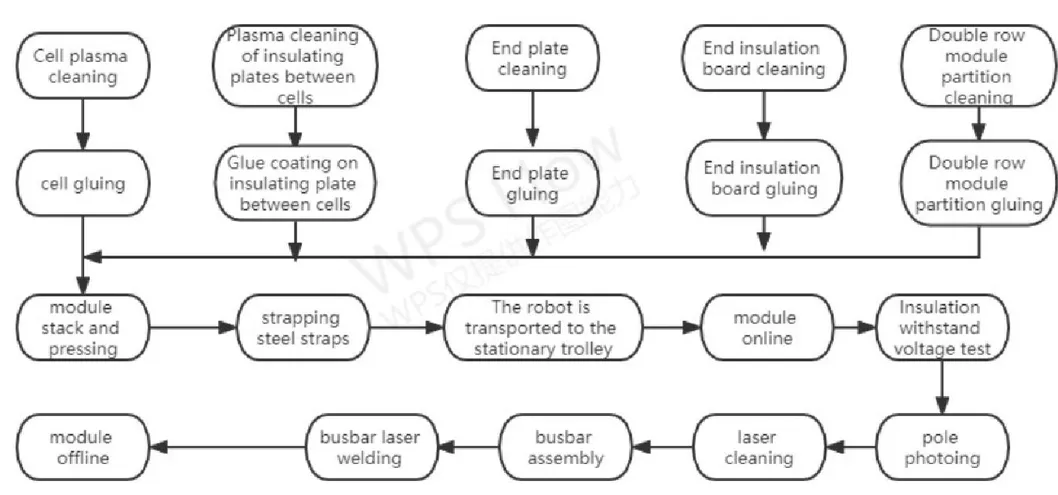

1.2 Process Flow Chart:

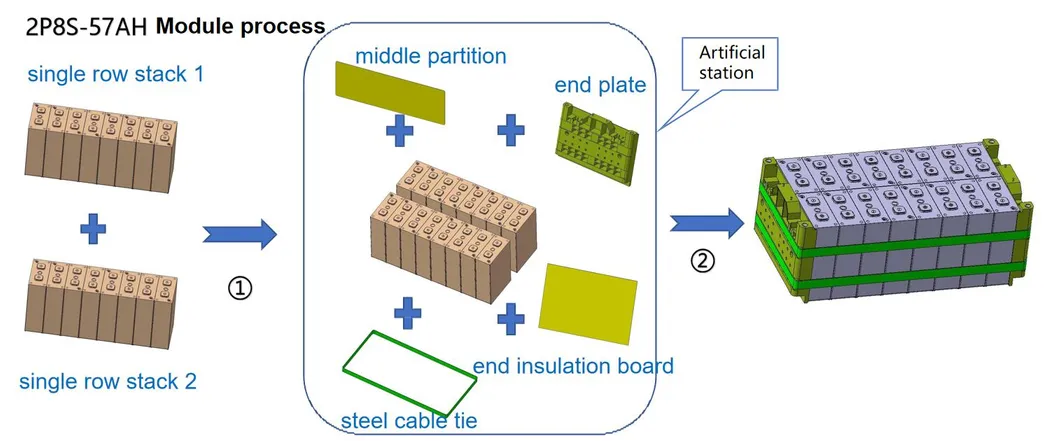

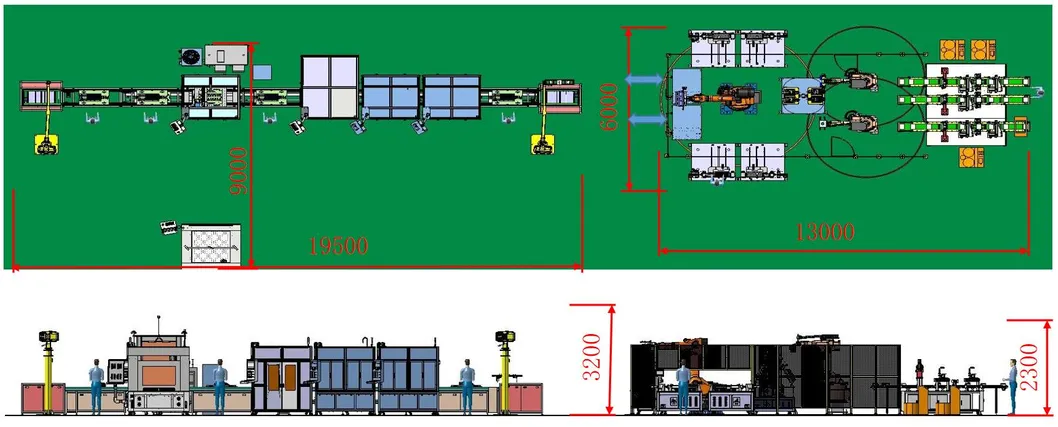

Back layout size (L*W*H): 19500mm*9000mm*3200mm
Front layout size (L*W*H): 13000mm*6000mm*2300mm

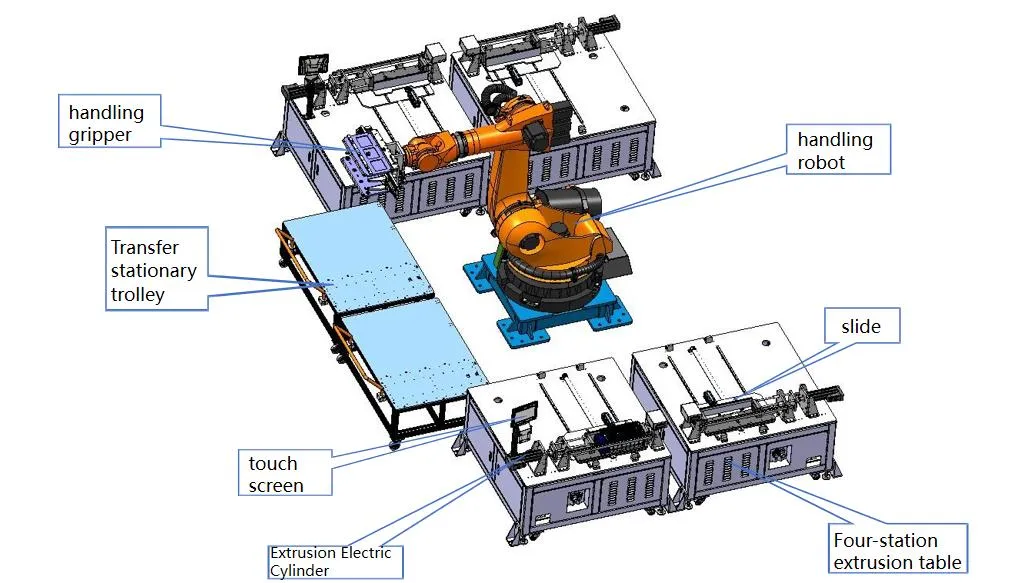

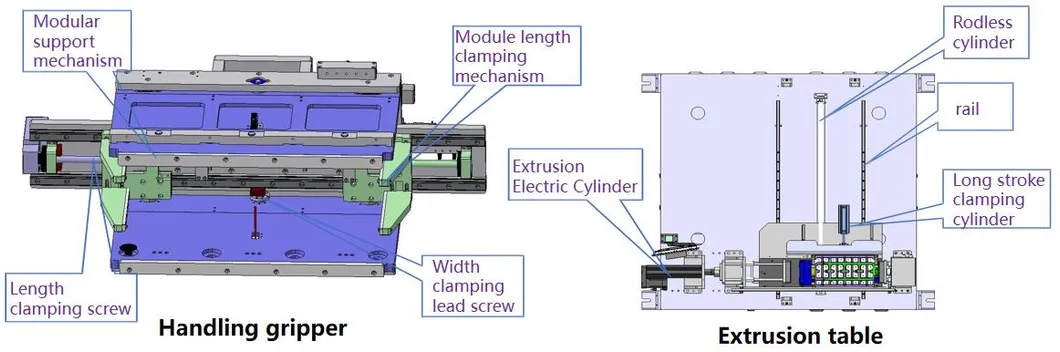

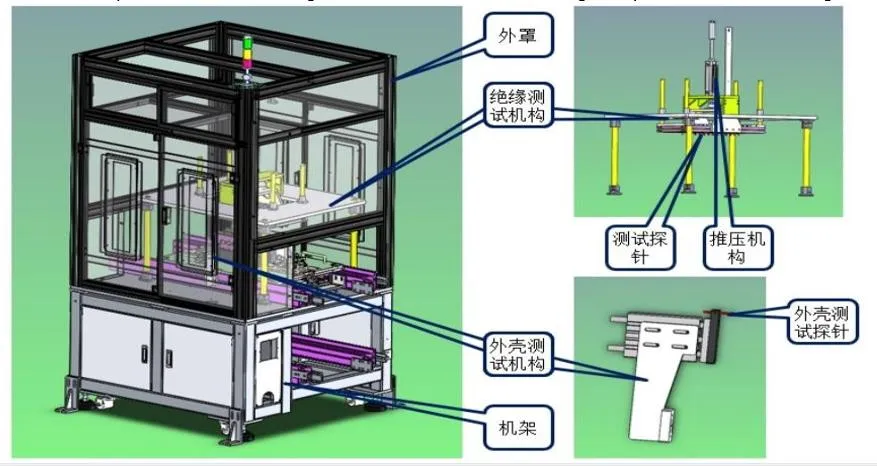

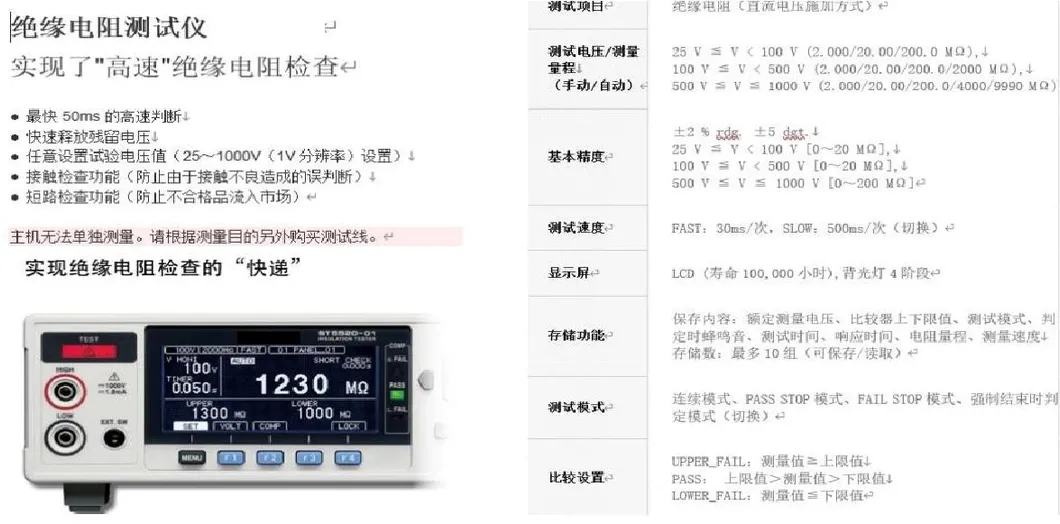

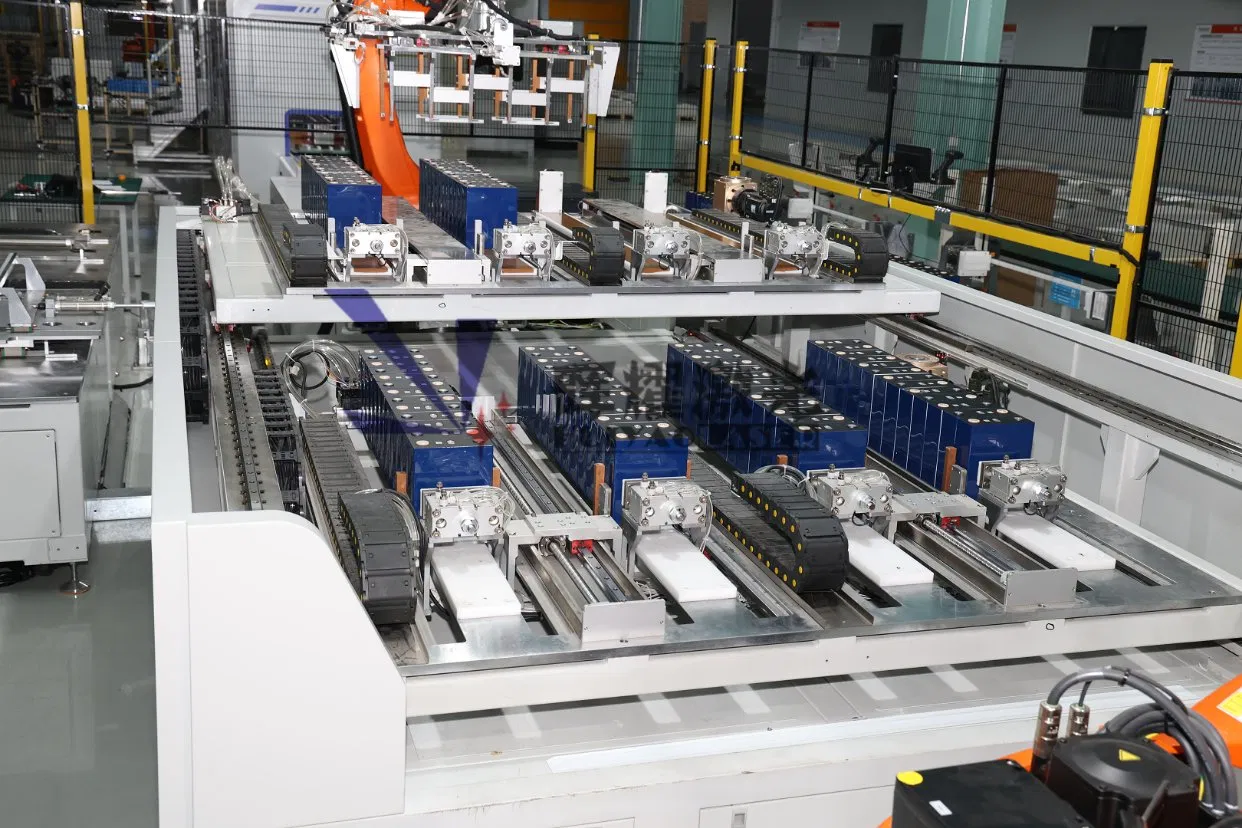

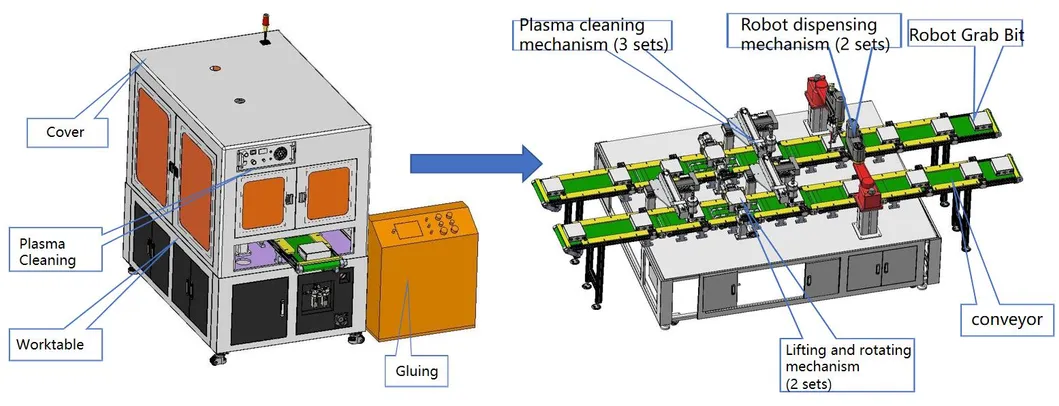

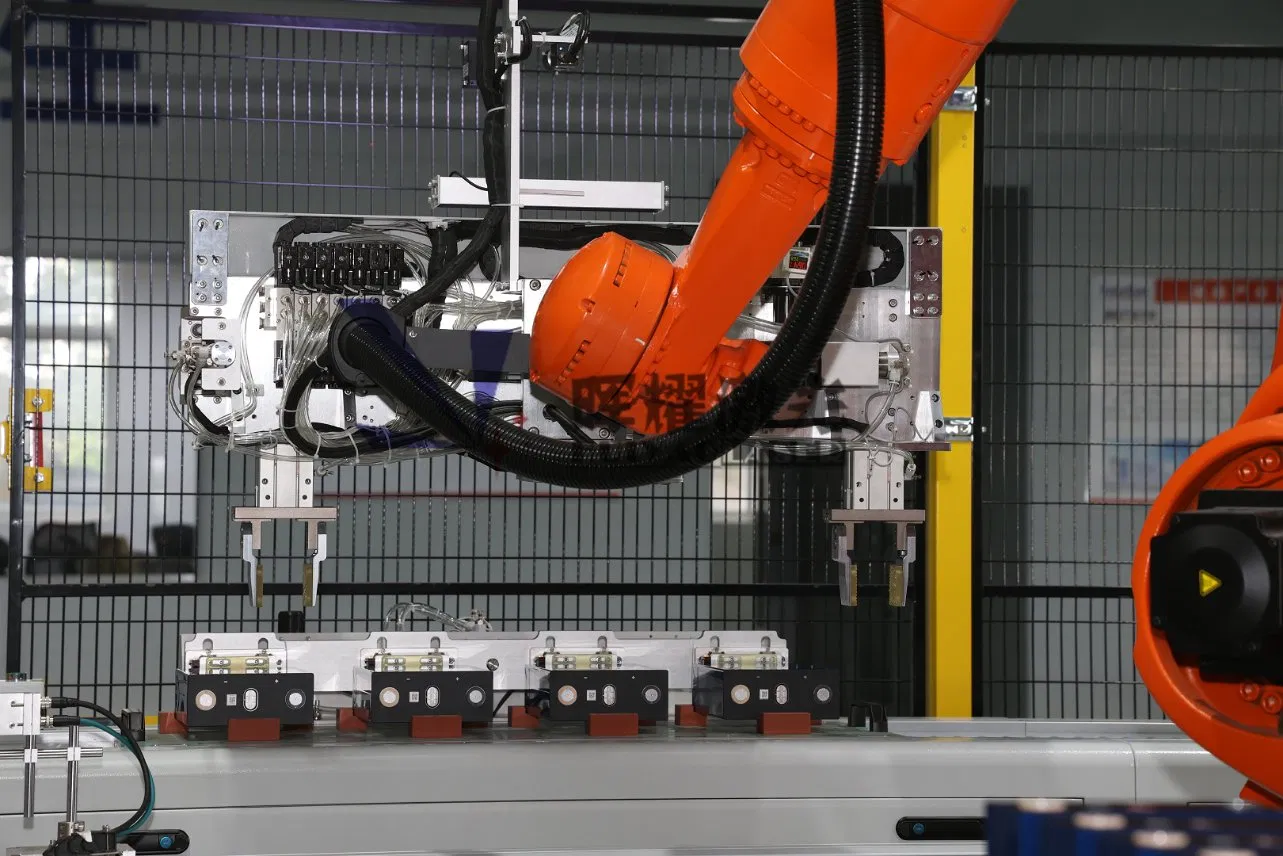

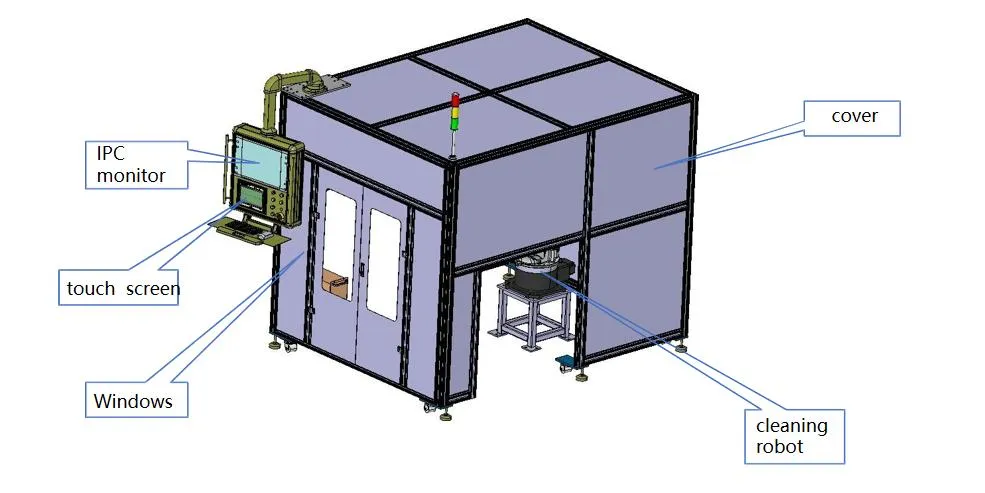

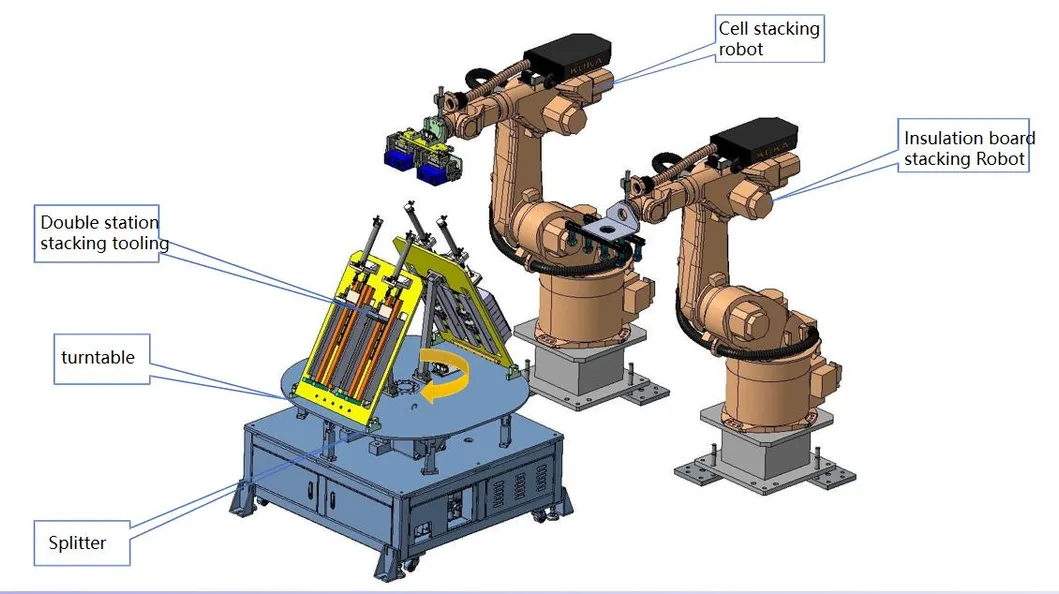

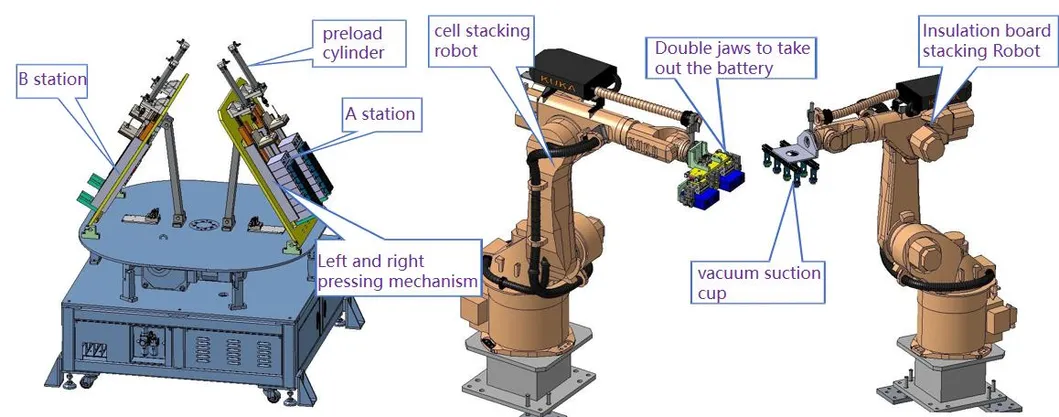

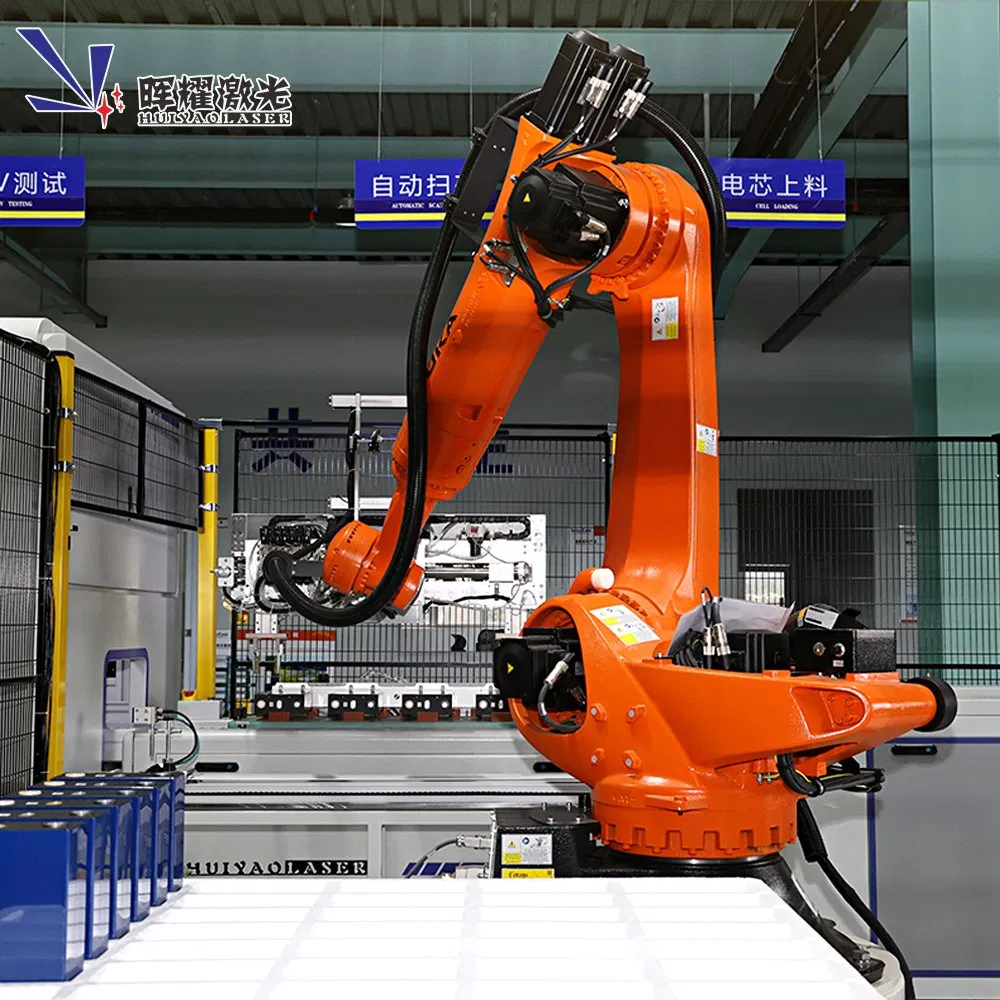

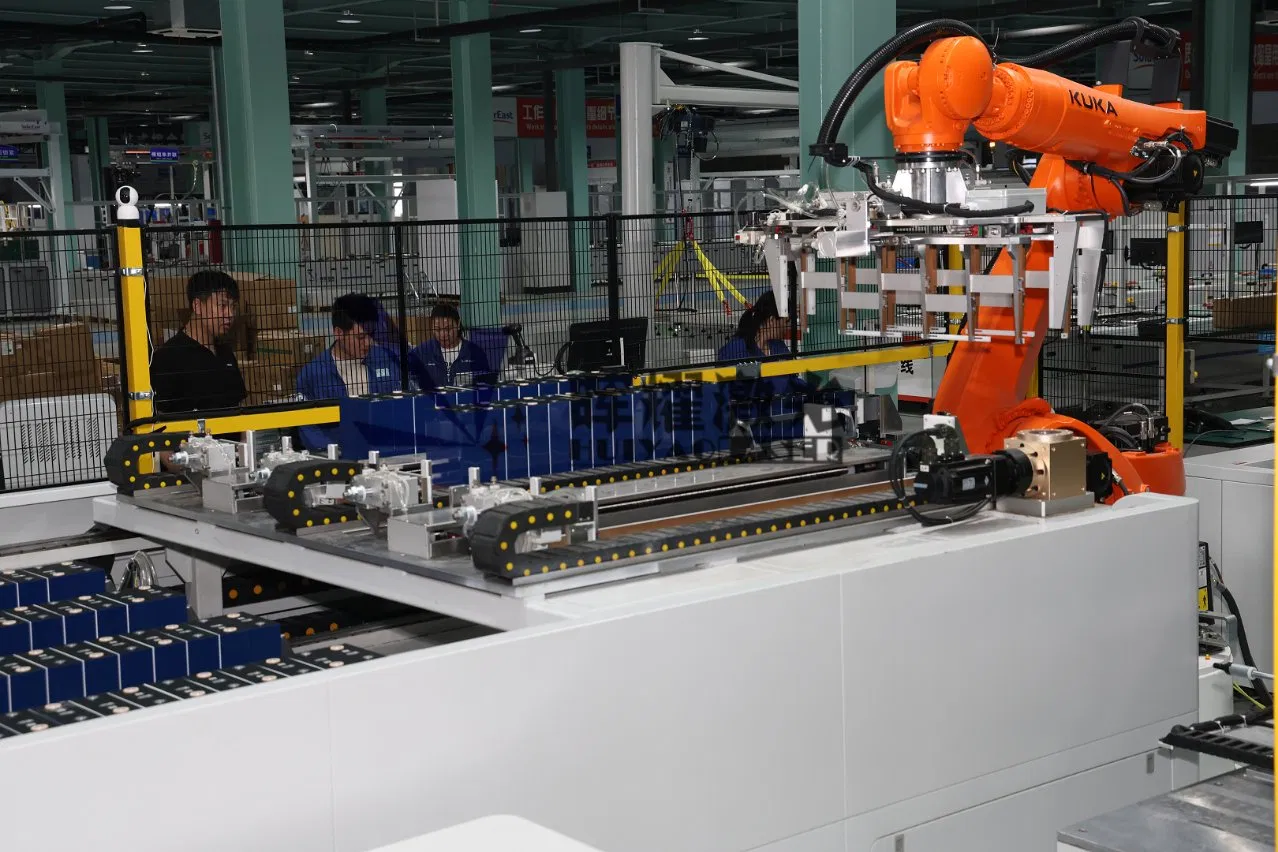

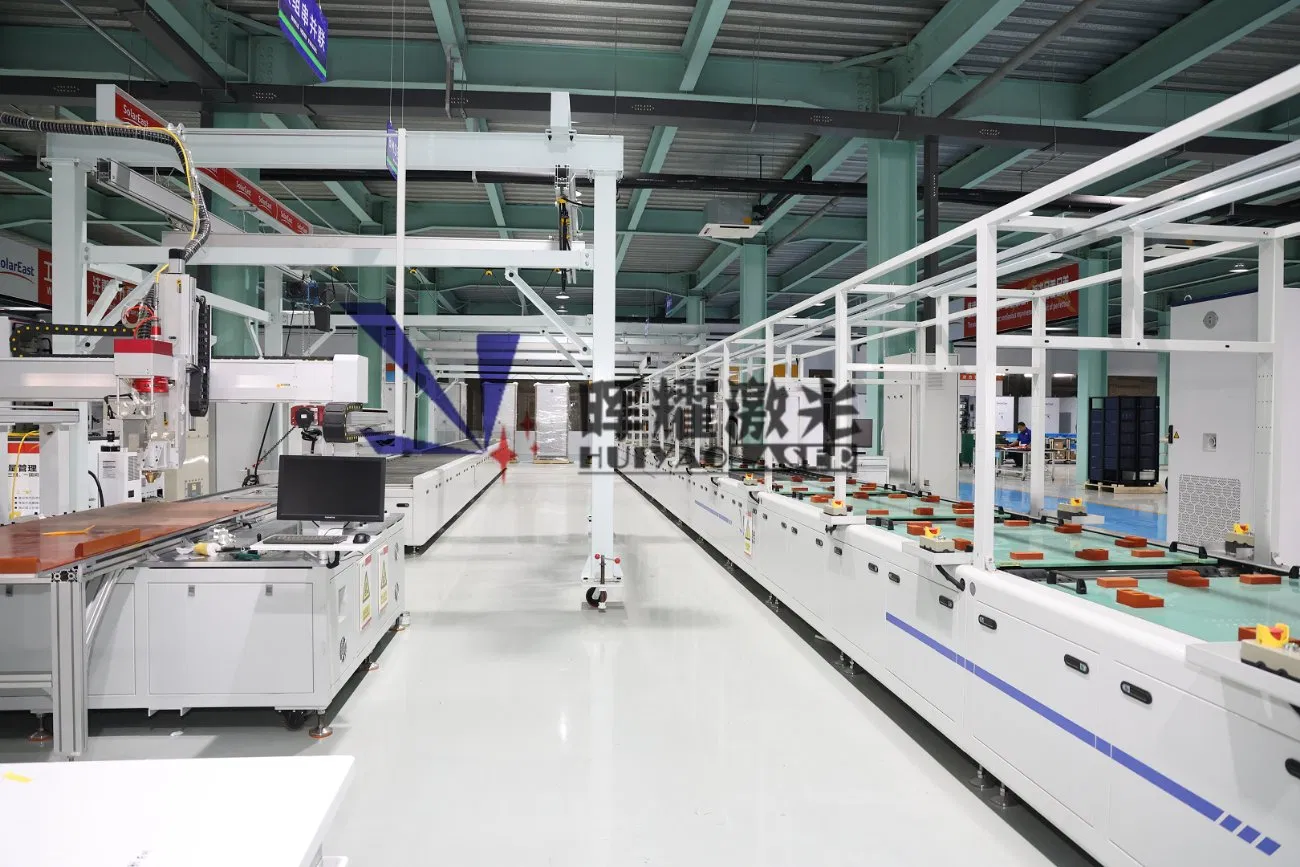

The stacking robot performs operations in serial-parallel sequences. It flexibly accommodates different module recipes from bottom to top, alternating cells and insulating plates. The platform uses a fixed-slope dual-station design to improve efficiency.

This lithium battery module fully automatic assembly line is primarily used in the production of:

• New energy lithium battery modules
• Prismatic battery modules
• Energy storage battery modules
• Power battery modules and pack welding assembly
