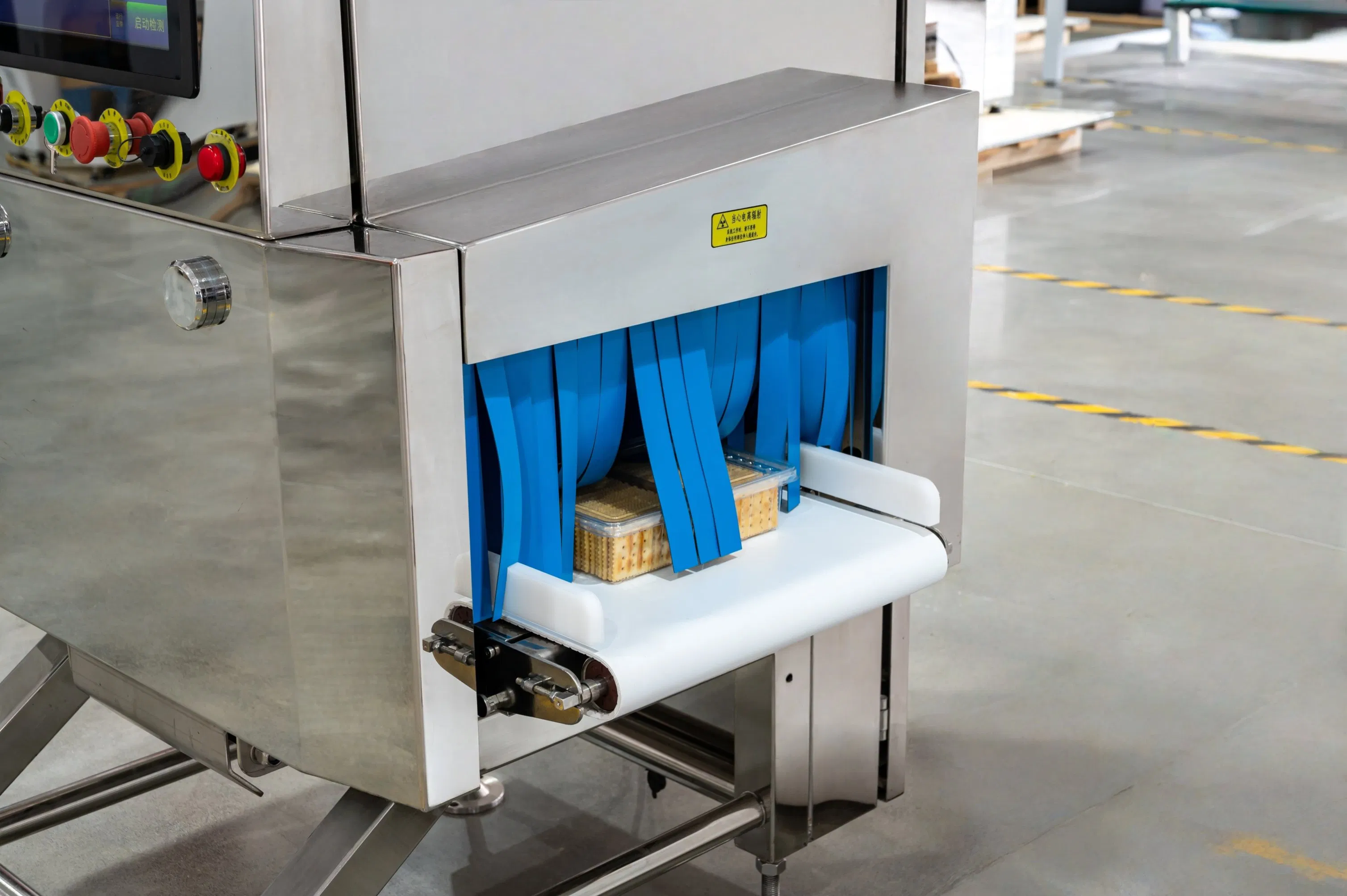

Cutting-Edge X-ray Inspection System for Food Safety Compliance

1 / 5

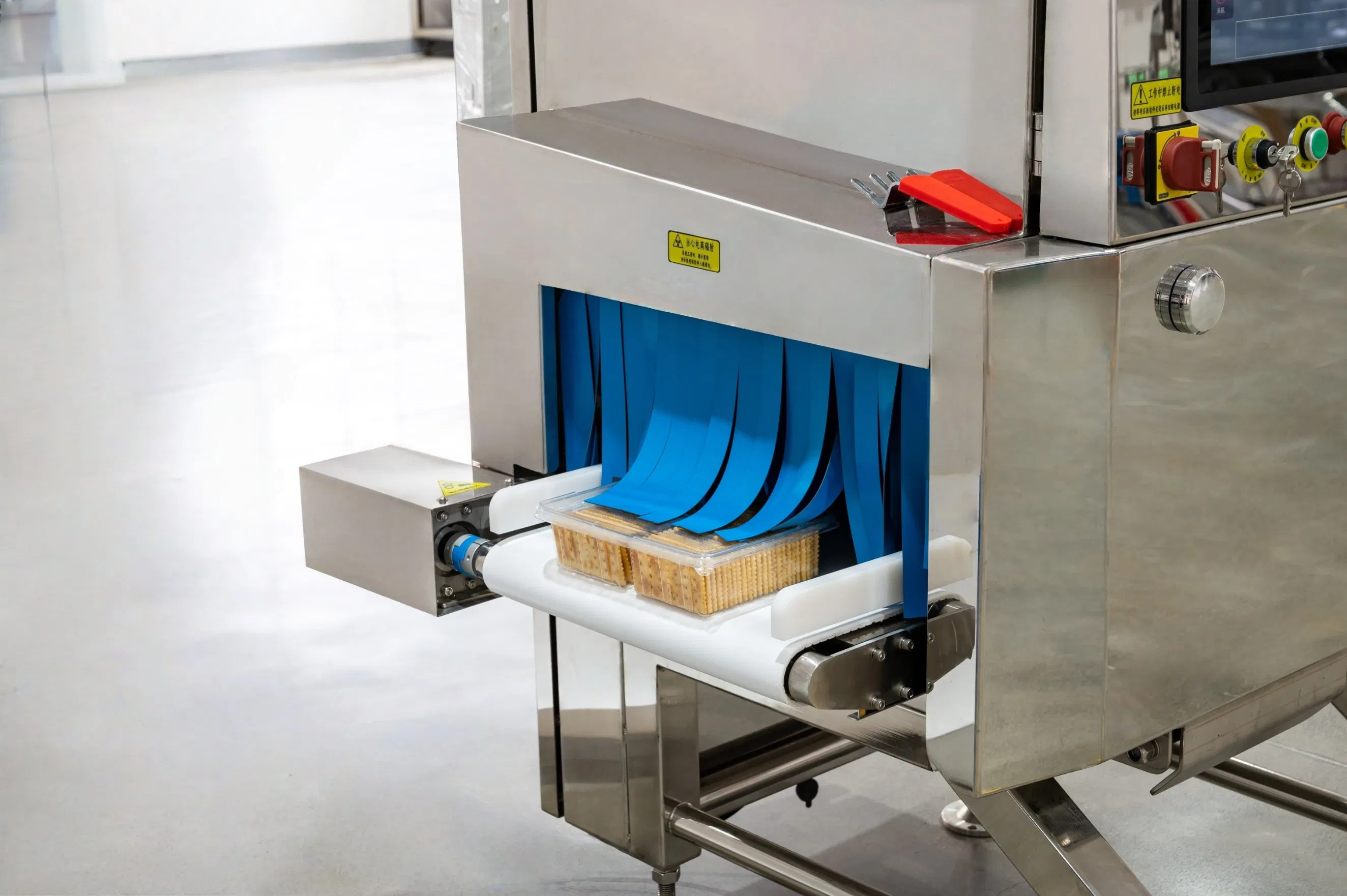

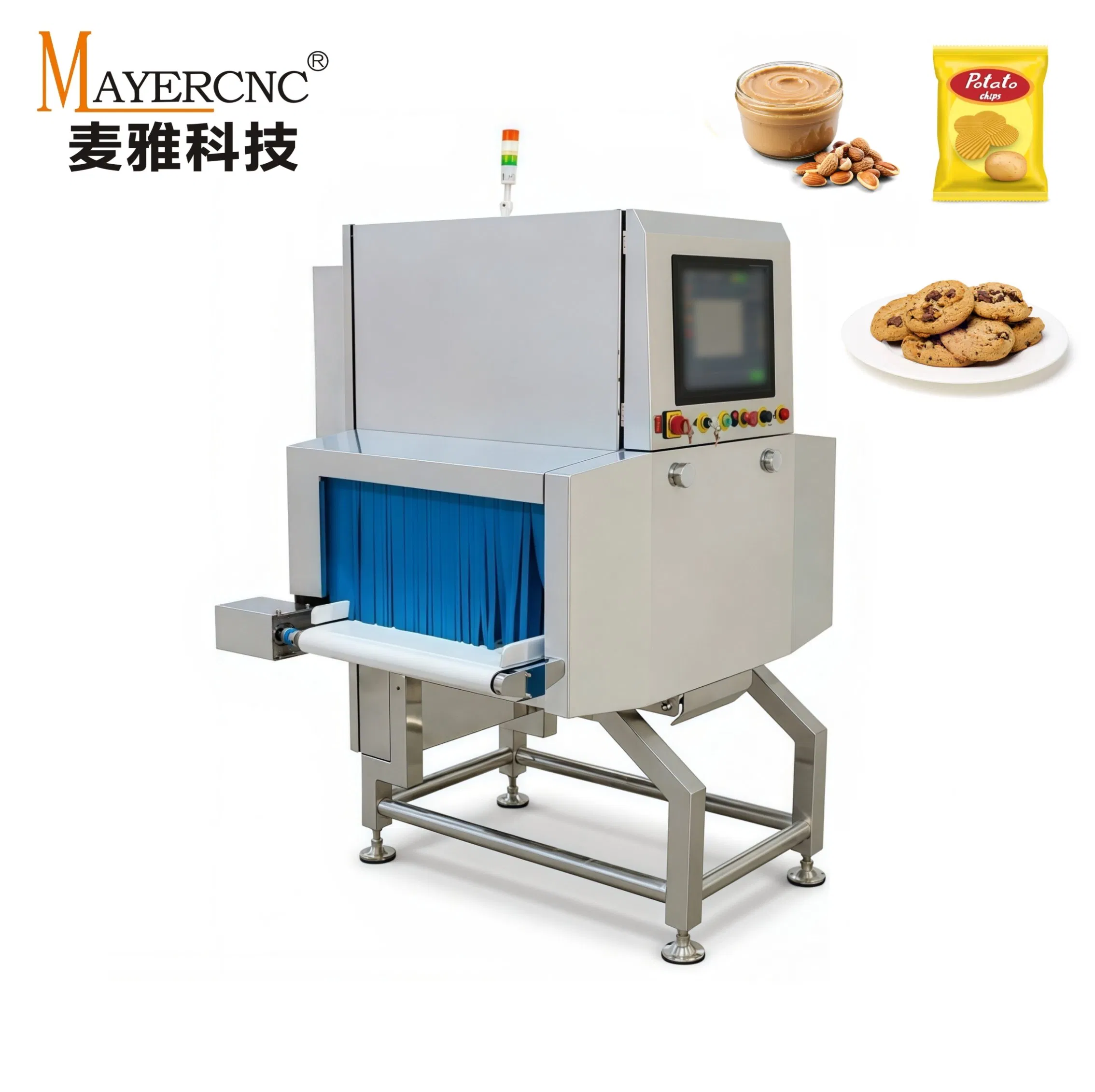

Cutting-Edge X-ray Inspection System for Food Safety Compliance

Customization:	Available
After-sales Service:	Online
Warranty:	12 Months

Send Inquiry

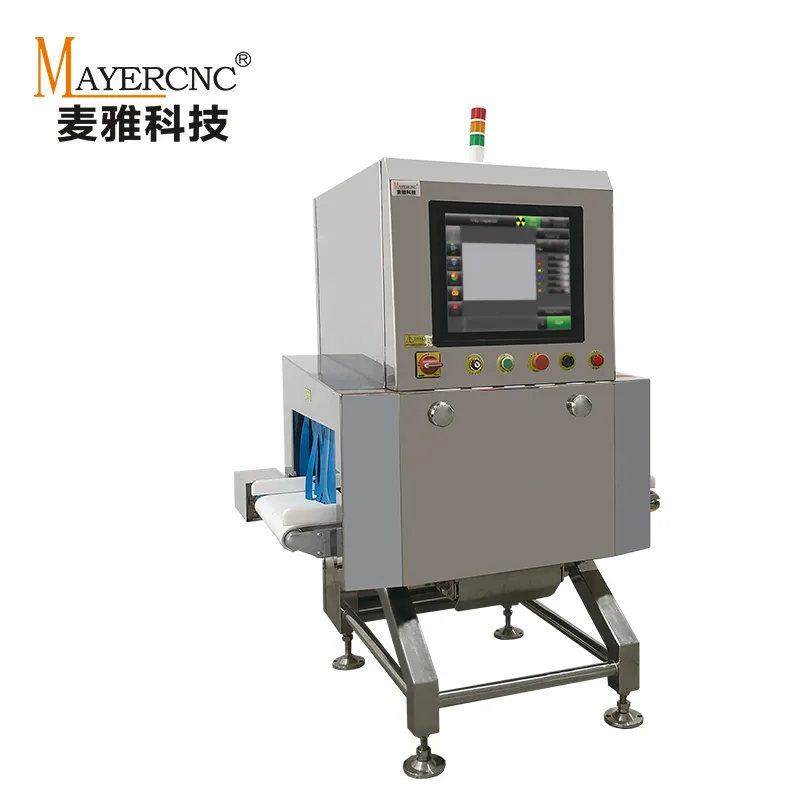

Product Description

🔹 Basic Information

Model NO.

MY-XD-4016

Type

Conveying X-ray Detector

Application

Industrial

Certification

CE, ISO

Display

17-Inch Touch Screen

Alarm Form

Sound and Light Alarm

Conveyor Speed

5~60m/Min

Material

SUS304 Stainless Steel

🔍 Product Overview

X-ray metal detectors are critical safety equipment in modern production lines. By utilizing the penetrating power of X-rays, this system efficiently detects various physical foreign matter mixed in products. It identifies not only all metals (iron, stainless steel, copper, aluminum) but also non-metallic impurities such as glass, ceramics, gravel, hard plastic, and high-density bones.

Target Industries: Specially designed for small and medium-sized packaged dairy products, snack foods, meat products, baked goods, quick-frozen products, and fruit and vegetable products.

⚙️ Key Features

🎯

High-Precision Inspection
Detects metallic and non-metallic objects (glass, stone, bone, hard plastics) using advanced X-ray absorption technology.

🤖

AI Smart Algorithm
Intelligent guided learning for new products. Customized AI algorithms ensure precise matching and higher accuracy.

🚀

Efficient Automation
Non-destructive testing integrated with automatic rejection systems for real-time removal of defective products.

🌐

Remote Support
4G wireless connectivity enables rapid remote technical assistance and automatic fault alert notifications.

📊 Technical Specifications

Model Number	MY-XD-2412	MY-XD-4016
Ray Source	150W	210W
Detection Accuracy	SS Ball: 0.3mm, SS Wire: 0.2*2mm, Ceramic/Glass: 1.0mm
Operating System	Linux

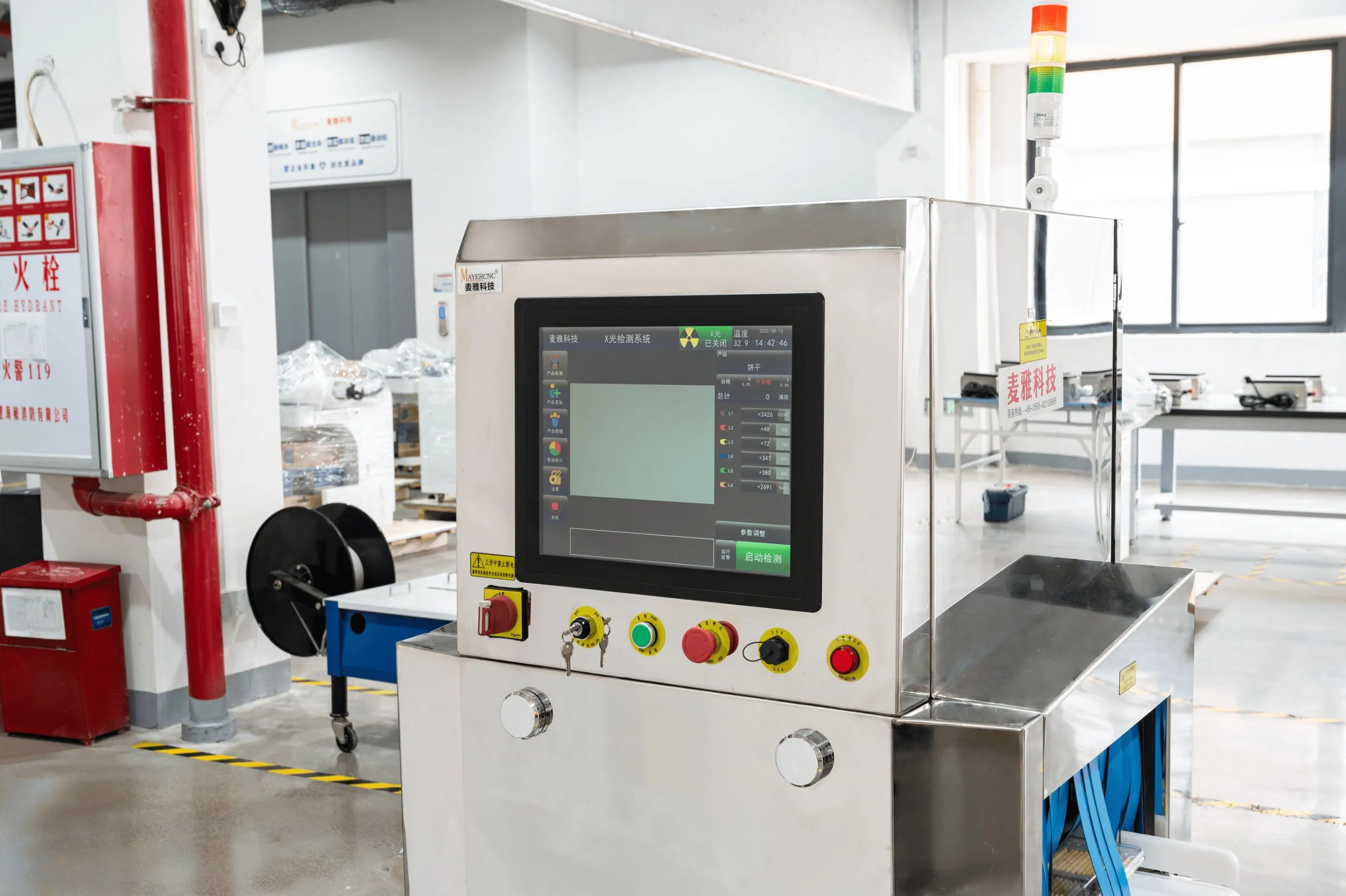

Interaction	17-inch touch LCD screen
Max Product Weight	5Kg	10Kg
Max Product Dimensions	240mm (W) x 120mm (H)	400mm (W) x 160mm (H)
Protection Level	Conveyor: IP66, Other parts: IP40

🖼️ Main Product Gallery

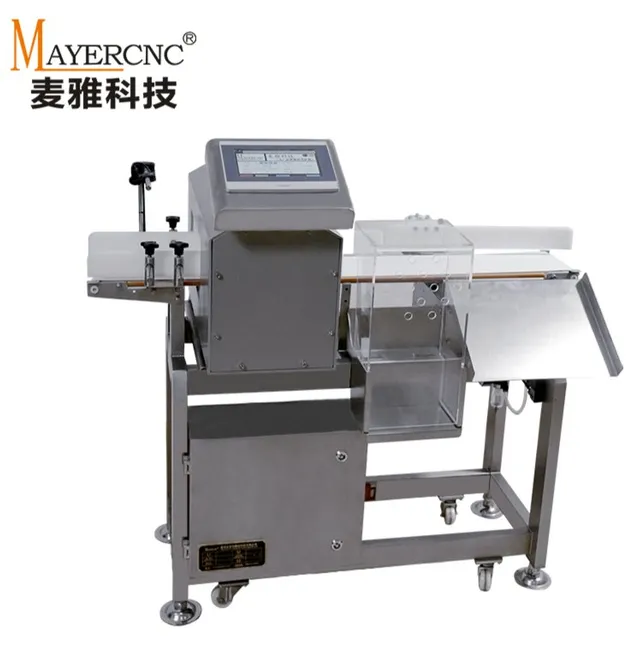

Conveyor Metal Detector

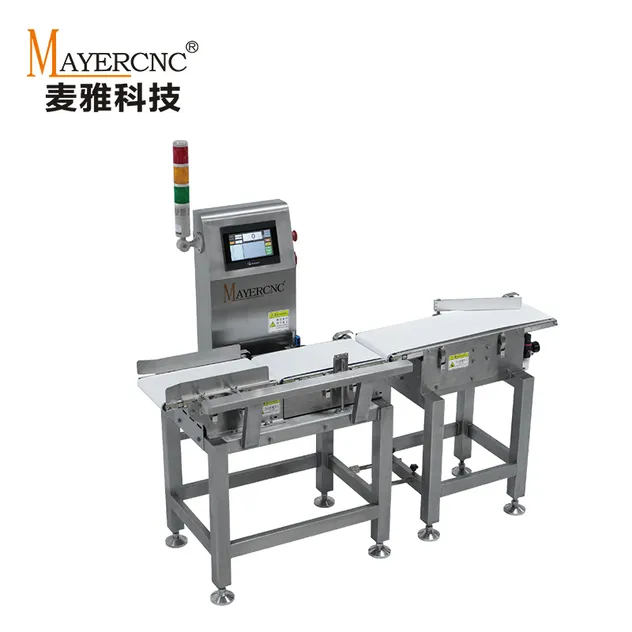

Checkweigher

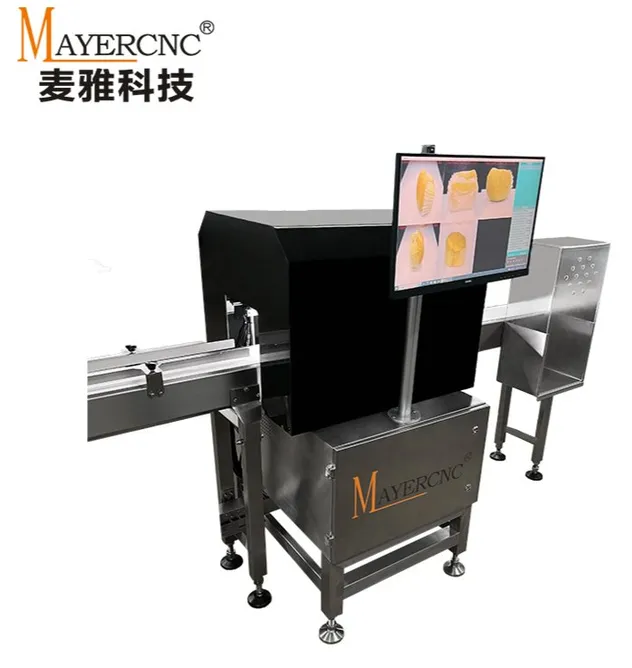

Visual Inspection System

❓ Frequently Asked Questions

Are you a manufacturer?

Yes, we have been dedicated to the professional design and production of testing equipment since 2008, with over 15 years of industry experience.

What are your main product lines?

Our core products include industrial metal detectors, checkweighers, X-ray foreign body detection systems, vision inspection systems, and laser marking machines.

Can the machines be customized for specific needs?

Absolutely. Our technical team recommends suitable models based on your product characteristics, and all equipment can be customized according to specific customer requirements.

Is the equipment easy to operate?

Yes, the machines feature a user-friendly LCD touch screen with multi-language menus (including English) for simple and intuitive operation.

What is the warranty and lead time?

We provide a one-year warranty. Standard delivery typically takes about 20 business days after the deposit is confirmed.

Do you provide technical assistance after delivery?

Yes, our after-sales team provides remote technical support for installation and training, ensuring smooth operation through instant communication channels.
