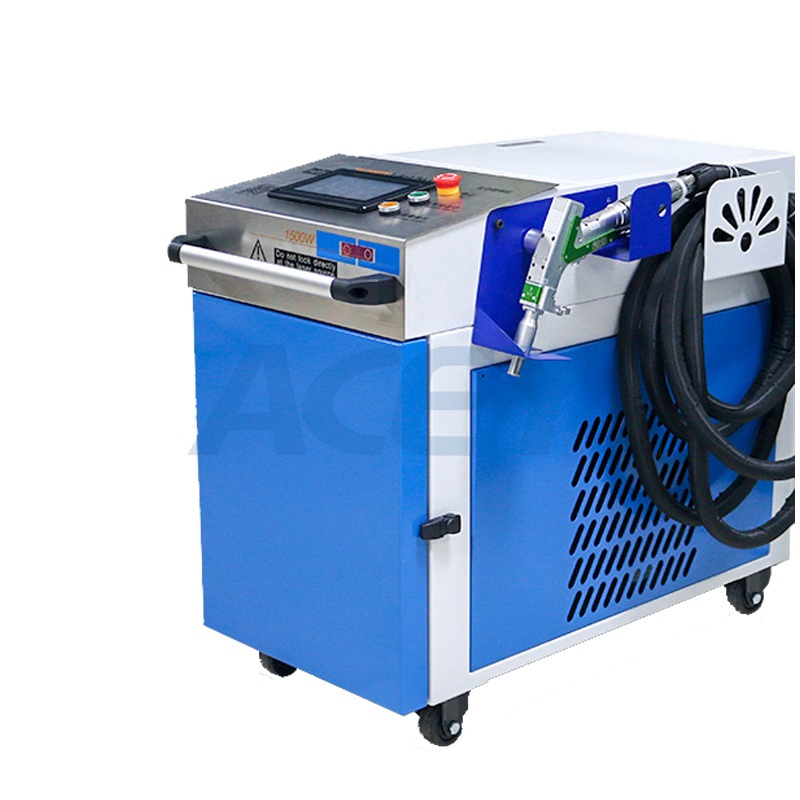

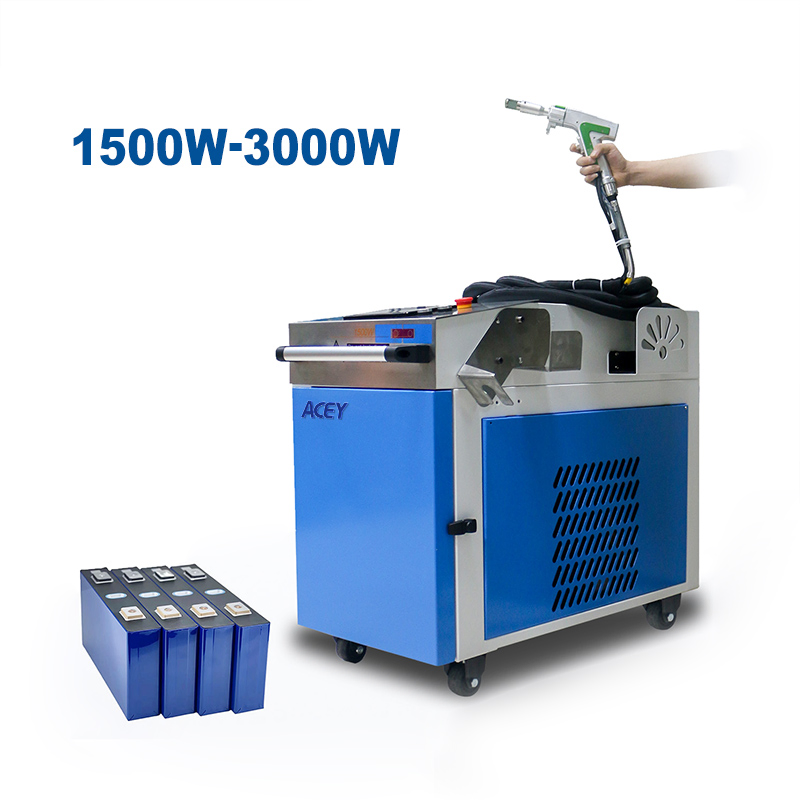

3000W Chinese Cheap Laser Welder 3 in 1 Handheld Laser Welding Machine for Aluminum Copper

1 / 5

3000W Chinese Cheap Laser Welder 3 in 1 Handheld Laser Welding Machine for Aluminum Copper

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Product Overview

Model NO.

ACEY-HLW3000

Application

Manufacturing Industry, Battery Pack Assembly

Technical Class

Continuous Wave Laser

Control

Manual

Laser Type

Fiber Laser Source

Laser Wavelength

1070nm

Laser Power

1500/2000/3000W Optional

Dimensions

58X110X80mm

GW / NW

155kg / 133kg

Packing Size

112X71X100cm

Product Description

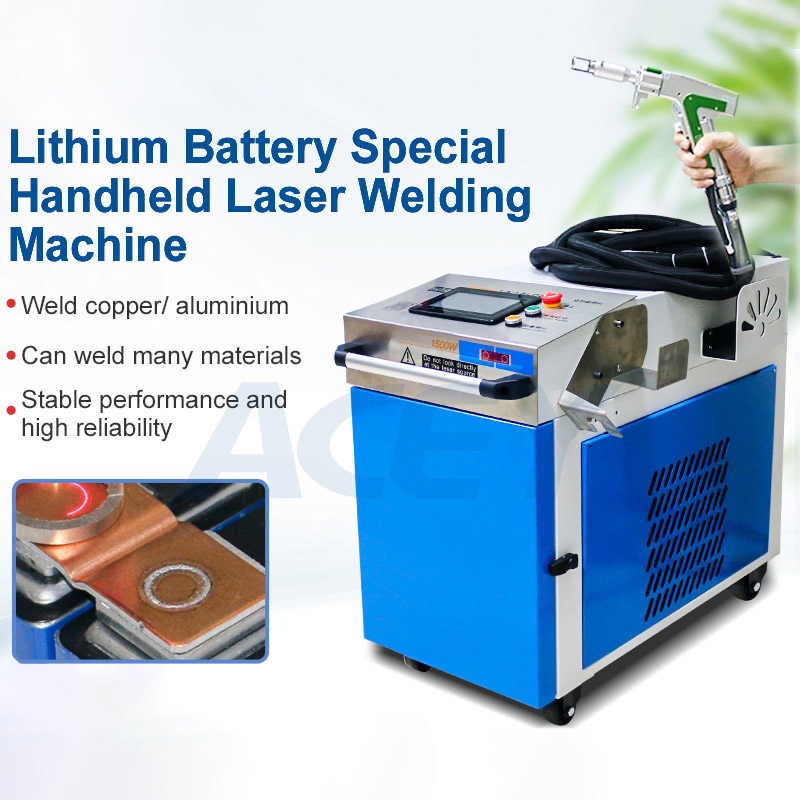

3000W 3-in-1 Handheld Laser Welding Machine for Aluminum & Copper

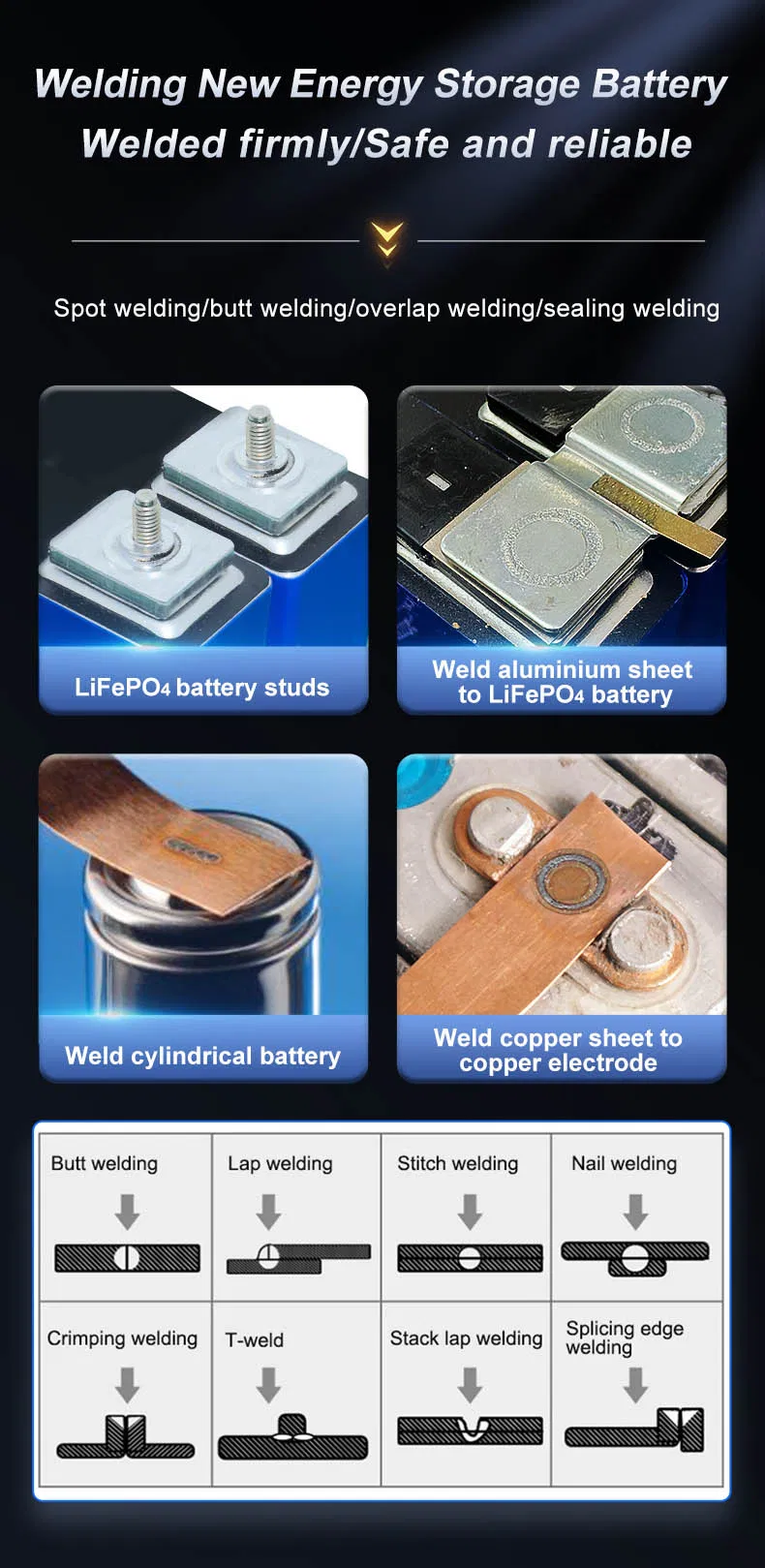

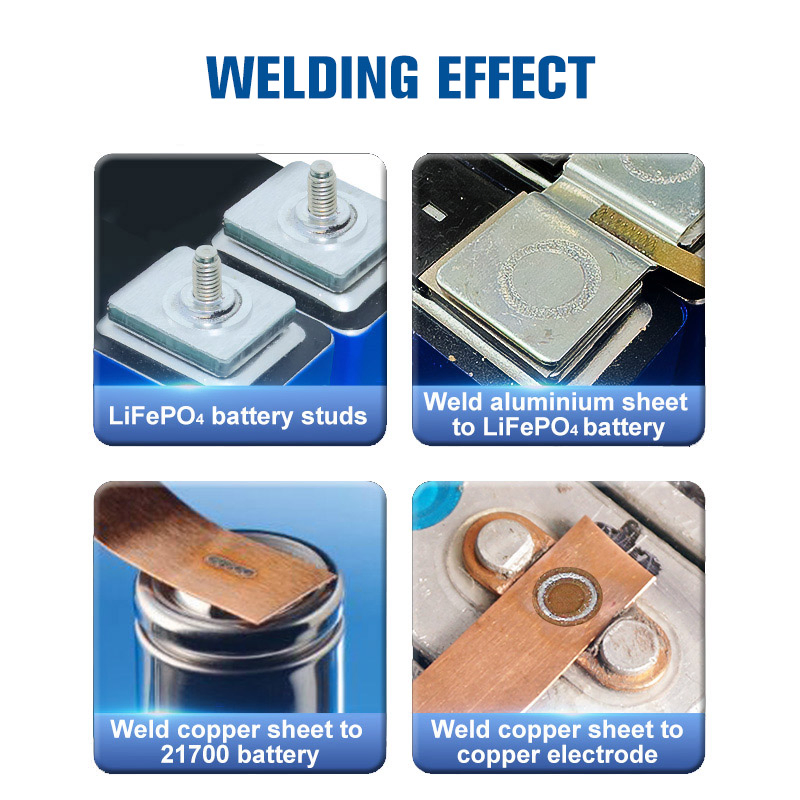

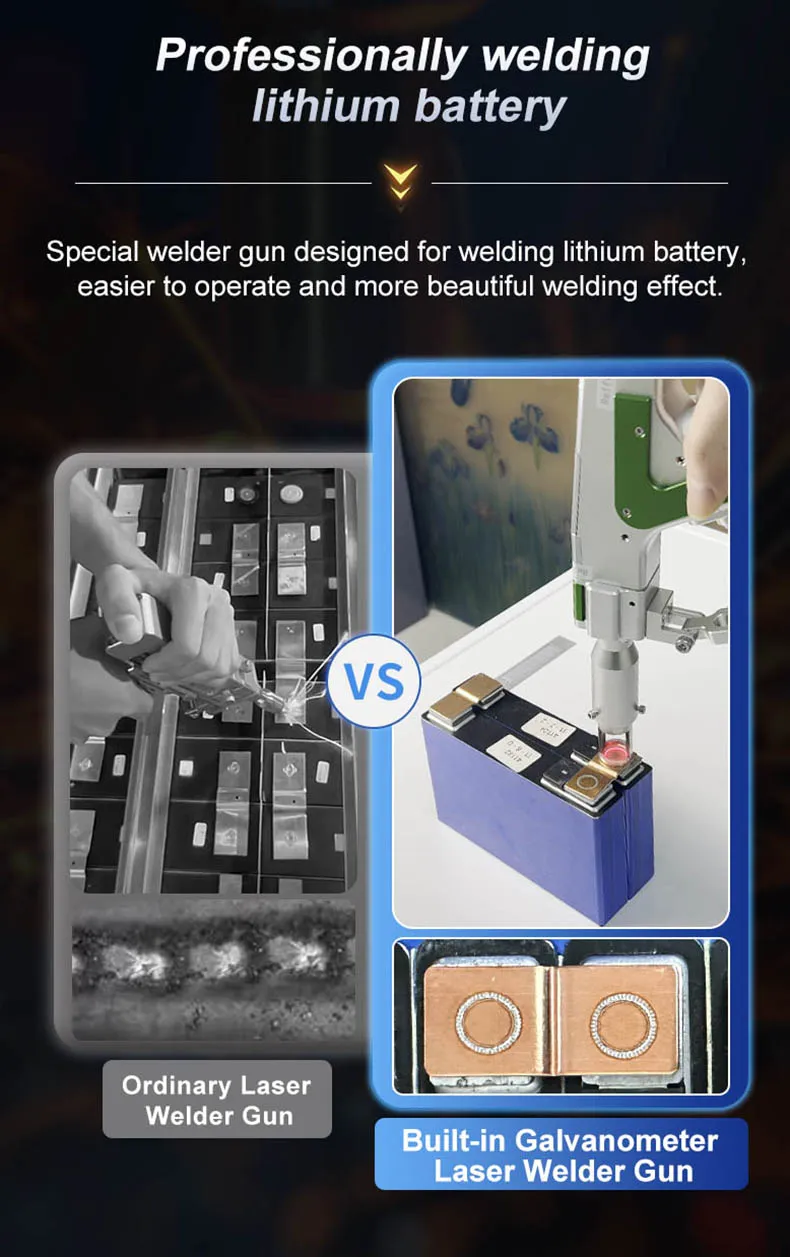

The Lithium Battery Special Laser Welding Machine adapts handheld welding with a built-in biaxial galvanometer device. It can spot weld aluminum, nickel, copper, and other materials on lithium battery electrodes. Precise and reliable welding reduces the contact resistance of lithium batteries during assembly and improves the output and performance of lithium battery packs. It features an 8-meter-long cable, which can easily weld large-sized battery packs for new energy vehicles and reduce the requirements for operating equipment.

Key Features

🔘

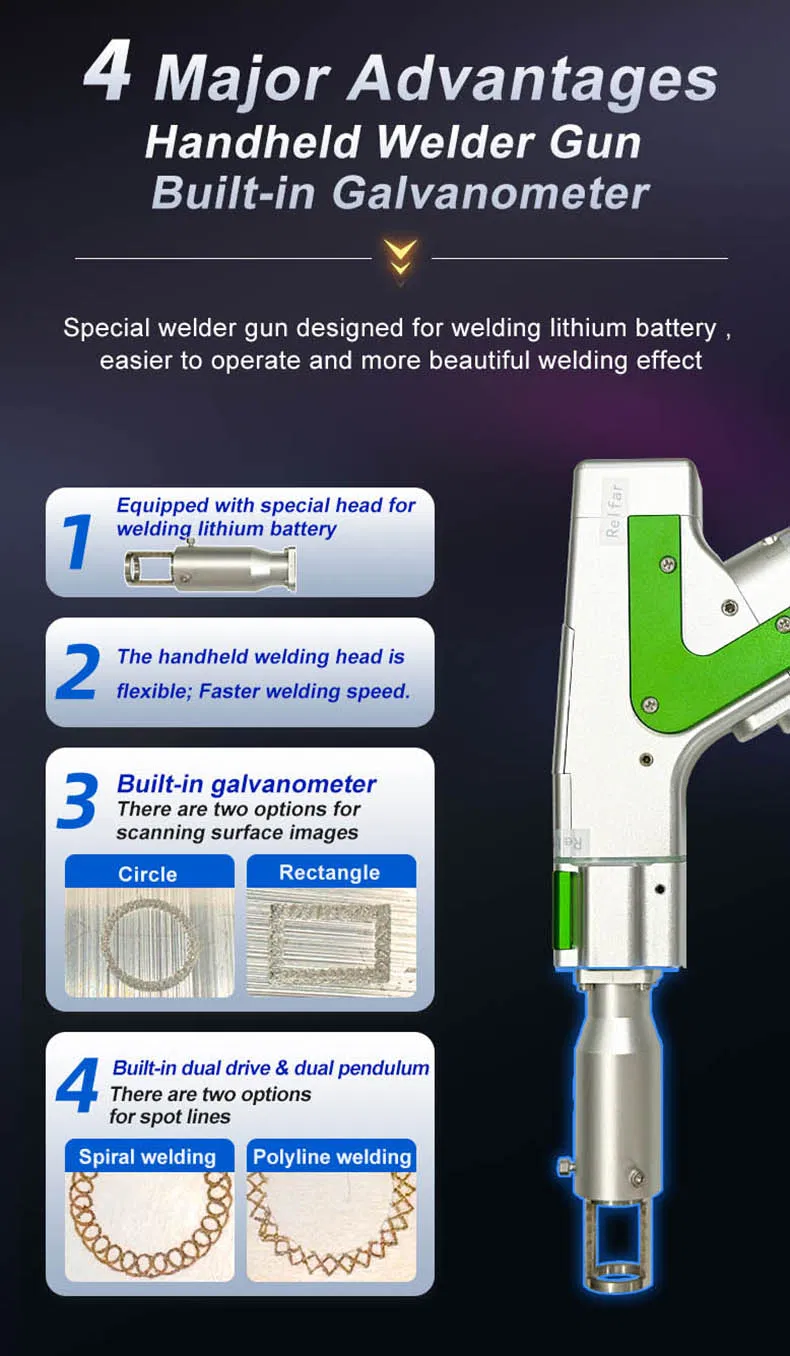

Biaxial Galvanometer: Built-in device achieves precise positioning of tiny welding spots to ensure quality and accuracy.

⚡

High Efficiency: High-speed swinging lenses guide the laser, significantly improving production speed over traditional methods.

📐

Multi-Shape Welding: Flexibly adapts to various complex shapes through advanced program control.

🖥️

Easy Operation: Equipped with professional graphics processing software for intuitive handling.

🛡️

High Stability: Uses high-quality lenses and a control system capable of long-term continuous operation.

⛓️

Versatile Materials: Suitable for stainless steel, tungsten steel, aluminum alloy, and more.

🌊

Waveform Control: Adjustable output energy waveforms to achieve ideal effects for different materials.

🔧

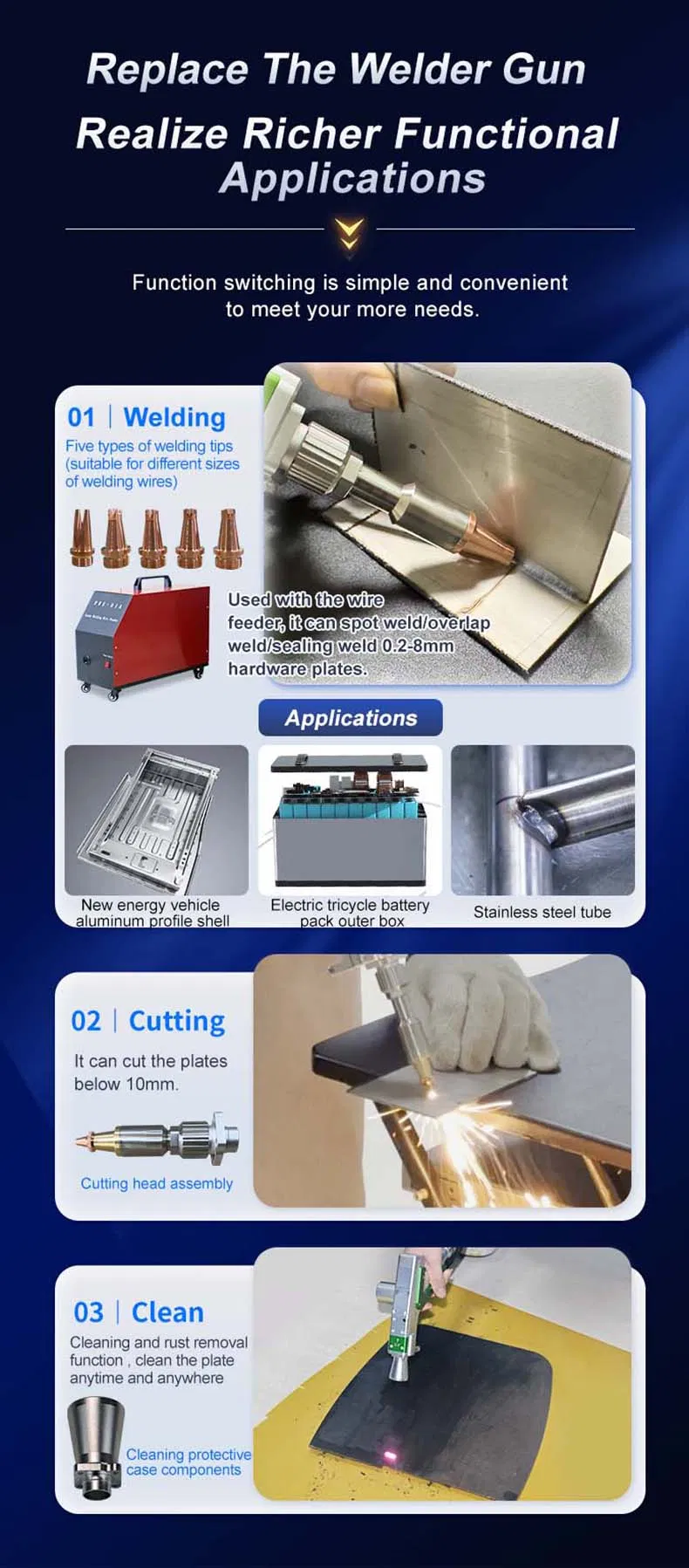

Switchable Nozzles: Various copper nozzles allow for easy welding of special-shaped materials.

Product Parameters

Technical Specifications
Supply Voltage	AC 110V or 220V	Power Consumption	≤6KW
Output Power	3000W	Laser Wavelength	1070±10nm

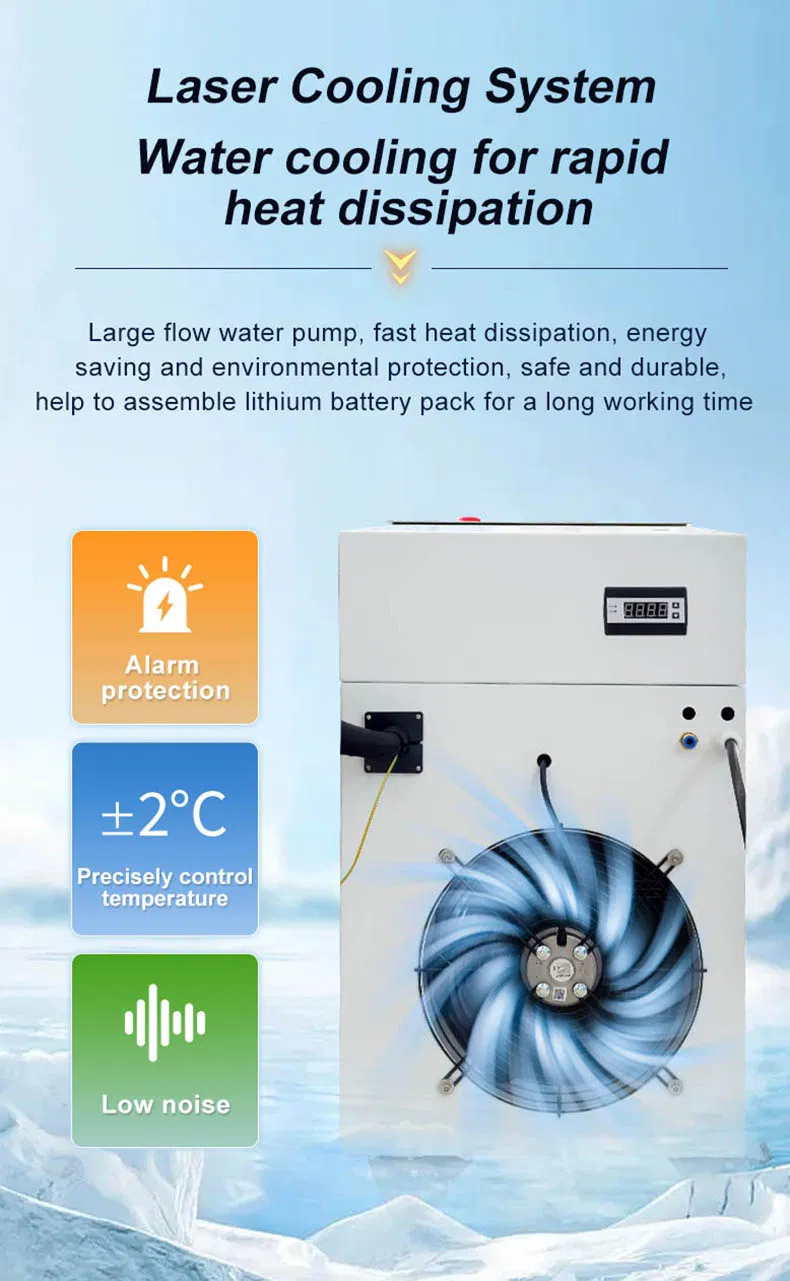

Cooling System	Water Cooling	Welding Head Weight	0.9KG
Machine Size	5811080cm	Machine Weight	133KG

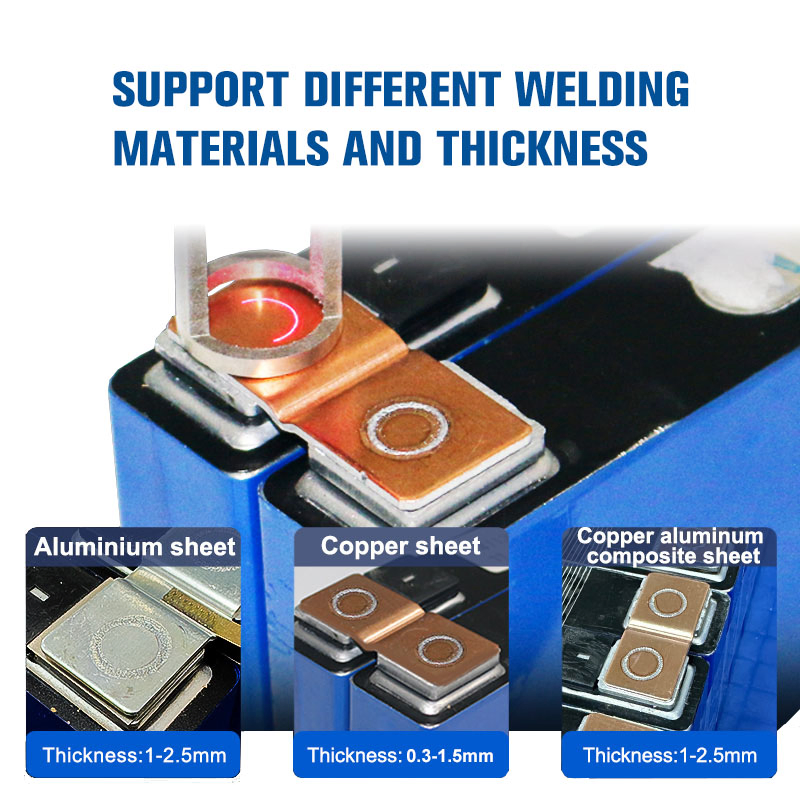

Welding Reference Parameters

Copper Aluminum Composite Sheet → Aluminum
Thickness(mm)	Power (W)	Speed (mm/s)	Frequency (Hz)
1	600	500	2000
1.5	825	500	2000
2	1125	500	2000
2.5	1350	500	2000

Pure Aluminum → Aluminum
Thickness (mm)	Power (W)	Speed (mm/s)	Frequency (Hz)
1	600	500	2000
1.5	825	500	2000
2	1125	500	2000

Copper → Copper
Thickness (mm)	Power (W)	Speed (mm/s)	Frequency (Hz)
1	800	500	2000
1.5	1500	500	2000

Product Detail Showcase

Frequently Asked Questions

Q1: How to order?

Please send us your purchase order by email or call our sales team. We can provide a proforma invoice upon request. We need to know product specifications (quantity, size, material) and shipping information (company name, address, phone, destination port).

Q2: How is quality controlled?

Our quality control process includes: IQC (Incoming Quality Control) for raw materials, IPQC (Input Process Quality Control) patrol inspections during production, and final QC/OQC full inspections before packing and shipment.

Q3: How do I install and operate the machine?

The system is designed for plug-and-play use. Once you receive the machine, simply connect it to the power supply. English software is pre-installed, and a complete English user manual is included to guide you through software operation.

Q4: How do I get technical support after purchase?

We provide online technical support in English via Skype, WeChat, WhatsApp, or E-mail. For complex issues, we offer remote assistance through Team Viewer software.

Q5: What is the warranty policy?

The equipment comes with a one-year (12-month) warranty. If any part is damaged within this period due to non-human factors, we will provide a replacement part free of charge.

Q6: Can I customize products?

Yes, OEM & ODM services are available. We can provide both standard and customized machines tailored to your specific technical requirements.
