Stylo Laser
1 / 5

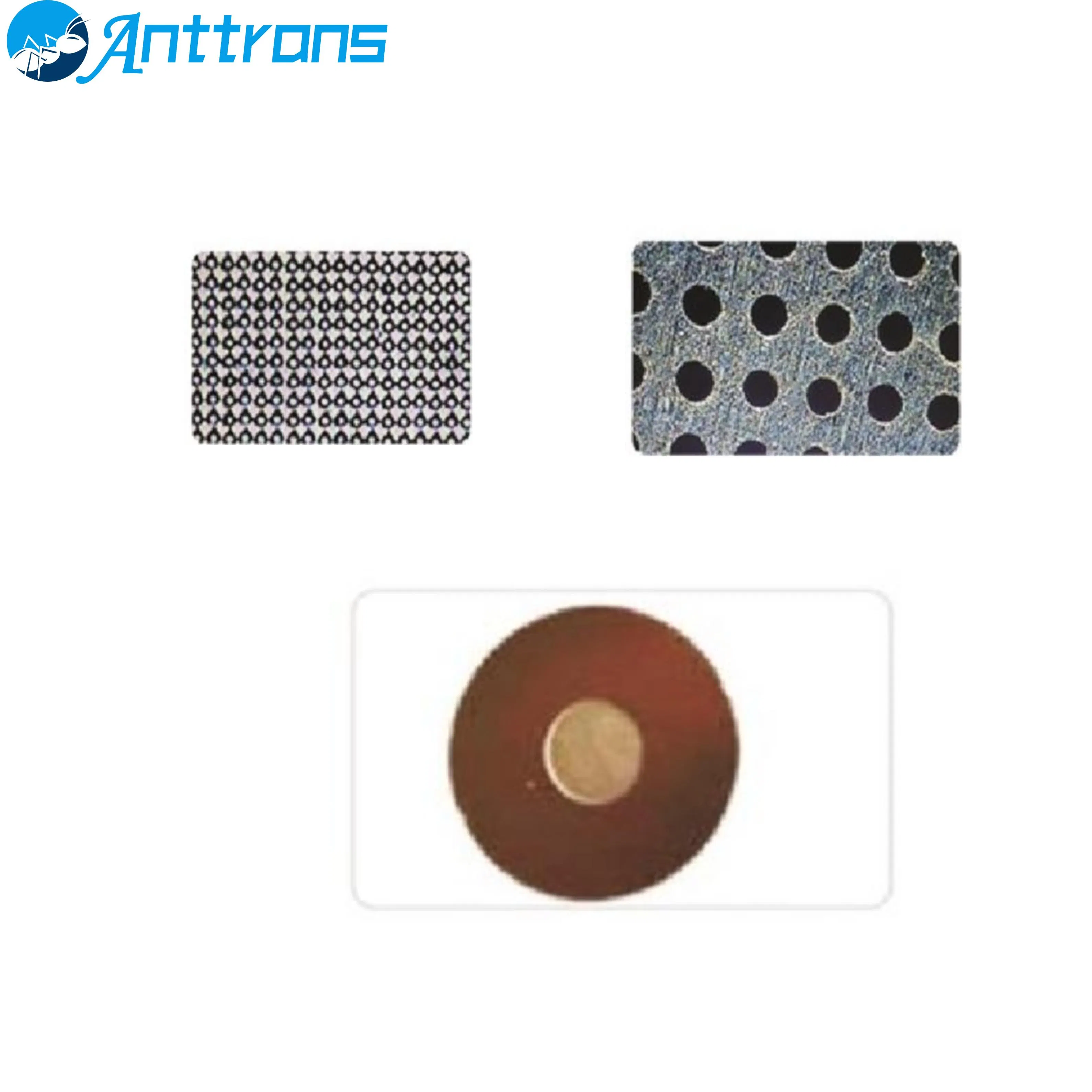

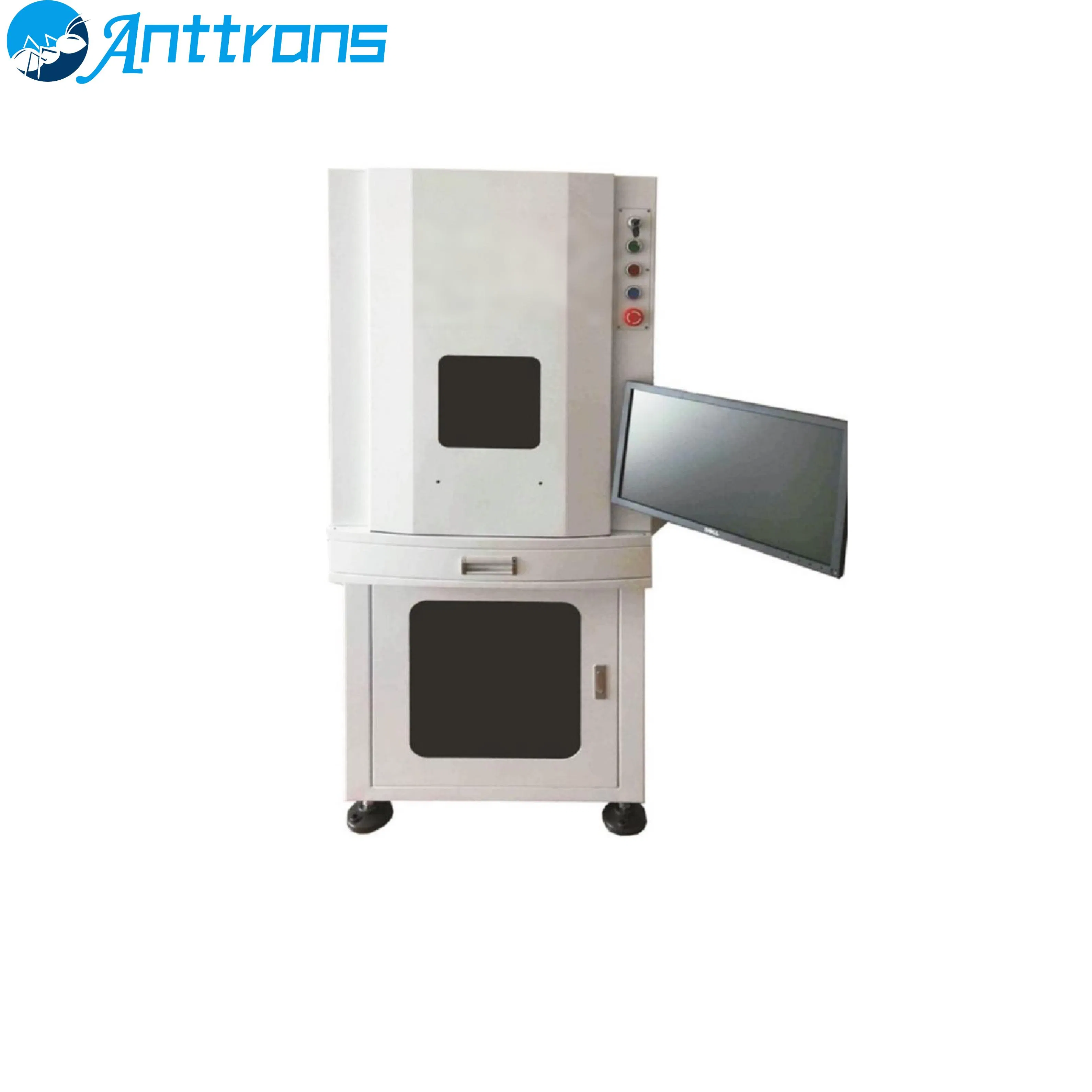

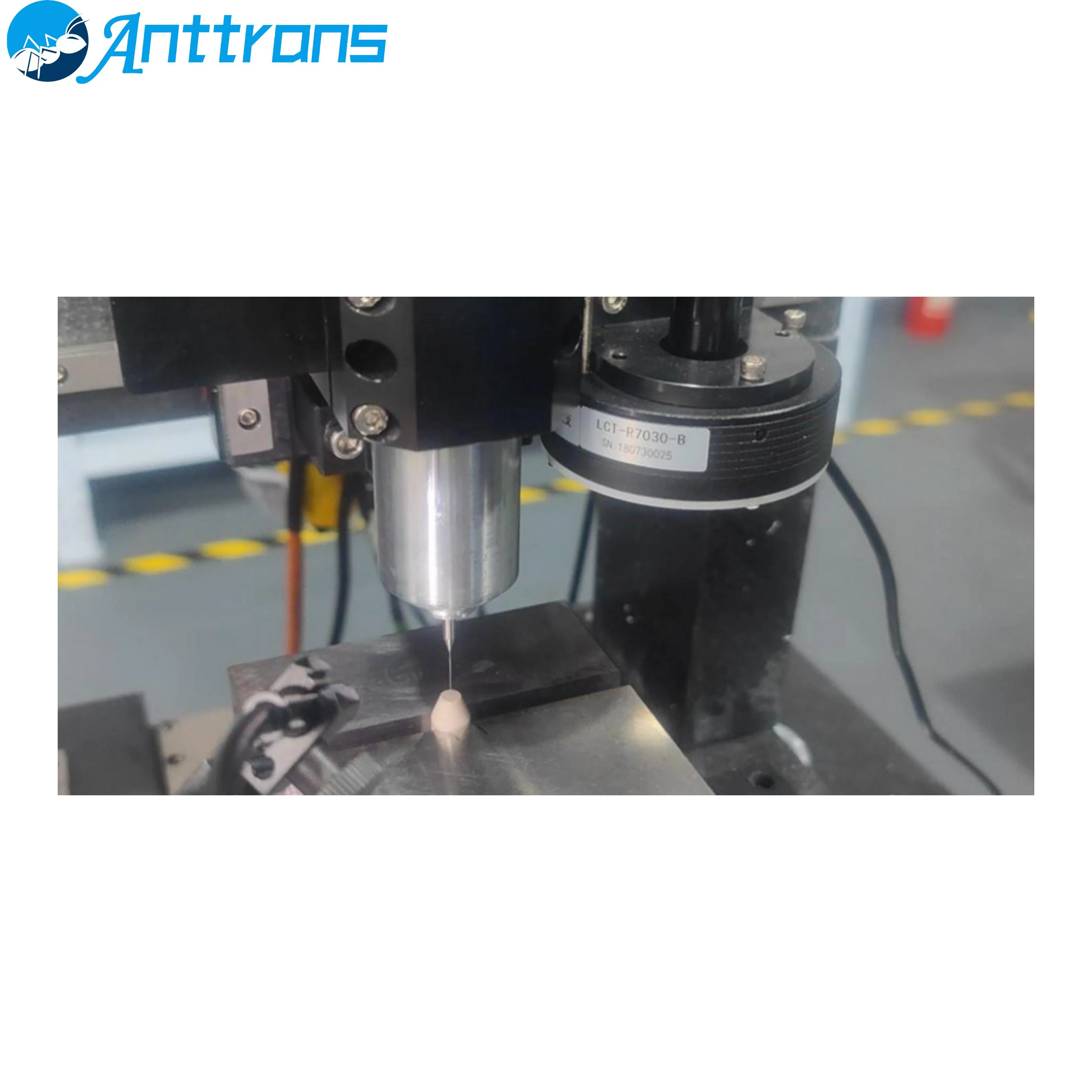

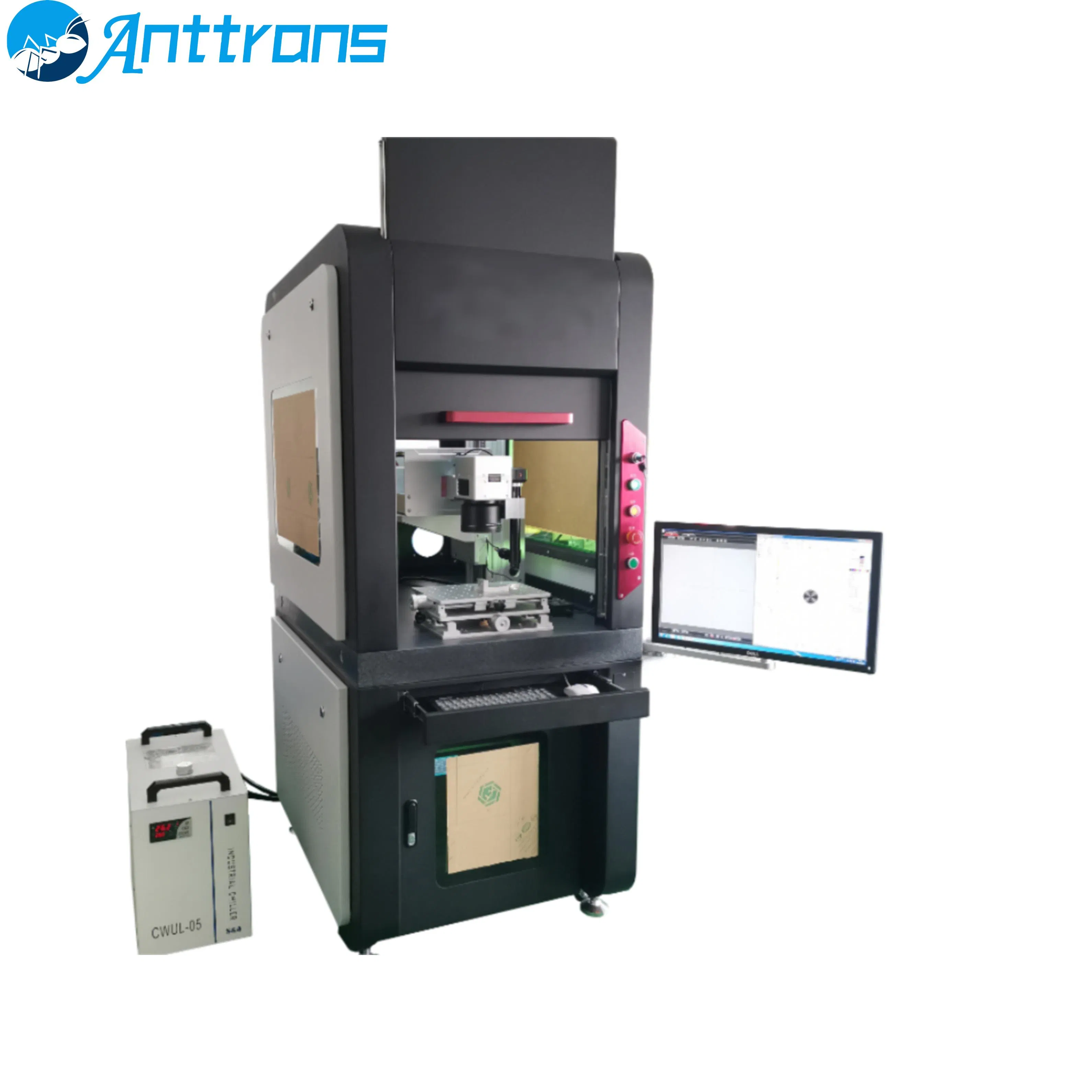

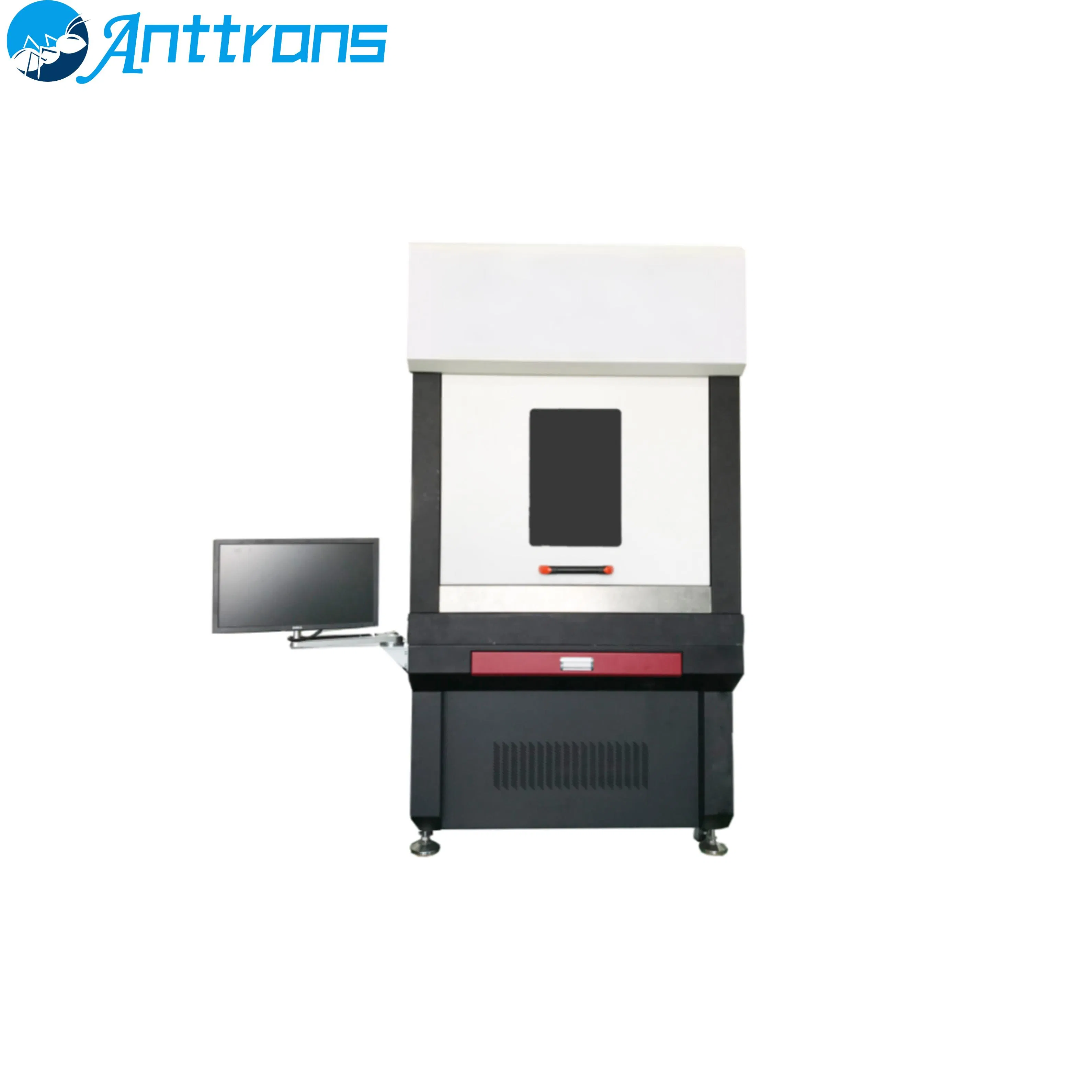

The small-format high-speed microhole machining system is a precision micro-machining equipment based on a high-power, high-stability ultraviolet laser. It is particularly suitable for small-format high-speed microhole machining and can also meet large-format machining requirements through a micron-level high-speed linear motor platform. The system integrates advanced laser technology, precision motion control, and online monitoring technology to provide micron-level precision microhole machining solutions for a variety of materials.
Semiconductor flexible circuit board cutting, ITO film layer etching, microelectronic device manufacturing.
Drug filtration, biosensors, microfluidic chips, CC IT positive sample preparation (1-30 μm).
Precision micro-mold forming, micro-nozzle processing, microhole filtration components.
Lithium battery separator microhole processing (≤ 3 μm), hydrogen fuel cell bipolar plate processing.
Microstructure research, material science experiments, micro-nano manufacturing technology development.
| Category | Parameter | FM-UV3 Specification |
|---|---|---|
| Laser | Wavelength | 355 nm |
| Laser | Power | > 3W @ 40 kHz (3-40W optional) |
| Laser | Beam Quality M² | < 1.3 |
| Galvanometer | Scan Range | < 50*50 mm |
| Galvanometer | Repeatability | < 1 μm |
| Z-Axis | Travel | 200 mm |
| Processing | Minimum Pore Size | 5 μm |
| Processing | Processing Thickness | ≤ 0.5 mm |
| Processing | Depth-to-Width Ratio | > 10:1 |
| Dimensions | System Size | 750 * 1100 * 1700 mm |
