Punching Pouch Cell Automatic Assembly System for Battery Production Machine

1 / 3

Punching Pouch Cell Automatic Assembly System for Battery Production Machine

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	Customized

Send Inquiry

Product Description

Basic Information

RechargeableYes

SizeLarge

ConditionNew

Warranty1 Year

Electrode Thickness0.08-0.2mm

Dimension3600*1500*1700mm

Electrode Width≤300mm

Weight3200kg

Core ComponentsEngine, Bearing, Mould

Production Capacity20 Pieces/Month

Product Description

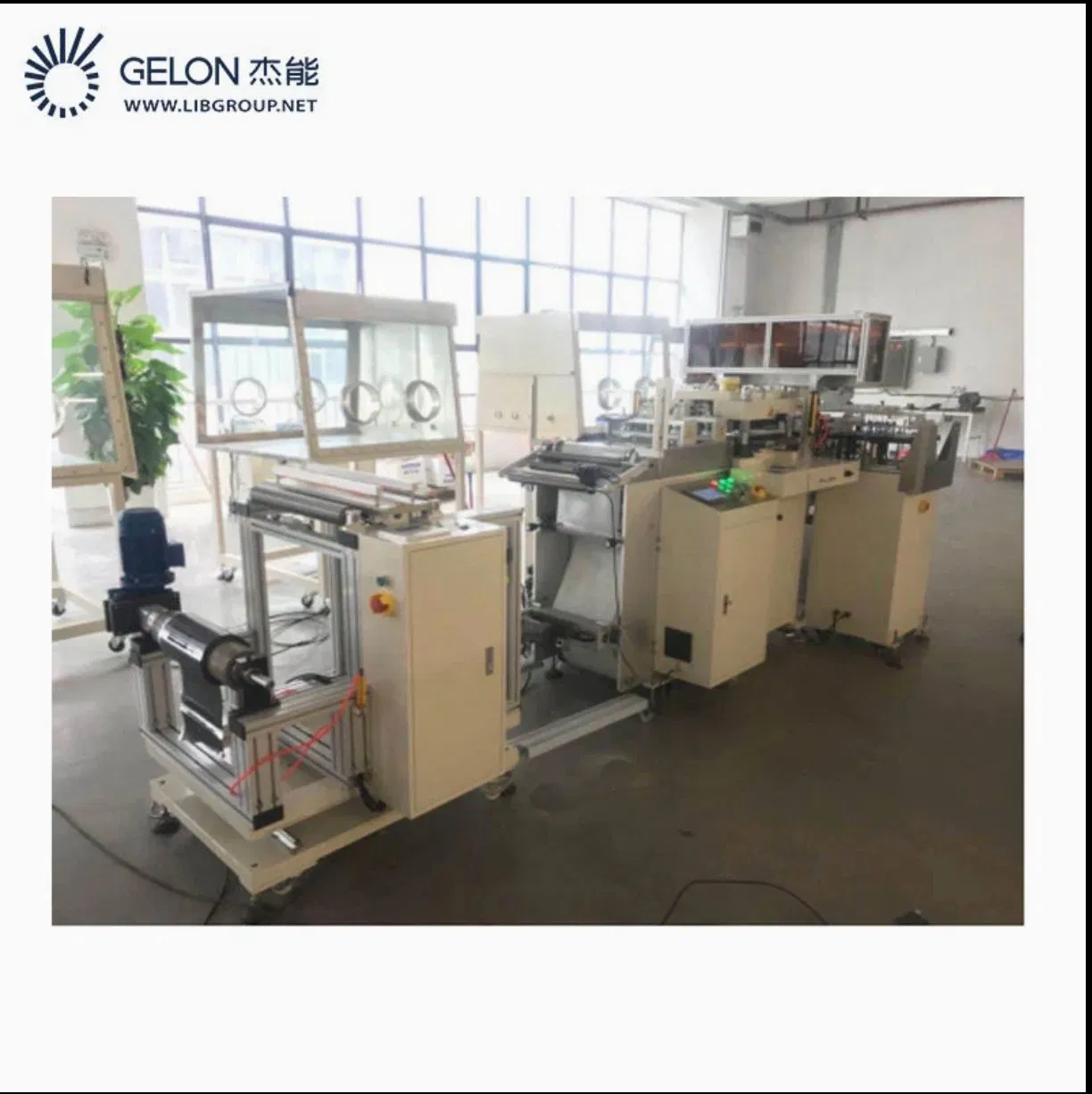

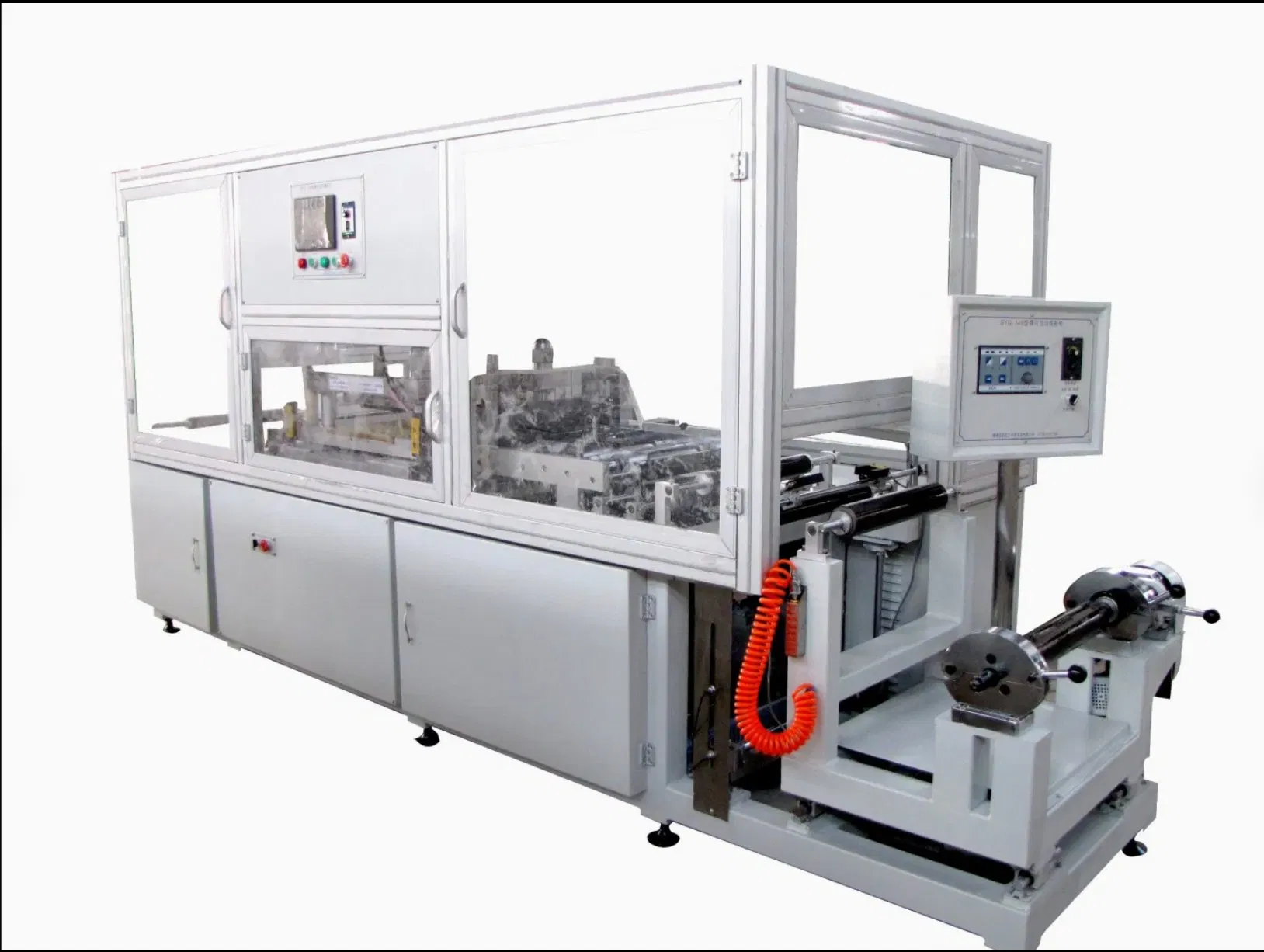

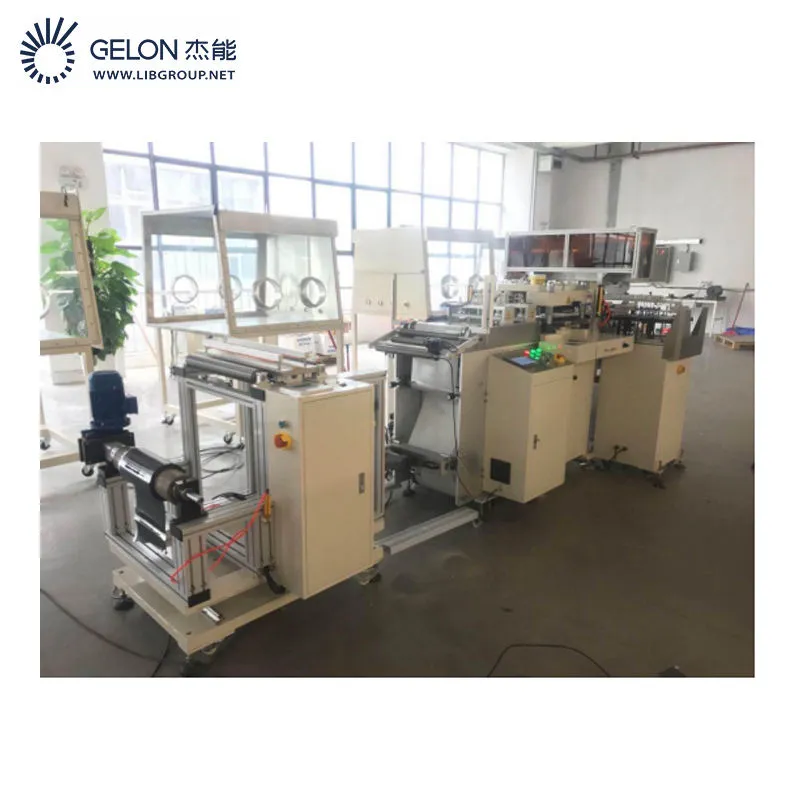

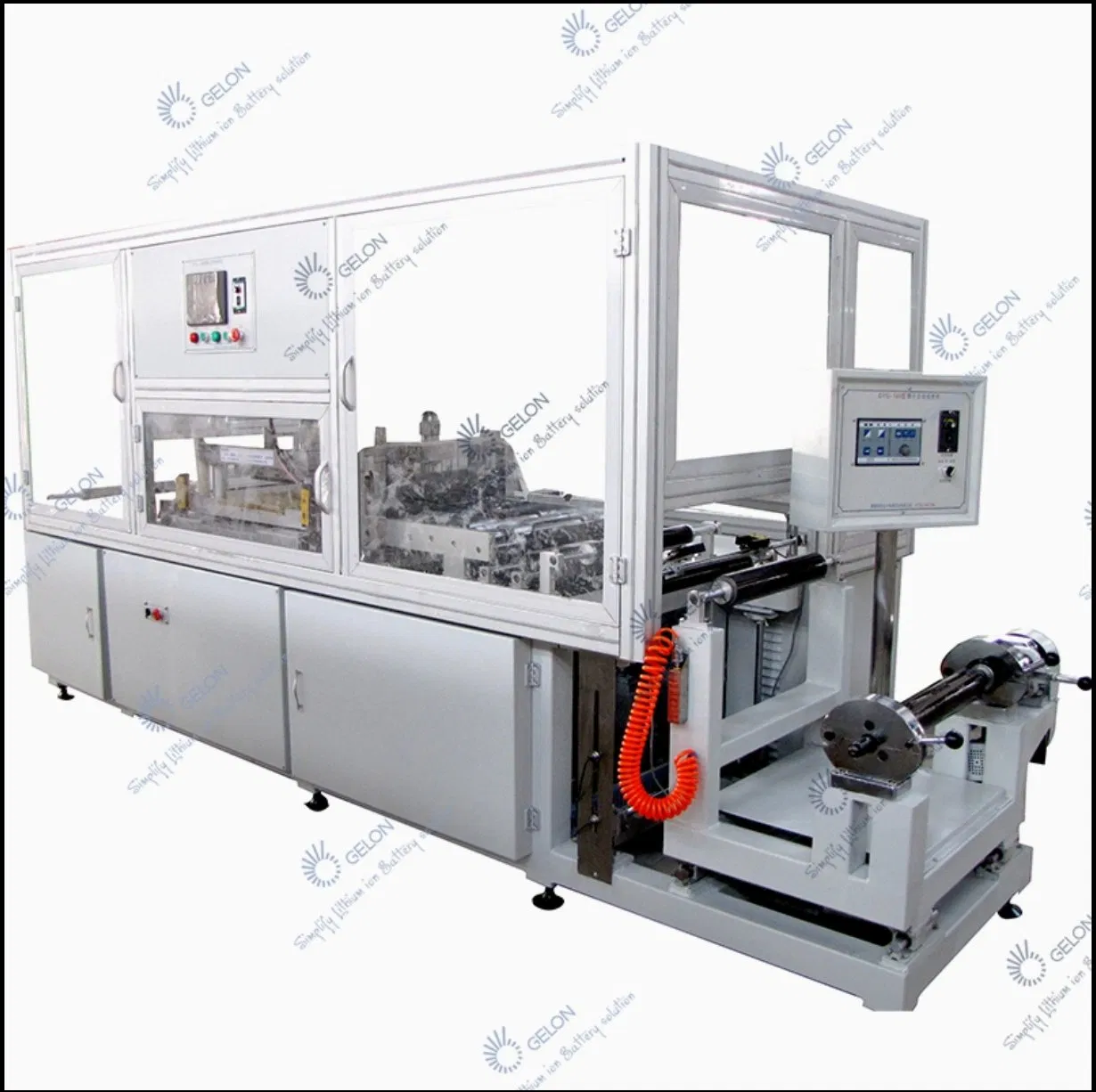

Lithium-Ion Battery Automatic Electrode Punching Machine with Laser Cutting Die

The automatic die cutter is suitable for punching forming of positive and negative electrodes in power cells (with tab), using for the front process for stacking machine. The supplied material is rolled material. The electrode-cut PET film is automatic output, collected by manual.

Electrode unwinding correction device
Electrode PET synchronous feeding device
Precision punching device & Waste collection device
Electrode punching accuracy: ±0.2mm
Electrode cutting efficiency: 20-30 times/min
Life of punching cutter: >15000 times
Man-machine interface with error display and automatic counting
Sensors for accurate white space detection: Positioning accuracy ±0.5 mm
Maximum table area: W 300 x L 300mm
Qualified rate of equipment products: ≥98%

Technical Item		Parameters (GN-S300PA)
Accuracy	Cutting accuracy (mm)	≤±0.2mm
Accuracy	Feeding accuracy	≤0.5
Performance	Transverse correction accuracy	±0.5
	Burr length (mm)	≤0.02
	Work efficiency (ppm)	20-30
Material Size	Electrode Length	Rolling materials
	Electrode Width	≤300mm
	Electrode Thickness	0.08-0.2mm
Utilities	Power source	Single phase AC220V, 2KVA
	Compressed air	0.4~0.6Mpa, 50L/min
	Die cutting pressure	≥10T
