Product Description

Overview & Basic Information

Model NO.: AT-61024

Origin: China

Package Size: 200.00cm * 300.00cm * 50.00cm

Gross Weight: 1000.000kg

Product Description

The Three-axis Laser Welding Machine is an advanced device that integrates laser welding technology with a high-precision three-axis motion control system, primarily designed to achieve efficient and high-precision welding of complex workpieces.

Core Technical Features

High-precision Control: Servo motors ensure precise positioning, while the galvanometer oscillation mode compensates for irregular weld seam gaps.

Diverse Welding Modes: Supports energy splitting, time splitting, and continuous welding, enhancing efficiency and adaptability.

Excellent Weld Seam Quality: The spot diameter can be as low as 3.5mm, with controllable penetration depth, resulting in fine and aesthetically pleasing weld seams.

Application Areas

New Energy Industry: Lithium battery electrode tab welding, PACK sealing.

Precision Manufacturing: High-strength sealing for aerospace components, medical devices, and electronic components (such as sensors, vacuum cups).

Automotive and Industrial: Mold repair, joining of dissimilar metals, and plastic welding (such as automotive electronic enclosures).

Technical Parameters

No.	Name	Technical Requirements
1	Model	LMFW-W2000L
2	Motion Mode	Continuous/Modulated
3	Rated Output Power (W)	2000
4	Central Wavelength (nm)	1080
5	Switching Time (ms)	20
6	Frequency (kHz)	1000-5000
7	Positioning Indicator	Precise Red Light + CCD
8	Fiber Core Diameter (μm)	50
9	Output Fiber Terminal	QBH
10	Power Requirement	220V
11	Control Mode	External/Internal
12	Main Unit Dimensions (mm)	1500x1300x1850
13	Motor	Servo
14	Power Adjustment Range	1-10
15	Annual Power Consumption	≤1-2.5%
16	Cooling Method	Water Cooling, Dual Temp Control
17	Water Quality	Distilled Water

Equipment Configuration

No.	Component Name	Quantity
1	Laser Source	1 Set
2	Three-axis Cabinet	1 Set
3	Chiller	1 Set
4	Servo Motor/Driver	1 Set
5	Oscillating Head + Wire Feeder	1 Set
6	Laser Welding System	1 Set
7	Display	1 Set
8	Computer	1 Unit

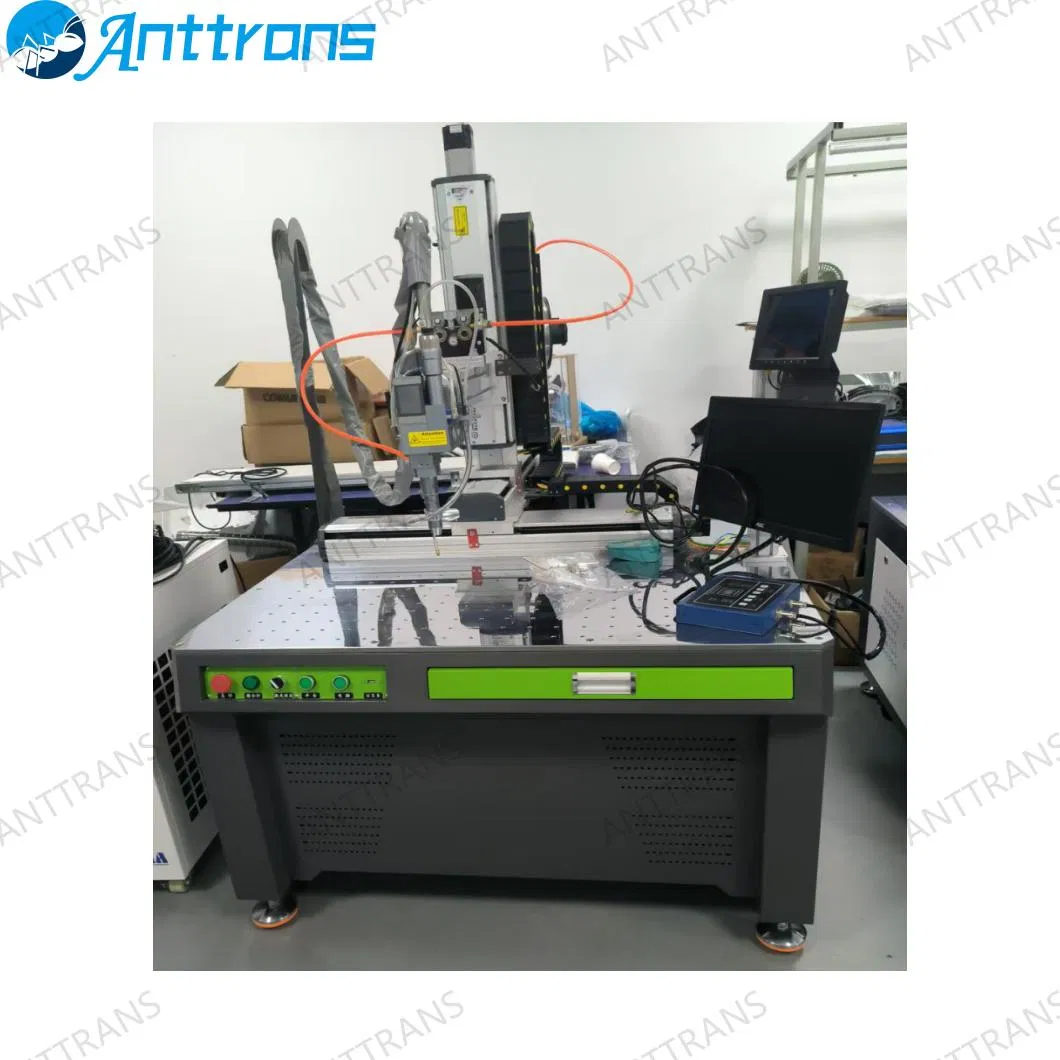

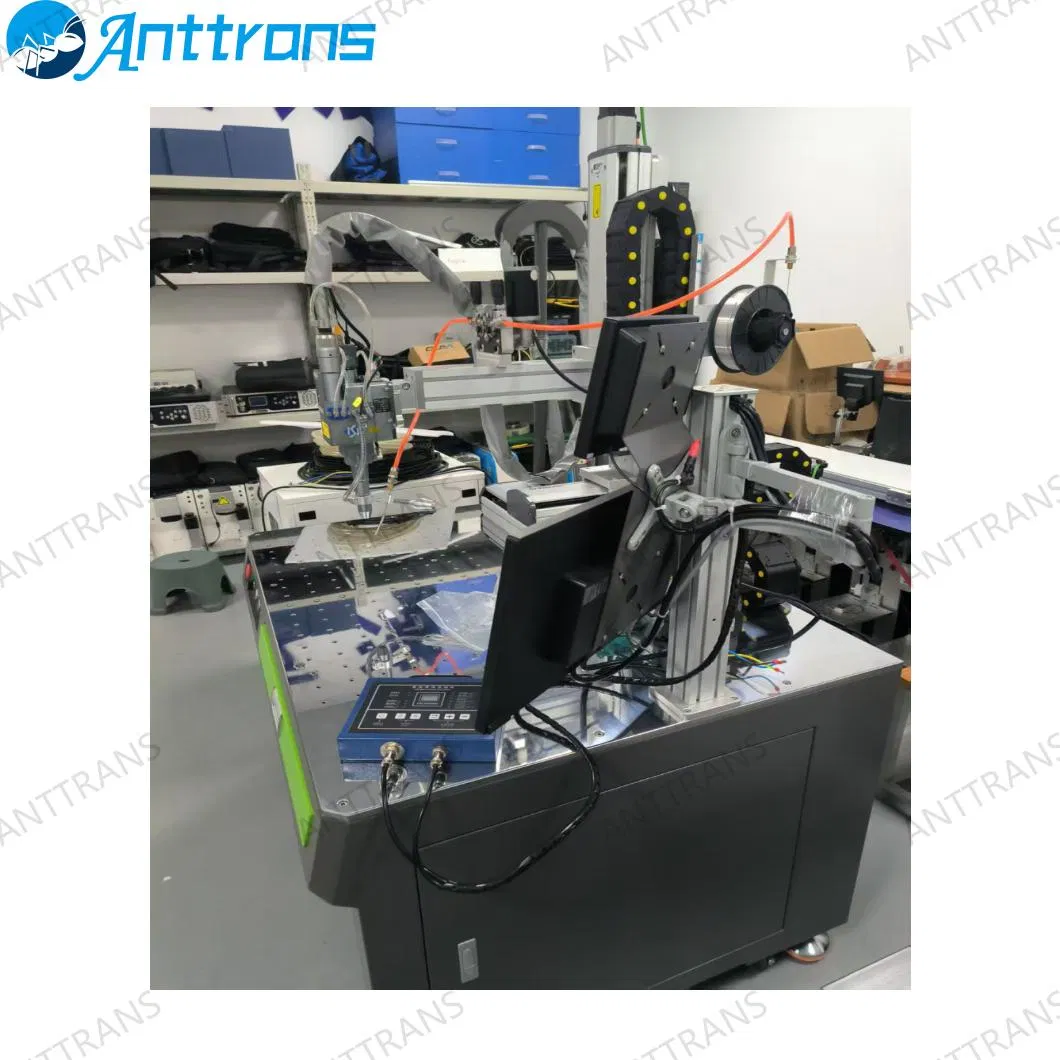

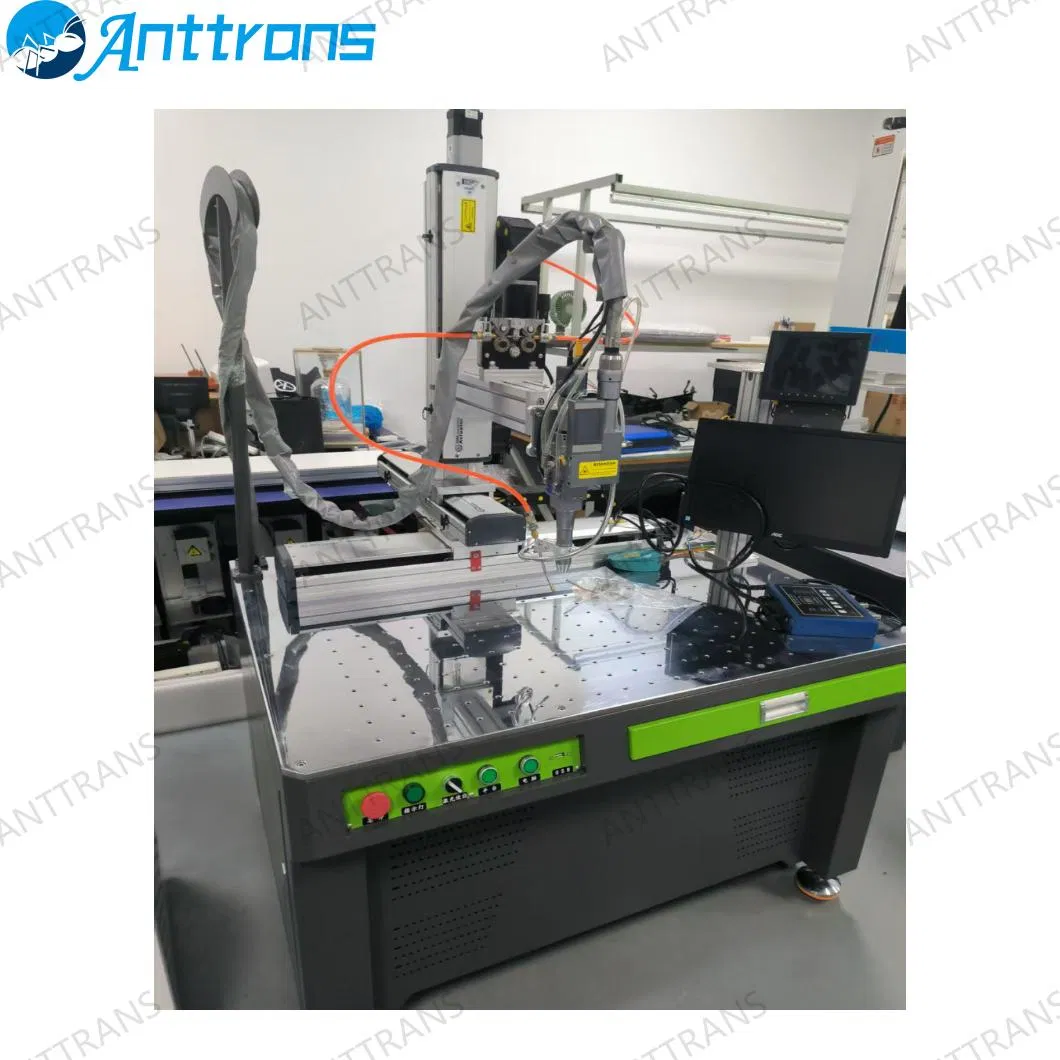

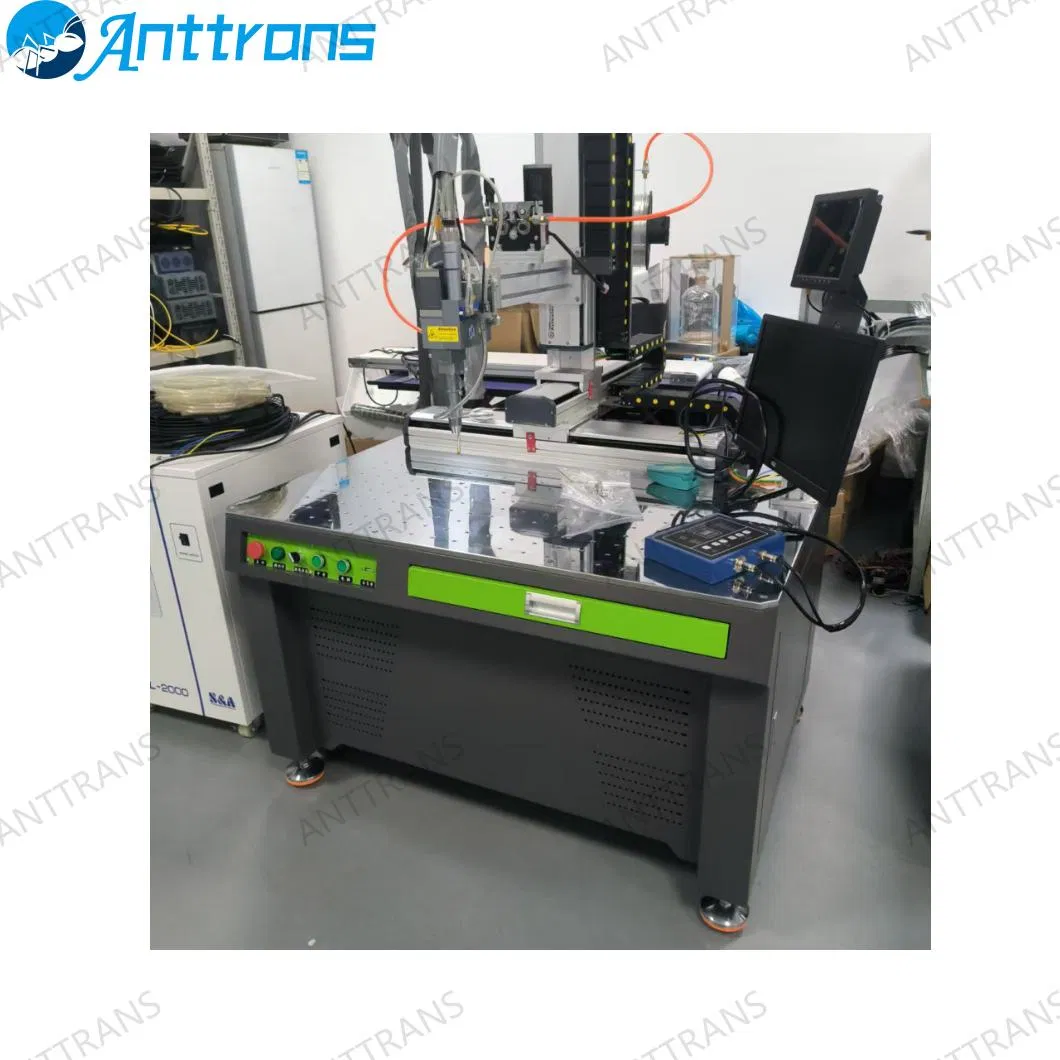

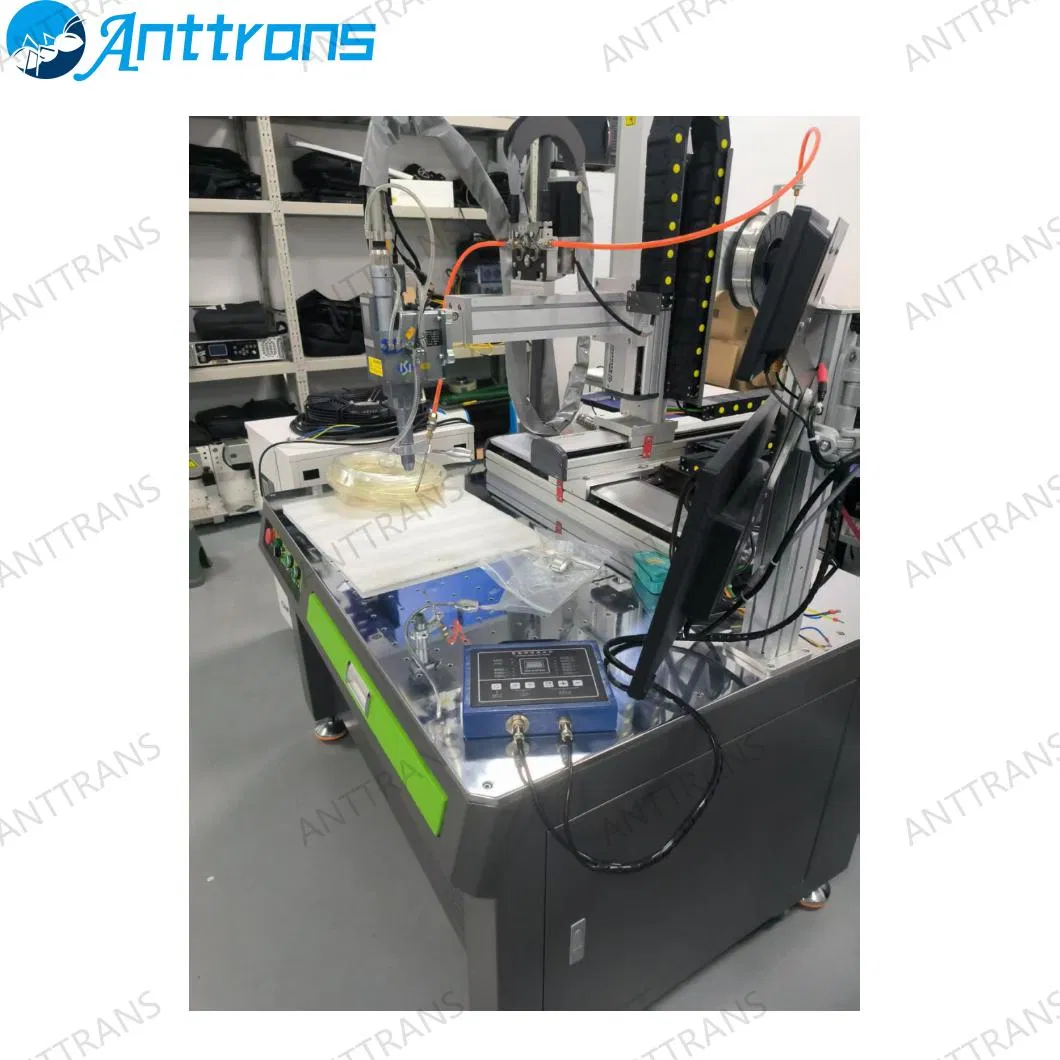

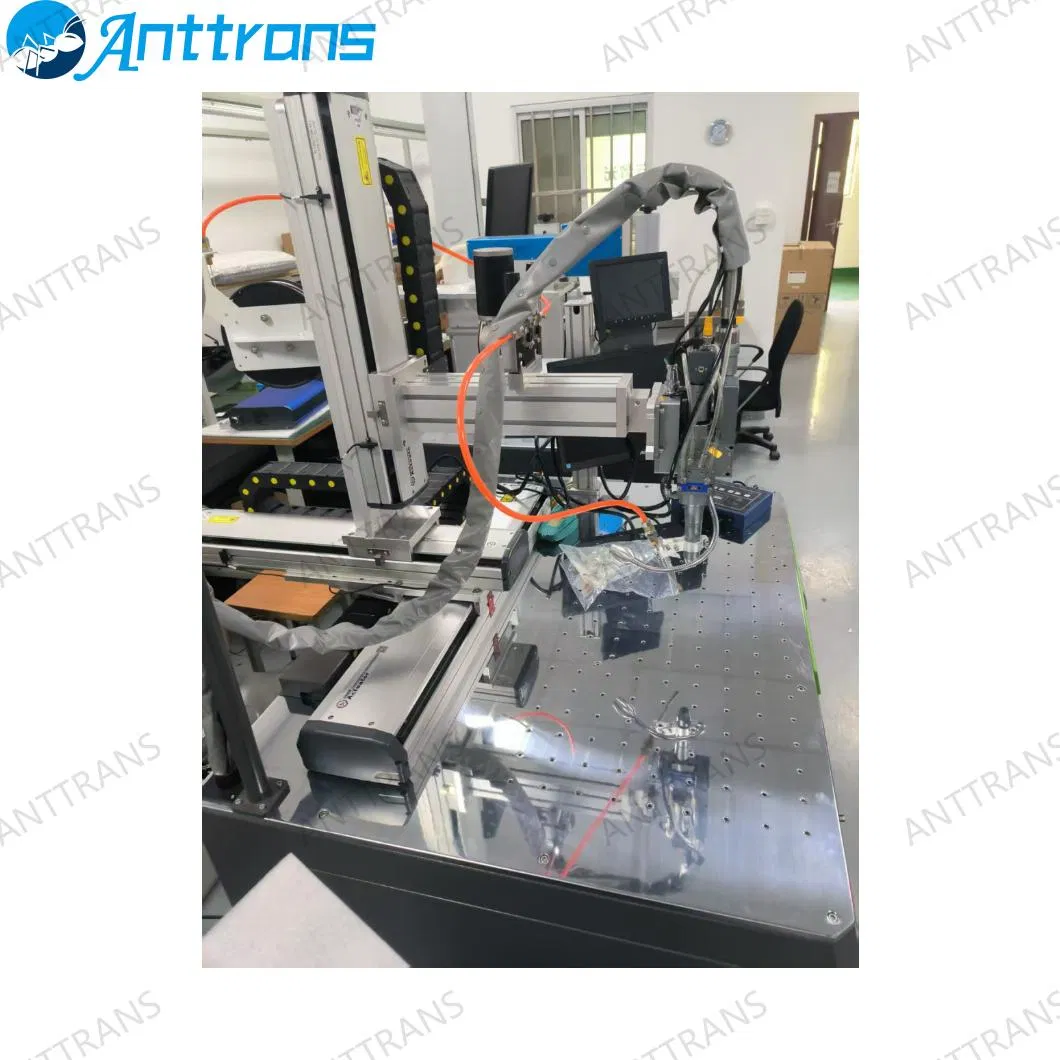

Detailed Photos

Frequently Asked Questions

Q1: What materials can the Three-axis Laser Welding Machine process? A1: It is capable of welding various metals, joining dissimilar metals, and even specialized plastic welding for automotive electronic enclosures.

Q2: How does the system ensure welding precision? A2: The machine utilizes high-precision servo motors for exact positioning and a CCD red light indicator for precise alignment.

Q3: What cooling method is required for this equipment? A3: The system uses a dual-temperature, dual-control water cooling method, requiring distilled water for optimal performance.

Q4: Can it handle irregular weld seams? A4: Yes, the galvanometer oscillation mode is specifically designed to compensate for irregular weld seam gaps.

Q5: What are the main applications in the new energy industry? A5: It is widely used for lithium battery electrode tab welding and PACK sealing due to its controllable penetration depth.

Q6: What is the rated output power of the LMFW-W2000L model? A6: The model has a rated output power of 2000W with an adjustable power range of 1-10.
