Bench-Top Roll to Roll Electrospinning System with Syringe Pump and Heating Bed

Certification:	CE, RoHS, CE
Coating Application:	Electronics Industry, Medical Industry
Coating Color:	Customer's Application

Overview & Basic Info

Model NO.	TN-CMR-300T-S
Product Name	Doctor Blade Coating Machine
Method Type	Automatic / Doctor Blading
Condition	New
Heating Method	Bottom Heating (Up to 120°C, Adjustable)
Coating Plate Size	1000 * 350mm
Travel Speed	28 ~ 90mm
Blade Film Maker	300mm
Warranty	One Year
HS Code	848620900

Product Description

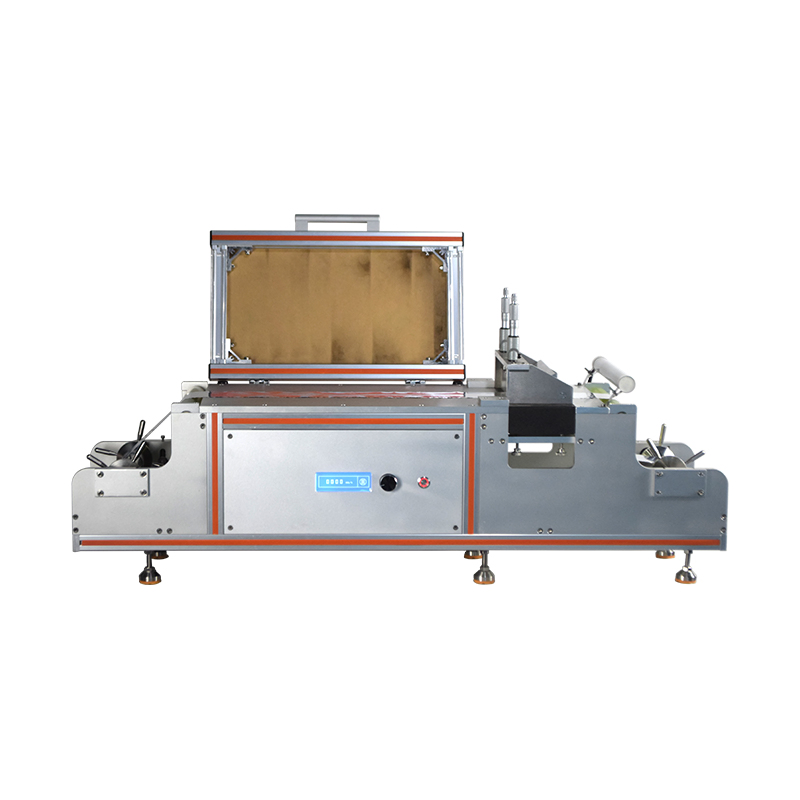

Bench-top Roll to Roll Electrospinning System with Syringe Pump and Heating Bed

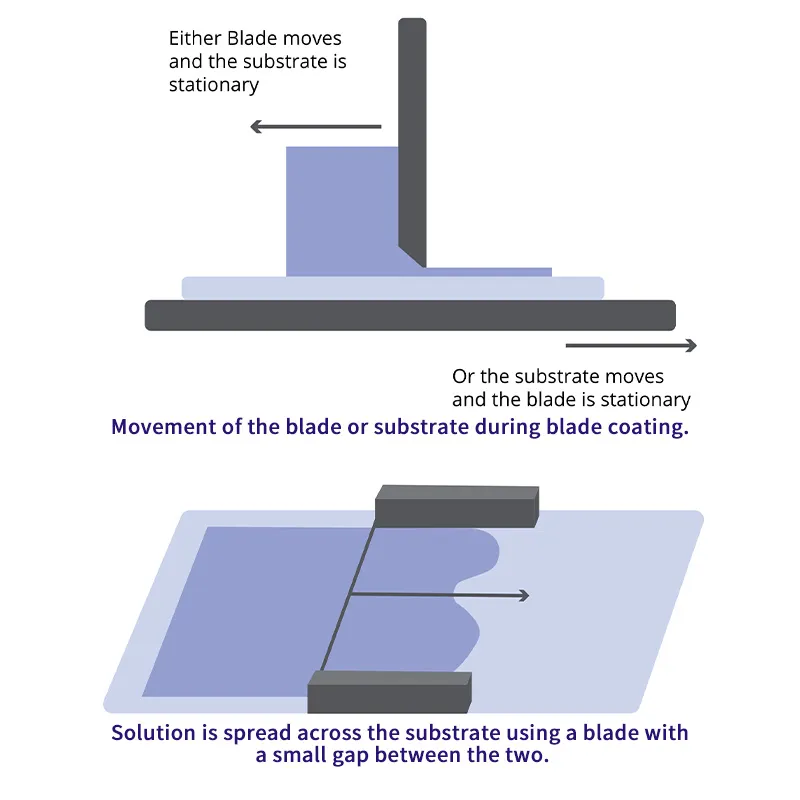

Doctor Blading Overview: Doctor blading (also known as knife coating or blade coating) is a popular thin-film fabrication technique which involves either running a blade over the substrate or moving a substrate underneath the blade. A small gap determines the solution flow, effectively spreading it over the substrate. The final thickness is influenced by the viscoelastic properties of the solution and the speed of coating.

Key Features:

Roll-to-Roll Precision: Primarily used for coating liquid or colloidal films in laboratory environments.
Variable Speed Control: Continuously variable speed motor ensures uniform scraper advancement for consistent coating.
Stainless Steel Blade: High-quality stainless steel blade with constant weight to improve film uniformity.
Advanced Heating & Vacuum: Features a bottom vacuum to absorb samples and integrated bottom heating up to 120°C for quick drying.
Integrated UV Curing: Equipped with an ultraviolet curing lamp for efficient drying and curing of the film layer.
Battery Material Production: Ideal for the continuous production of battery electrode materials.

Technical Specifications

Manual adjustment with dial indicator (1um accuracy)

Power Supply	AC220V, 50Hz
Total Power	3500W
Heating System	Hot air heating at bottom; Max 120ºC; Accuracy ±1ºC
Drying Area	Length 1m, Width 600mm
Film Thickness Accuracy	0.01mm
Vacuum Substrate	Aluminum alloy; Size: 400mm(W) * 400mm(L)
Film Coater Type	Scraper film maker; Coating width 500mm
Winding Mechanism	Speed: 100-400mm/min (Adjustable with feedback control)
Tension Control	Max. 50N
Overall Dimensions	2000mm x 900mm x 600mm
Weight	Approximately 200Kg

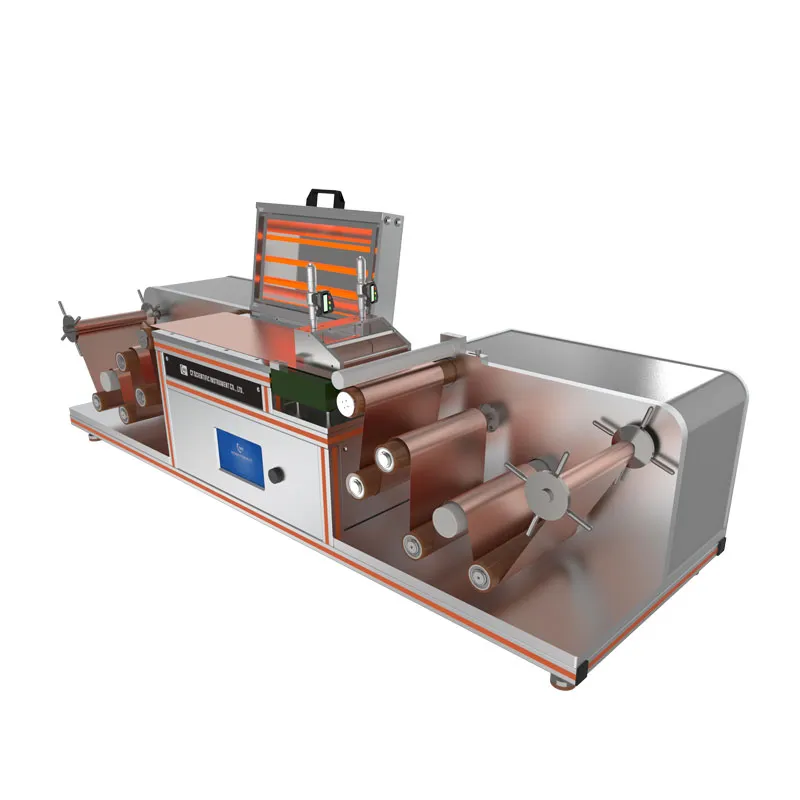

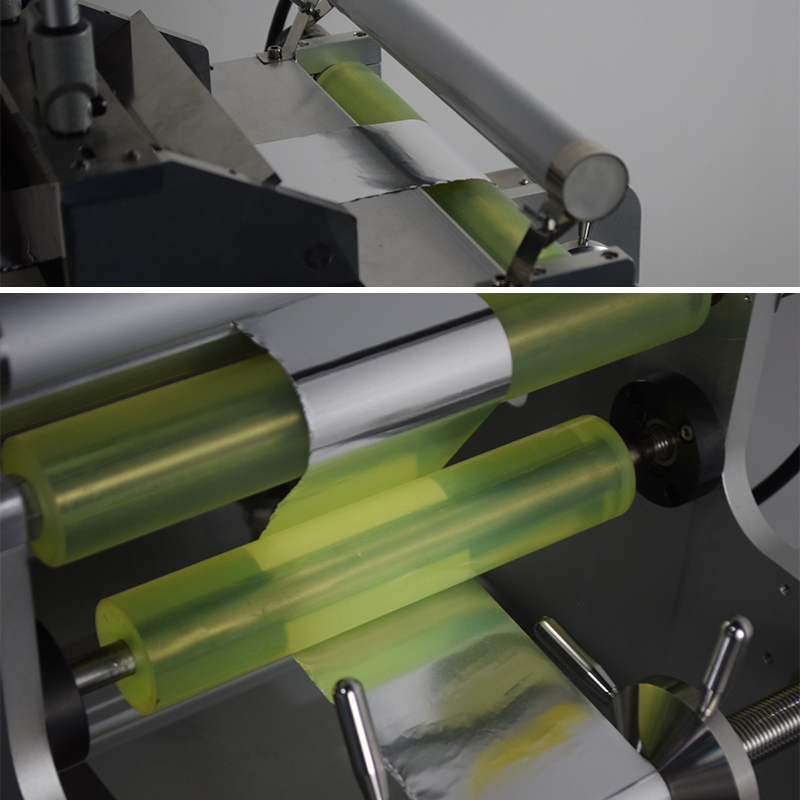

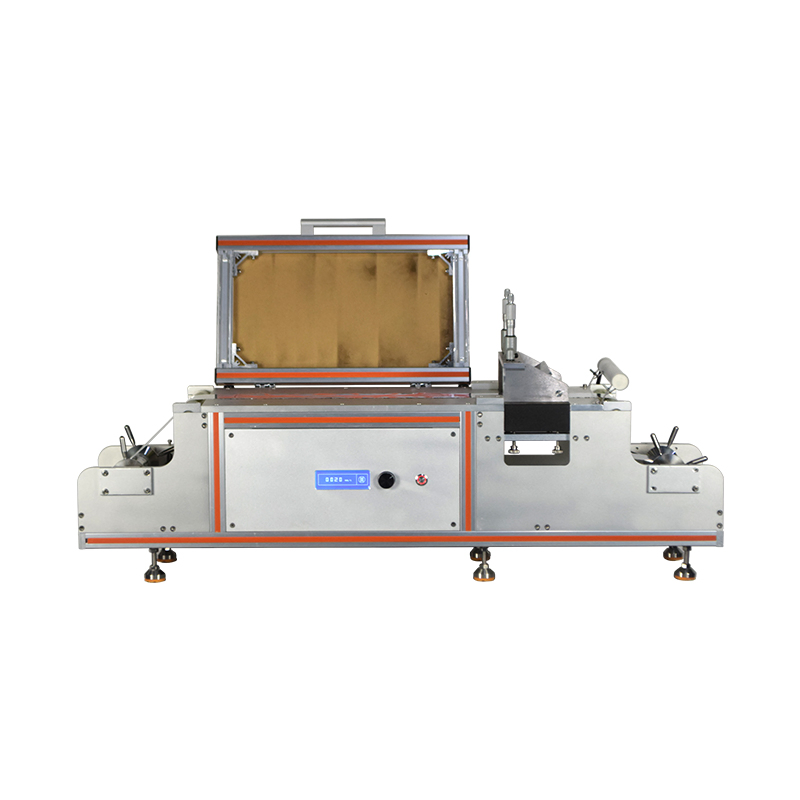

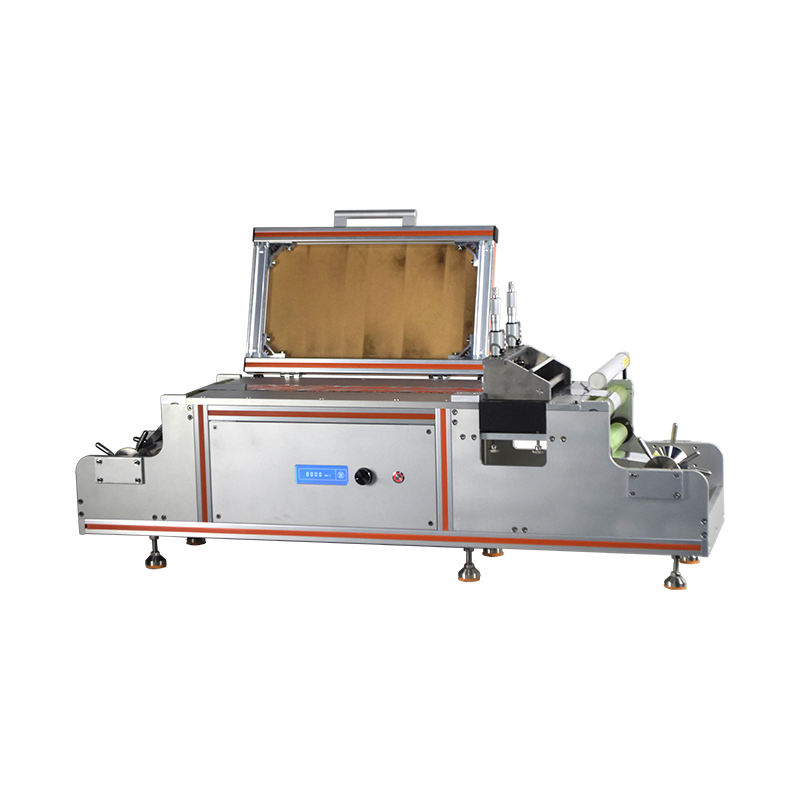

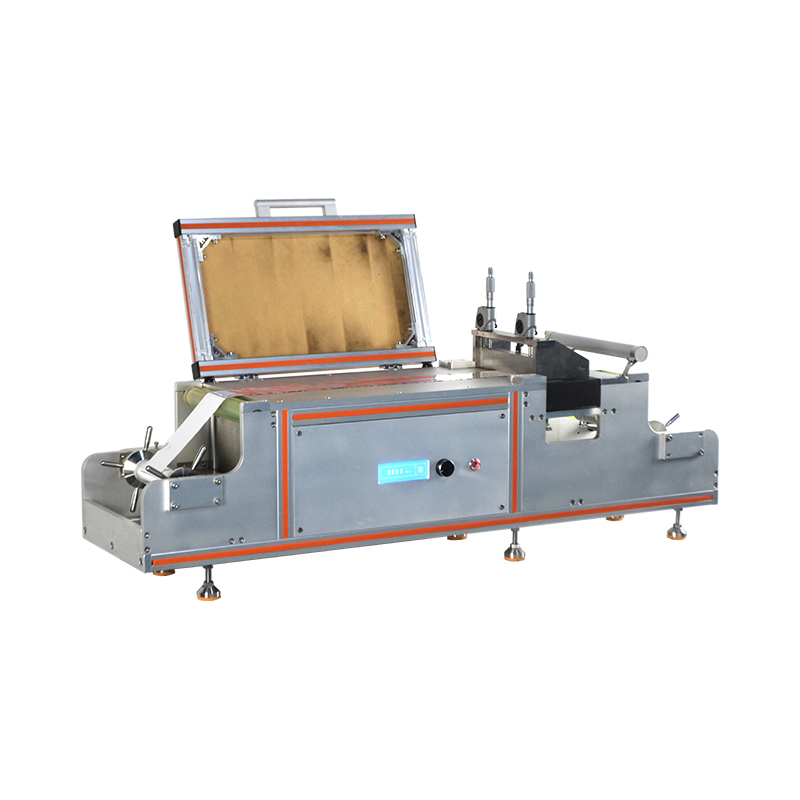

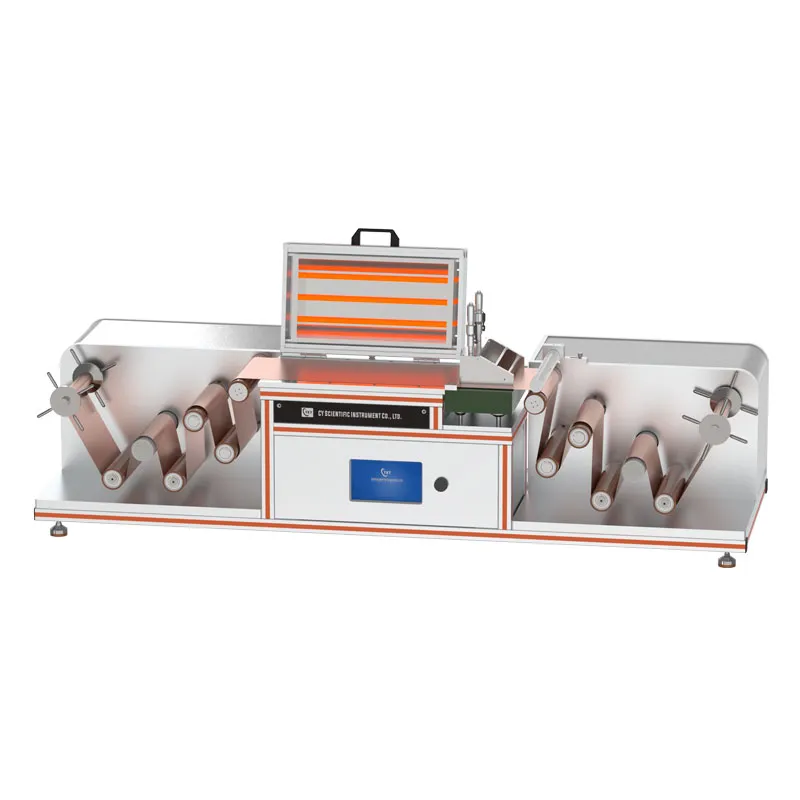

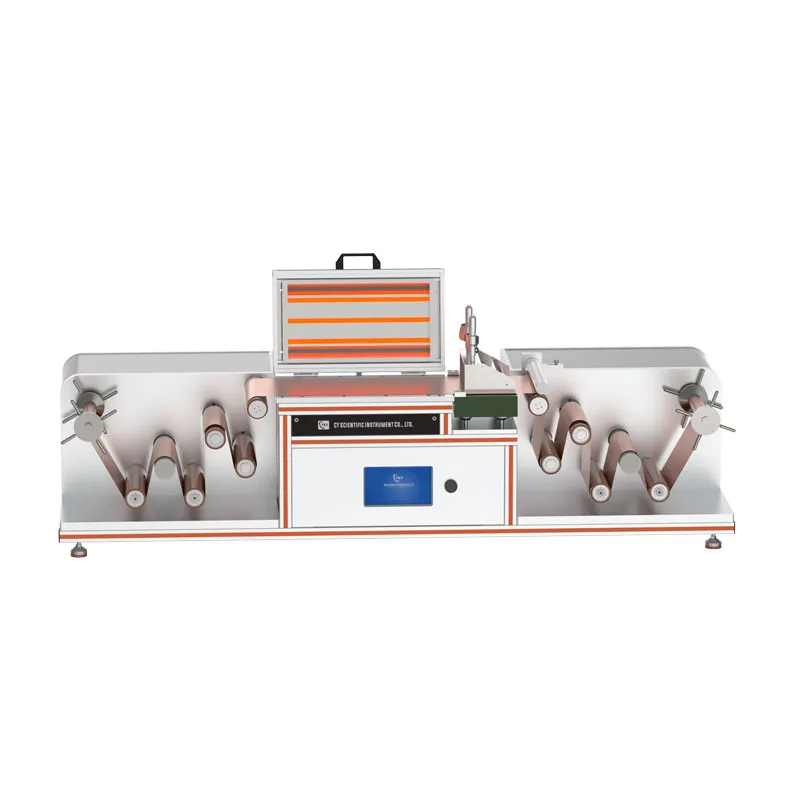

Detailed Product Gallery

Manufacturing & R&D Capabilities

We are a comprehensive enterprise integrating design, research and development, production, and sales of high-end laboratory equipment. Our core product line includes spin coaters, thermal evaporation coaters, magnetron sputter coaters, plasma cleaners, CVD/PECVD systems, and precision cutting machines.

Our solutions are widely applied in materials science research, serving leading universities, national laboratories, and innovative material companies worldwide. With exports to over 20 countries, including the USA, UK, Germany, and Russia, we have established ourselves as a trusted partner in the global scientific community.

Packaging & Global Logistics

We offer flexible shipping solutions for the doctor blade/knife coating machine via sea, air, express, or land transport, tailored to your specific logistical requirements. All units are secured in standard export fumigation wooden boxes to ensure safe delivery.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer specializing in laboratory instruments. Our dedicated R&D team and on-site workshop allow us to guarantee product quality and provide direct after-sales service.

What is the warranty period for the coating machine?

Our standard warranty is 12 months. Beyond that, we provide lifetime maintenance support and 24-hour online technical service.

How long is the delivery time?

Standard products in stock typically ship within 5-10 days. Customized instruments usually require 30-60 days for engineering and production depending on your specific requirements.

Can you customize the power supply and plug?

Yes, we provide products configured according to your local voltage (e.g., 110V, 220V, 380V) and regional plug standards.

What payment methods do you accept?

We accept various payment options including T/T (Telegraphic Transfer), L/C (Letter of Credit), D/P (Documents against Payment), and others.

What kind of packaging is used for international shipping?

We use standard export-grade fumigation wooden boxes or customized packaging as per your requirements to ensure the equipment remains protected during transit.
