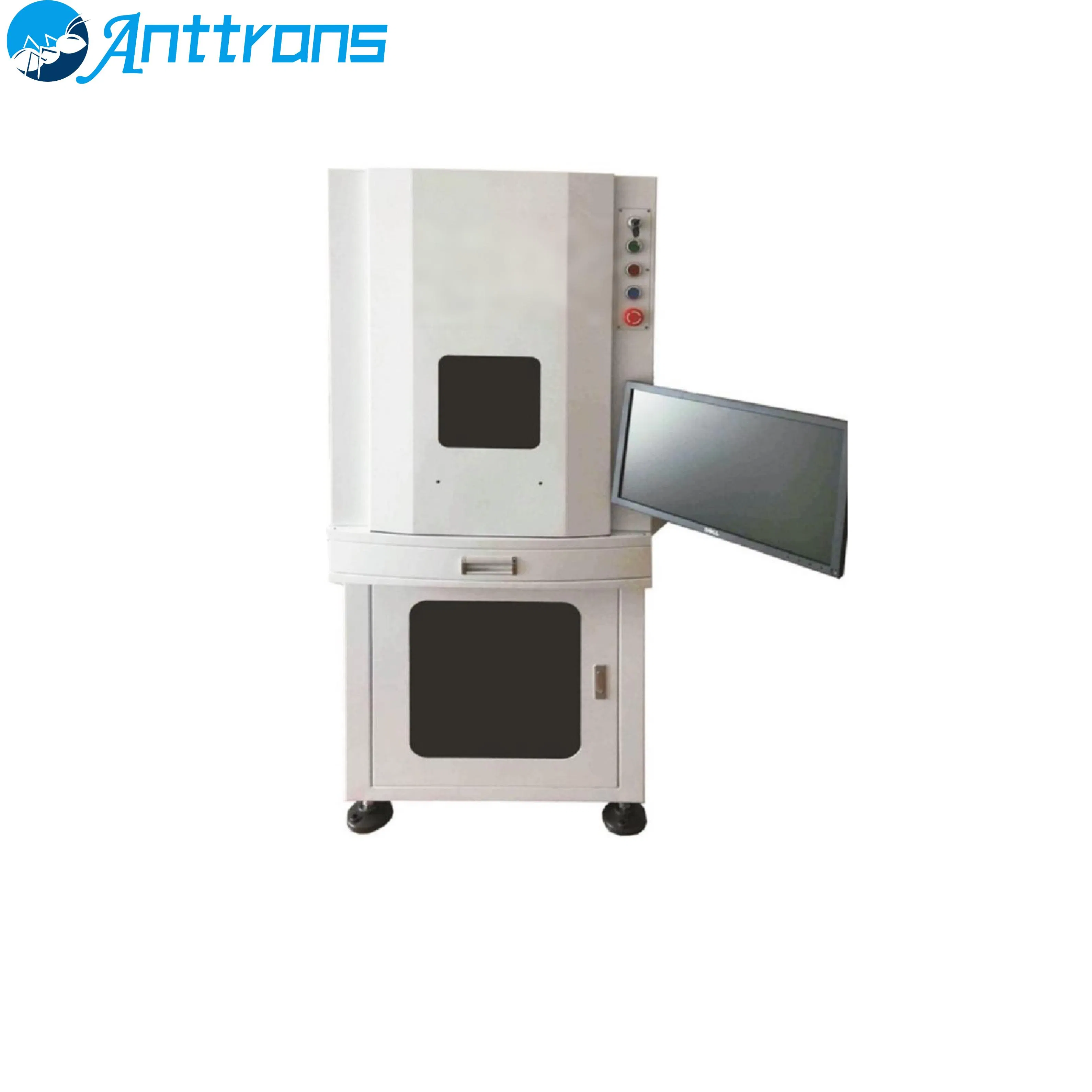

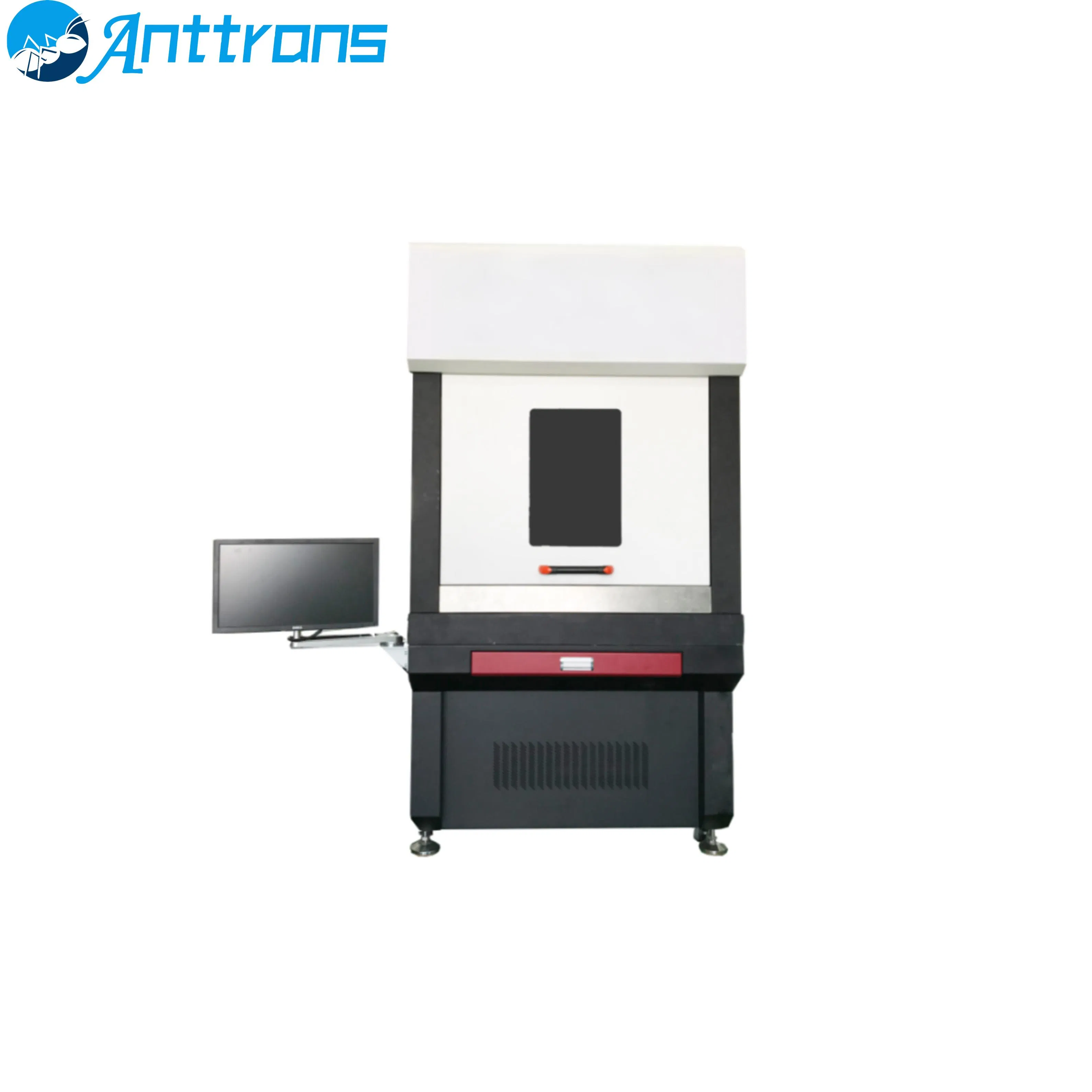

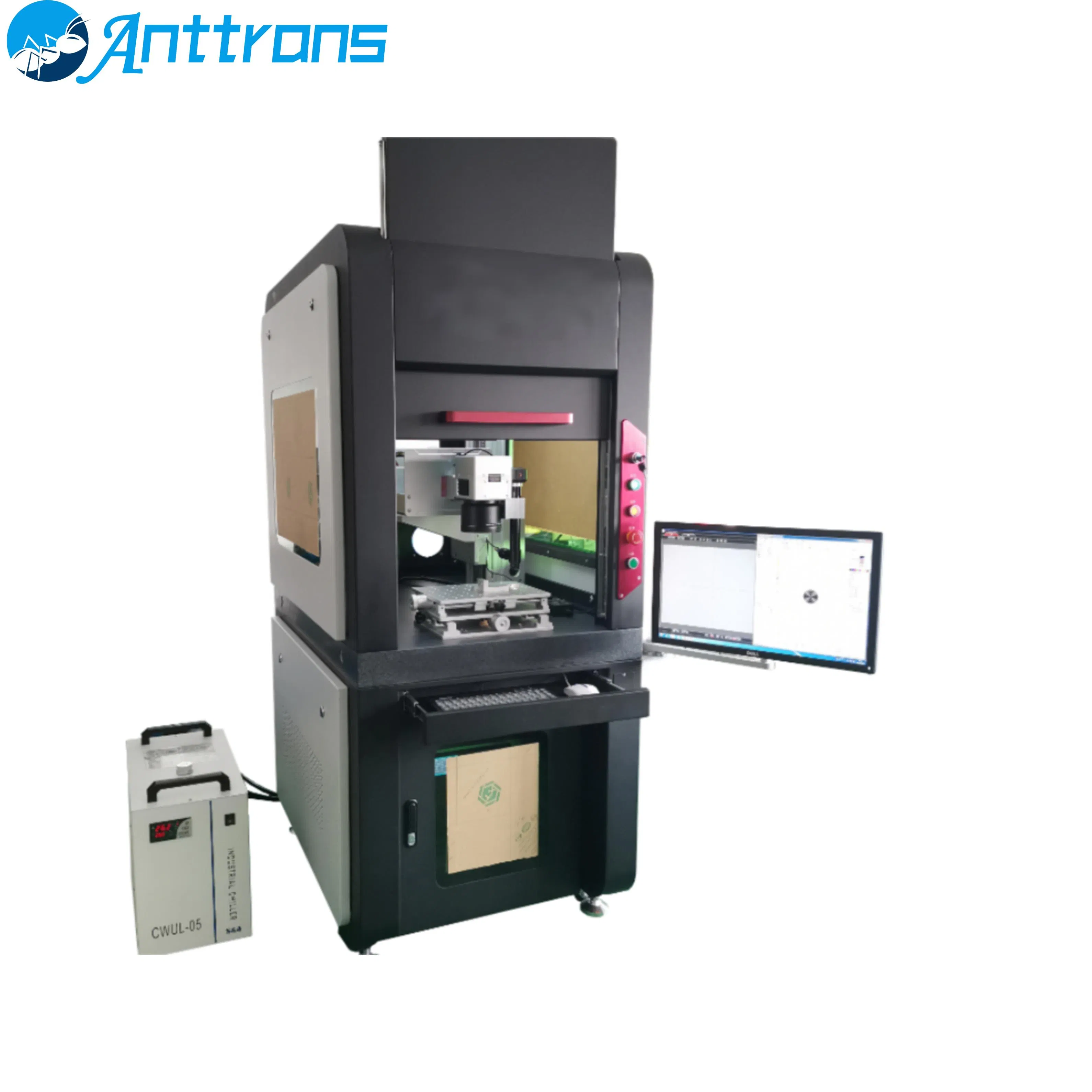

The small-format high-speed microhole machining system is a precision micro-machining equipment based on a high-power, high-stability ultraviolet laser. It is particularly suitable for small-format high-speed microhole machining and can also meet large-format machining requirements through a micron-level high-speed linear motor platform. The system integrates advanced laser technology, precision motion control, and online monitoring technology to provide micron-level precision microhole machining solutions for a variety of materials.
Electronics
Semiconductor circuit cutting, ITO etching, biochip preparation.
Medical
Drug filtration, biosensors, microfluidic chips, CCIT packaging.
Precision Machinery
Micro-mold forming, micro-nozzle processing, filtration components.
New Energy
Lithium separator processing (≤ 3 μm), hydrogen cell microchannels.
We provide comprehensive technical services, technology development, and consulting. Our expertise spans computer hardware/software auxiliary equipment, functional glass, and new optical materials. We specialize in the sale and support of optical instruments, specialized semiconductor equipment, experimental analysis tools, CNC machine tools, and electronic components. Our commitment includes metal cutting and welding solutions, photovoltaic components, and advanced electronic materials.
?
Frequently Asked Questions
What is the minimum hole size the system can process?
The system can achieve a minimum processing pore size of 5 μm with a processing line width of 5 μm.
What materials are compatible with this UV laser system?
It is capable of processing a wide range of materials including metals, ceramics, organic materials, glass, silicon wafers, and various alloys.
Can the system handle different material thicknesses?
Yes, the Z-axis is electrically adjustable to accommodate different thicknesses and can even process three-dimensional structures.
What ensures the precision of the microhole machining?
Precision is ensured by a high-resolution industrial camera for focusing, a high-stability marble table, and advanced galvanometer control with < 1 μm repeatability.
Is the system suitable for mass production in electronics?
Absolutely. It is designed for high-speed manufacturing in semiconductor circuit cutting, ITO film etching, and flexible board processing.
What are the cooling and power requirements?
The system uses a water-cooled method and operates on a 220V 50-60Hz power supply with a consumption of ≤ 1500W.
