Industrial Chiller Chilling Equipment for Positive Electrode Materials Test

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

ℹ️Basic Information

Model NO.

K series

Certification

CE, ISO

Application

Heater, Cooler

Principle

Mixing Heat Exchanger

Style

Steel Type

Material

Steel

Temperature Range

-40~120℃

Temperature Stability

±0.5℃

Flow

2~20L/Min / 4~40L/Min / 6~60L/Min

Flow Stabiltiy

±0.2℃

Cooling Capacity

8~45 Kw

Origin

China

HS Code

8418692090

Production Capacity

3000

⚙️Product Description

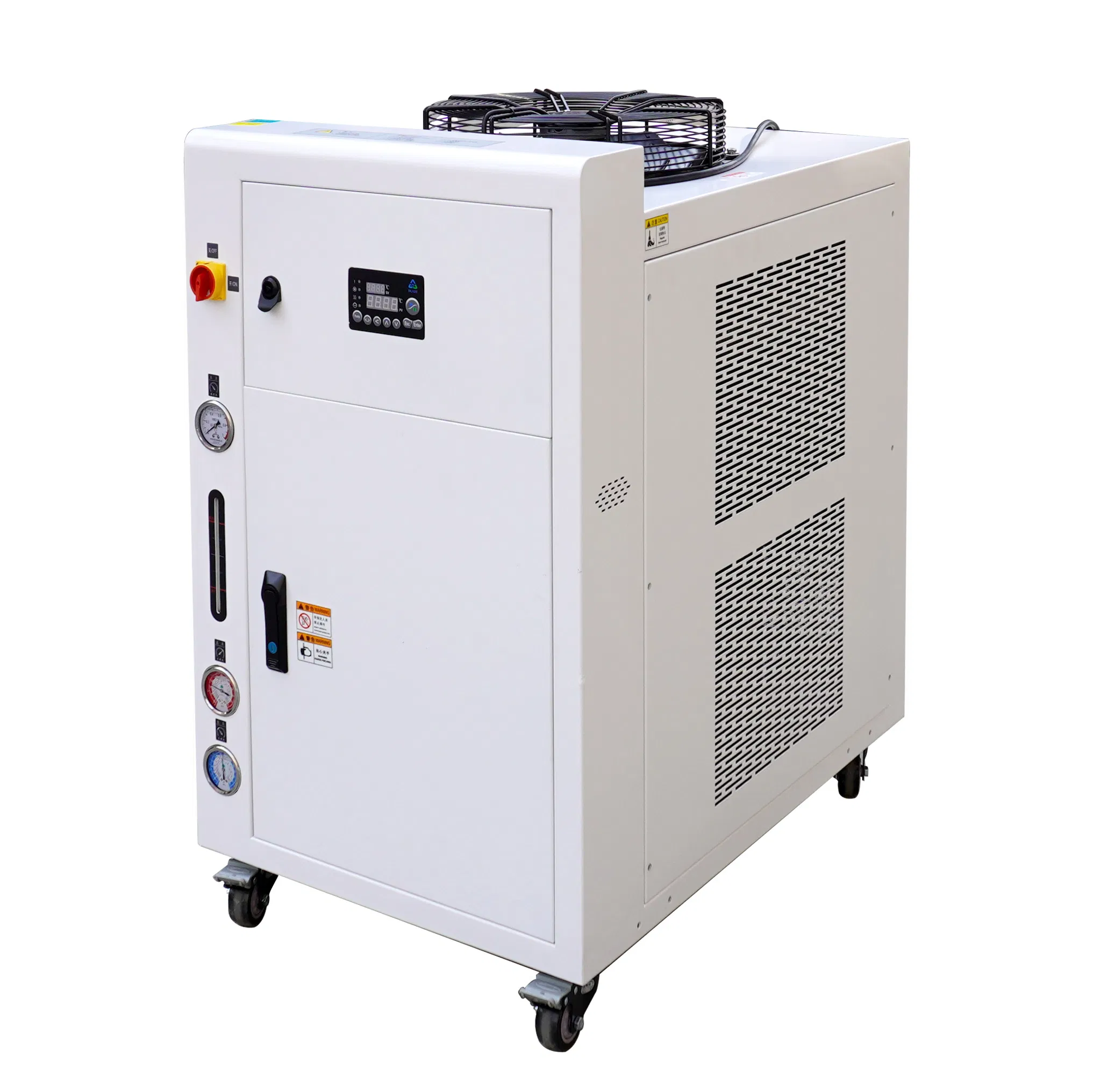

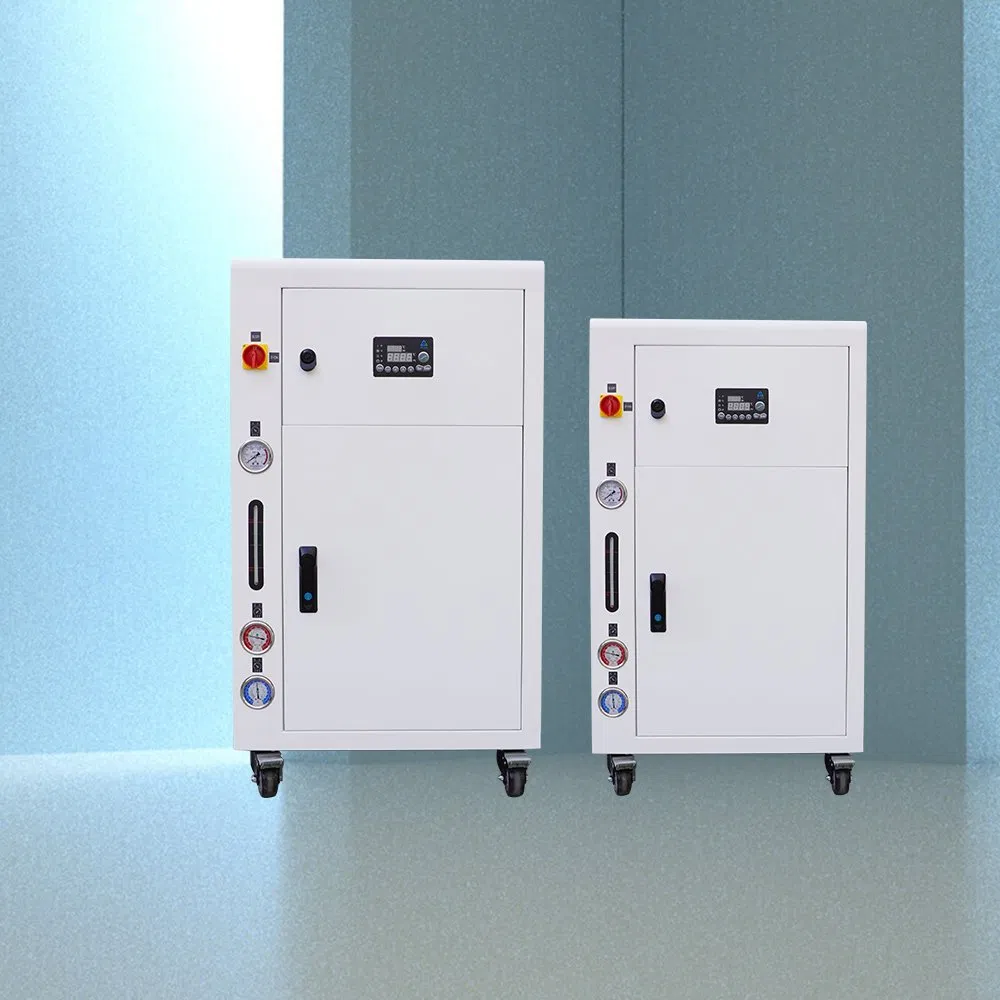

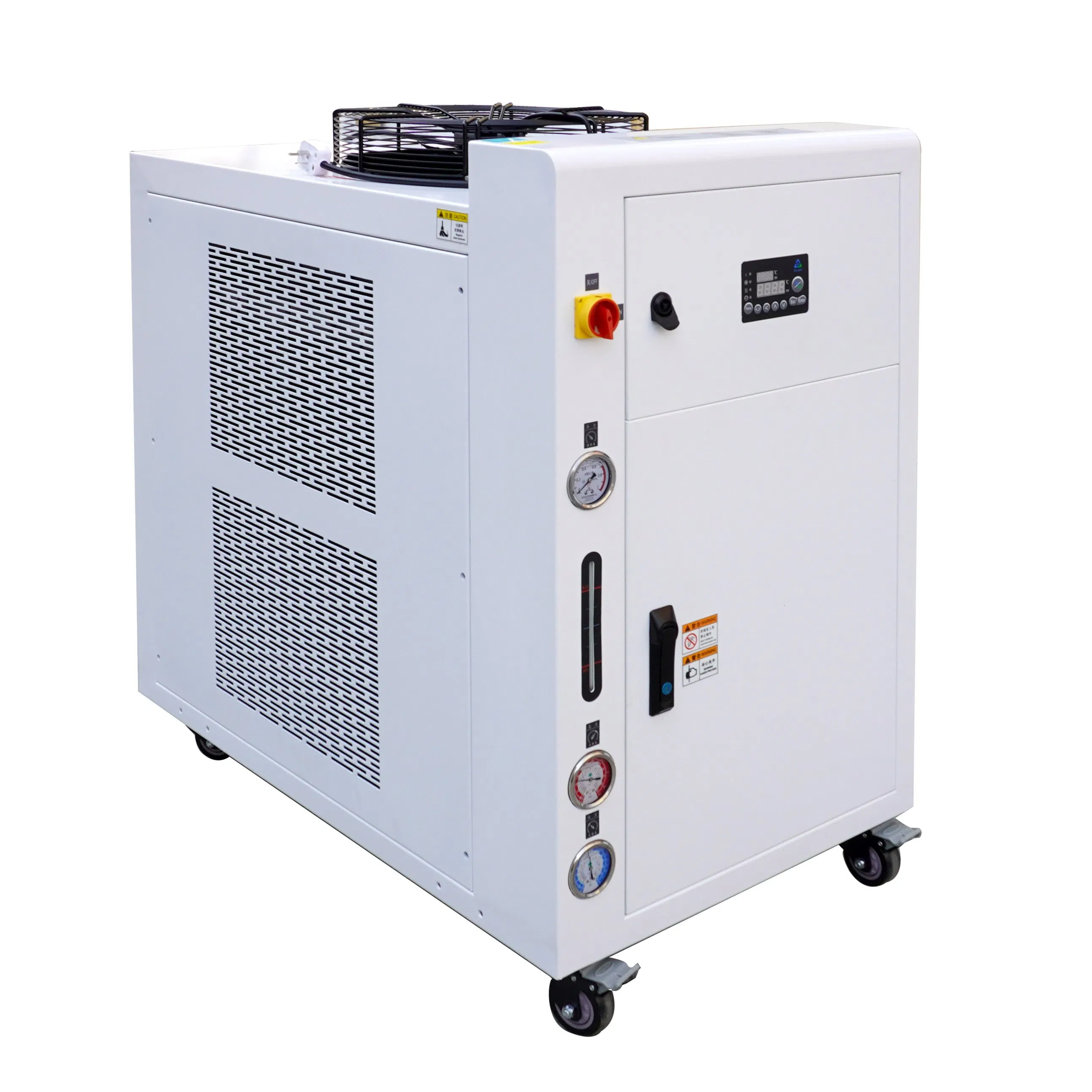

K Series chiller is specially designed for laser machine cooling, featuring double pumps and double temperature control systems. The main loop ensures efficient laser cooling, while the second loop can be set at a higher temperature for optical head cooling, preventing water condensation on sensitive optical components.

Reliable PerformanceFamous brand compressor and key components.

High Quality PumpEquipped with branded stainless steel pumps.

Corrosion ResistantStainless steel reservoir and pipe fittings using PPR or other corrosion-resistant materials.

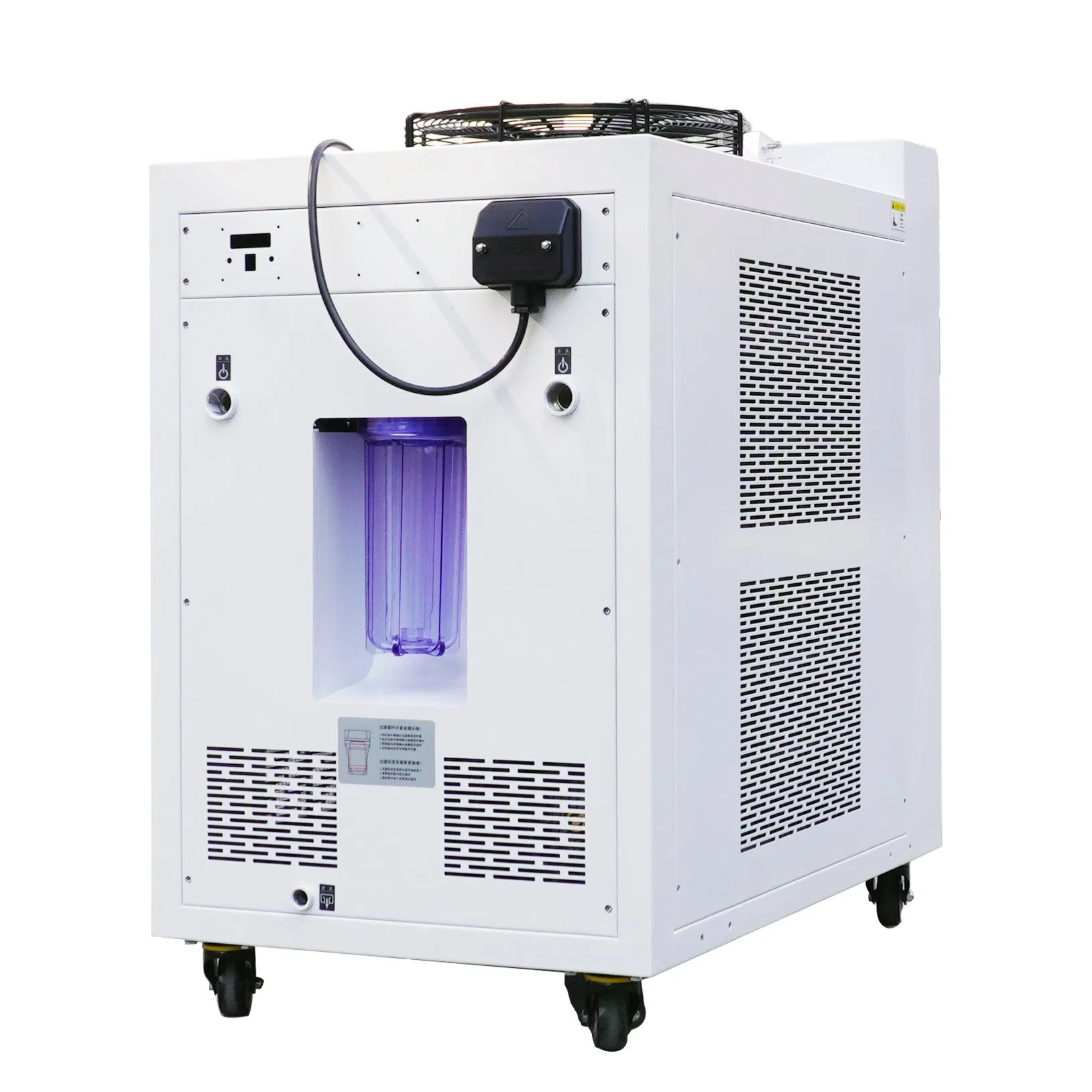

Easy ObservationIncludes special water filter, water pressure gauge, and water level indicator.

Safety AlarmsFlow alarm, liquid level alarm, high/low temperature alarms, phase sequence protection, and compressor thermal protection.

🚀Typical Application

Mainly utilized in the laser industry for applications such as laser cutting, laser welding, and laser cladding equipment.

📊Technical Specifications

Type	Model	Temp. Stability (ºC)	Temp. Range (ºC)	Cooling Capacity (W@25ºC)	Max Flow (L/min)	Max Pressure (bar)	Reservoir (L)	Dimensions WxDxH(mm)
Room Temp. High Stability	K1s	±0.2	5-35	1200	25	1.7	8	360x475x655
	K2s	±0.2	5-35	1900	25	1.7	12	430x540x720
	K3s	±0.2	5-35	2600	40	2.5	20	500x605x812
	K4s	±0.2	5-35	3600	40	3.4	30	540x705x922
Low Temp. (-20ºC) High Stability	K1s-20	±0.2	-20-35	900	15	1.7	8	360x475x655
	K2s-20	±0.2	-20-35	1600	25	1.7	12	430x540x720
	K3s-20	±0.2	-20-35	2200	40	2.5	20	500x605x812
Low Temp. (-40ºC) High Stability	K5s-40	±0.5	-40-35	3000	20	3.5	50	540x880x972
Low Temp. (-40ºC) High Stability	K6s-40	±0.5	-40-35	5000	25	3.5	70	620x980x1072

🖼️Product Gallery

❓FAQ

Q1: What is the main purpose of the dual temperature control system? A1: It allows for independent cooling of the laser source (main loop) and the optical head (second loop), which prevents condensation on optical components by maintaining a higher temperature for the optics.

Q2: Can the K series chiller handle extremely low temperatures? A2: Yes, certain models in the K series are specifically designed to operate at temperatures as low as -20ºC or even -40ºC with high stability.

Q3: How do I monitor the water quality and pressure? A3: The chiller is equipped with a professional water filter, a water pressure gauge, and a liquid level indicator for easy real-time observation.

Q4: What safety features are integrated into the system? A4: The unit includes alarms for flow, liquid level, and temperature, along with compressor protection for high temperature, current overloads, and phase sequence safety.

Q5: Are the components resistant to corrosion? A5: Yes, the reservoir, pumps, and pipe fittings are made of stainless steel or PPR to ensure long-term durability and prevent corrosion.

Q6: What is the temperature stability of these chillers? A6: Most high-stability models achieve a precision of ±0.2ºC, while standard low-temperature units maintain stability within ±0.5ºC.
