Wholesale Chiller for Electrode Induction Melting Gas Atomizing Equipment

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

K series

Certification

CE, ISO

Application

Heater, Cooler

Principle

Mixing Heat Exchanger

Material

Steel

Temperature Range

-40~120℃

Temperature Stability

±0.5℃

Flow Rate

2~20L/Min / 4~40L/Min / 6~60L/Min

Cooling Capacity

8~45 Kw

HS Code

8418692090

✓

Product Description

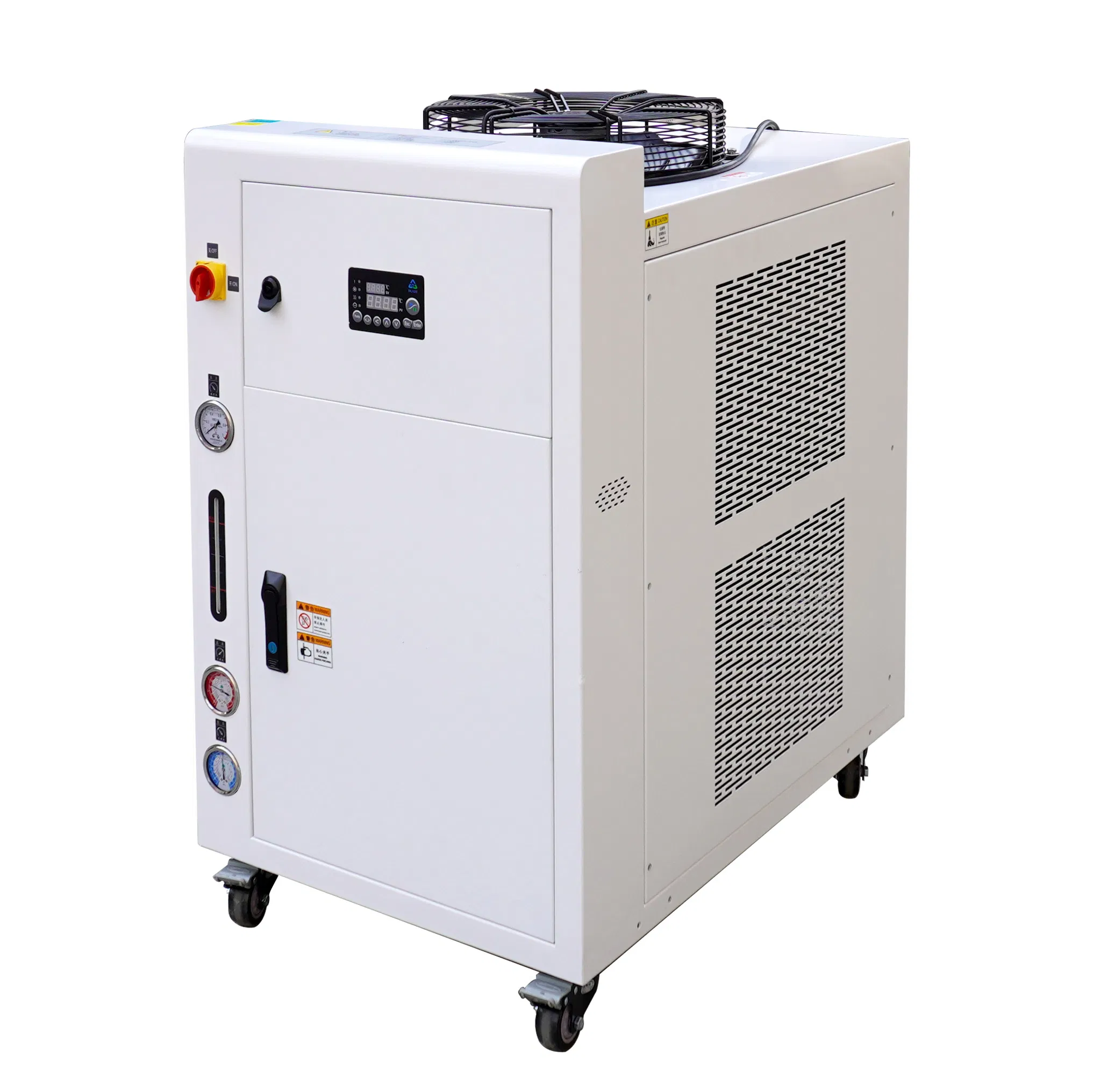

K7 Series chiller is specially designed for laser machine cooling, featuring double pumps and double temperature control systems. The main loop ensures efficient laser cooling, while the second loop can be set at a higher temperature for optical head cooling to prevent water condensation.

Functions and Features

●Famous brand compressor and key components for reliable performance.
●Branded stainless steel pump.
●Stainless steel reservoir, pipe fittings, and corrosion-resistant materials (PPR) to prevent rust.
●Integrated water filter, pressure gauge, and level indicator for easy monitoring.
●Comprehensive alarms: flow, liquid level, temperature, phase sequence, and compressor protection.

Typical Applications

Mainly utilized in the laser industry, including laser cutting, laser welding, and laser cladding equipment.

▤

Technical Parameters

Type	Model	Temp. Stability (ºC)	Temp. Range (ºC)	Cooling Capacity (W)	Max Flow (L/min)	Max Pressure (bar)	Reservoir (L)	Dimensions (mm)
Room Temp High Stability	K1s	±0.2	5-35	1200	25	1.7	8	360x475x655
Room Temp High Stability	K3s	±0.2	5-35	2600	40	2.5	20	500x605x812
Room Temp High Stability	K5s	±0.2	5-35	5600	60	3.6	50	540x880x972
Low Temp to -20ºC	K1s-20	±0.2	-20-35	900	15	1.7	8	360x475x655
Low Temp to -40ºC	K5s-40	±0.5	-40-35	3000	20	3.5	50	540x880x972
Dual Temp Chiller	K2t	±0.2	5-35	1600	5	4.5	18	430x540x720

📷

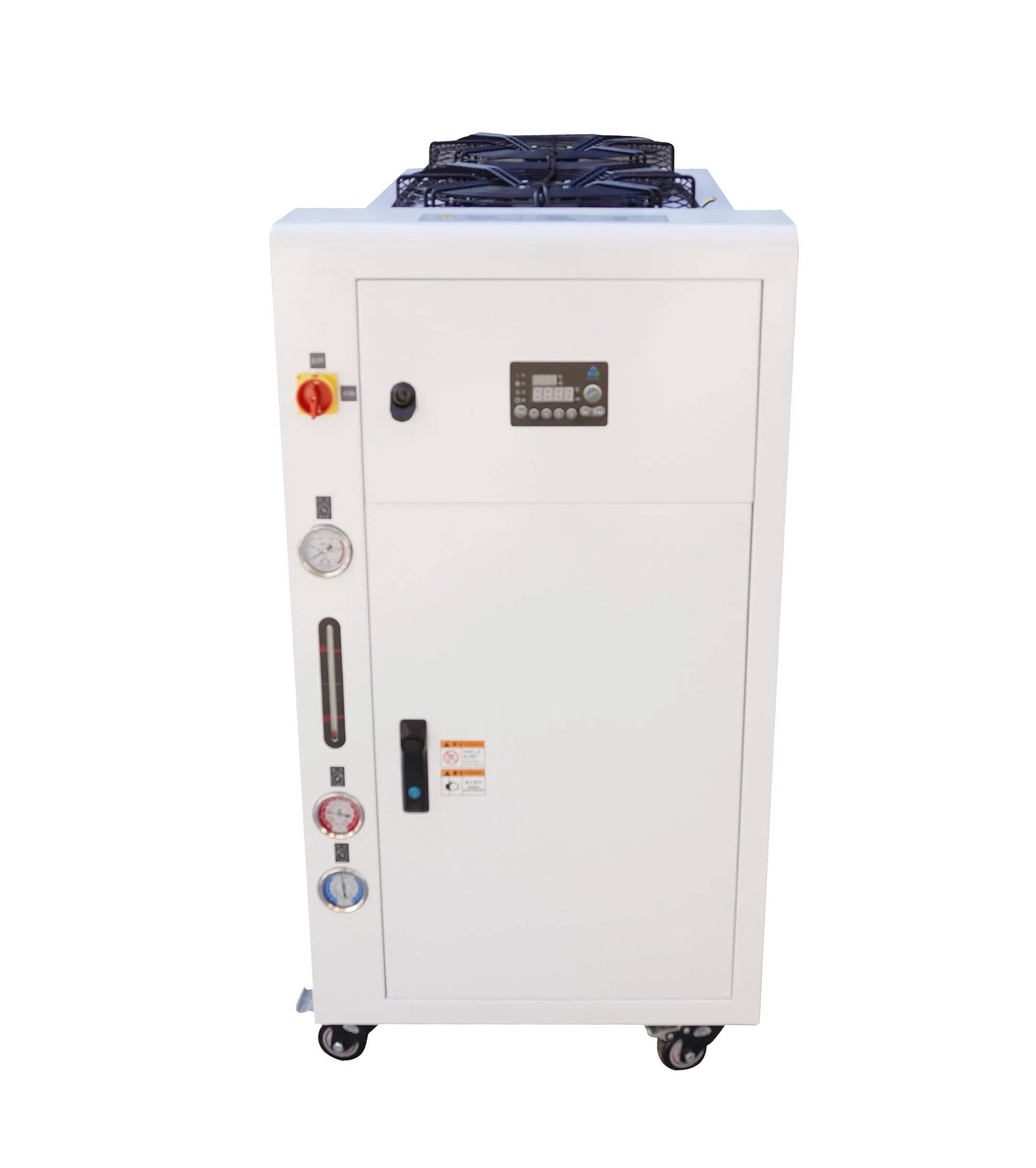

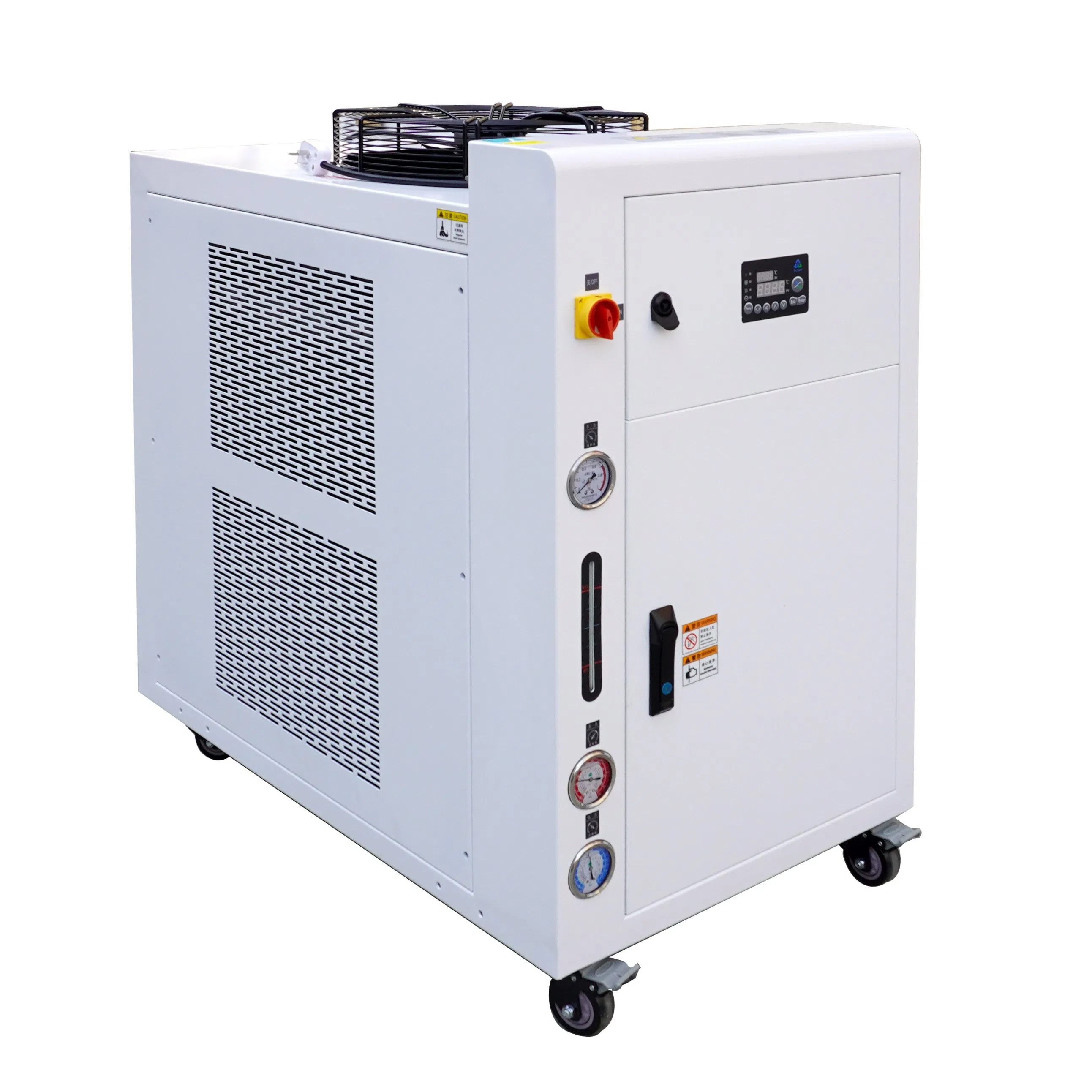

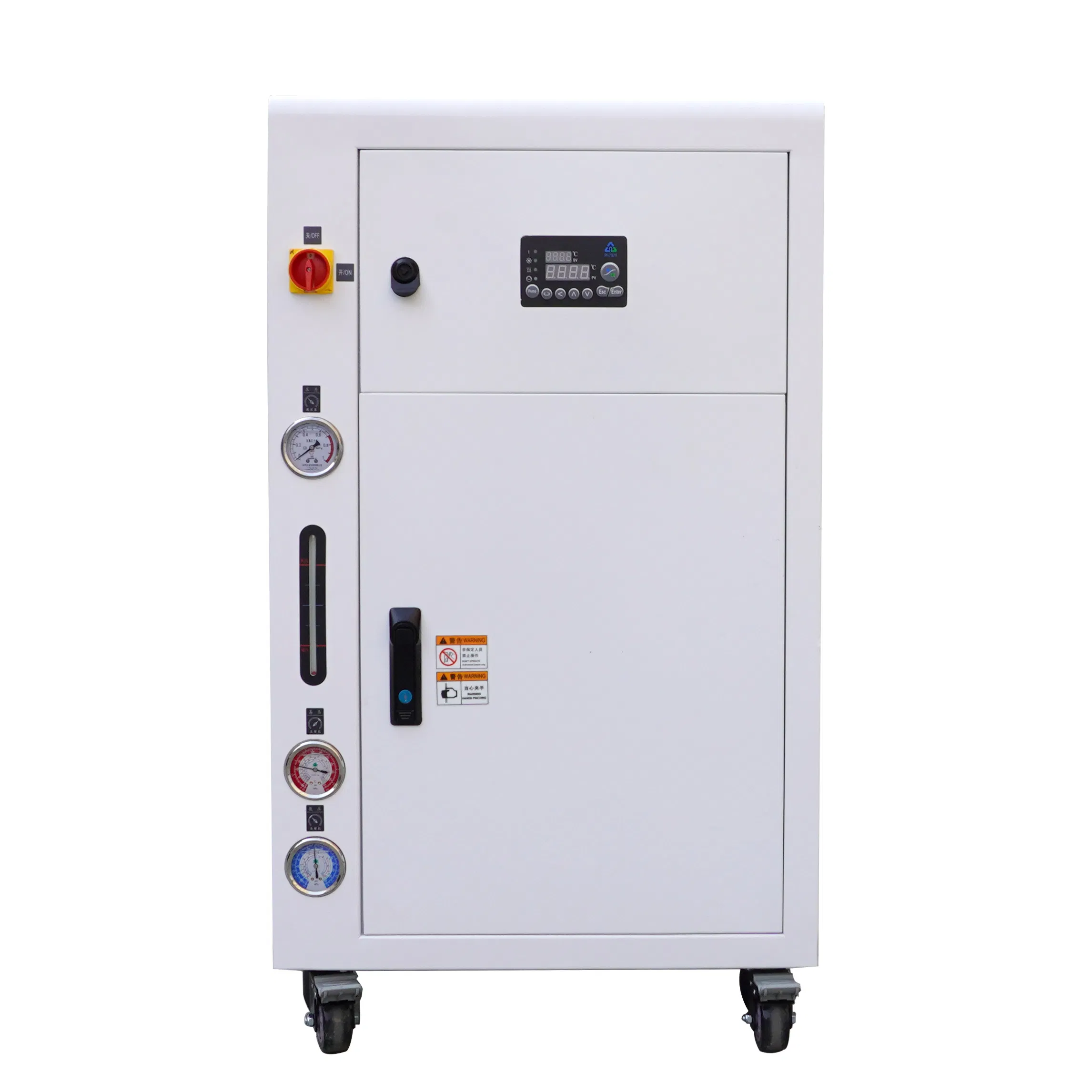

Product Display

Frequently Asked Questions

What is the purpose of the dual temperature control system?

The main loop provides efficient cooling for the laser source, while the second loop maintains a higher temperature for the optical head to prevent condensation.

What types of laser processes is this chiller suitable for?

It is ideal for laser cutting, laser welding, and laser cladding equipment across various industrial applications.

How does the system ensure long-term durability?

The use of branded stainless steel pumps, stainless steel reservoirs, and PPR pipeline materials effectively prevents corrosion and rust.

What kind of alarm protections are built into the unit?

The unit includes flow alarms, liquid level alarms, high/low temperature alarms, phase sequence protection, and several compressor-specific safety protections.

What is the temperature stability range for the K series?

Depending on the specific model, temperature stability ranges from ±0.2℃ to ±0.5℃, ensuring precise thermal management.

Can this chiller operate in extremely low temperatures?

Yes, there are specific models in the K series designed to reach low temperature ranges down to -20ºC or -40ºC.
