Super Large Range 3D CMM Contact Scanning Coordinate Measuring System for Blade

Customization:	Available
After-sales Service:	Online/Customer Side
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

NXA

Probe Seat

pH20, pH10mplus, pH10tplus, Sp80, Revo

Probe

Tp20, Sp20, Tp200, Camera, Laser, Revo-2

Accuracy

2.2~6.0+L/300um

Structure

Gantry Type

Z Axis Column

Granite

Platform Materials

Granite

Origin

China

🔍 Product Description

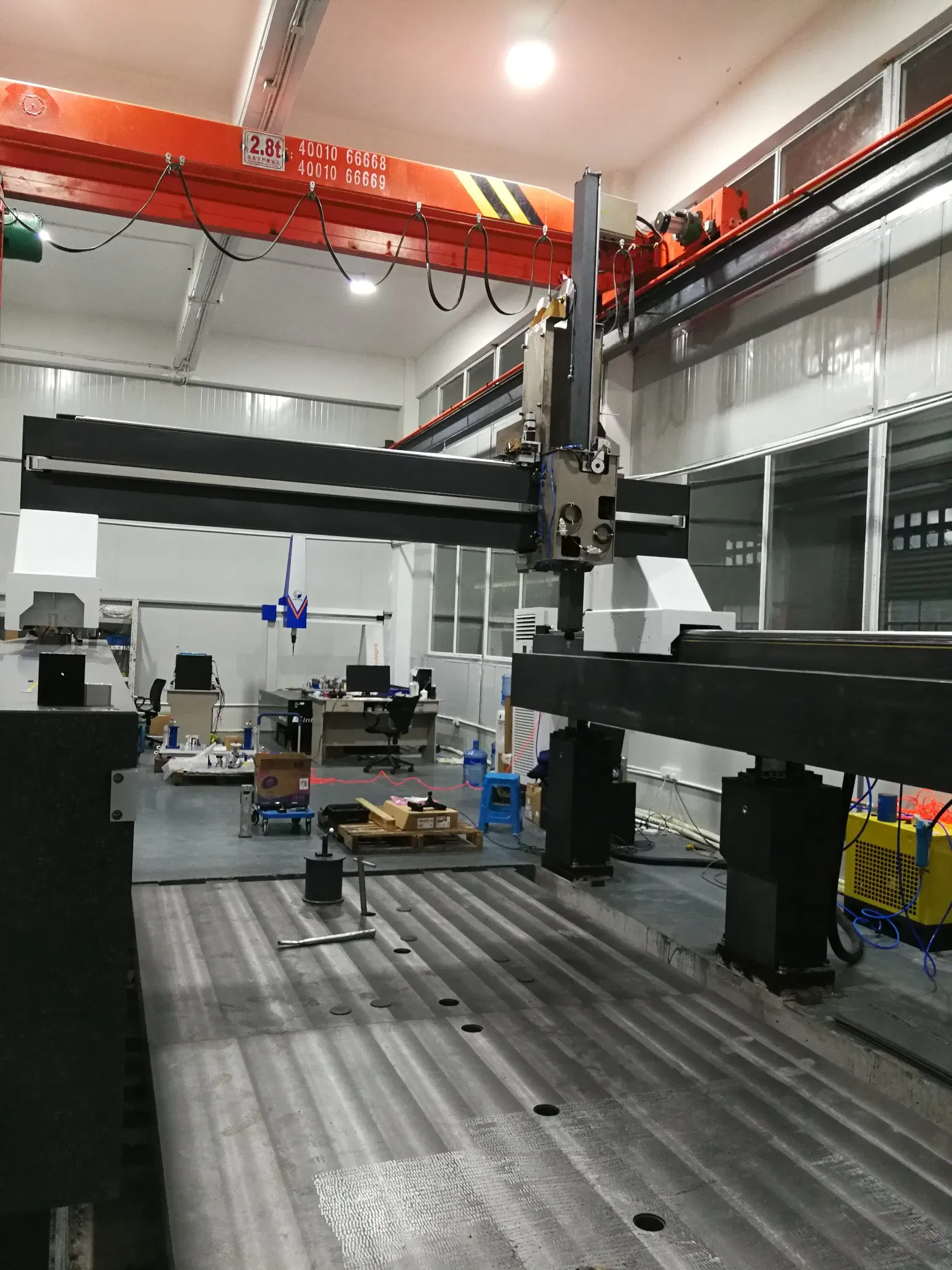

Super Large Range 3D CMM Contact Scanning Coordinate Measuring System for Blade

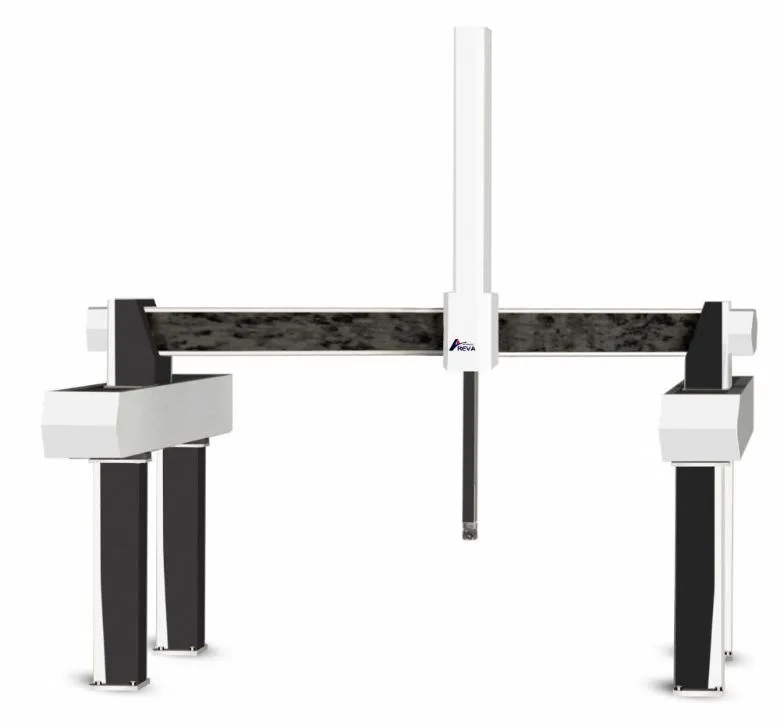

NXA series gantry type 3D coordinate measuring machine series is fit for accurate inspection of enormous parts, such as automobile, aviation, vessels and big molds.

The advanced structure of the NXA series 3D coordinate measuring machine offers high accuracy, stable, high rigidity reliable performance of the machine frame, even used in the work shop the series can remain the outstanding application and measuring experience.

⚙️ CMM Characteristics

The X and Z axes are both ceramic, rust resistant, have good rigidity, and have a smaller coefficient of thermal expansion, resulting in higher accuracy.

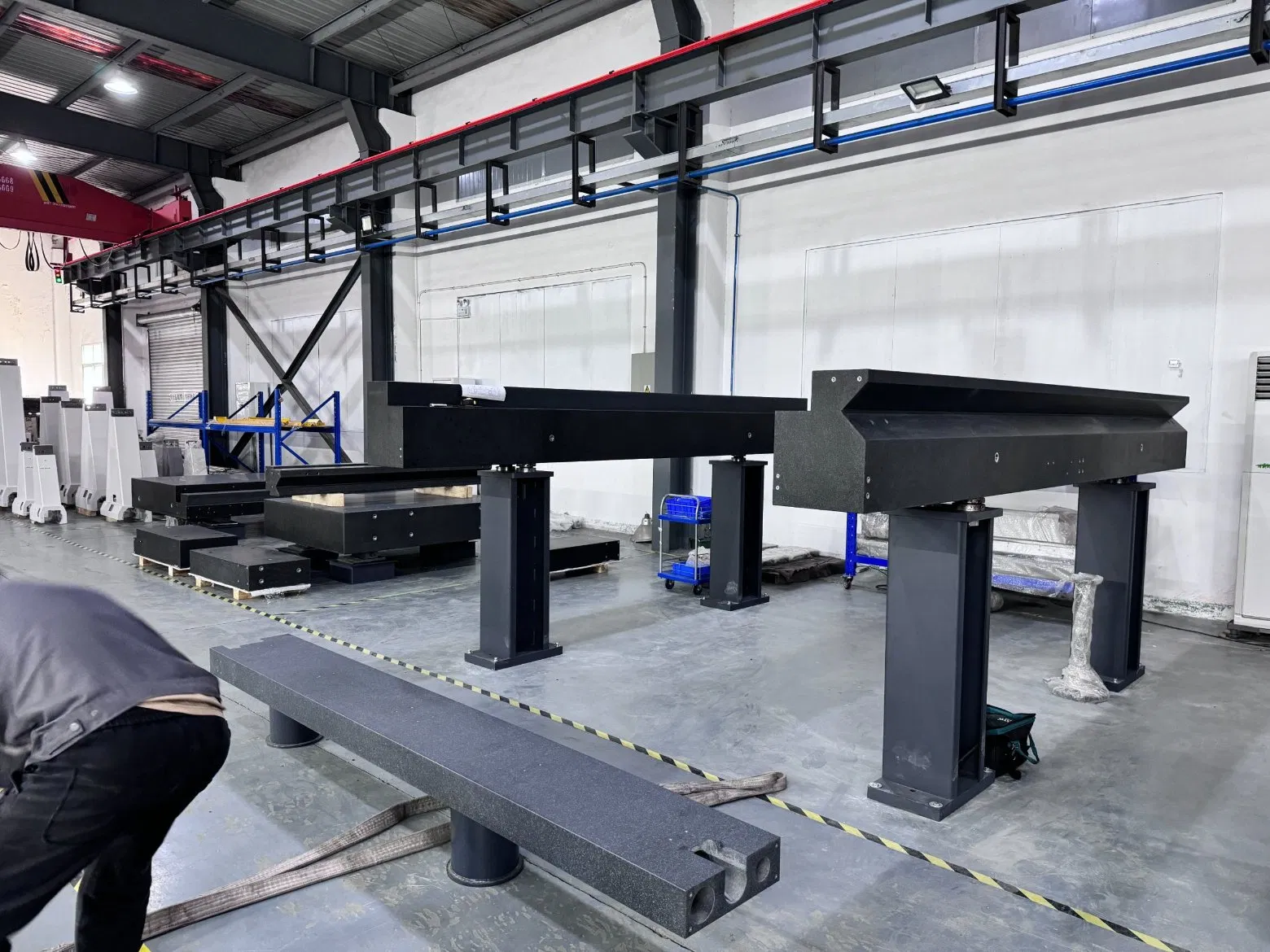

High precision granite measuring workbench, making the instrument more stable.
High resolution open grid ruler ensures the accuracy of the instrument.
The embracing air flotation device makes the instrument move more smoothly.
The dual shockproof system reduces the impact of the surrounding environment on the instrument.
The friction type self correcting system ensures smooth operation and accuracy stability during high-speed movement.

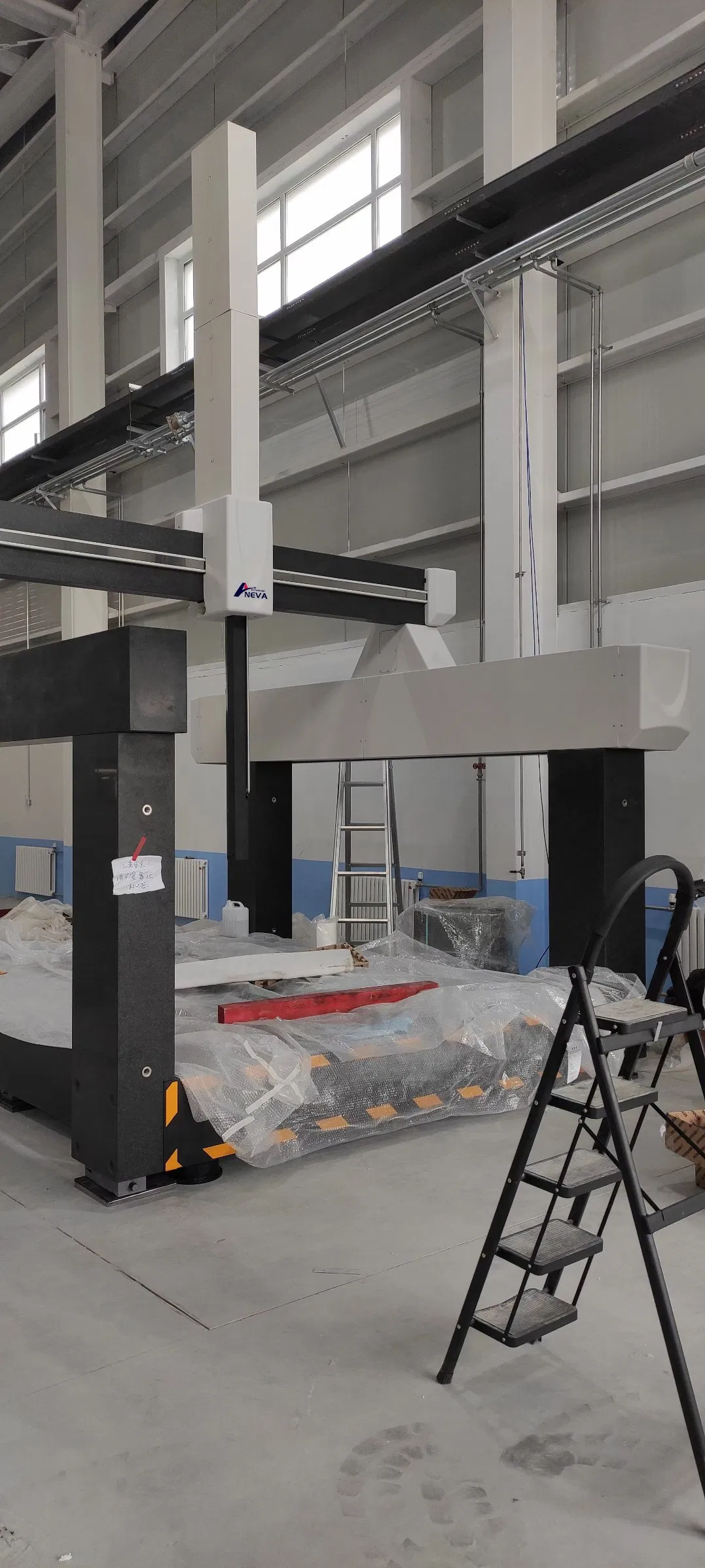

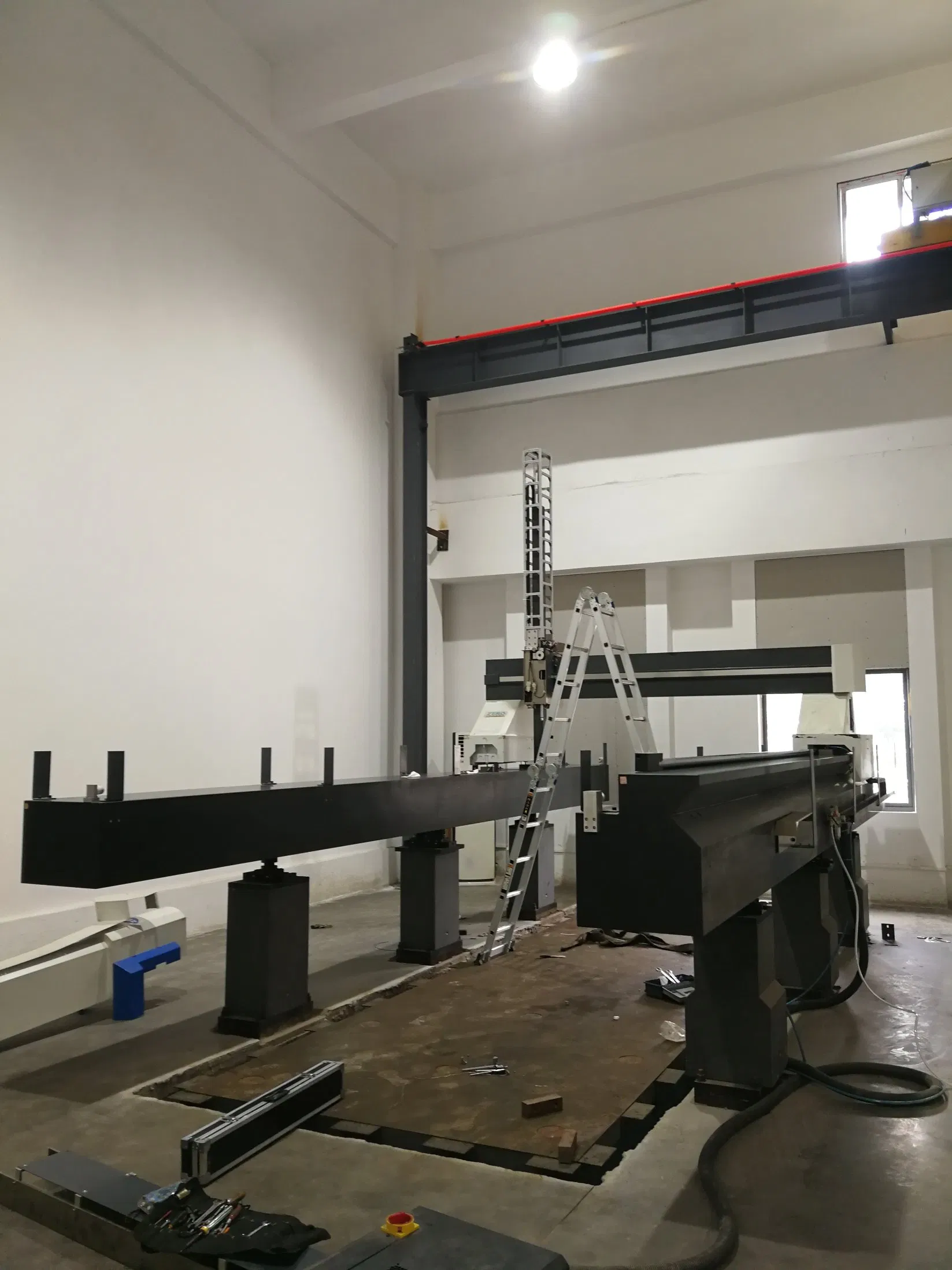

The floor to ceiling gantry structure reduces the measurement size limitation of the product.

🛡️ Quality Control

Manual Grinding Precision

Local accuracy requires manual grinding in order to achieve the best results. Our grinding masters have over ten years of experience, ensuring accuracy in every detail of the machine by handling different materials like marble and ceramics.

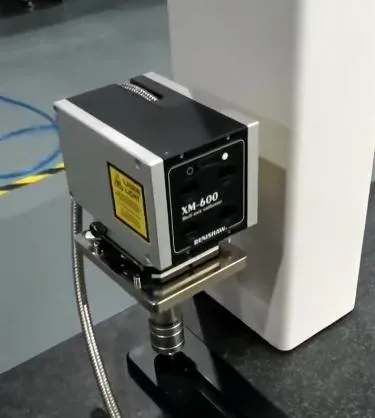

Laser Calibration

We use the laser interferometer to quickly measure, analyze, and compensate for errors. It can accurately calibrate and align multiple axes, measuring six errors simultaneously: linearity, pitch, torsion, roll, horizontal and vertical straightness.

🏢 Typical Applications

Machining parts and stamping parts
Plastic moulds, Castings and Forgings
Trigger detection and non-contact detection
Scanning and reverse engineering
Automotive engine and gearbox components
General precision engineering

Technical Specifications

NXE Series	Measuring Range (mm)			Accuracy (um)
NXE Series	X	Y	Z	MPEe	MPEp
Range 1	1800-2500	2000-4000	1500	2.0~7 +L/300	2.0~7
Range 2	3000-5000	2500-6000	1800
Range 3	5000-6000	5000-8000	4000

Working Conditions:
★ Scale resolution: 0.05/0.01um
★ Air Supply: 0.12-0.45m³/min
★ Max 3D Speed: 500mm/s
★ Max 3D Acceleration: 800mm/s²
★ Temperature Range: 18-22°C

🚀 Performance & Configuration

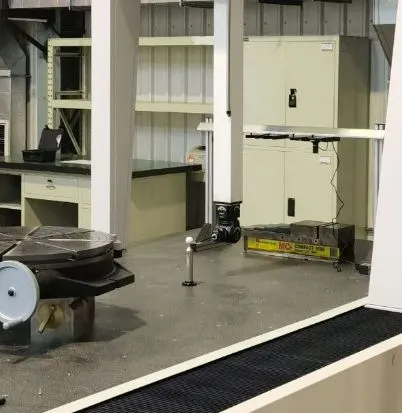

High rigidity air bearing: Unique design makes the machine run fast and stable with highly accurate positioning.

Zero hysteresis friction drive: Adopts "self-correcting deviation" stable transmission system. The structure of "fixed + micro suspension" ensures transmission is parallel to the guide rail.

Probe & Software

Probe System: Compatible with various RENISHAW probe seats (PH20, PH10MT, PH10MQ) and probes (TP20, TP200, SP25, SP80, REVO).

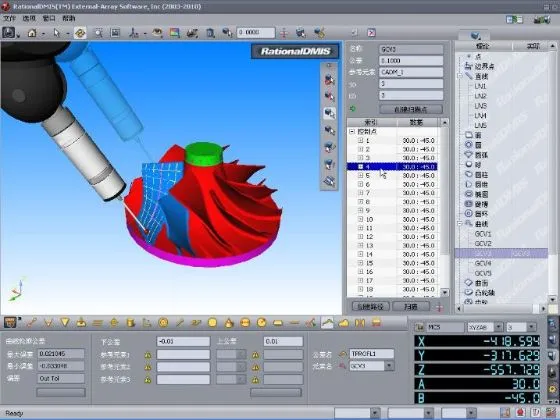

Software: Standard package is Rational-DMIS, featuring a native DMIS kernel (ISO 22093:2003 standard), graphical interface, and 2D/3D geometric measurement functions.

📦 Packaging & Shipping

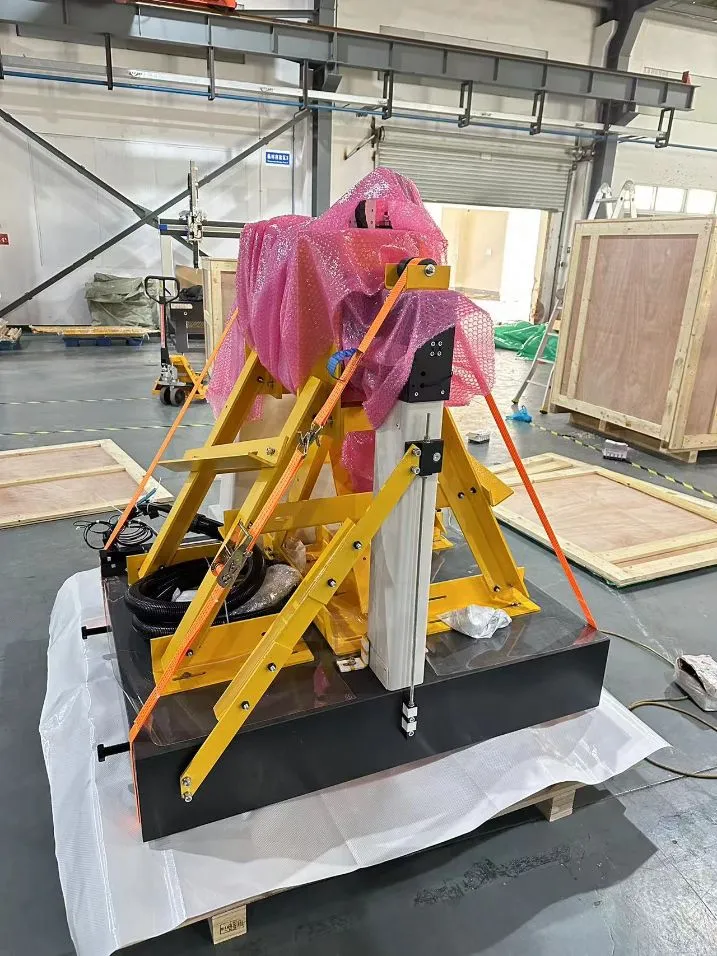

Spindle and crossbeam fixed with high rigidity brackets.
Fixed on a thick solid wood base specifically designed for export.
Vacuum packaging to prevent rusting due to shipping moisture.
Internal waterproof and moisture-proof cloth layers.
Reinforced with fumigated solid wood boards.

Frequently Asked Questions (FAQ)

What is the measurement accuracy of the NXA series CMM?

The NXA series offers high precision measurement with accuracy ranging from 2.2 to 6.0 + L/300 um, depending on the specific model and configuration.

What materials are used for the main structure?

The X and Z axes are made of high-rigidity ceramic, while the measurement workbench and platform are constructed from high-precision granite for maximum stability.

Is the machine suitable for large parts?

Yes, the floor-to-ceiling gantry structure is specifically designed for inspecting enormous parts such as those used in aviation, shipbuilding, and large-scale automobile manufacturing.

What software is used for measurement?

The system comes standard with Rational-DMIS, a large-scale integrated 3D measurement software package that follows ISO standards and offers a user-friendly graphical interface.

How is the machine protected against environmental vibration?

The NXA series features a dual shockproof system that reduces the impact of the surrounding environment, ensuring accuracy even in workshop conditions.

What are the requirements for shipping?

The machine is protected using a multi-step process: rigid bracket fixing, solid wood base mounting, vacuum sealing, and waterproof layering within fumigated solid wood cases for international transport safety.
