Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
1 / 5
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System
Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System

Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System

Customization: Available
After-sales Service: One Year Warranty
Warranty: One Year Warranty
Send Inquiry

Product Description

Overview Features Parameters Applications Photos FAQ

Overview & Basic Info

Model NO. AT-61163
Origin China
Package Size 150.00cm * 90.00cm * 150.00cm
Gross Weight 2000.000kg

Product Features

✓
High-energy density UV laser with μm-level heat-affected zone and minimum processing spot size of 5μm.
✓
High-resolution camera and linear motor-driven platform for sub-micron-level precision alignment.
✓
Precision Z-axis for high-precision focusing, ensuring stable and repeatable processing.
✓
Sub-micron-level runout spindle for high-speed and high-surface-finish micro-machining.
✓
Auxiliary W-axis for processing both straight holes and inverted taper holes.
✓
Marble tabletop structure to enhance overall system stability and long-term precision.
✓
Controllable hole shapes with depth-to-width ratios > 10:1.

Product Parameters

Category Parameter FM-UVD7 Specification
LaserWavelength355nm
LaserPower>7W@40 kHz (3~40 W optional)
XY StageTravel / Resolution300*300mm / 0.1μm
XY StageRepeatability / Accuracy≤±1μm / ≤±3μm
Z-axisTravel / Repeatability200mm / ≤±3μm
W-axisAngular Range±10°
CCD SystemCamera / Magnification5-megapixel / 10X
SpindleCircular Runout<1μm
ProcessingMinimum Spot Size5μm (10μm optional)
ProcessingHole Accuracy±3μm (dia <0.5mm, depth <0.5mm)
MaterialsTypeGlass, organics, metals, ceramics, etc.
InfrastructureCooling / PurificationWater-cooled / Triple Dust Purification
PowerRequirements220V 50~60Hz, ≤2000W
PhysicalDimensions / Weight1200*1600*1900mm / 1200Kg

Industry Applications

Automotive Industry

  • GDI Fuel Injectors (50-200μm)
  • Diesel Fuel Injectors (30-100μm)
  • Urea Injectors (National VI Standards)

Aerospace

  • Engine Fuel Nozzles (50-150μm)
  • Rocket Propellant Nozzles
  • UAV Atomization Nozzles

Medical Equipment

  • Nebulizer Nozzles (10-50μm)
  • Microfluidic Chip Nozzles
  • Interventional Device Delivery

Electronics

  • Inkjet Printhead Nozzles
  • Sensor Pressure Balancing
  • Optical Instrument Cooling

Company Capabilities

Technical services, development, and consulting in high-precision fields including computer software/hardware, functional glass, optical materials, and semiconductor specialized equipment. Expert sales and support for CNC machine tools, experimental analysis instruments, and advanced laser cutting/welding systems.

Detailed Photos

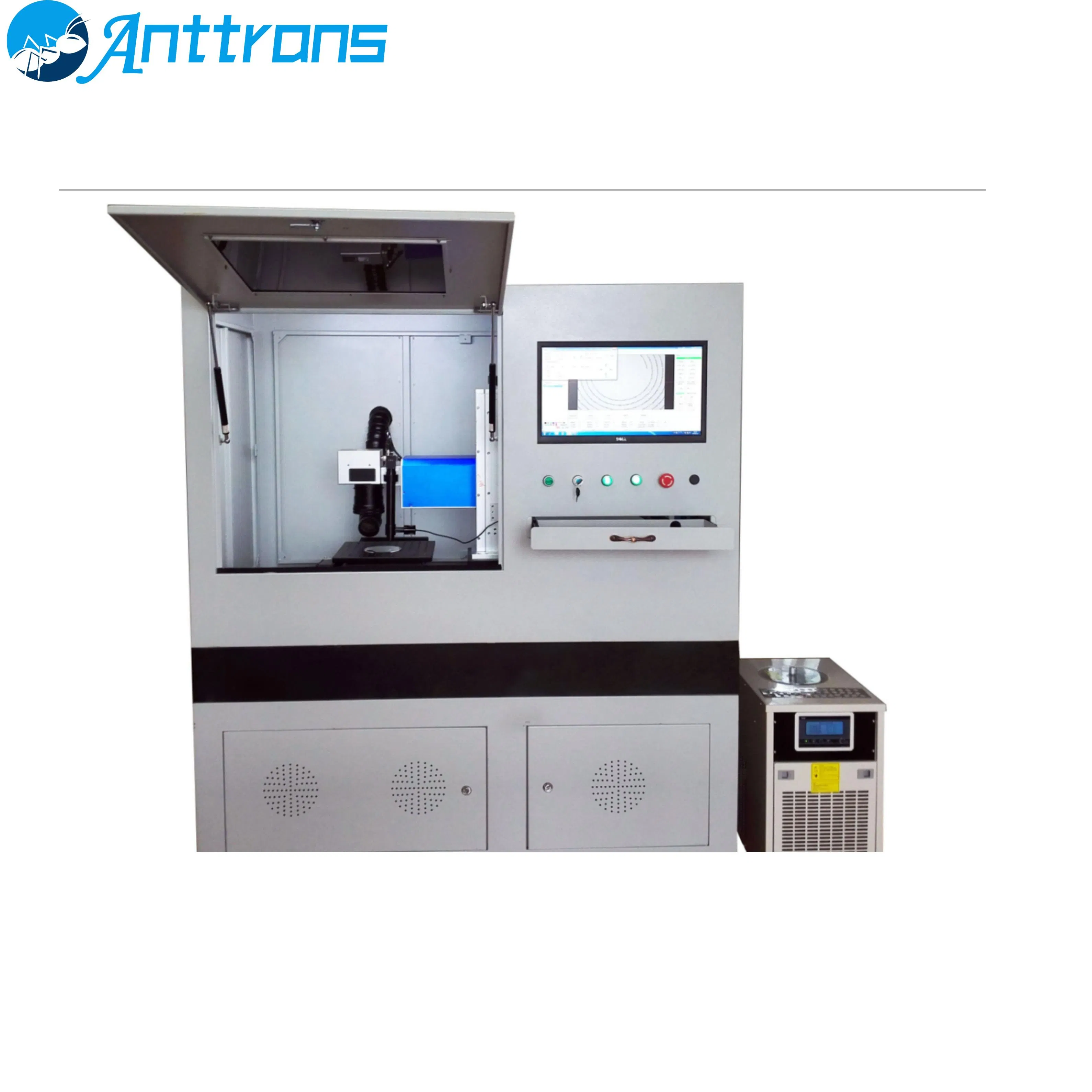

Laser Micro-Machining Equipment 1

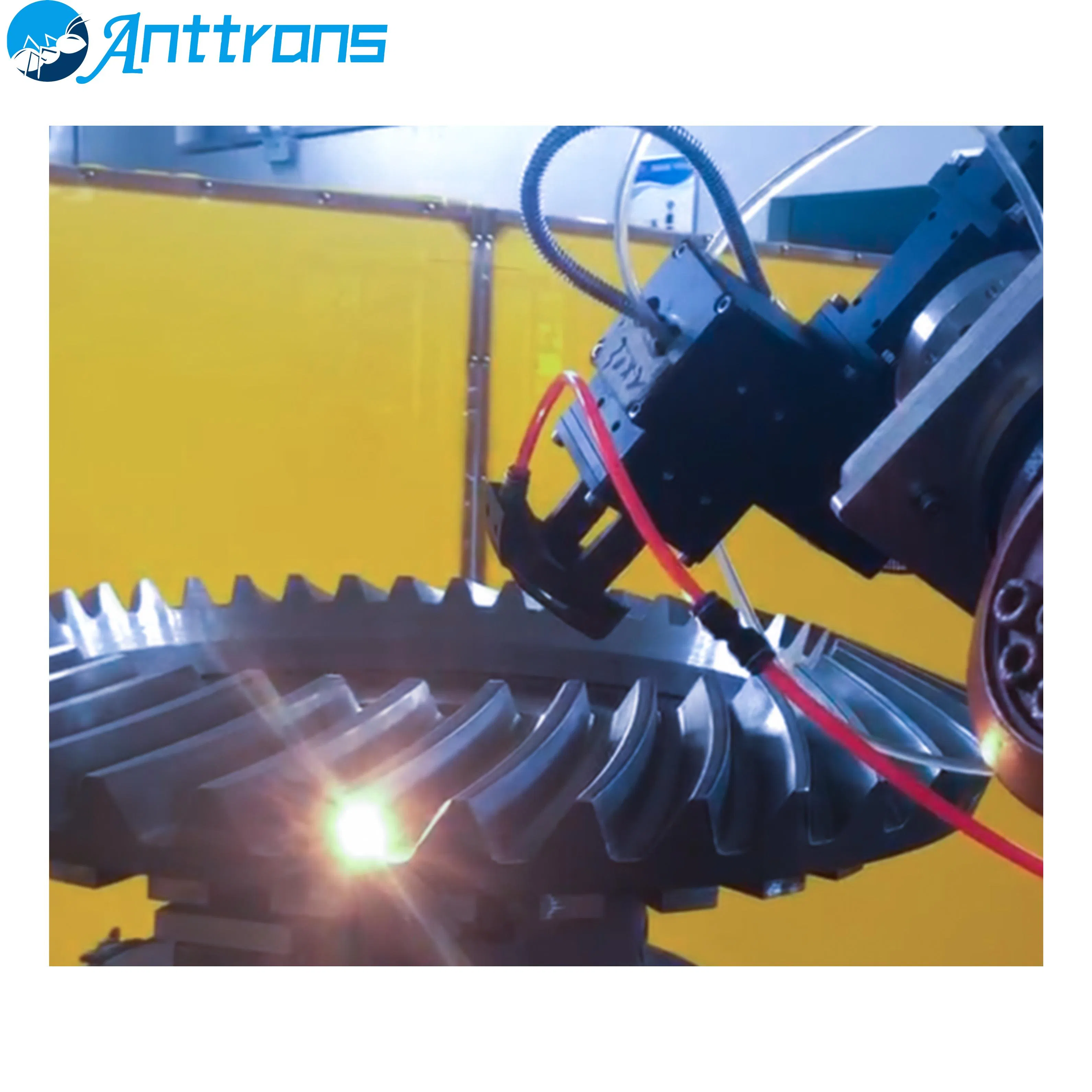

Laser Micro-Machining Equipment 2

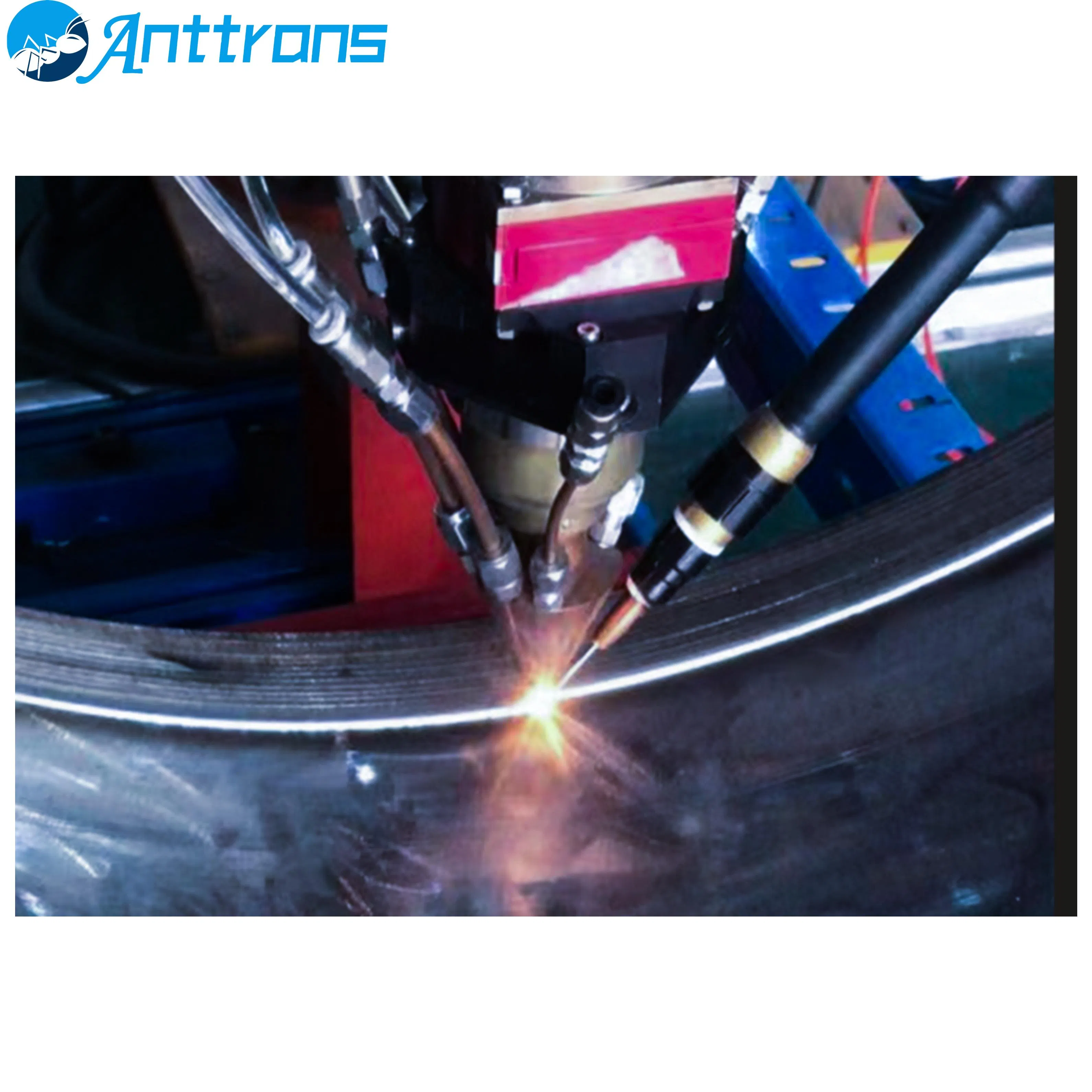

Laser Micro-Machining Equipment 3

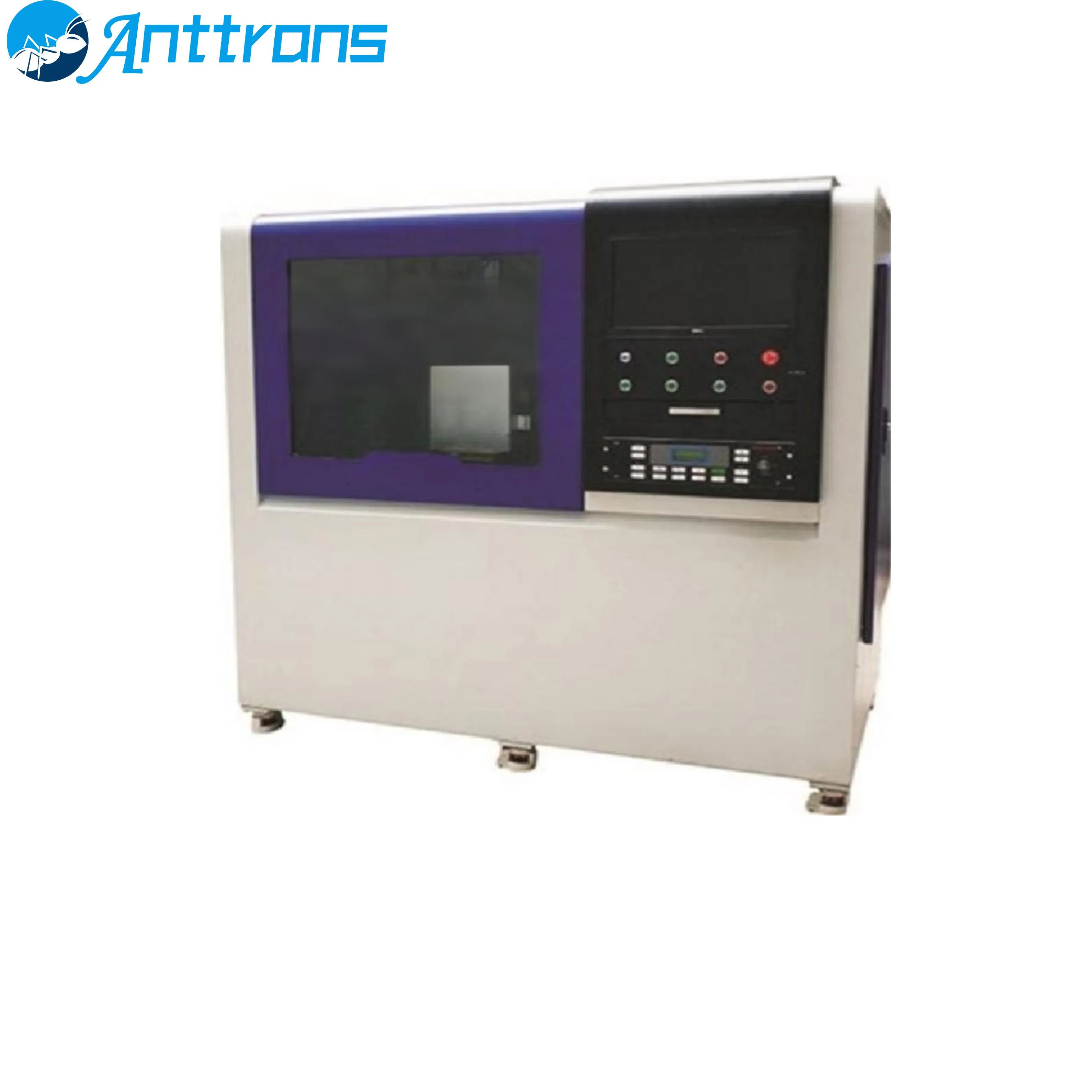

Laser Micro-Machining Equipment 4
Laser Micro-Machining Equipment 5

Frequently Asked Questions

What materials can this equipment process?
The system is highly versatile and can process glass, organic materials, various metals, and technical ceramics.
What is the minimum hole size achievable?
The equipment can achieve a minimum processing hole diameter of 5μm with extremely high precision.
Is the system stable for long-term production?
Yes, it utilizes a heavy marble tabletop and high-quality mechanical components to ensure long-term precision and stability.
Can it handle complex hole shapes?
Absolutely. Thanks to the auxiliary W-axis, the system can process straight holes, tapered holes, and inverted taper holes.
What is the positioning accuracy of the XY stage?
The stage provides a positioning accuracy of ≤±3μm and a repeatability of ≤±1μm.
How does the system ensure clean processing?
The equipment is integrated with a triple dust purification system and water-cooling to maintain a clean and stable working environment.
