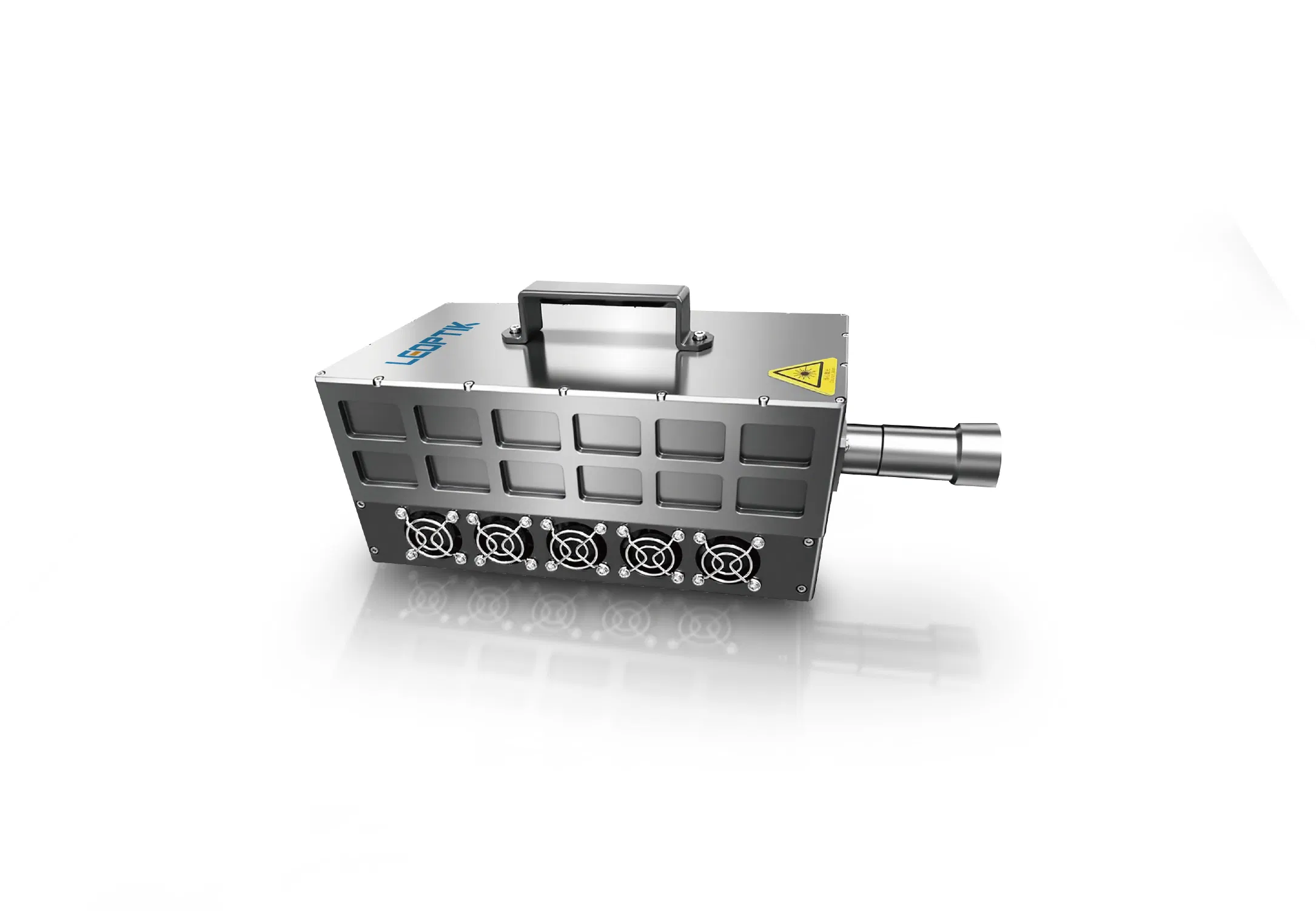

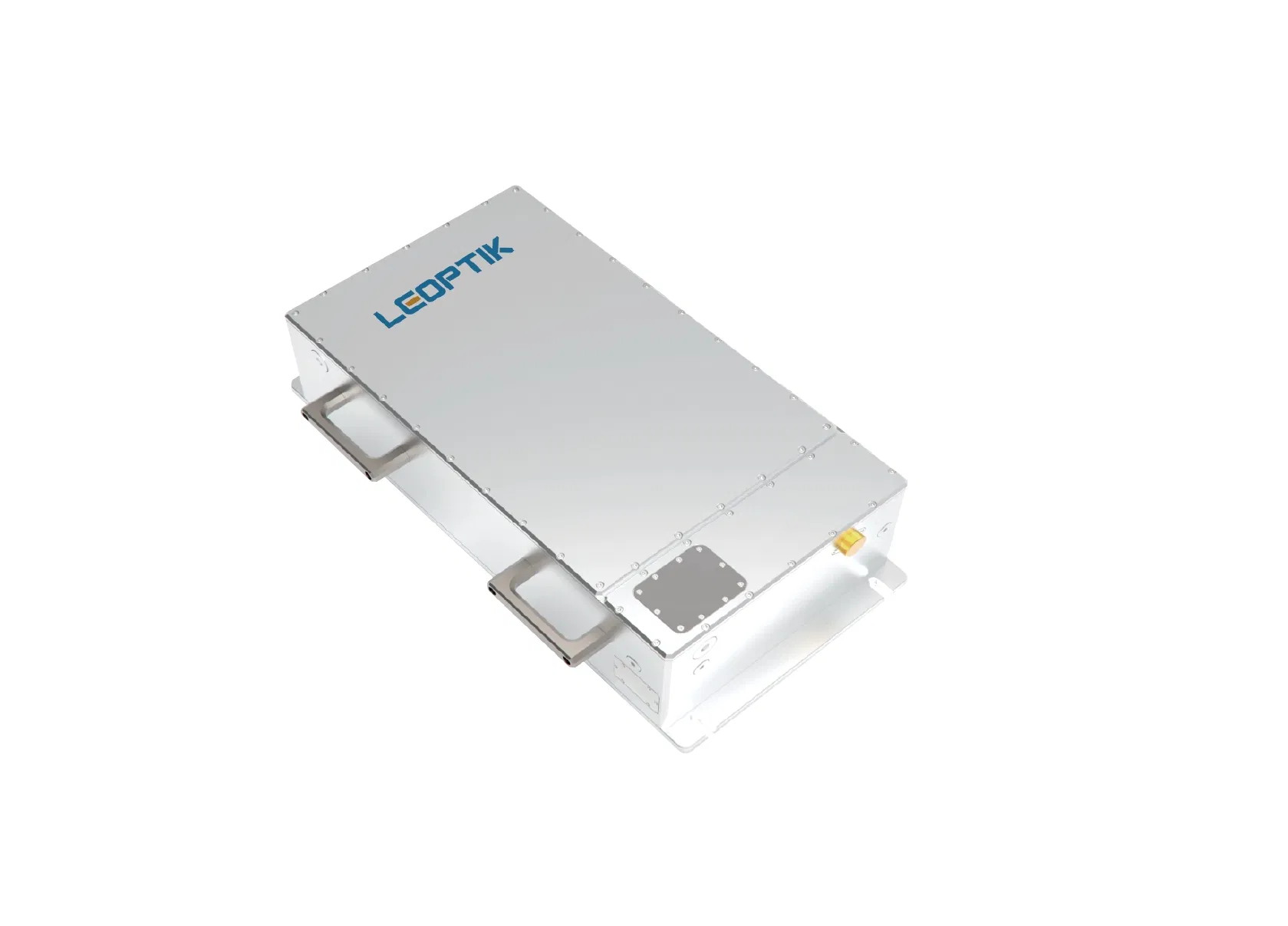

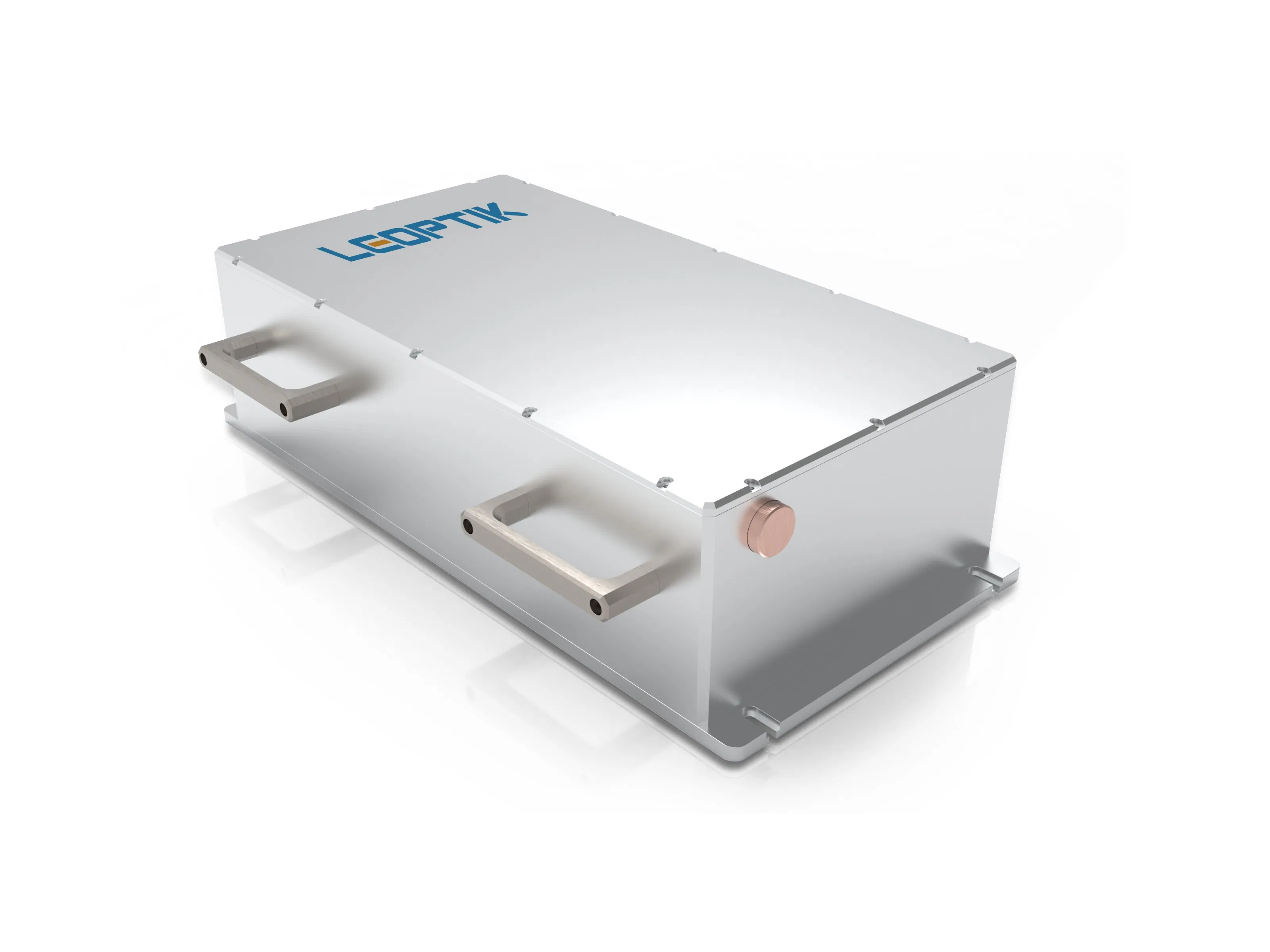

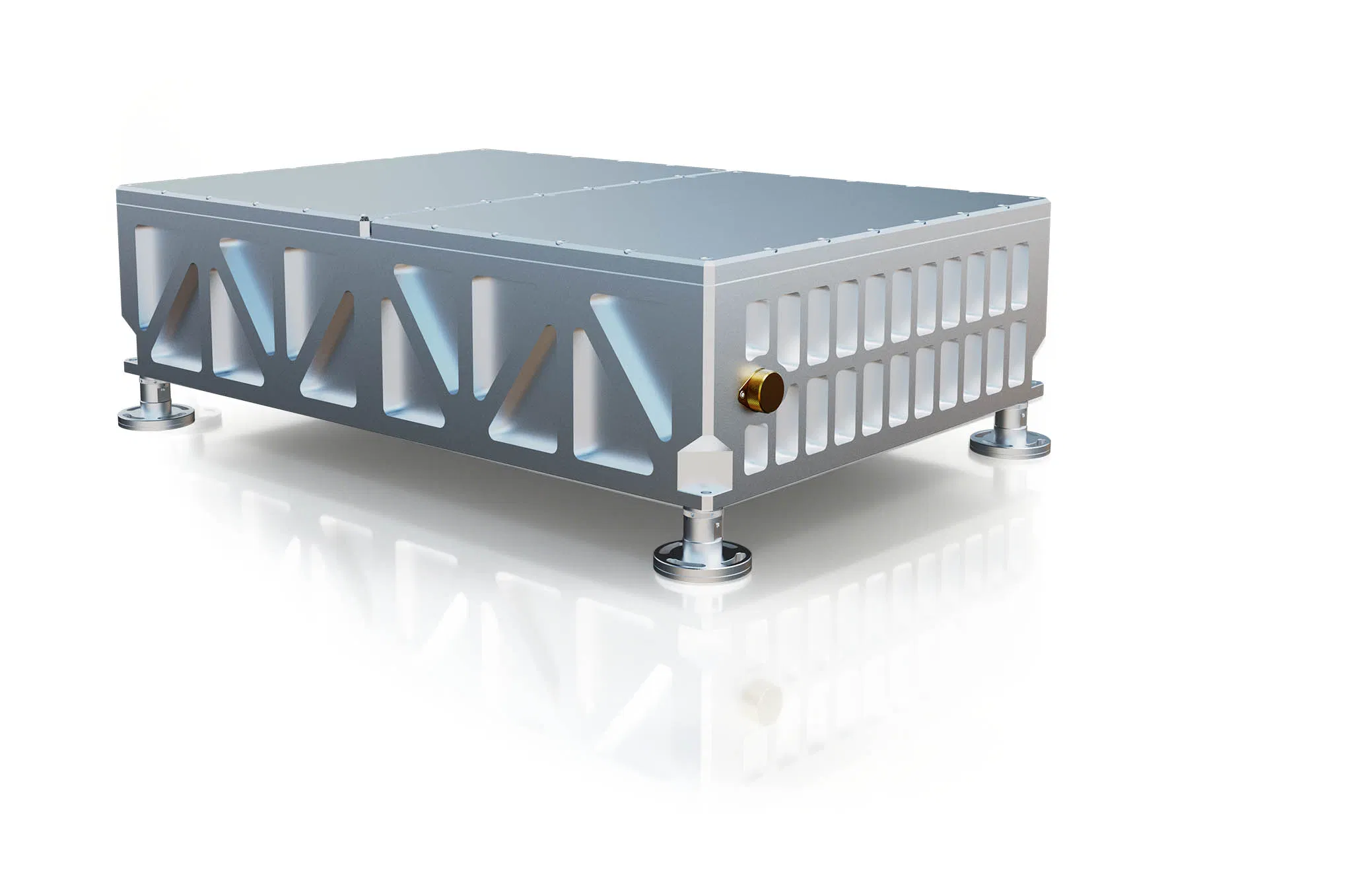

Erbium YAG 2940nm Laser System for Precision Material Ablation and Micro-Machining

Customization: Available
After-sales Service: Shelf Life One Year (Under Normal Use Conditions)
Warranty: Shelf Life One Year (Under Normal Use Conditions)

Product Description

Basic Specifications
Model NO.
PM2940-25SU
Cooling System
Water Cooling
Technical Class
Pulse Laser
Laser Classification
Solid Laser
Trademark
LEOPTIK
Origin
China
Production Capacity
1000

2940nm Er:YAG Laser

Flagship Features
Single pulse energy greater > 2.5J
Repetition rate greater 15Hz
Equipped with imported xenon lamp, Er:YAG crystal rod, and Barium Sulfate Pump Cavity
Technical Parameters
Product Models PM2940-25SU
Wavelength 2940nm
Repetition Rate 1-15Hz
Output Energy 2.5J@10Hz
Pulse Width 100-400μs
Full-Angle Divergence <15mrad
Power Stability ±3%
Cooling Water-cooled
Typical Applications
1. Laser Cosmetology 2. Medical Surgery 3. Material Processing 4. Scientific Research
Industry Solutions & Capabilities

Our company integrates research and development (R&D), production, and sales, covering the entire laser industry chain. Serving the global laser application field, we are committed to becoming a globally influential laser industry solution provider. We excel in various crystal growth technologies. Our crystal products span the infrared, visible light, and ultraviolet bands, and we have a track record of supporting large-scale national projects.

As a long-term strategic partner of renowned domestic and foreign laser manufacturers, we offer dozens of conventional pockels cell models. These models encompass a variety of crystal materials, wavelengths, and frequencies. Additionally, special pockels cell models can be customized to meet customers' diverse use environments and application requirements. We also provide coating services and a range of lens optics components, ensuring superior product quality and competitive pricing through our core industry chain advantages.

Production & Product Display

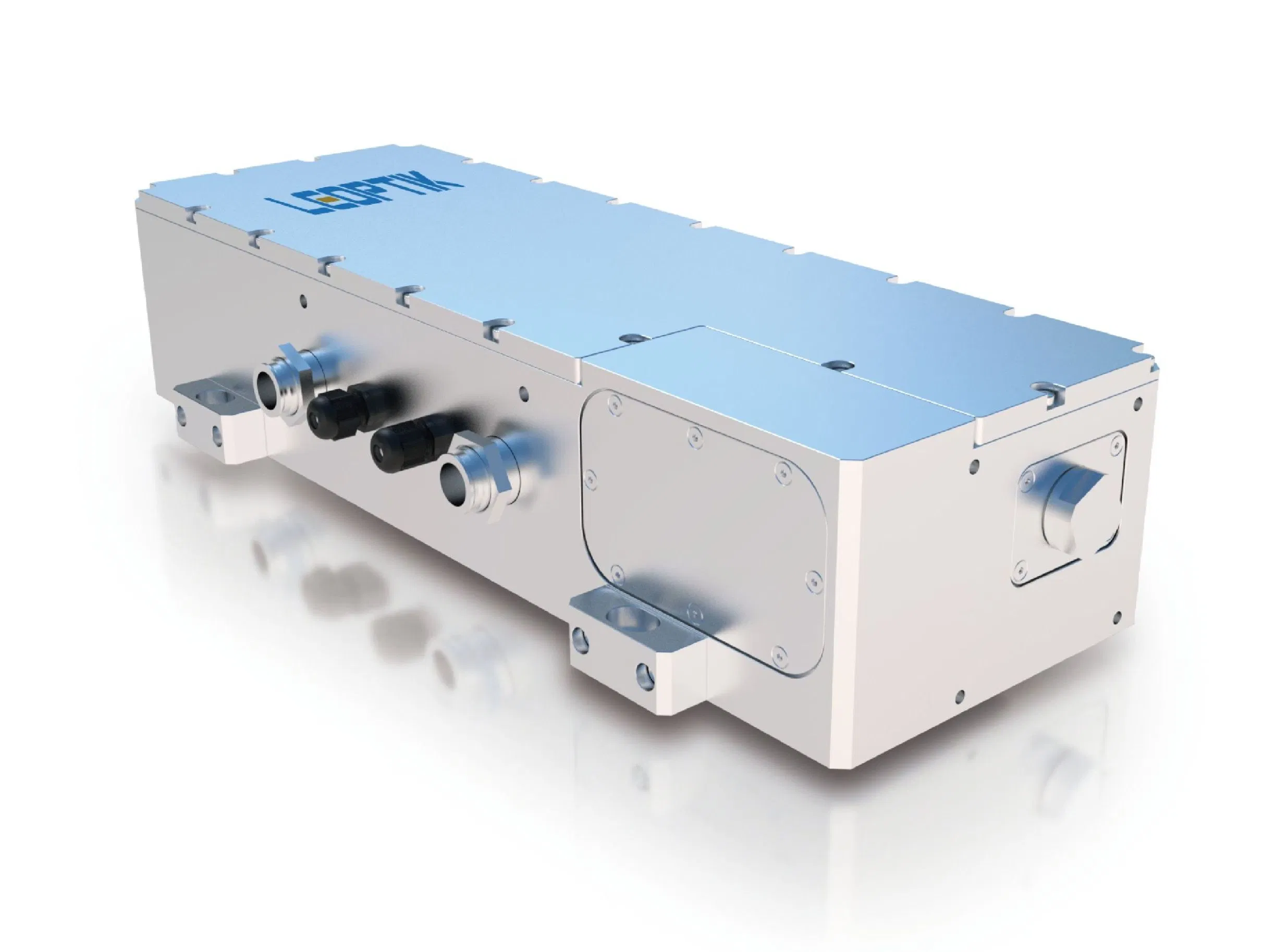

Erbium YAG 2940nm Laser System
Laser System Precision Component
Qualification Certificates
Qualification Certificate 1
Qualification Certificate 2
Qualification Certificate 3
Frequently Asked Questions
What is the primary wavelength of the PM2940-25SU laser?
The laser operates at a wavelength of 2940nm, which is typical for Er:YAG solid-state lasers.
What cooling system is required for this model?
This model uses an integrated water-cooling system to ensure stable operation during high-energy pulses.
Can the repetition rate be adjusted?
Yes, the repetition rate is adjustable within the range of 1Hz to 15Hz.
What are the core components of the laser pump cavity?
The system is equipped with an imported xenon lamp, a high-quality Er:YAG crystal rod, and a Barium Sulfate Pump Cavity for maximum efficiency.
What is the energy output stability of this laser?
The power stability of the system is rated at ±3%, providing consistent performance for precision applications.
What industries commonly use this 2940nm laser?
It is widely used in laser cosmetology, medical surgery, material processing, and scientific research.
