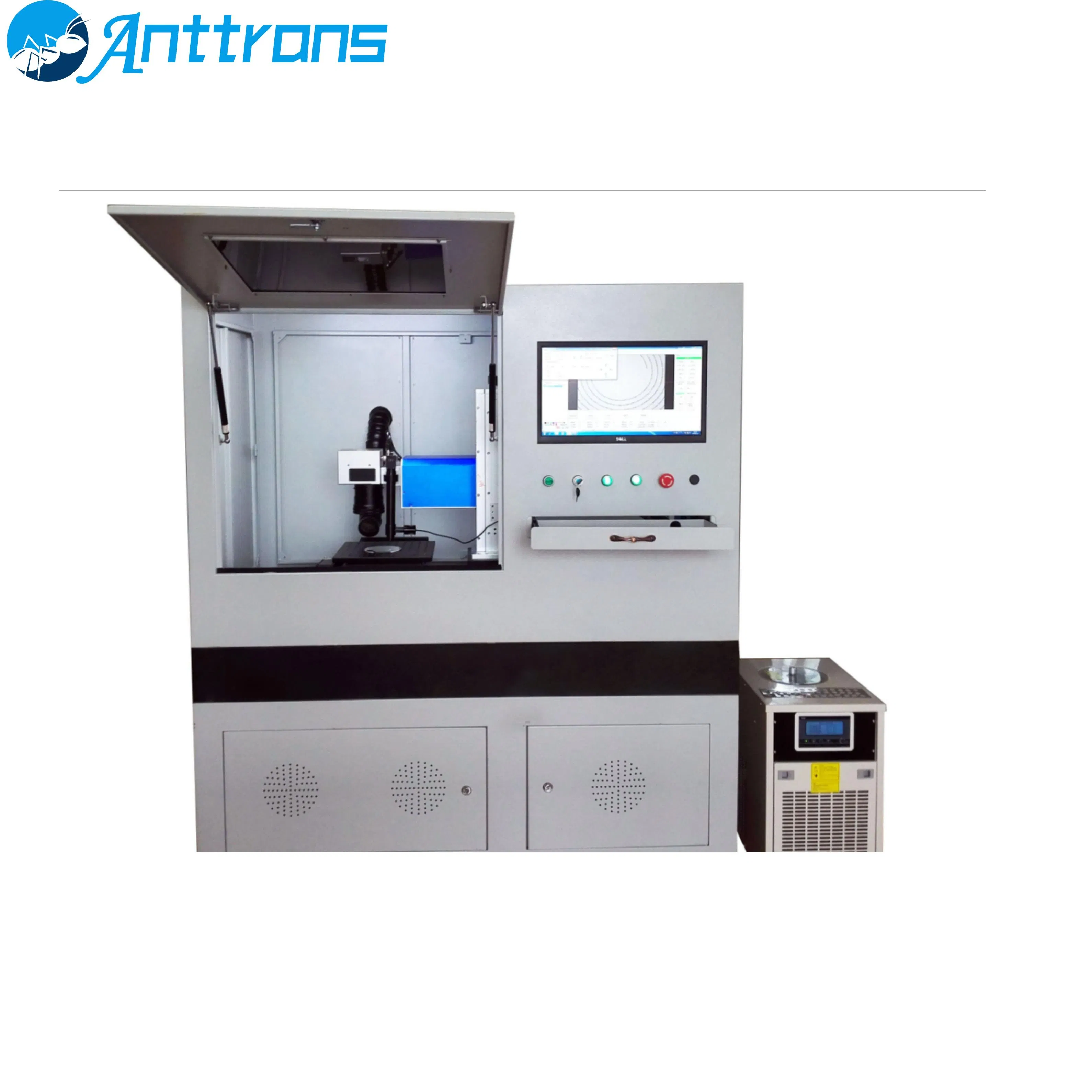

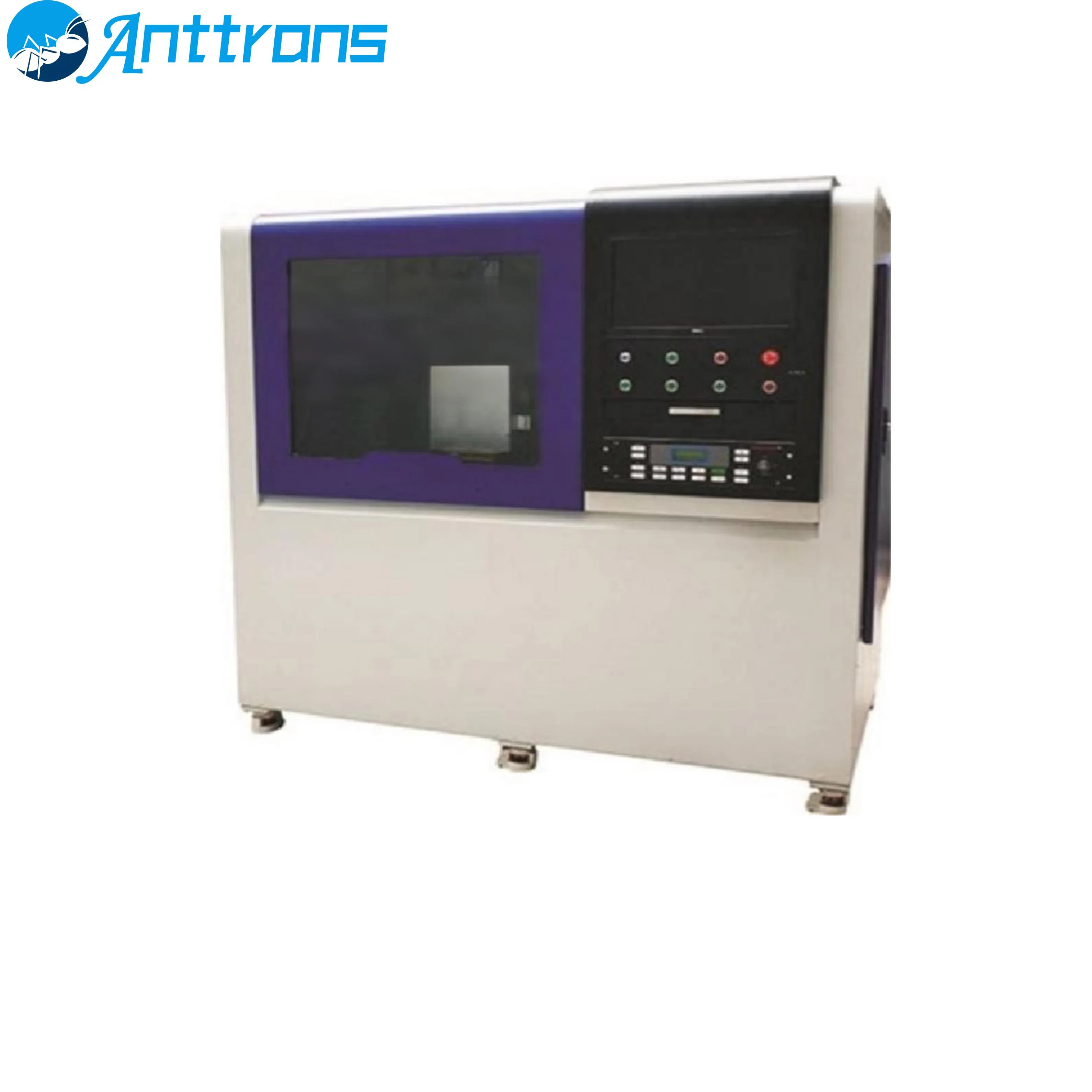

Robust Laser Micro-Machining Equipment/Micro Nozzle Processing System

1 / 5

Robust Laser Micro-Machining Equipment/Micro Nozzle Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Overview & Basic Info

Model NO.AT-61163

OriginChina

Package Size150.00cm * 90.00cm * 150.00cm

Gross Weight2000.000kg

★

Product Features

High-energy density and stable ultraviolet laser directly ablates and vaporizes materials, with a μm-level heat-affected zone and a minimum processing spot size of 5μm.
High-resolution camera with a high-precision linear motor-driven platform enables sub-micron-level alignment.
Precision Z-axis achieves high-precision focusing for stable and repeatable processing techniques.
Sub-micron-level runout spindle enables high-speed, high-precision, and high-surface-finish micro-machining.
Auxiliary W-axis allows for the processing of straight holes and inverted taper holes.
Marble tabletop enhances overall system stability for long-term precision.
Minimum processing hole diameter of 5μm, capable of depth-to-width ratios > 10:1.

⚙

Product Parameters

Category	Parameter	FM-UVD7 Details
Laser	Wavelength	355nm
Laser	Power	>7W@40 kHz (3~40 W optional)
XY Stage	Travel	300*300mm
XY Stage	Repeatability	≤±1μm
XY Stage	Positioning Accuracy	≤±3μm
Z-axis	Travel	200mm
Z-axis	Repeatability	≤±3μm
W-axis	Angular Range	±10°
Spindle	Circular Runout	<1μm
Processing	Minimum Spot Size	5μm (10μm optional)
Processing	Hole Diameter Accuracy	±3μm (hole <0.5mm, depth <0.5mm)
Processing	Materials	Glass, organics, metals, ceramics, etc.
Utility	Power Consumption	≤2000W
Dimensions	Machine Size	1200 * 1600 * 1900mm
Weight	Total Weight	1200Kg

🚀

Product Applications

Automotive Industry

Processing GDI Fuel Injectors (50-200μm), Diesel Fuel Injectors (30-100μm), and Urea Injectors (100-300μm) to improve fuel atomization and meet emission standards.

Aerospace

Manufacturing aircraft engine fuel nozzles (50-150μm), rocket propellant nozzles (100-500μm), and UAV atomization nozzles for high-precision thrust and combustion control.

Medical Equipment

Producing nebulizer nozzles (10-50μm) for drug atomization, microfluidic chip nozzles (5-50μm) for analysis, and interventional device nozzles for drug delivery.

Electronics and Precision Instruments

Creating inkjet printhead nozzles (10-30μm), sensor nozzles for fluid control, and optical instrument nozzles for cleaning and cooling systems.

🏢

Service Scope

Technical services, development, and consulting in computer software and hardware. Specializing in the wholesale and retail of optical instruments, specialized equipment for semiconductor devices, CNC machine tools, and experimental analysis instruments. Our expertise extends to electronic components, electromechanical equipment, metal cutting and welding equipment, and new optical materials such as functional glass and photovoltaic components.

📷

Detailed Photos

Frequently Asked Questions

Q1: What is the minimum hole diameter this equipment can process? The system can achieve a minimum processing hole diameter of 5μm.

Q2: What materials are compatible with this laser micro-machining system? The equipment is capable of processing glass, organics, metals, ceramics, and other precision materials.

Q3: Can the machine process tapered or non-straight holes? Yes, the system features an auxiliary W-axis that allows for the processing of both straight holes and inverted taper holes.

Q4: How does the system ensure long-term stability and precision? It utilizes a high-stability marble tabletop and sub-micron-level runout spindles, with all mechanical components selected for long-term precision.

Q5: What are the primary industries for this technology? Key industries include Automotive (fuel injectors), Aerospace (nozzles), Medical Equipment (nebulizers), and Electronics (inkjet printheads).

Q6: What type of laser source is used in the FM-UVD7 model? It uses a 355nm Ultraviolet (UV) laser with power options ranging from 7W to 40W.
