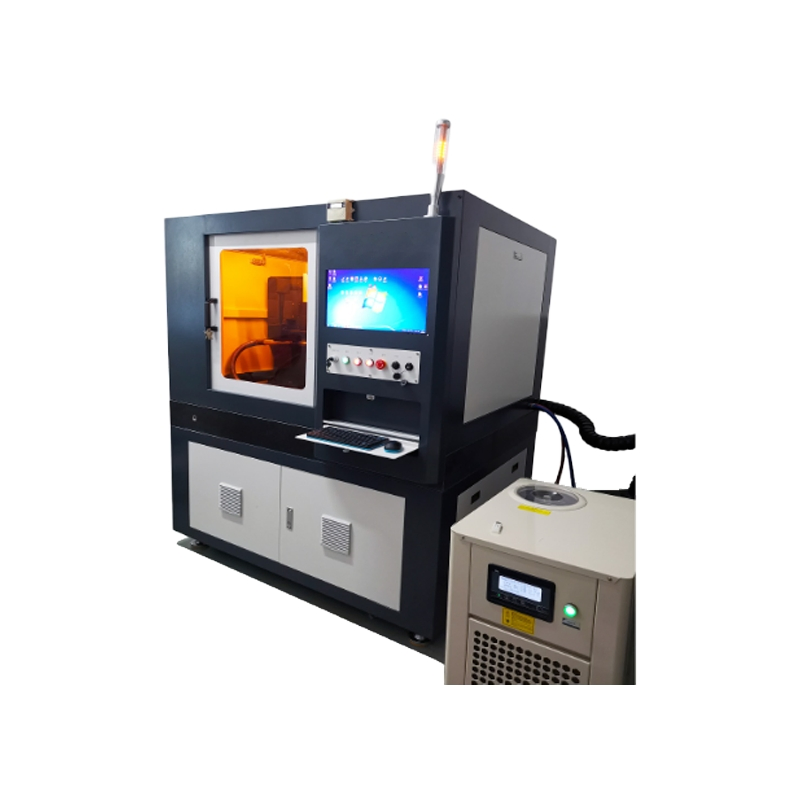

Laser Machining System for Micro-Straight Holes in Precision Parts
Laser Machining System for Micro-Straight Holes in Precision Parts
Laser Machining System for Micro-Straight Holes in Precision Parts
Laser Machining System for Micro-Straight Holes in Precision Parts
Laser Machining System for Micro-Straight Holes in Precision Parts
1 / 5
Laser Machining System for Micro-Straight Holes in Precision Parts
Laser Machining System for Micro-Straight Holes in Precision Parts
Laser Machining System for Micro-Straight Holes in Precision Parts
Laser Machining System for Micro-Straight Holes in Precision Parts
Laser Machining System for Micro-Straight Holes in Precision Parts

Laser Machining System for Micro-Straight Holes in Precision Parts

Customization: Available
After-sales Service: Video Support for Free
Warranty: 1year
Send Inquiry

Product Description

📋 Basic Information
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Package
Polywood Box
Origin
China
Capacity
1000/ Year
🚀 Laser Machining System

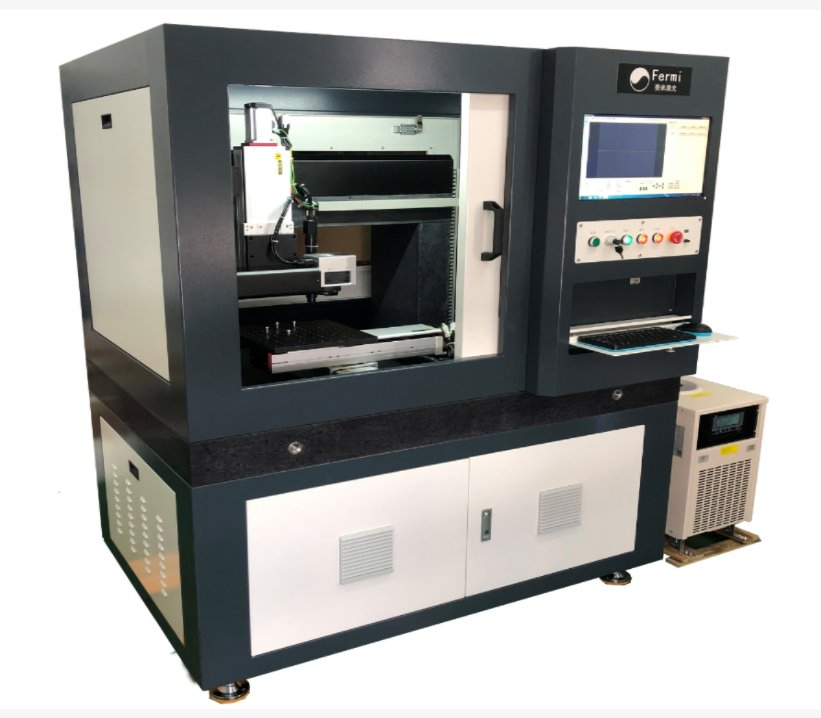

Laser machining system for micro-straight holes in precision parts

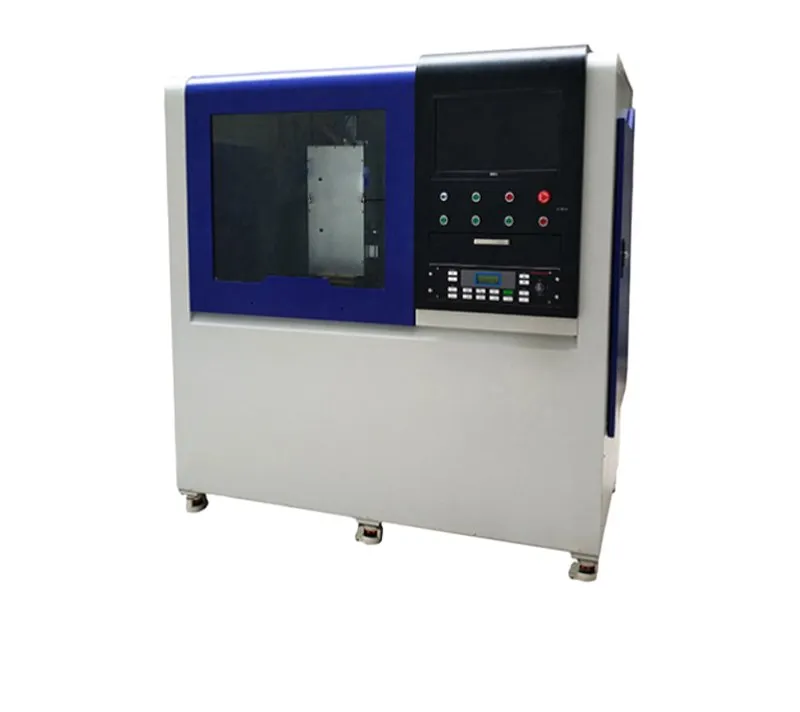

Laser Machining System
✔
High-power, high-stability ultraviolet lasers directly ablate vaporized materials, achieving a heat-affected zone at the μm level.
✔
Sub-micron level high-precision alignment using rangefinder high-resolution industrial cameras and linear motor drive platforms.
✔
Precision Z-axis achieves high-precision focusing, ensuring stable and repeatable processing.
✔
Ultra-high speed pneumatic spindle and precision galvanometer enable high-surface-finish machining of micro-straight holes.
✔
Marble countertop design enhances overall system stability for long-term precision.
Material Versatility: Suitable for metals, ceramics, organic materials, and glass. Supports minimum machining hole diameters of 5µm with a depth-to-width ratio >10:1.
🛠 Equipment Application
Application 1
Application 2

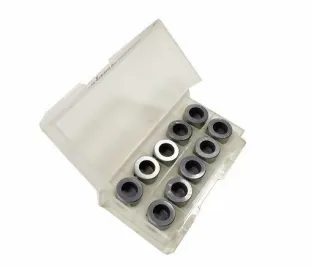

Application 3
📊 Technical Specifications
Category Parameter FM-UVD3 Data
LaserWavelength / Power355nm / >3W@40kHz
LaserPulse Width15ns@40kHz
GalvanometerRepeatability<1μm
XY WorkbenchJourney300*300mm (Optional 600*600mm)
XY WorkbenchPositioning Accuracy≤±3μm
Z-axisJourney / Accuracy200mm / ≤±5μm
CCD SystemCamera / Mag5 Megapixels / 10X
CapacityMin Spot Size5 μm (10 μm optional)
PhysicalSize / Weight1100*1700*1900mm / 1500kg
PowerConsumption≤2000W (220V 50~60Hz)
📦 Other Product Lines
Product Line 1

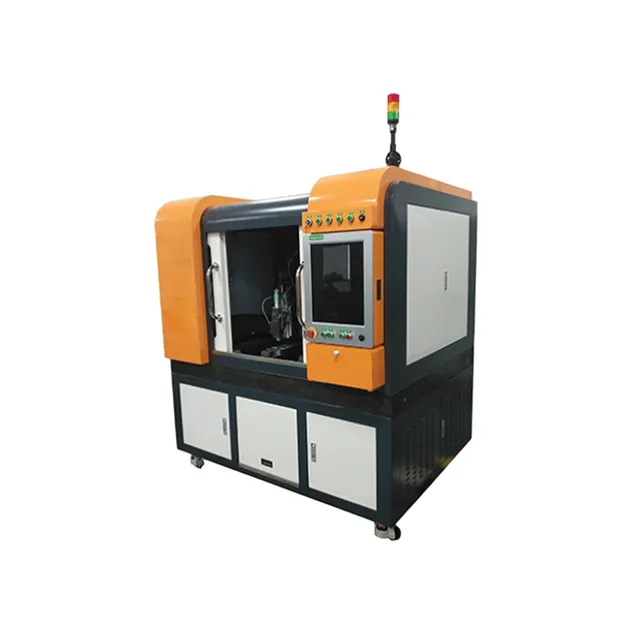

Product Line 2
Product Line 3
🛡 Packing & Delivery Support
Standard Warranty: 12 months after shipping
Extended Warranty: Optional coverage up to 36 months
Global Support: 24/7 technical assistance and service group
Training: Free on-site or remote operation and maintenance training
🏭 Manufacturing Profile
Factory View

We are a technology-driven enterprise specializing in the R&D, production, and sales of industrial and scientific research laser application systems. We provide precision laser solutions for micro-hole, micro-groove, micro-welding, scribing, cutting, and feature forming.

Our expertise covers linewidths ranging from 1 to 500 μm. Our developed systems include Femtosecond Laser Precision systems, Picosecond Ultra-Fine systems, and Roll-to-Roll Thin Film Micro-Hole systems, serving biomedicine, semiconductors, and new energy sectors.

❓ Frequently Asked Questions
Q1: What materials can this laser system process?
The system is designed to process a wide range of materials including metals, ceramics, organic materials, and various types of glass.
Q2: What is the minimum hole diameter achievable?
The minimum machining hole diameter is 5µm, achieved through high-stability ultraviolet lasers and precision focusing.
Q3: How long is the standard delivery time for machines?
Standard models typically take 1-3 months. We maintain stock for certain hot items to ensure faster delivery when possible.
Q4: What is the positioning accuracy of the system?
The system offers sub-micron positioning resolution (0.1μm) with a positioning accuracy of ≤±3μm for the XY workbench.
Q5: Is technical training included with the purchase?
Yes, we provide free on-site or remote operation and maintenance training to ensure your team can operate the equipment efficiently.
Q6: What cooling method does the system use?
The system utilizes a water cooling method with a 1500W cooling capacity to ensure stable operation during high-precision tasks.
