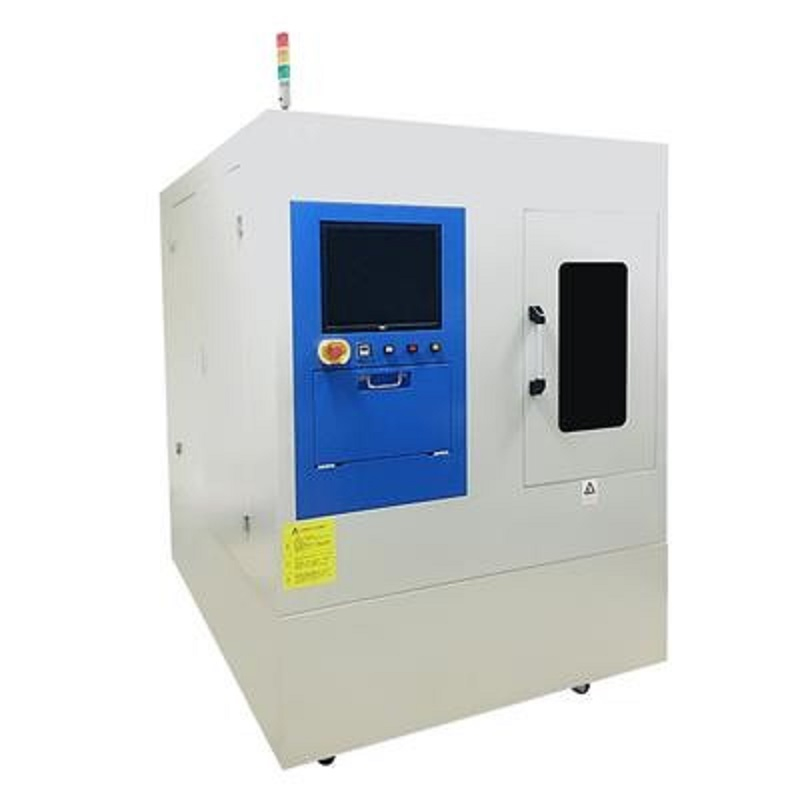

Advanced Five Axis Laser Cutting System for Precision Engineering

1 / 5

Advanced Five Axis Laser Cutting System for Precision Engineering

Customization:	Available
After-sales Service:	Free Training
Warranty:	One Year Service

Send Inquiry

Product Description

Basic Specifications

Model NO.

MSE-01

Application

Metal

Movement Method

Point to Point Control

Control Method

Open-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Certification

CE, RoHS

Product Name

Laser Micro Nano Machine

Laser Type

Ultra Fast Pulsed Laser

Wavelength

1064nm, 532nm, 355nm

Positioning Accuracy

X/Y: ±2μm, Z: ±4μm

Weight

400KG

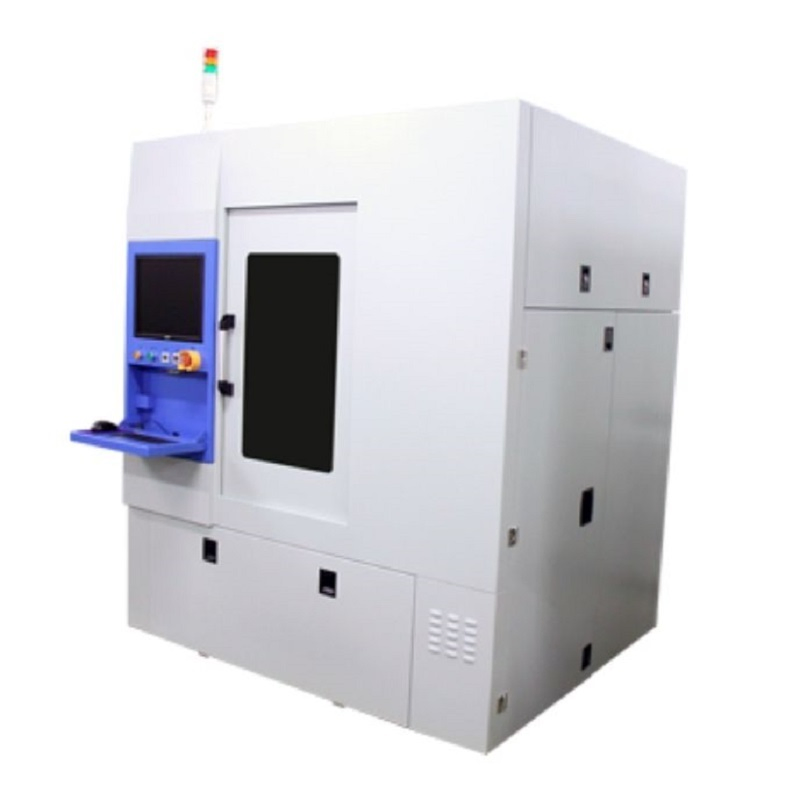

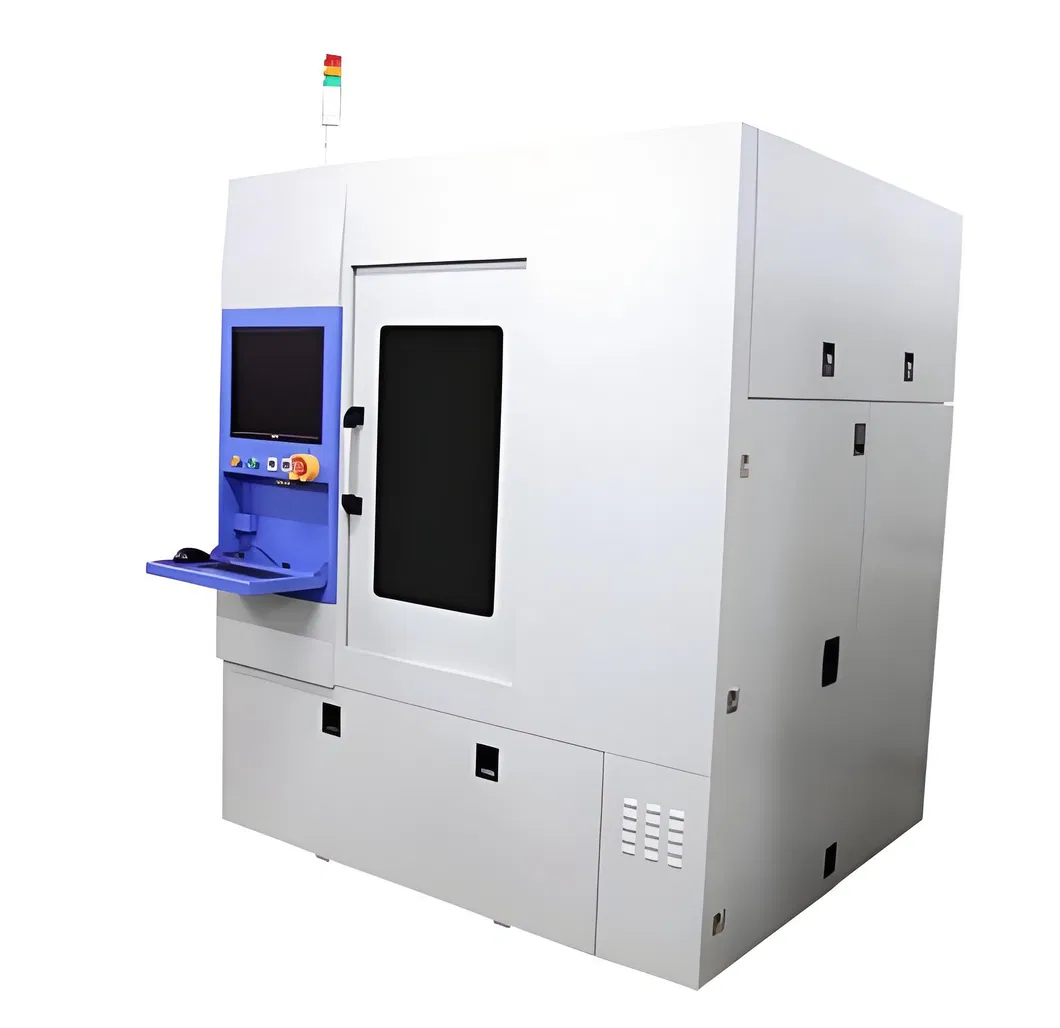

Ultra-Fast Pulsed Five-Axis Laser Micro-Nano Machine

The equipment achieves three-dimensional precision micro machining of various inclined surfaces, conical surfaces, and spherical surfaces through precise control of a multidimensional micro-displacement system.

🎯

Precision Machining

Using ultra-short pulse laser technology minimizes surface heat effects and residual debris for superior quality.

🌐

Multi-Axis Platform

Enables precise micro-nano machining of complex geometries in 3D space, including conical and spherical surfaces.

🚀

Wide Applications

Ideal for aerospace, automotive, microelectronics, semiconductor, and biomedical fields.

Technical Parameters

Parameter	Specification (LMS10)
Laser Type	Ultrafast Pulsed Laser
Wavelength	1064nm, 532nm, 355nm (Integrated Systems)
X/Y/Z Positioning Accuracy	±2μm / ±2μm / ±4μm
X/Y/Z Repeatability	±1.5μm / ±1.5μm / ±3μm
A/B Angle Accuracy	0.003° / 0.003°
Drilling Aspect Ratio	Helical 1:20, Five-Axis 1:10

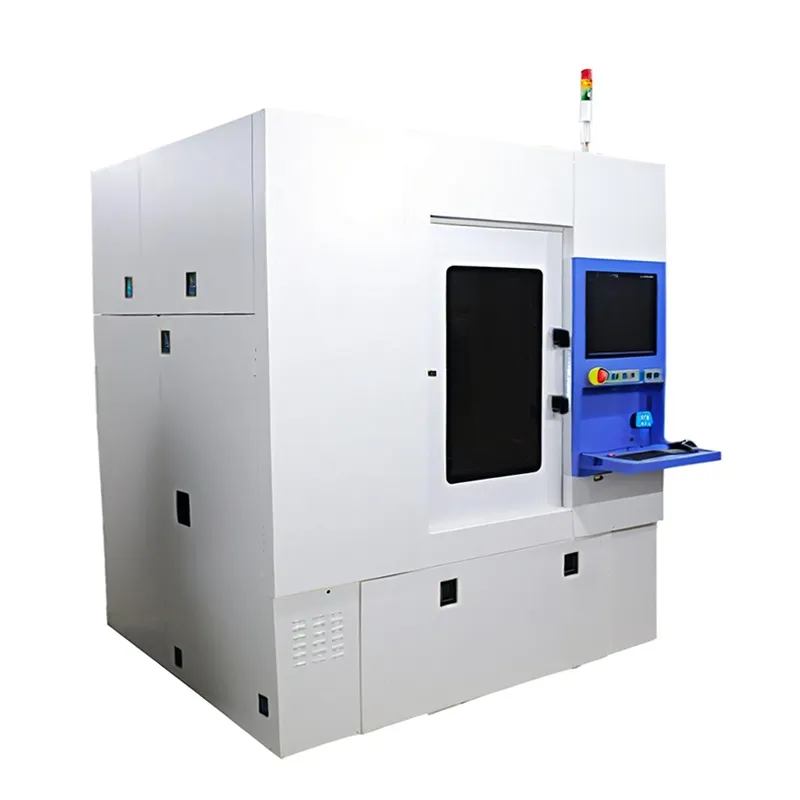

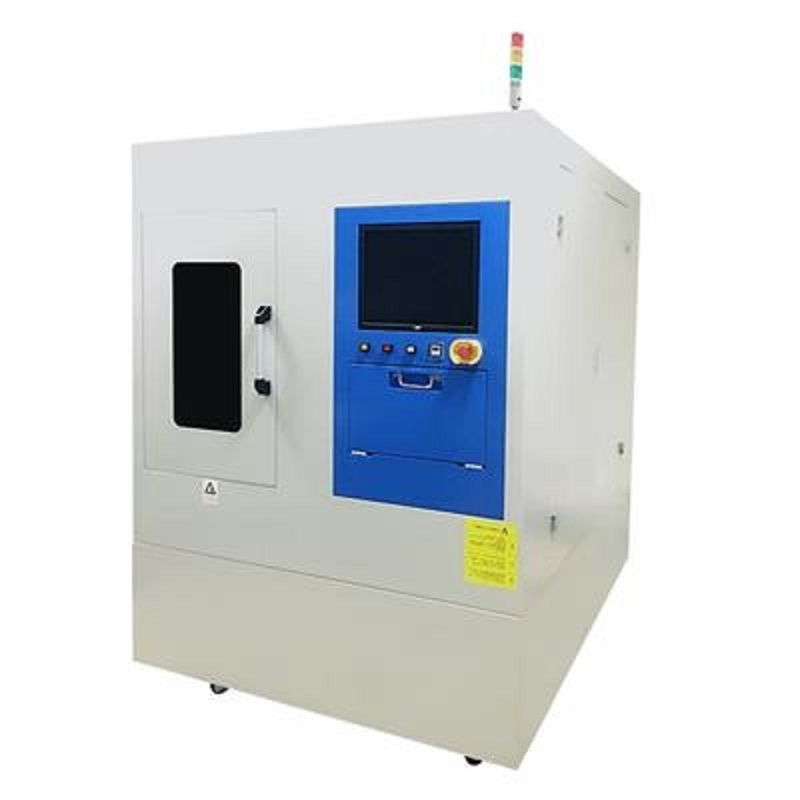

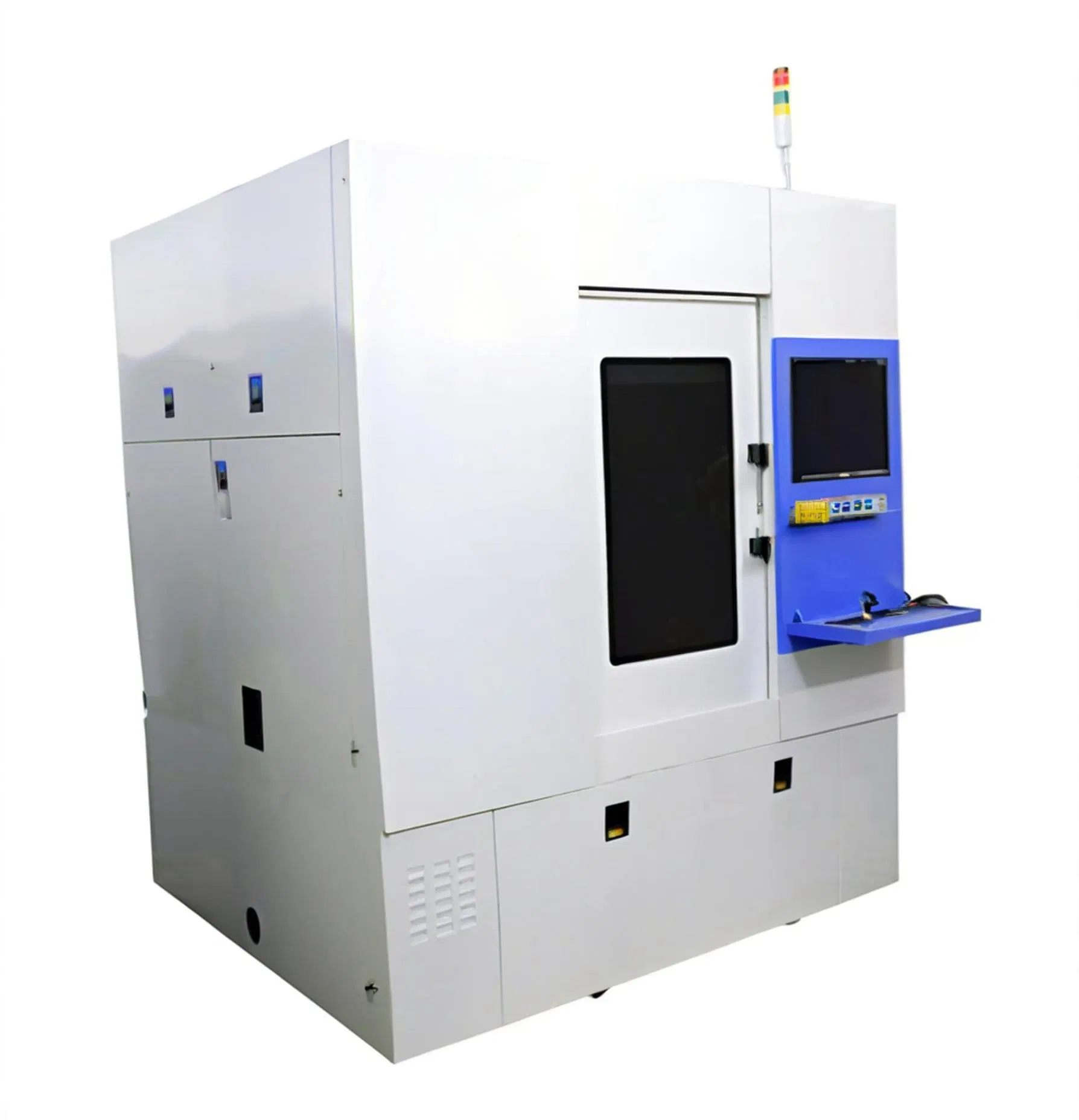

Product Display

Frequently Asked Questions

How to choose a suitable laser micro-nano machine?

Please provide your workpiece material, dimensions, and the required machine functions. Based on our industry experience, we can recommend the most efficient configuration for your needs.

What is the standard warranty period?

We offer a one-year comprehensive warranty along with 24-hour online professional technical support to ensure your production remains uninterrupted.

What materials can be processed with this equipment?

The system is designed primarily for precision metal processing, but ultra-short pulse lasers are also highly effective for ceramics, semiconductors, and various composite materials.

What are the advantages of ultra-short pulse technology?

Ultra-short pulses minimize the heat-affected zone (HAZ), preventing thermal damage to the surrounding material and ensuring extremely clean, high-precision cuts without debris accumulation.

Do you support custom design or OEM requests?

Yes, we provide full support for OEM, ODM, and customized engineering designs to meet specific industrial micro-machining requirements.

What is the positioning accuracy of the 5-axis system?

The X/Y/Z axes provide a positioning accuracy of ±2μm to ±4μm, while the A/B angle positioning accuracy is within 0.003°, allowing for world-class micro-nano precision.
