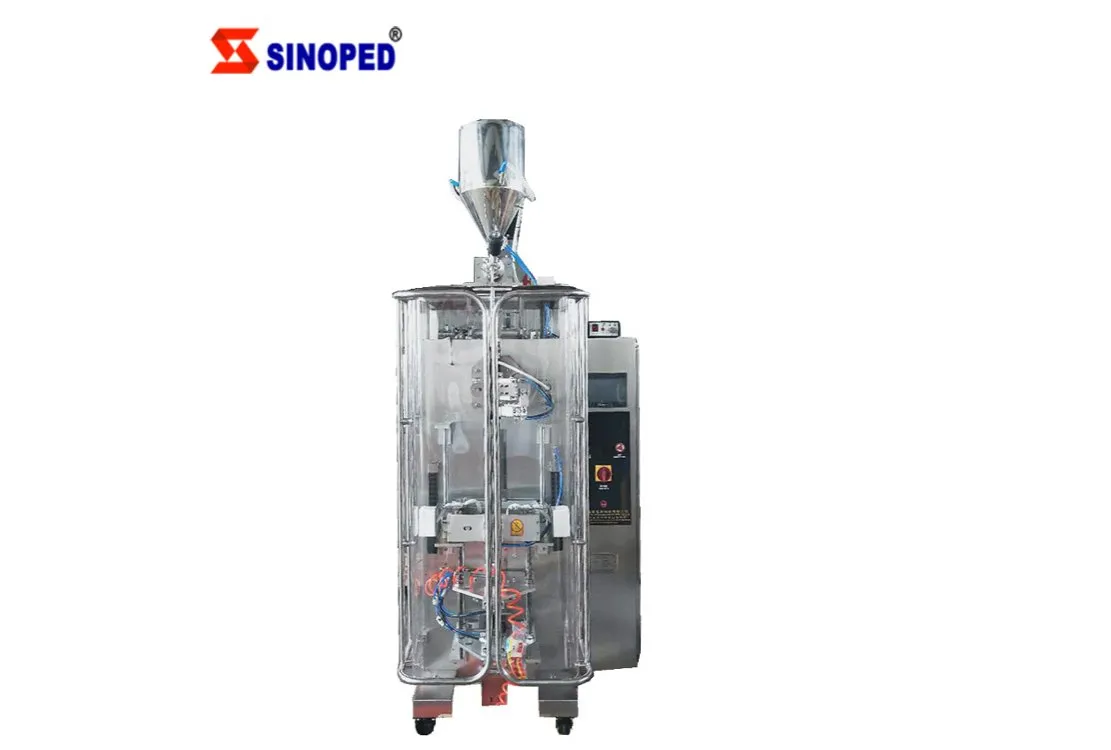

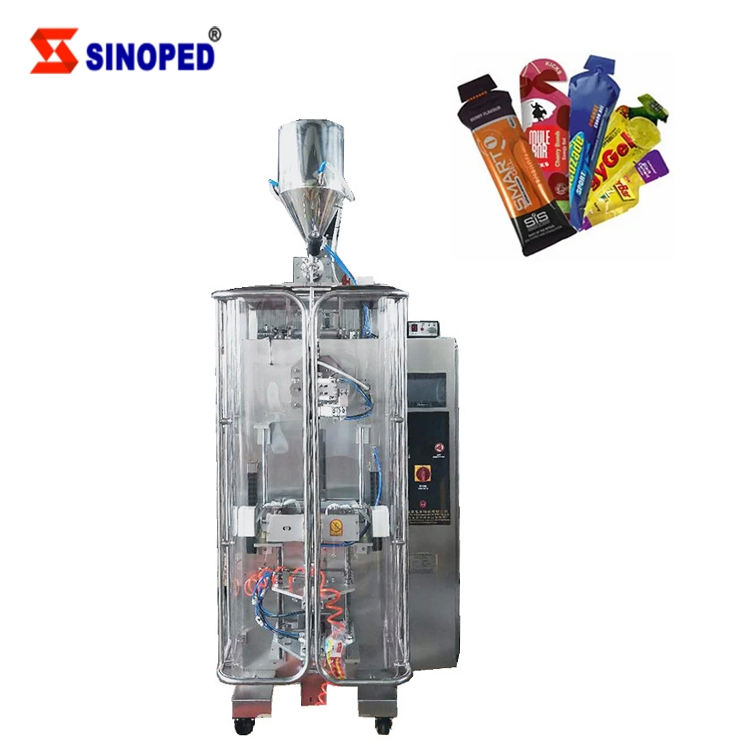

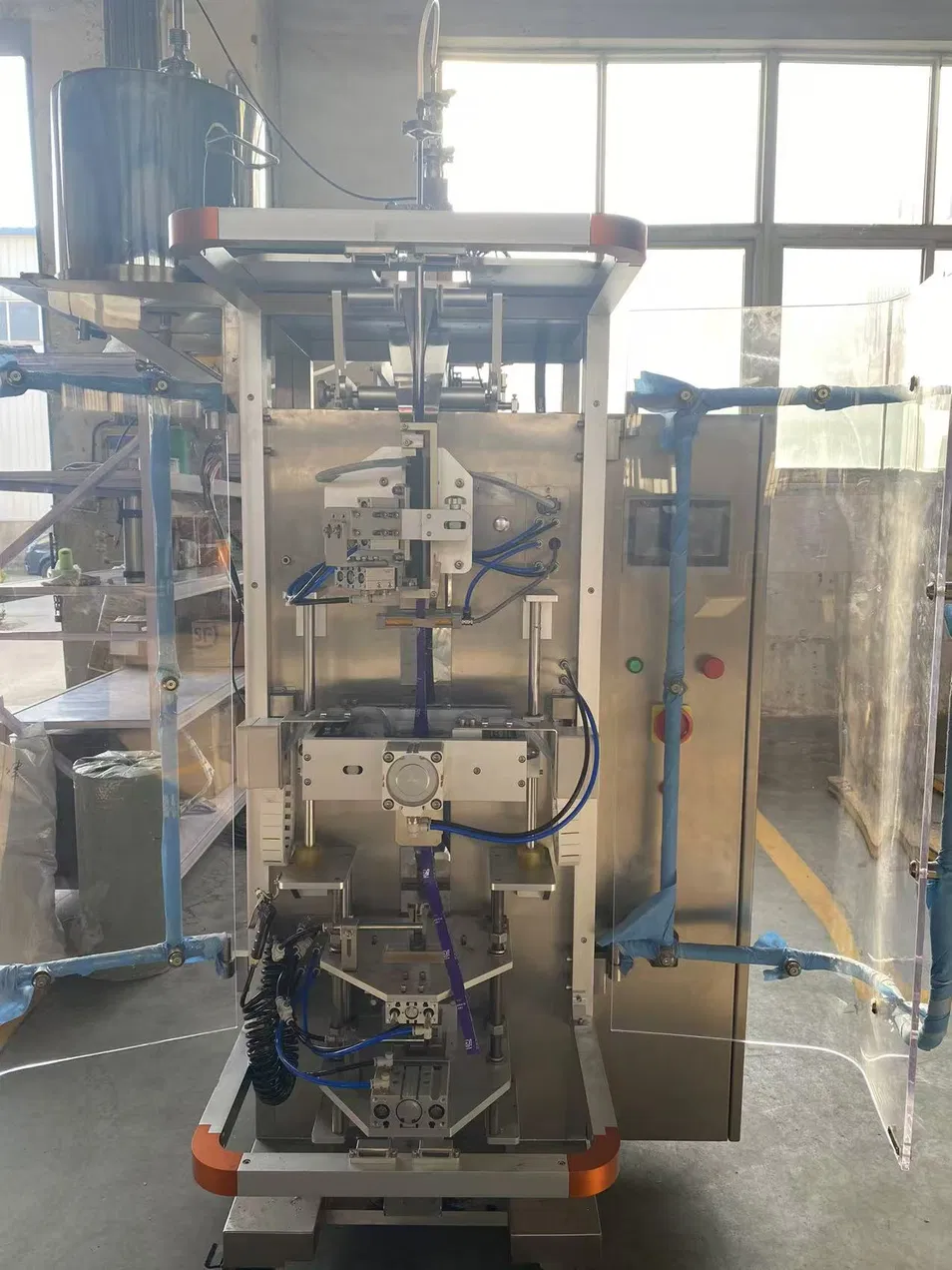

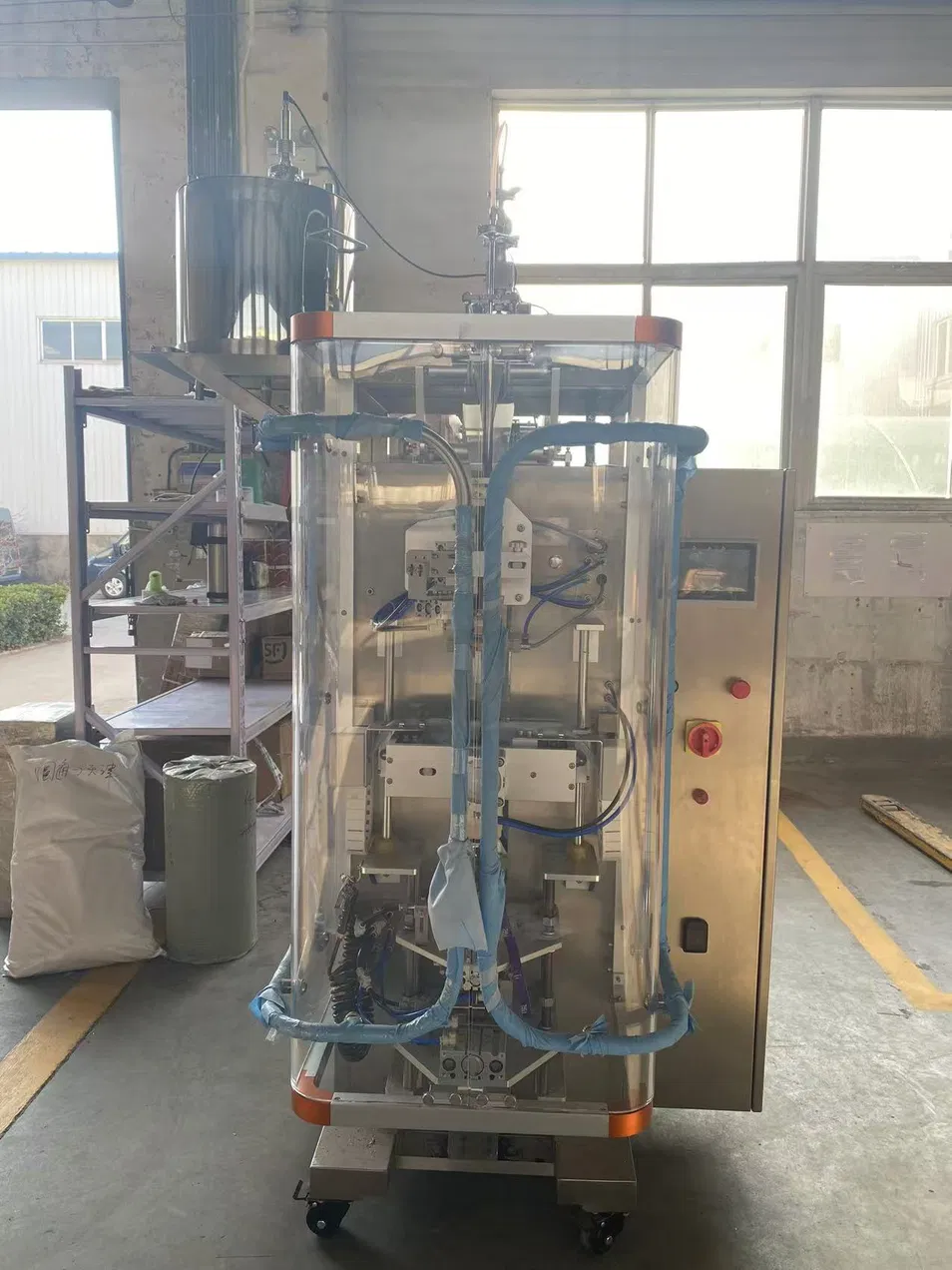

DXDY-300T Sachet Liquid Packing Machine

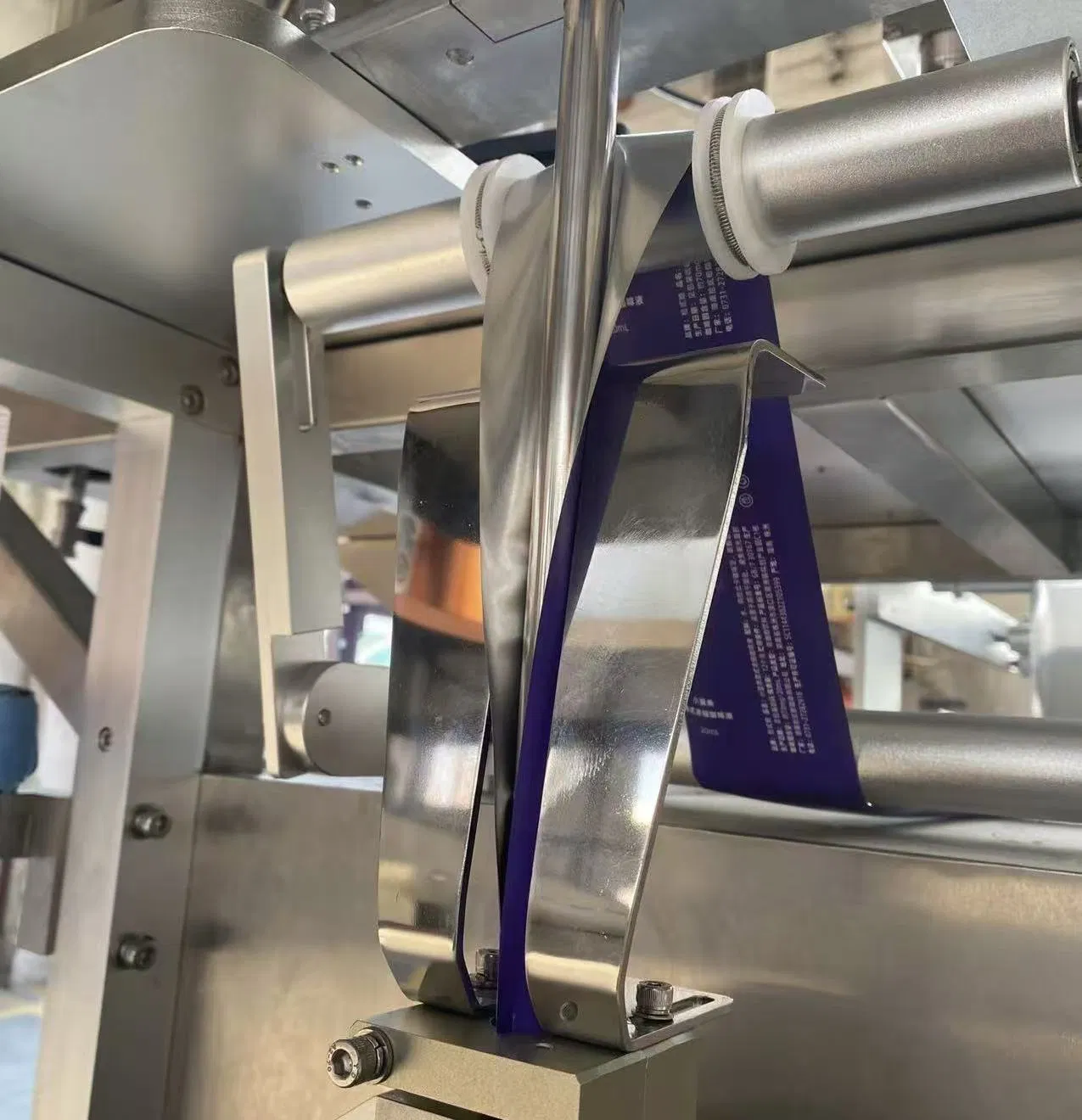

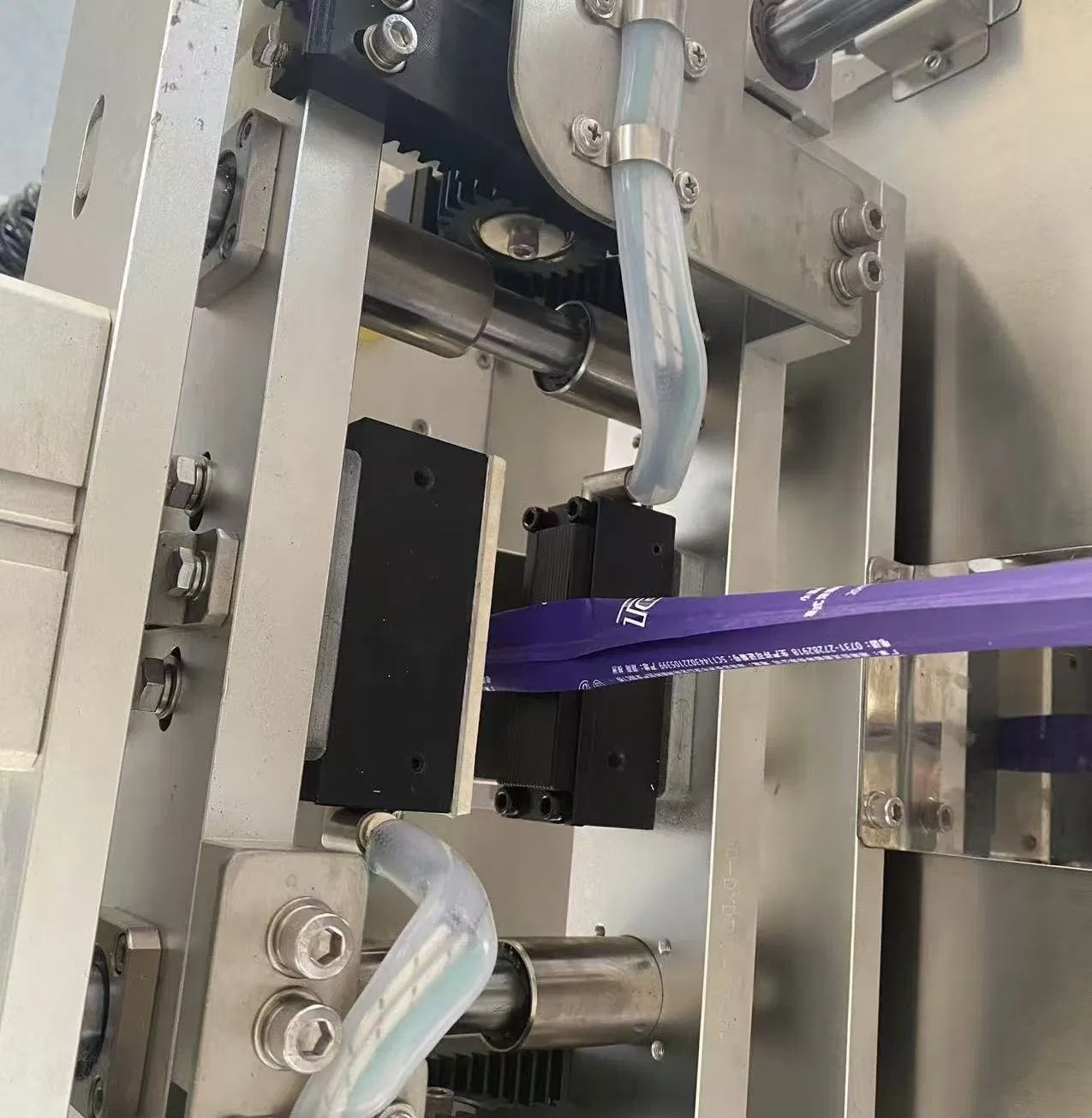

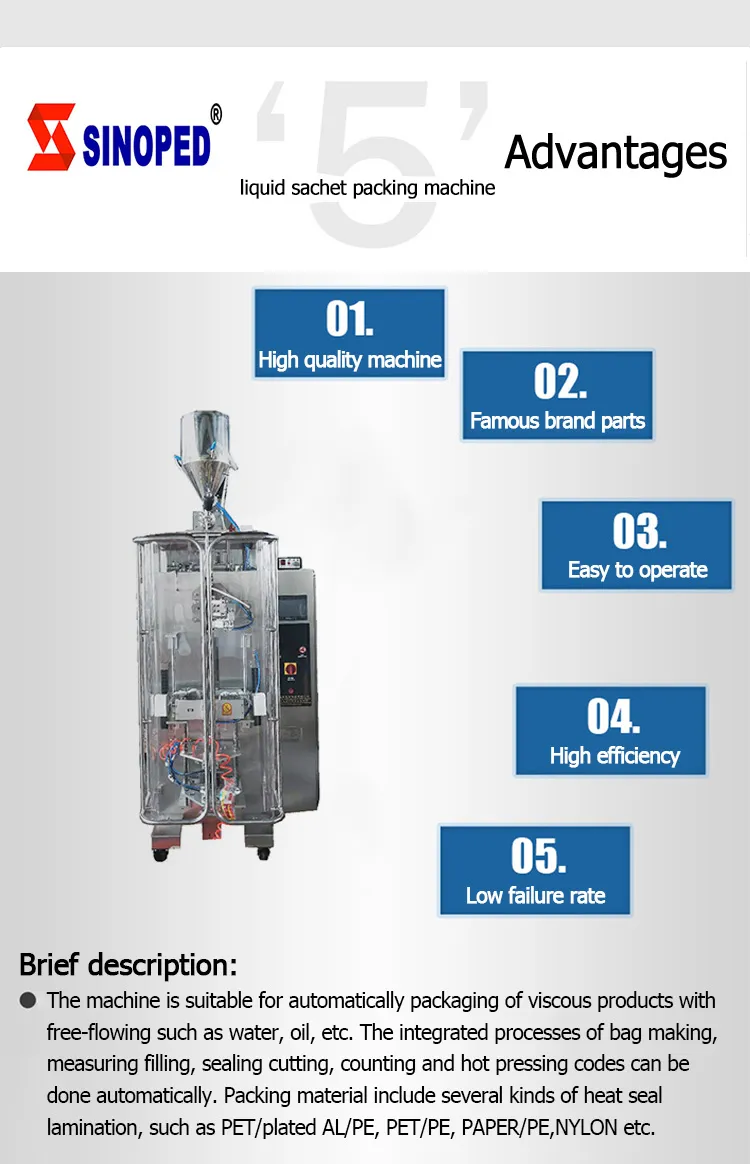

This automated system is designed for high-precision packaging of viscous and free-flowing liquid products such as water, oil, honey, and cosmetics. It integrates bag making, measuring, filling, sealing, cutting, and hot-stamp coding into one seamless process. Equipped with a unique gear pump featuring non-drip and tail suck-back functions, it ensures clean sealing margins and airtight pouches.

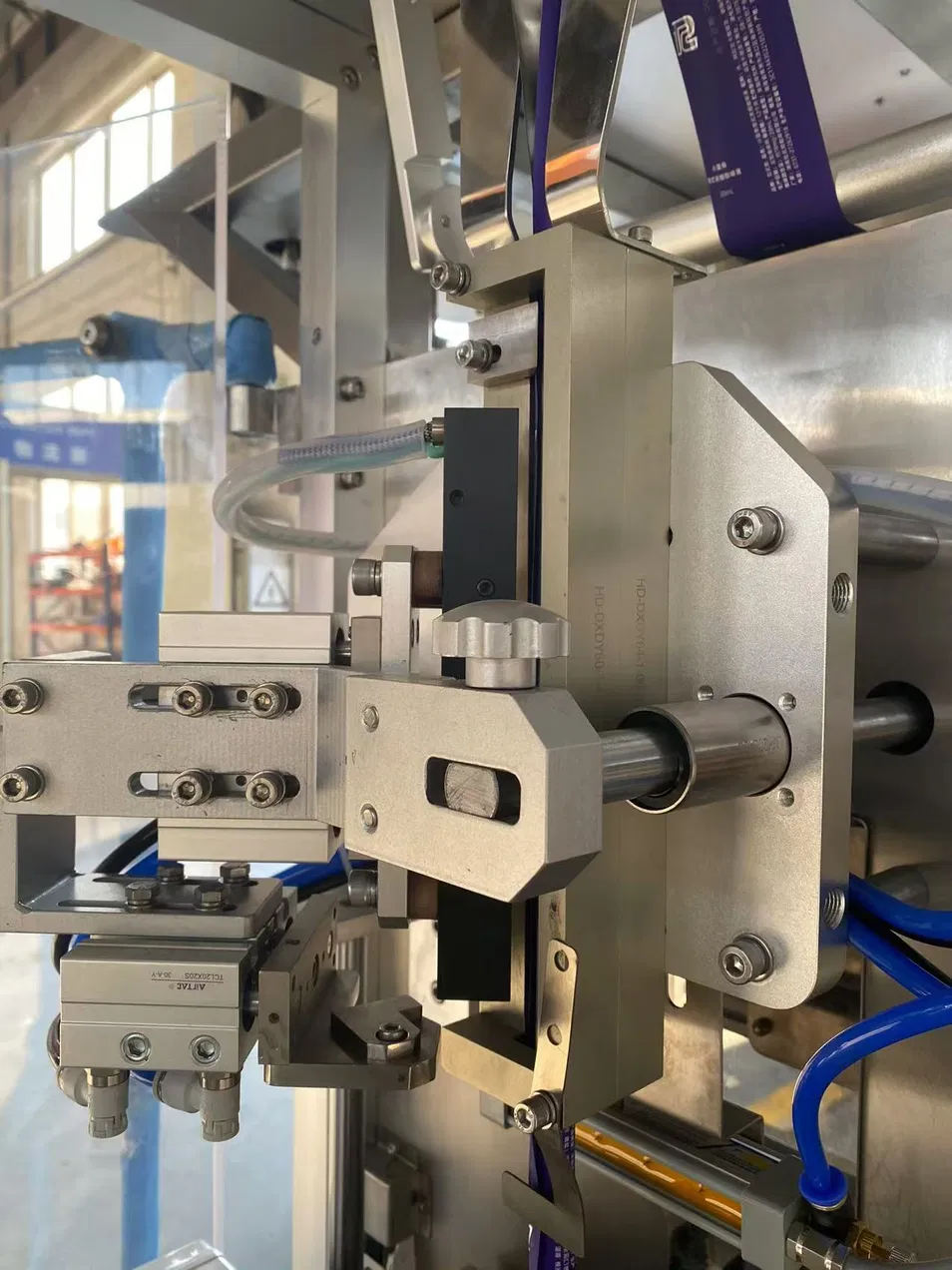

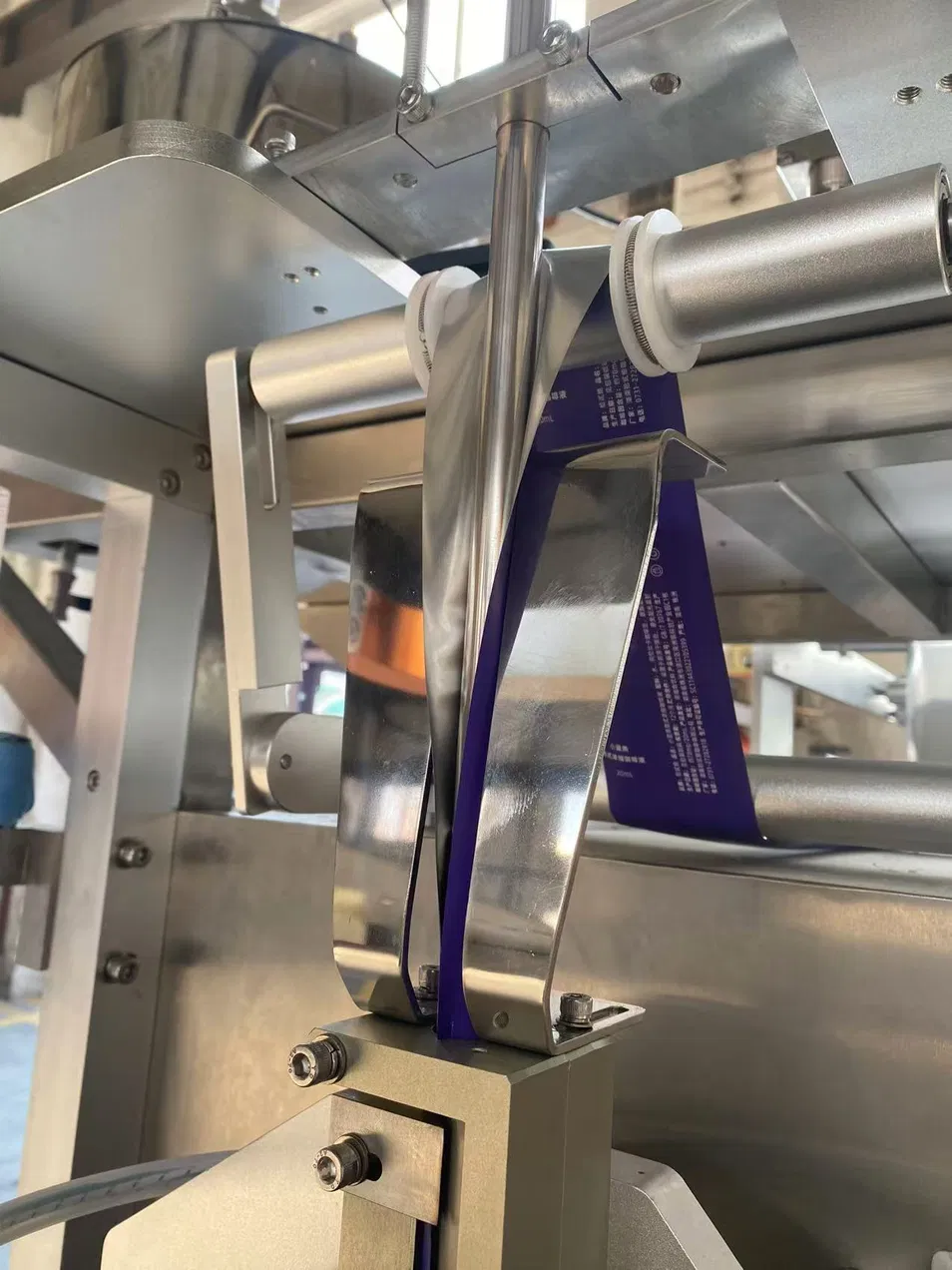

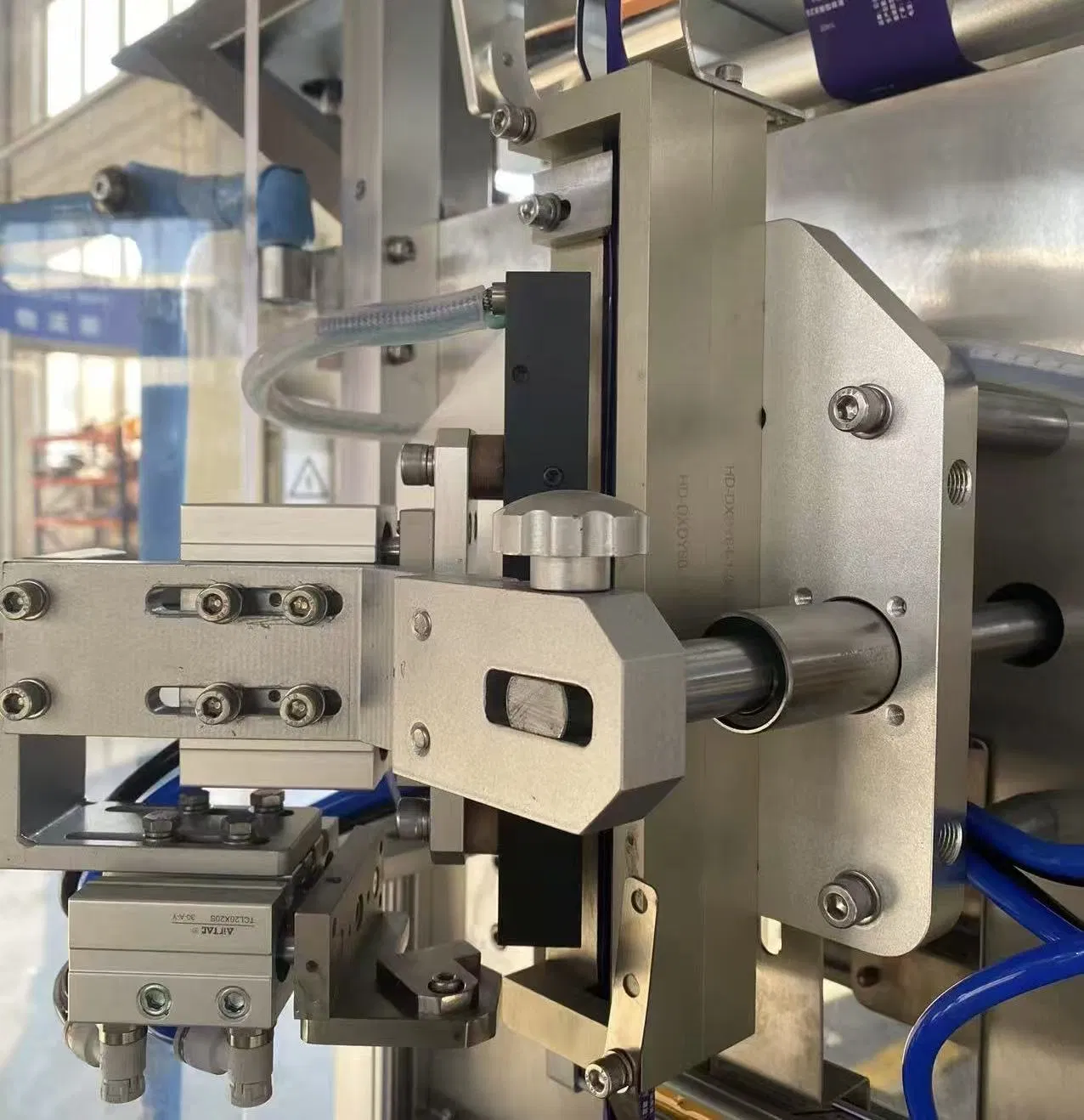

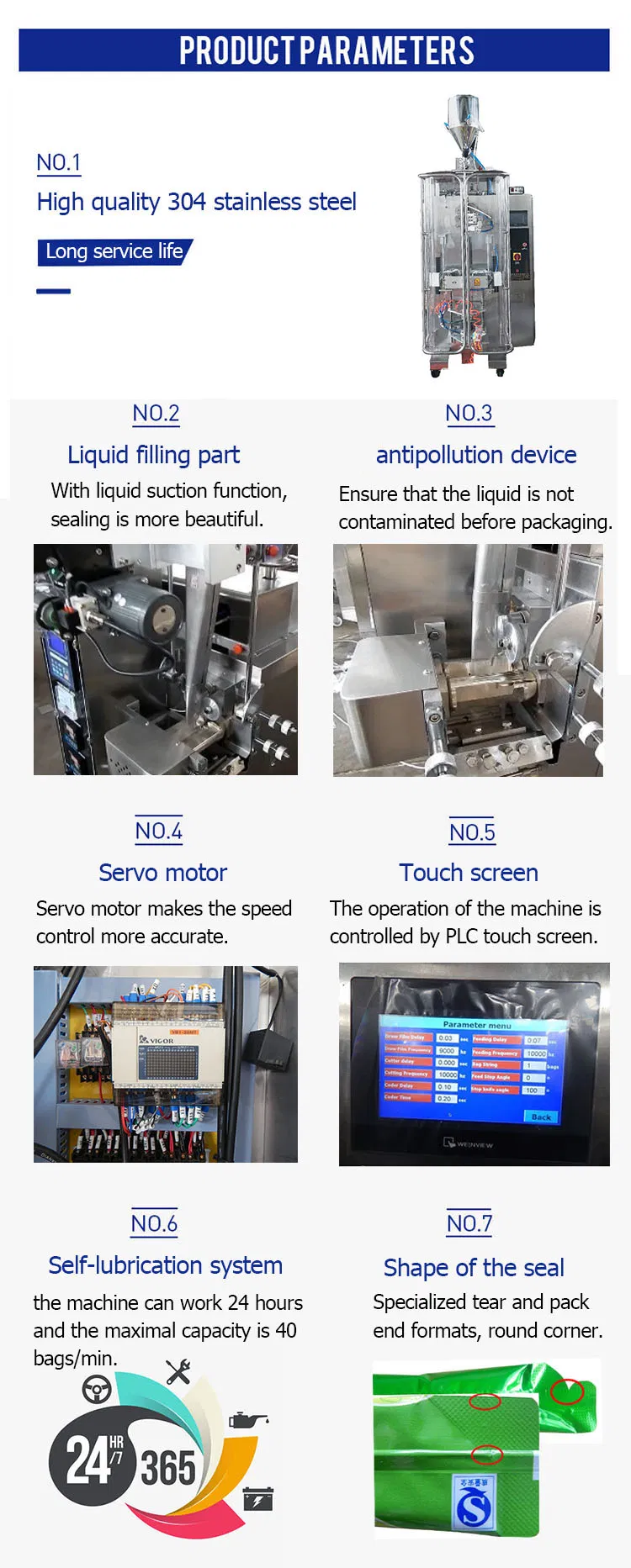

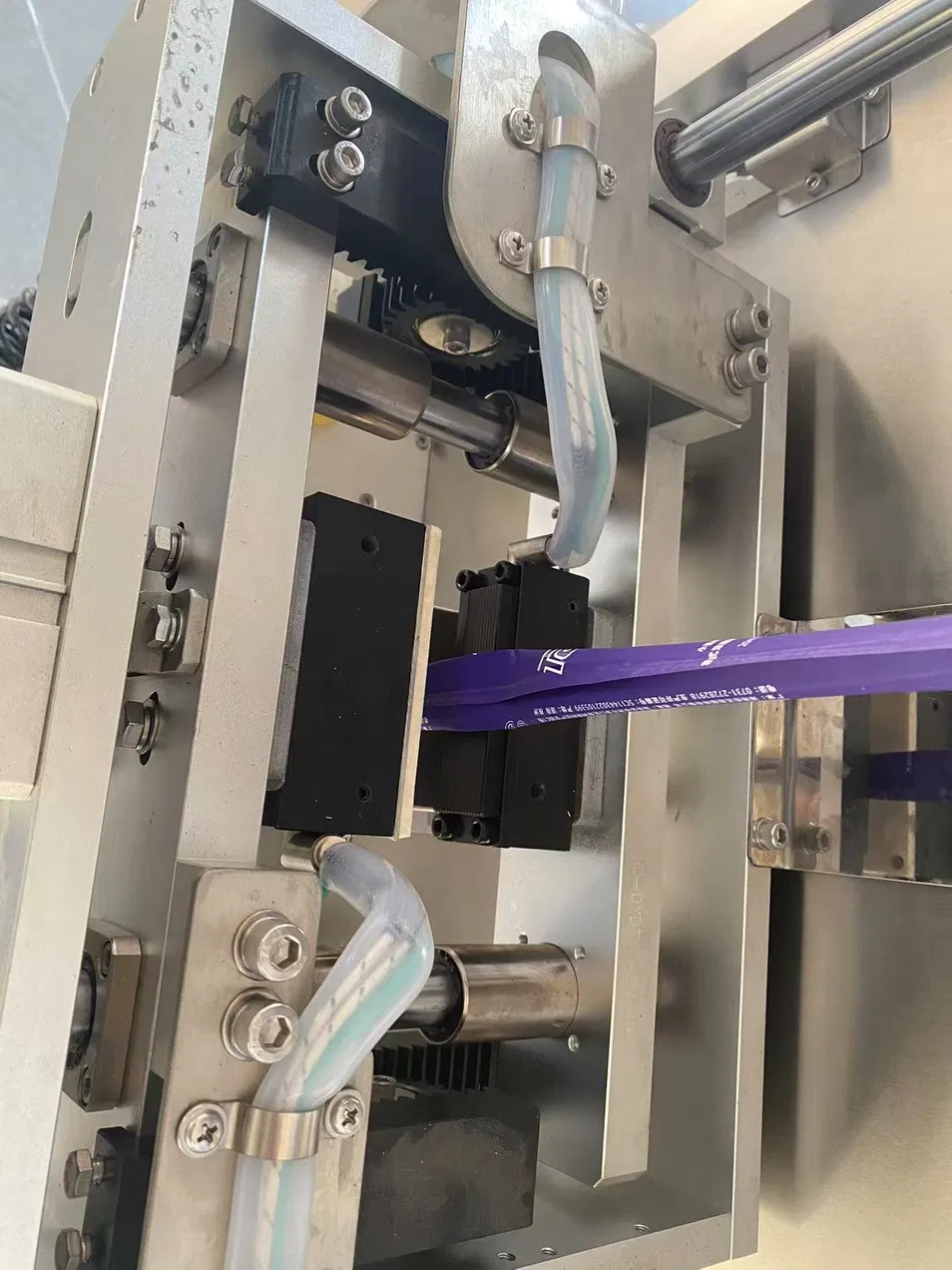

Utilizing the latest PLC touch screen interface, the machine allows for easy adjustment of speed and bag length. For enhanced safety, the vertical sealing section is guarded. The draw-down wheels are coated in silicon to prevent film damage, ensuring a high-quality finish for every sachet.






| Parameter | Details |
|---|---|
| Model | DXDY-300T |
| Filling Range | 5-40ml |
| Product Speed | 15-40 bags/min |
| Bag Size (mm) | Length: 50-180 | Width: 25-50 |
| Power | 220V 50HZ 1.7KW |
| Compressed Air | 0.6 Mpa |
| Air Consumption | 2m³/h |
| Machine Weight | 300kg |
| Dimensions (mm) | 600 * 790 * 1900 |


All machines are professionally packed in reinforced export-standard wooden cases to ensure safe transportation. We provide a complete set of official customs clearance documents as required, including Certificate of Origin, CE, Packing List, and Commercial Invoice.
