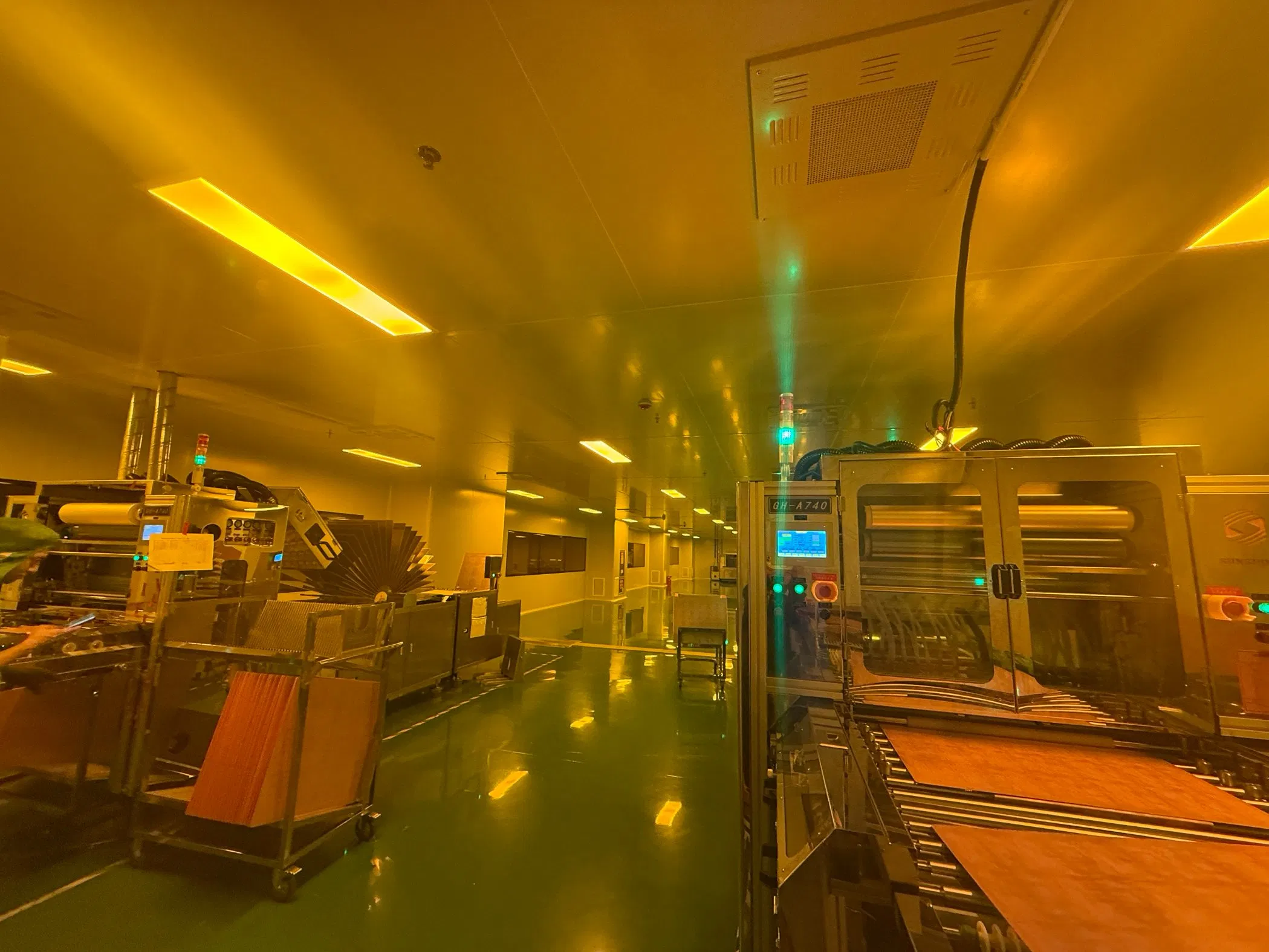

Industrial PCB Dry Film Laminating and Cutting System

Customization:	Available
After-sales Service:	Provide Lifelong Technical Services
Warranty:	12 Months

Basic Information

Model NO.

GH-D740

Classification

Cold Laminating Machine

Application

Aluminium Plate, Film Material, Soft Board

Driven Type

Electric

Automatic Grade

Automatic

Membrane Material

Matt Film

Laminating Mode

Hot Laminating

Performance

Anti Ultraviolet Erosion

Industry

PCB Manufacturing

Weight

1700kg

Conveying Height

970±50mm

Power

AC380V

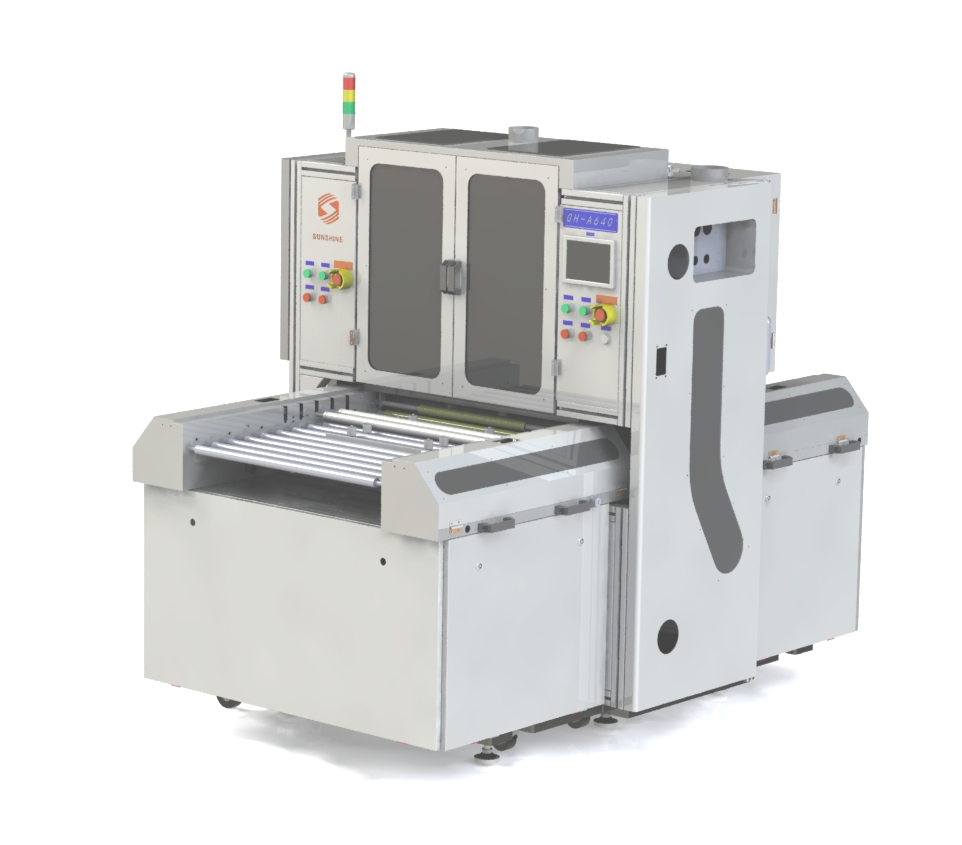

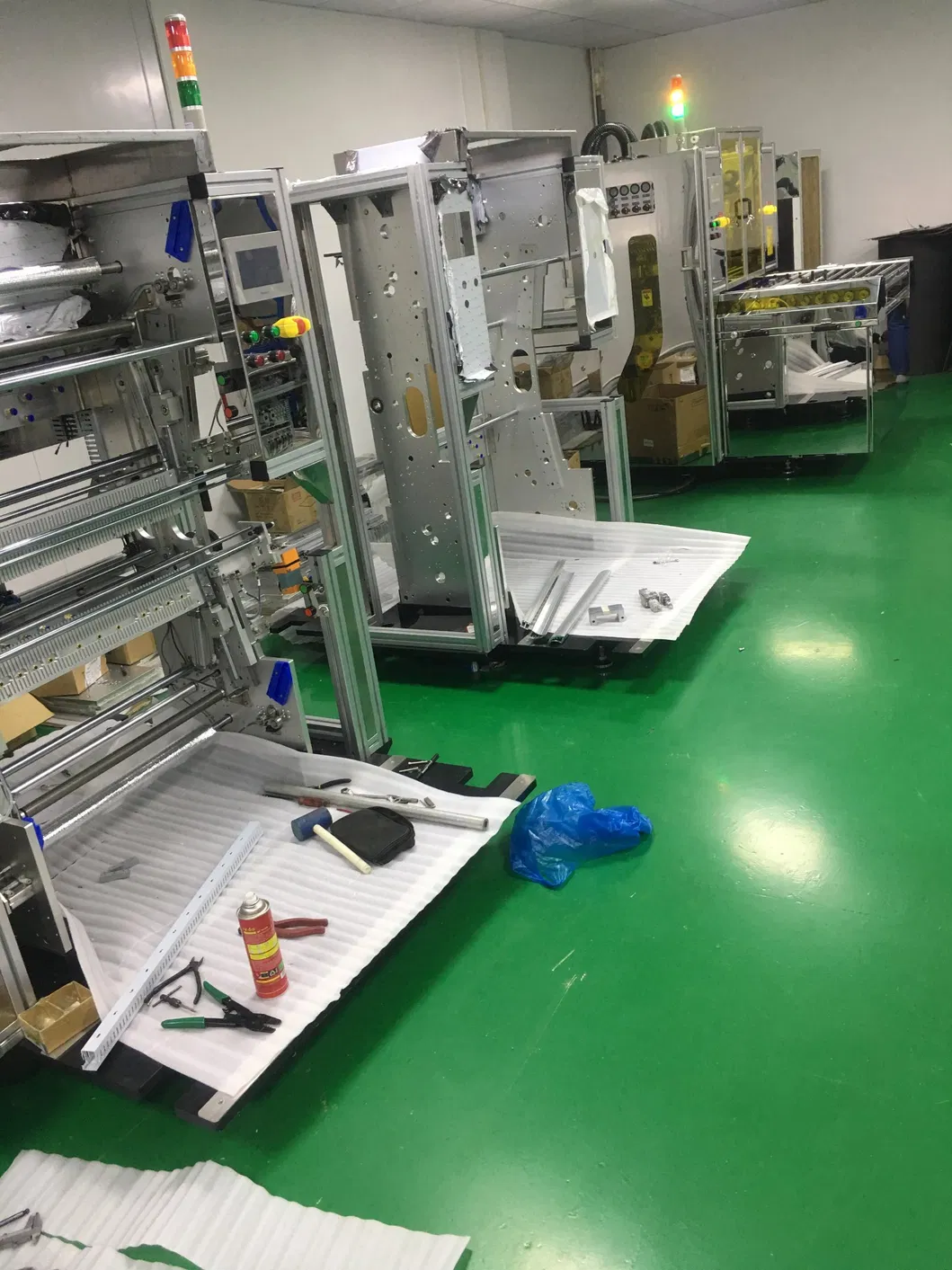

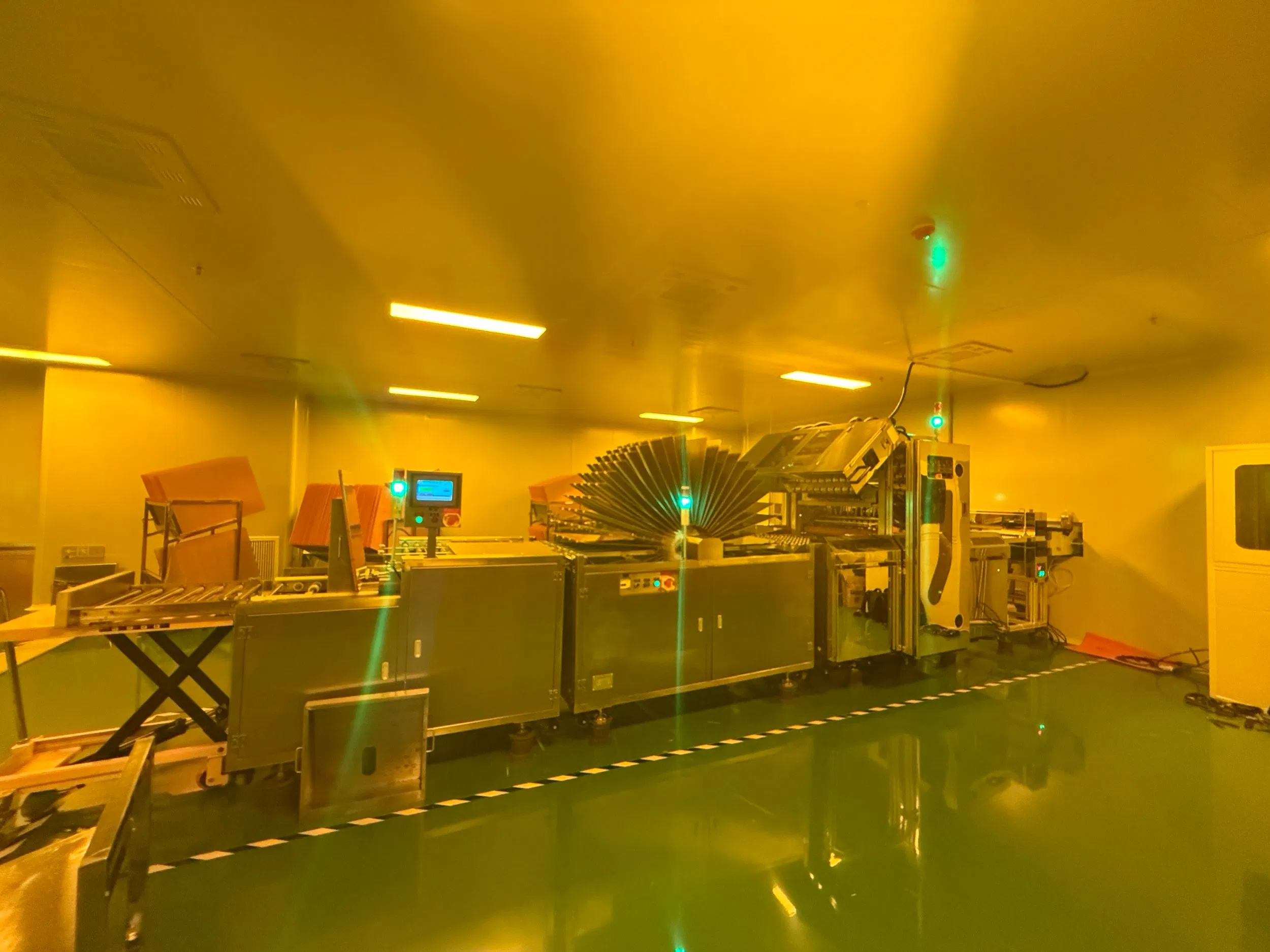

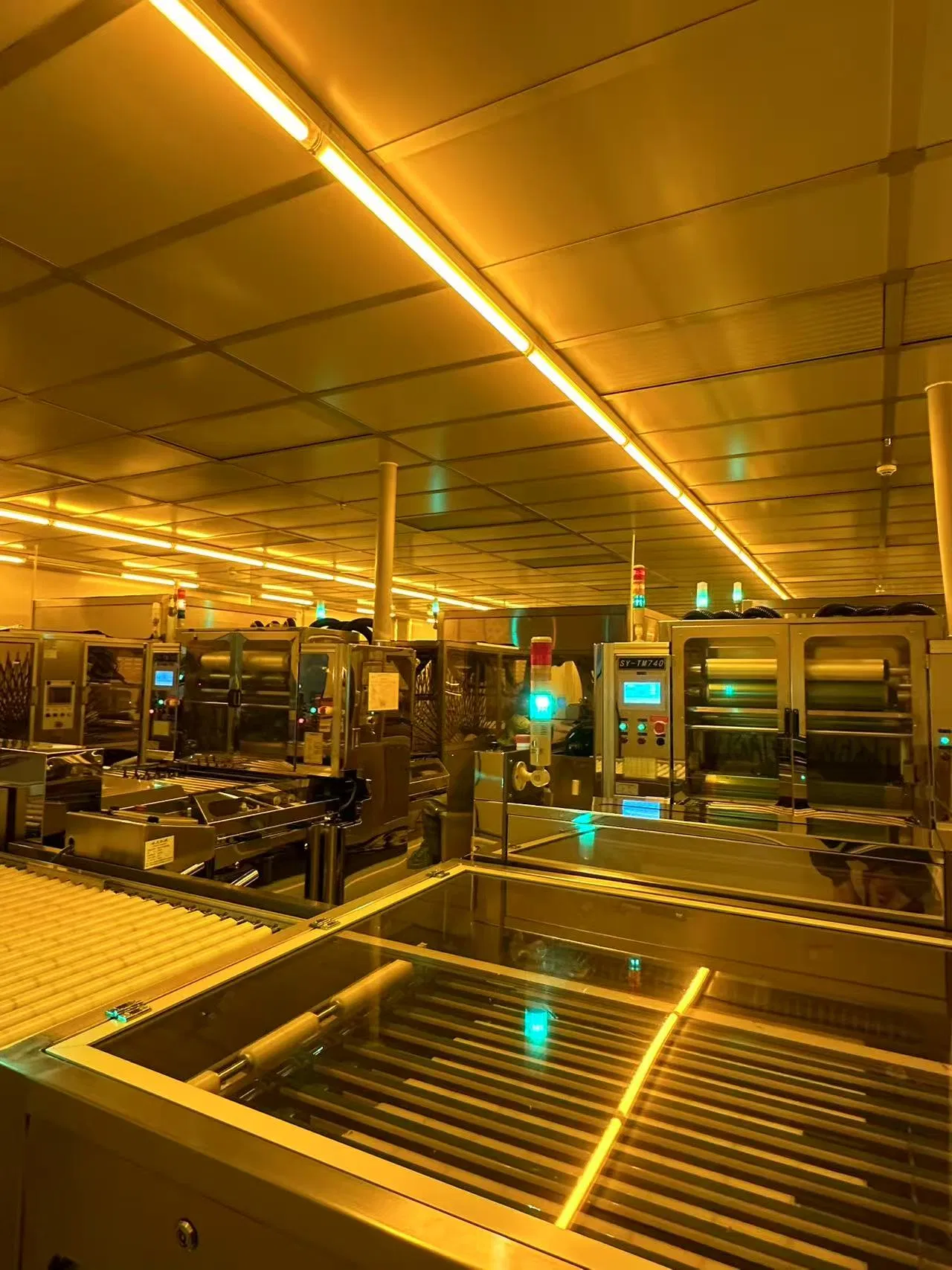

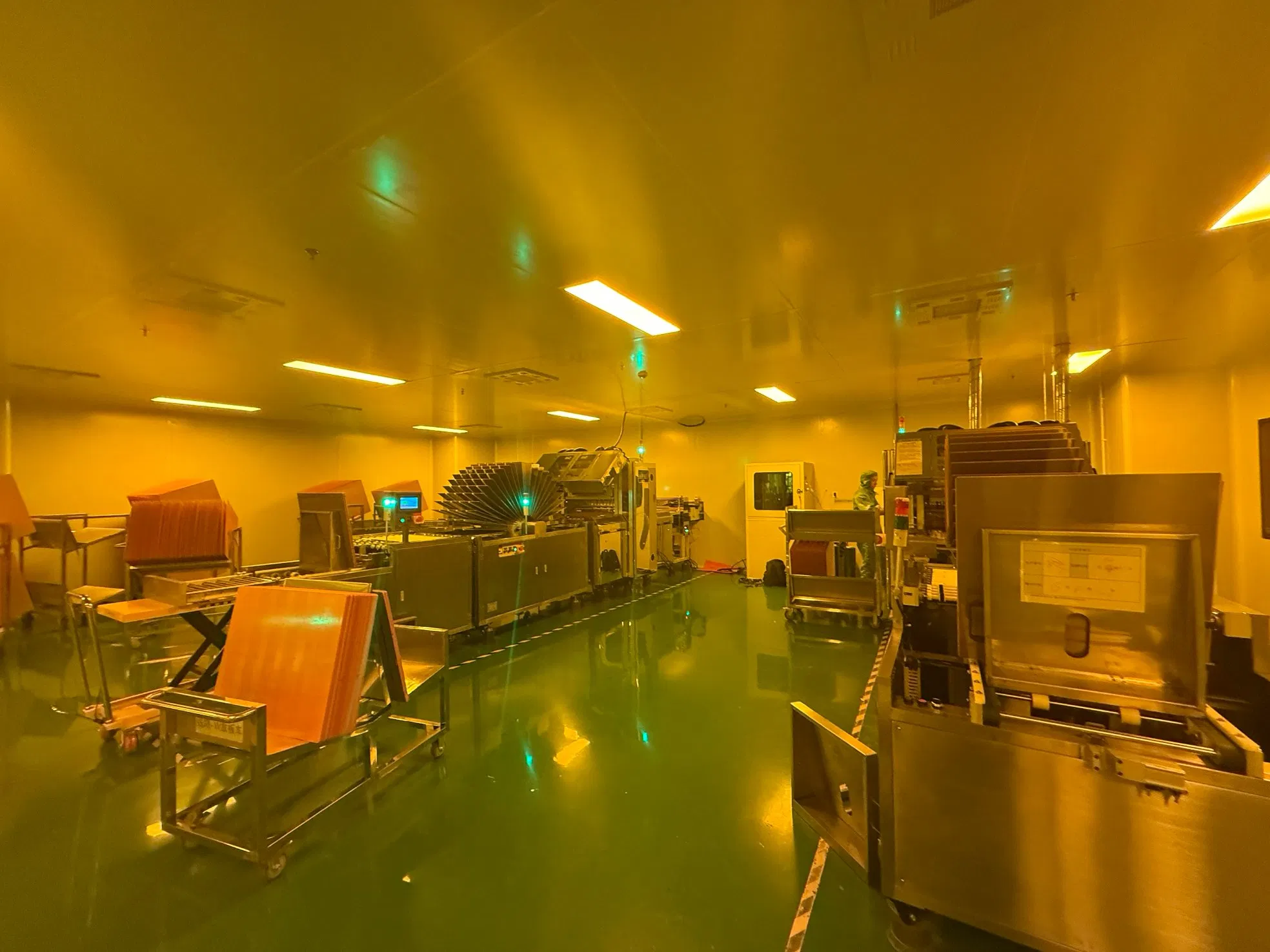

Product Overview

Features: This device is mainly used for automatic film pressing of PCB dry film, and can also be used for automatic film pasting of flat products. It can be connected to achieve continuous automated production, automatically cutting dry film, reducing manual work intensity, and reducing the generation of dry film debris, which greatly helps to improve product yield.

Technical Specifications

Parameter	Specification (Model GH-A760)
Power Supply	AC380V, 3-phase, 15KW, 50/60Hz
Air Pressure	5-8kgw/cm2
Machine Dimensions	L2200W1540H1910mm
Effective Lamination Width	750MM
PCB Dimensions (L x W)	250~750mm x 250~750mm
PCB Thickness	0.1~3.3mm
Dry Film Thickness	15~76μm
Control System	PLC + HMI
Hot Roller Size	Ø 78mm*760mm (4 Rollers)
Heating Method	Inductive heater
Lamination Speed	0-5.5 m/min (freely set via HMI)
Temperature Range	Room Temperature ~ 130°C
Main Body Material	SUS304 Mirror-finish Stainless Steel
Vacuum Pump	2.2KW (3HP)
Margin Accuracy	±1.0mm
Machine Weight	About 1,700 kg

Frequently Asked Questions

1. What are the primary applications for this laminating machine?

The GH-D740 is primarily designed for automatic dry film pressing in PCB manufacturing, but it is also highly effective for applying film to other flat products such as aluminum plates and soft boards.

2. Does the machine support fully automated production lines?

Yes, the system is designed to be integrated into continuous automated production lines. It features automatic dry film cutting which significantly reduces manual labor and debris.

3. What range of PCB thickness can this equipment handle?

The machine is versatile and can process PCB thicknesses ranging from 0.1mm up to 3.3mm, making it suitable for both thin and standard board types.

4. How is the temperature controlled during the lamination process?

The system utilizes an SSR + PLC temperature control unit with inductive heaters, allowing for precise adjustment from room temperature up to 130°C.

5. What materials are used for the machine's construction?

The main body is constructed from SUS304 mirror-finish stainless steel, ensuring durability, cleanliness, and resistance to erosion in industrial environments.

6. What is the accuracy of the lamination margins?

The machine provides high precision with a margin accuracy and board edge accuracy of ±1.0mm, ensuring consistent quality in high-volume production.
