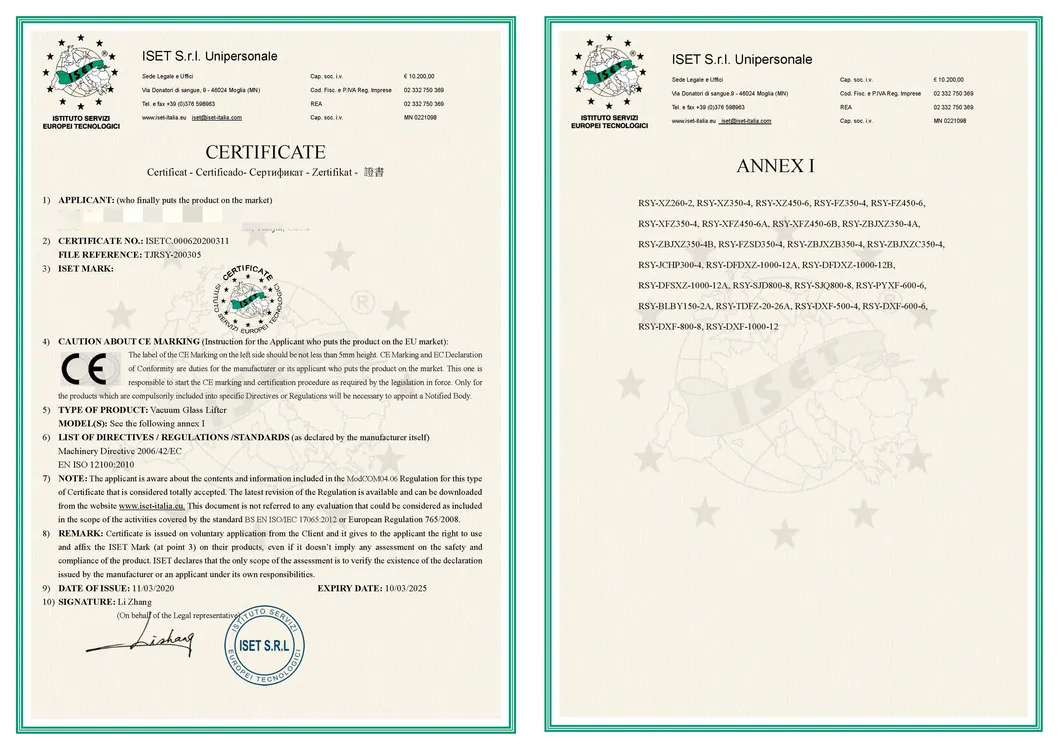

CE, ISO

Structure

Vertical, Horizontal and Rotate

Origin

China

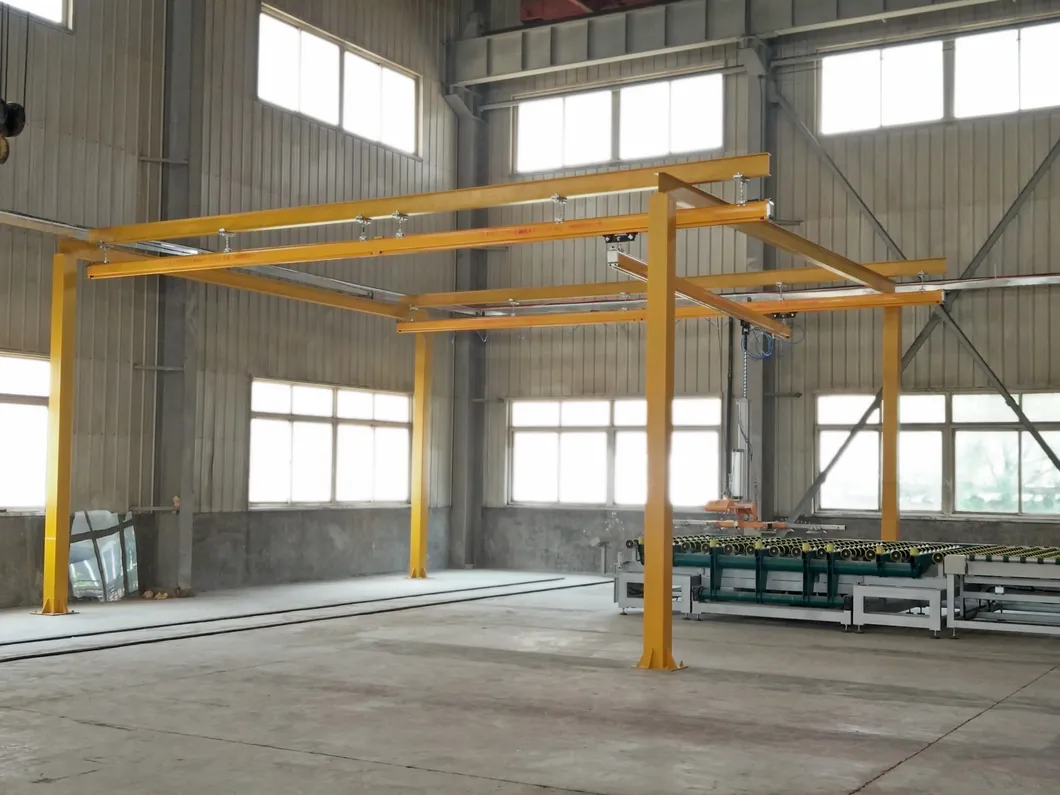

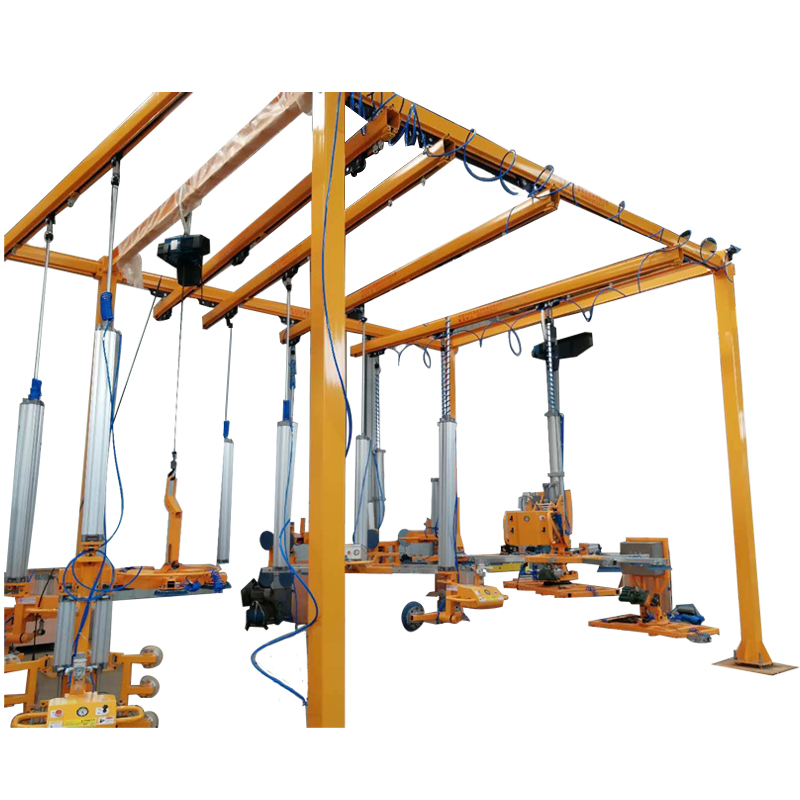

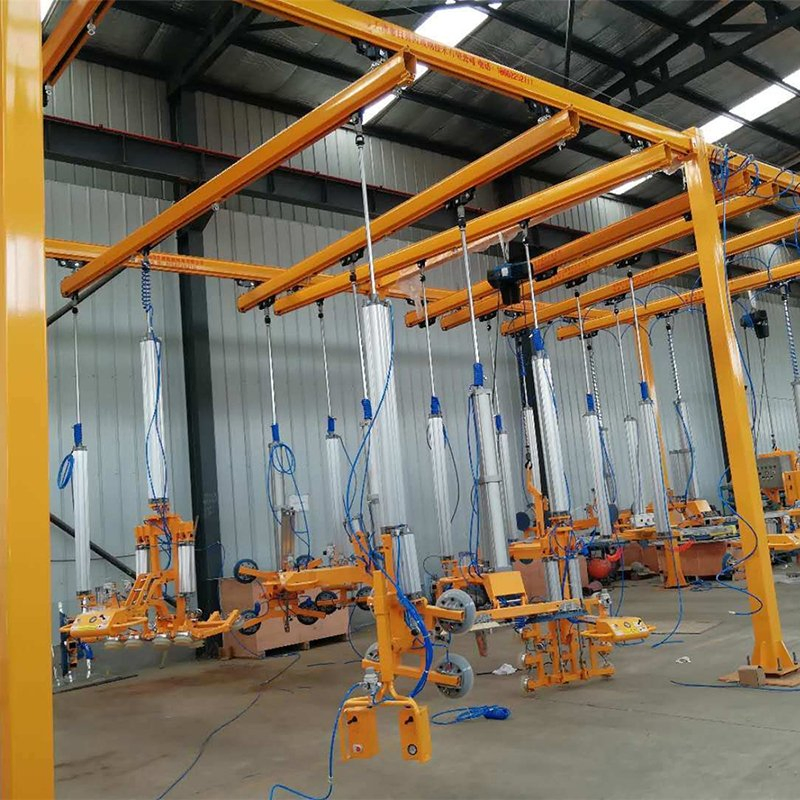

Porch-Shaped Overhead Vacuum Lifter System

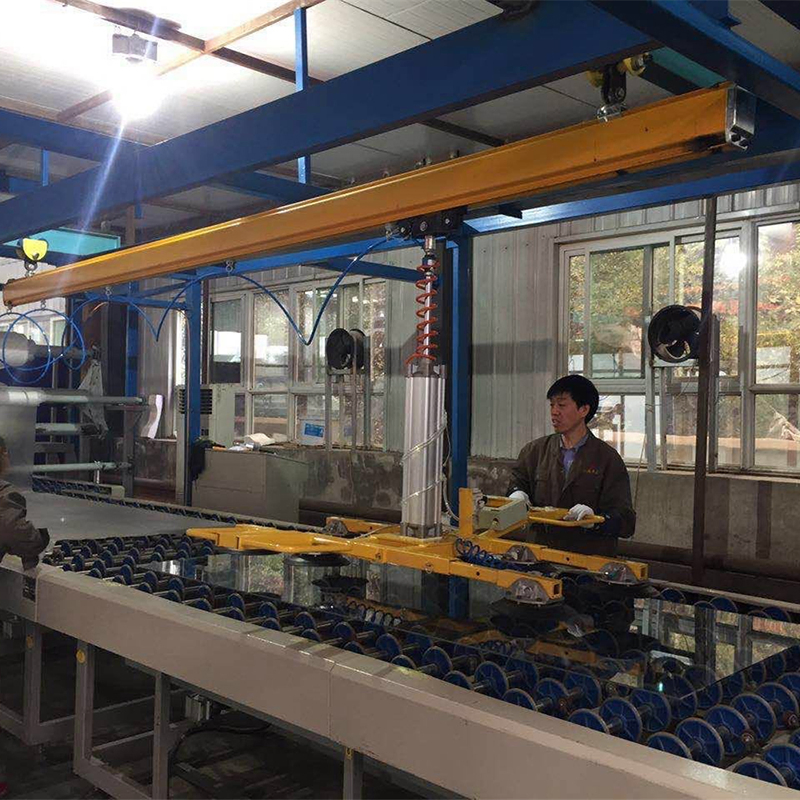

The Porch-Shaped Overhead Crane is designed with a professional structure where the vacuum lifter runs along the traveling beam, which in turn moves along the main frame. This configuration is ideal for insulating glass lines, lamination lines, vertical CNC, tempering lines, and cutting lines.

🚀 Space-Saving
Efficient layout designed for large area coverage.

⚖️ Stability
Ensures smooth and stable operation for fragile glass.

👷 Labor Efficient
Easy operation allows one worker to handle heavy glass.

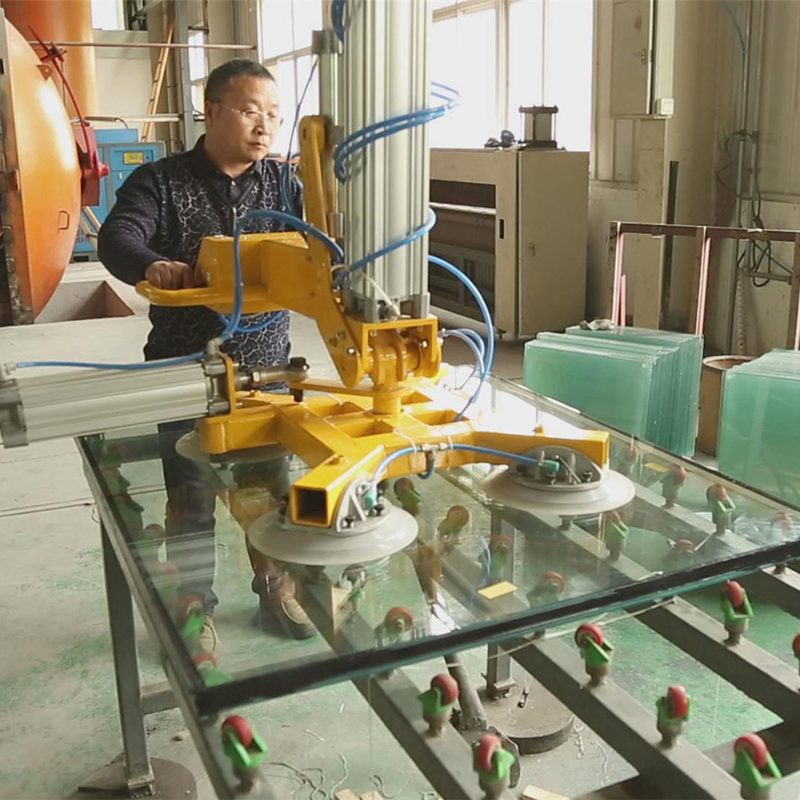

High-Performance Components

Our vacuum glass lifters utilize premium global components to ensure safety and durability:

Vacuum Pump: High-performance American brand technology.
Control System: Precision SMC (Japan) electrical components.
Suction Pads: Imported silicone material (Resistant from -20°C to 90°C).
Safety Lock: Automatic vacuum lock maintains suction for 10-15 minutes during power failure.

Appearance & Dimensions

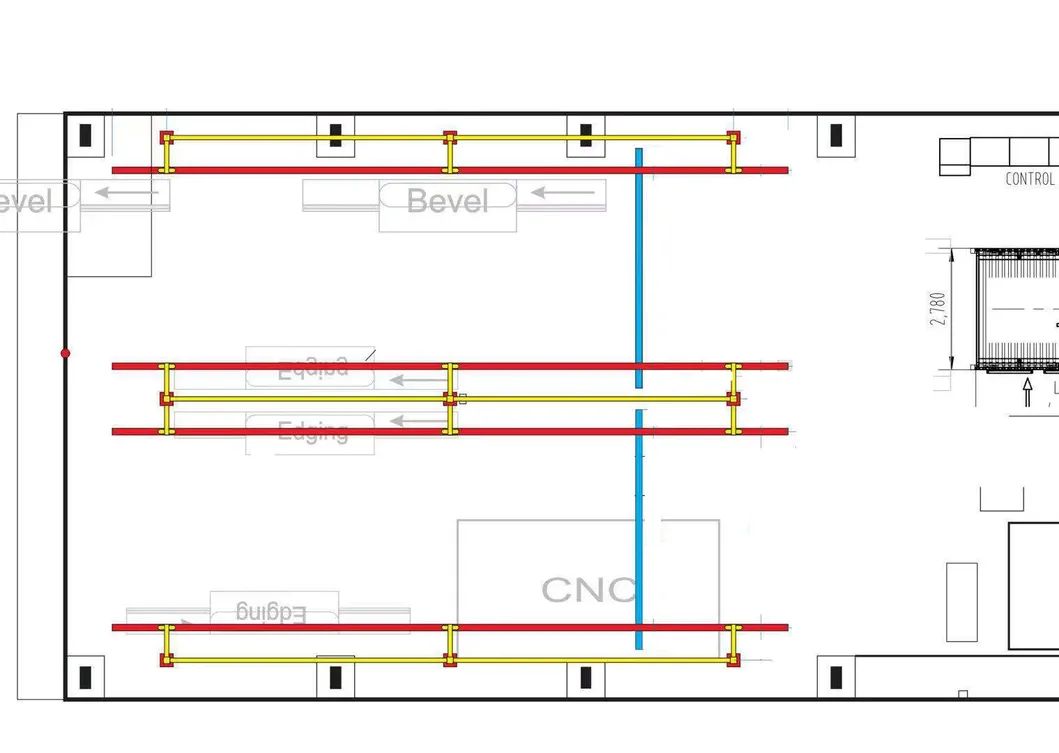

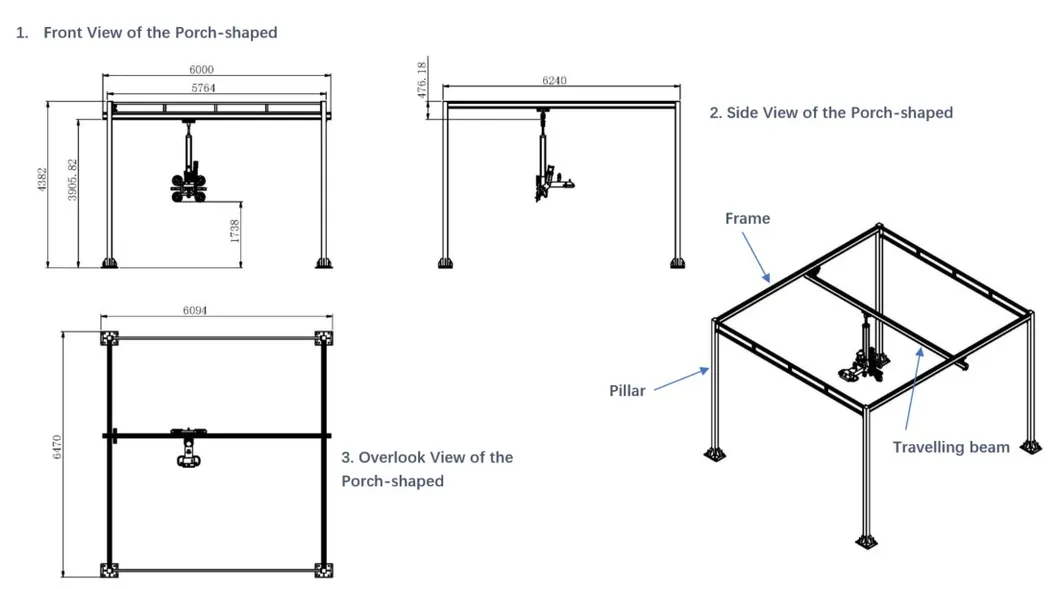

Specifications	Model: RSY-LM6PL6
Height	4382mm
Length	6240mm
Traveling Beam Width	6000mm
Operation Method	Manual Control
Operating Weight	350/450 kgs
Vertical Range	1200mm
Control System	SMC JAPAN
Sucker Quantity	4 / 6 Pads

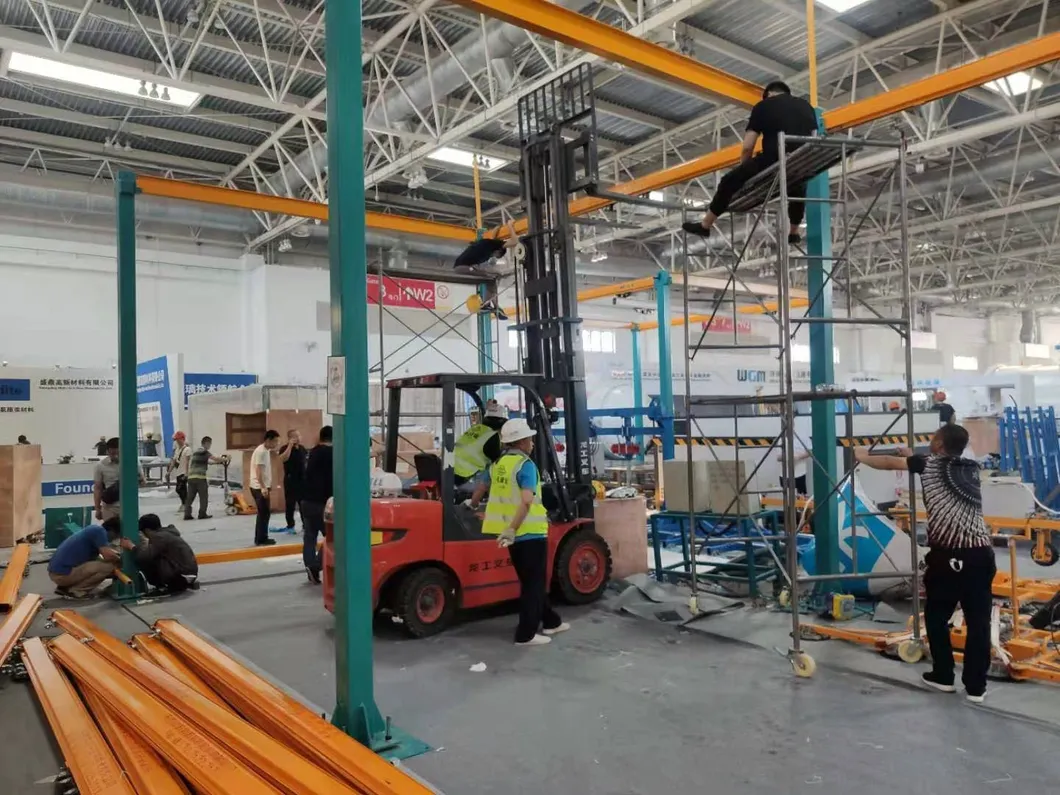

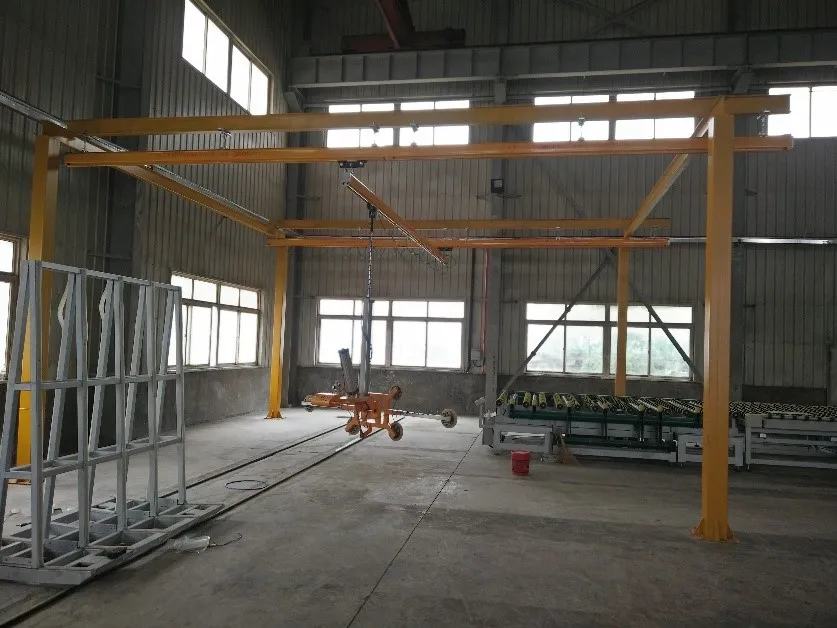

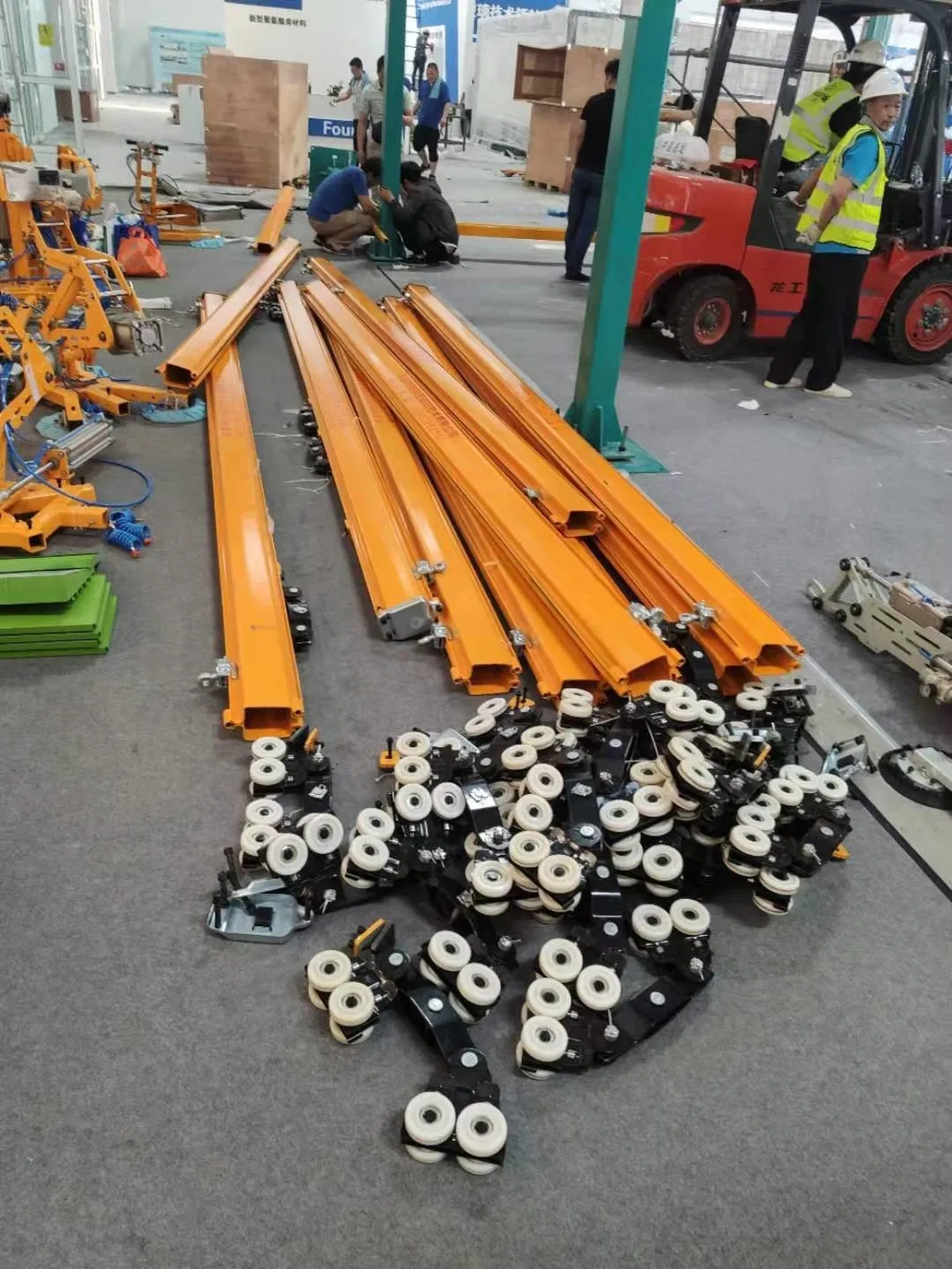

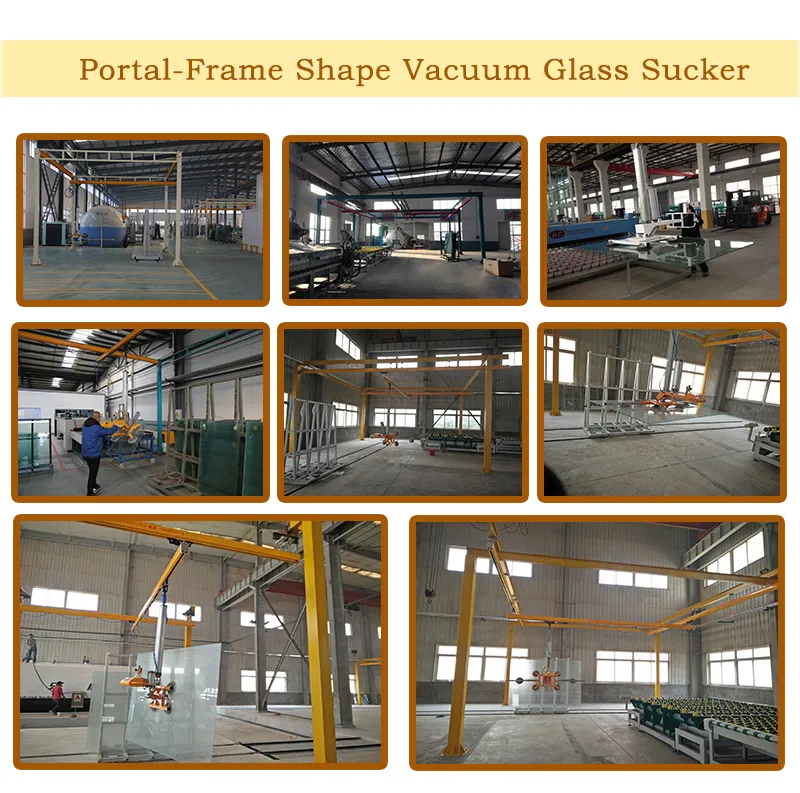

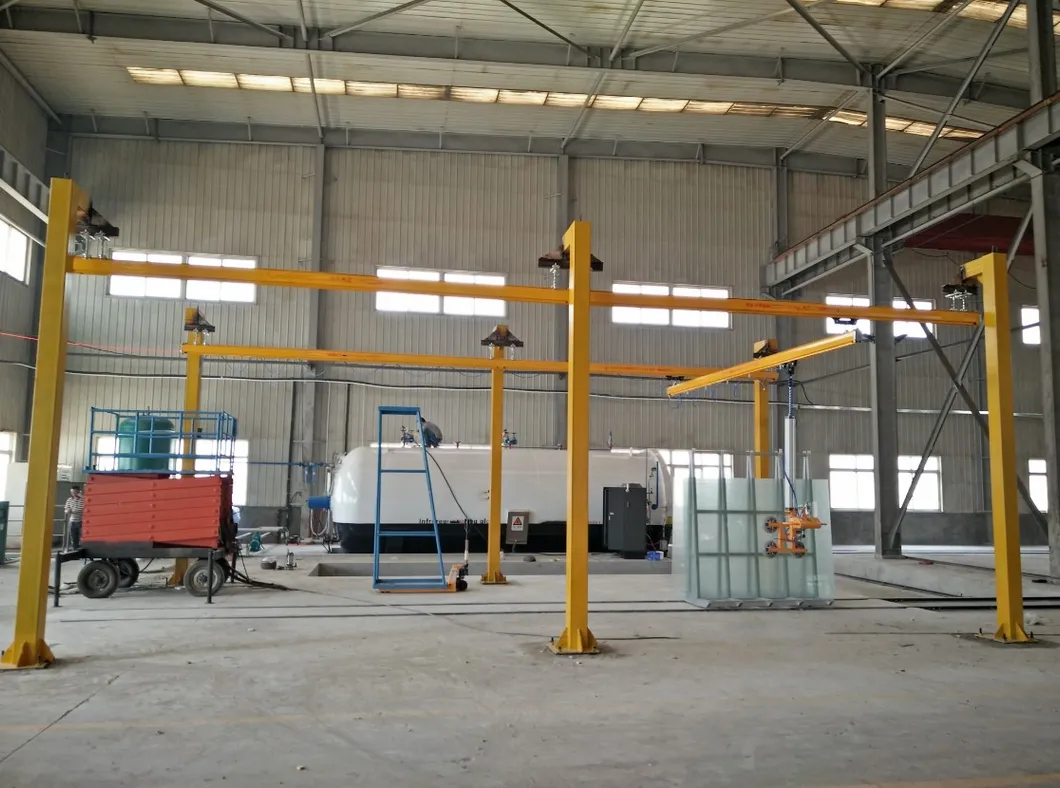

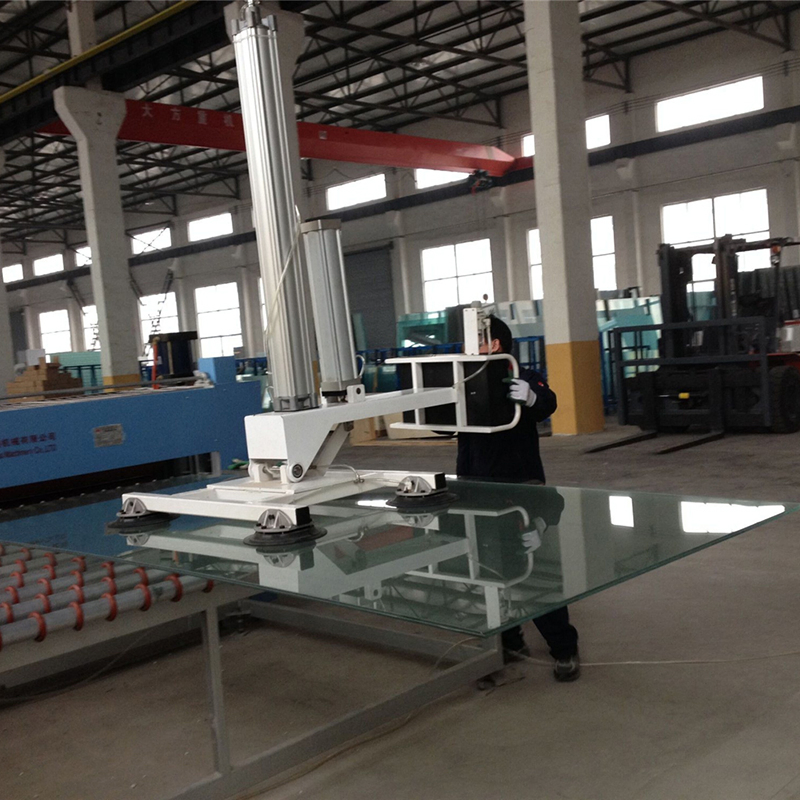

Application & Installation

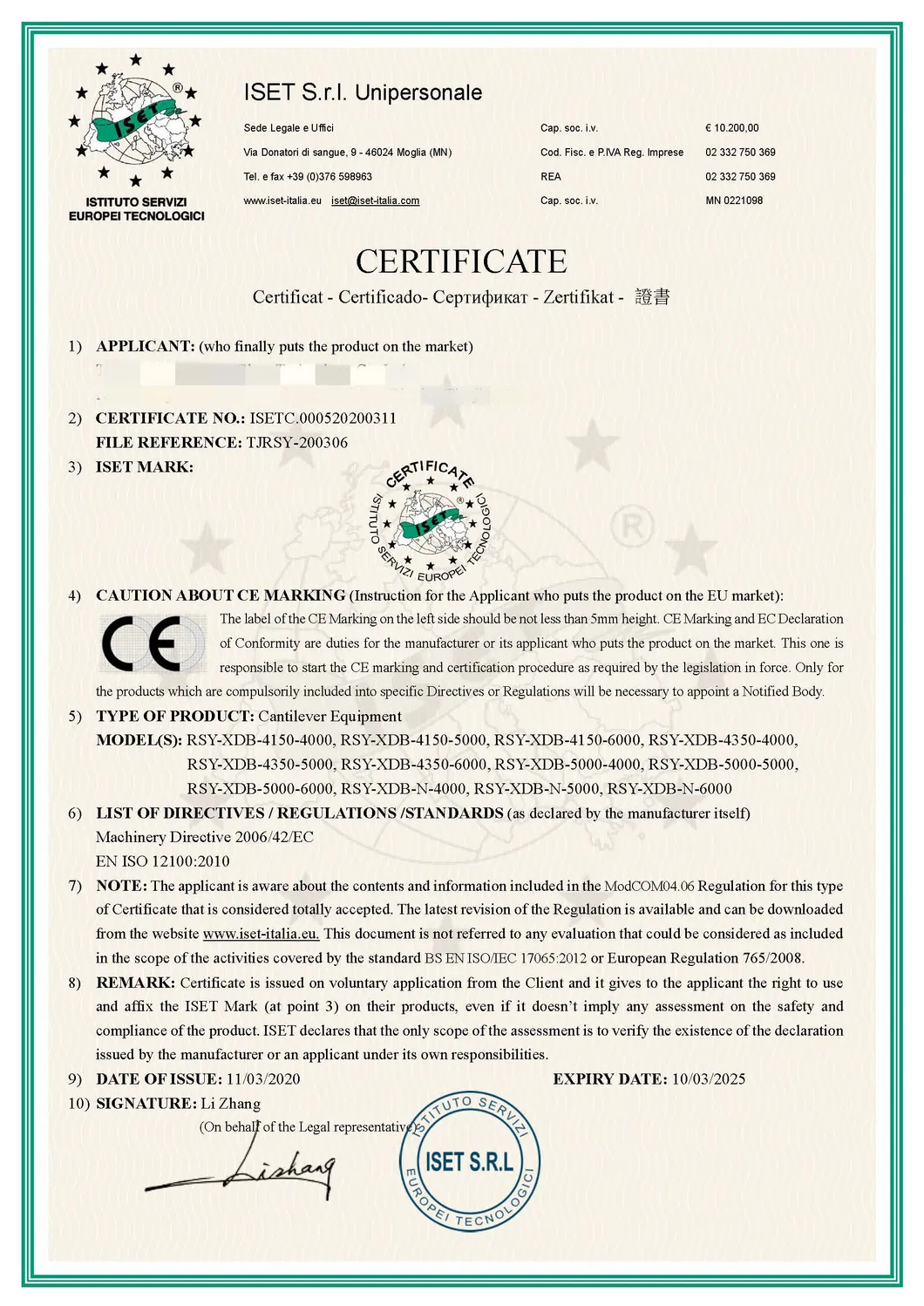

Quality Certification

Frequently Asked Questions

Q1: How does the system ensure safety during a power failure?

The control system includes an automatic vacuum lock that ensures the glass remains securely held for 10-15 minutes, even if the air pipe bursts or power is cut.

Q2: Can the crane dimensions be customized for my factory?

Yes, the pillar height, frame length, and traveling beam width can all be fully customized to fit your specific workspace and production requirements.

Q3: What temperature range can the suction pads withstand?

The imported silicone suction pads are designed for extreme conditions, operating reliably from -20°C up to 90°C without cracking.

Q4: What types of glass production lines is this system suitable for?

It is widely used in insulating glass lines, lamination lines, vertical CNC stations, tempering lines, and cutting lines.

Q5: Is it easy for a single operator to use?

Absolutely. The system is designed for manpower-saving, allowing one worker to easily lift, rotate, and position large glass sheets manually.

Q6: What is the standard lifting capacity?

The standard safe working load is 350-450 Kgs, but this can also be customized for heavier glass requirements.
