Producation Line Used Porch-Shaped Overhead Vacuum Lifter System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Certification

ISO, CE

Drive Mode

Pneumatic

Condition

New

Application

Load

Muscle Size

Customized

Control Mode

Manual & Pneumatic

Transport Package

Container

Specification

custom

Origin

China

HS Code

8464201000

Production Capacity

500,000 Pieces

Product Description

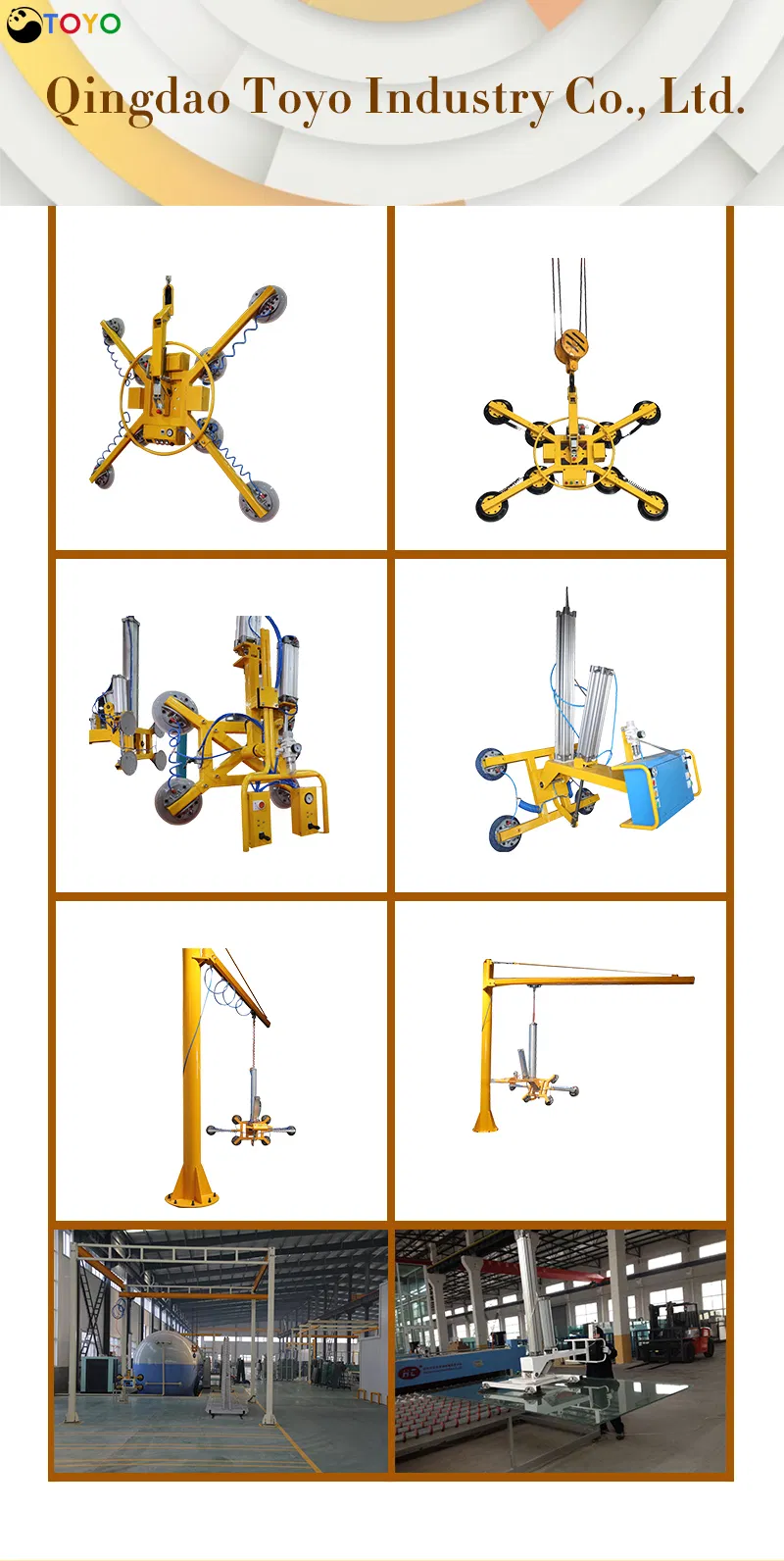

Vacuum Glass/Lifter Sucker:

We are specialized in high quality Vacuum glass sucker, and all the pneumatic components are imported from famous brands, such as SMC (Japan) or Thomas (USA). This product is widely used in processing fields like glass, steel, wood, and machinery. Based on over 10 years of experience, our team produces different devices to meet specific customer needs.

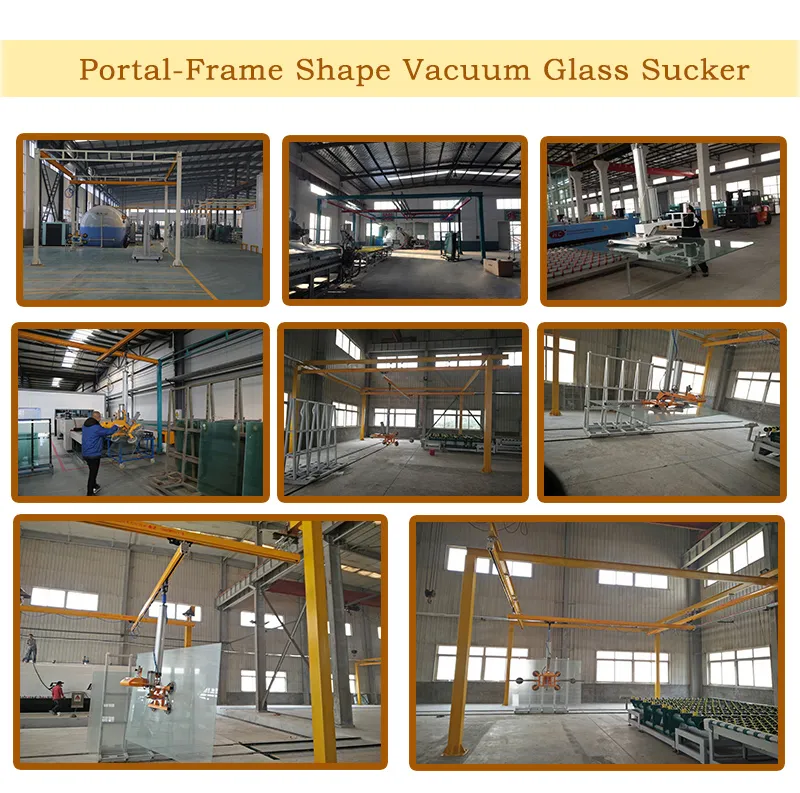

Portal-Frame Shape Vacuum Glass Sucker Specifications
Model: RSY-LMJ350-4, 450-4	Operating Weight: 350, 450 KG
Work Range: Rotate 360°; turnover	Vertical Lifting Range: 500mm (customized)
Control System: SMC (Japan)	Operating Air Source: 0.6-0.8Mpa
Regular Size: Length 6000, width 6000 (customized)	Sucker No.: 4 / 6
Sucker Material: White silica gel (Temperature: -40° to 90°); leaves no trace
Advantage: Larger coverage, power equality, suitable for large glass and easy to use.
Function: Mainly used in laminated glass production line, tempered glass, hollow glass, glass edge grinding machine, loading and unloading glass, etc.

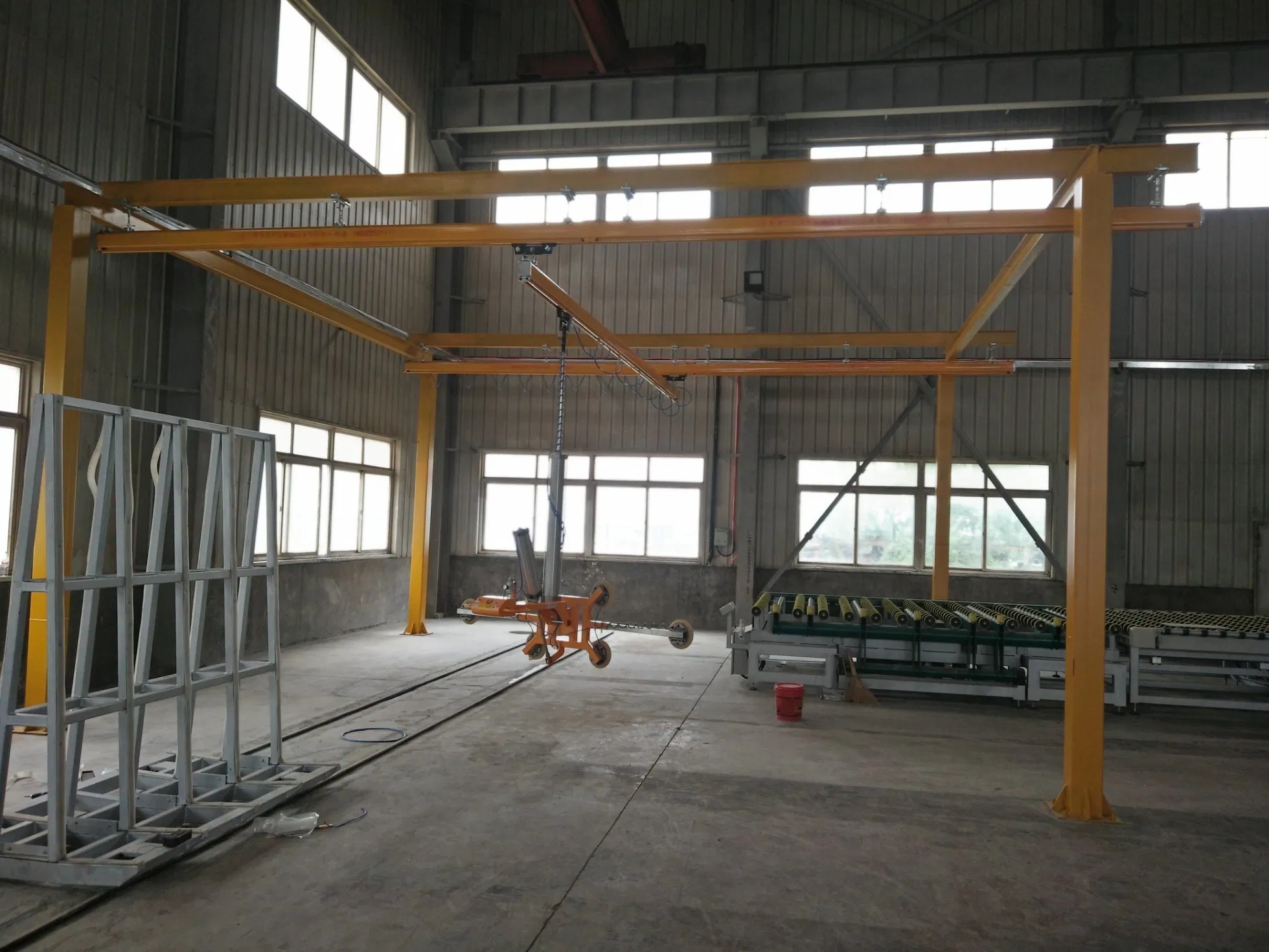

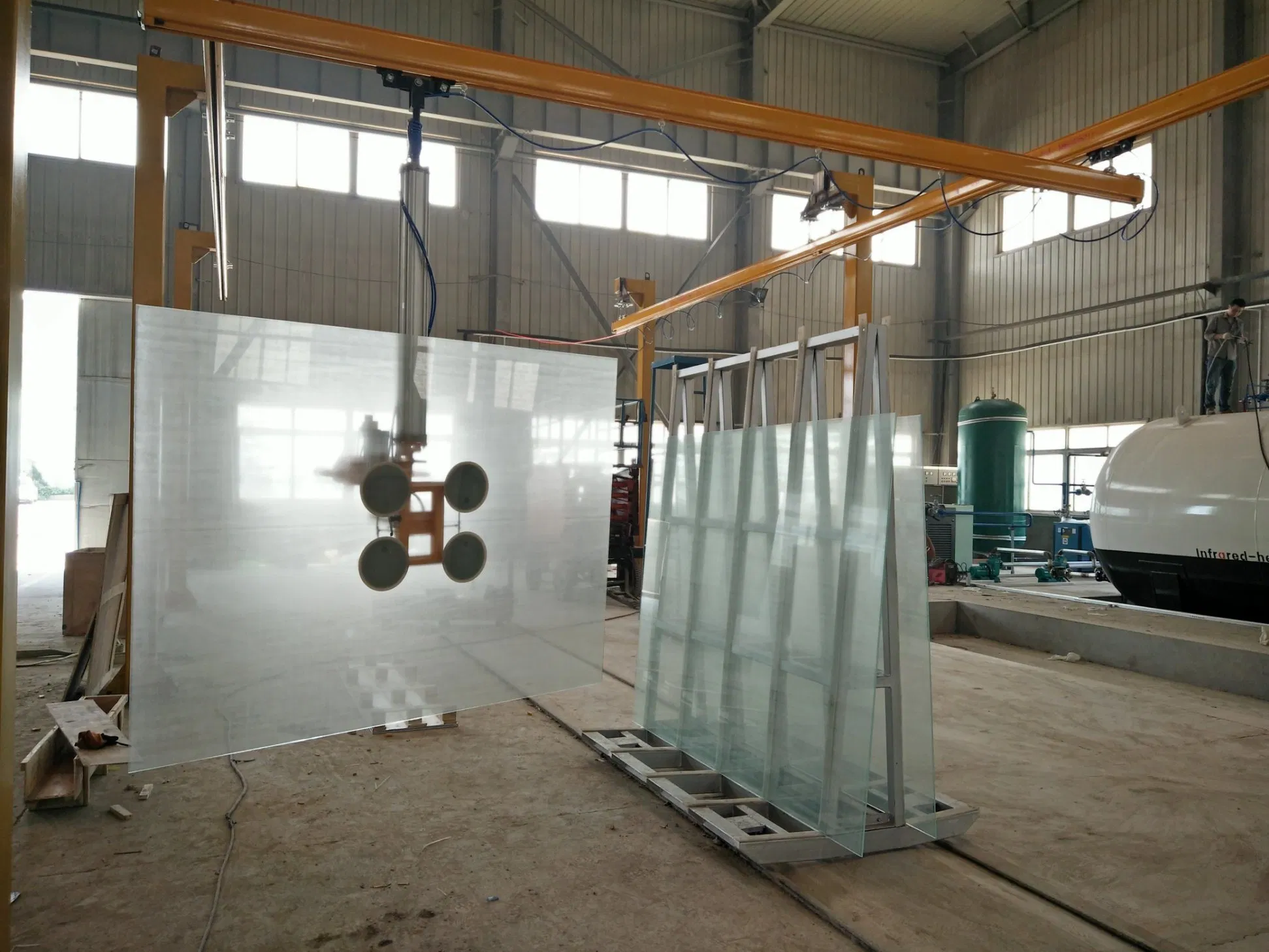

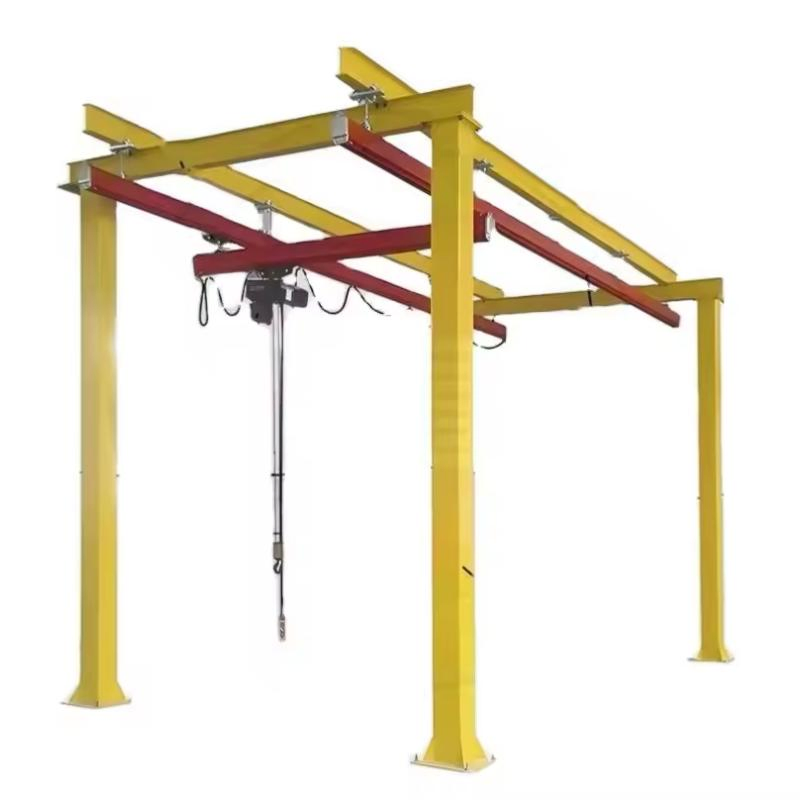

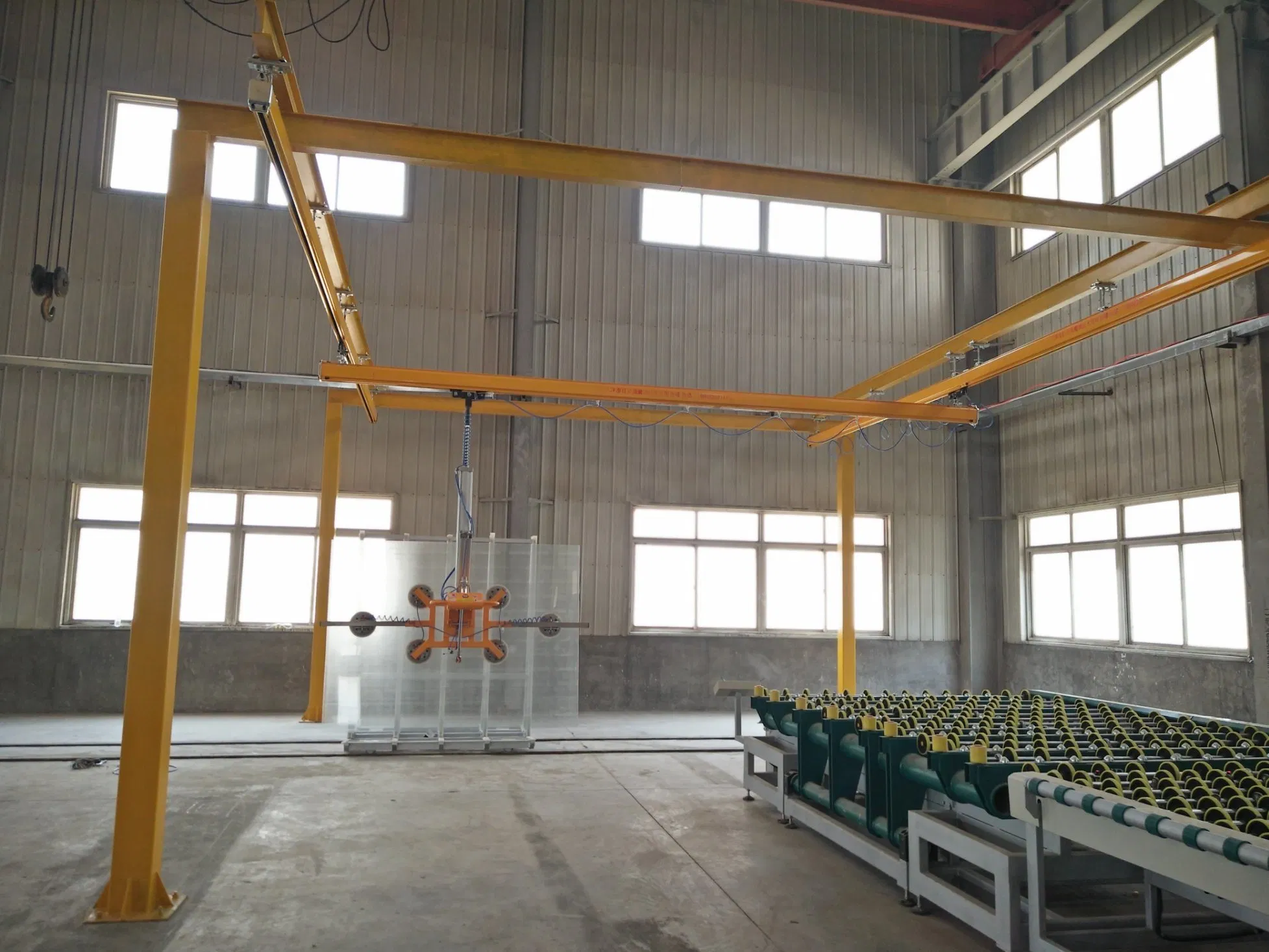

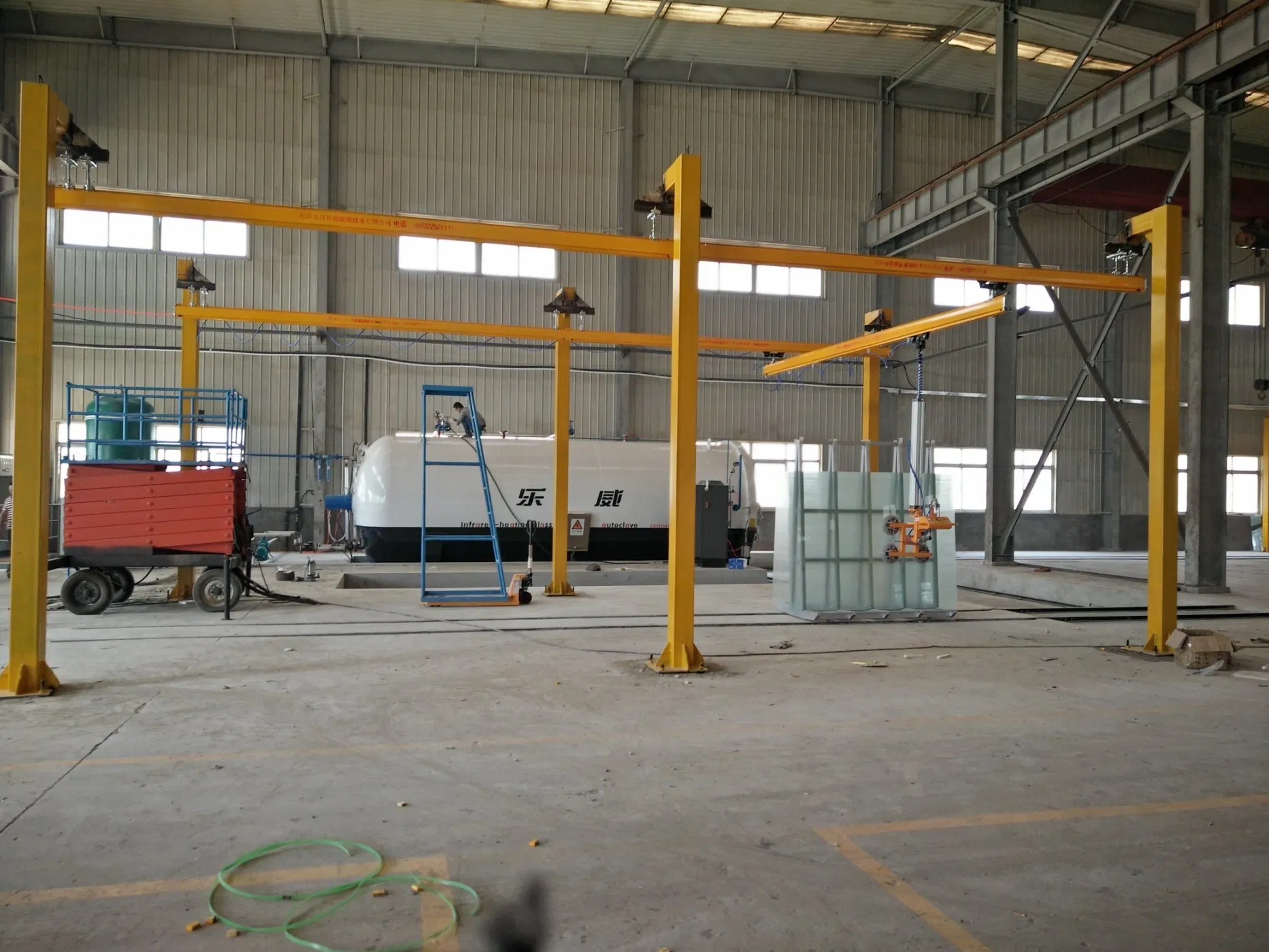

Porch-Shaped Overhead Crane Features

The Porch-Shaped Overhead Crane takes your glass sheet to the production line and the right position that you'd like. It is equipped with a vacuum lifter to operate your glass sheet up and down, rotate and turn over, making it extremely easy to operate for a single worker. It is widely used in insulating glass lines, lamination lines, vertical CNC, tempering lines, and cutting lines.

Safety and Efficiency:

Safety and efficiency are two of the main reasons for using vacuum glass lifters. This equipment allows for a reduction in personnel required and minimizes the risk of injury. When the equipment is suddenly cut off or the air pipe bursts, the control system will automatically lock the vacuum to ensure that the glass will not fall for 10-15 minutes.

Customized pillar height, frame length and travelling beam width
Customized safe working load
Both workable for the vacuum lifter or the hoist
Extension vacuum lifter arms for different configurations
Imported vacuum pads with temperature resistance -40°C to 90°C

Frequently Asked Questions

What is the lifting capacity of this vacuum system?

The system supports operating weights of 350kg and 450kg as standard models, but the safe working load can be customized to your specific requirements.

How does the safety system protect against power failure?

In the event of a sudden power cut or air pipe burst, the integrated control system automatically locks the vacuum pressure, ensuring the glass remains held securely for 10-15 minutes.

What kind of glass can this lifter handle?

It is ideal for laminated glass, tempered glass, hollow glass, and large sheets used in production lines or edge grinding machines. The white silica gel pads leave no traces on the surface.

Are the components suitable for extreme temperatures?

Yes, the imported vacuum pads are made of special silicone that can withstand temperatures ranging from -40°C up to 90°C without cracking or losing suction.

Can the frame dimensions be customized?

Absolutely. The pillar height, frame length, and traveling beam width are all fully customizable to fit your factory layout and production line needs.

What brands are used for the control and pneumatic systems?

We use world-renowned components, including SMC from Japan for the control systems and Thomas from the USA for the vacuum pumps, ensuring long-term reliability.
