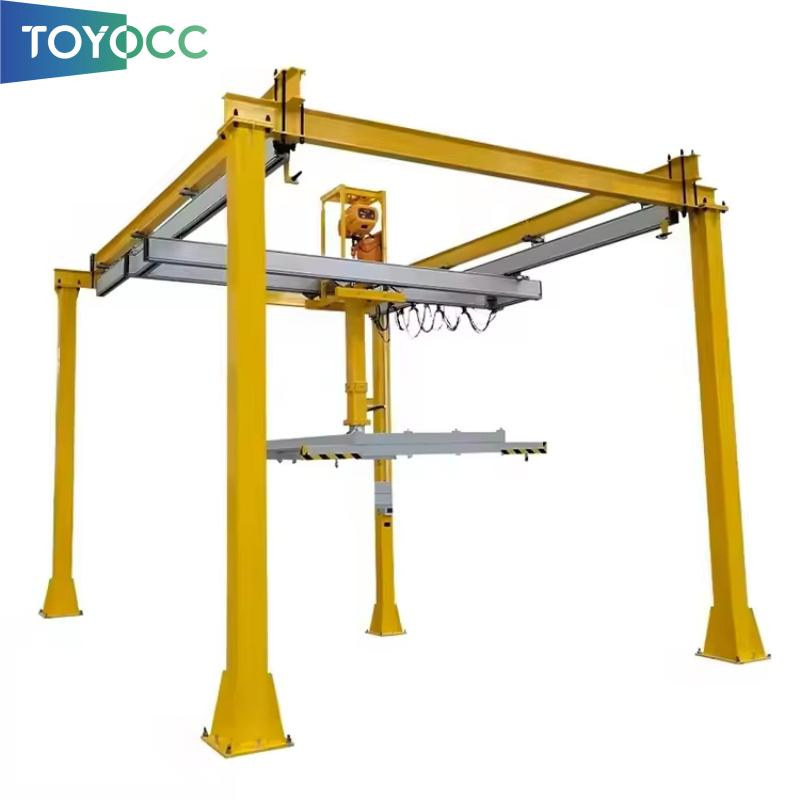

High-Tech Glass Sucker Lifting System with Portal Frame and Overhead Crane

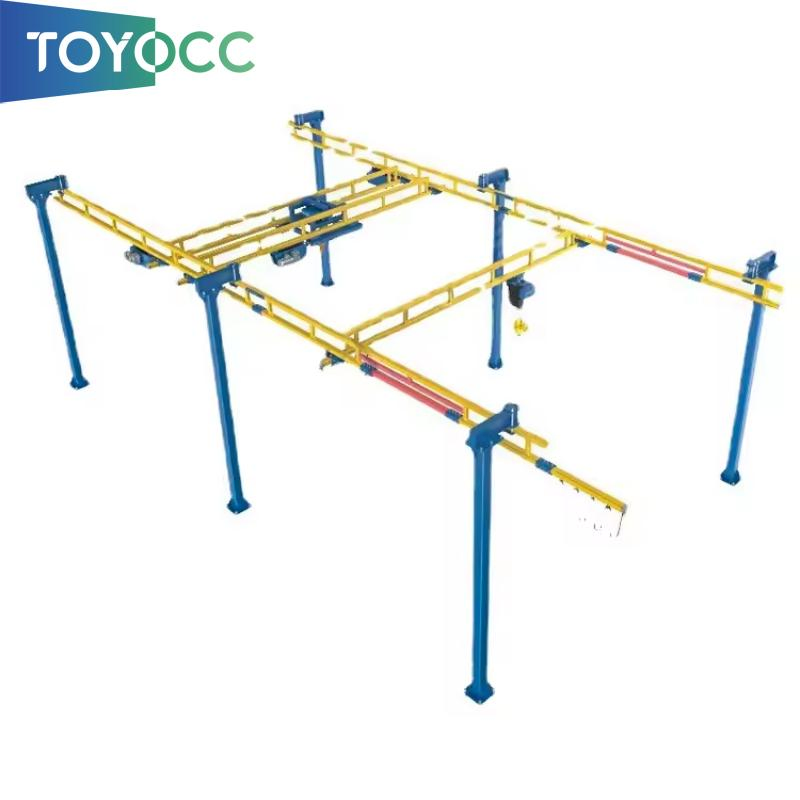

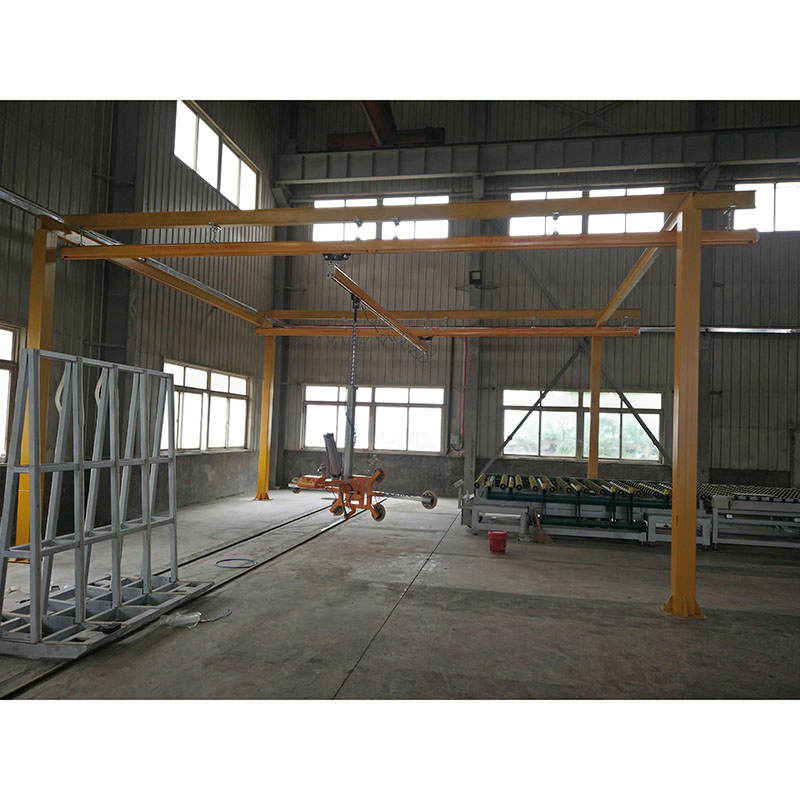

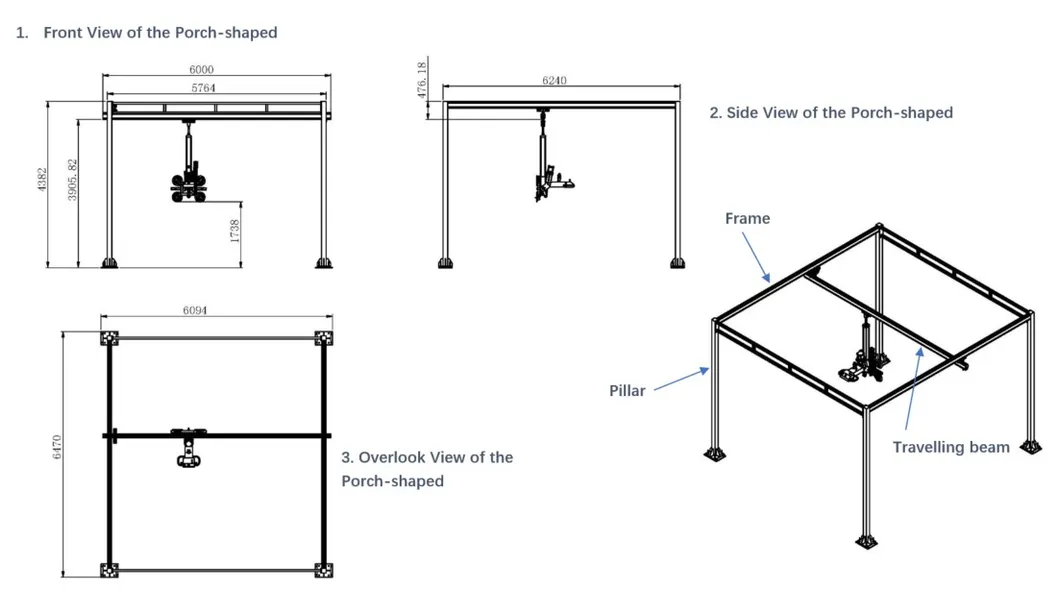

Porch-Shaped Overhead CraneThe outlooking looks like a porch; the vacuum lifter runs along the traveling beam of the porch; the traveling beam runs along the main beam of the frame.

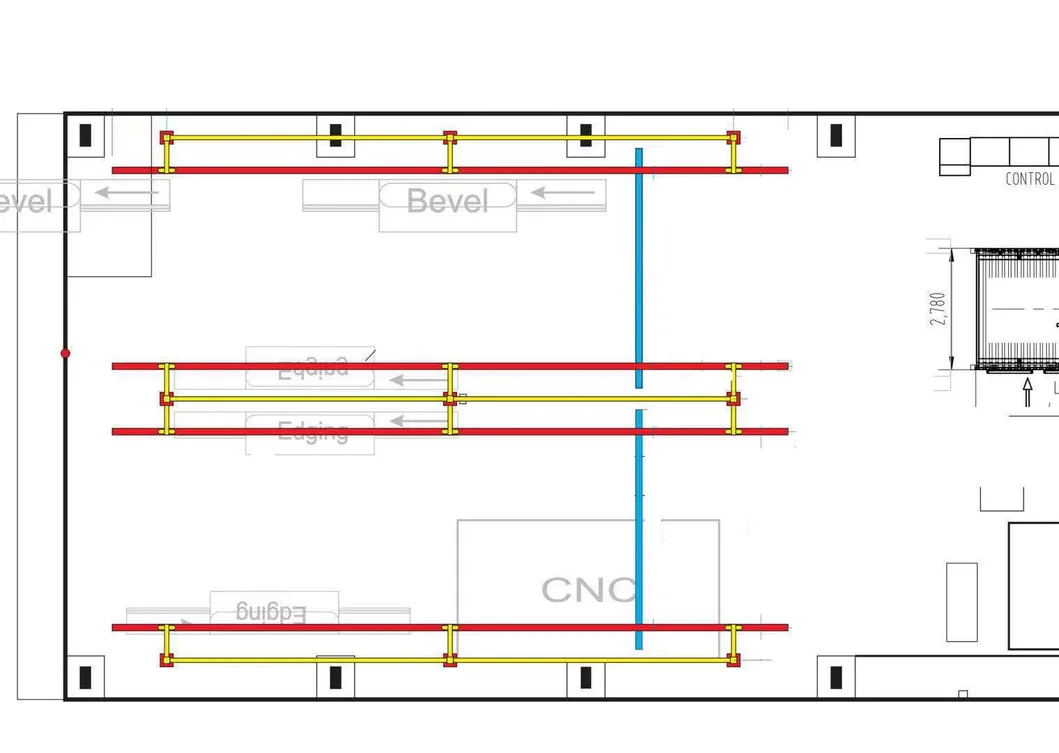

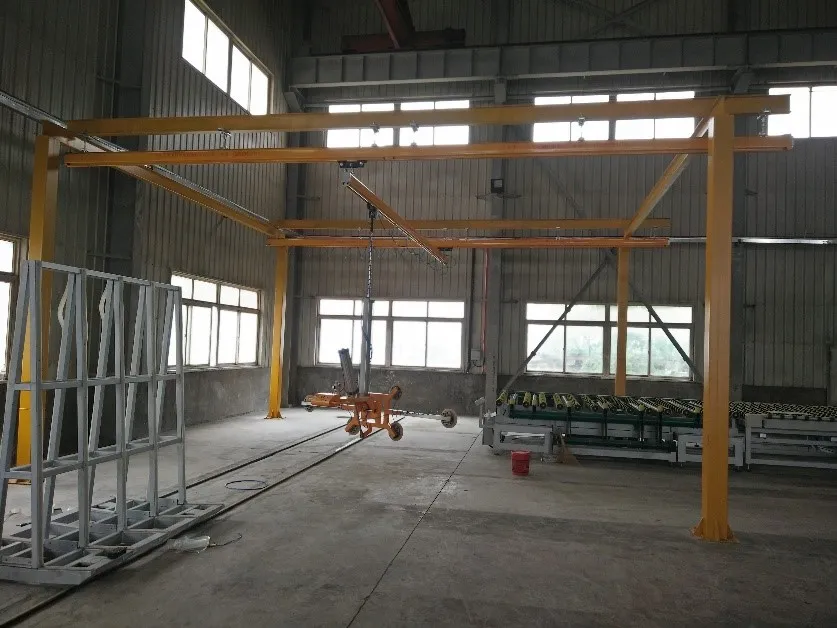

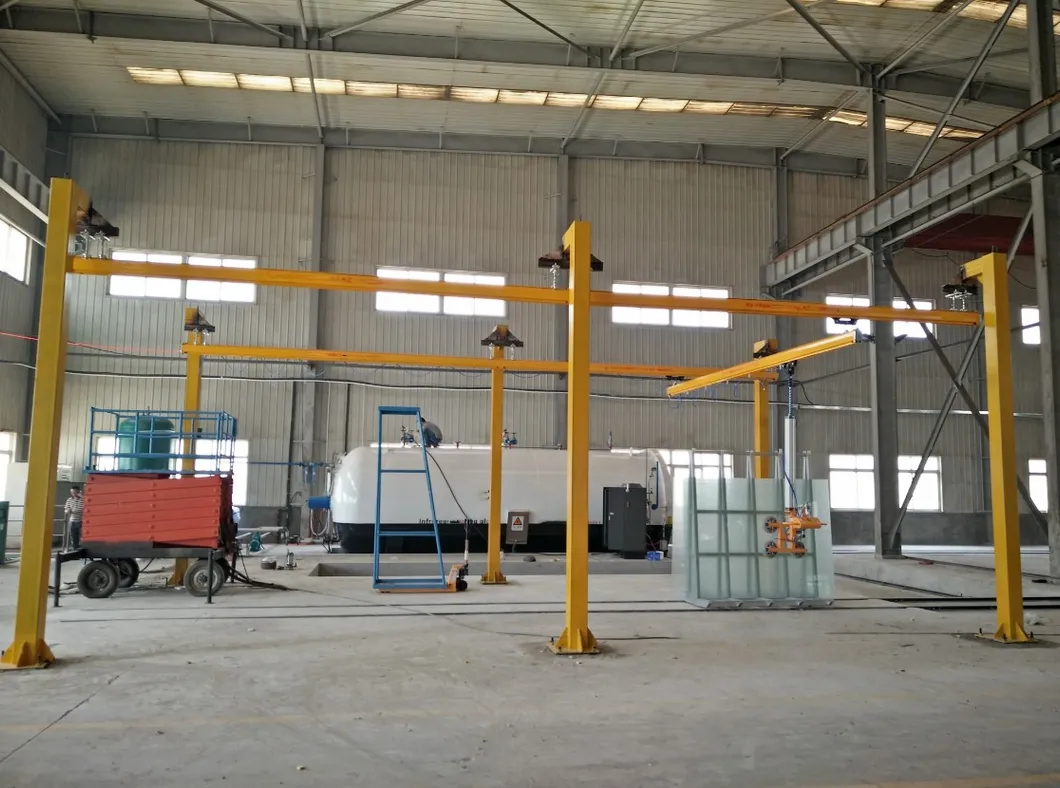

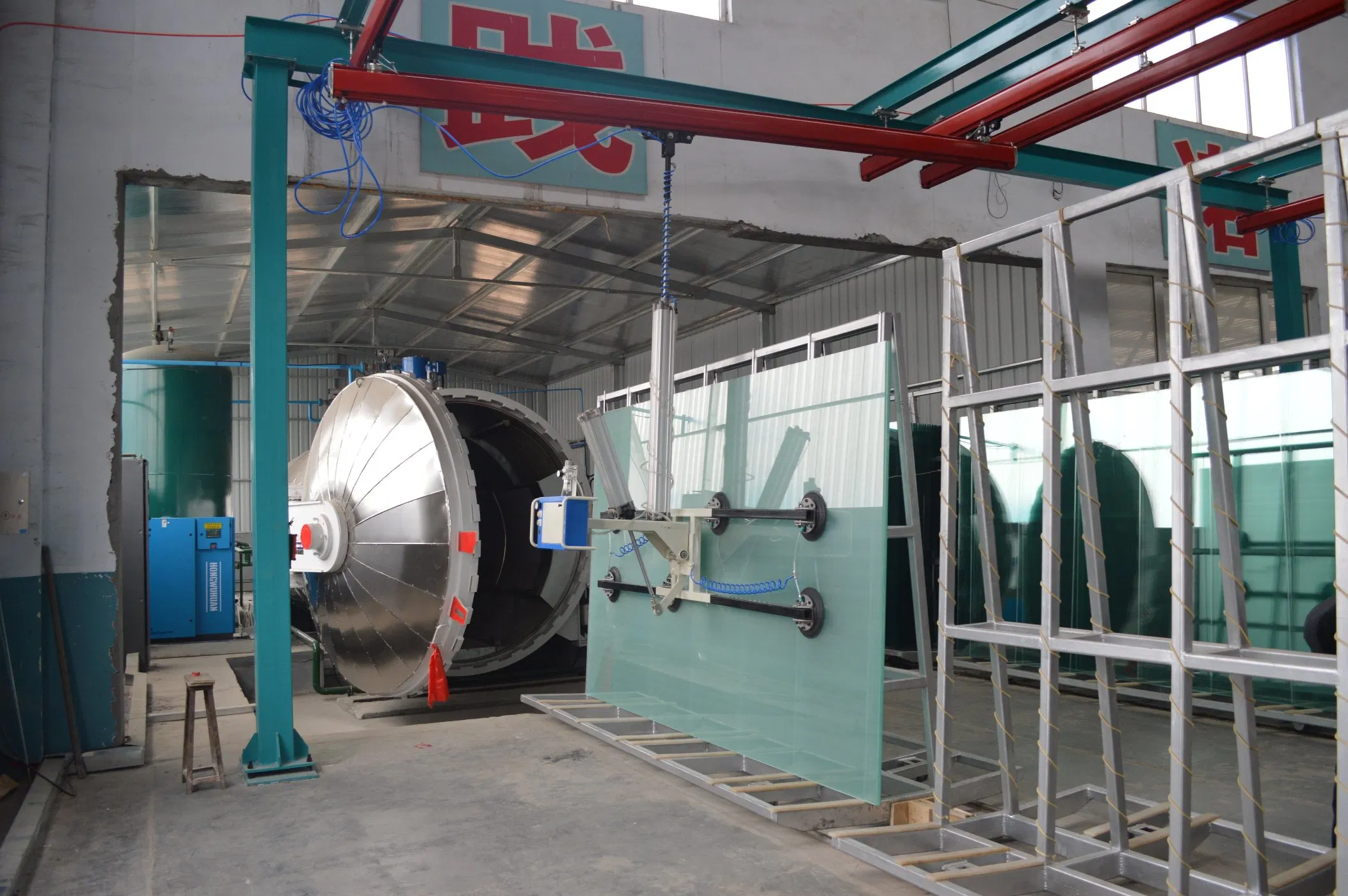

It is widely used in insulating glass line, lamination line, vertical CNC, tempering line and also cutting line, it with advantages of space-saving, stable to operate, manpower-saving, large area coverage.
The Porch-Shaped Overhead Crane takes your glass sheet to the production line and the right position that you'd like. It equipped with a vacuum lifter to operate your glass sheet up and down, rotate and turn over, quite easy to operate for one worker.
Vacuum Glass LiftersSafety and efficiency are two of the main reasons for using vacuum glass lifters. Not only does this equipment allow for a reduction in the number of personnel required to move to pipe, but it also minimizes the risk or injury to ground personnel.
Our vacuum glass lifters utilize premium vacuum pumps and Japan SMC control systems. The vacuum pads are made of special silicones, resistant to extreme temperatures (-20 to 90 degrees Celsius).
Safety Feature: When the equipment is suddenly cut off or the air pipe bursts, the control system will automatically lock the vacuum to ensure that the glass will not fall for 10-15 minutes.
| Model | RSY-LM6PL6 |
|---|---|
| Height | 4382mm |
| Length | 6240mm |
| Travelling Beam Width | 6000mm |
| Operation Method | Manual Control |
| Operating Weight | 350/450 kgs |
| Vertical Range | 1200mm |
| Control System | SMC JAPAN |
| Airpower | 0.6-0.8MPa |
| Sucker Qty | 4/6 |
