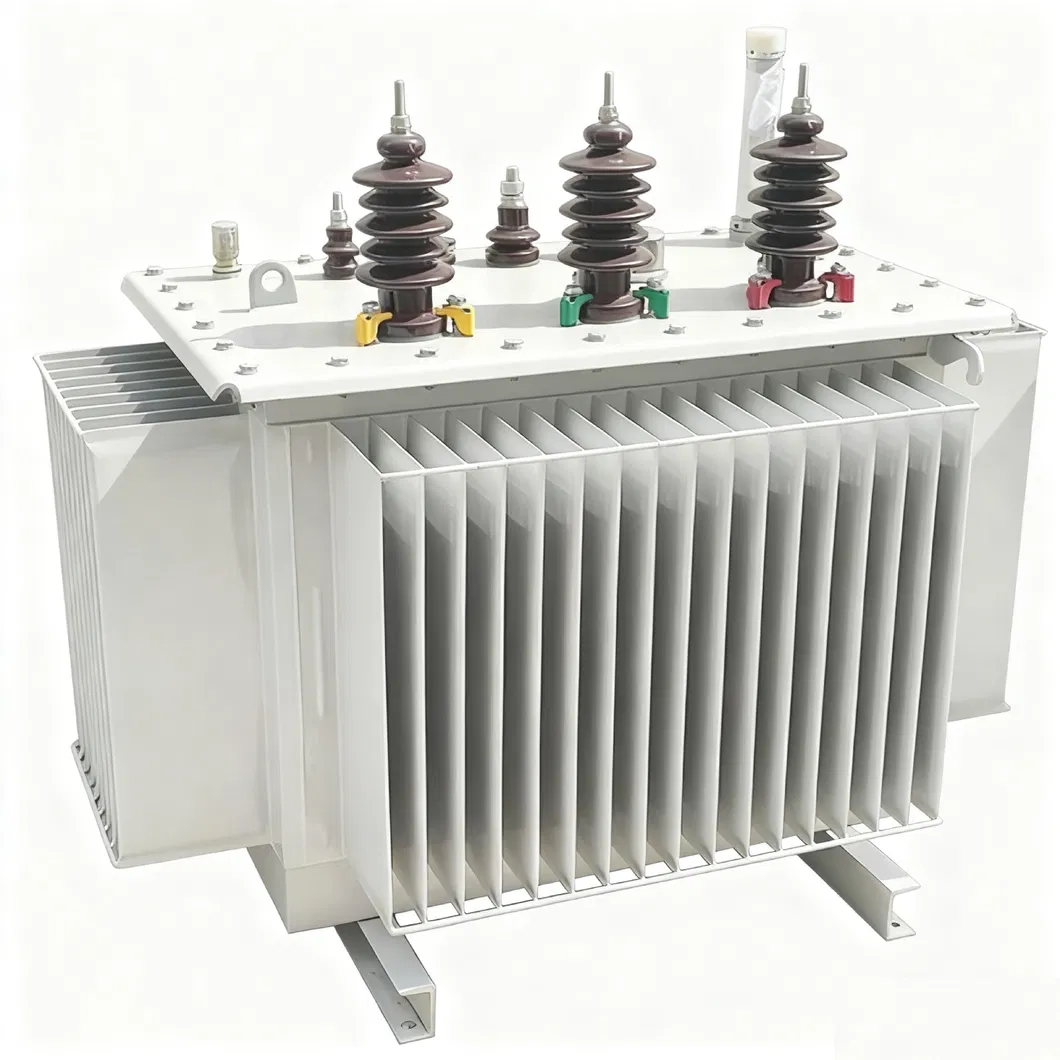

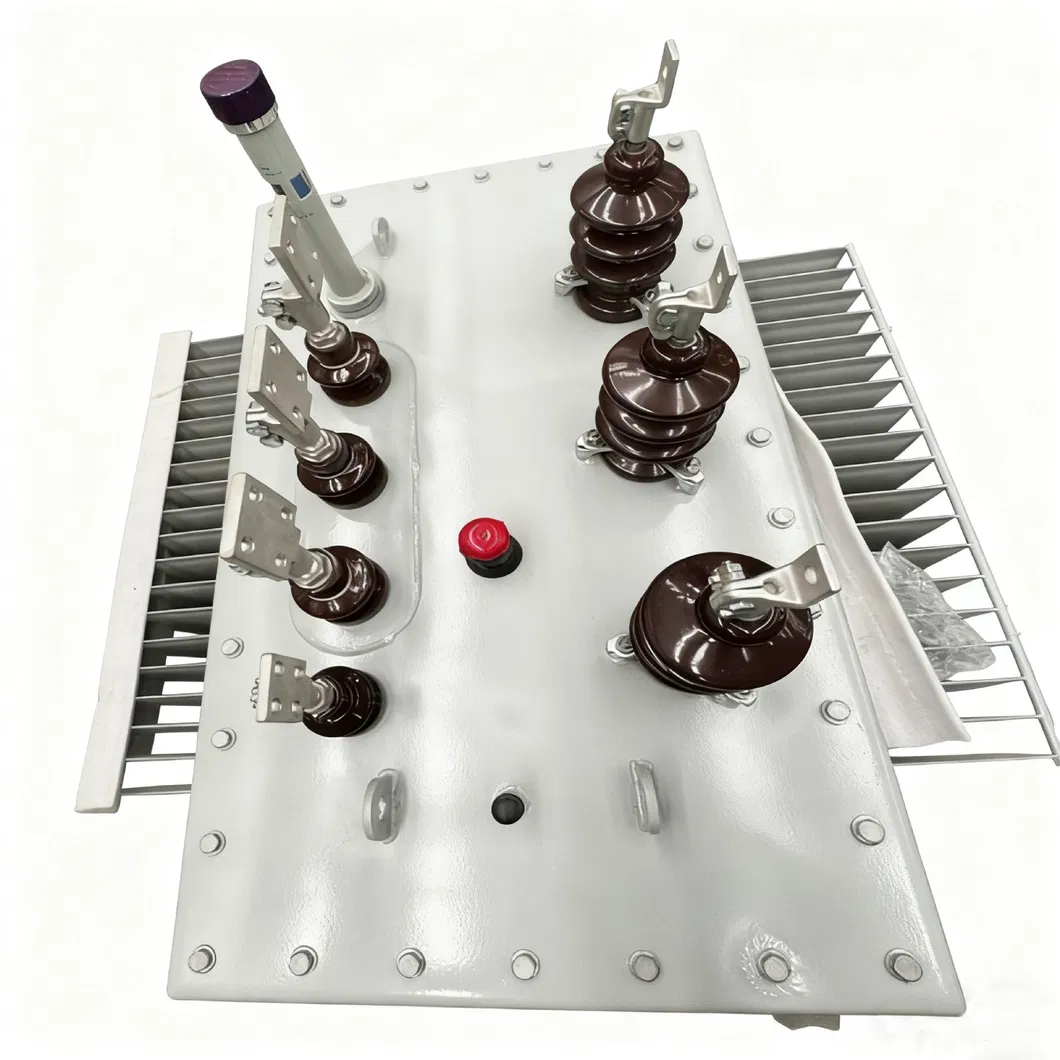

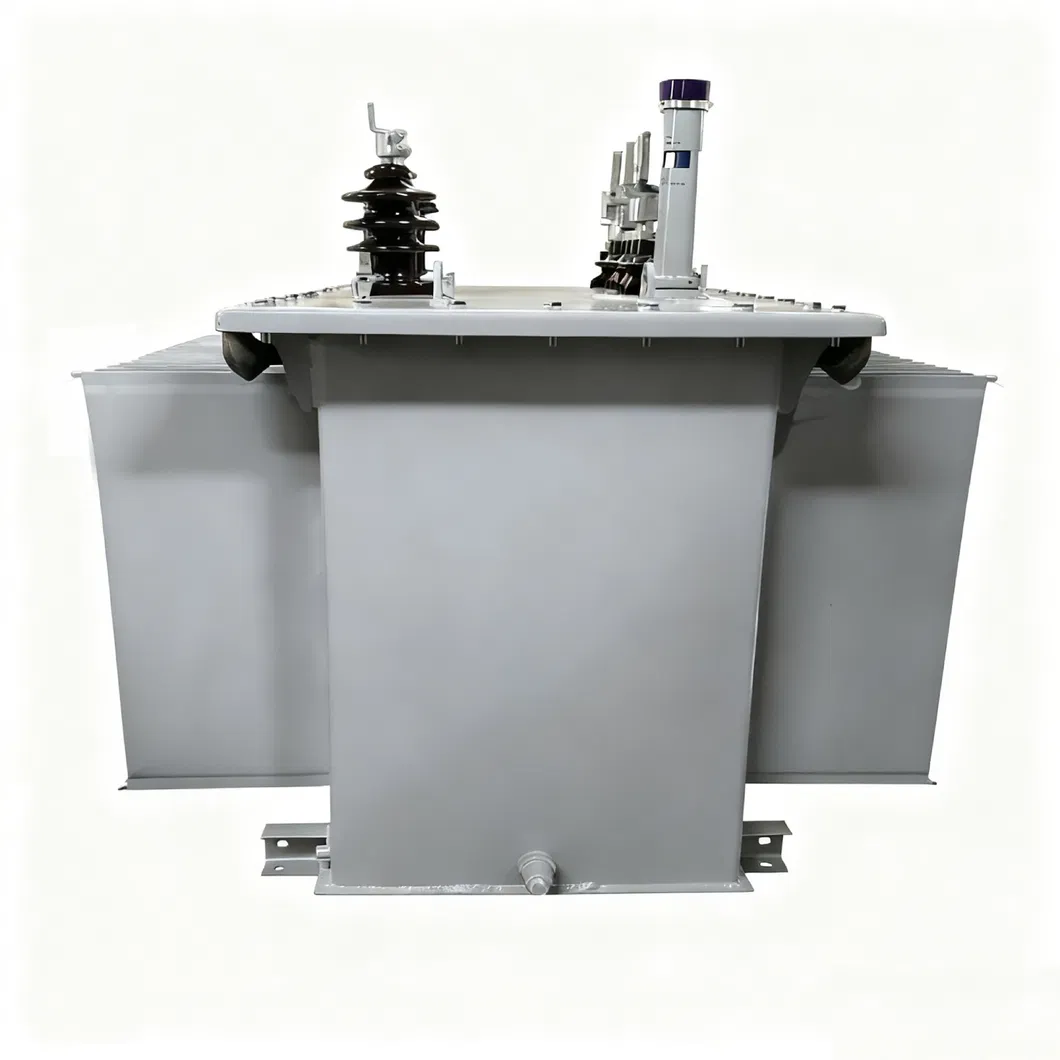

Our three-phase oil-immersed transformer is expertly engineered to provide unparalleled voltage and current transformation essential for cutting-edge power distribution networks, ensuring optimal and reliable performance.
Crafted with pioneering multi-layer cylindrical winding technology and the finest silicon steel laminations, this 10kV distribution transformer achieves outstanding energy efficiency and guarantees consistent operation under diverse load conditions.

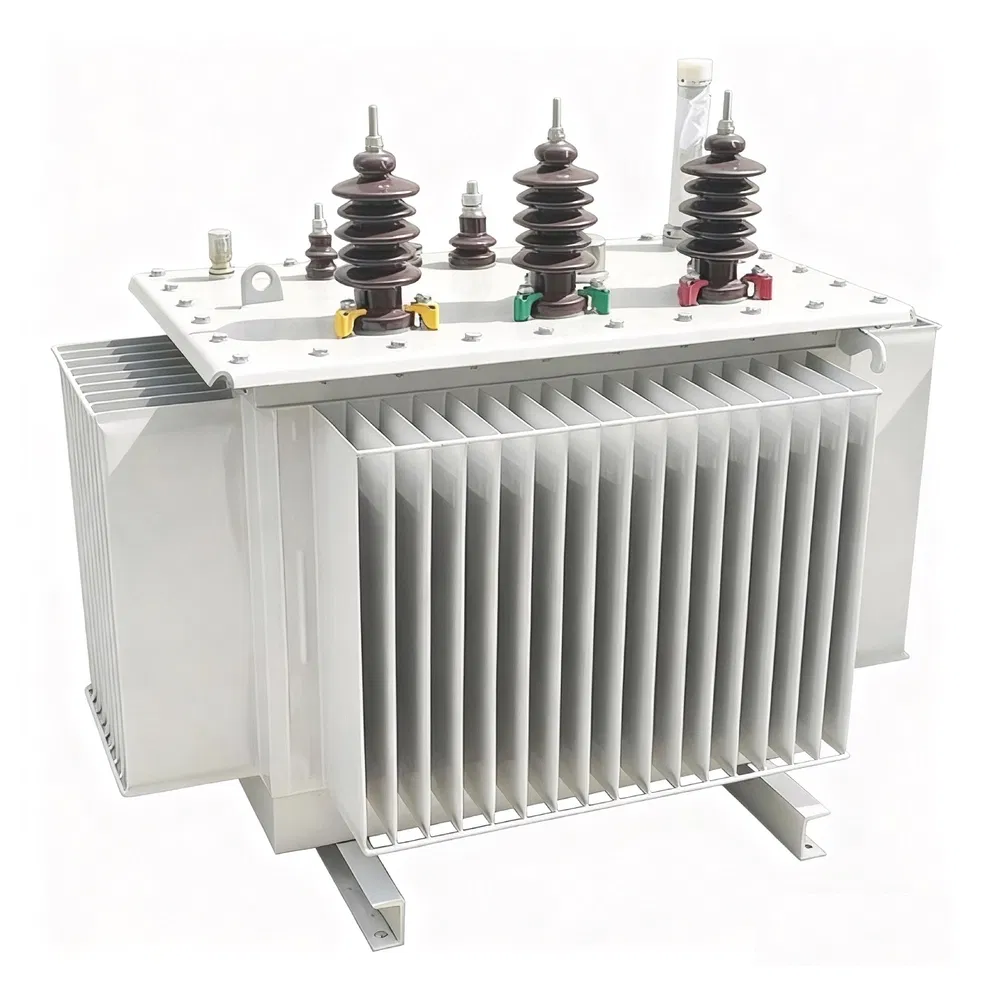

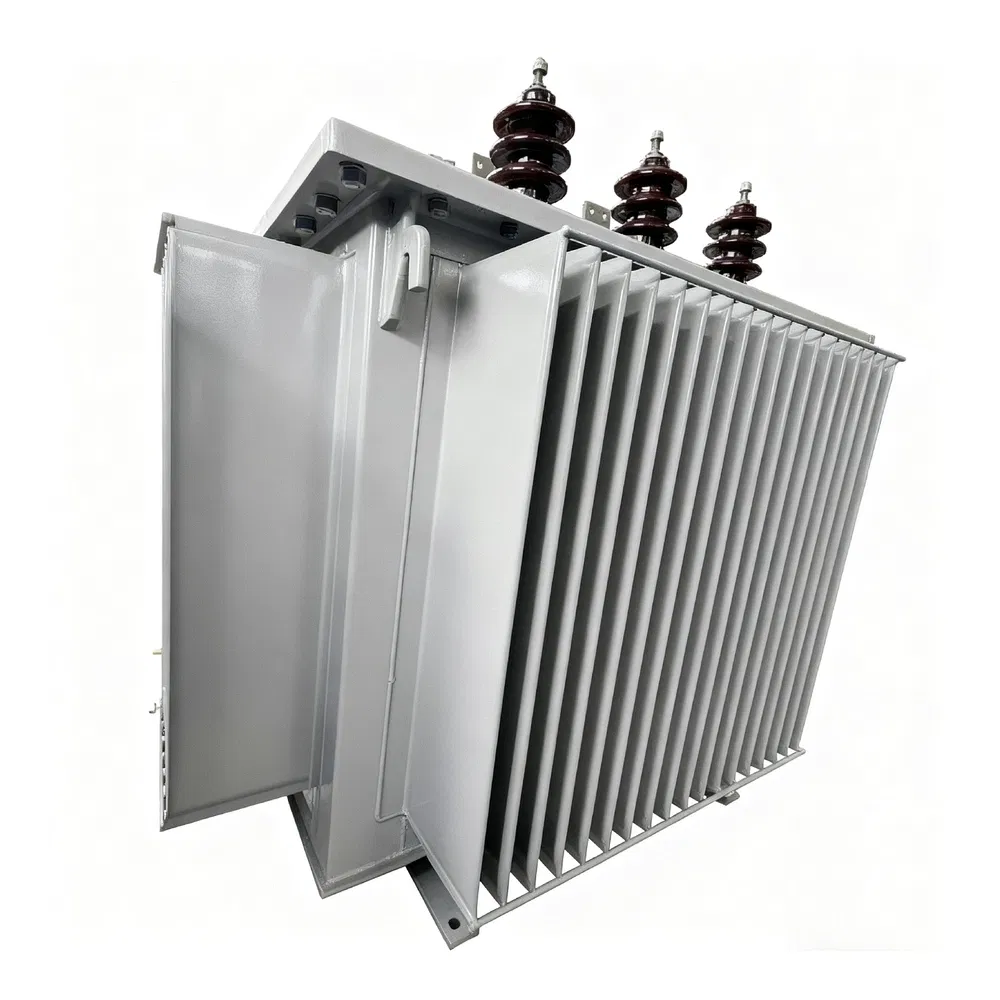

Advanced natural oil circulation system for smooth operations.
Optimized magnetic circuit design reducing energy waste.
Vacuum oil-filling process to ensure maximum reliability.
High-quality gas relay and overpressure devices.
| Parameter | Specification |
|---|---|
| Product Name | Three Phase Oil Transformer |
| Phases | Three Phases |
| Rated Frequency | 50Hz/60Hz (Customizable) |
| Voltage Class | 10KV/0.4KV |
| Rated Capacity | 30 ~ 2500 KVA |
| Voltage Regulation | No Excitation Voltage Regulation ±5% Or ±2×2.5% |
| Vector Group | Dyn11 / Yyn0 |
| Cooling Method | ONAN/Natural Oil Circulation |
| Energy Efficiency | Complies With GB20052 Standard |
| Insulation Class | Class A |
Innovative 45° step-lap core construction, reducing no-load losses by up to 30%. Slashes annual electricity costs significantly for manufacturers and commercial facilities.

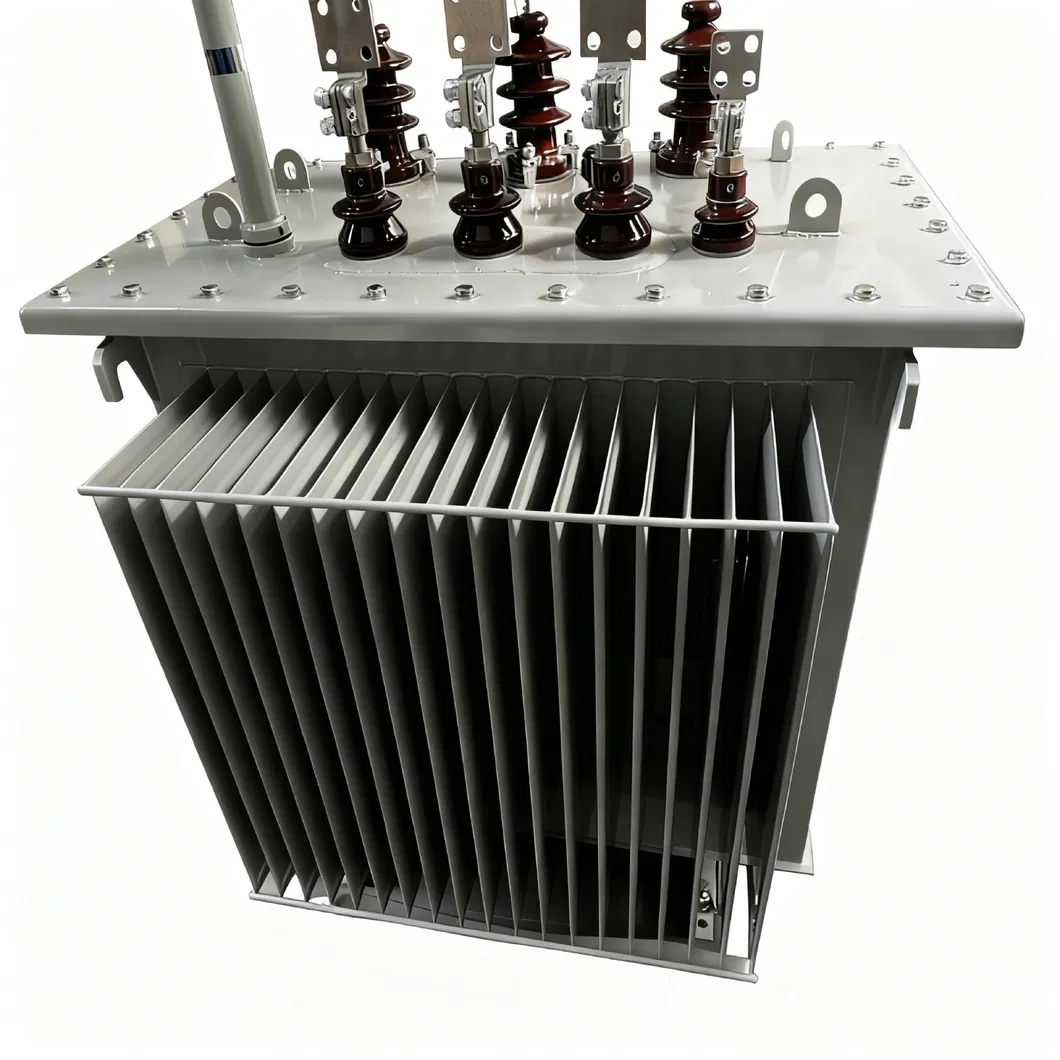

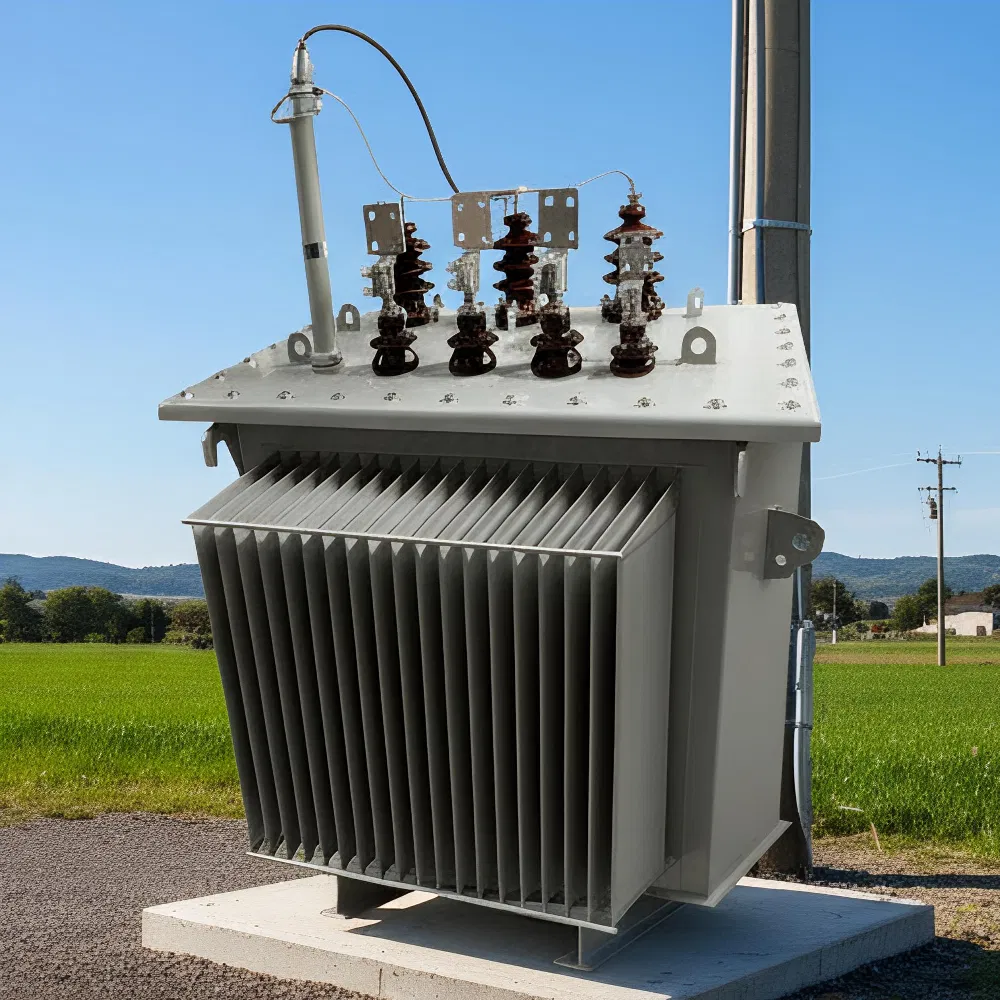

Operates seamlessly from -25°C to +40°C and withstands seismic activity up to 8-degree intensity. Perfect for remote industrial sites and coastal facilities.
Broad range of configurations from 30kVA to 2500kVA. Modular architecture ensures seamless power infrastructure scalability as your business grows.
