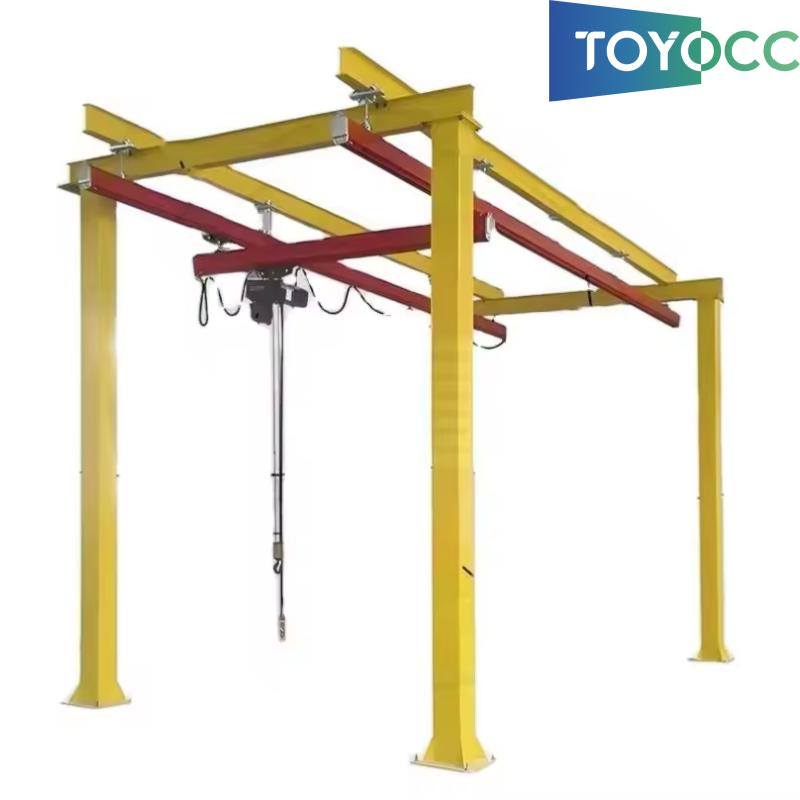

Light Duty Freestanding Overhead Lifting System for Glass Industry

1 / 5

Light Duty Freestanding Overhead Lifting System for Glass Industry

Customization:	Available
Certification:	CE, ISO
Condition:	New

Send Inquiry

Product Description

📋 Basic Information

Warranty	Provided
Drive Mode	Electric and Manual
Color	Yellow or Customized
Suction Cup Material	NBR or Silicone
Working Capacity	350 - 450 Kgs or Customized Size
Rotation / Tilt	90 Degrees / 90 Degrees
System Size	6m x 6m x 4.35m or Customized Size
Airpower	0.6-0.8MPa
Origin	China
HS Code	8426194900

🏗️ Product Description

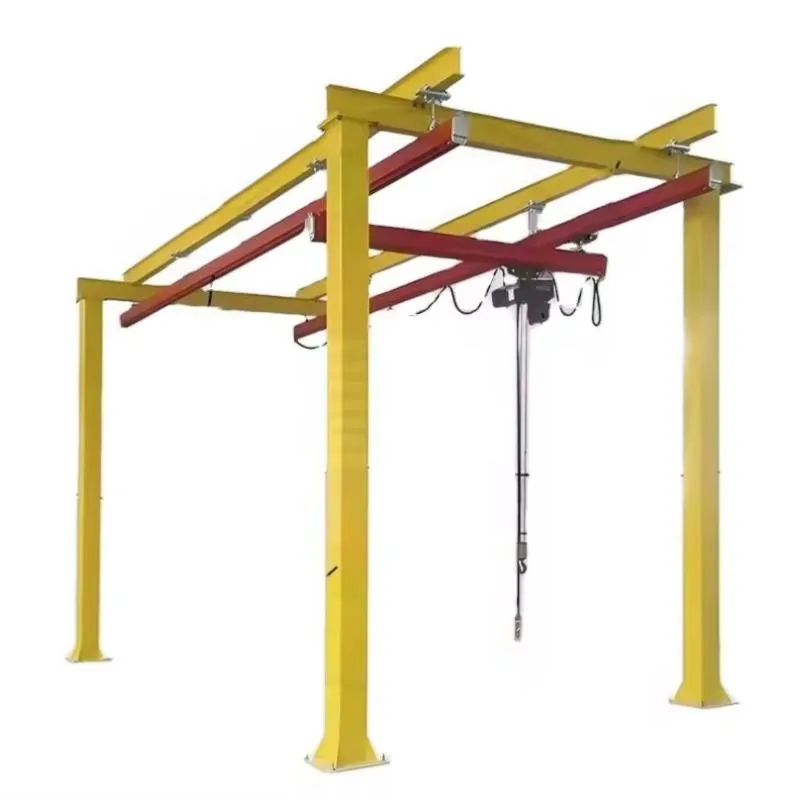

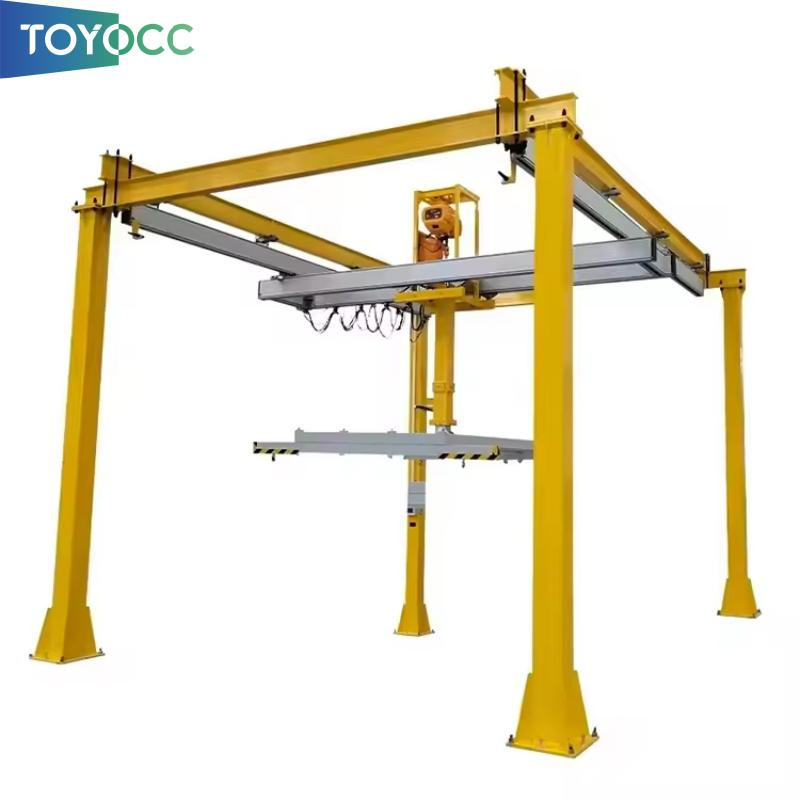

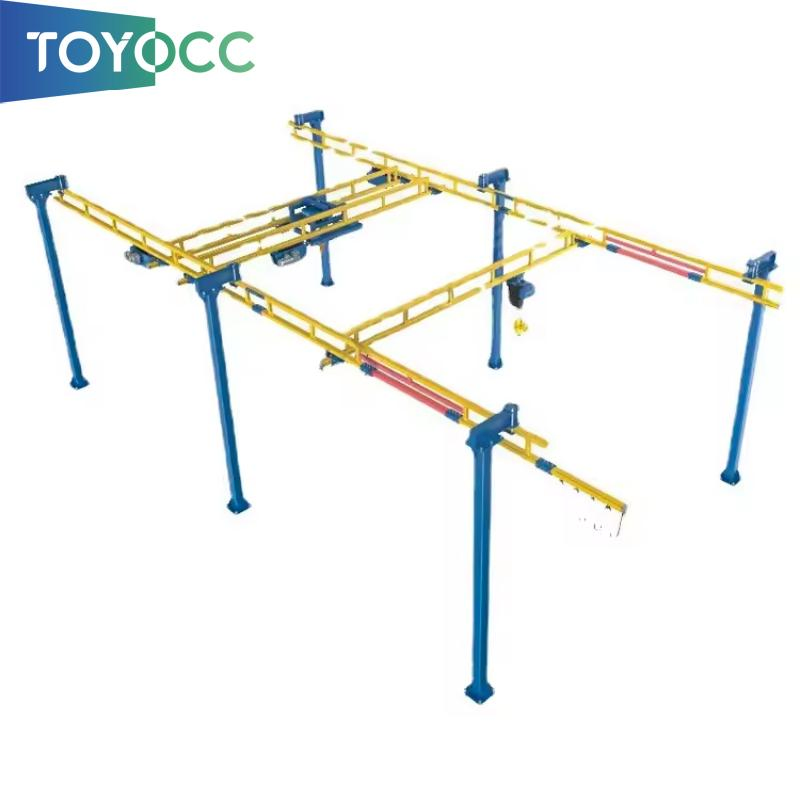

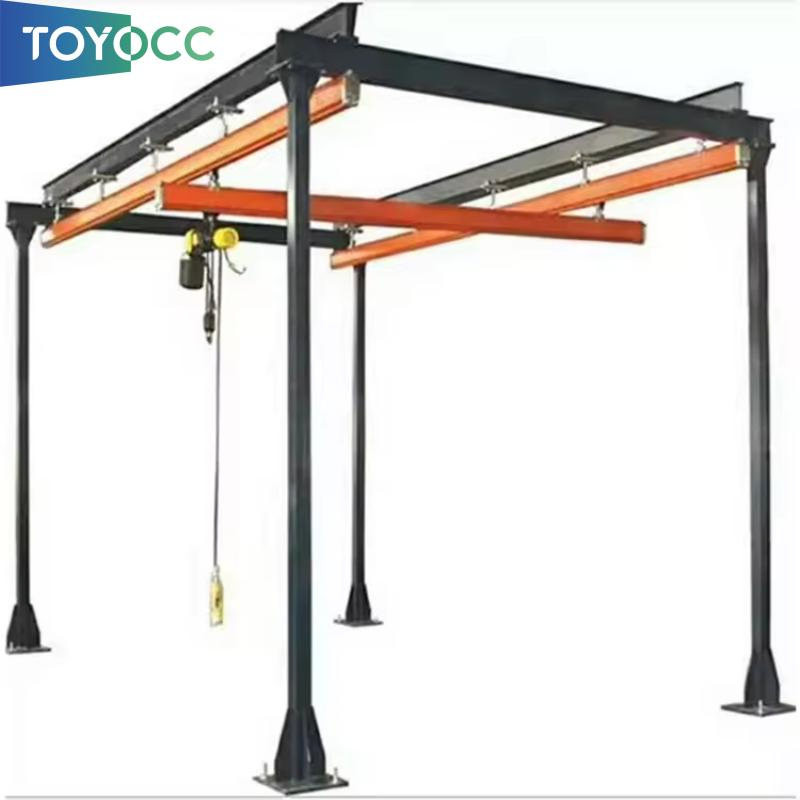

Freestanding Crane System for Glass Process Industry

The Porch-Shaped Overhead Crane is designed specifically for high-efficiency glass handling. The vacuum lifter operates along a traveling beam within a stable frame structure, providing full coverage of the working area.

Widely used in insulating glass lines, lamination lines, vertical CNC, tempering lines, and cutting lines. Key advantages include space-saving design, stable operation, manpower reduction, and large area coverage.

⭐ Key Features

✔ Customized pillar height, frame length, and traveling beam width.
✔ Adjustable safe working load to meet specific project needs.
✔ Compatible with both vacuum lifters and standard hoists.
✔ Extension vacuum lifter arms available for various glass configurations.
✔ High-quality imported vacuum pads (Temp resistance: -20°C to 90°C).

📐 Technical Specifications

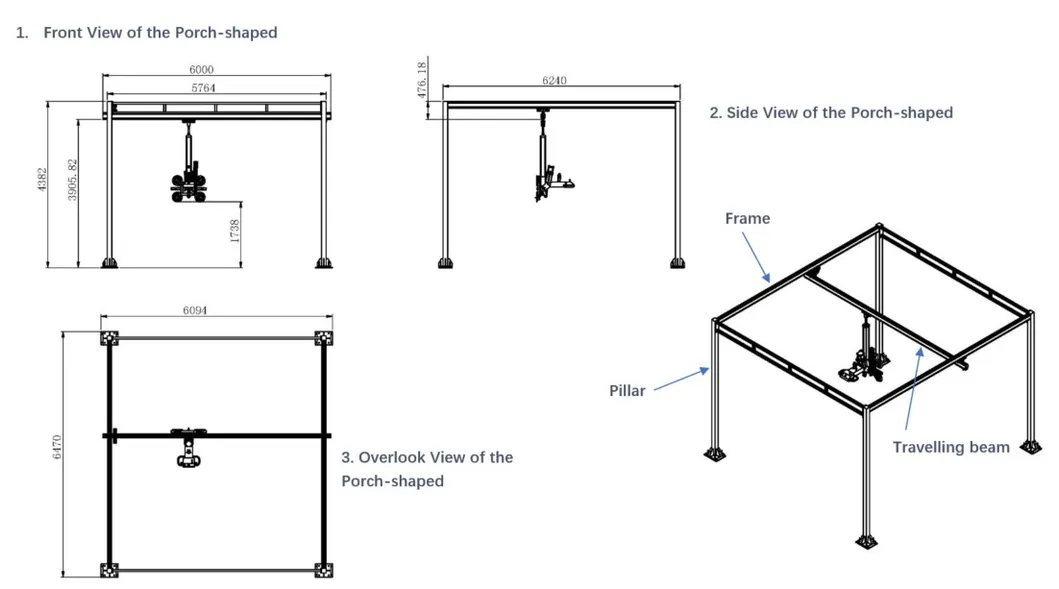

Model	RSY-LM6PL6 (Regular Specification)
Height	4382mm
Length	6240mm
Travelling Beam Width	6000mm
Operation Method	Manual Control
Operating Weight	350/450 kgs
Vertical Range	1200mm
Control System	SMC JAPAN
Sucker Quantity	4 / 6 Pcs

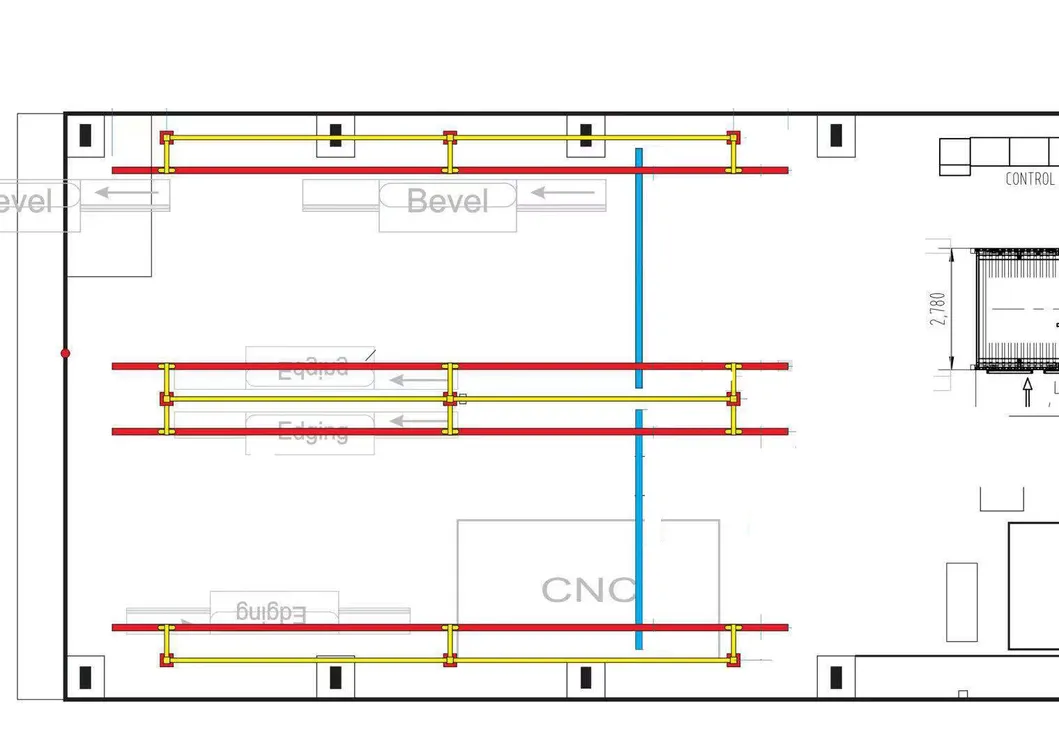

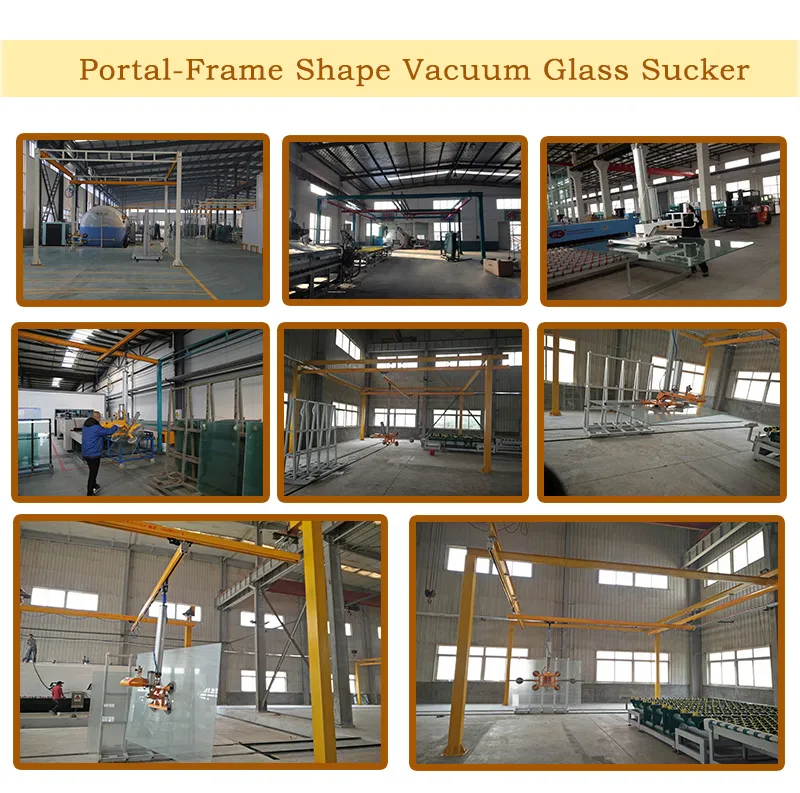

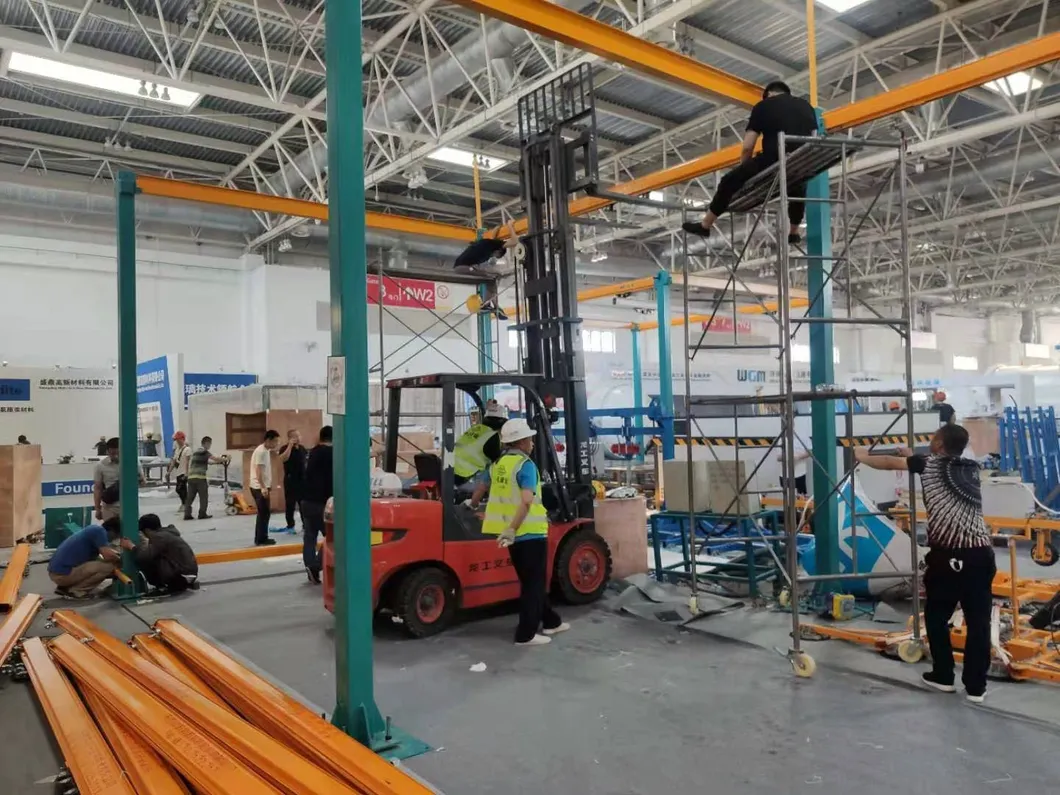

💡 Application Scenes

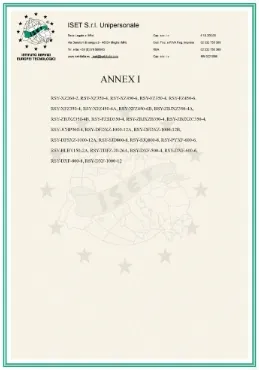

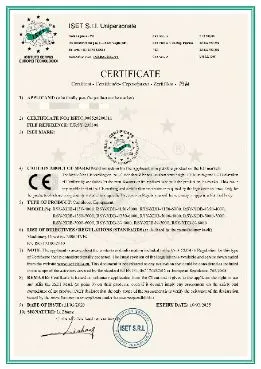

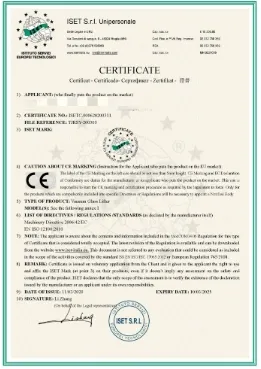

📜 Certifications

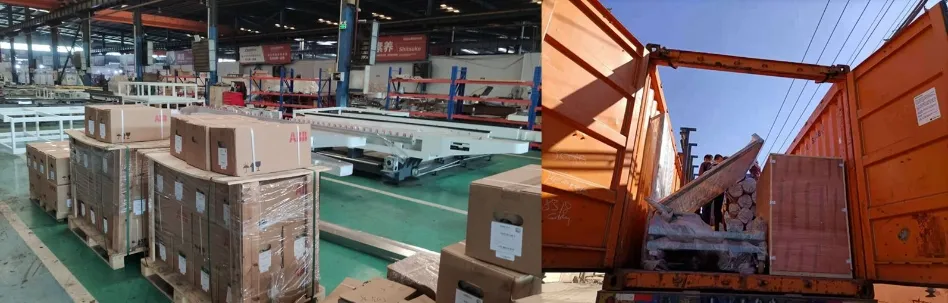

📦 Packaging & Shipping

❓ Frequently Asked Questions

Do you offer customized offers?

Yes, customized service can be offered.

What's the delivery time?

About 20 days.

How can I get after-sales services?

We offer videos, pictures, and technical guidance immediately.

How can customers buy parts once they break down?

The lift adopts most of the common parts of hardware. You can buy the parts in your local hardware market or forklift parts shop.

How can customers repair any problem?

One of the great advantages of the equipment is the very low failure rate. Even if it breaks down, we can guide the repair via video and detailed instructions.

What's your QA & QC policy?

3 times 100% inspection before shipping.
