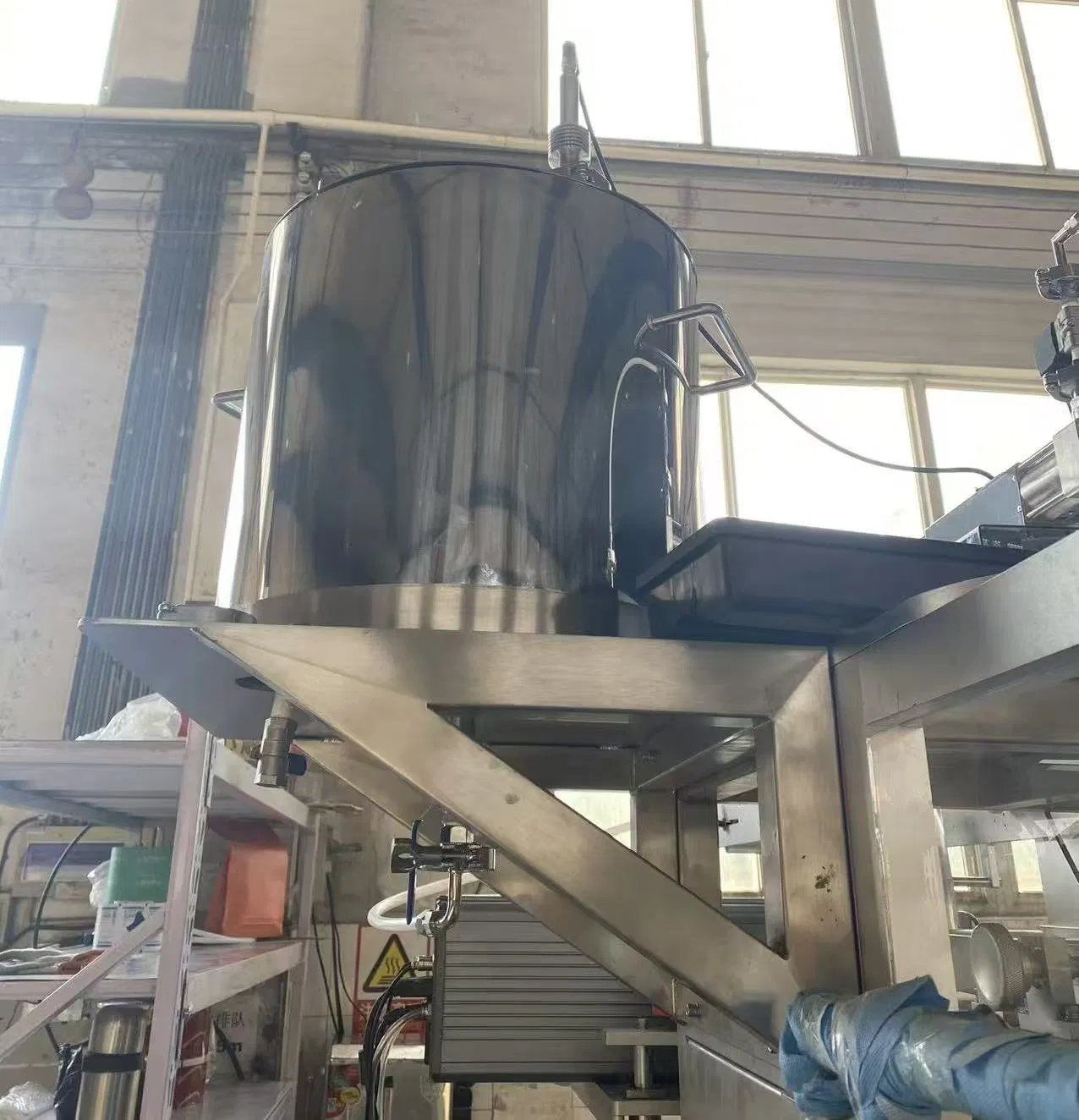

Automatic Liquid Sachet Packaging Machine Juice Liquid Pouch Filling and Sealing Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Information
Model NO.DXDY-300T
Automatic GradeAutomatic
ApplicationCosmetics, Drinks, Dairy Products, Oil, Snack, Honey
TypeSachet Packing Machine
Forming SpeciesBag Moulding
Forming FunctionFilling, Seal, Packing
Driven TypePneumatic
Material TypeLiquid, Paste
PackagingBag
Packaging MaterialPlastic, Paper, Pet/Plated Al/PE, Pet/PE, Paper/PE
Machine Cabinet304 Stainless Steel
Compressed Air Pressure0.6 MPa
Air Consumption2m3 Per Hour
CertificationCE, ISO 9001
Packing Speed15-40 bags/Min
Filling Range5-40ml
Total Power Supply220V
Main Motor1.7kw
Net Weight300kg
Core ComponentsMotor, PLC
Transport PackageWooden Cases
Specification600*790*1900
OriginChina
HS Code8422303090
Product Description

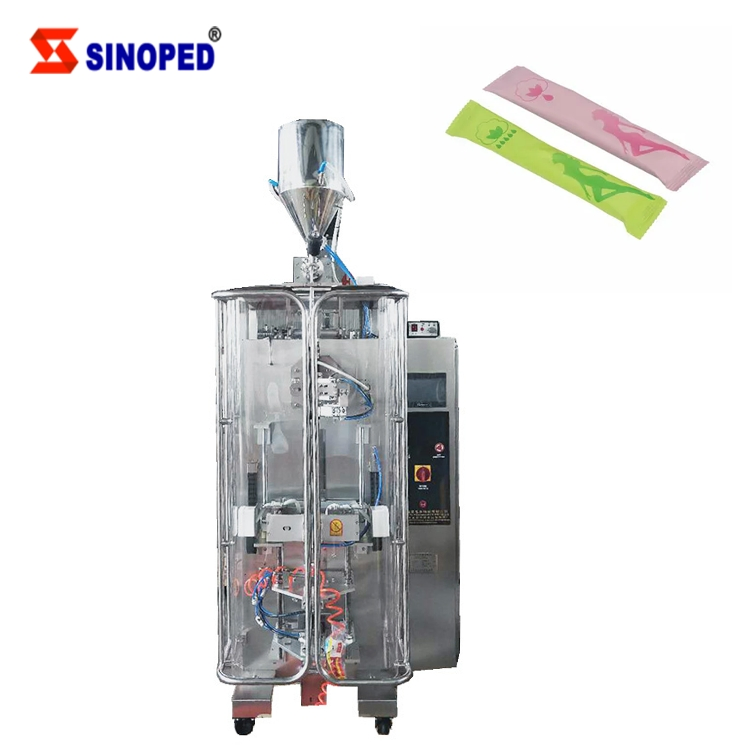

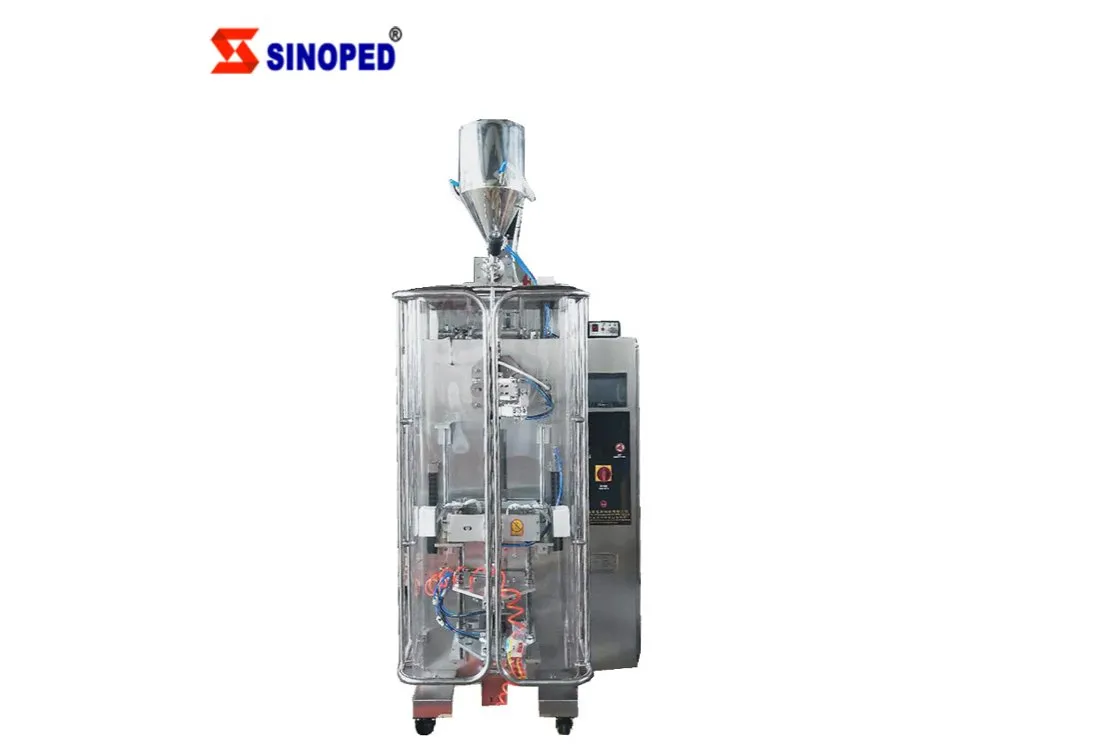

DXDY-300T Sachet Liquid Packing Machine
DXDY-300T Sachet Liquid Packing Machine
The machine is suitable for automatically packaging of viscous products with free-flowing such as water, oil, etc. The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, PAPER/PE, NYLON etc. This machine uses a unique gear pump which has a non drip and tail suck back function, this ensures that the sealing margin is very clear without any paste drip on seal to make bag airtight.
Packaging Machine Details

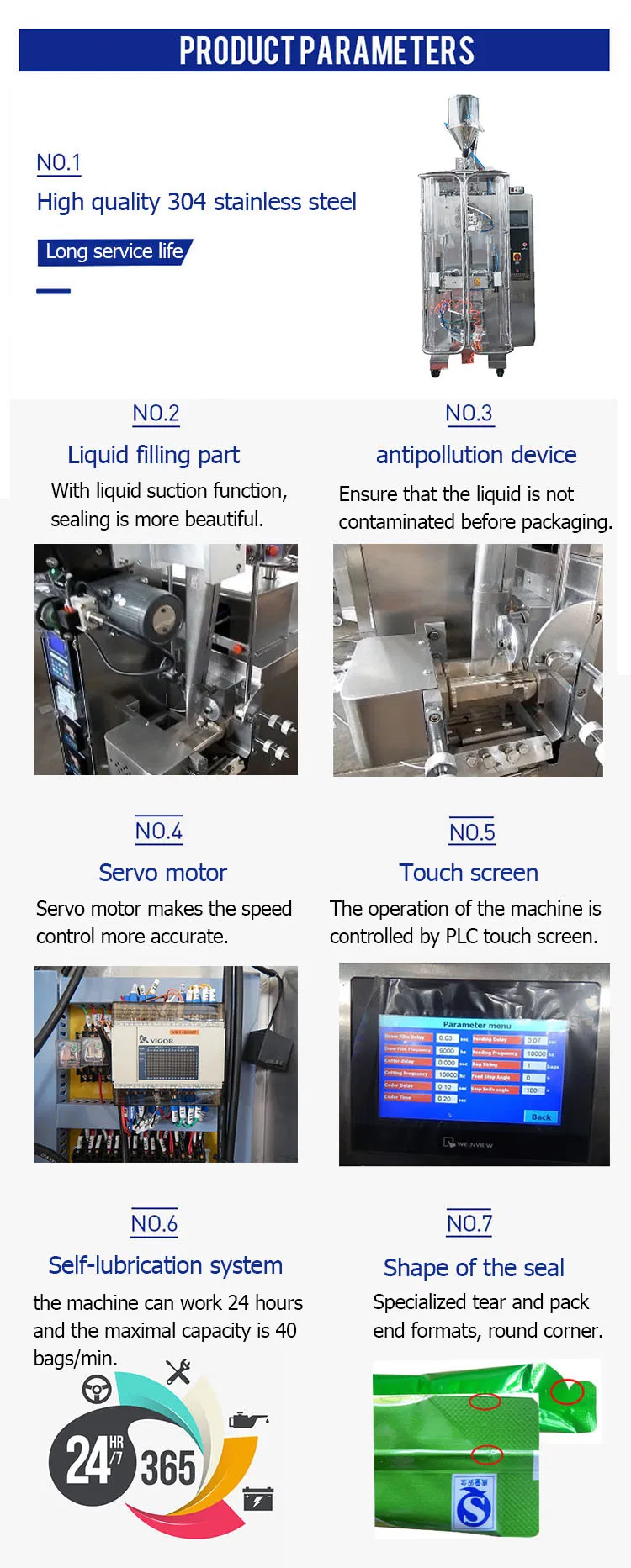

Machine Structure

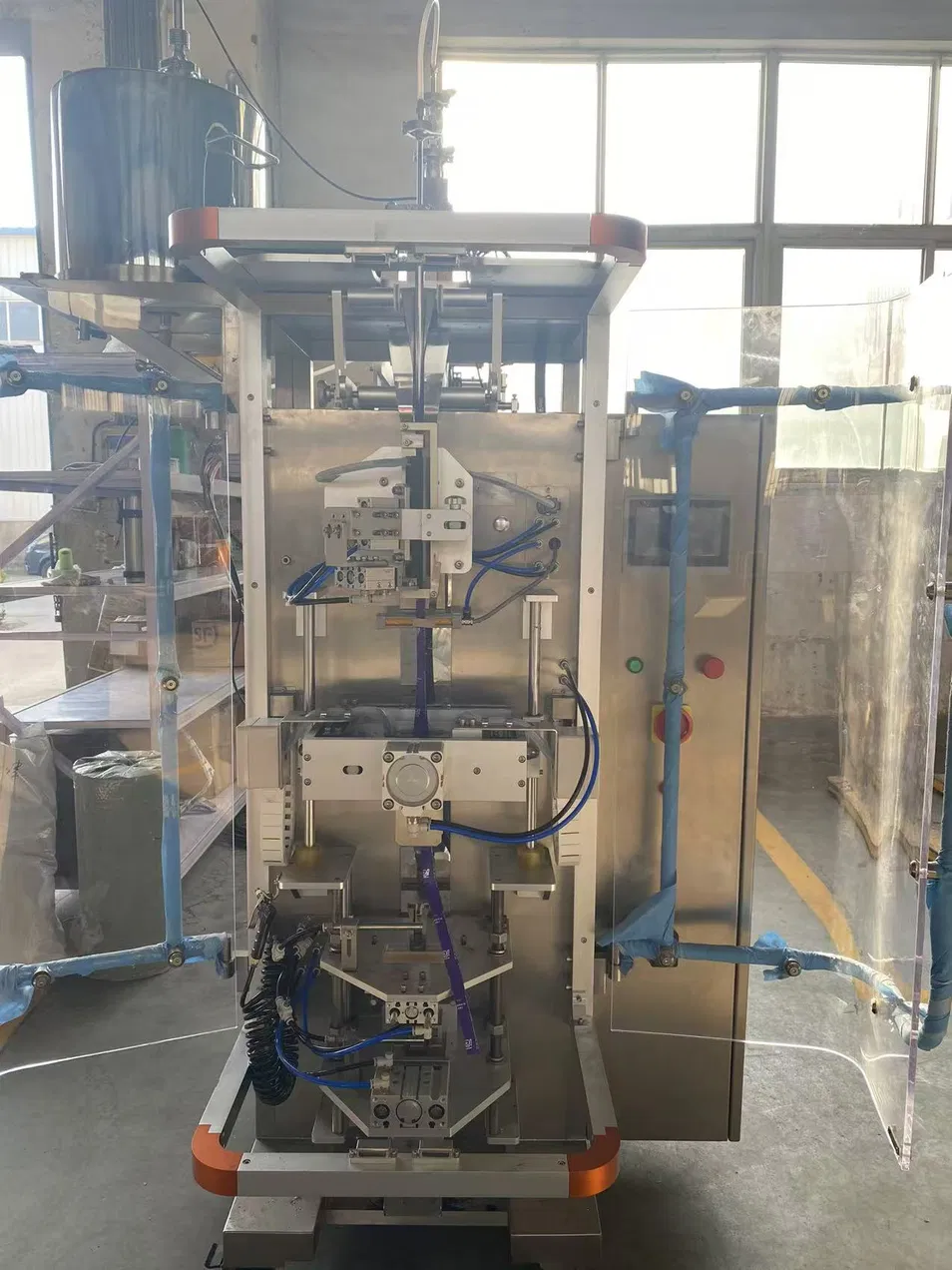

Machine Part 1

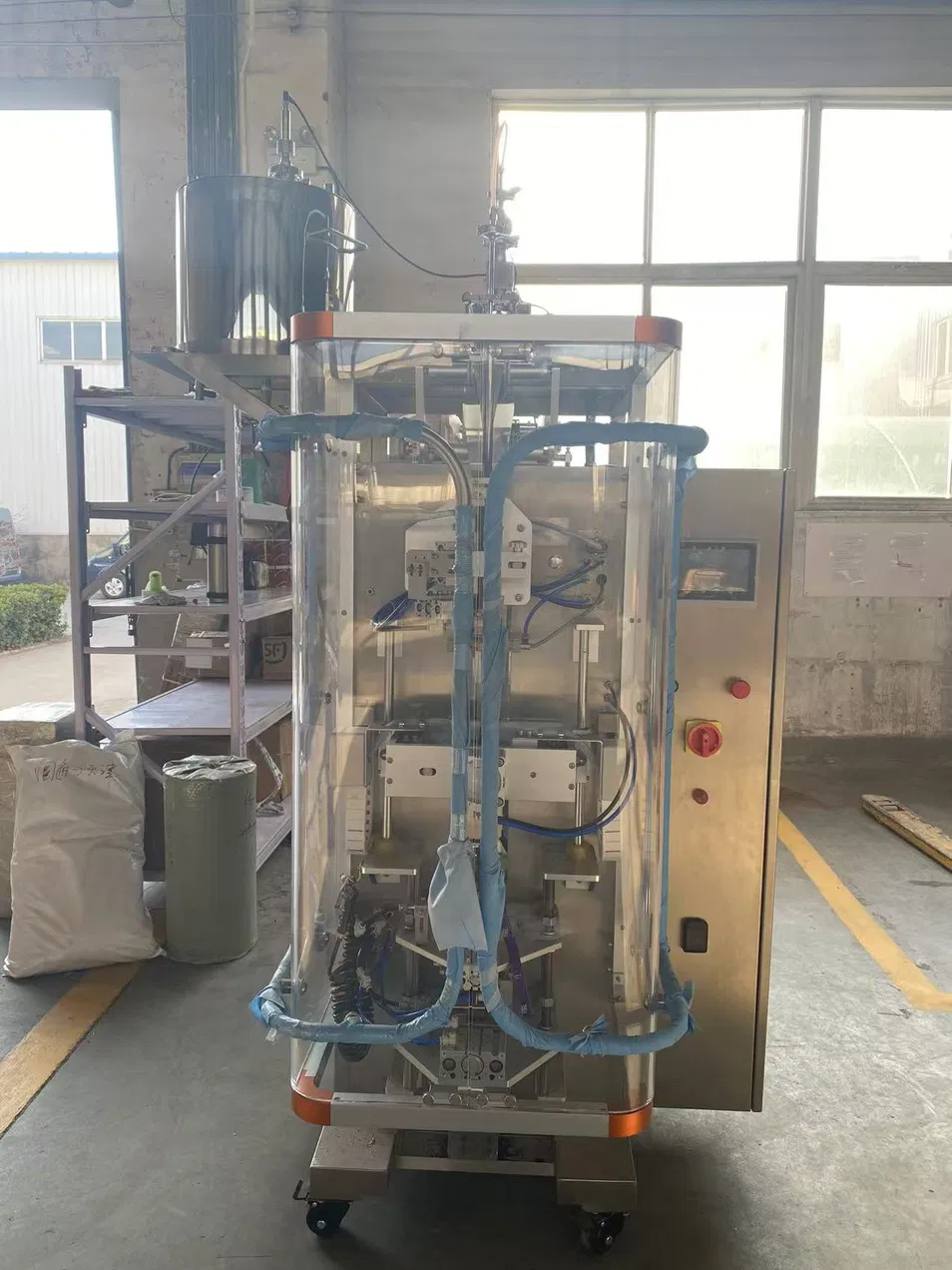

Machine Part 2

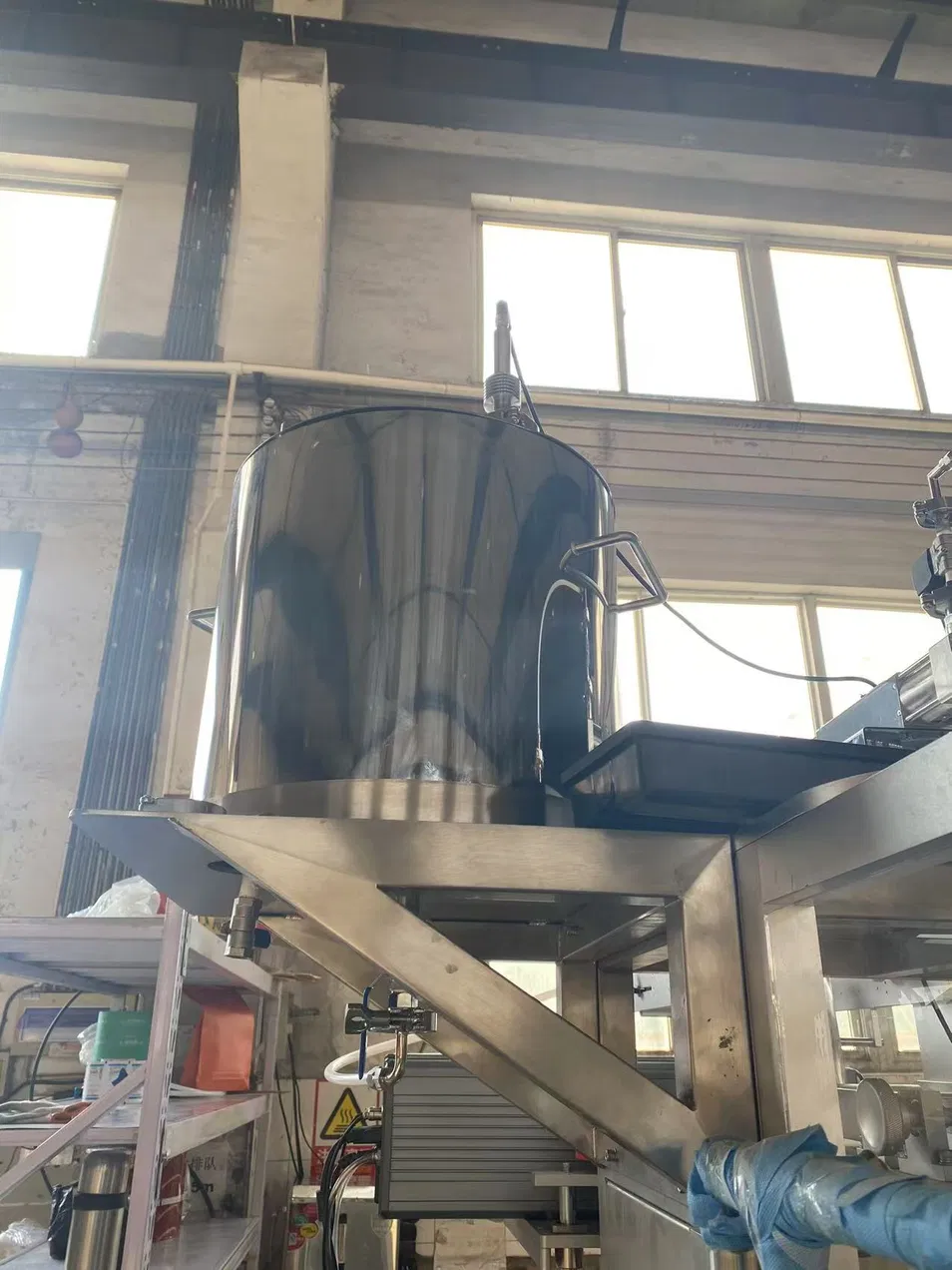

Seal Details 1

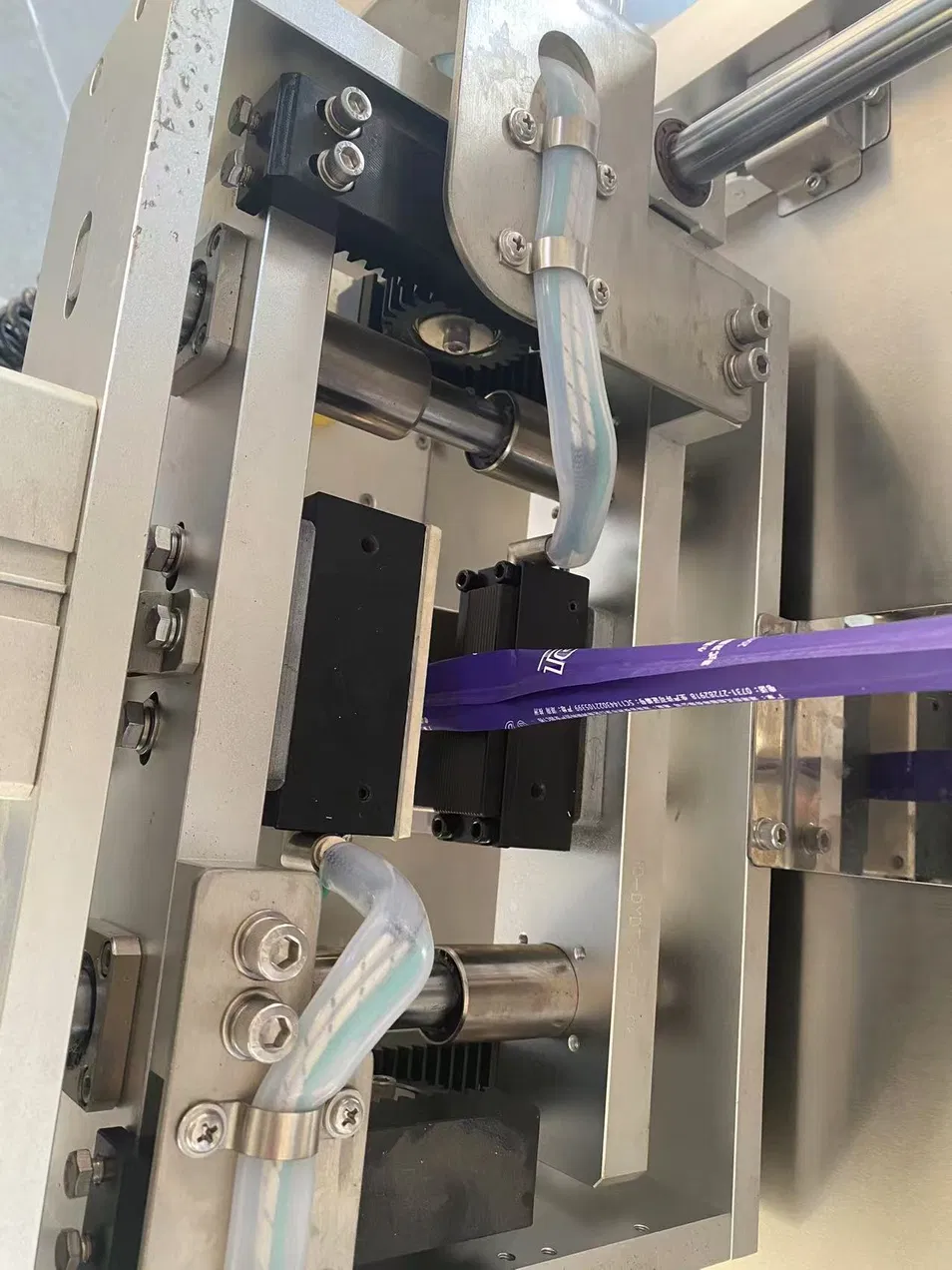

Seal Details 2

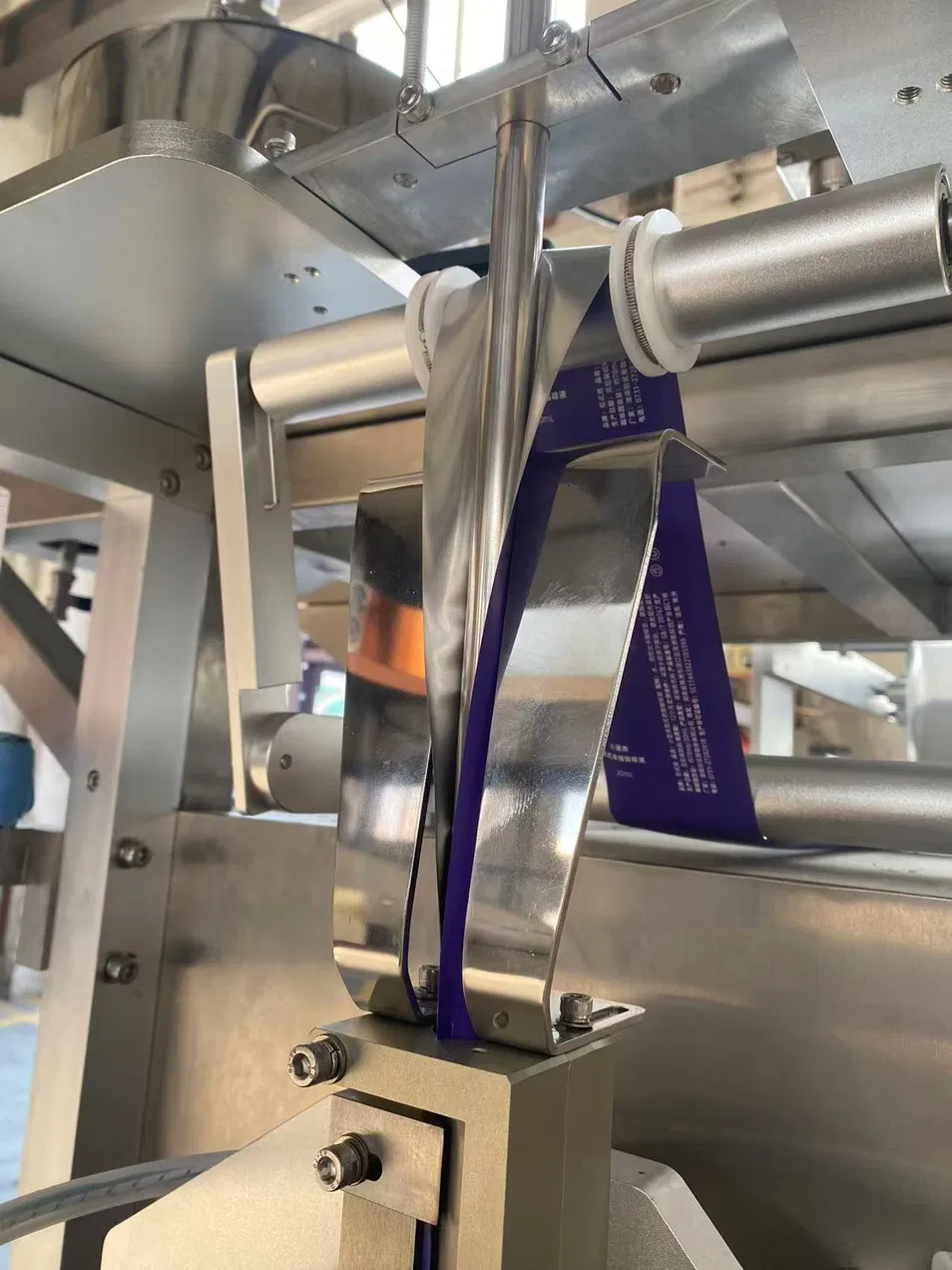

Components 1

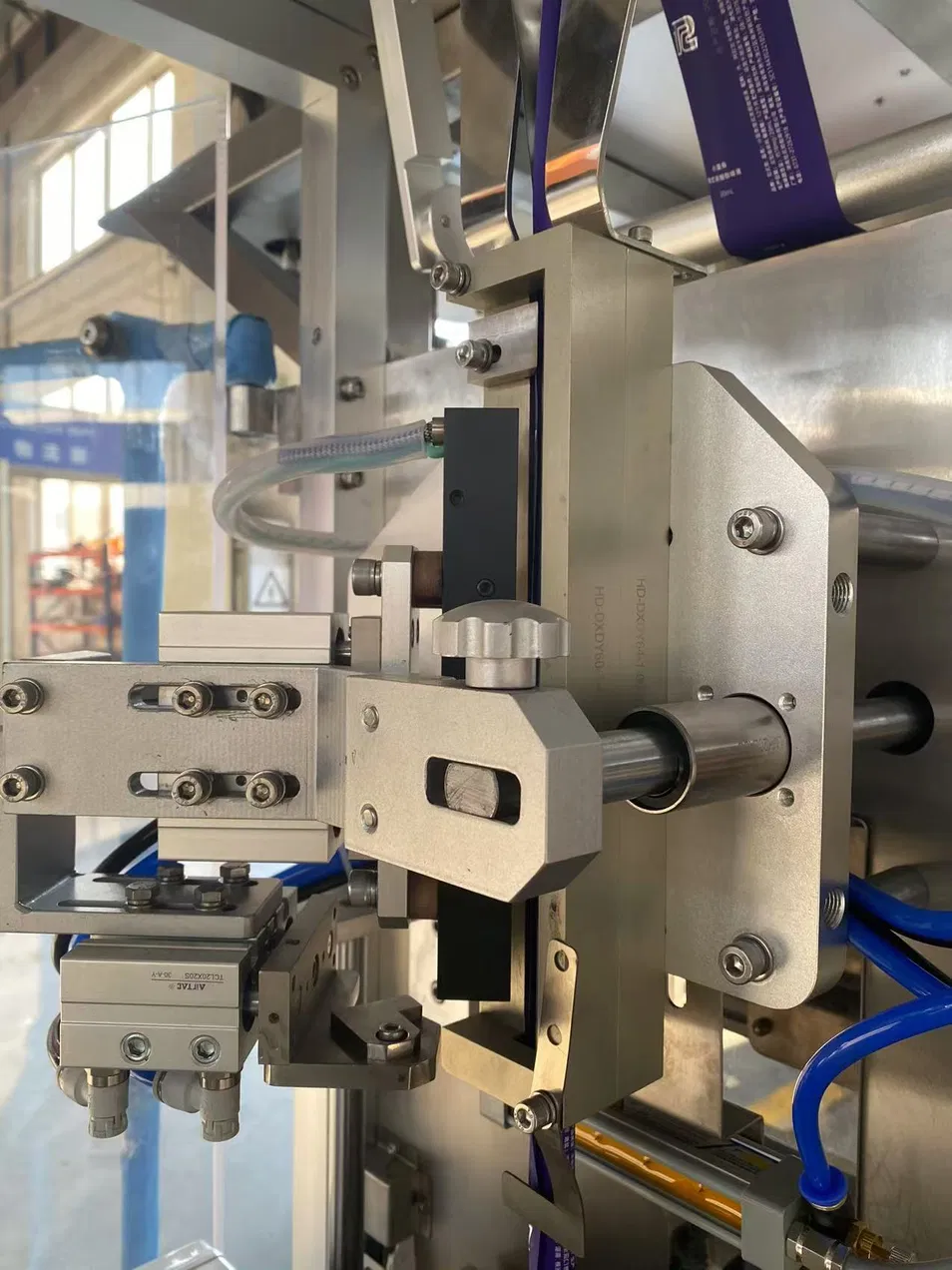

Components 2
Operation Interface

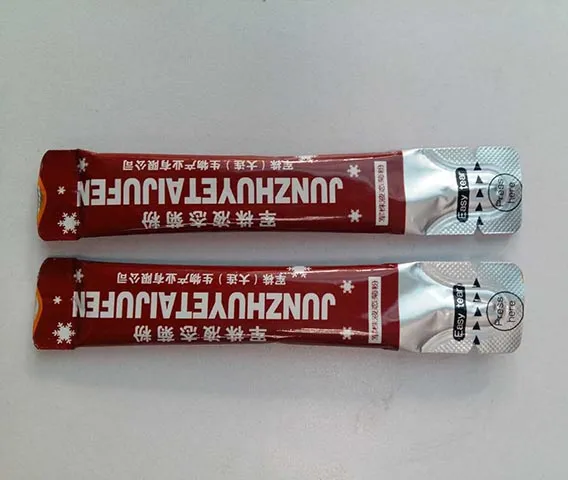

Finished Product 1

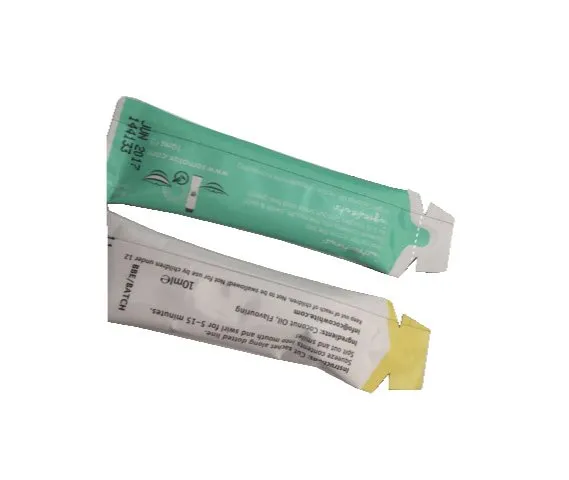

Finished Product 2

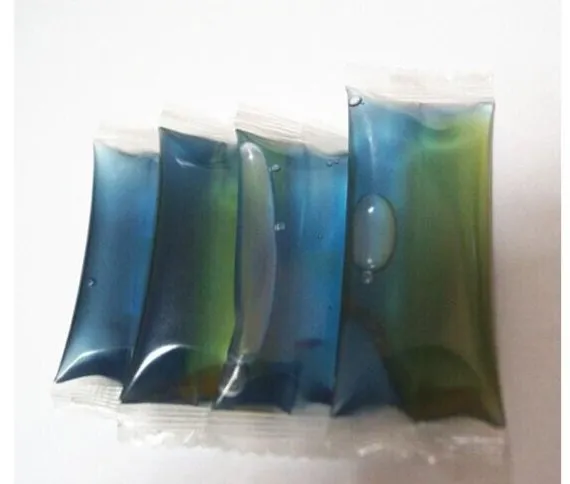

Finished Product 3
The machine uses the latest technology to control speed, bag length and registration. All these functions are easy to setup via the touch screen interface. The vertical sealing section is now guarded so that no accidental mishaps can occur. Draw down bag wheels are now coated in Silicon so that no damage occurs to the film during operation. All materials used during construction are chosen for resistance to corrosion, strength for application and suitability.
Technical Specification
ModelDXDY-300T
Filling Range5-40ml
Product Speed15-40 bags/min
Bag Size (mm)L: 50-180, W: 25-50
Power220V 50HZ 1.7KW
Compressed Air0.6 Mpa
Air Consumption2 m3/h
Weight300kg
Dimension600*790*1900
Packing & Delivery
Wooden Case Packing
Shipping Logistics
All machines are professionally packed in reinforced export-standard wooden cases to ensure safe transportation. We have established long-term and stable cooperation with experienced freight forwarders and international express companies, with mature and reliable logistics channels. We can provide a complete set of official customs clearance documents including Certificate of Origin, CE, Packing List, and Commercial Invoice.
Facility & Quality Control
Factory Overview
Production Line
Workshop
Team and Service
Frequently Asked Questions
Can we process a Letter of Credit (L/C)?
Yes! Standard payment methods include T/T, Letter of Credit, credit card, and cash.
Are there local agents or after-sales service in my country?
We have agents, dealers, and after-sales service providers in many countries. Please contact us to confirm the nearest support center for your region.
What kind of after-sales services are provided?
We provide extended warranty services and 24-hour one-on-one online technical support to ensure your production remains uninterrupted.
How can I verify if this machine is suitable for my specific product?
You can send us samples for testing. We will record videos and take pictures of the process for your review, or we can arrange a live video chat demonstration.
How do I ensure my payment is secure?
With over 17 years of history in international trade and a global customer base, you can rely on our reputation. For additional security, Trade Assurance payment options are available.
What materials are used in the machine construction?
The machine cabinet is constructed from high-quality 304 Stainless Steel, and draw-down wheels are silicon-coated to protect the packaging film.
