📋 Basic Information
Application
Cosmetics, Drinks, Dairy Products, Oil, Snack, Honey
Type
Sachet Packing Machine
Material Type
Liquid, Paste
Machine Cabinet
304 Stainless Steel
Packing Speed
15-40 bags/Min
Certification
CE, ISO 9001
⚙️ Product Description

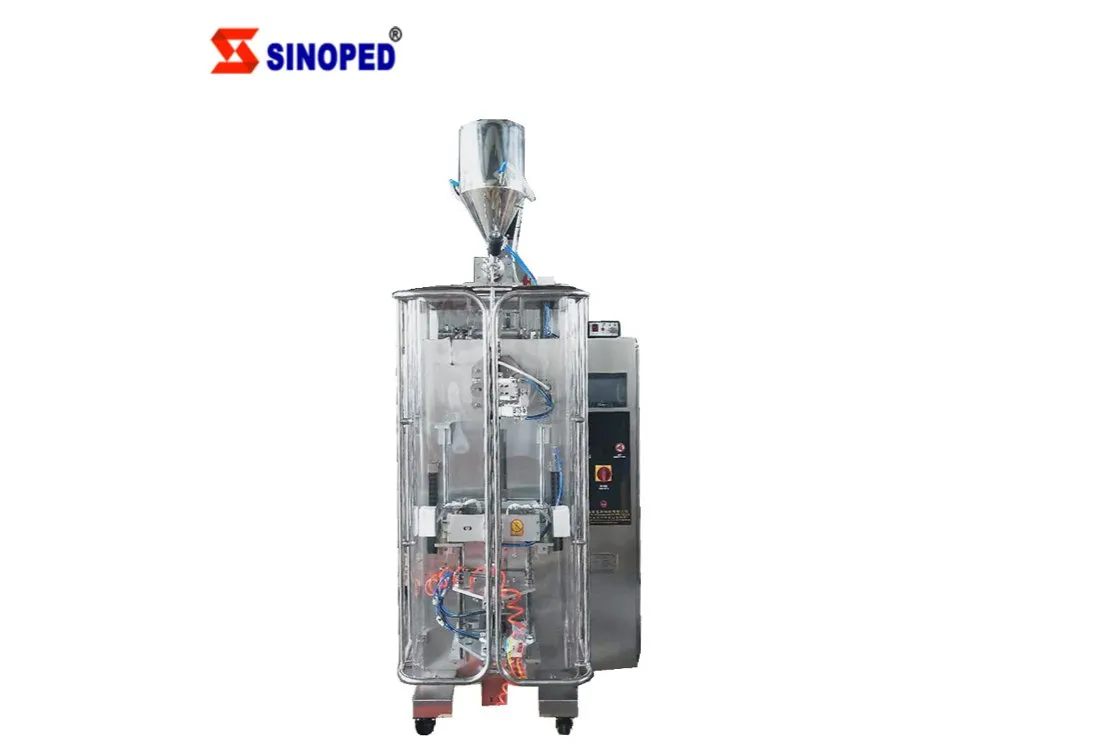

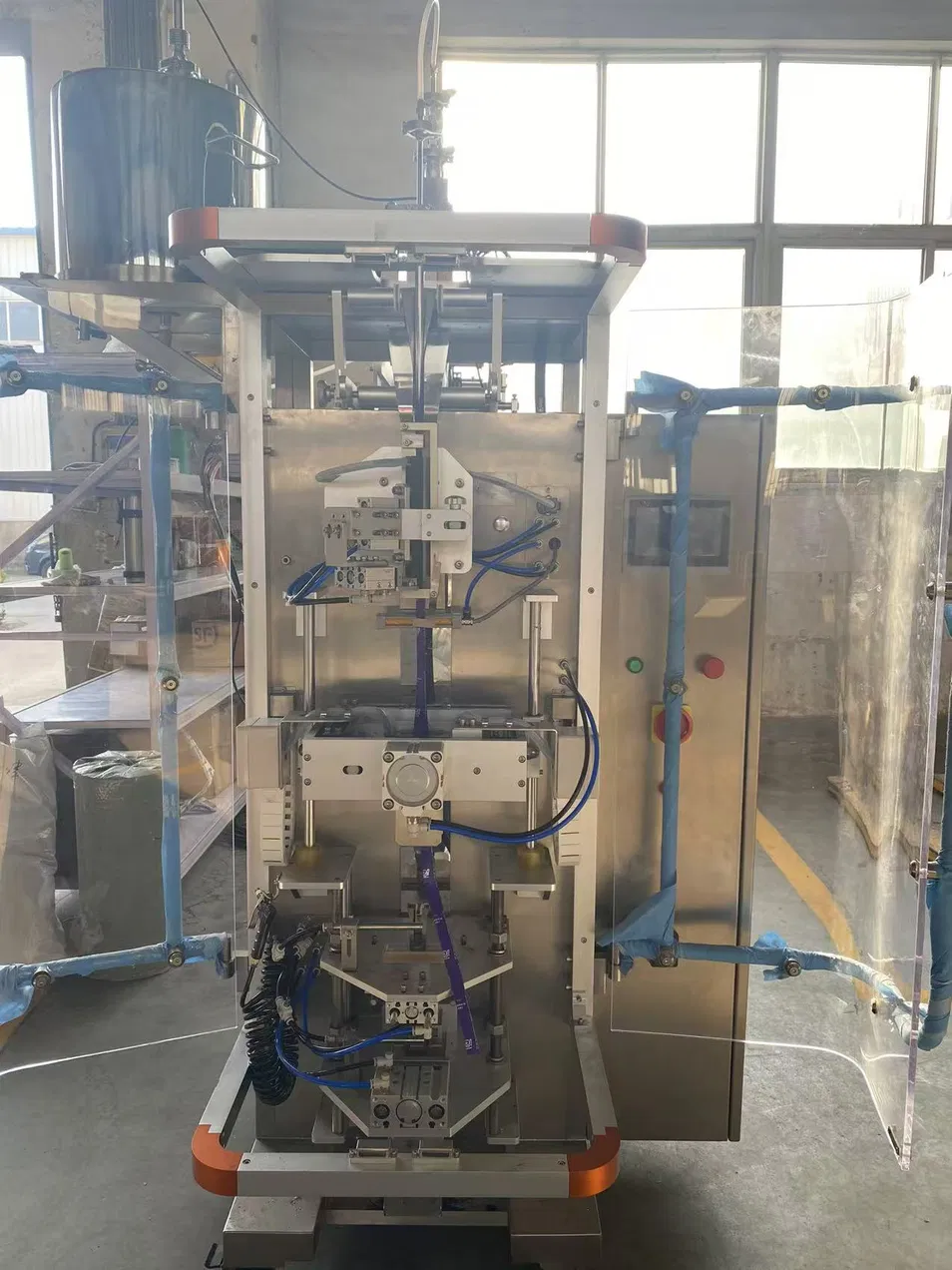

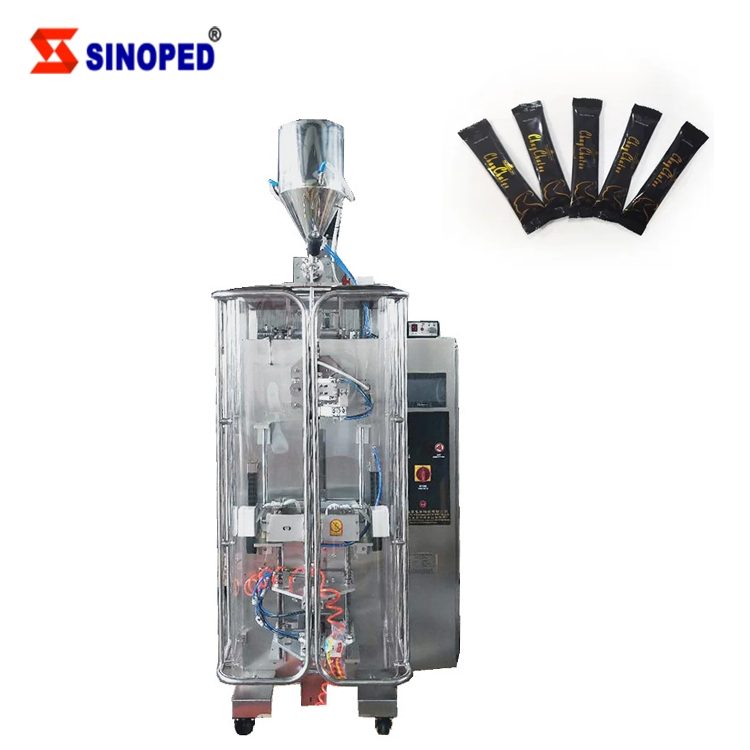

DXDY-300T Sachet Liquid Packing Machine

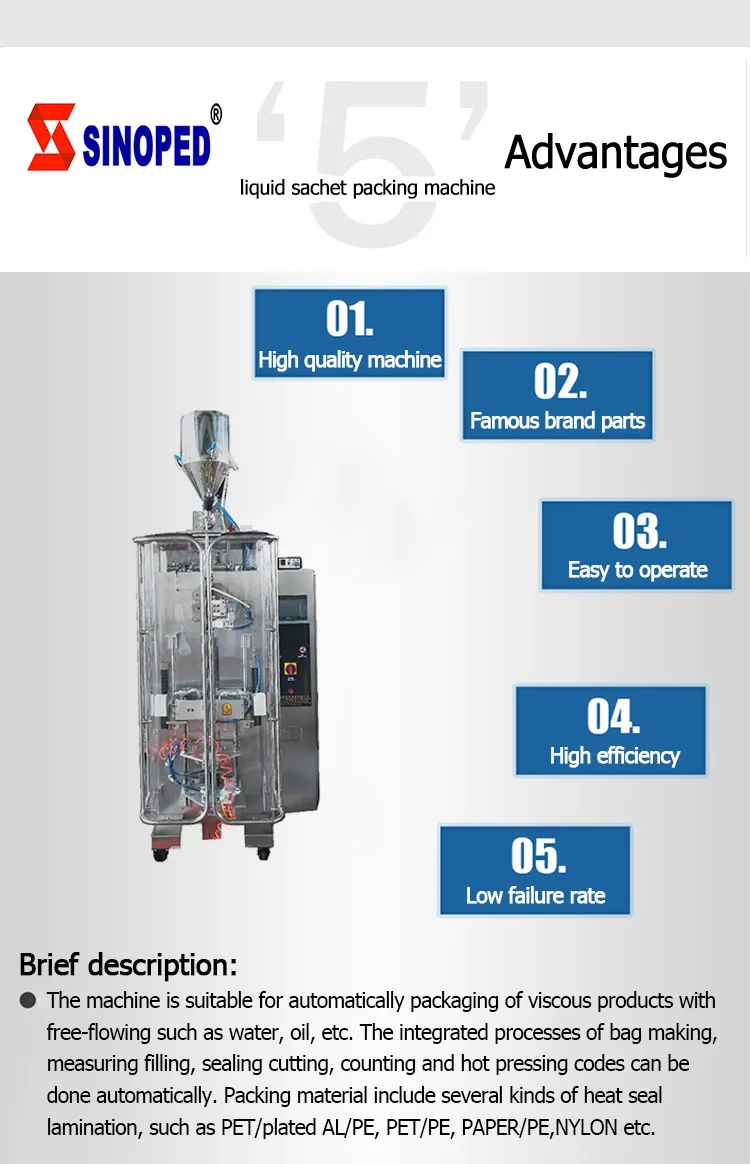

The machine is suitable for automatically packaging of viscous products with free-flowing such as water, oil, etc. The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, PAPER/PE, NYLON etc. Our machine uses a unique gear pump which has a non drip and tail suck back function, this ensures that the sealing margin is very clear without any paste drip on seal to make bag airtight.

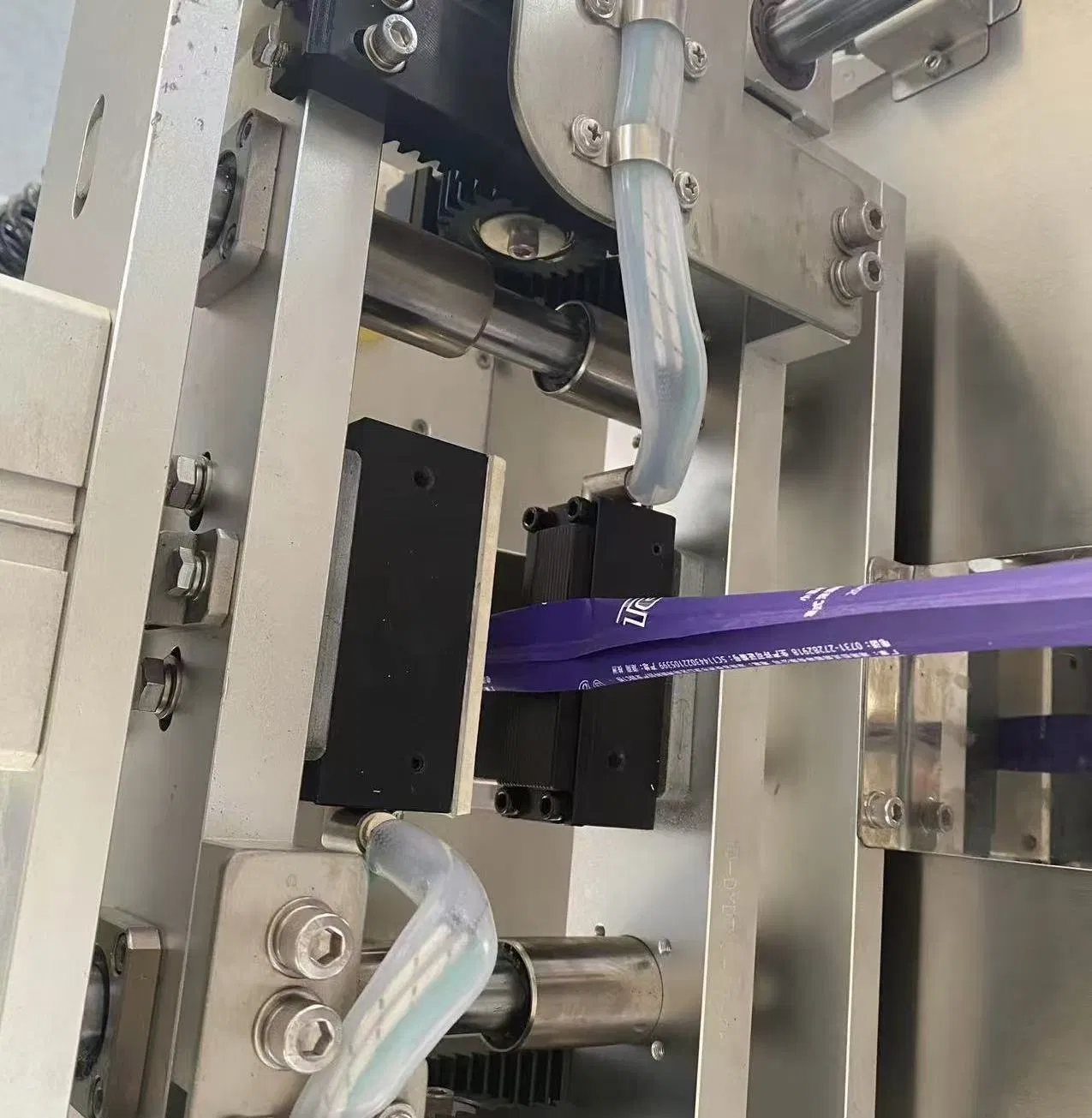

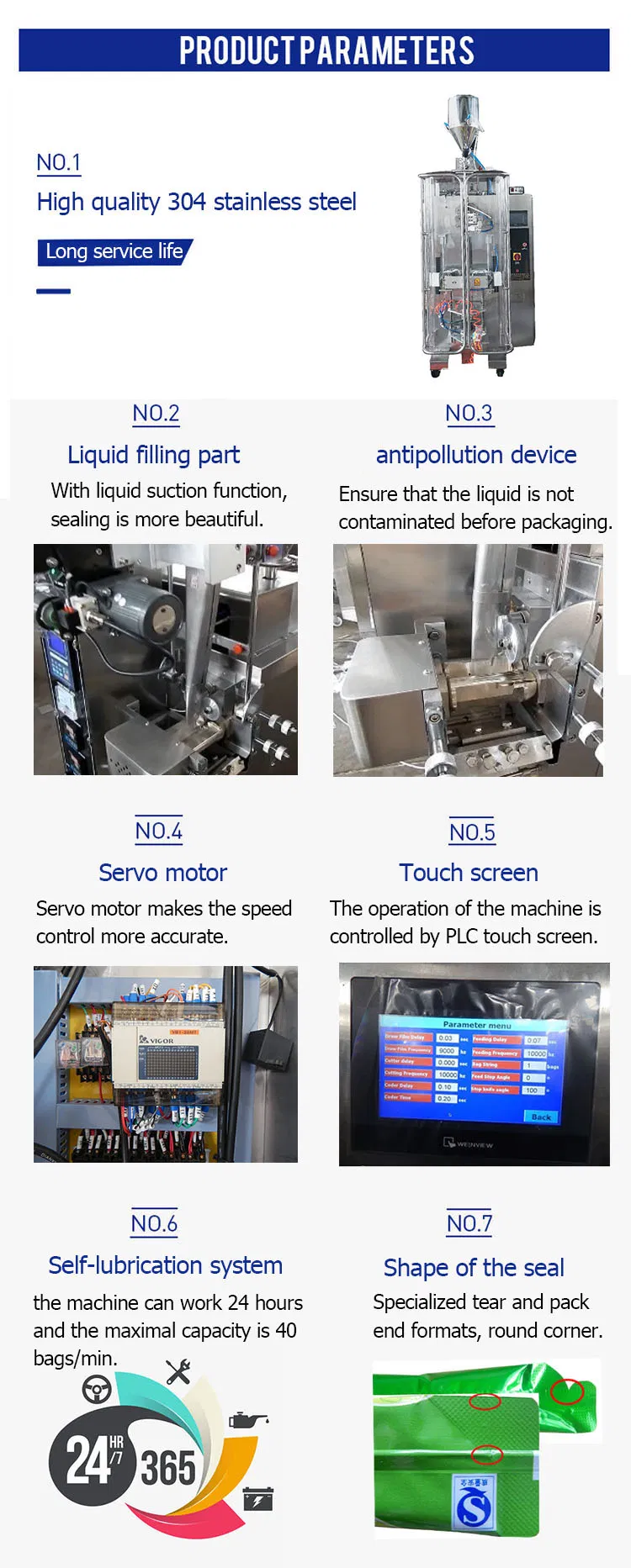

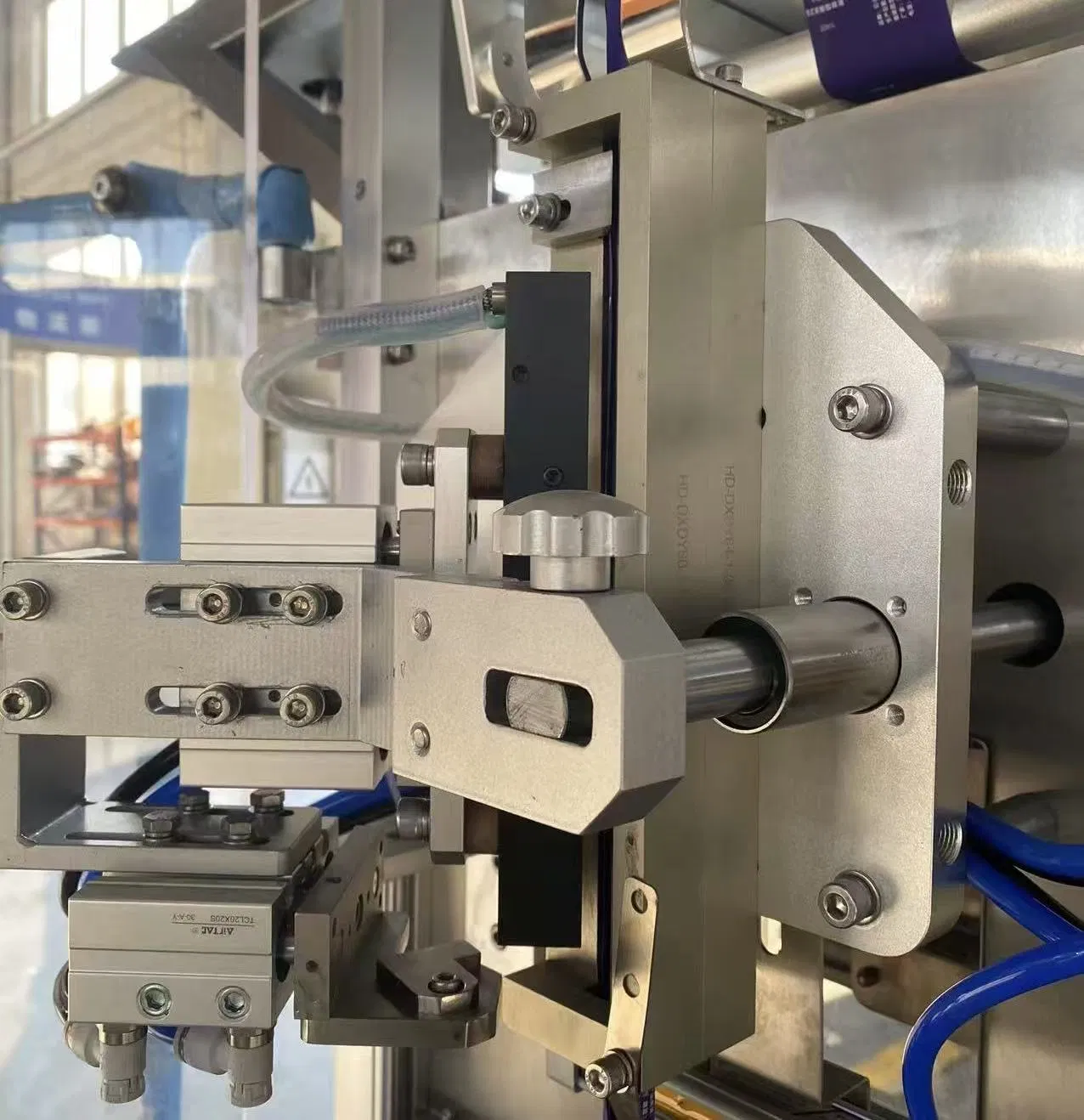

💡 Advanced Technology: The machine uses the latest technology to control speed, bag length and registration. All these functions are easy to setup via the touch screen interface. The vertical sealing section is now guarded so that no accidental mishaps can occur. Draw down bag wheels are now coated in Silicon so that no damage occurs to the film during operation. Every effort has been taken to ensure that this machine is easy to operate and maintain.
📊 Technical Specification
| Parameter |
Detail |
| Model | DXDY-300T |
| Filling Range | 5-40ml |
| Product Speed | 15-40 bags/min |
| Bag Size (mm) | L: 50-180 | W: 25-50 |
| Power | 220V 50HZ 1.7KW |
| Compressed Air | 0.6 Mpa |
| Air Consumption | 2m³/h |
| Weight | 300kg |
| Dimension | 600*790*1900 |

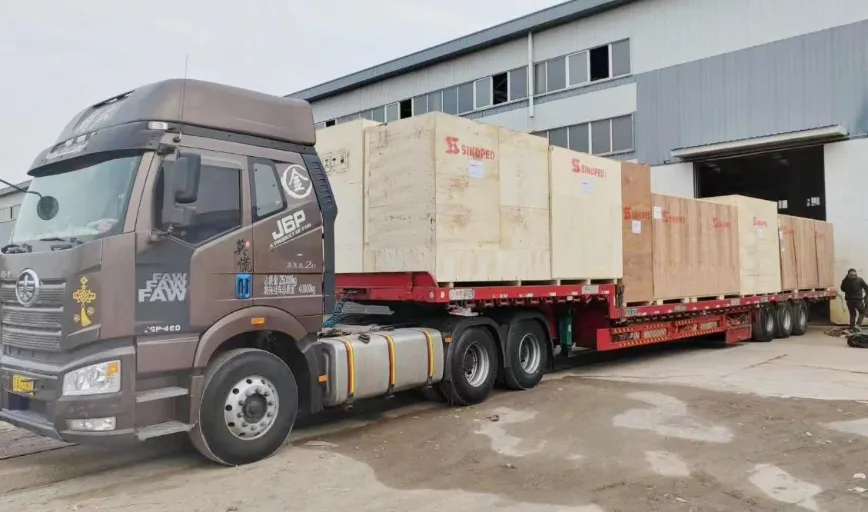

📦 Packing & Delivery
All our machines are professionally packed in reinforced export-standard wooden cases to ensure safe transportation. We have established long-term and stable cooperation with experienced freight forwarders and international express companies. We can provide a complete set of official customs clearance documents as required, including Certificate of Origin, CE, Packing List, Commercial Invoice, etc.
🏢 Production Workshop
❓ Frequently Asked Questions
What payment methods are supported?
We support multiple payment methods including T/T, Letter of Credit (L/C), credit card, and cash to ensure convenience for our global clients.
How do I know if this machine is suitable for my liquid product?
You can send us samples of your product, and we will conduct testing on our machines. We will provide videos and pictures of the process, or show you via a live video chat.
What kind of after-sales service do you provide?
We offer extended warranty services and 24-hour online technical support. Our technical team is available to assist with installation and troubleshooting one-on-one.
Is the machine resistant to corrosion?
Yes, the machine cabinet and contact parts are made of 304 Stainless Steel, specifically chosen for its strength and resistance to corrosion in various environments.
How is the bag sealing quality ensured?
Our machine features a unique gear pump with a non-drip and tail suck-back function. This ensures the sealing margins are clean and airtight, preventing any paste or liquid from dripping onto the seal.
Can the machine handle different bag sizes?
Yes, the bag length can be adjusted via the touchscreen interface. It supports bag lengths from 50mm to 180mm and widths from 25mm to 50mm.
