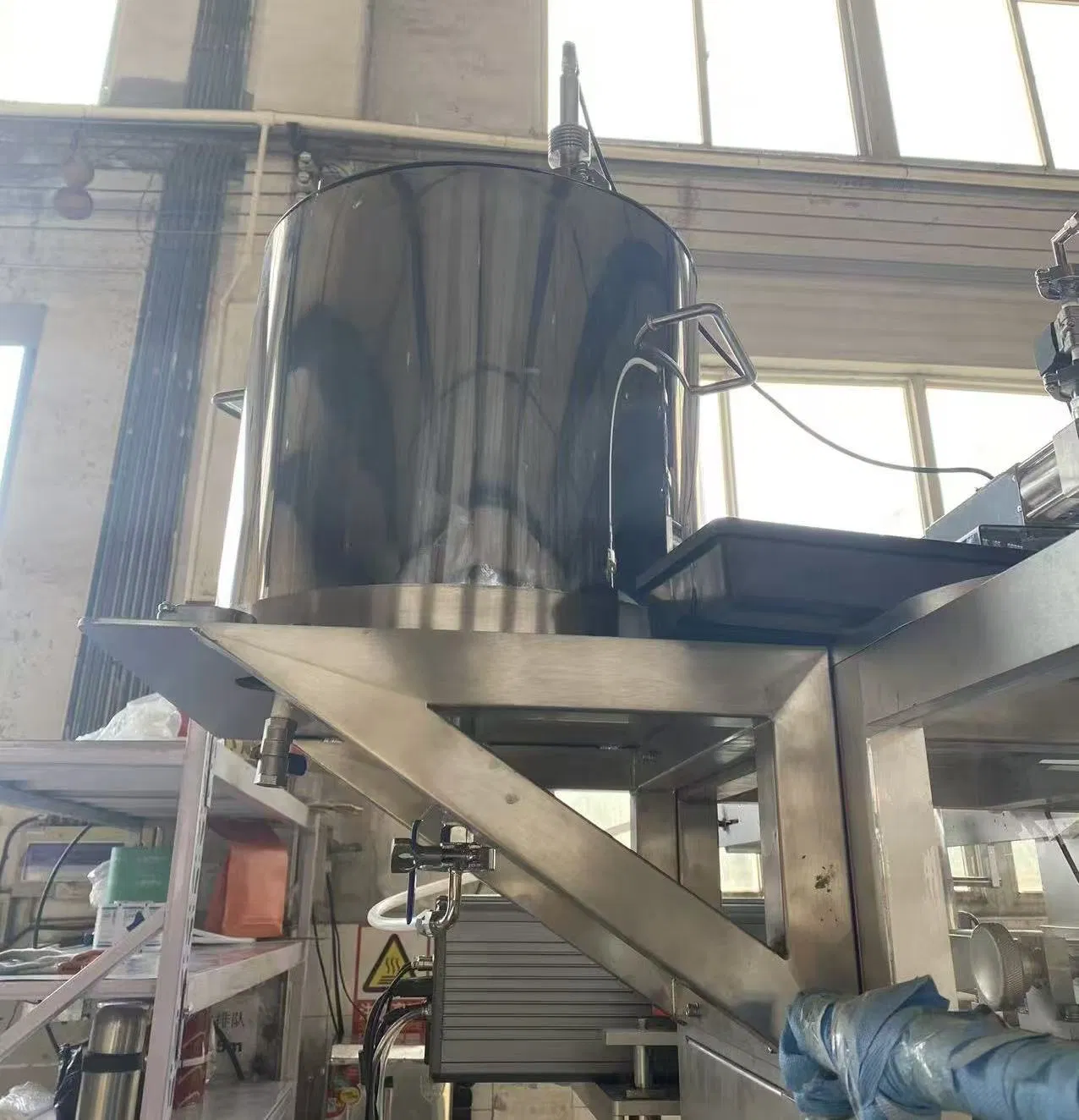

Dxdy-300t Automatic Special Shaped, Side Seal Liquid Stick Bag Packing Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

i

Basic Information

Model NO.
DXDY-300T
Automatic Grade
Automatic
Application
Cosmetics, Drinks, Dairy Products, Oil, Snack, Honey
Type
Sachet Packing Machine
Forming Species
Bag Moulding
Forming Function
Filling, Seal, Packing
Driven Type
Pneumatic
Material Type
Liquid, Paste
Packaging Material
Plastic, Paper, Pet/Plated Al/PE, Pet/PE, Paper/PE
Machine Cabinet
304 Stainless Steel
Certification
CE, ISO 9001
Filling Range
5-40ml
!

Product Description

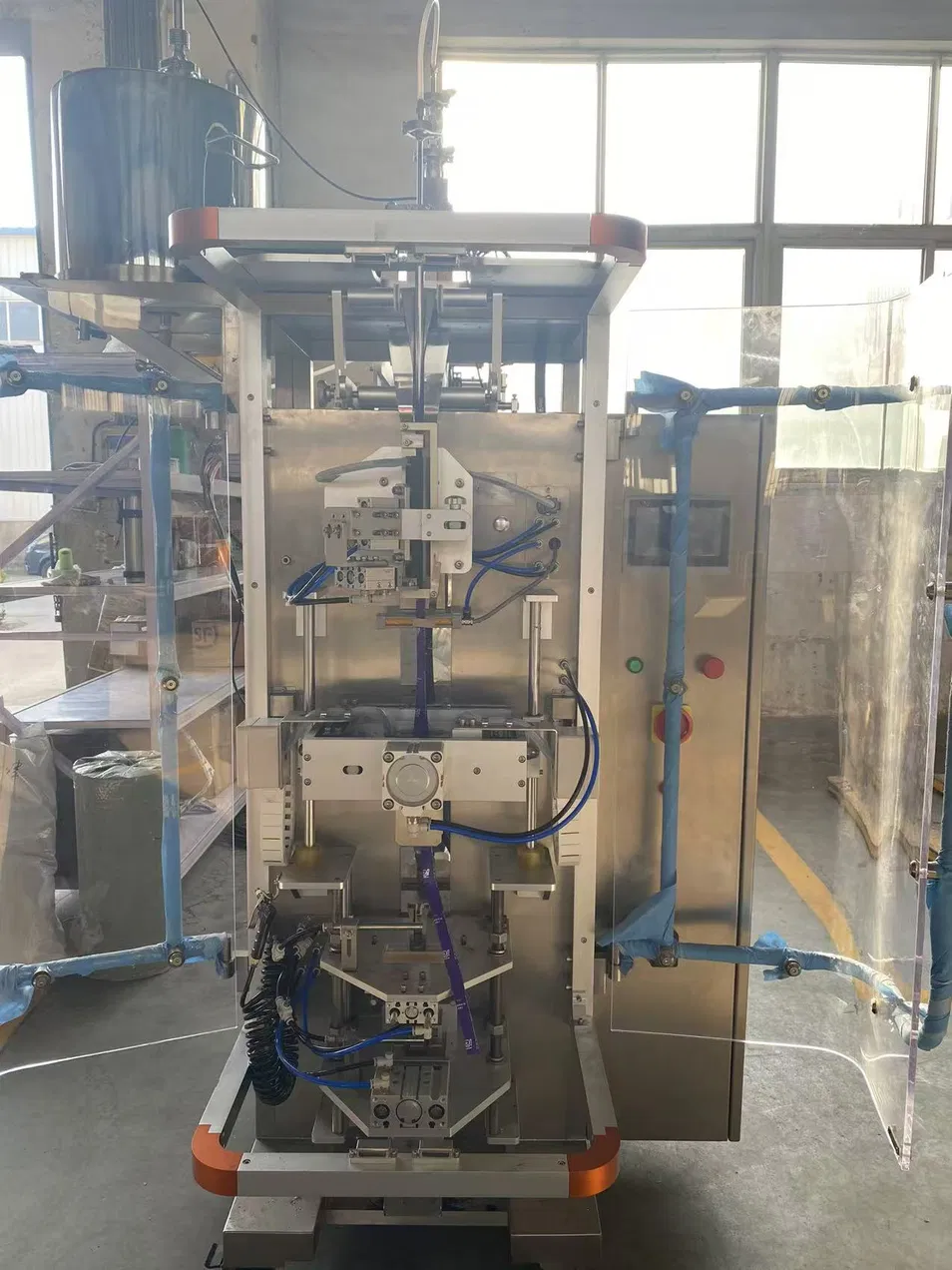

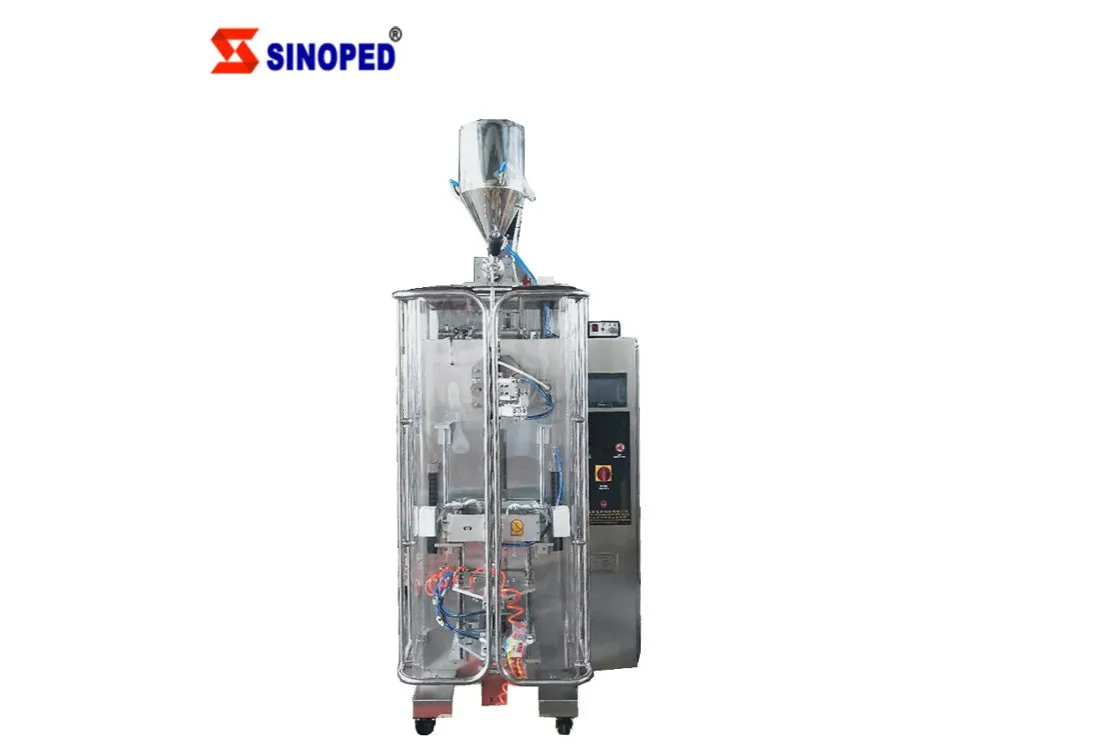

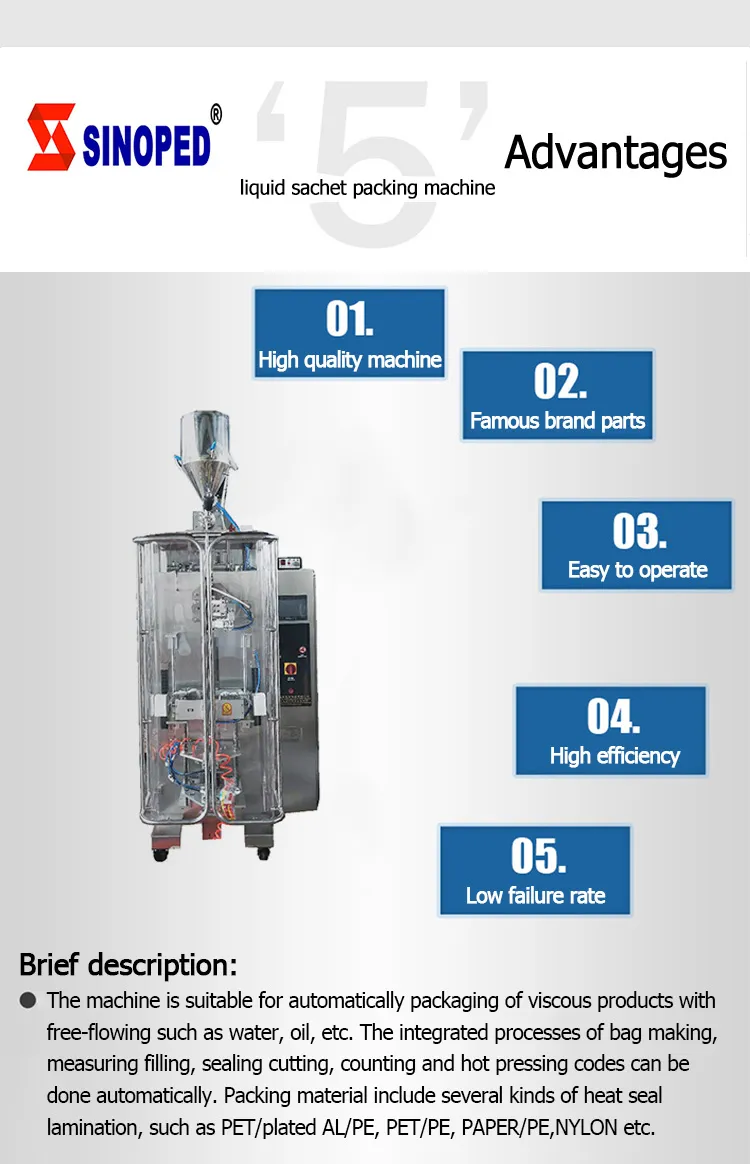

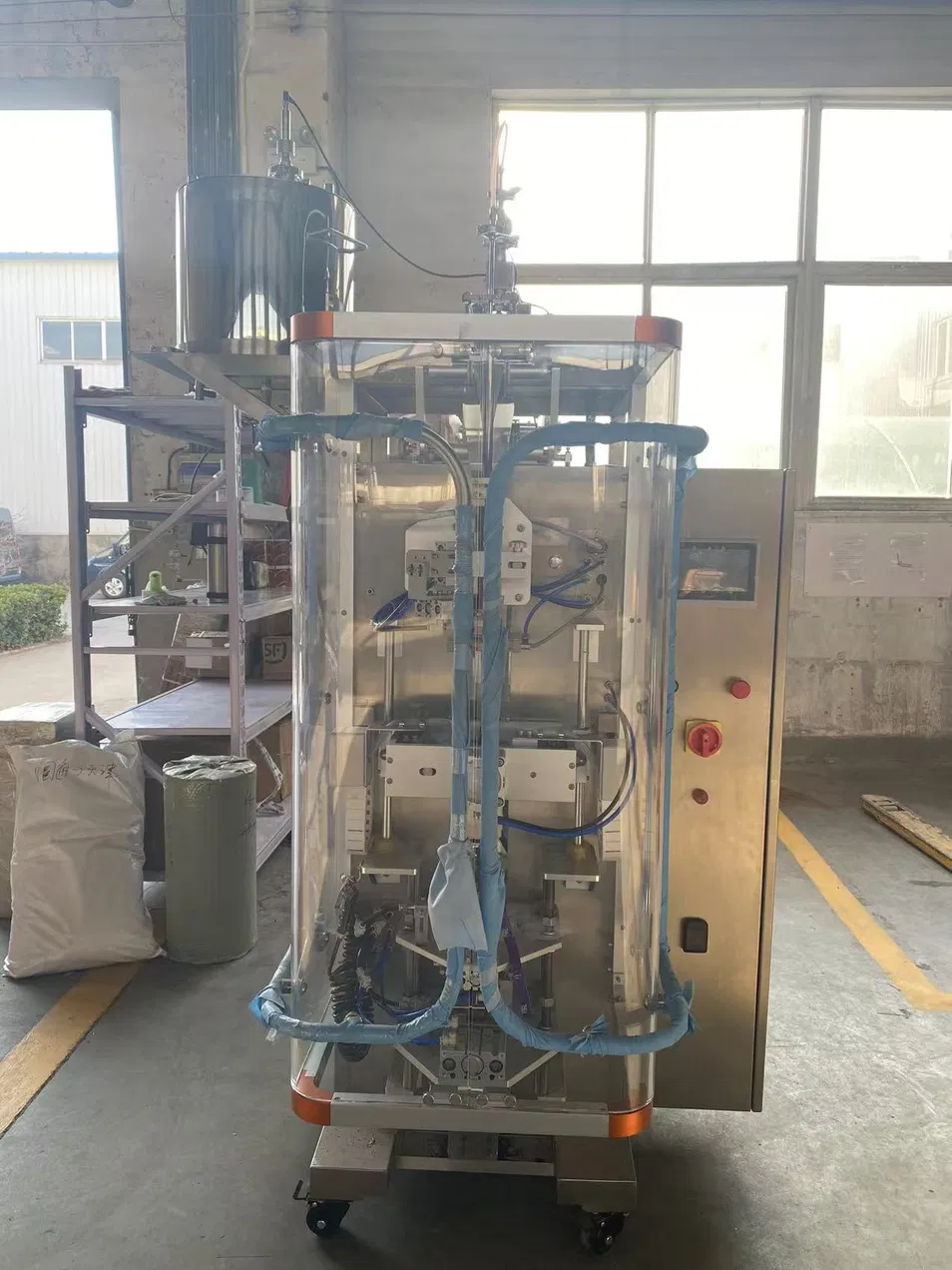

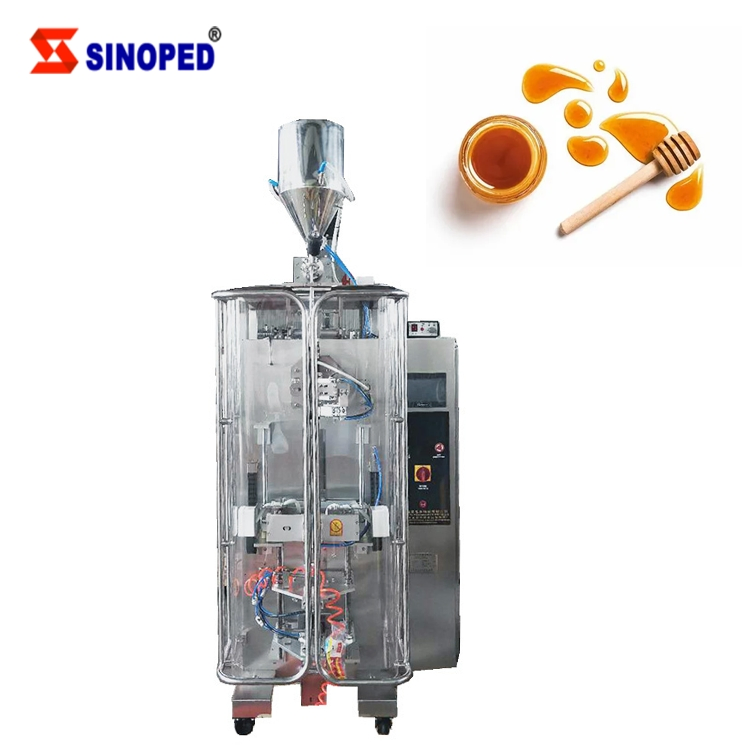

DXDY-300T Sachet Liquid Packing Machine
The machine is suitable for automatically packaging of viscous products with free-flowing such as water, oil, etc. The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. This machine uses a unique gear pump which has a non-drip and tail suck-back function, ensuring the sealing margin is clear without any paste drip to make the bag airtight.

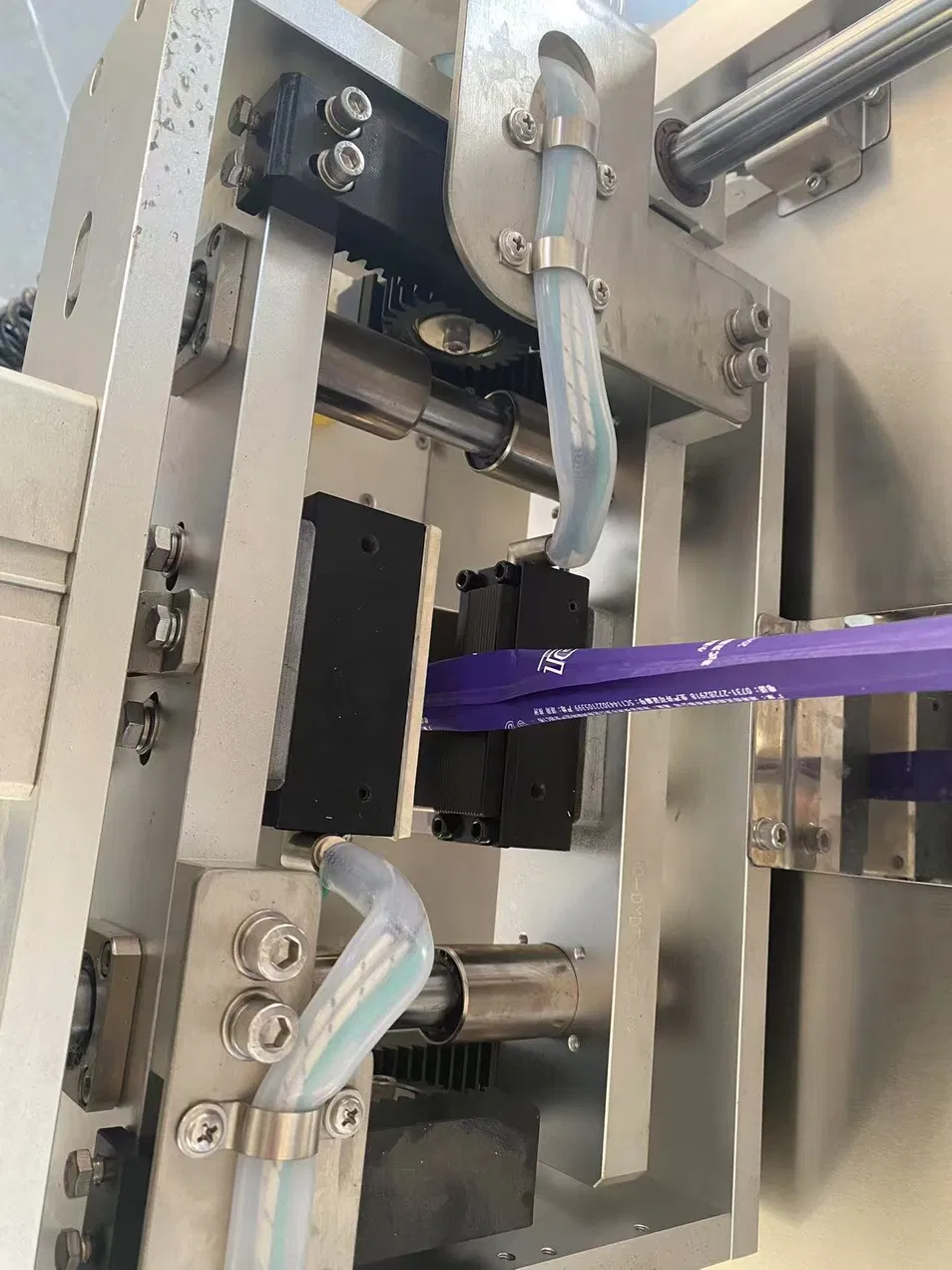

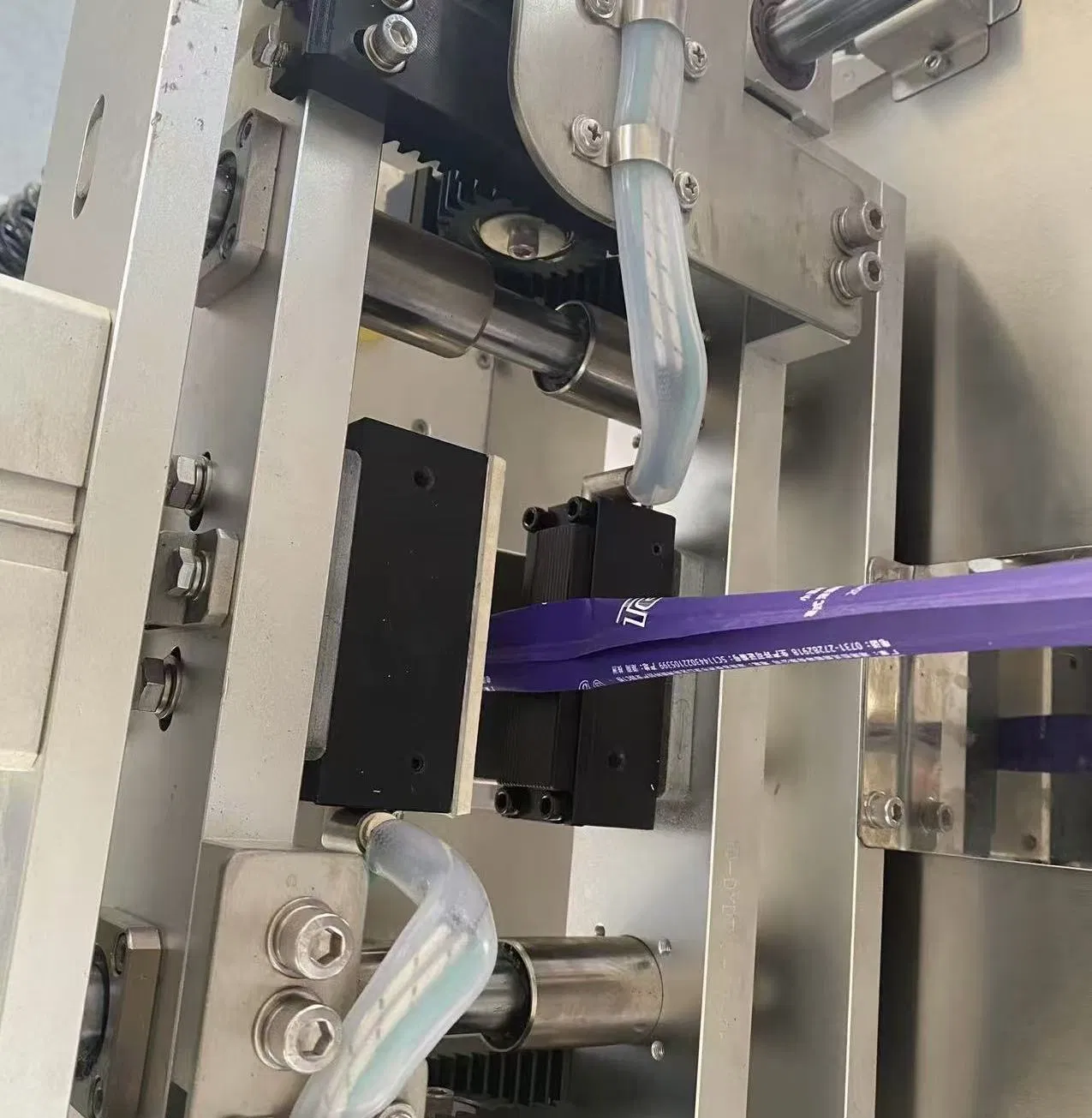

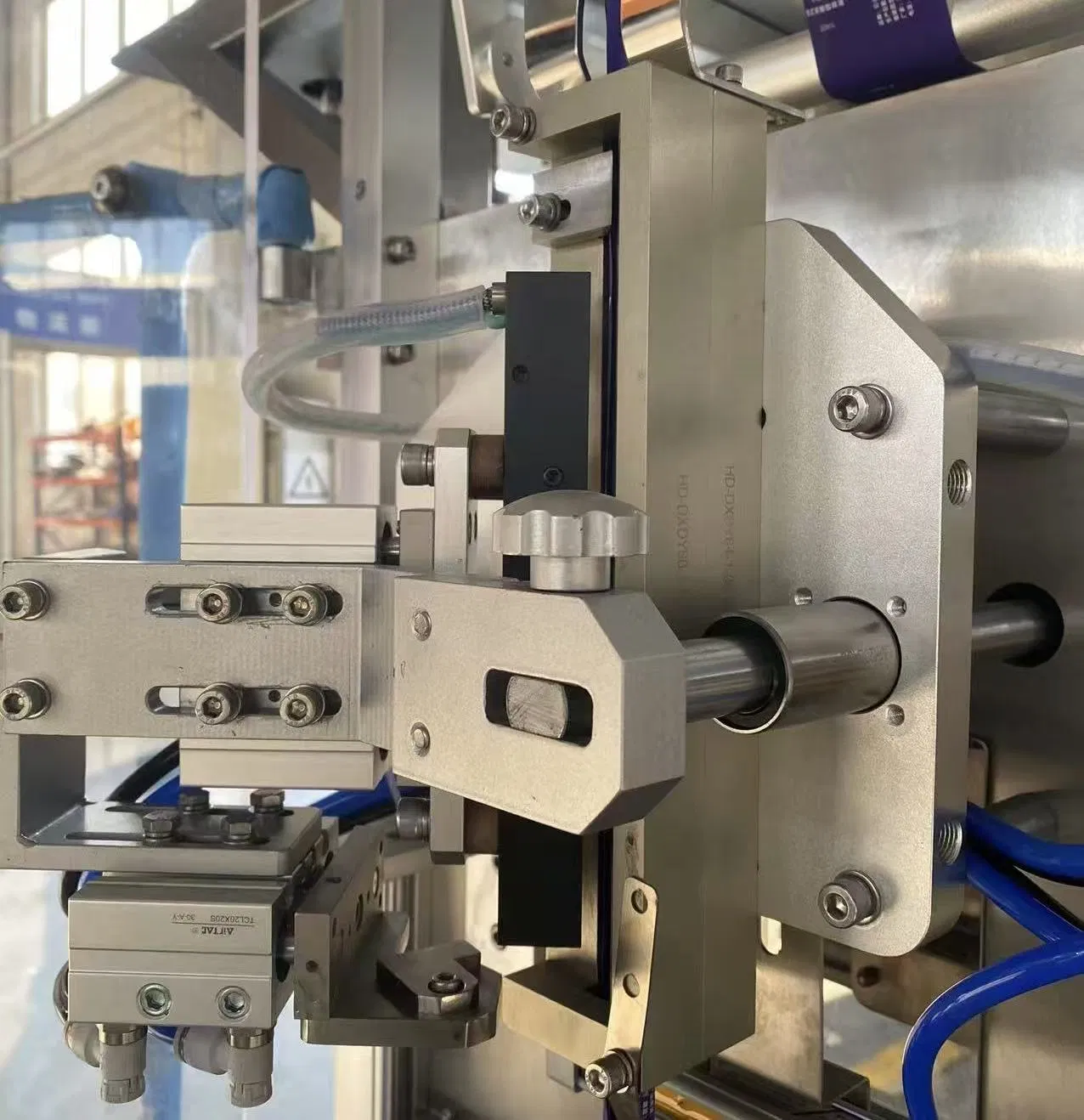

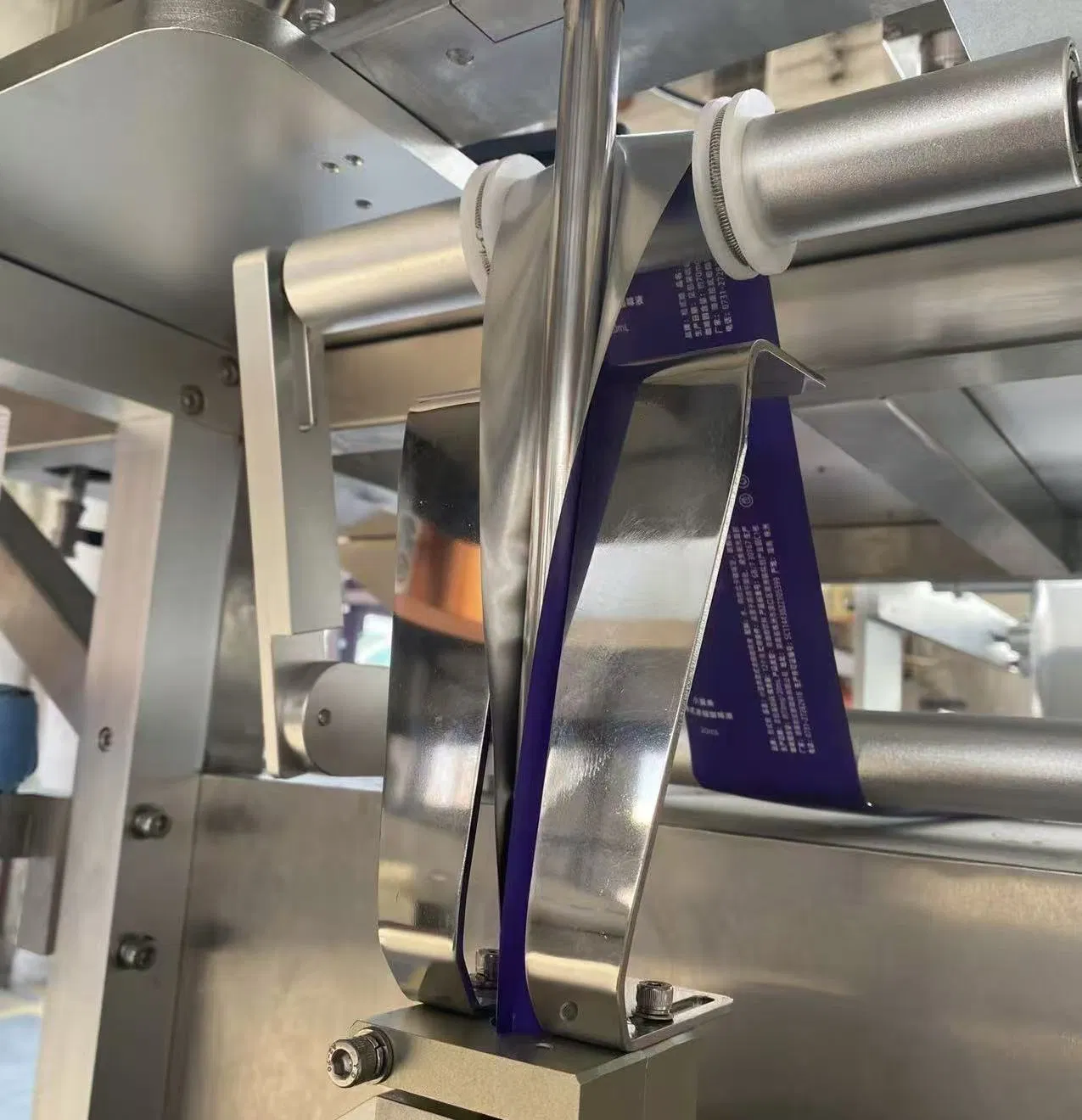

Utilizing the latest technology to control speed and bag length, all functions are easily adjustable via a user-friendly touch screen interface. The vertical sealing section is guarded for safety, and draw-down bag wheels are coated in silicon to prevent film damage. All materials are selected for corrosion resistance and structural strength.
S

Technical Specification

ModelDXDY-300T
Filling Range5-40ml
Product Speed15-40 bags/min
Bag Size (mm)L: 50-180, W: 25-50
Power220V 50HZ 1.7KW
Compressed Air0.6 Mpa
Air Consumption2m³/h
Weight300kg
Dimension (mm)600 * 790 * 1900
D

Packing & Delivery

All machines are professionally packed in reinforced export-standard wooden cases to ensure safe transportation. We provide a complete set of official customs clearance documents as required, including Certificate of Origin, CE, Packing List, and Commercial Invoice.
P

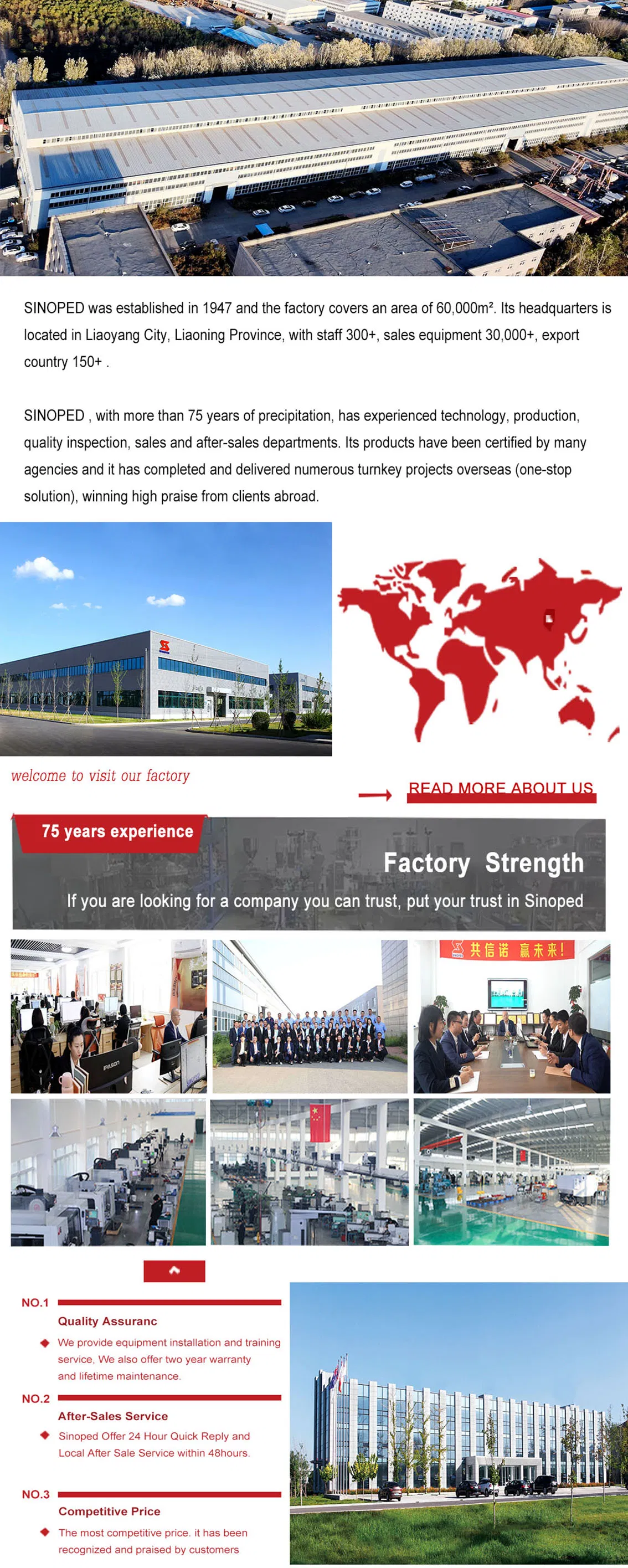

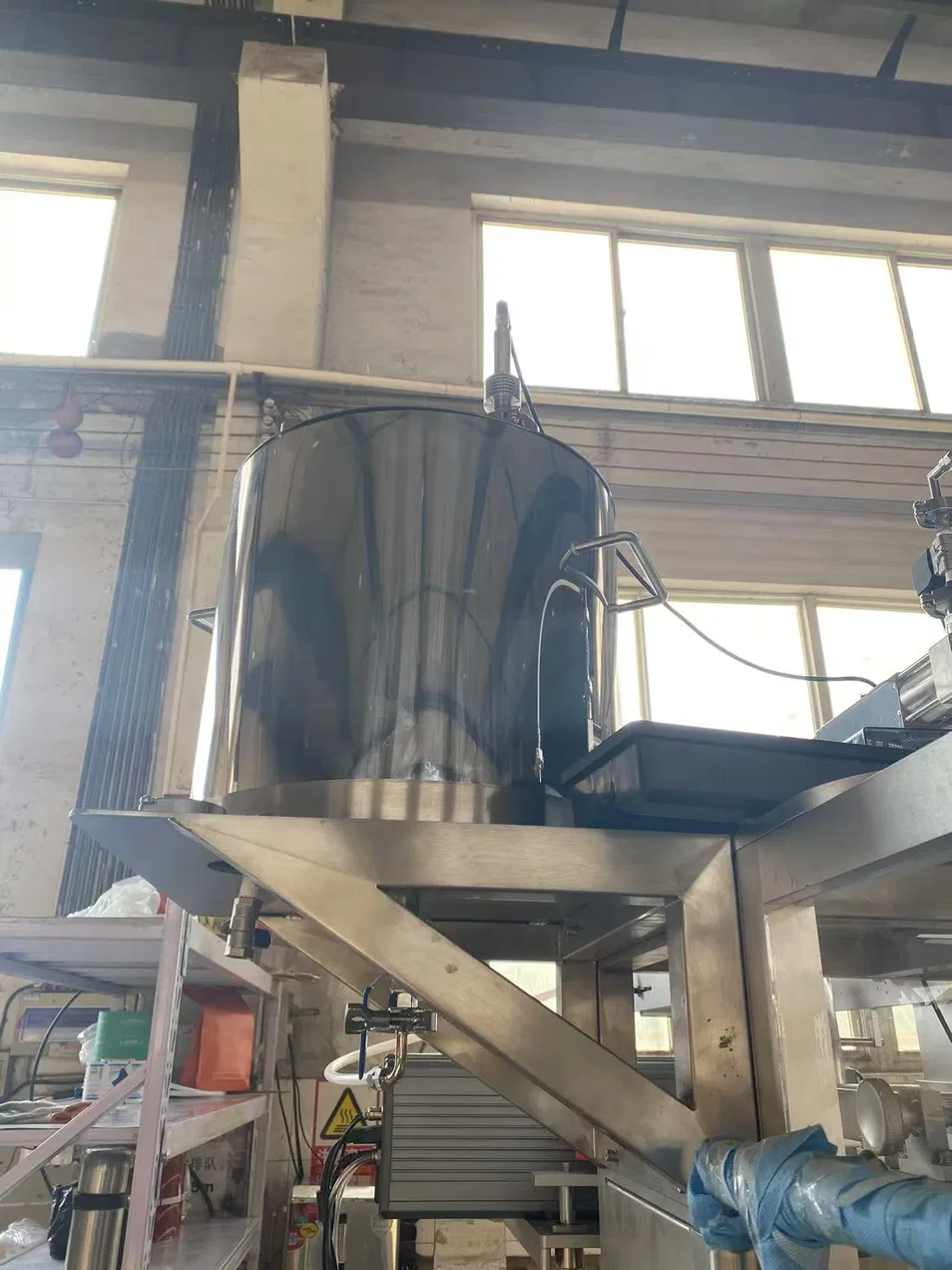

Factory Display

?

Frequently Asked Questions

Q1: What payment methods do you accept?
We accept various payment methods including T/T, Letter of Credit (L/C), and credit card payments to ensure convenience for our global clients.
Q2: Do you have local agents or service providers?
Yes, we have a network of agents, dealers, and after-sales service providers in many countries. Please contact us to find the nearest representative in your region.
Q3: What kind of after-sales support is provided?
We offer extended warranty services and 24-hour one-on-one online technical support. Local after-sales assistance is also available in many locations.
Q4: How can I verify if this machine is suitable for my specific product?
You can send us samples of your product, and we will conduct testing on our machines. We will provide videos and photos of the results, or demonstrate via live video chat.
Q5: How is the security of my funds guaranteed?
With a long history in international trade and customers worldwide, we prioritize financial security. You can use Trade Assurance payment options for maximum protection.
Q6: What materials can the machine handle for packaging?

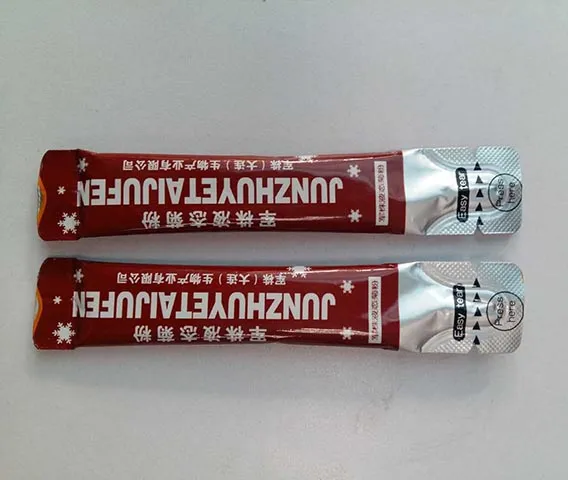

The machine is compatible with several heat-seal laminations, including PET/plated AL/PE, PET/PE, PAPER/PE, and NYLON.
