| Vacuum glass/lifter sucker: |
| We are specialized in high quality Vacuum glass sucker, and all the pneumatic components are imported from famous brands, such as Japan (SMC) or USA (Thomas). This product is widely used in processing fields like glass, steel, wood, machinery and so on. Our team has studied suckers for over 10 years and can produce different devices based on rich experience to meet customer needs. This device is purchased by many well-known companies and sold abroad to Europe, USA, the Middle East, Russia, and Southeast Asia. It has a shelf life of 18 months with favorable pricing and perfect after-sale service. |

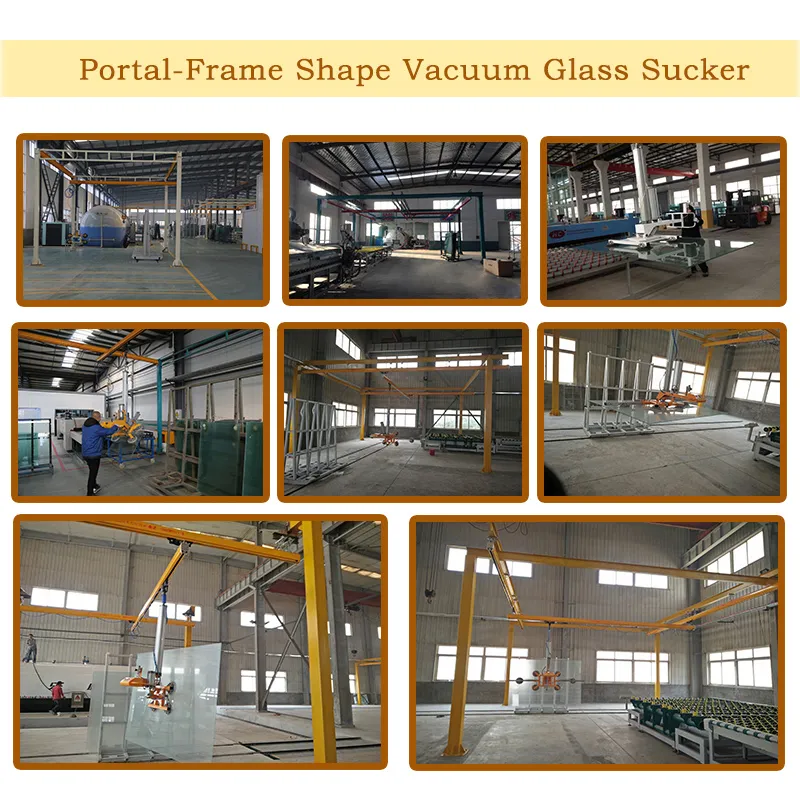

| Portal-Frame Shape Vacuum Glass Sucker | |
| Model: RSY-LMJ350-4, 450-4 | Operating weight: 350, 450 KG |
| Work range: Rotate 360°; turnover | Vertical lifting range: 500mm (customized) |
| Control system: SMC (Japan) | Operating air source: 0.6-0.8Mpa |
| Regular size: Length 6000, width 6000 (customized) | Sucker No.: 4/6 |
| Sucker material: White silica gel, suitable temperature: -40° to 90°; leave no trace | |
| Advantage: Larger coverage, power equality, suitable for large glass and easy to use. | |
| Function: Mainly used in laminated glass production lines, tempered glass, hollow glass, glass edge grinding machines, loading and unloading glass etc. | |

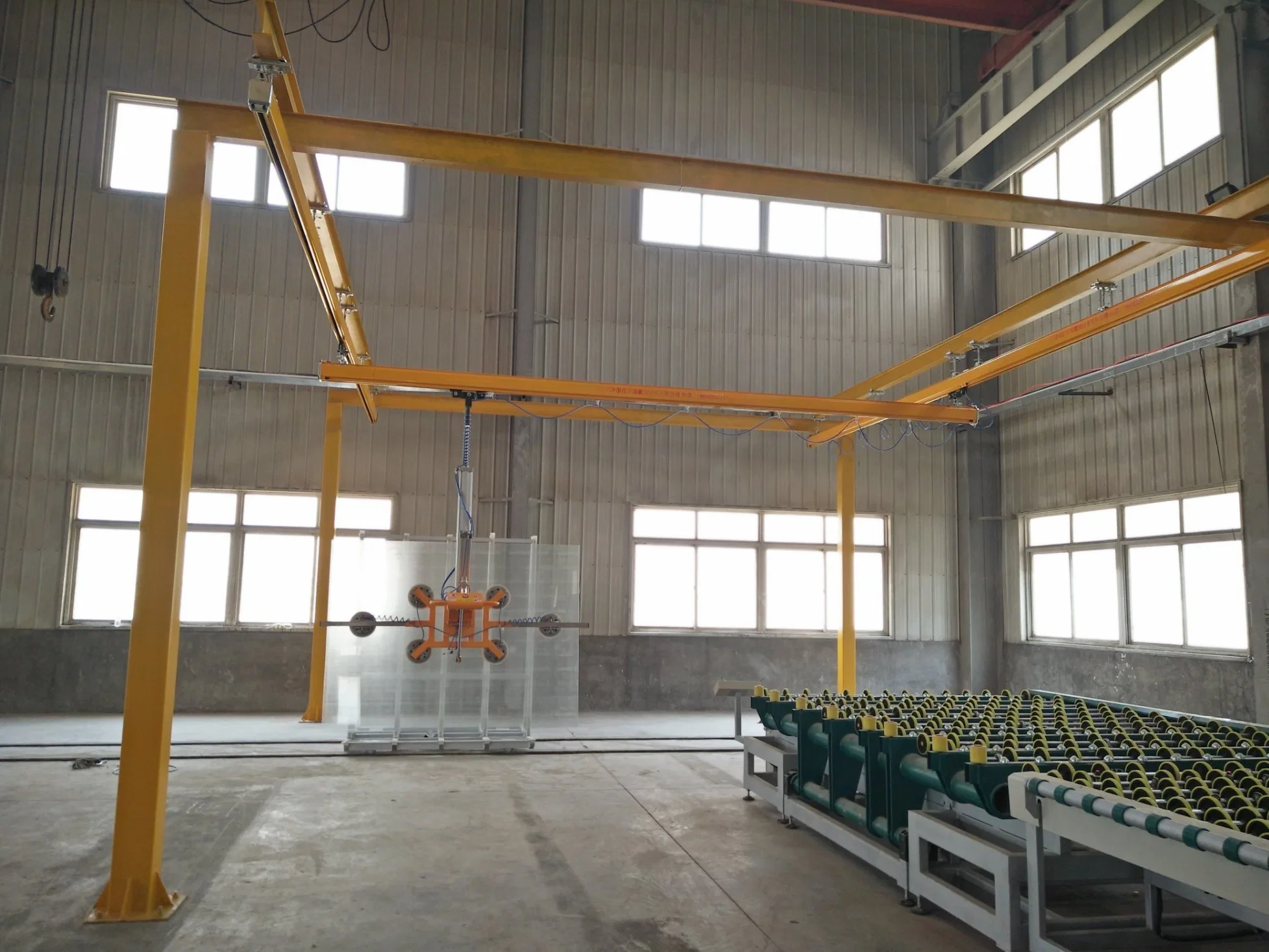

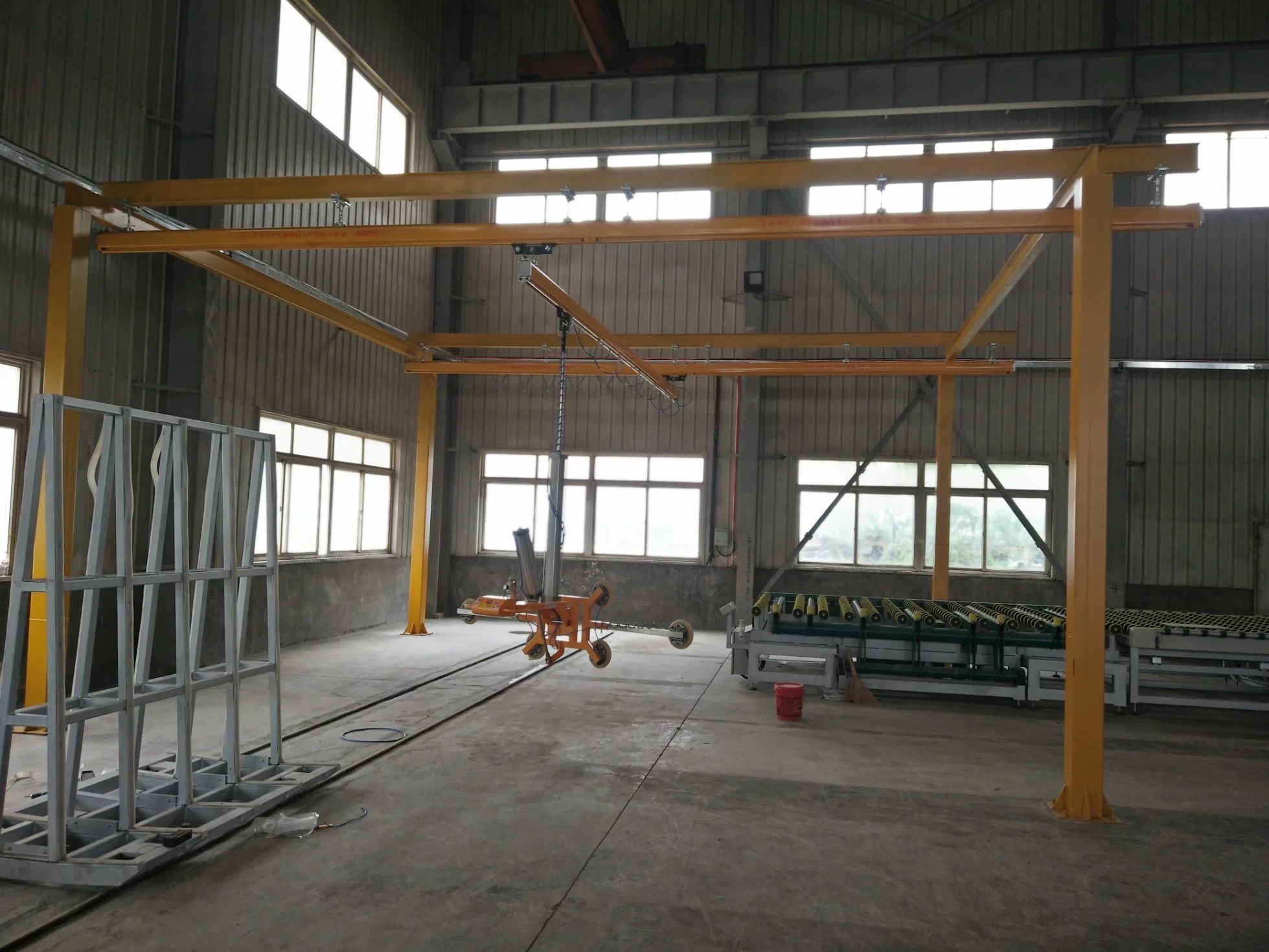

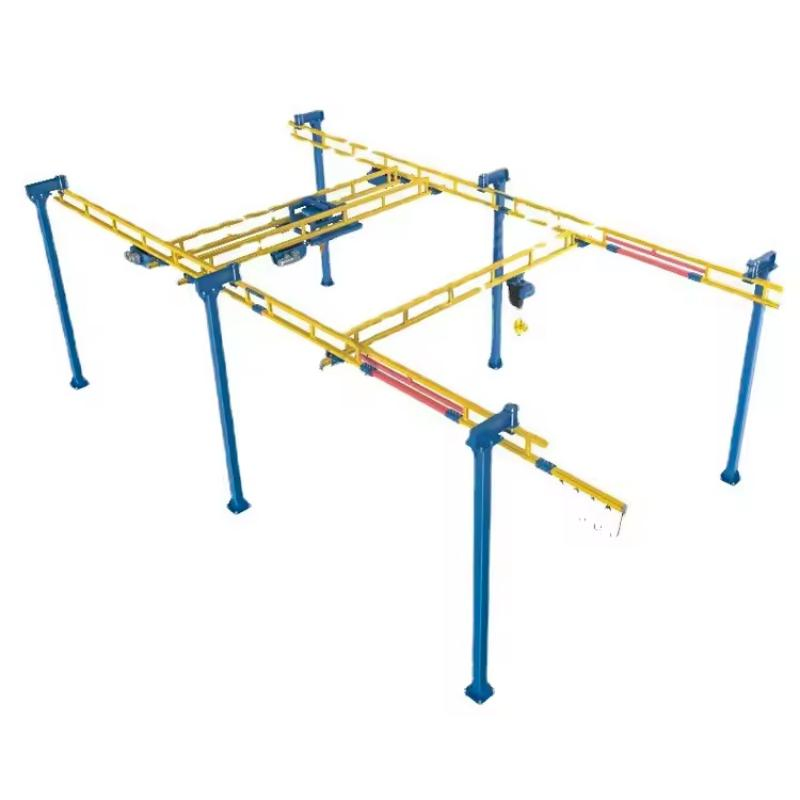

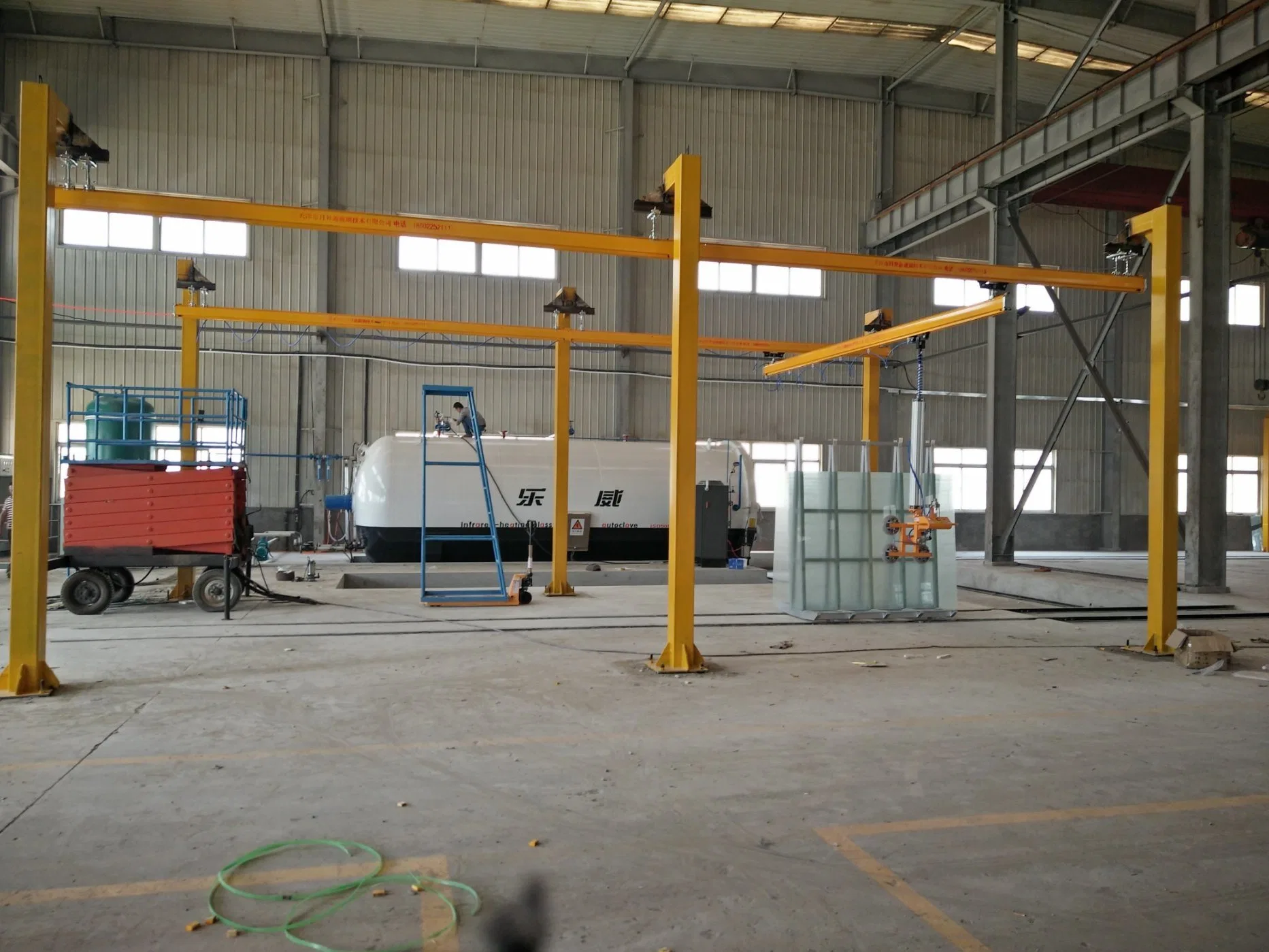

The outlook resembles a porch; the vacuum lifter runs along the travelling beam of the porch, while the travelling beam runs along the main beam of the frame.
It is widely used in insulating glass lines, lamination lines, vertical CNC, tempering lines, and cutting lines, offering advantages like space-saving, stable operation, manpower-saving, and large area coverage.

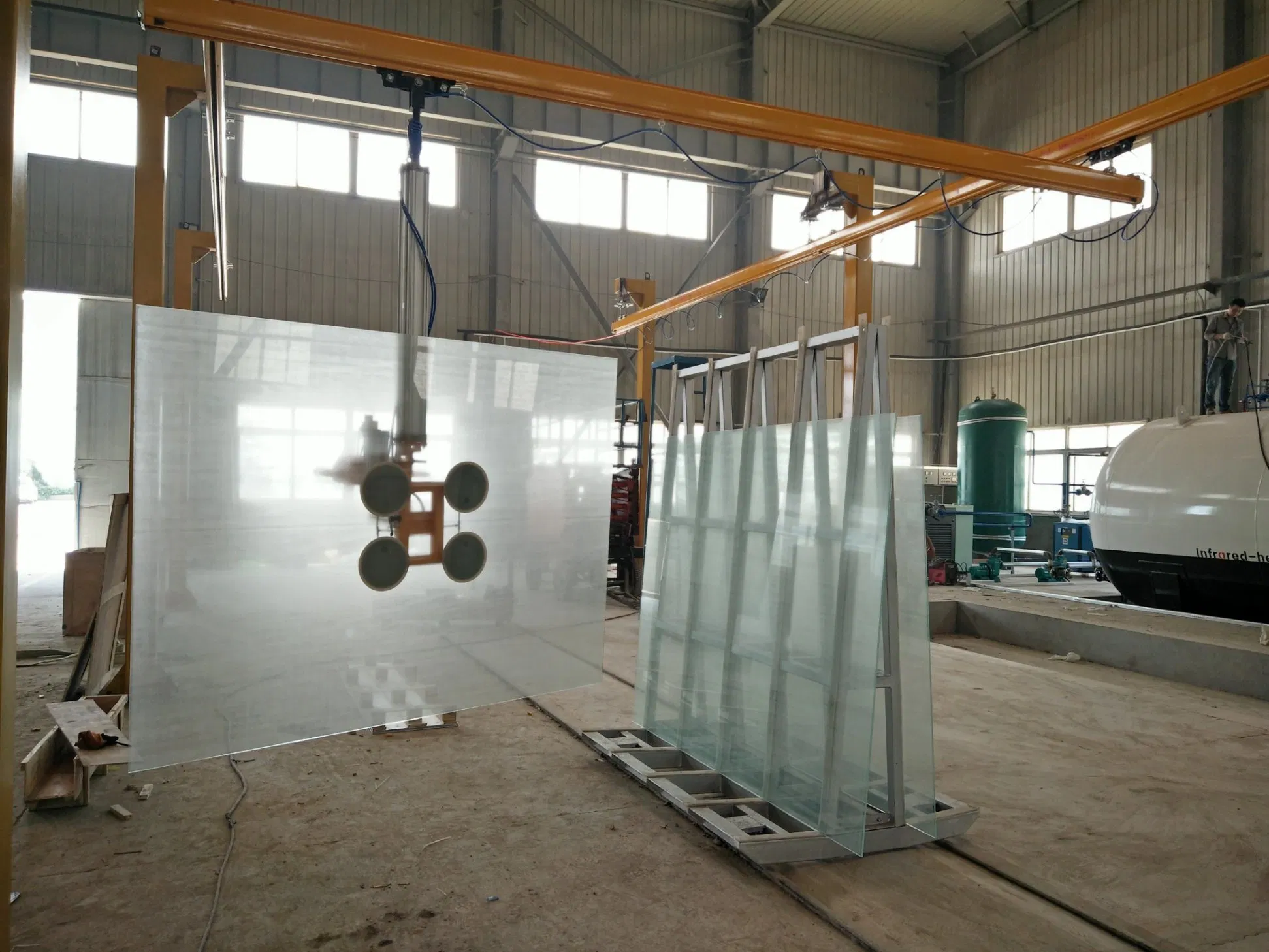

The Porch-Shaped Overhead Crane takes your glass sheet to the production line and the exact position required. It is equipped with a vacuum lifter to operate your glass sheet up and down, rotate, and turn over, making it very easy for one worker to operate.
Vacuum glass lifters are essential for lifting glass sheets in factories and for outdoor glass wall installations. Safety and efficiency are the primary reasons for using this equipment. It reduces the personnel required to move materials and minimizes injury risks. Glasses are moved safely and stacked without extra personnel in the unloading area.
Our vacuum glass lifters utilize Thomas brand (USA) vacuum pumps and Japan SMC control systems. The vacuum pads are made of special silicone, resistant to cracks at -20 degrees and high temperatures up to 90 degrees.
Emergency Protection: When power is suddenly cut off or an air pipe bursts, the control system automatically locks the vacuum to ensure the glass will not fall for 10-15 minutes.
