pH20 5-Axis 3D Coordinate Measuring System with Large Range

1 / 5

pH20 5-Axis 3D Coordinate Measuring System with Large Range

Customization:	Available
After-sales Service:	Online/Customer Side
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

NXA

Probe Seat

pH20, pH10mplus, pH10tplus, Sp80, Revo

Probe

Tp20, Sp20, Tp200, Camera, Laser, Revo-2

Accuracy

2.2~6.0+L/300um

Structure

Gantry Type

Material (Z/Beam)

Granite

Platform Material

Granite

Capacity

100 set/Year

Product Overview

PH20 5-axis 3D Coordinate Measuring System with Large Range

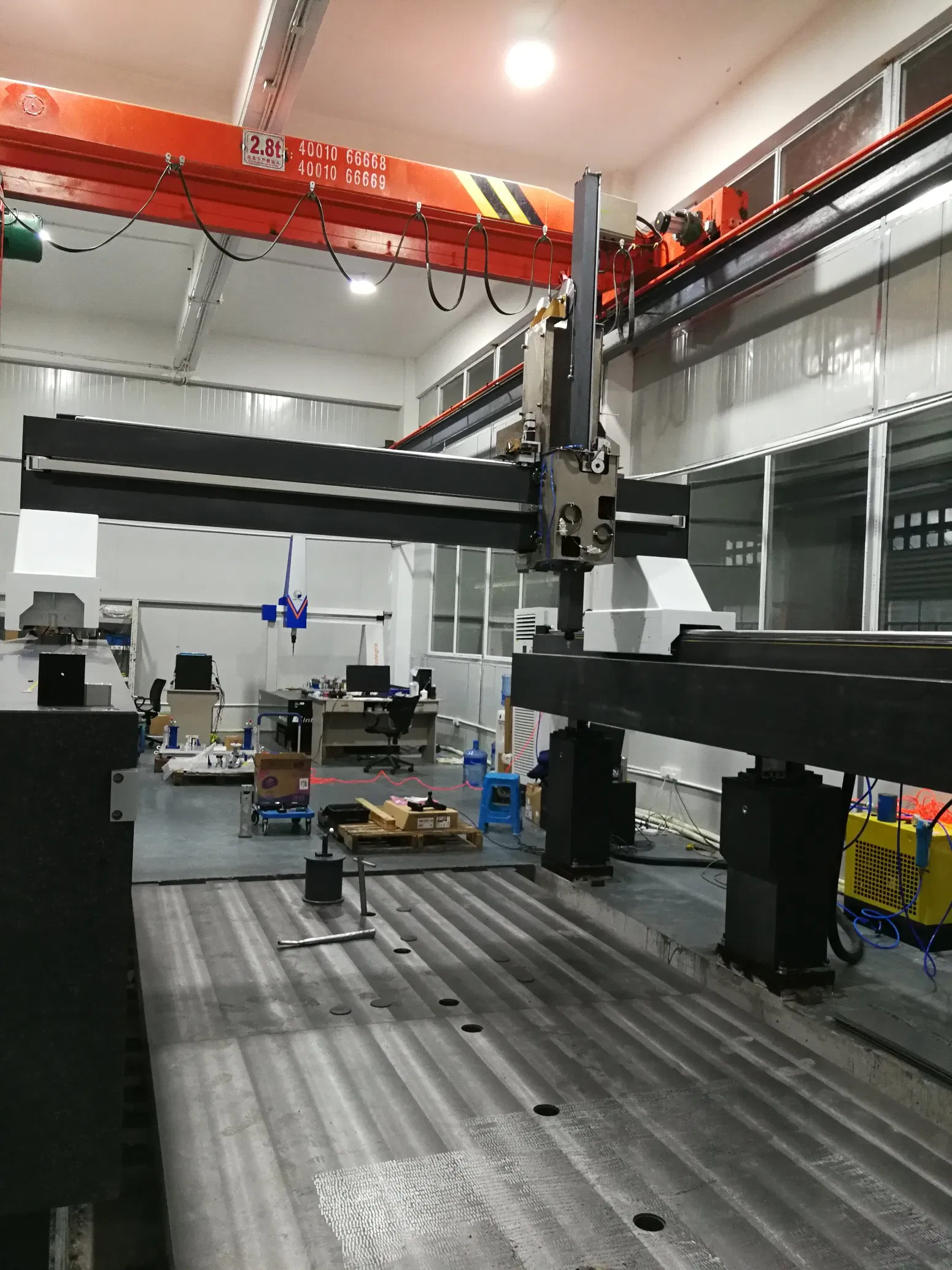

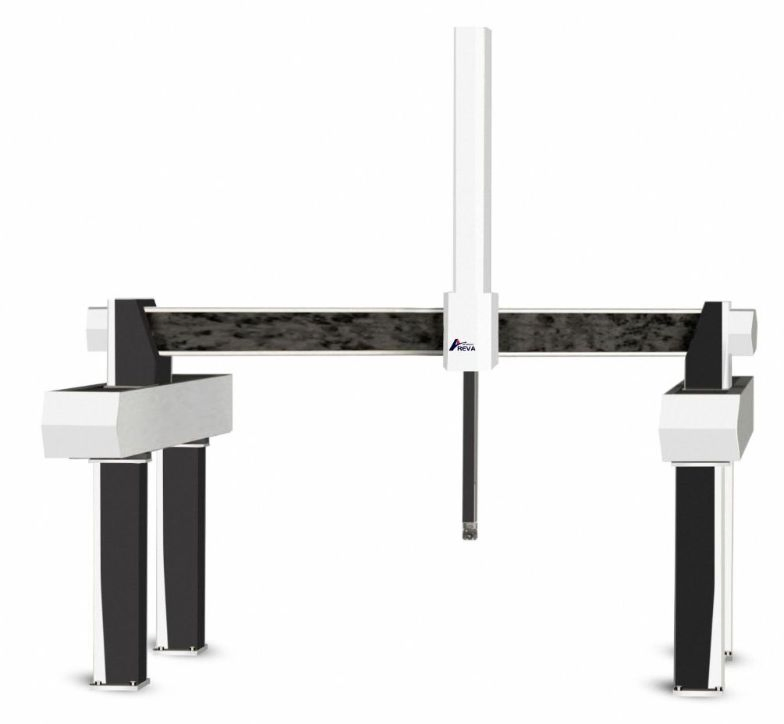

The NXA series gantry type 3D coordinate measuring machine is engineered for the precise inspection of massive components used in automotive, aviation, marine vessels, and large-scale mold manufacturing industries.

Featuring an advanced mechanical structure, the NXA series delivers high accuracy, stability, and high rigidity. Its reliable performance ensures outstanding measurement results even when deployed in demanding workshop environments.

CMM Characteristics

Ceramic Components: X and Z axes are constructed from ceramic material—rust resistant, high rigidity, and low thermal expansion for superior accuracy.
Granite Workbench: High-precision granite measuring base ensures instrument stability.
RENISHAW Grid Ruler: High-resolution open grid scales guarantee long-term precision.

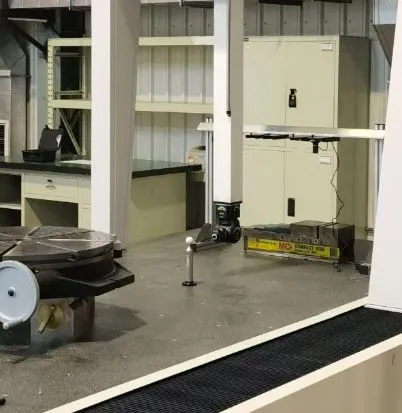

Air Flotation: Embracing air flotation devices provide smooth, frictionless movement.
Shockproof System: Dual shockproof design minimizes environmental vibration impact.
Self-Correcting Drive: Friction-type system ensures stability during high-speed movements.

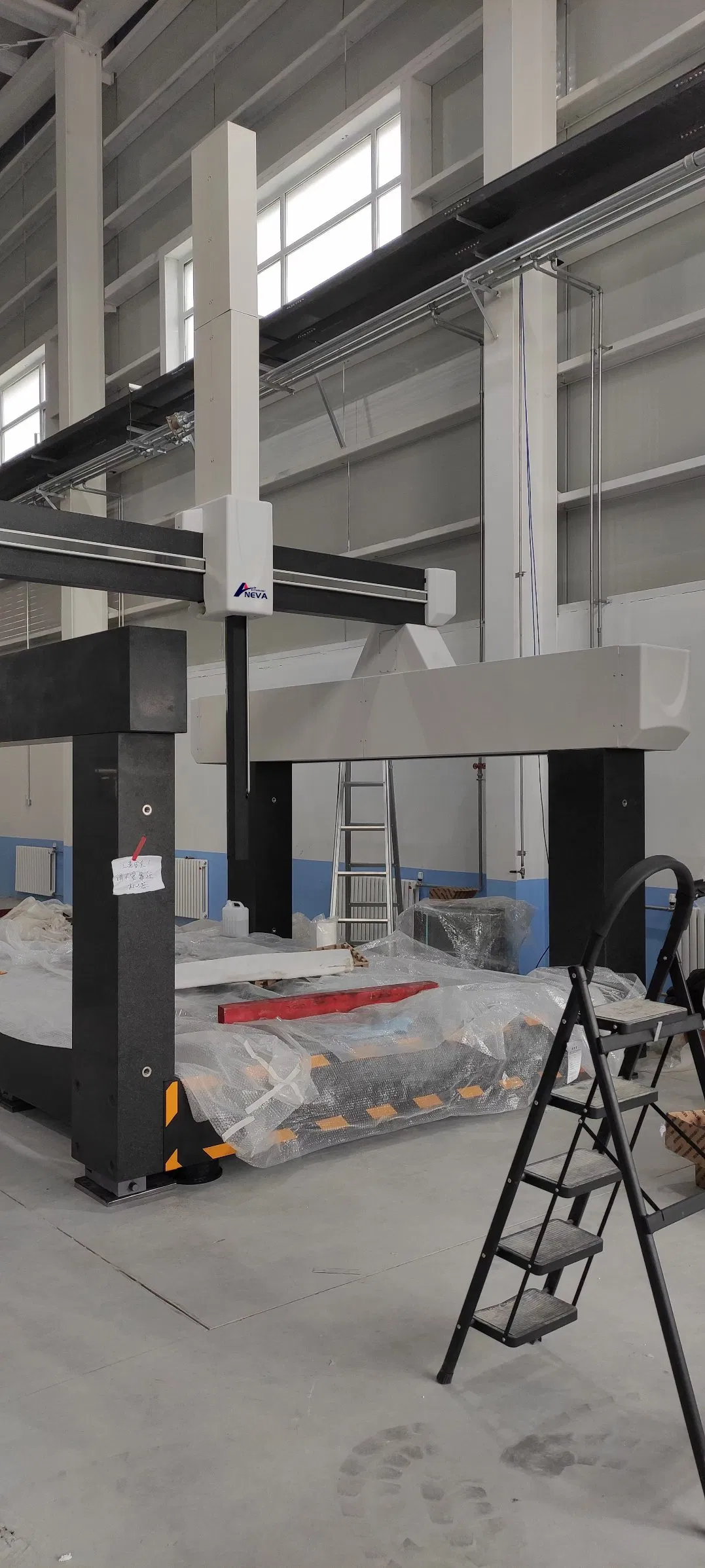

Floor-to-Ceiling Gantry: Minimizes measurement size limitations for extra-large parts.

Quality Control & Precision Calibration

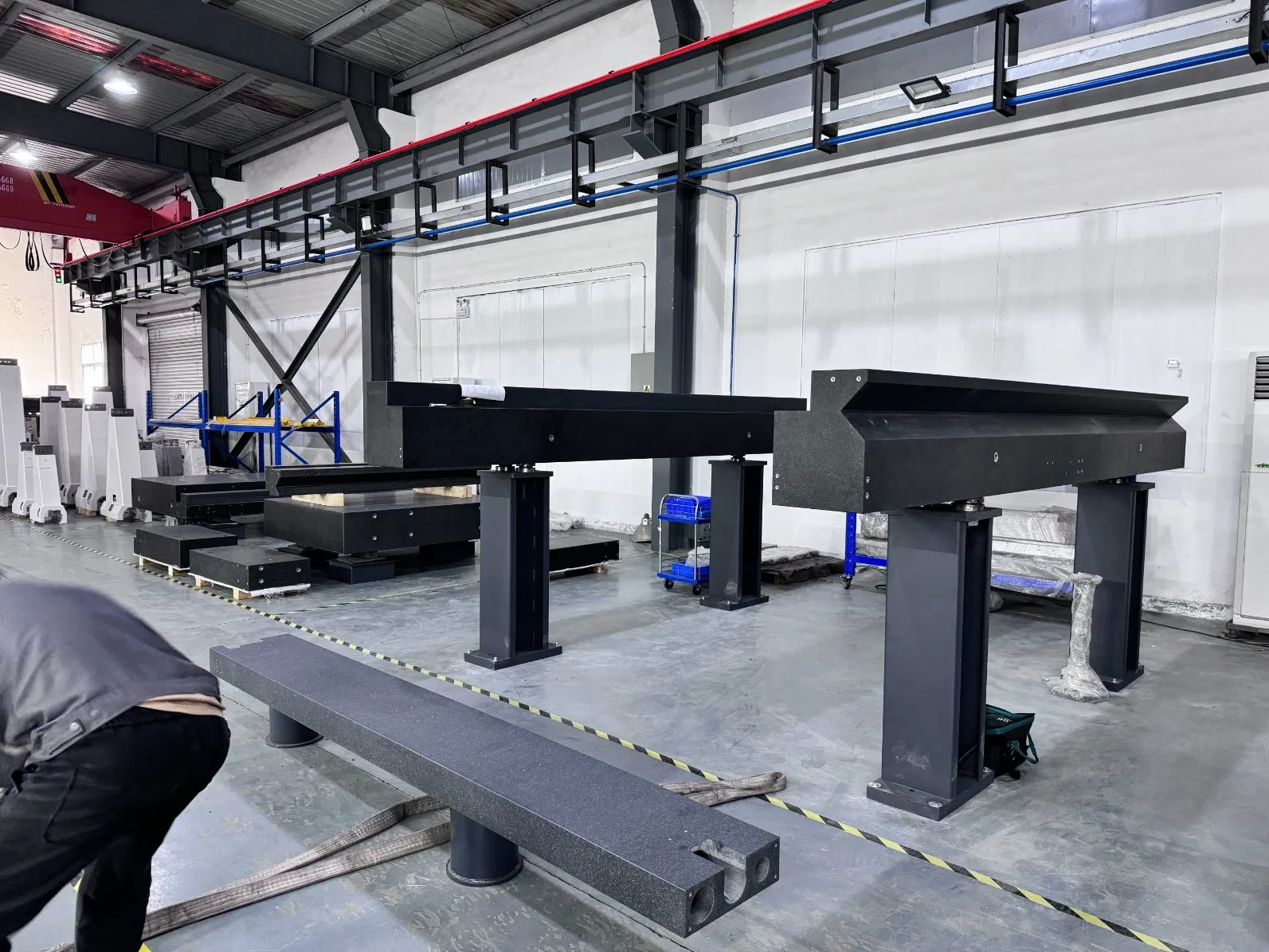

Manual Grinding Mastery: While mass production machining provides a baseline, our expert technicians with over 10 years of experience perform manual grinding to achieve peak local accuracy on marble and ceramic materials.

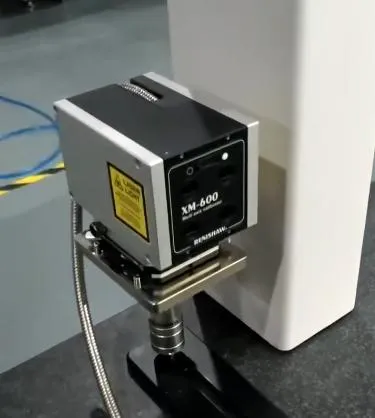

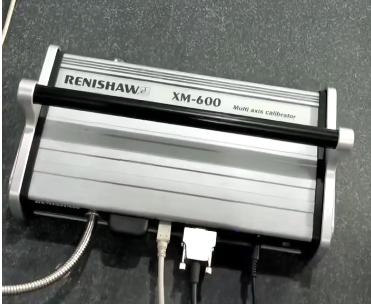

RENISHAW XM600 Calibration: To further enhance CMM precision, we utilize the RENISHAW XM600 laser interferometer. This allows for simultaneous measurement of six degrees of error: linearity, pitch, torsion, roll, horizontal, and vertical straightness.

Typical Applications

Machining parts and stamping components
Plastic and large-scale molds
Castings and Forgings
Scanning and reverse engineering
Automotive engine and gearbox components
General precision engineering

Technical Specifications (NXE Series)

Series	Measuring Range (mm)			Accuracy (um)
Series	X	Y	Z	MPEe	MPEp
NXE Range A	1800 - 2500	2000 - 4000	1500	2.0~7 + L/300	2.0~7
NXE Range B	3000 - 5000	2500 - 6000	1800
NXE Range C	2500 - 4000	2500 - 8000	2500
NXE Range D	5000 - 6000	5000 - 8000	4000

Operational Conditions:

★ Scale resolution: 0.05/0.01um | ★ Max 3D Speed: 500mm/s | ★ Max 3D Acceleration: 800mm/s

★ Air Supply: 0.12-0.45m³/min | ★ Temperature: 18-22°C | ★ Voltage: 220V ± 10%

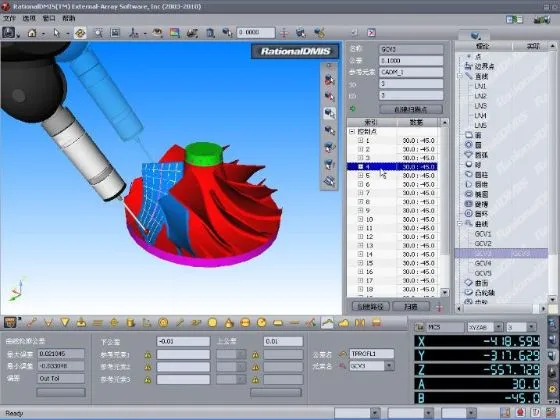

Rational-DMIS Software

Rational-DMIS is a powerful integrated 3D measurement software package. It is built on a native DMIS kernel (up to version 5.0), ensuring full compliance with ISO 22093:2003 standards.

Graphical Windows-based interface for intuitive operation.
Full evaluation of geometric elements: flatness, roundness, cylindricity, etc.
Advanced alignment methods including RPS and Best Fit.
Real-time display of results with export to PDF, Excel, and HTML.

Packaging & Shipping

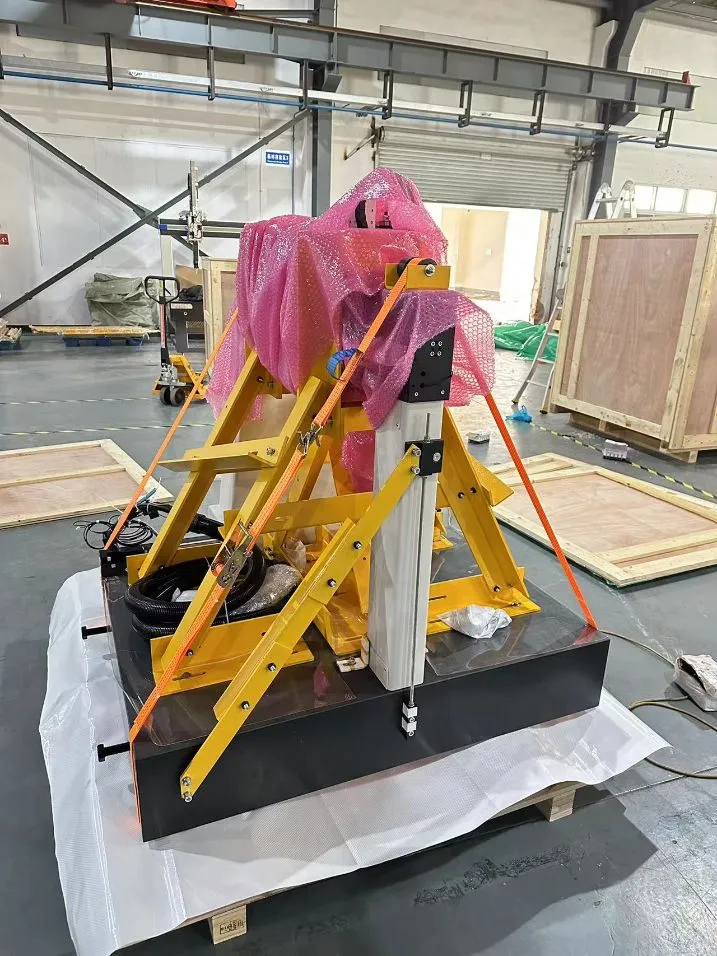

Fixing the spindle and crossbeam with high-rigidity brackets.

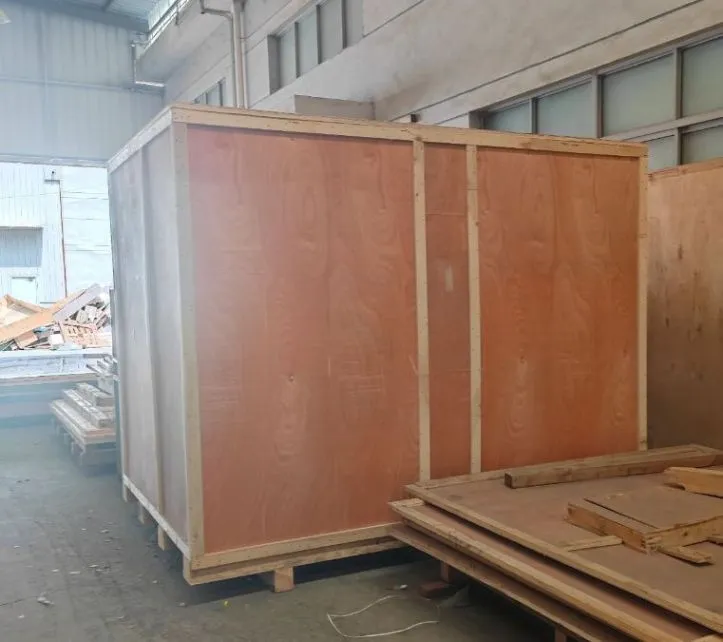

Mounting on custom thick solid wood export bases.
Vacuum packaging to prevent moisture and rust.
Internal waterproof lining within the wooden crate.
Final reinforcement with fumigated solid wood boards.

Industrial Measurement Expertise

With over a decade of focus on coordinate measurement technology, we specialize in 3D composite solutions. Our technical team brings 10-20 years of industry experience to provide professional technical advice and continuous training. Our solutions serve various sectors, from microscopic precision parts to large-scale aerospace and automotive components. We have successfully supplied measurement systems to leading global brands in hardware, molds, and electronic manufacturing.

Frequently Asked Questions

What are the advantages of the ceramic axes in the NXA series?

Ceramic materials provide extreme rigidity and are completely rust-resistant. Most importantly, they have a much lower thermal expansion coefficient compared to metal, ensuring the machine maintains high accuracy during temperature fluctuations.

Can this machine handle non-contact measurement?

Yes, the NXA series is compatible with various sensors, including TP20/TP200 touch probes, as well as optical and laser sensors for non-contact scanning and reverse engineering.

Is the measuring software compatible with international standards?

Absolutely. The standard Rational-DMIS software is built on the native DMIS kernel (ISO 22093:2003), making it a global standard for CMM measurement and data exchange.

What kind of maintenance does the air bearing system require?

The air bearings are designed for low maintenance. However, a clean and stable air supply (0.12-0.45m³/min) is required to ensure smooth movement and prevent contamination of the air flotation device.

How is the machine protected during long-distance sea freight?

We use a 5-layer protection system: rigid brackets for moving parts, solid wood export bases, vacuum sealing, waterproof internal lining, and reinforced fumigated solid wood crates.

What is the typical accuracy range for the NXA gantry series?

Depending on the specific model and dimensions, the volumetric accuracy (MPEe) ranges from 2.2µm up to approximately 6.0+L/300µm for extremely large ranges.
