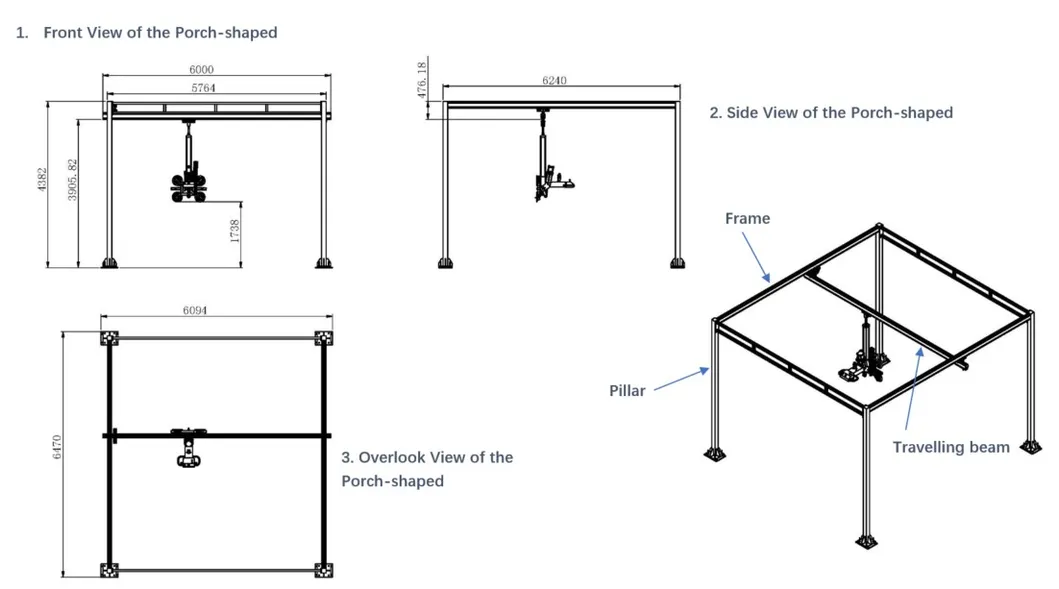

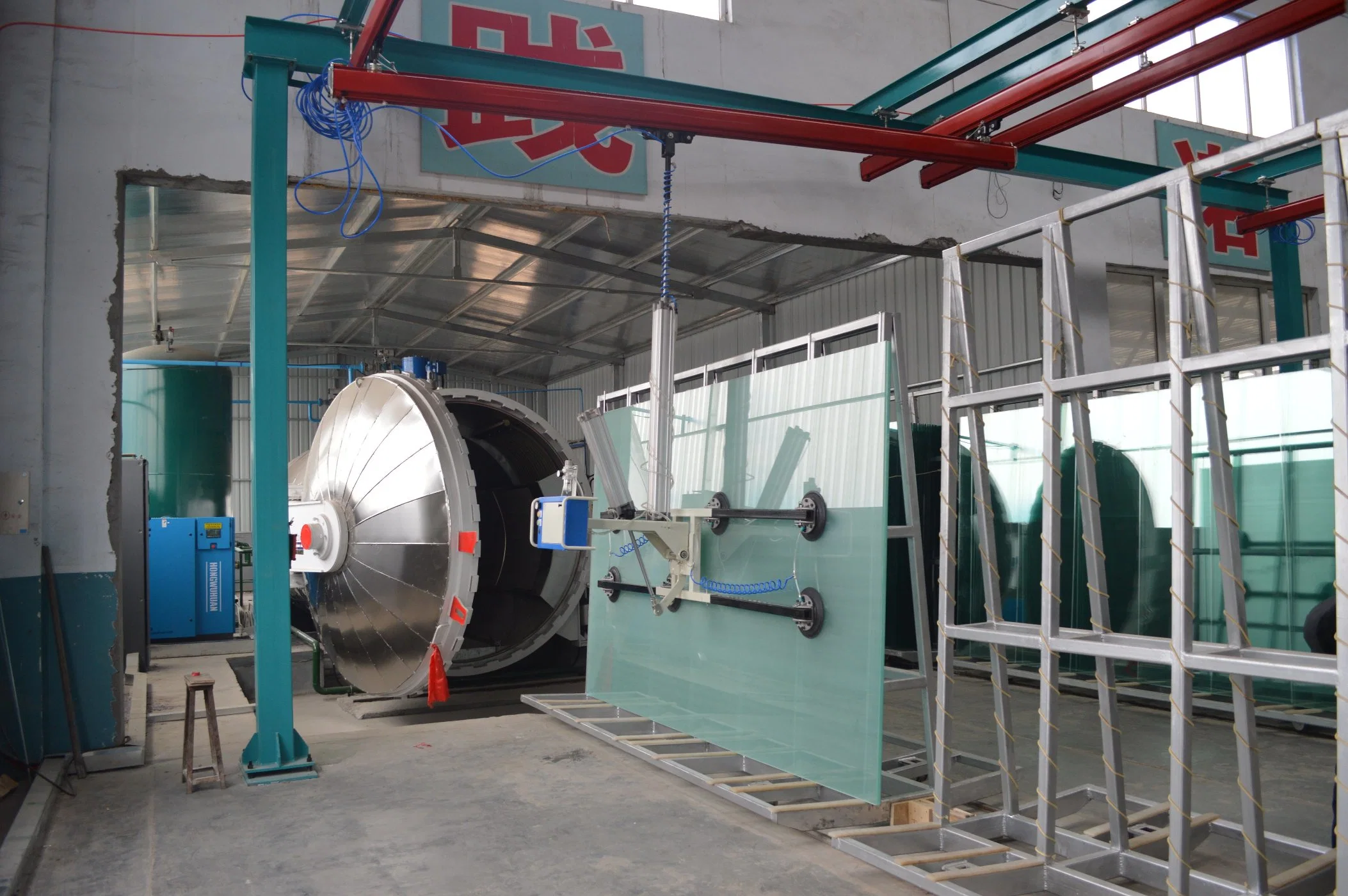

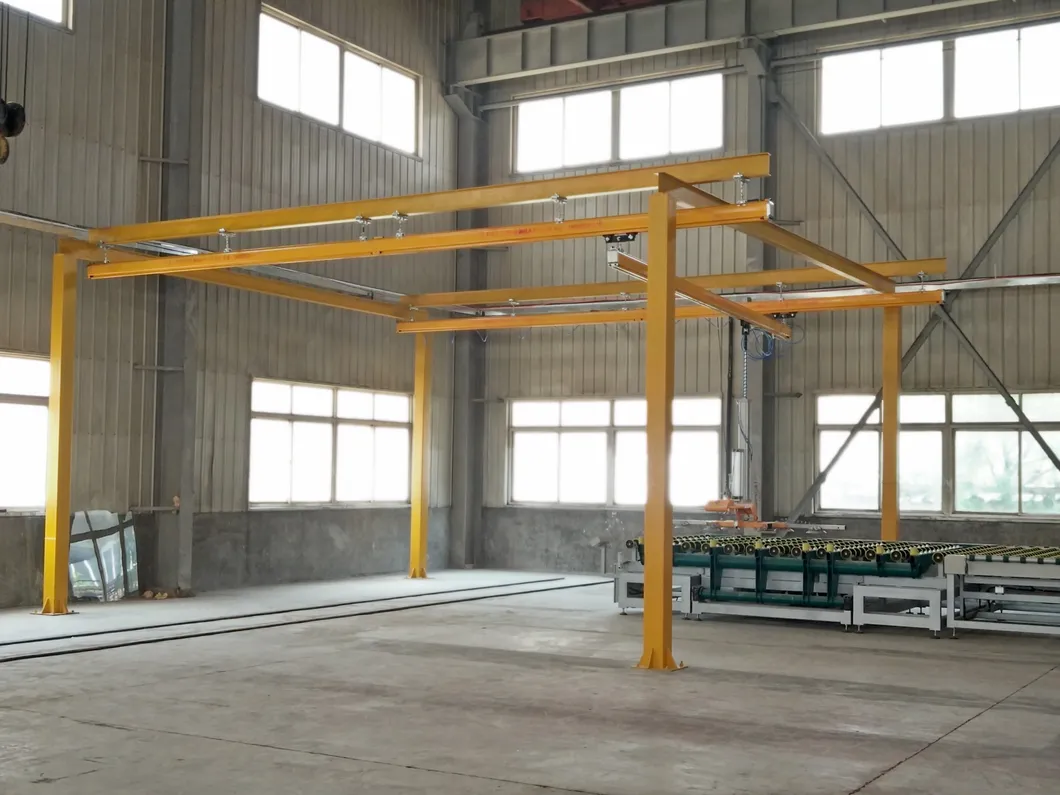

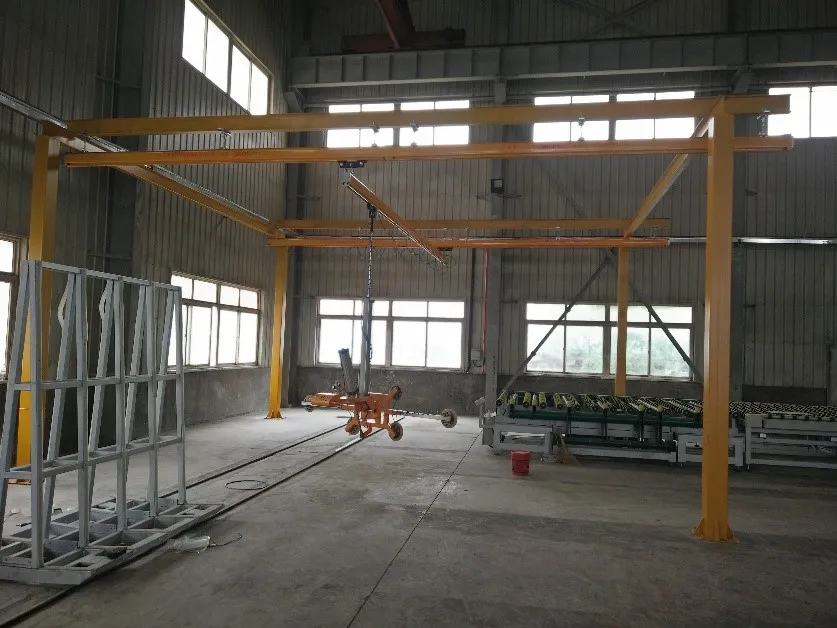

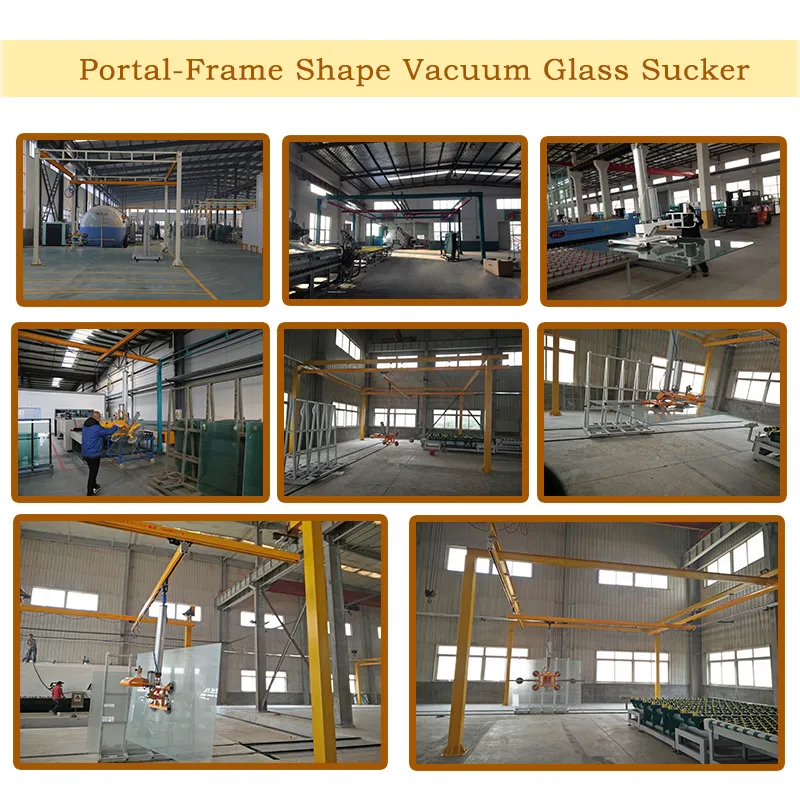

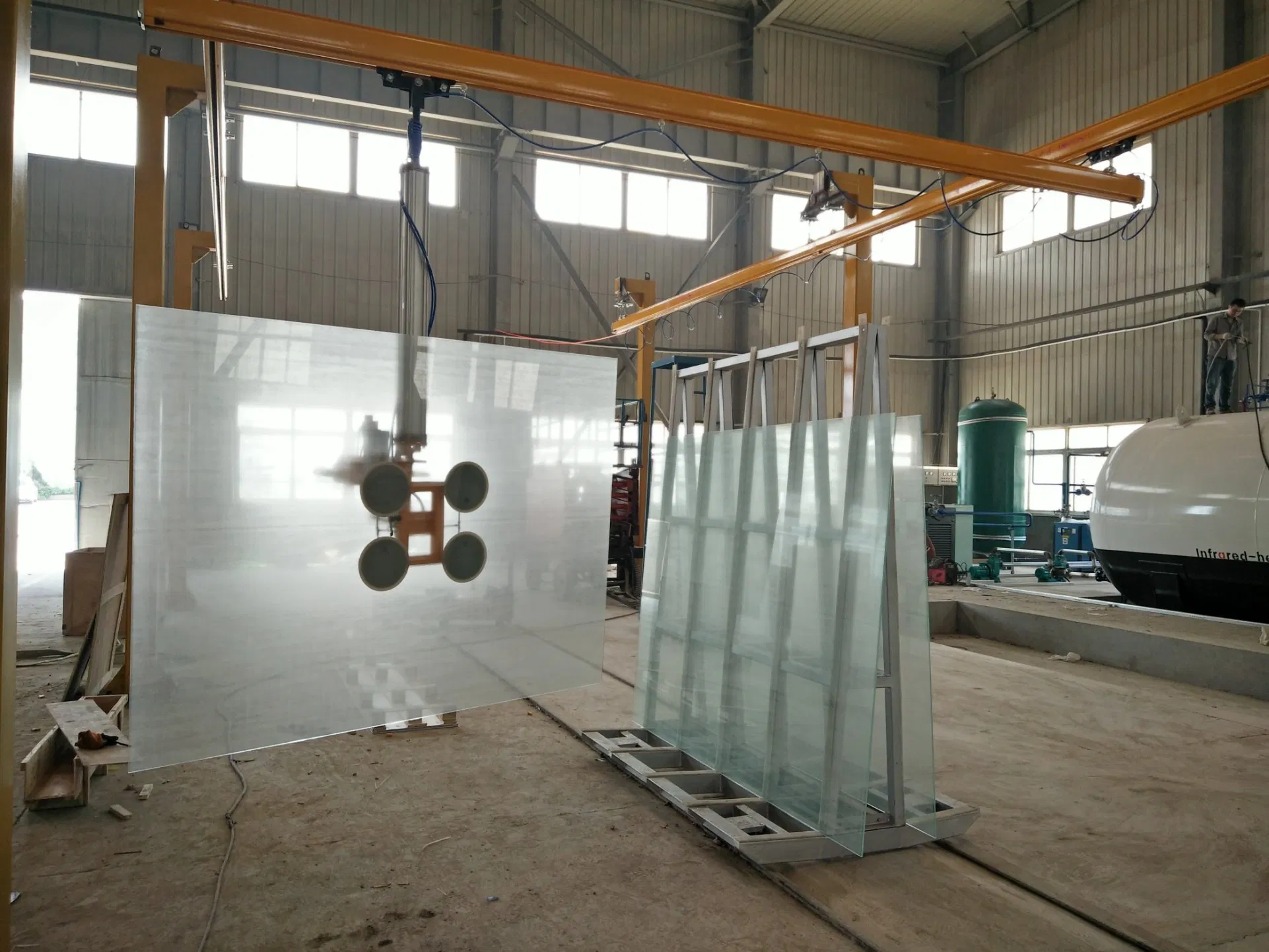

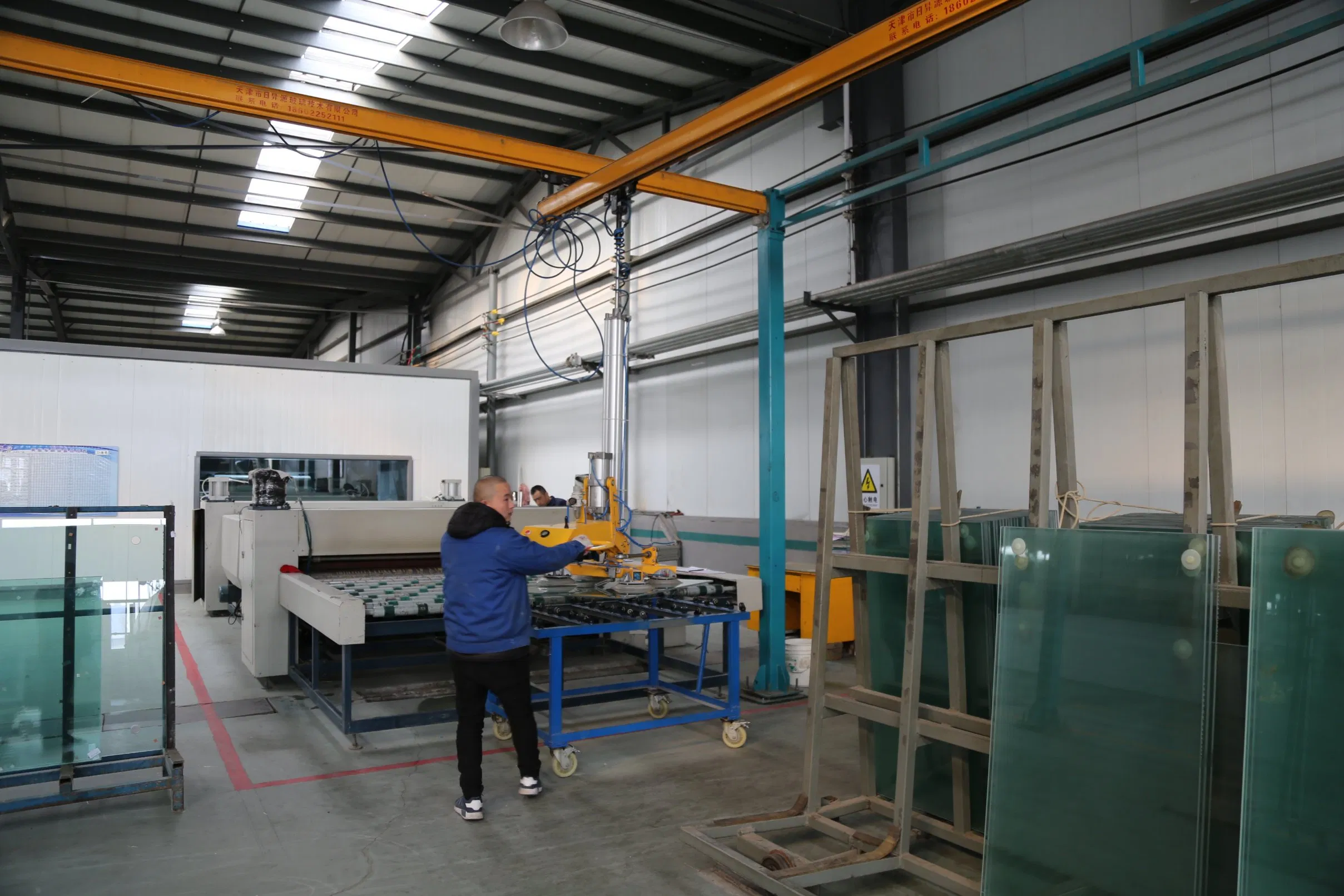

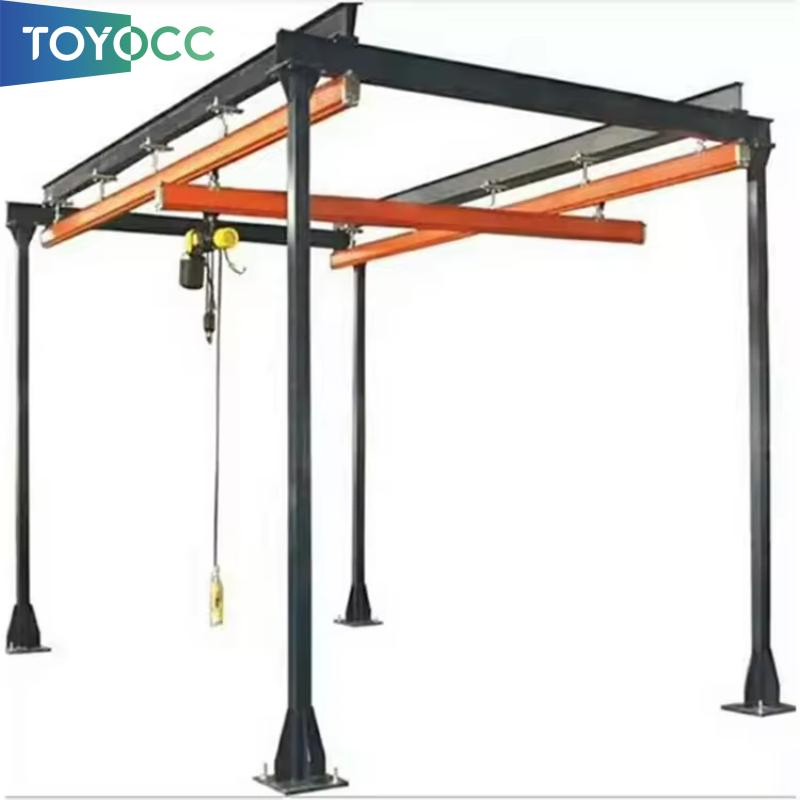

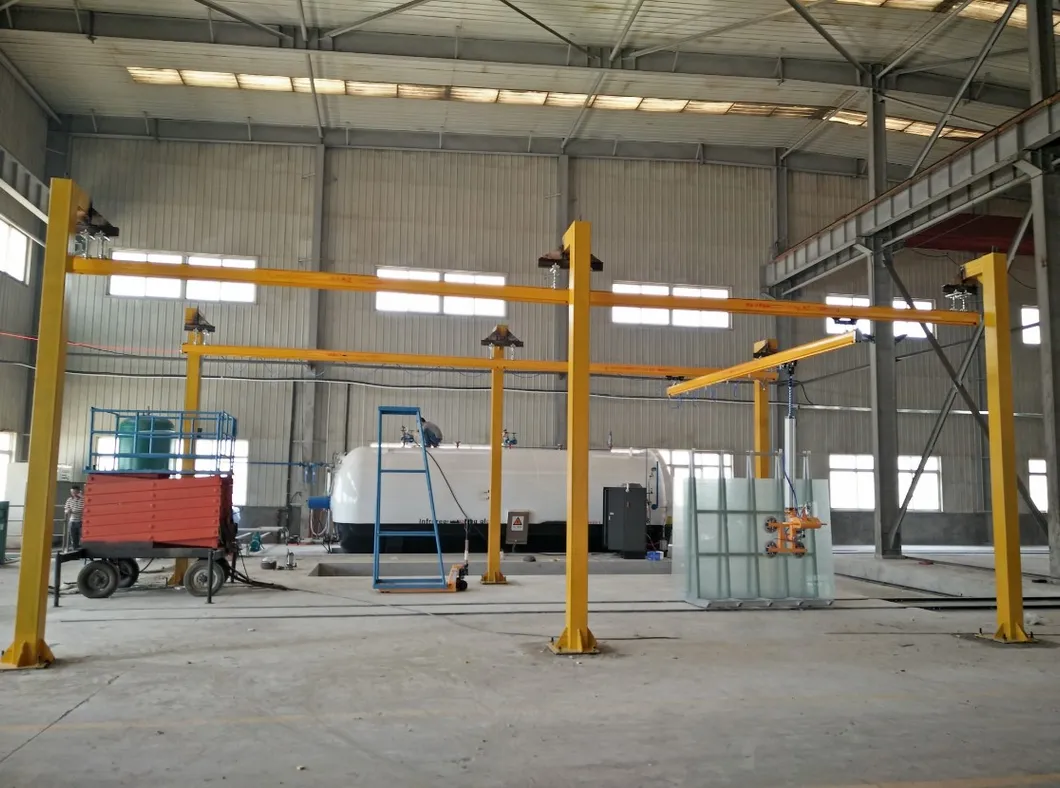

Description: The Porch-Shaped Overhead Crane is designed with a stable frame structure where the vacuum lifter runs along the traveling beam. This setup is widely utilized in insulating glass lines, lamination lines, vertical CNC stations, tempering, and cutting lines.

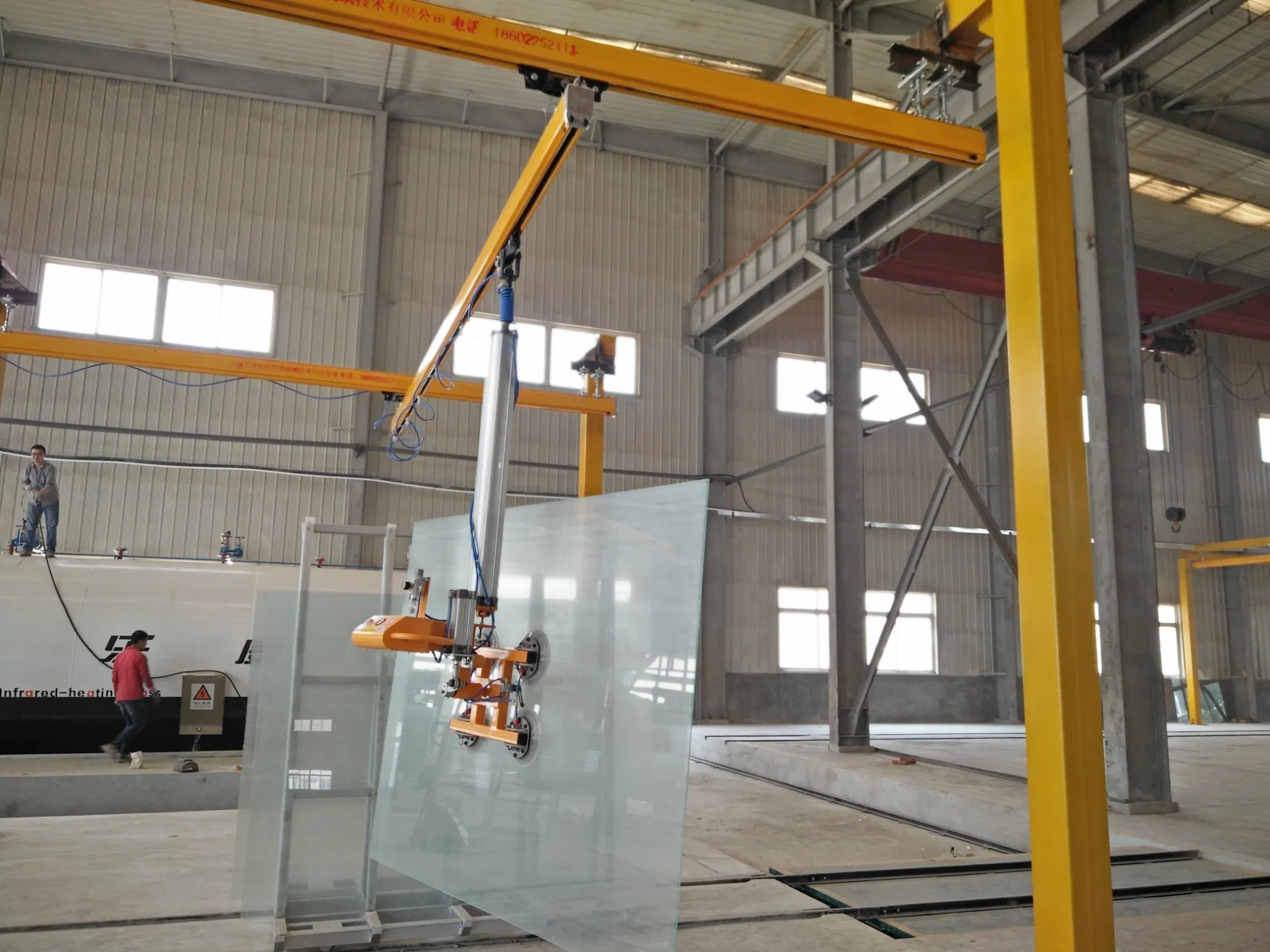

Key Advantages: It offers significant space-saving benefits, stable operation, reduced manpower requirements, and large area coverage. One worker can easily operate the system to move glass sheets up and down, rotate, and turn them over to the precise position required.
Our vacuum glass lifters utilize premium components for maximum reliability:
| Model | RSY-LM6PL6 |
|---|---|
| Height | 4382mm |
| Length | 6240mm |
| Travelling Beam Width | 6000mm |
| Operation Method | Manual Control |
| Operating Weight | 350/450 kgs |
| Vertical Range | 1200mm |
| Control System | SMC JAPAN |
| Airpower | 0.6-0.8MPa |
| Sucker Qty | 4/6 |
A: Our suction pads are made of high-quality NBR or imported Silicone, designed to withstand temperatures from -20°C to 90°C.
A: The control system features an automatic vacuum lock that ensures the glass remains securely attached for 10-15 minutes if power is lost or air pressure drops.

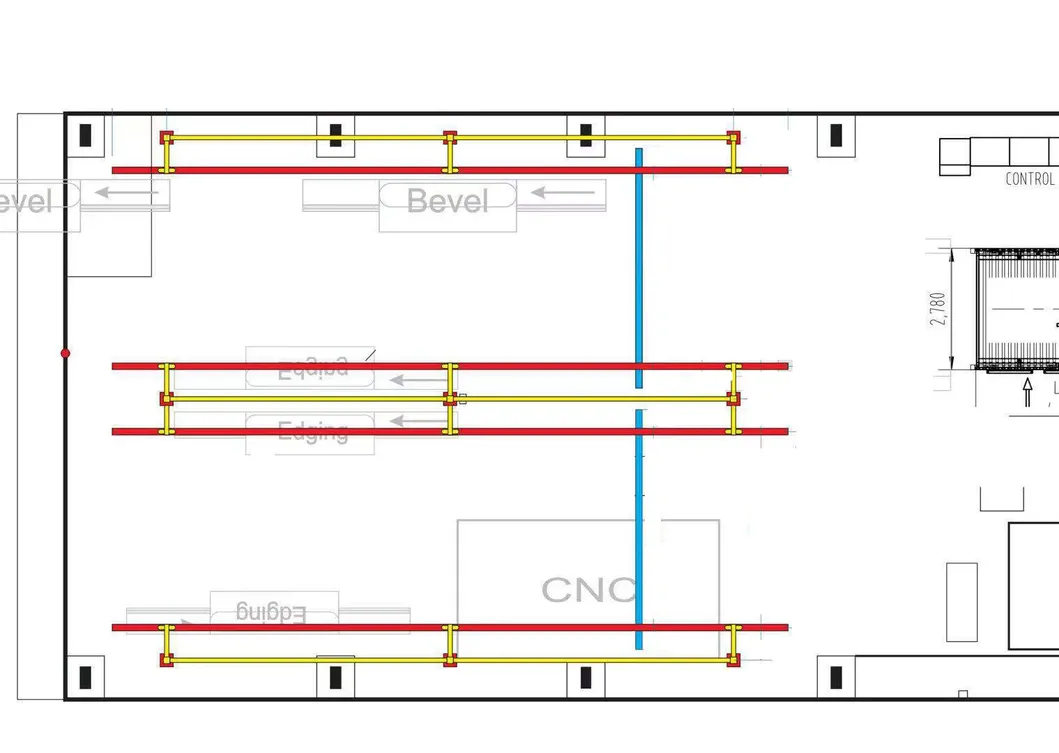

A: Yes, the pillar height, frame length, and traveling beam width can all be customized to fit your specific factory layout.
A: The standard safe working load is between 350 - 450 Kgs, but customized capacities are available upon request.
A: The system is primarily designed for flat glass sheets in production lines, but we offer different configuration arms and pads for various glass types.
A: The vacuum lifter supports 90-degree rotation and 90-degree tilting, allowing for versatile positioning of glass sheets.
