a Three-Axis Precision Machining System Capable of High-Speed Precision Etching

Customization:	Available
After-sales Service:	Video Support for Free
Warranty:	1year

ℹ️

Basic Information

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

CNC

Number of Shaft

3

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Origin

China

Production Capacity

1000/ Year

💎

Product Description

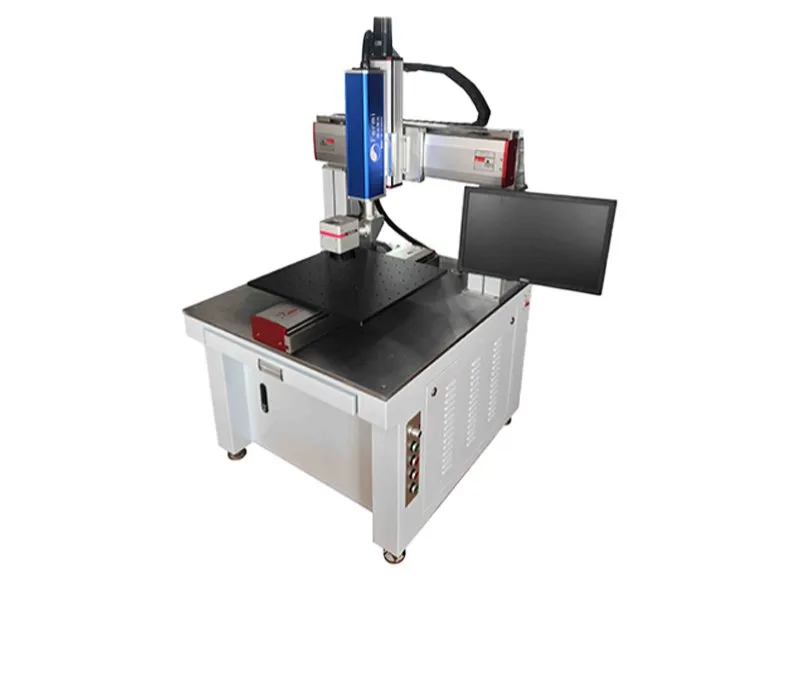

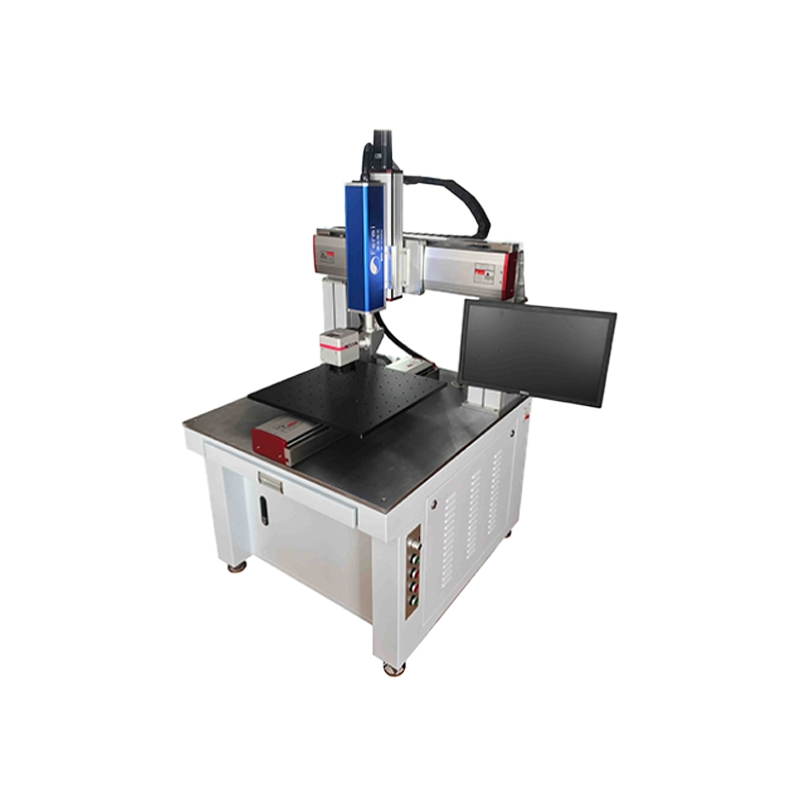

A three-axis precision machining system capable of high-speed precision etching

✓High-power infrared fiber lasers for material ablation (min spot 20μm).
✓High-speed etching via precision galvanometer beam deflection.
✓Large-format machining via separate gantry XY precision platform.
✓Electrically adjustable Z-axis for 3D structure etching.
✓Marble countertop for ultimate structural stability and long-term precision.
✓Exceptional accuracy: Overall ±4μm, local feature <3μm.

📊

Technical Specifications

Category	Parameter	FM-SD50 Details
Laser	Wavelength / Power	1064nm / 50W
	Modulation Frequency	40~1000kHz
	Beam Quality M2	<1.3
Galvanometer	Scan Range	<50*50mm
	Repeatability	<1μm
	Positioning Accuracy	≤±20μm
XY Workbench	Journey	300*300mm (customizable)
	Positioning Accuracy	≤±20μm
	Speed / Acceleration	≤200mm/s / 0.5G
Z-axis	Journey / Accuracy	200mm / ±5μm
Processing Capacity	Min Aperture	20μm
Processing Capacity	Materials	Silicon wafers, metals, alloys, ceramics
Utilities	Power / Consumption	220V / ≤1200W

⚙️

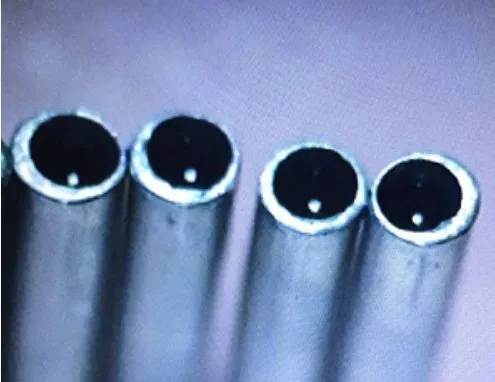

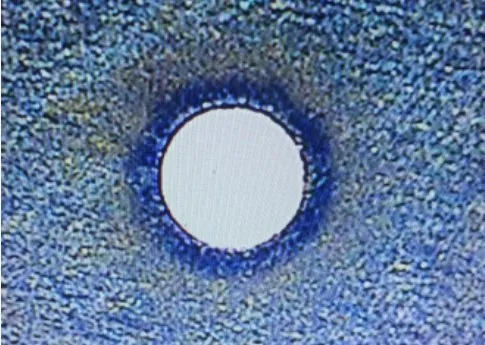

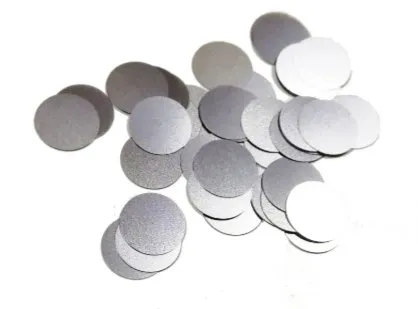

Equipment Application

📦

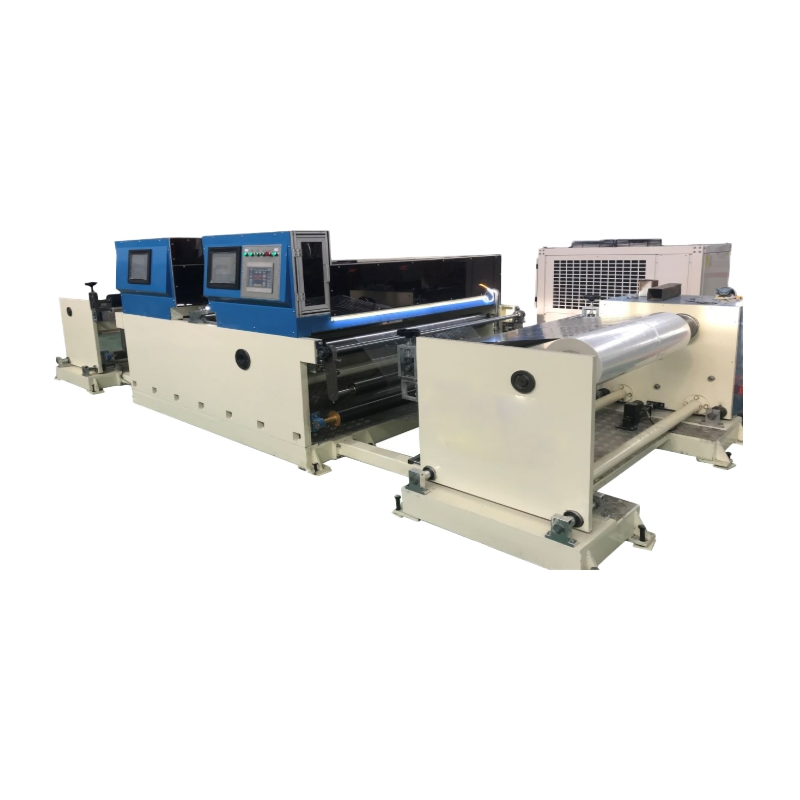

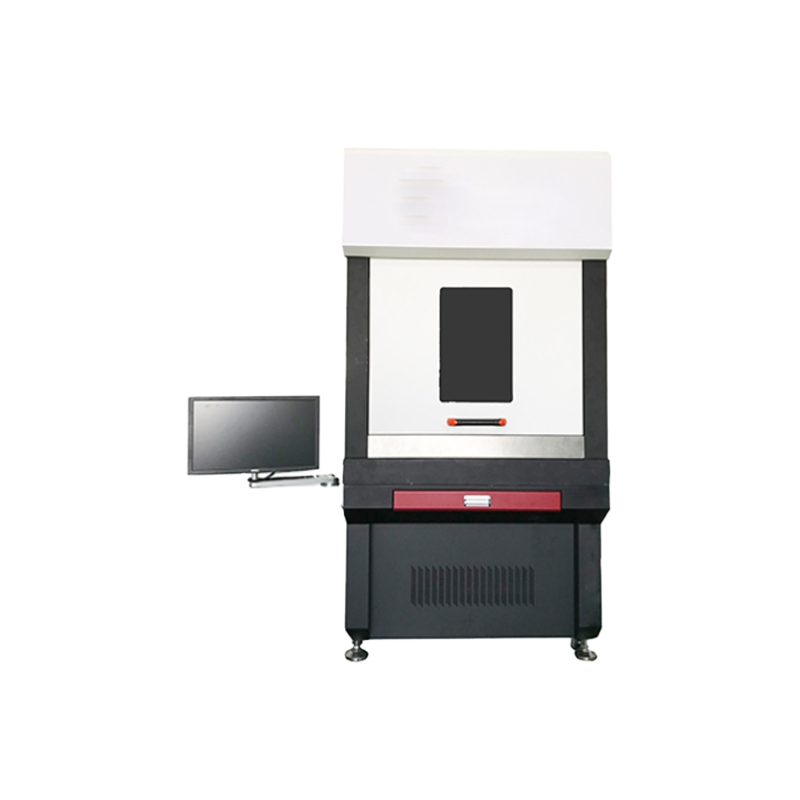

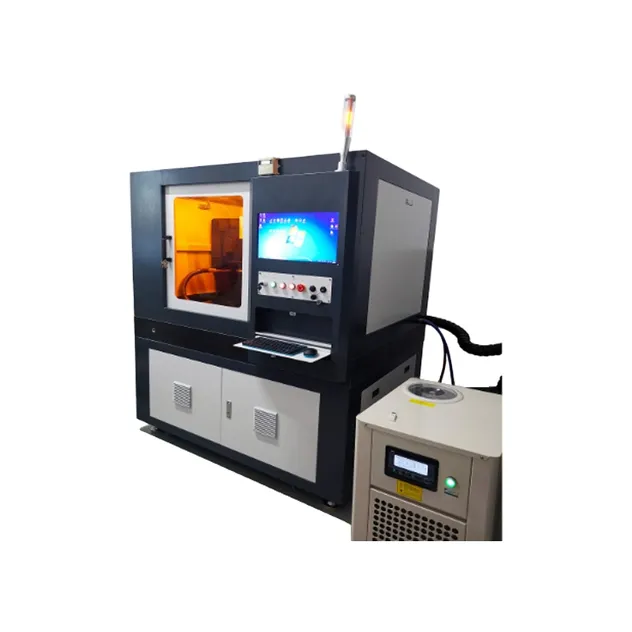

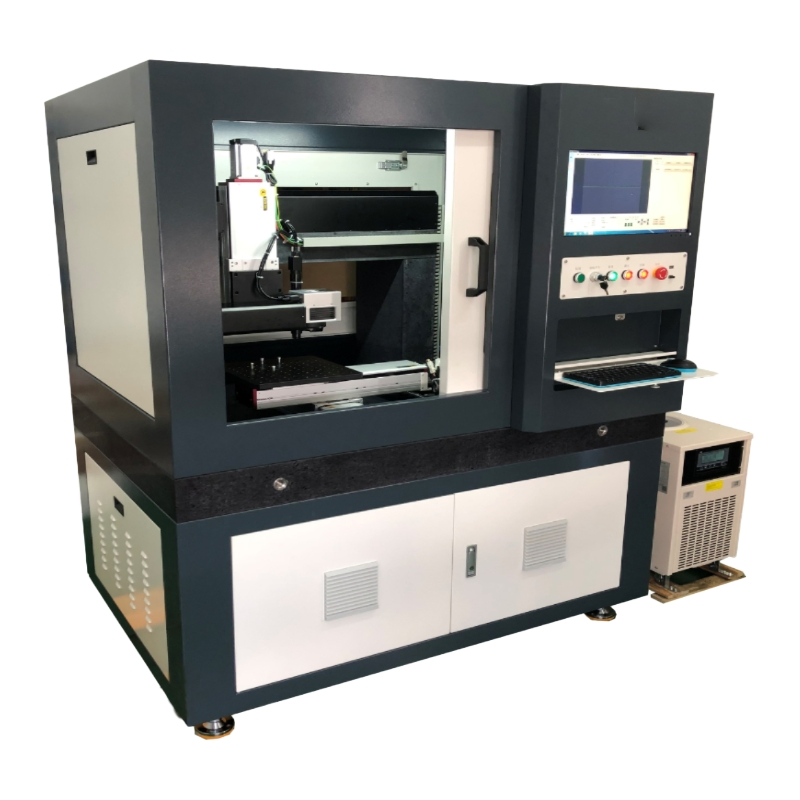

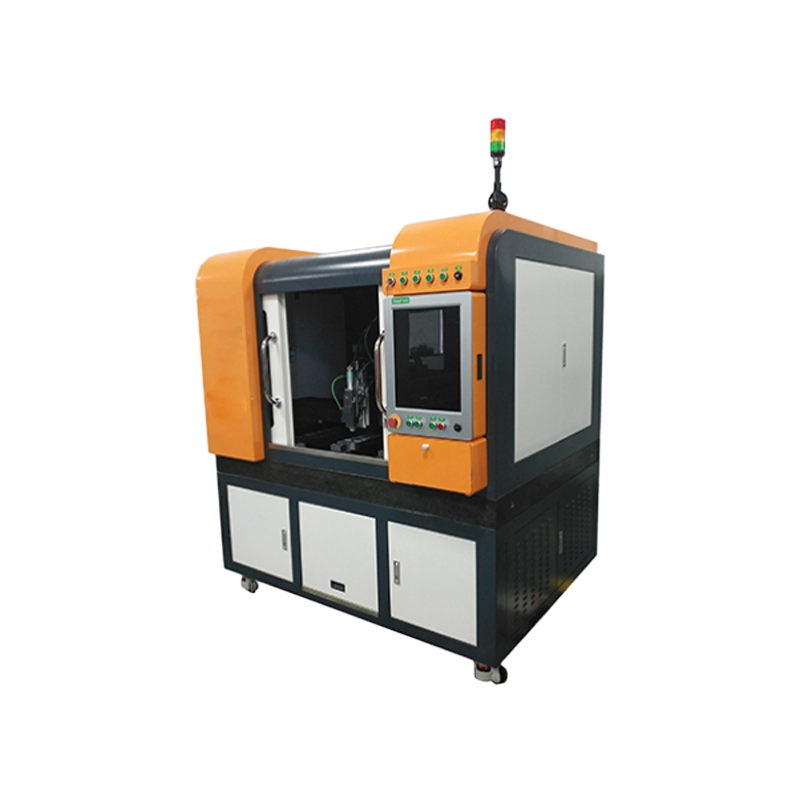

Other Product Lines

🚚

Packing & Delivery

Standard Warranty: 12 months after shipping

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and service group.

Training: Free on-site or remote operation and maintenance training.

🏭

Production Facility

We are a technology-driven enterprise specializing in the R&D, production, and sales of industrial and scientific research laser application systems. Our expertise includes micro-hole, micro-groove, micro-welding, and precision cutting solutions.

Our systems serve diverse industries including biomedicine, semiconductors, new energy, and major scientific research institutions.

❓

Frequently Asked Questions

Are you a direct manufacturer?

Yes, we are a factory specializing in drilling and laser machining systems. We provide comprehensive solutions through our internal production and established supplier network.

What is the typical lead time for an order?

We maintain stock for popular items. Standard models typically require 1-3 months, while customized or special projects may require additional time.

Which payment methods do you support?

For international machine orders, we primarily accept T/T and L/C. Other payment terms can be reviewed for tooling and accessory orders.

How can I obtain a technical quotation?

Please send an inquiry through our chat or contact form. For standard machines, we provide quotes within 3 days; special projects usually take about 1 week.

What is the response time for technical inquiries?

We aim to reply to emails and messages within 1 hour during business operations to ensure prompt support for our clients.

Do you provide training for the equipment?

Yes, we provide complimentary on-site or remote training sessions covering both operation and maintenance to ensure your team is fully proficient.
