Ultra-Fast Laser Ultra-Precision Machining System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Basic Information

Model NO. AT-61151

Origin China

📦

Packaging & Delivery

Package Size 50.00cm * 60.00cm * 50.00cm

Gross Weight 30.000kg

★

Product Features

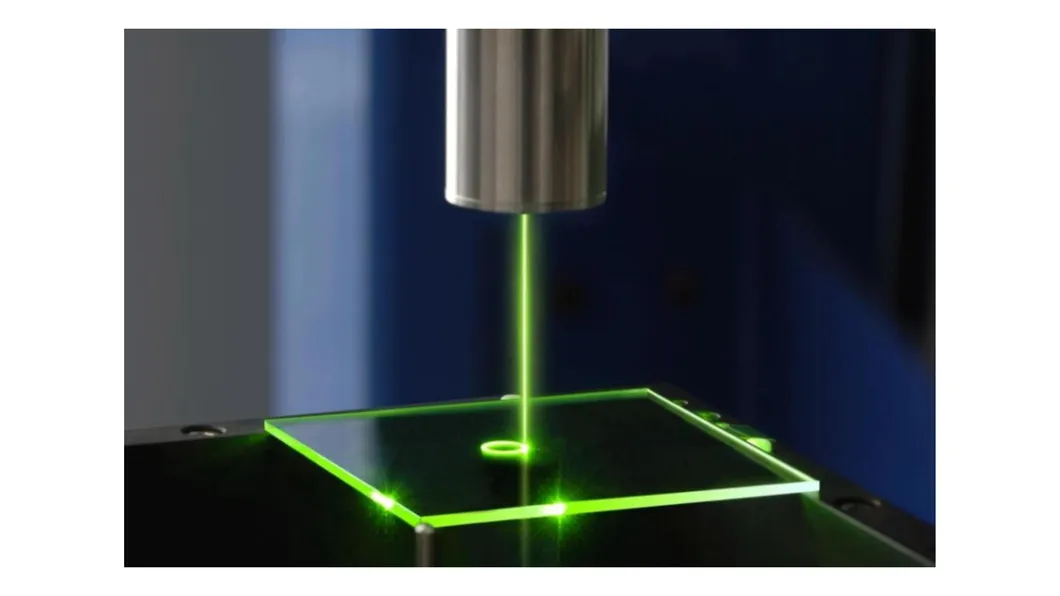

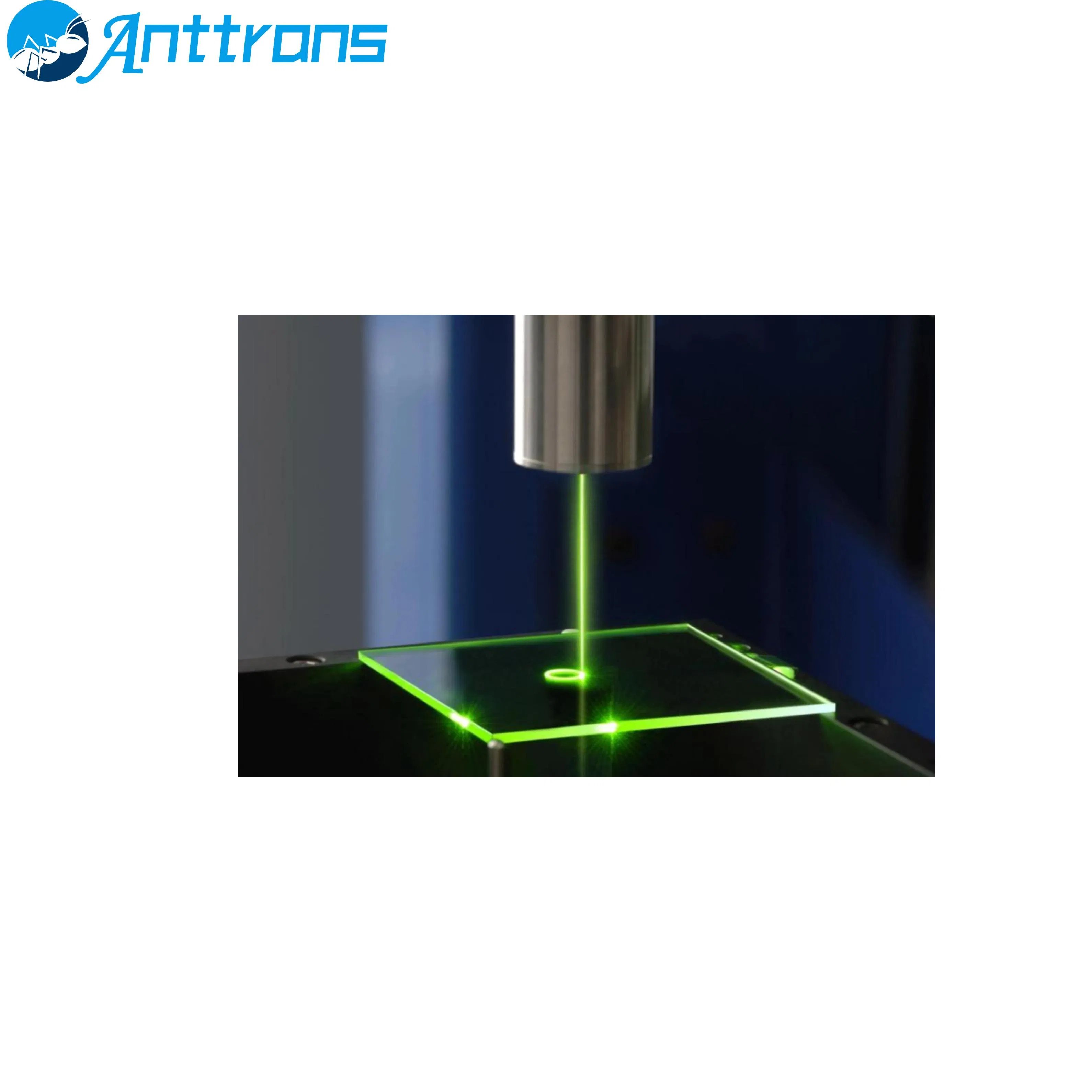

1Utilizes high-power, highly stable ultra-fast ultraviolet laser for direct ablation and vaporization of materials, achieving micron-level machining line widths with no heat-affected zone.

2Excellent beam shaping design allows for adjustments in beam spatial distribution, polarization, etc., expanding micro-machining capabilities.

3High-precision galvanometer enables high-speed, high-precision control of beam deflection, achieving small-area high-speed precision machining with machining accuracy better than ±2μm.

4Realizes large-area precision machining through high-precision linear motor-driven platform translation, with repeatability accuracy up to ±1μm.

5Z-axis is electrically adjustable to accommodate materials of different thicknesses, meeting the requirements for fine machining of three-dimensional structures.

6Extended precision rotary axis enables fine structural forming of irregularly shaped parts.

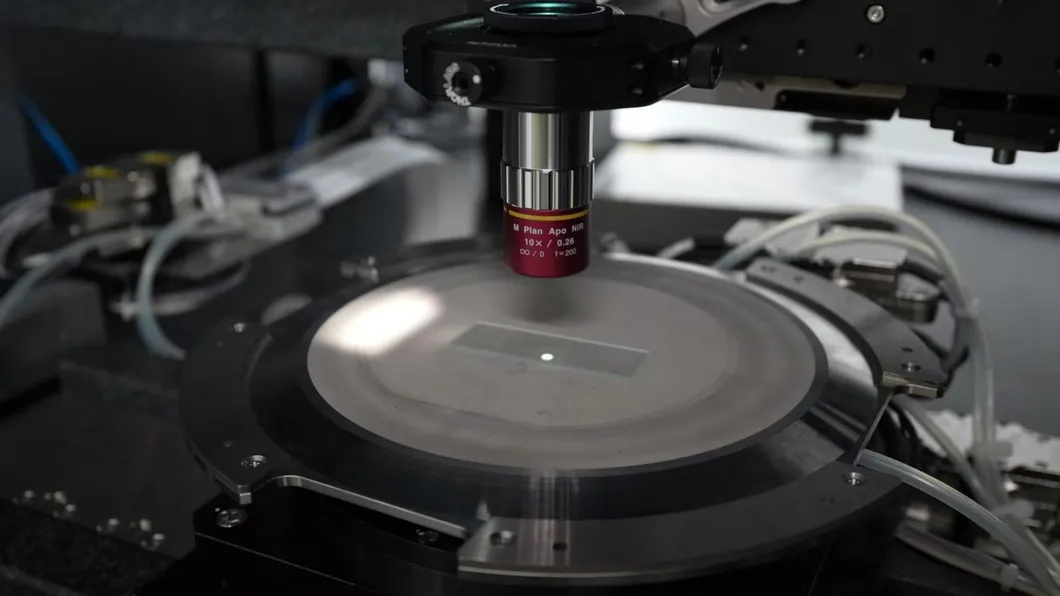

7High-resolution industrial camera for full-field error correction, high-precision positioning, focusing, etching depth and dimension measurement.

8On-machine power detection and compensation ensure reliable long-term machining.

9Supports machining with up to 256 layer parameters and processes 2D/3D vector and image files (DXF, AI, PNG).

10Adopts a marble tabletop to enhance system stability, with all mechanical components selected for long-term precision.

11Suitable for machining solid materials including glass, organics, metals, ceramics, etc., enabling fine etching, holes, slotting, and cutting.

⚙

Application Areas

Medical Devices Precision Tools Micro-mold Forming Fine Mask Fabrication

📋

Product Parameters

Category	Parameter	AT-UVAT-5A
Laser	Wavelength	343/355nm
	Power	10W
	Modulation Frequency	1-2000kHz
	Pulse Width	<10ps
Galvanometer	Repeatability	<1μm
Galvanometer	Positioning Accuracy	≤±3μm
XY Table	Travel	500*400mm
	Positioning Resolution	0.1μm
	Repeatability	≤±1μm
	Positioning Accuracy	≤±3μm
Machining Capability	Materials	Glass, organics, metals, ceramics, diamonds, etc.
Cooling	System	Water Cooling (2000W Cooling Capacity)
Dimensions	Size	170014001950mm
Weight	Total Weight	2000Kg

🛠

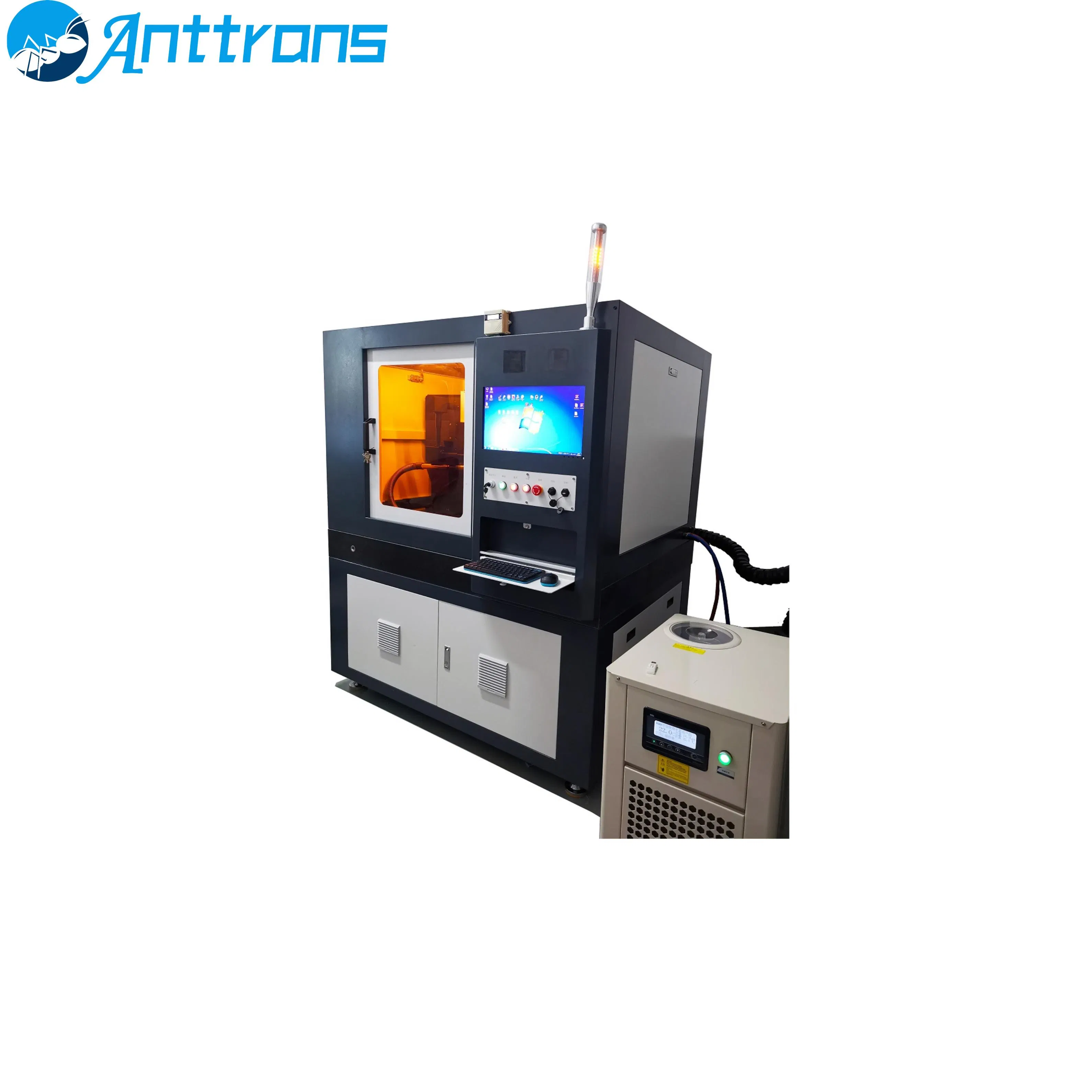

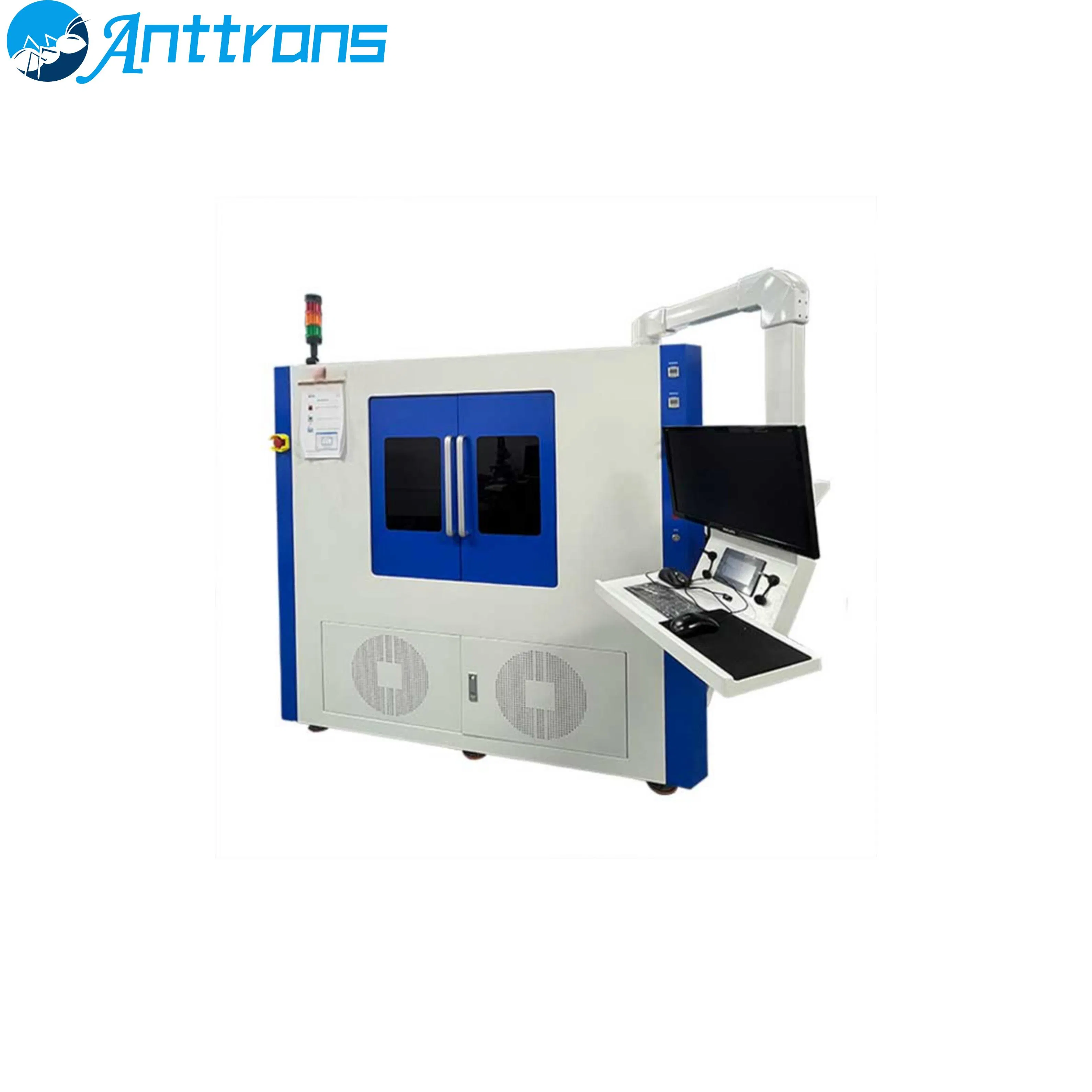

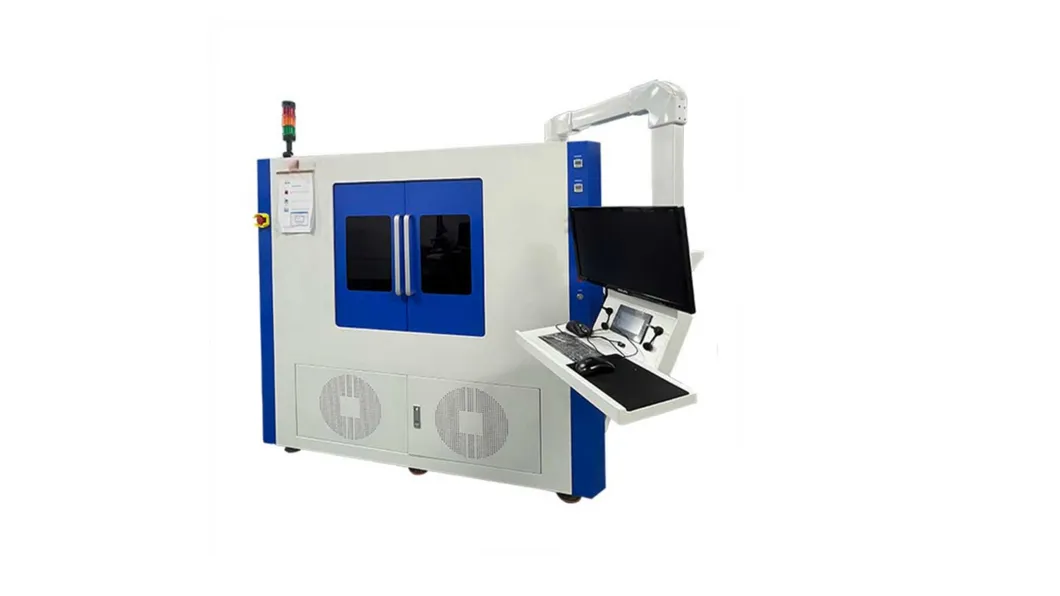

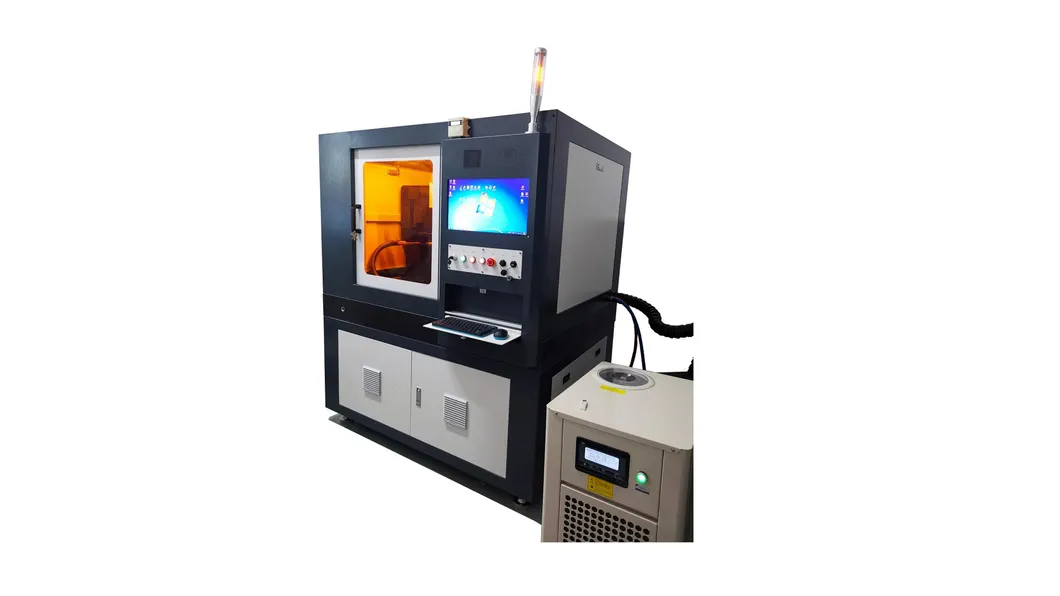

Product Construction

Main Item Name	Sub-item Name
Ultrafast Laser Micro-machining System	Laser & Scanning Galvanometer
	Control Card & System
	Linear Translation Stage & Z-axis
	Focusing Lens & CCD Device
	Water Chiller & Smoke Dust Collector
	UPS & Precision Rack

📷

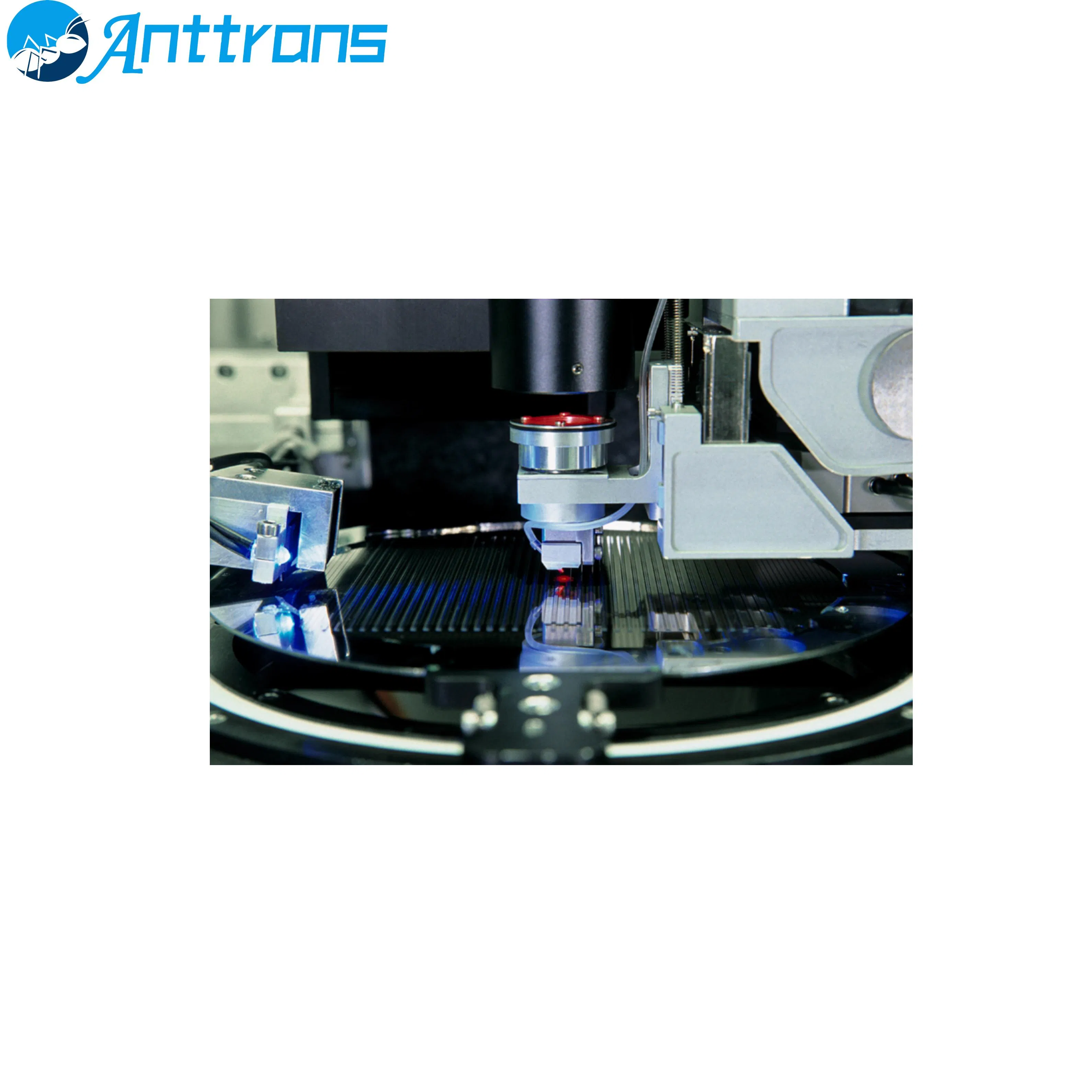

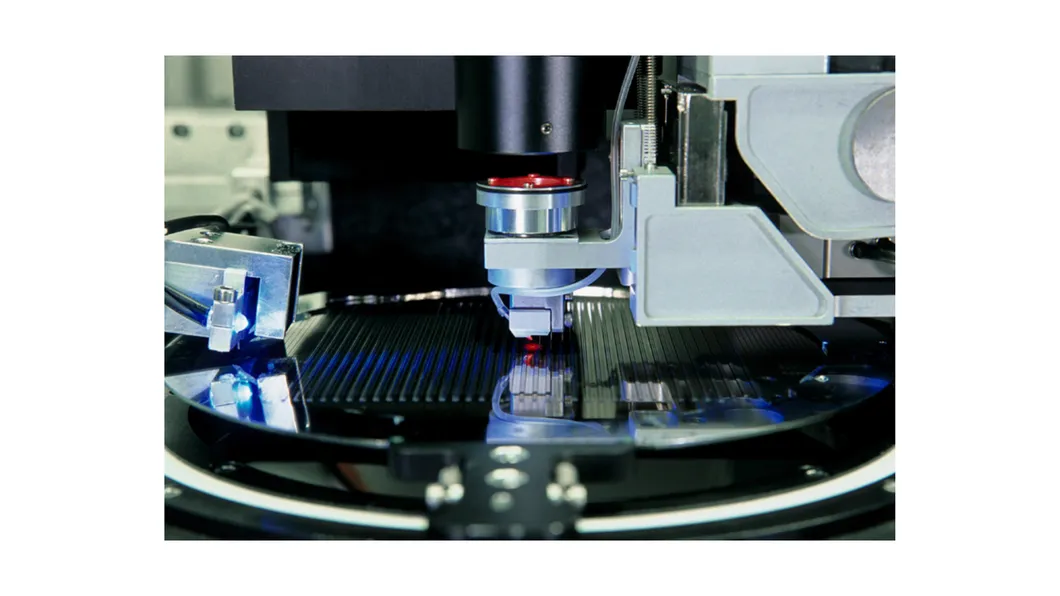

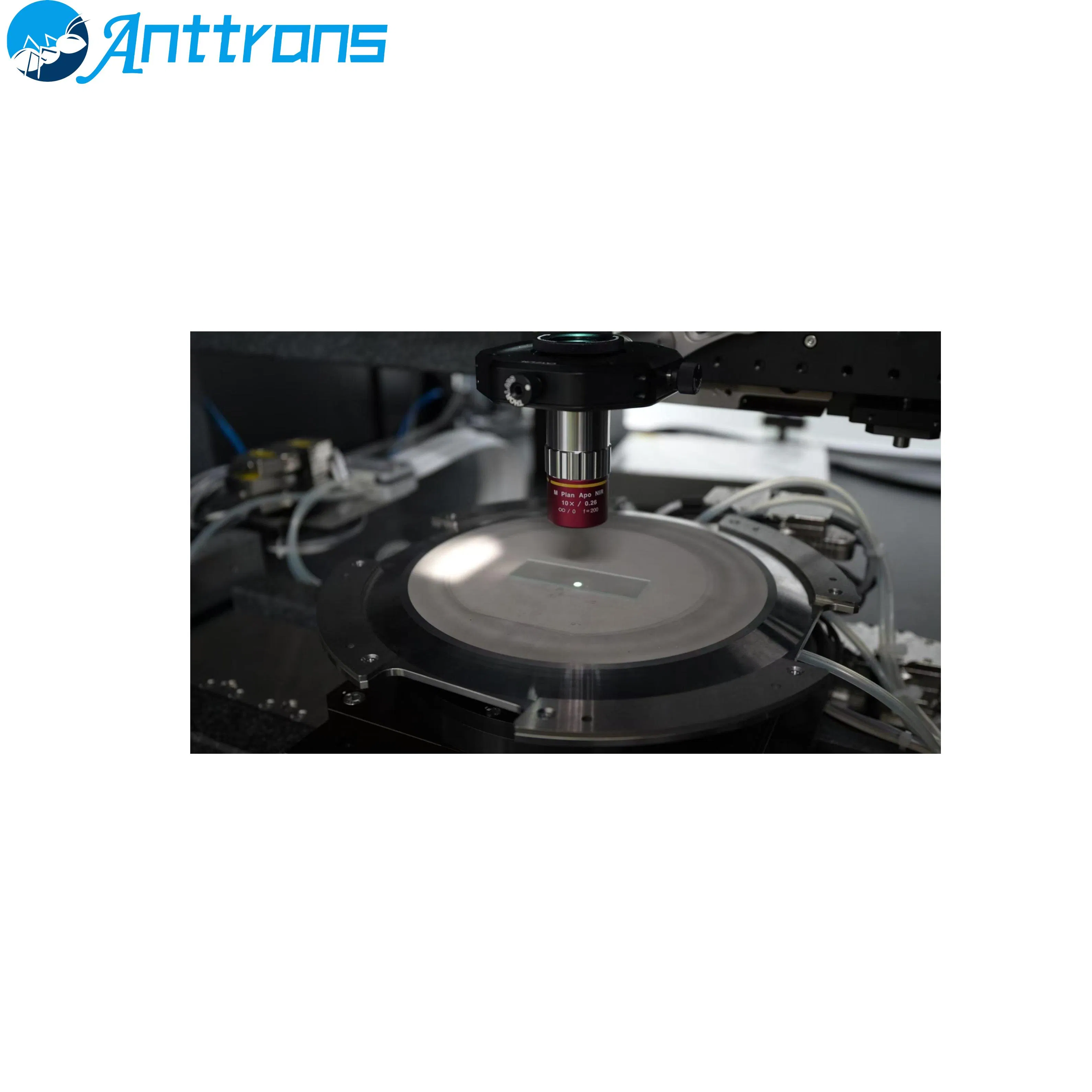

Detailed Photos

🏢
