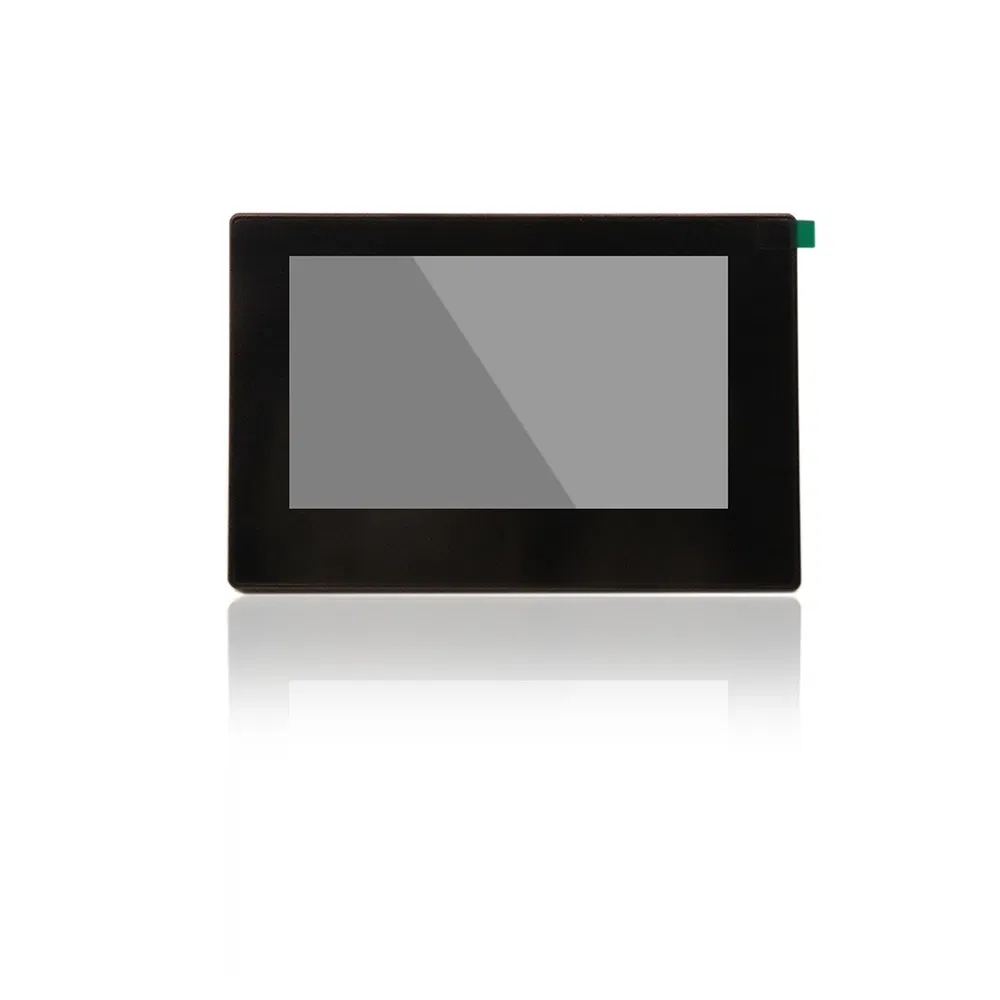

ZY7142G Laser Cutting Engraving Control System and Engraving

i

Basic Info.

Model NO.

ZY7142G

Type

Laser Control Card

Packing Size

260*210*90mm

Gross Weight

2kg

Net Weight

1.45kg

Product Materials

Plastic/Metal/Glass

Industrial Apps

Cardboard, Cloth, Leather, Acrylic, Wood

Power Supply

DC 24V Button Battery 3V

Software Env.

Windows(Except Vista)

File Formats

PLT, AI, DXF, DST, BMP, JPG, PNG

PWM Channel

0.1K-50K, Adjustable

Origin

China

★

Key Features & Description

Supports PLT, AI, DXF, JPG, JPEG and other standard file formats.
Advanced smoothing graphics and automatic line closing functions.
Multiple path planning with freely determined layer processing and direction.
Optimized speed planning with real-time modification of power on the panel.
Intelligent feeding system with automatic deviation correction.
Large graphics processing via automatic split-screen capability.
Intelligent interrupt function to ensure processing continuity and quality.
Supports multi-head processing, split processing, and mirror processing.
Intelligent typesetting based on column spacing to maximize material usage.
High-precision projection correction algorithm with error as low as one pixel.

Product Advantages: Stable performance; Low cost; Advanced image processing mode.

📷

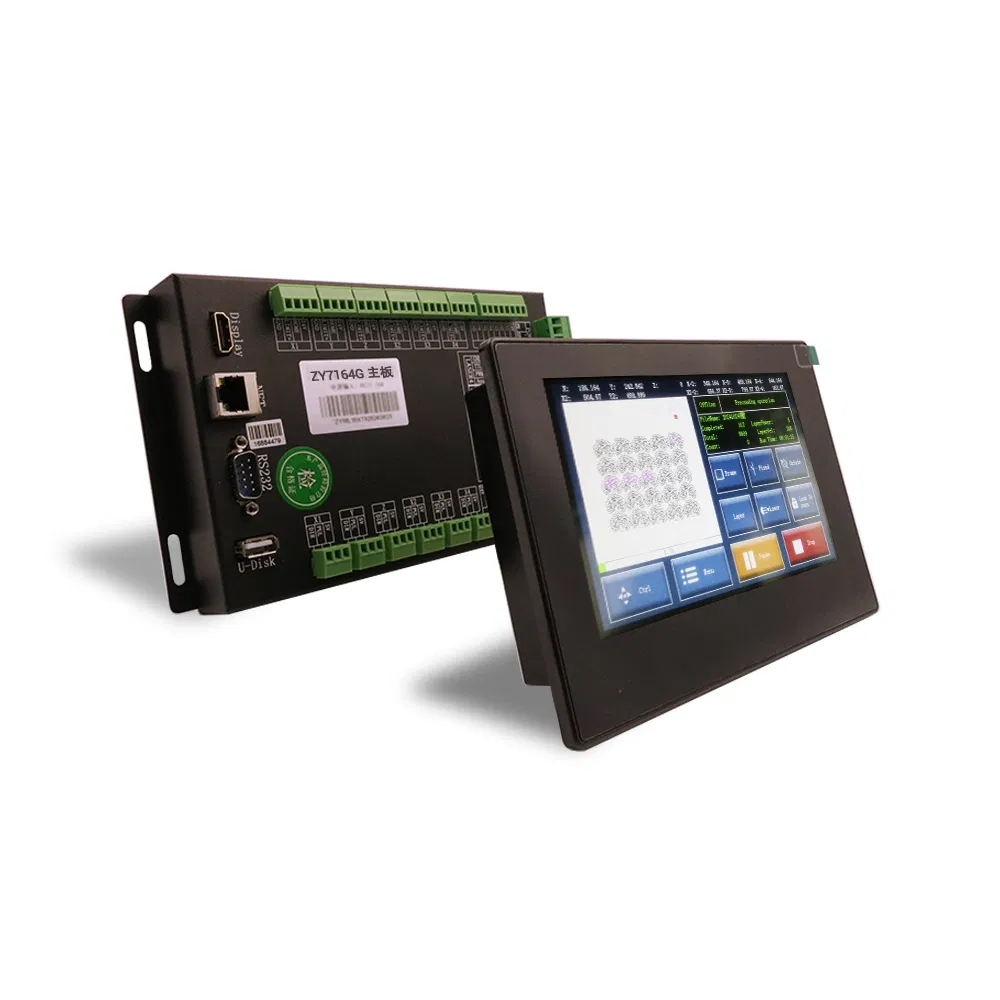

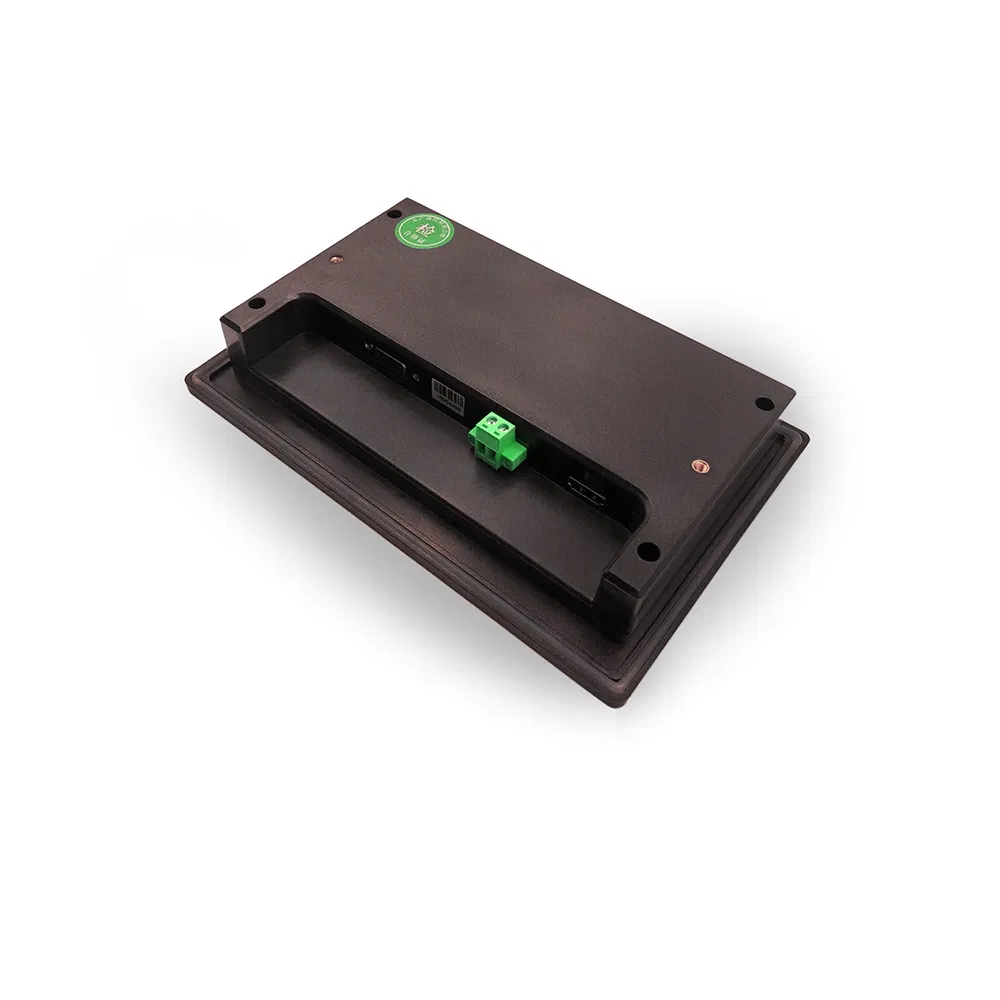

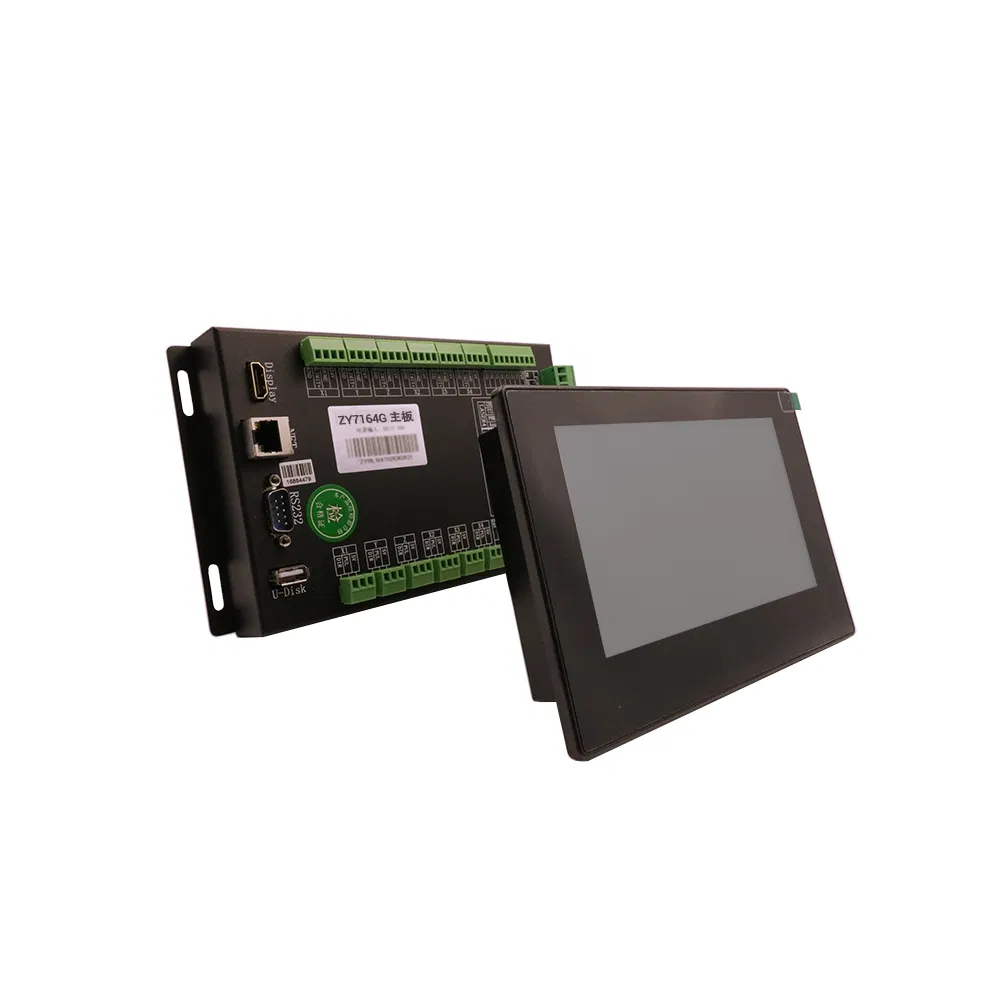

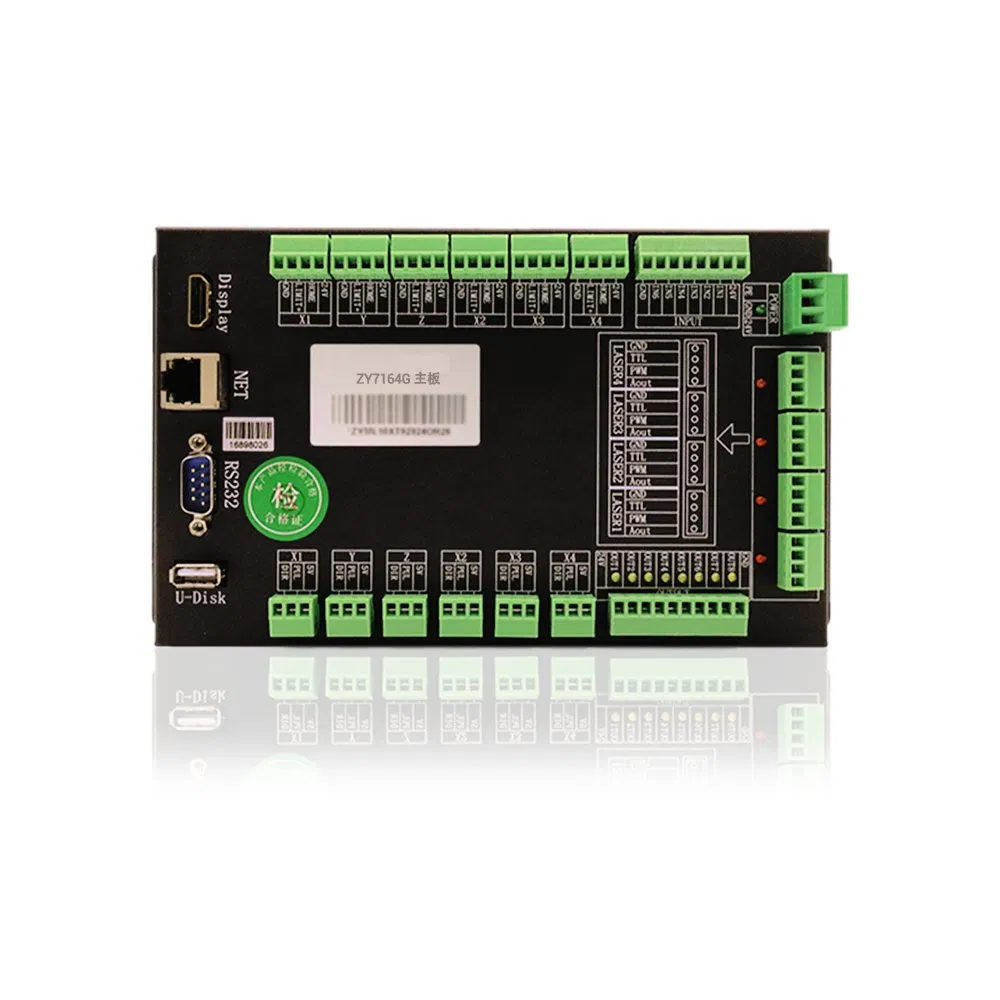

Product Gallery

📋

Product Technical Specifications

Specification Name	Detail Parameters
Model number	ZY7142G
Hardware Specs
Screen	Seven inches
Universal Input/Output	4 Ports Each
Control Axes	4-axis
Supported Lasers	Two (Rf laser, CO2 glass tube laser)
Disk Space	500 MB
Transmission Mode	Network communication, U disk
Functional Support
Auto-Focus & Feed	Support
Power Off Resume	Support
Rotary & Mirror Cutting	Support
Dispensing Function	Support
Multilingual Interface	Support

✔

Quality Control & Certification

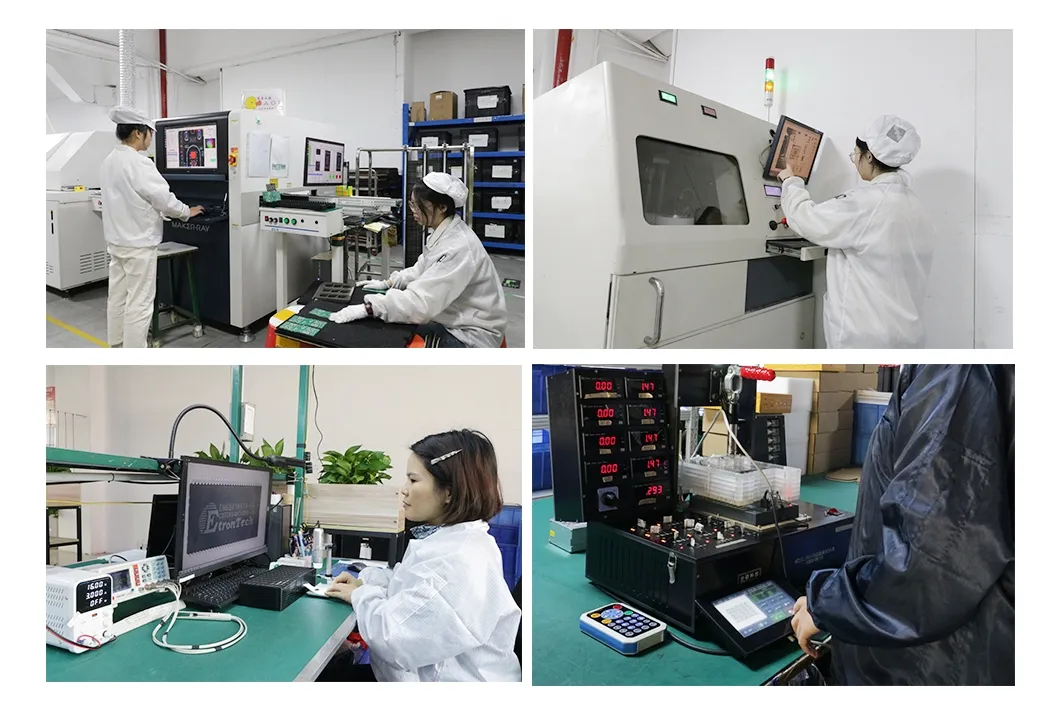

Professional inspectors conduct testing on each product after production is completed to ensure the highest standards.

?

Frequently Asked Questions

1. Can you offer OEM/ODM services?

Yes, our R&D team provides deep industry knowledge for product design, including appearance design, internal functional optimization, and user-friendly software interfaces to meet specific market needs efficiently.

2. What is the cutting accuracy of the product?

Under ideal conditions, the positioning accuracy can reach 0.001mm. This depends on motor drive accuracy, control system algorithms, and mechanical transmission structures such as high-precision servo motors.

3. Which non-metallic materials are supported?

The system supports acrylic, wood, leather, plastic, and fabric. For example, thin leather (1-2mm) can be cut at 3000-5000mm/min, while thicker acrylic (10-20mm) may require different power settings.

4. Is it possible to control the laser power gradient?

Yes, advanced controllers can achieve gradation of laser power. This is useful for engraving with gradual light effects, allowing precise adjustment of starting power, end power, and distance parameters.

5. What international certifications are available?

Products are designed to meet CE, FCC, and RoHS standards. These certifications ensure electromagnetic compatibility (EMC), low voltage safety (LVD), and the absence of hazardous substances for global export.

6. How is technical support provided?

Remote support is available via network for technical advice and troubleshooting. We provide guidance through email, instant messaging, and remote desktop tools for software issues, accompanied by detailed user manuals.
