Automatic Control Rod Mill System for Optimized Grinding Efficiency and Output Quality

Customization:	Available
Type:	Ball Mill
Motor Type:	AC Motor

Send Inquiry

Product Description

Basic Information

Model NO.

SYM

Motor Power

15KW

Rotational Speed

13-15r/min

Application

Construction

Materials

Sand

Condition

New

Warranty

1 Year

After-sales Service

Yes

Advantage

High Efficiency Low Energy

Certification

CE & ISO

Production Capacity

50000 pieces/Year

Product Description

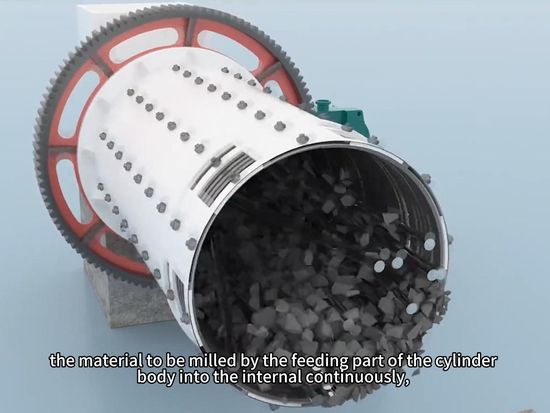

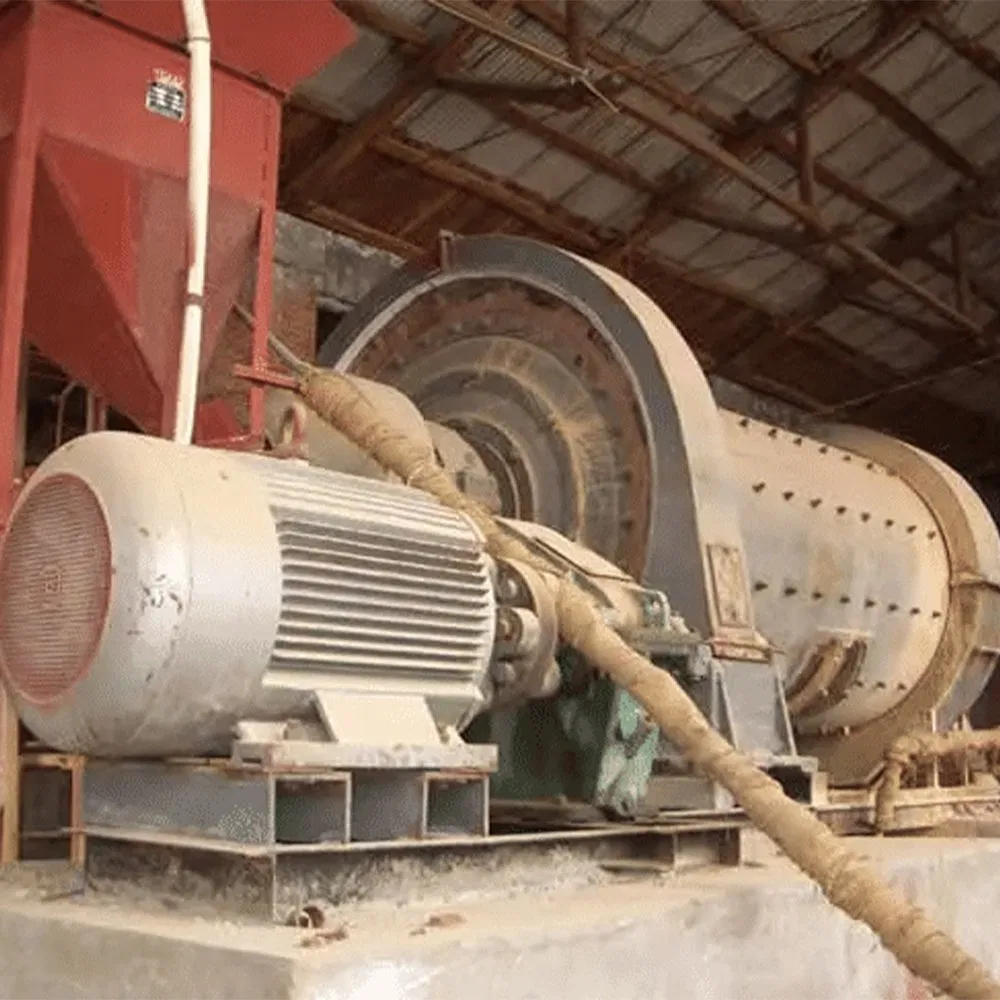

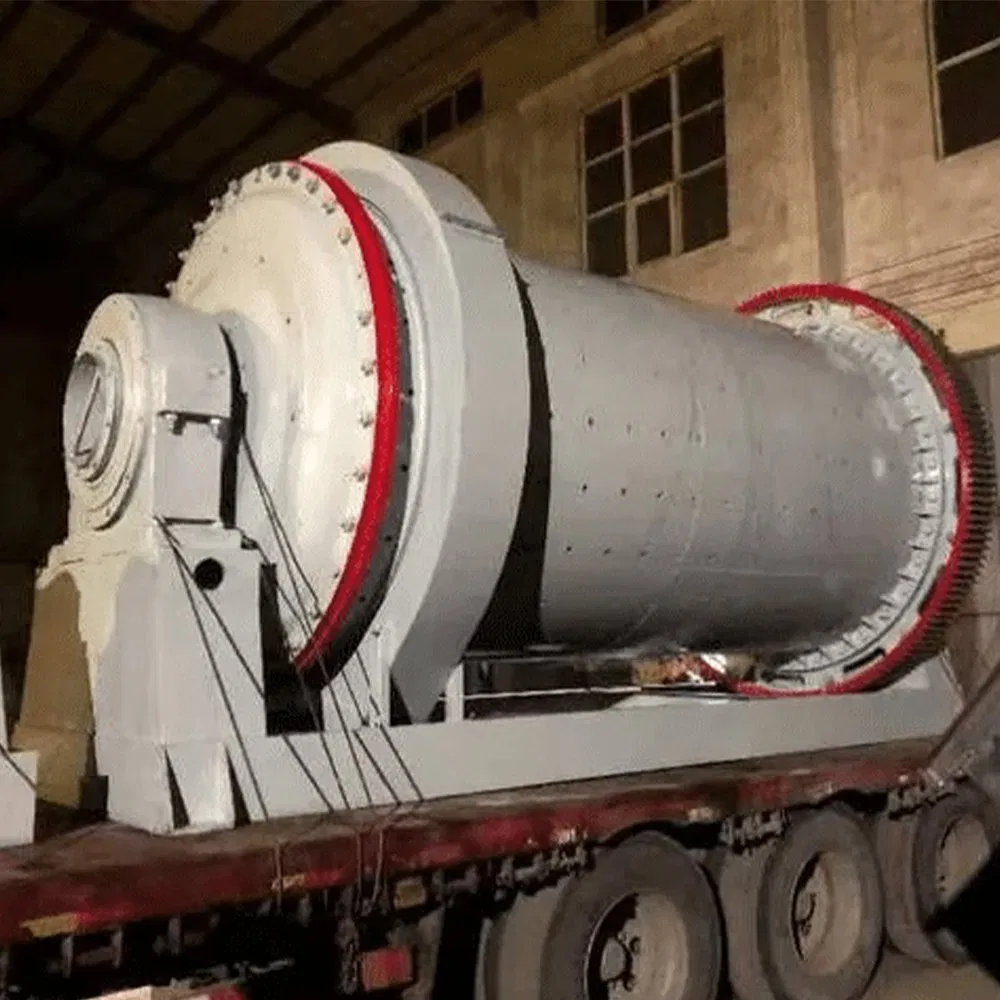

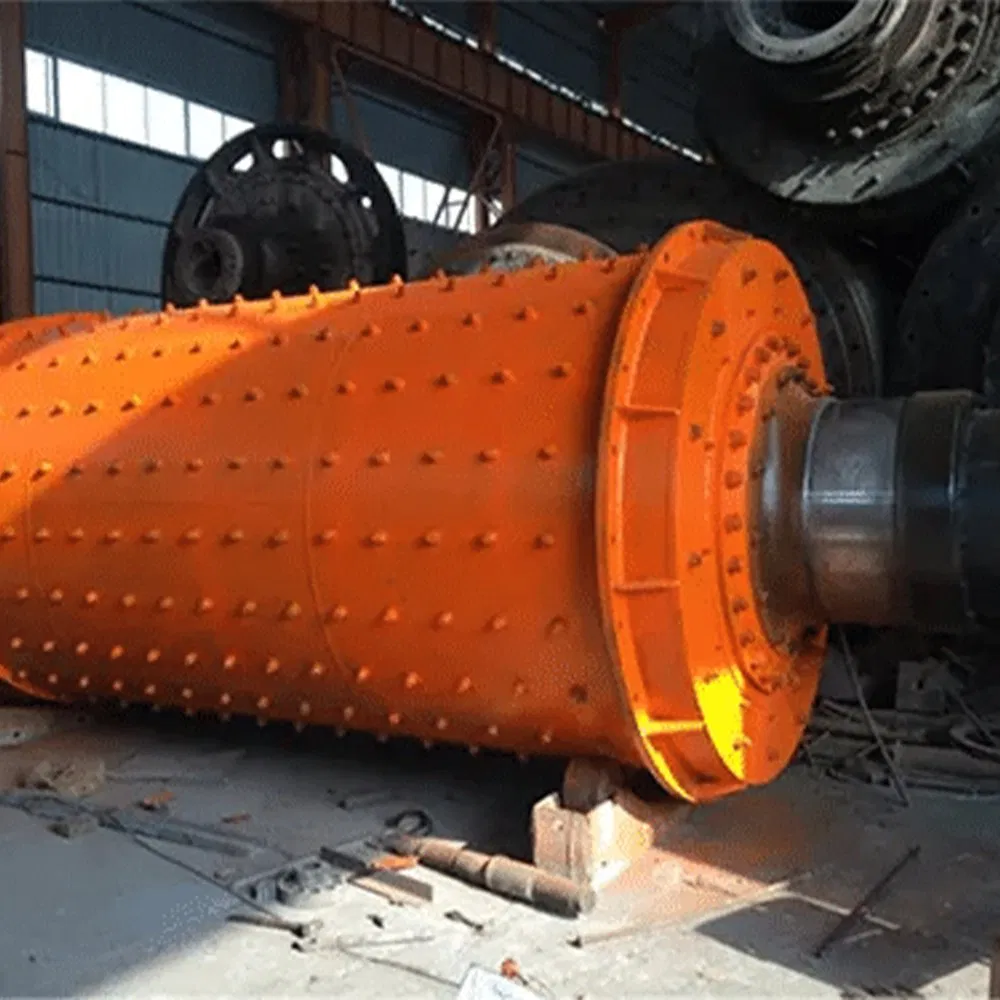

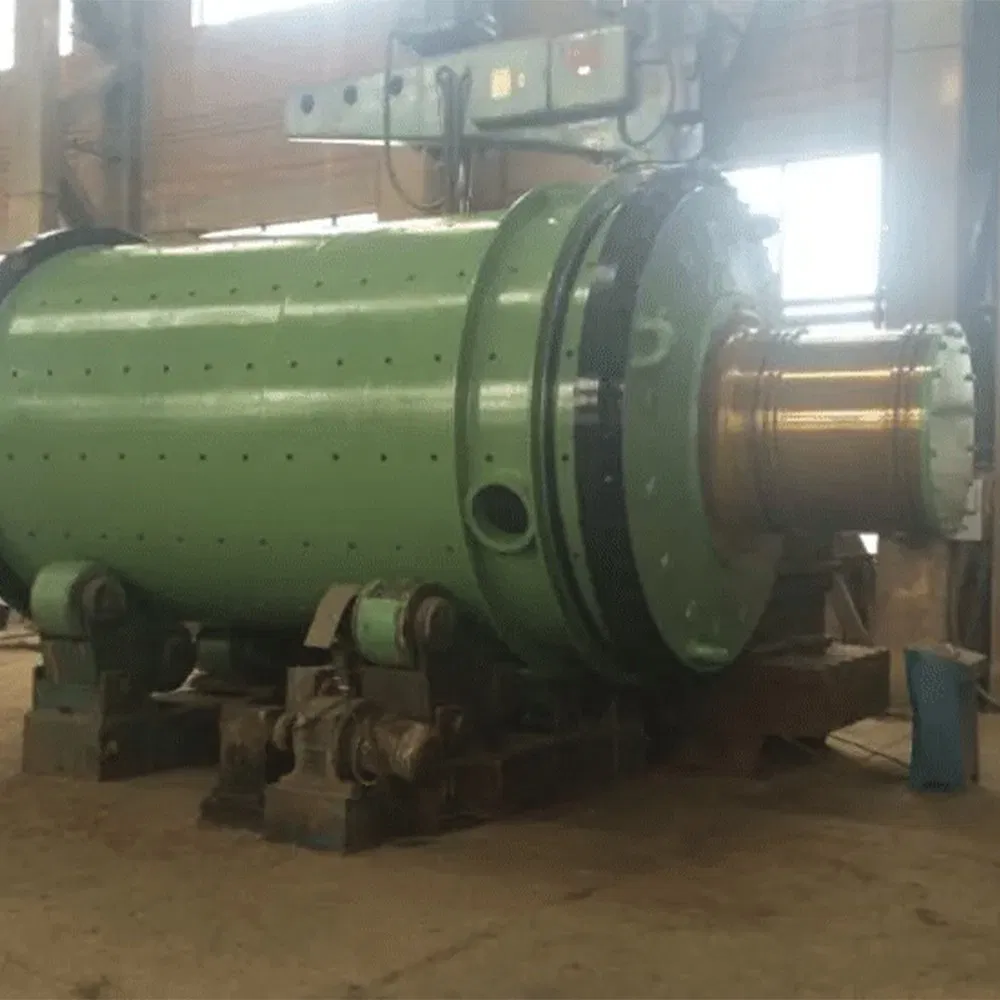

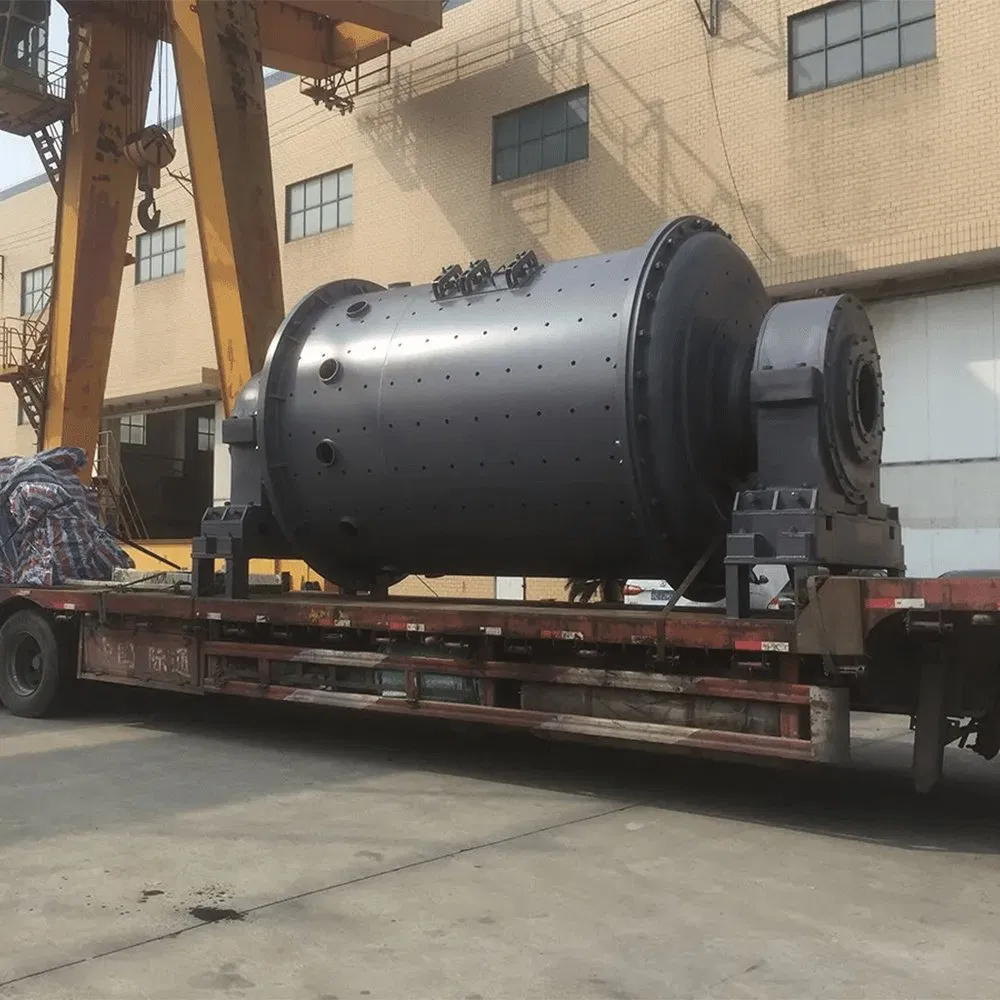

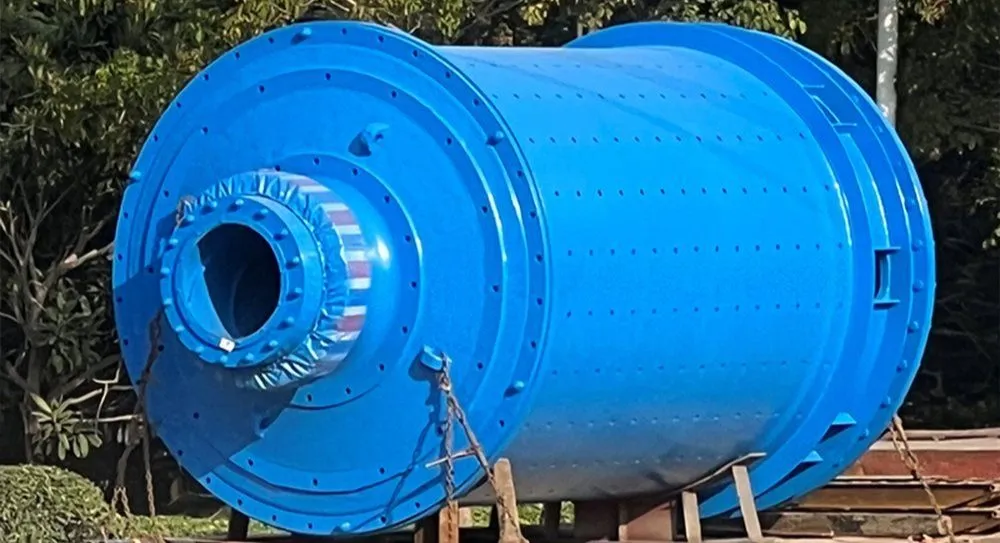

Rod Mill Overview

The Rod Mill is a type of grinding equipment widely used in metal and non-metal mineral processing, especially effective for sand making, quartz grinding, and coal preparation. It uses steel rods as the grinding medium, which results in uniform particle size, less over-grinding, and efficient operation.

Rod mills are typically used in the first stage of grinding and are ideal for materials with medium hardness and high abrasiveness.

Comprehensive Services:

One stop EPC service: engineering, procurement, and construction
On-site installation and commissioning
Technical training and operation guidance
Spare parts support and after-sales maintenance

Key Features

Grinding Medium Steel rods for superior uniformity.

Application Artificial sand production, quartz sand processing, and beneficiation plants.

Discharge Type Available in center or peripheral discharge options.

Energy-Saving Low steel consumption with high-efficiency motor drives.

Adjustable Size Final product size ranges from 0.5–2 mm, adjustable via screen or classifier.

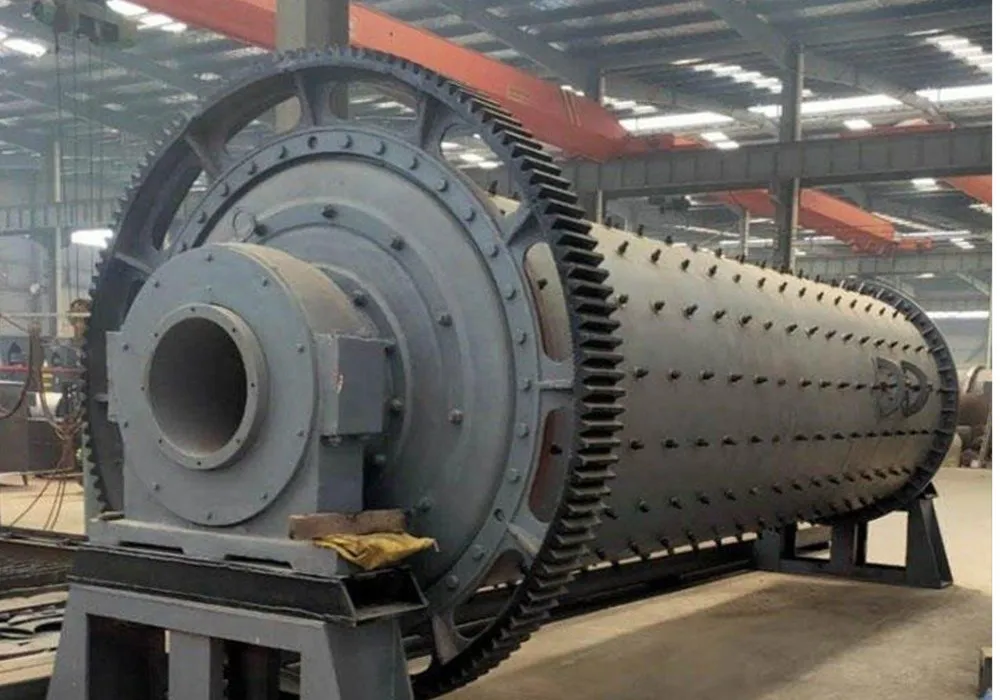

Application Fields

Artificial sand production, Quartz and silica sand grinding, Mineral beneficiation (first stage), Coal and coke processing, and Construction material recycling.

Customization Options

Liner Material: Rubber, manganese steel, or ceramic.
Drive Type: Center drive or edge drive.
Cooling System: Optimized for high-temperature grinding.
Motor Control: Inverter or soft starter integration.
Process: Selection between dry or wet processes.

Technical Specifications

Model	Shell Diameter (mm)	Shell Length (mm)	Capacity (t/h)	Motor Power (kW)	Rod Load (t)
SYM-RM1830	1800	3000	5–12	75	8
SYM-RM2130	2100	3000	8–18	90	10
SYM-RM2136	2100	3600	10–22	110	12
SYM-RM2436	2400	3600	12–25	132	14
SYM-RM2745	2700	4500	15–32	160	16

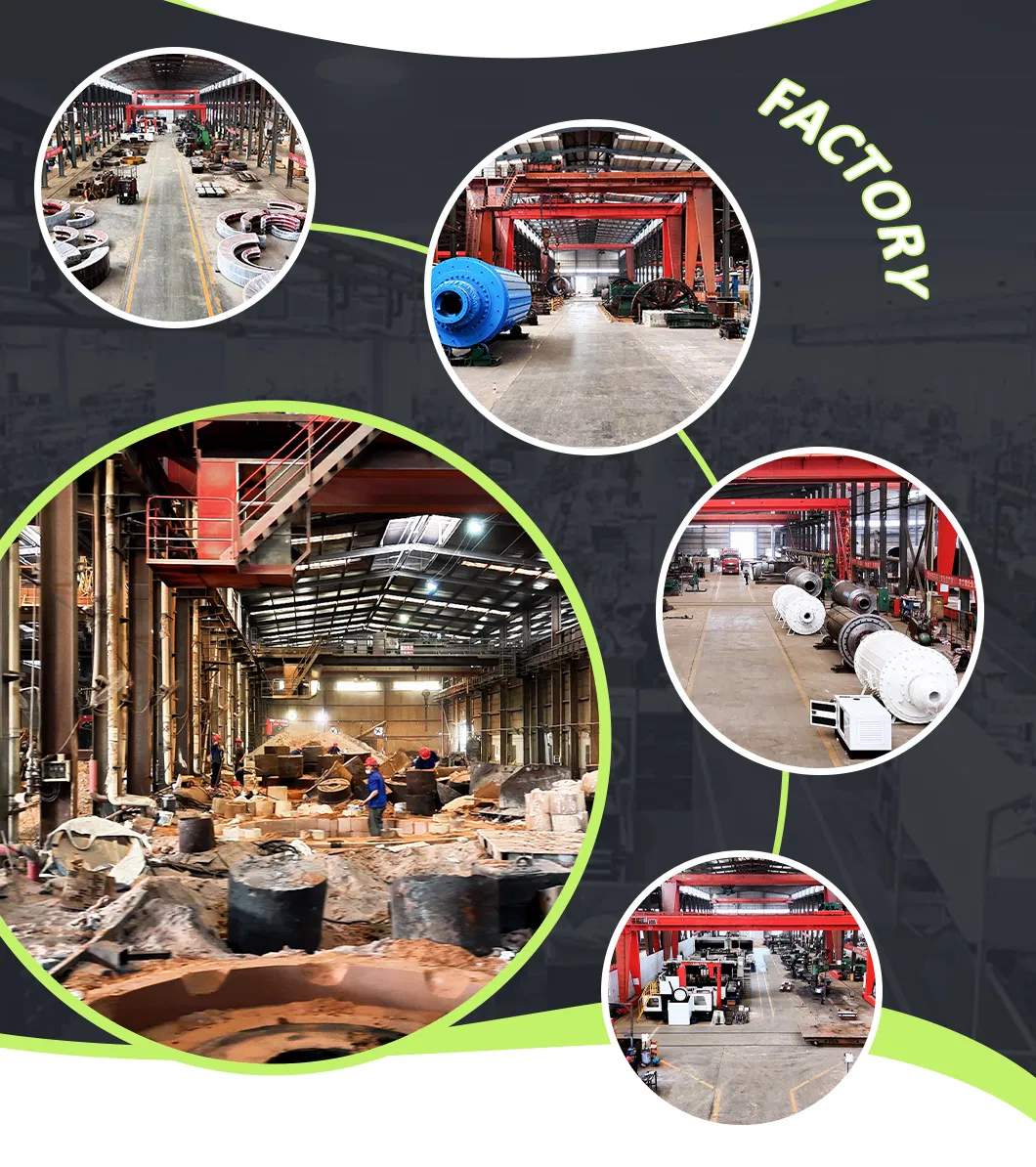

Quality & Manufacturing

Why Choose Our Grinding Solutions?

Over 20 years of experience in grinding machinery manufacturing.
ISO/CE certified factory with strict quality control protocols.
Customized designs tailored to specific mineral characteristics.
Full lifecycle support from foundation layout to commissioning.
Competitive pricing with guaranteed long-term spare parts supply.

Frequently Asked Questions

What is the primary difference between a rod mill and a ball mill?

A rod mill utilizes steel rods as the grinding media and is specifically designed for coarse grinding with uniform particle size, whereas a ball mill uses steel balls and is intended for fine grinding.

Is the rod mill suitable for artificial sand making?

Yes, it is one of the most efficient choices for artificial sand production because it allows for excellent control over the final particle size distribution.

What is the typical output size range for your rod mills?

The output size generally ranges from 0.5 mm to 2 mm. This can be further adjusted depending on your specific classification setup and requirements.

Do you support customization for local power voltages and specific motor brands?

Absolutely. We can customize the electrical systems, including voltage and frequency, and integrate specific motor brands per customer request.

What kind of technical support is included with the purchase?

We provide a full service package including equipment supply, foundation layout drawings, on-site installation guidance, and technical training for your operators.

How long is the warranty and do you provide spare parts?

We offer a 1-year warranty on major components and guarantee the supply of high-quality spare parts throughout the entire service life of the machine.
