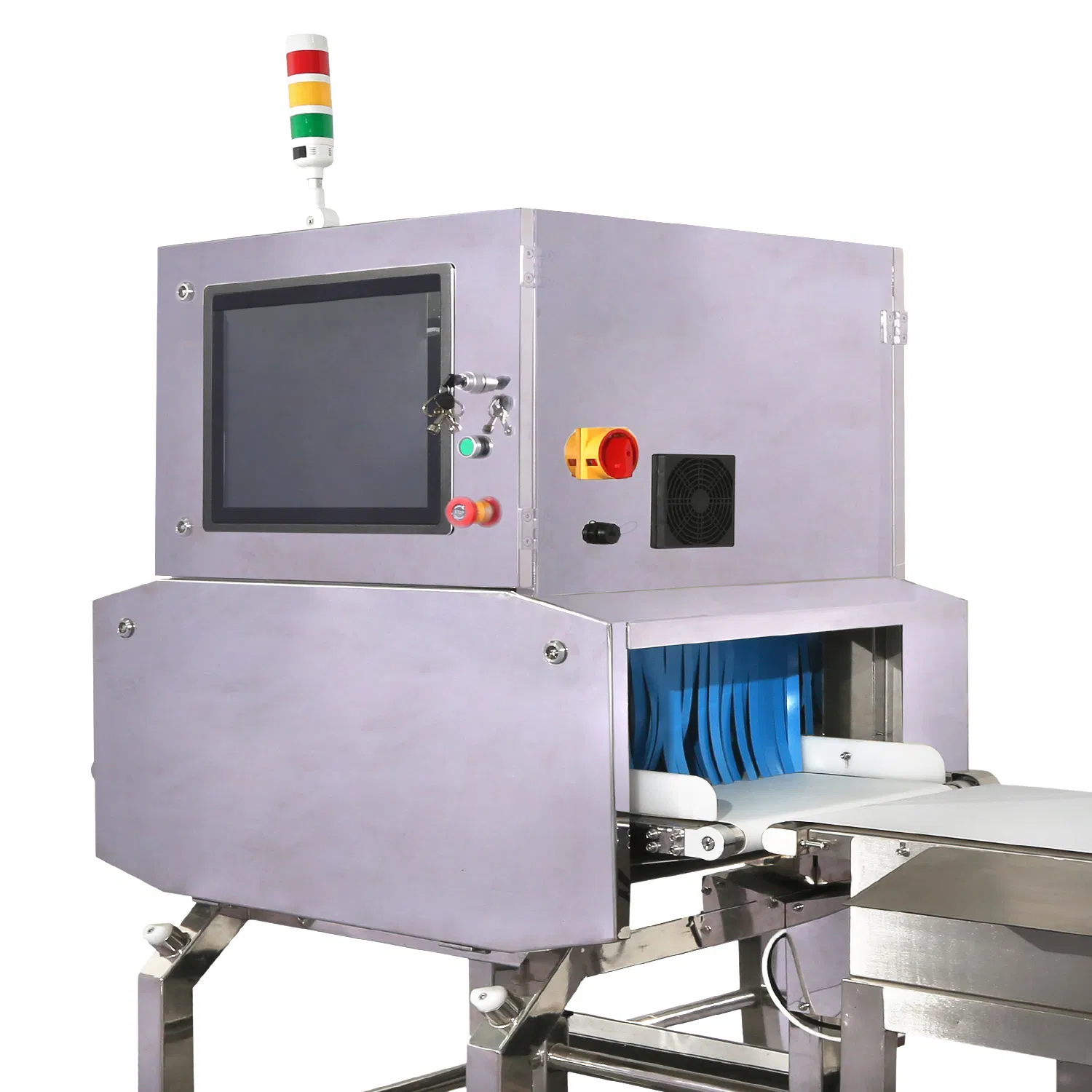

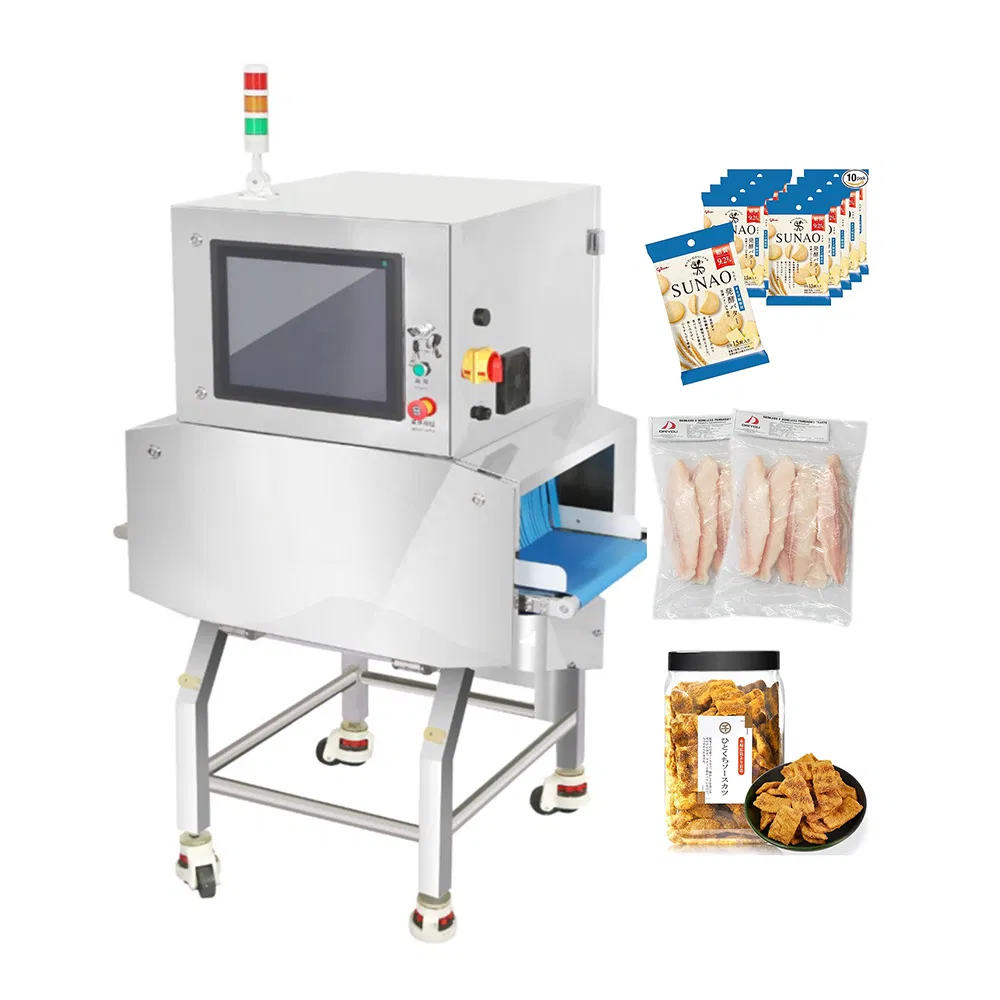

XR-500D High Quality Digital Fast X-Ray Inspection System provides cost-effective contaminants detection for food and pharmaceutical manufacturers.

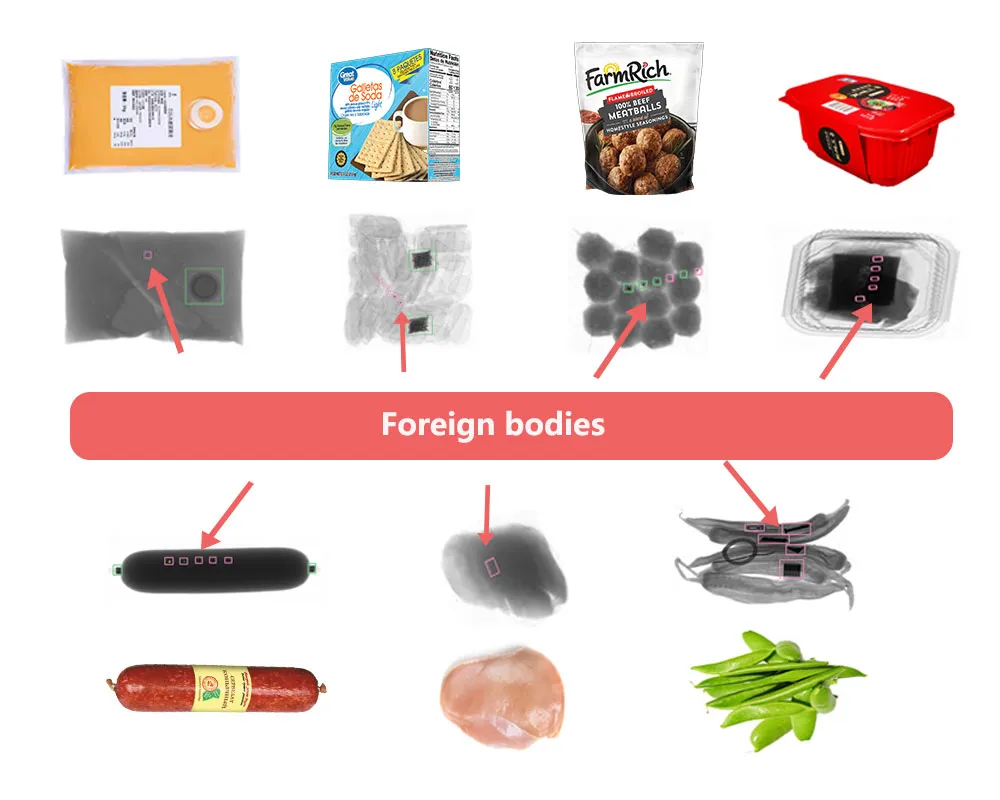

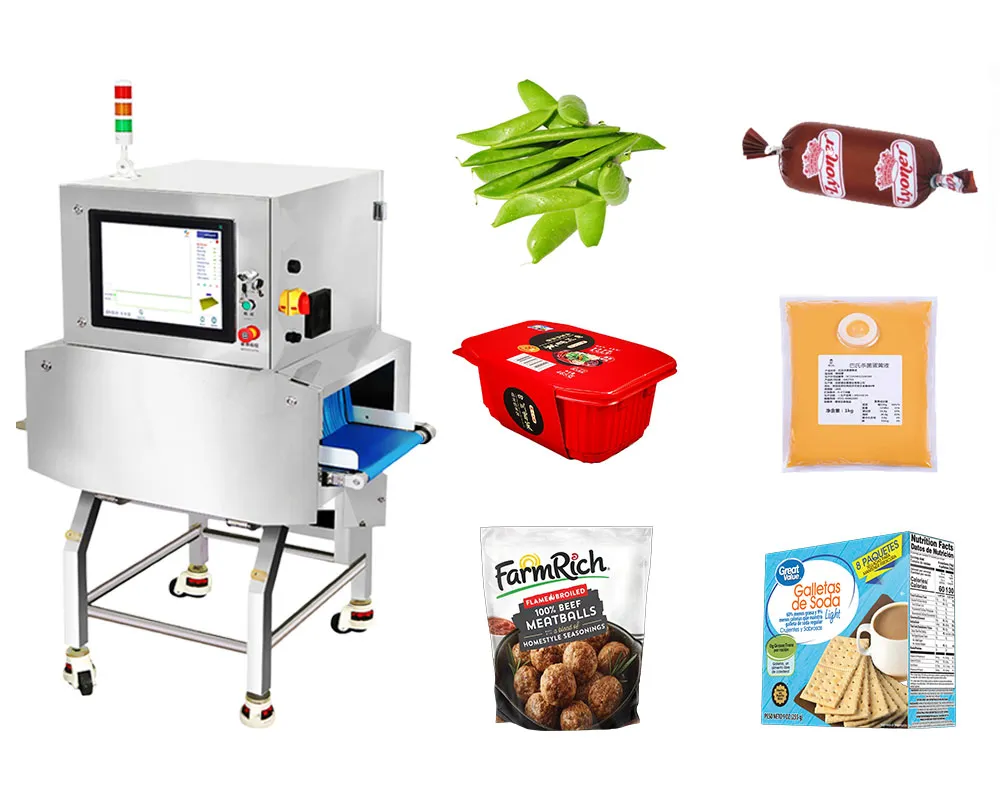

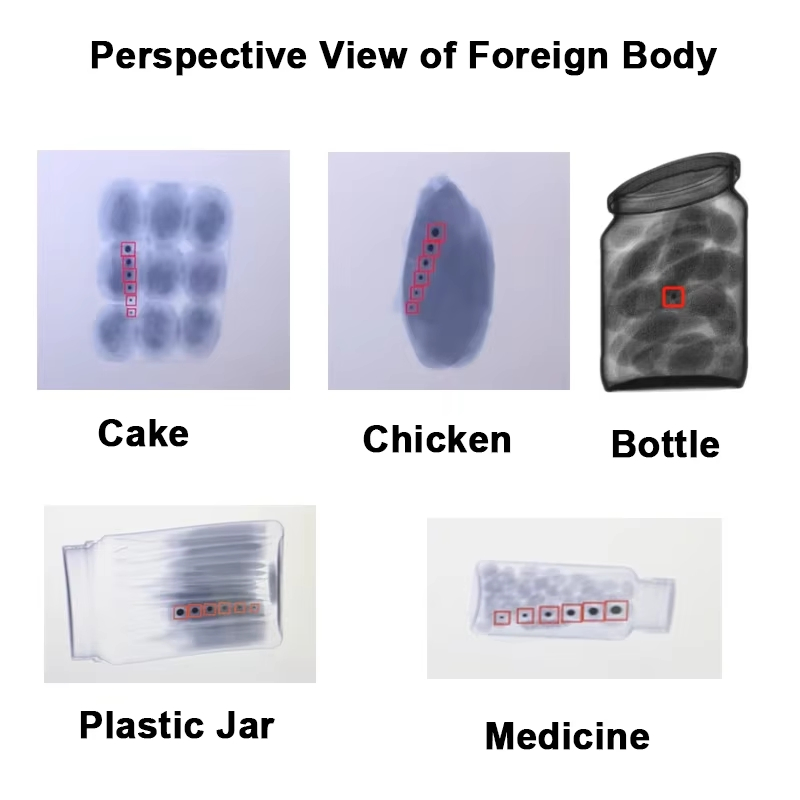

The XR-500D series is engineered for detecting contaminants inside small packaged products. It identifies metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic—even in products wrapped in aluminum foil or metallised film. Foreign objects are detectable by density; the greater the density, the easier the detection.
| Model | XR-500D |
| X-ray Source | Standard: 150W, 80kV. Optional: 350W, 100kV |
| Tunnel Size (W*H) | 440*200mm |
| Max Sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
| Conveying Speed | 20-60 m/min |

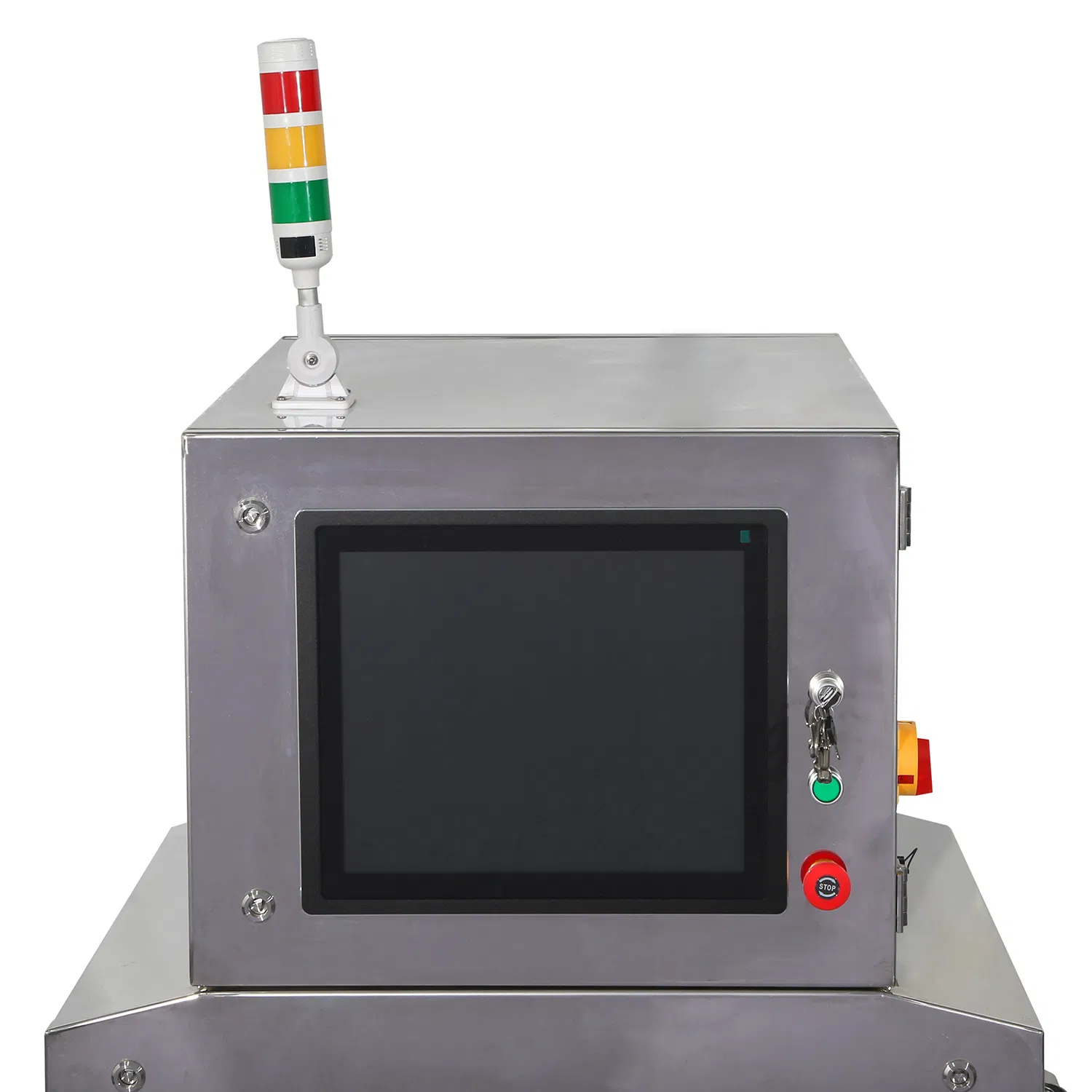

| Screen Display | 21.5 inch full color touchable screen |
| Data Interface | LAN port, USB port |
| Working Environment | Temp: -10-40ºC, Humidity: 30%-90% |

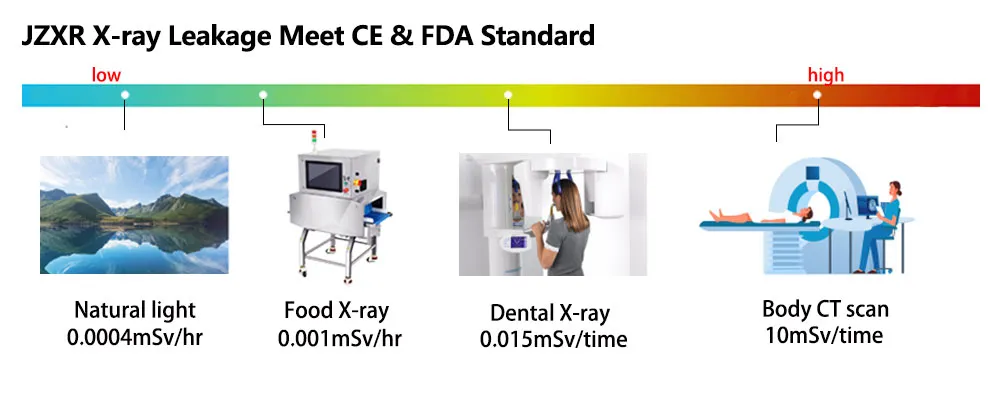

| X-ray Leakage | <1µSv/hour |
| Protective Mode | 6 layers of non-lead food grade soft curtain |
| Power Supply | AC220V ±10% 50/60Hz, 1.5kVA Max |

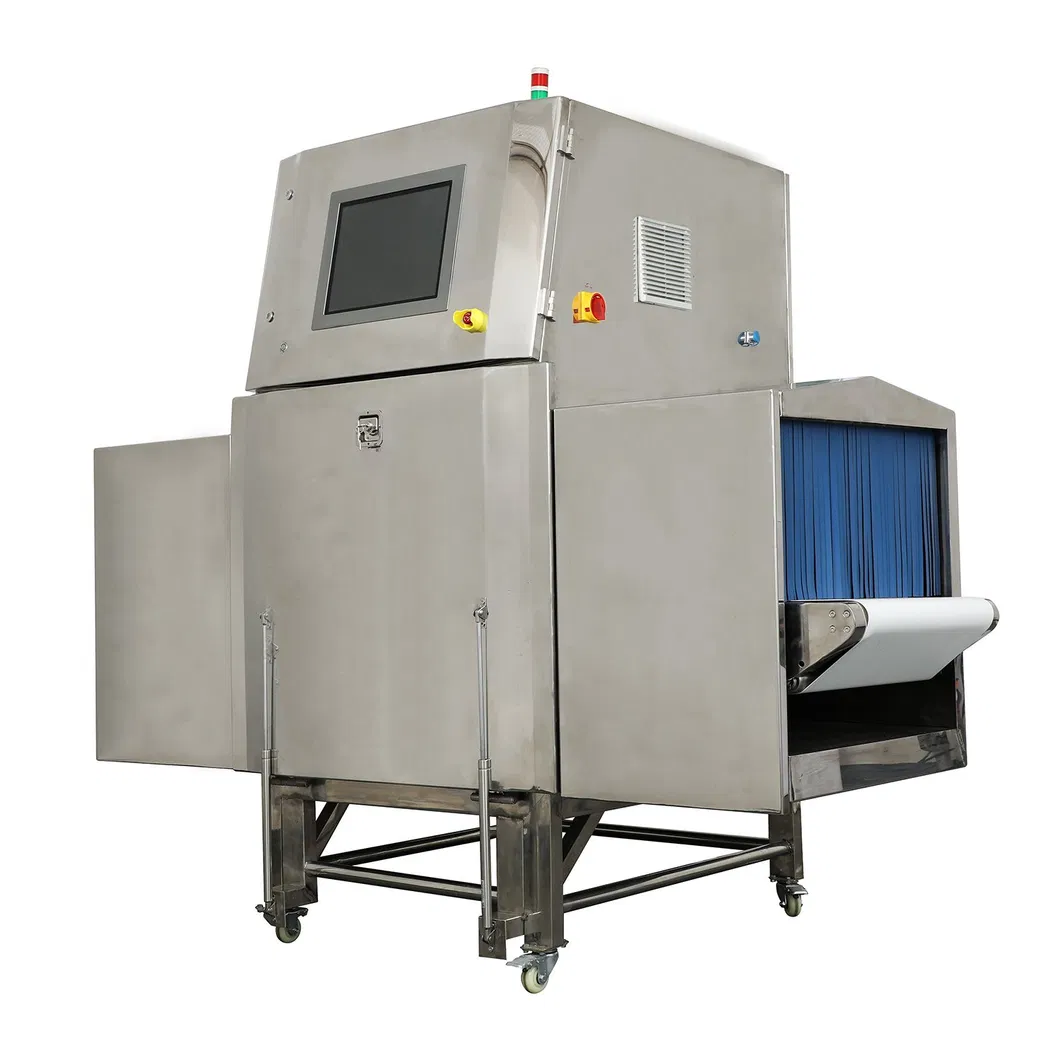

X-ray for Big Packaged Food

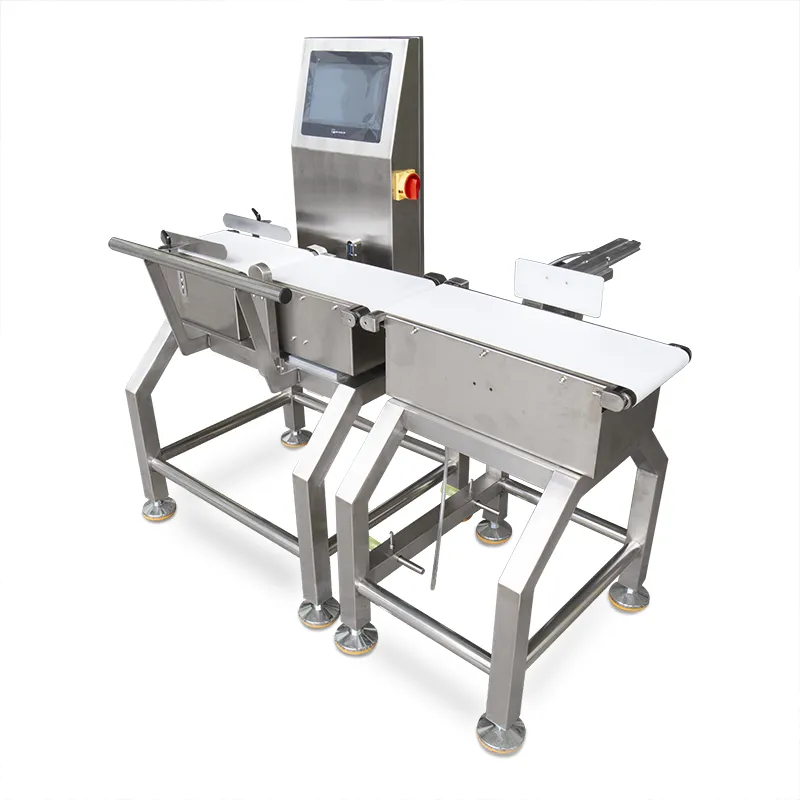

Precise Checkweigher

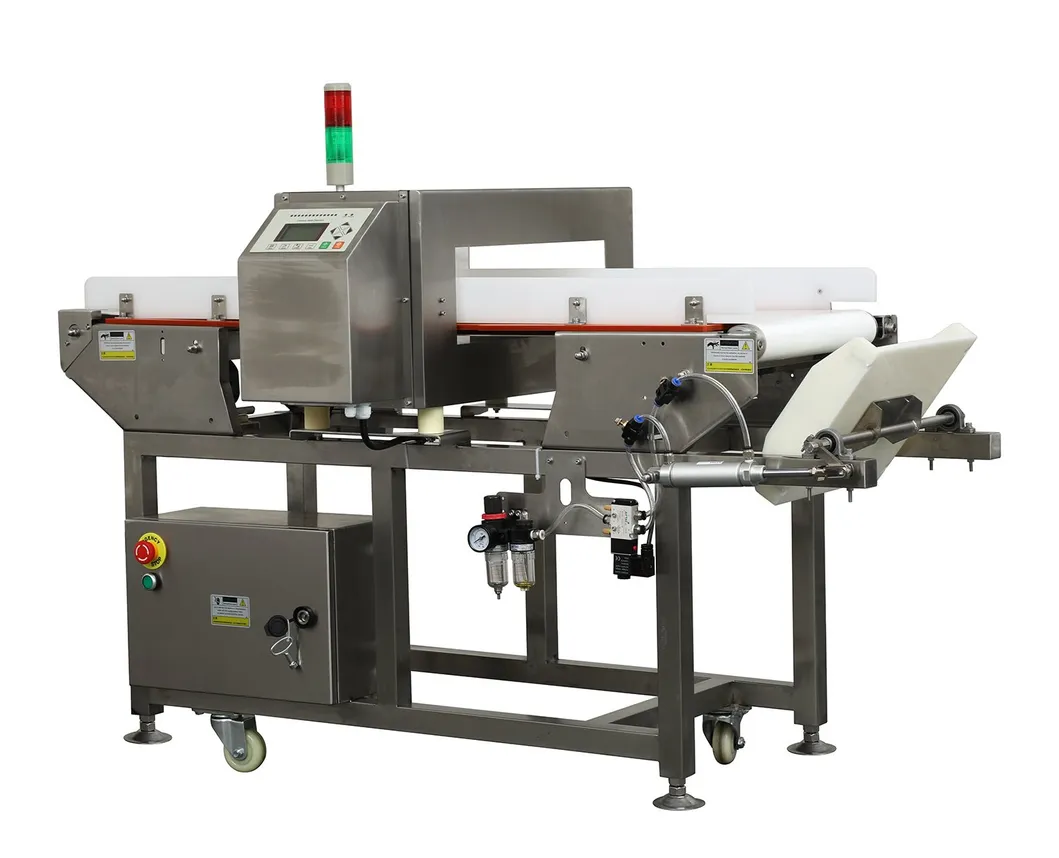

XR-980 Metal Detector

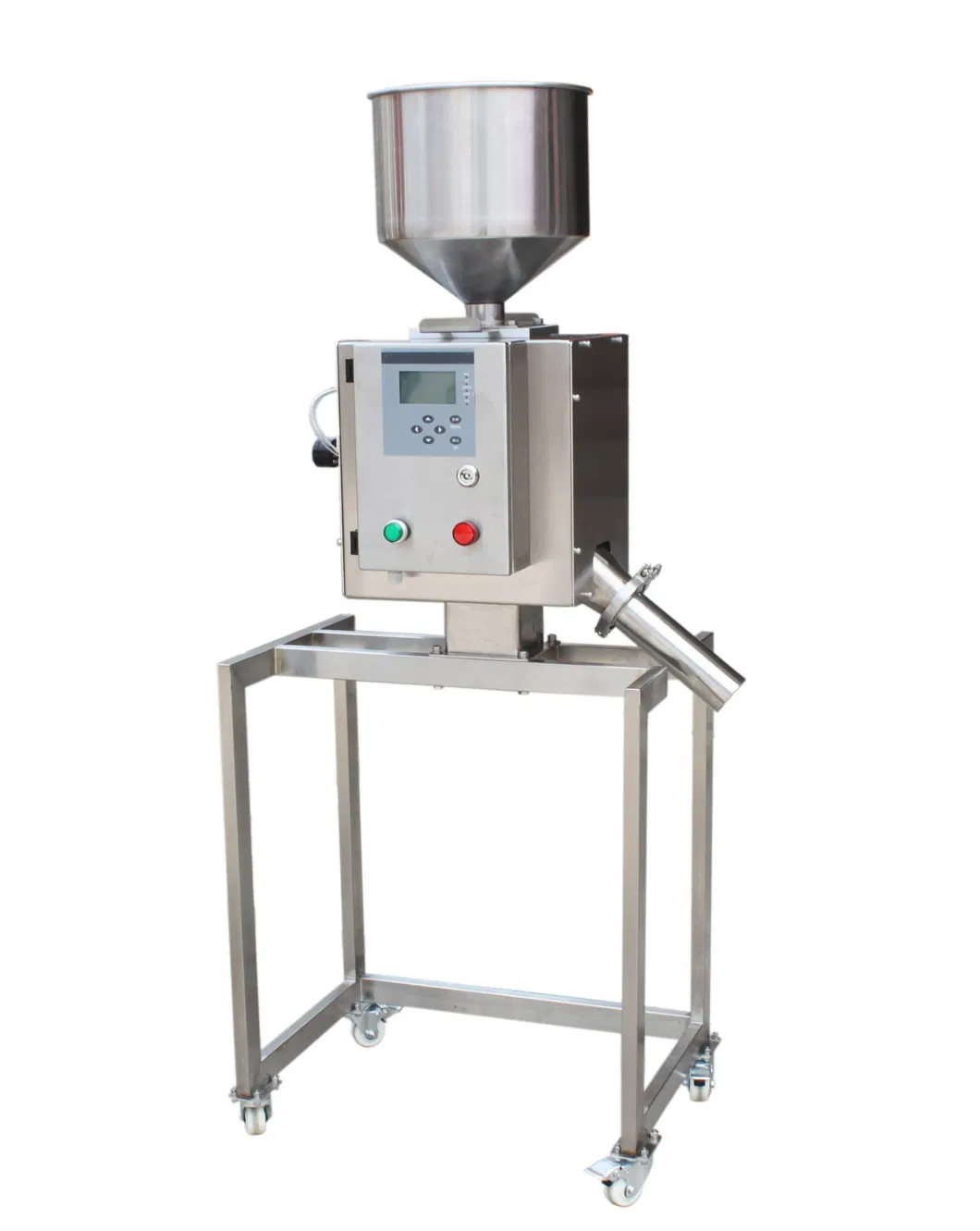

Vertical Fall Metal Detector
