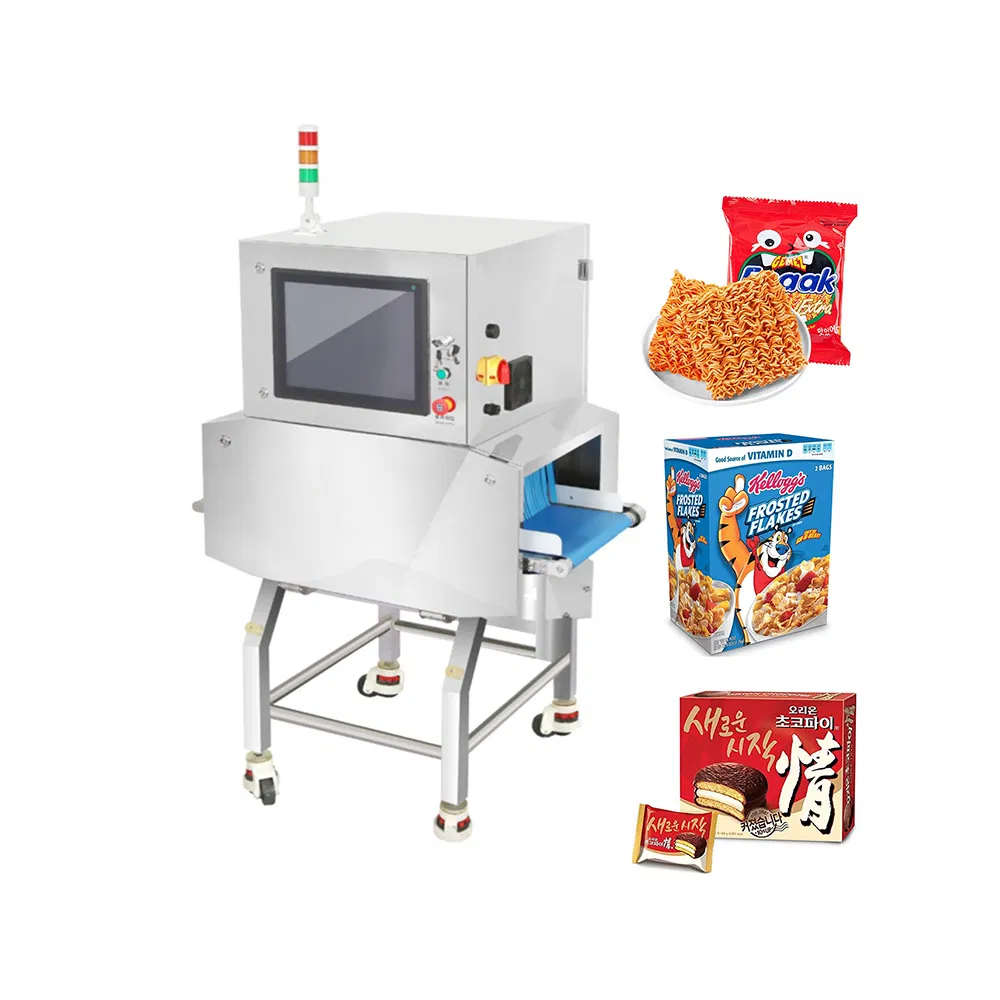

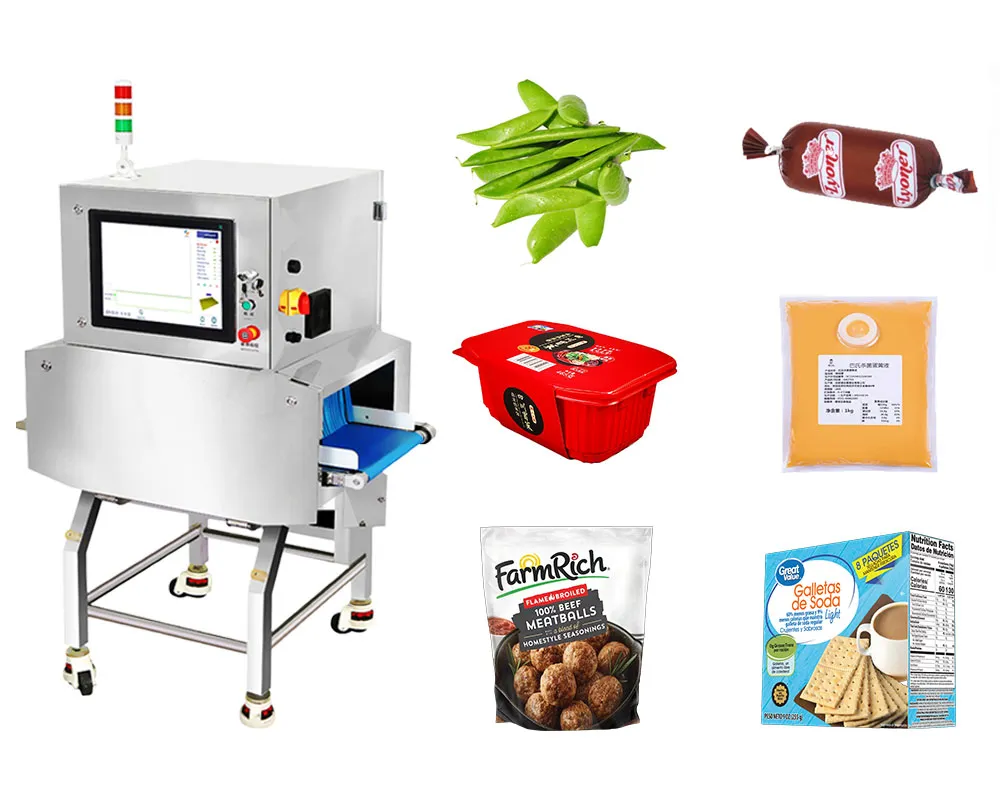

X-Ray Inspection Systems provide highly cost-effective contaminant detection for food and pharmaceutical manufacturers, ensuring product safety and quality compliance.

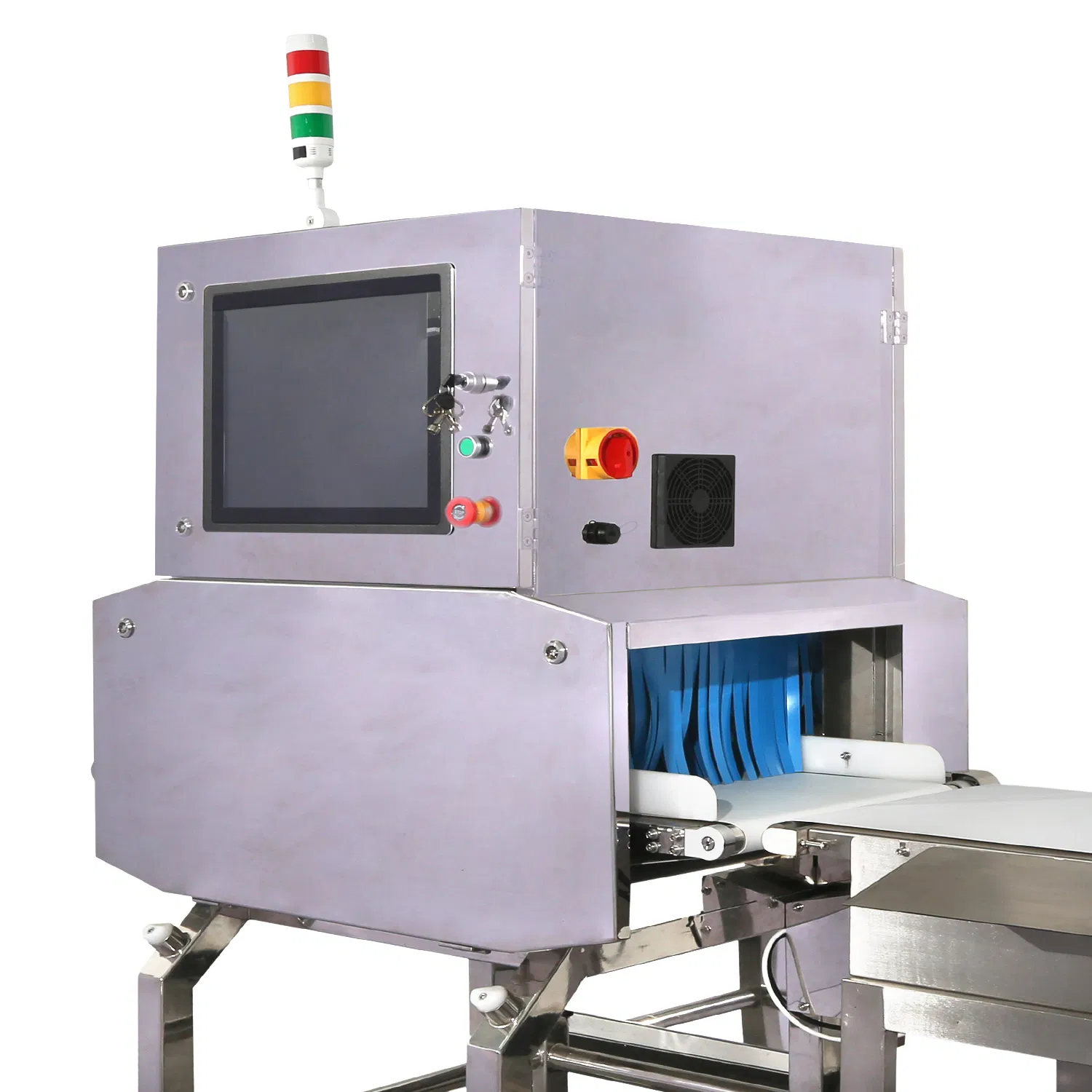

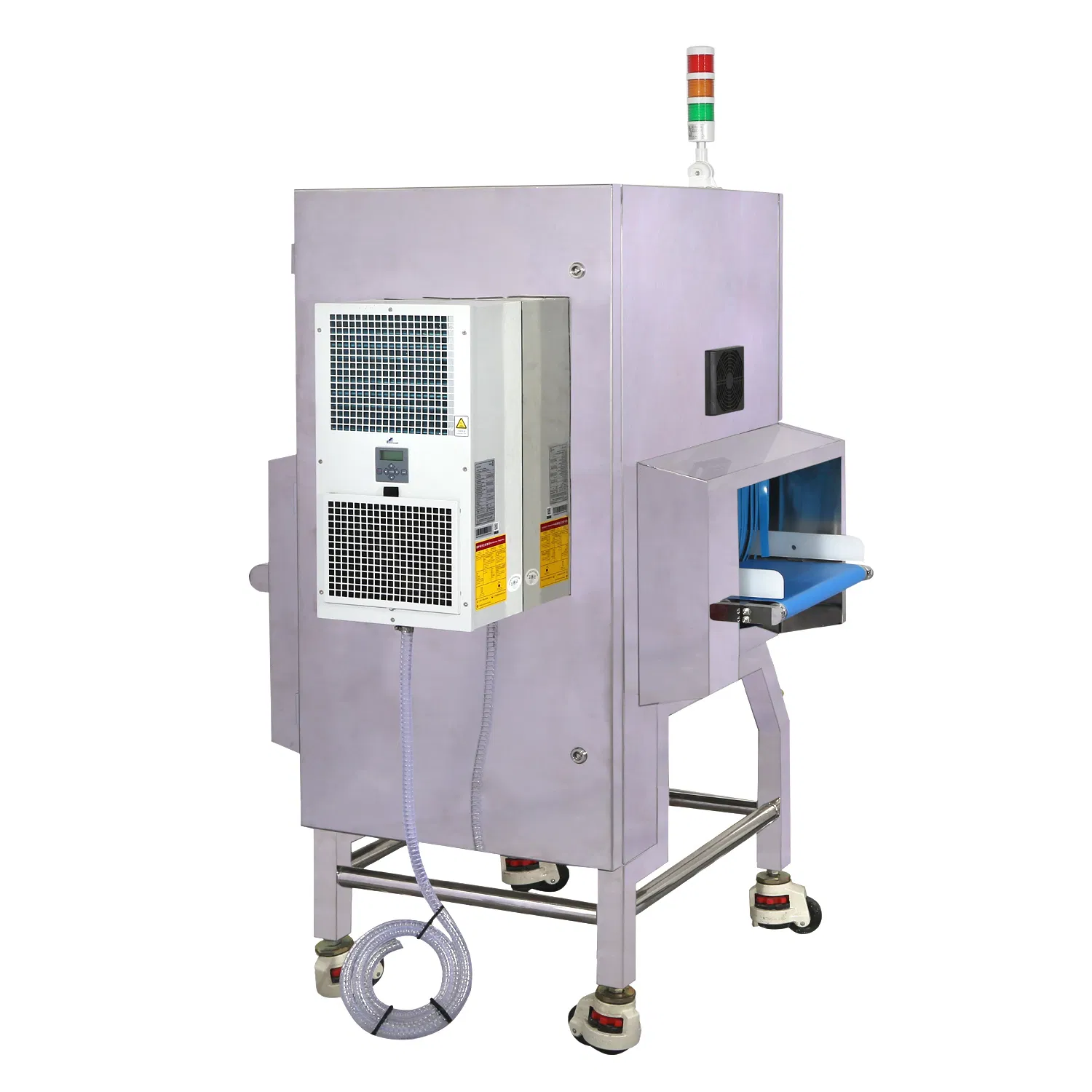

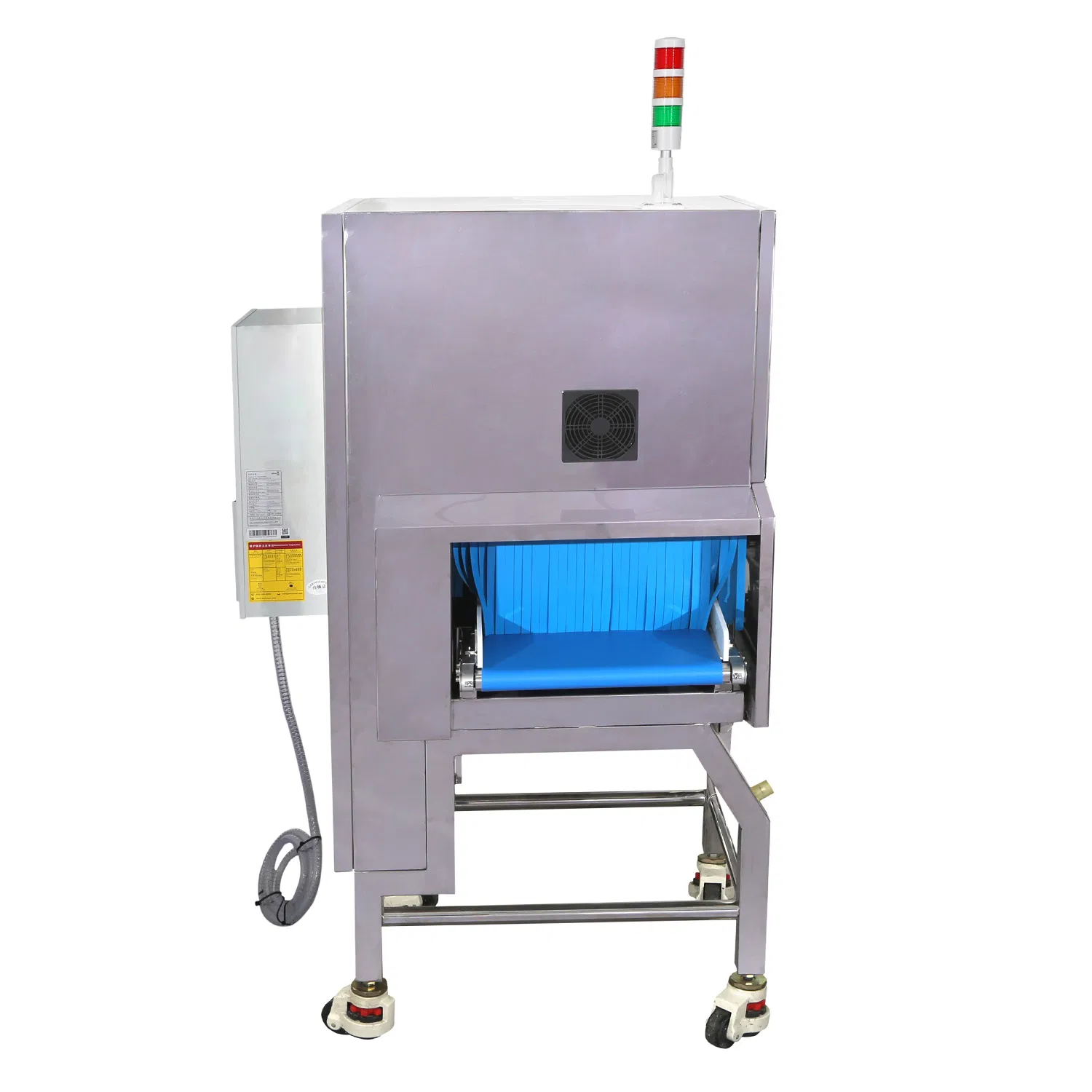

The system is specifically designed for detecting contaminants inside small packaged products. It identifies metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic—even for products wrapped in aluminum foil or metallised film. Detection is based on density differences, allowing for the identification of even the most minute foreign objects.
| Model | XR-500D |
| X-ray Source | Standard: 150W, 80kV. Optional: 350W, 100kV |
| Tunnel Size (W*H) | 440*200mm |
| Max Sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
| Conveying Speed | 20-60 m/min |
| Screen | 21.5 inch full color touchable screen |
| Interface | LAN port, USB port |
| Protective Mode | 6 layers of non-lead food grade soft curtain |
| Power Supply | AC220V ±10% 50/60Hz, 1.5kVA Max |

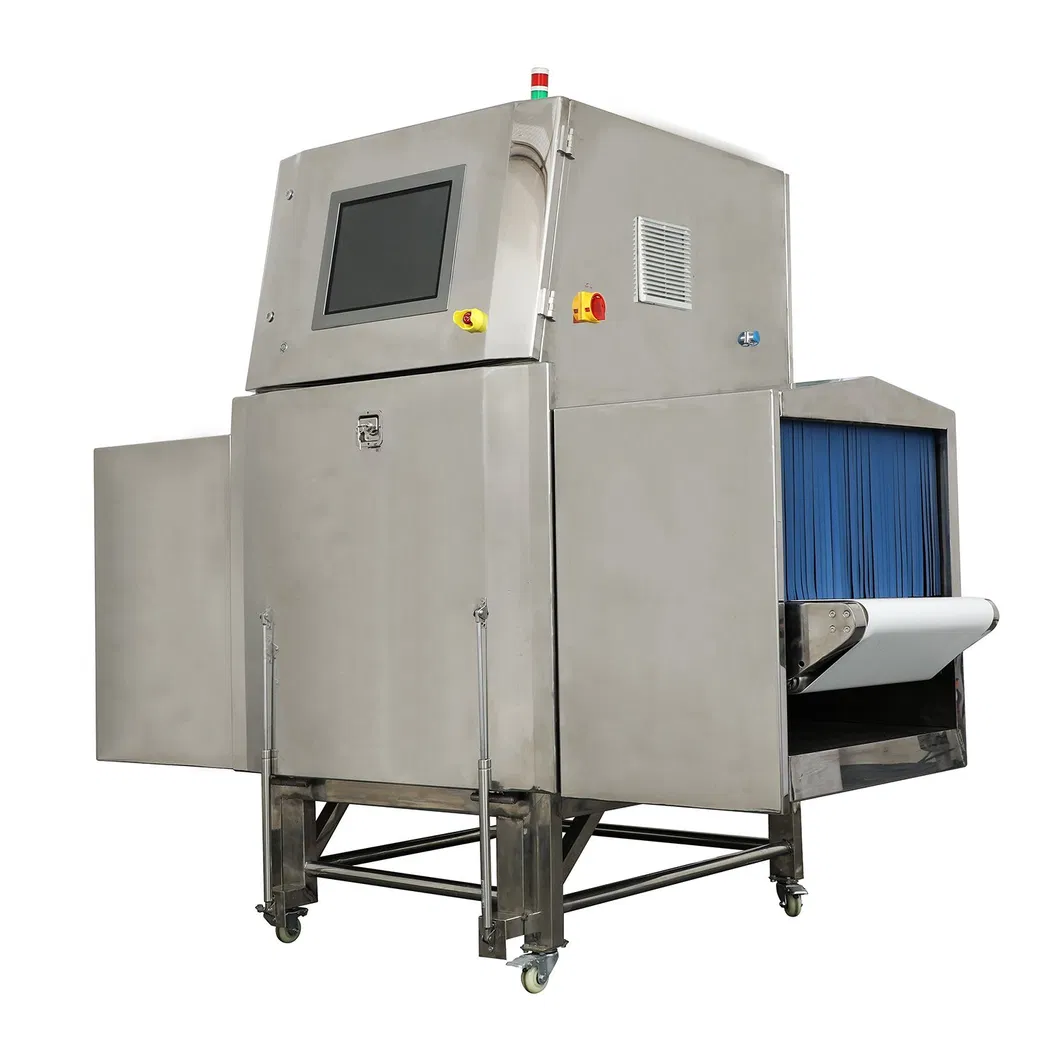

X-ray System for Large Packages

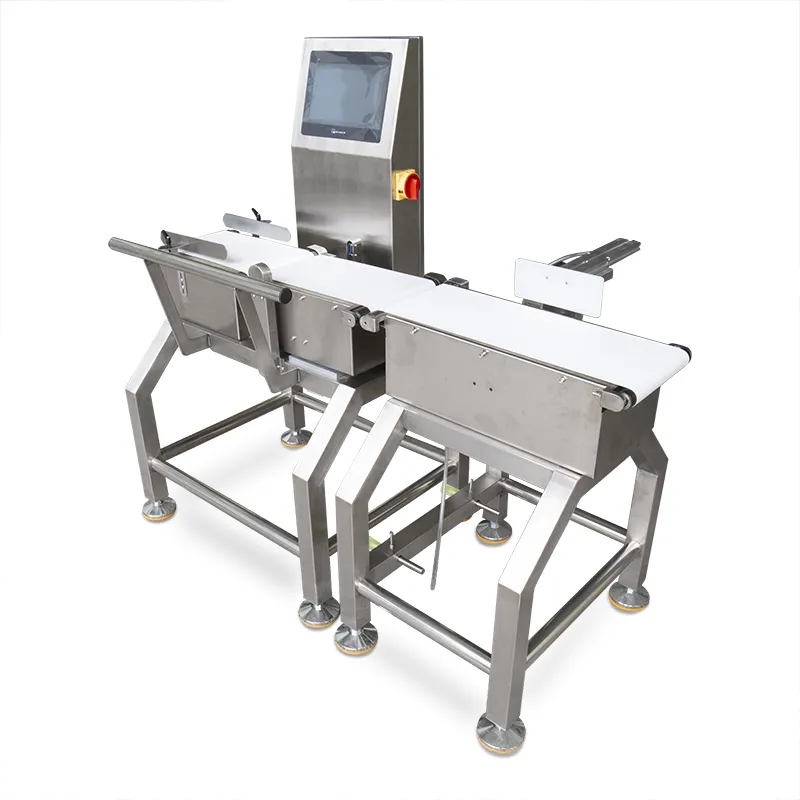

High Precision Checkweigher

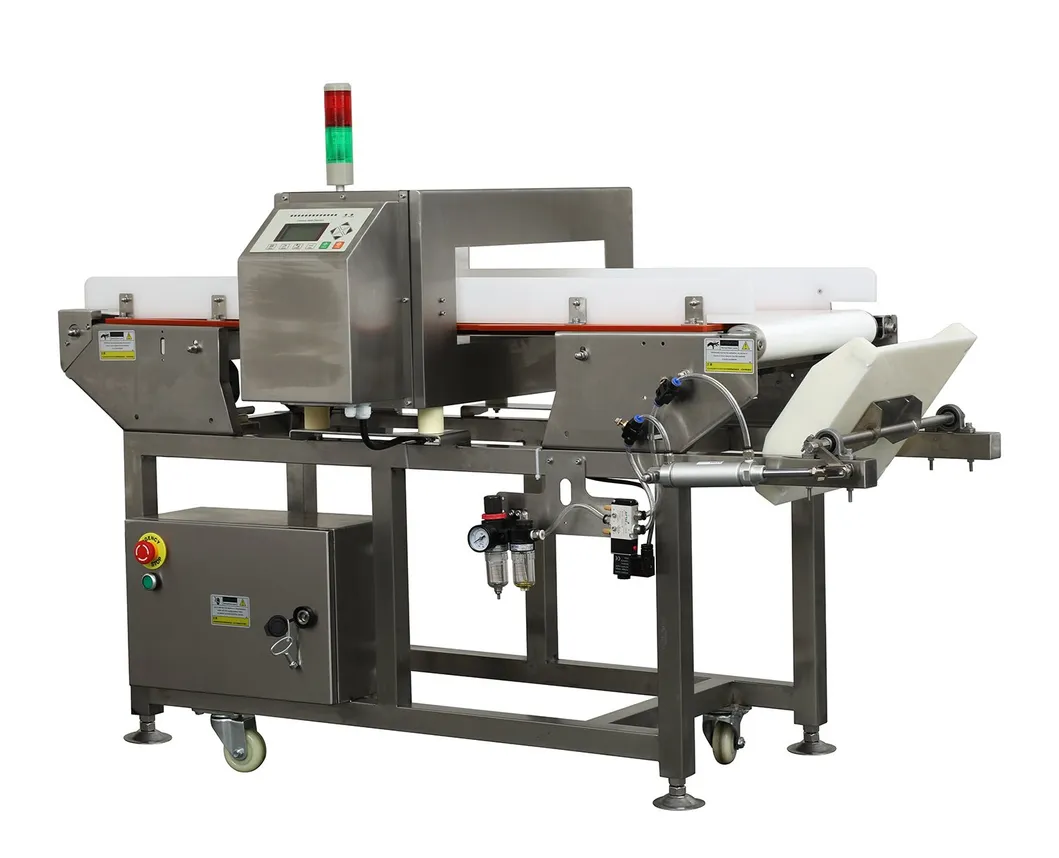

Conveyor Metal Detector
