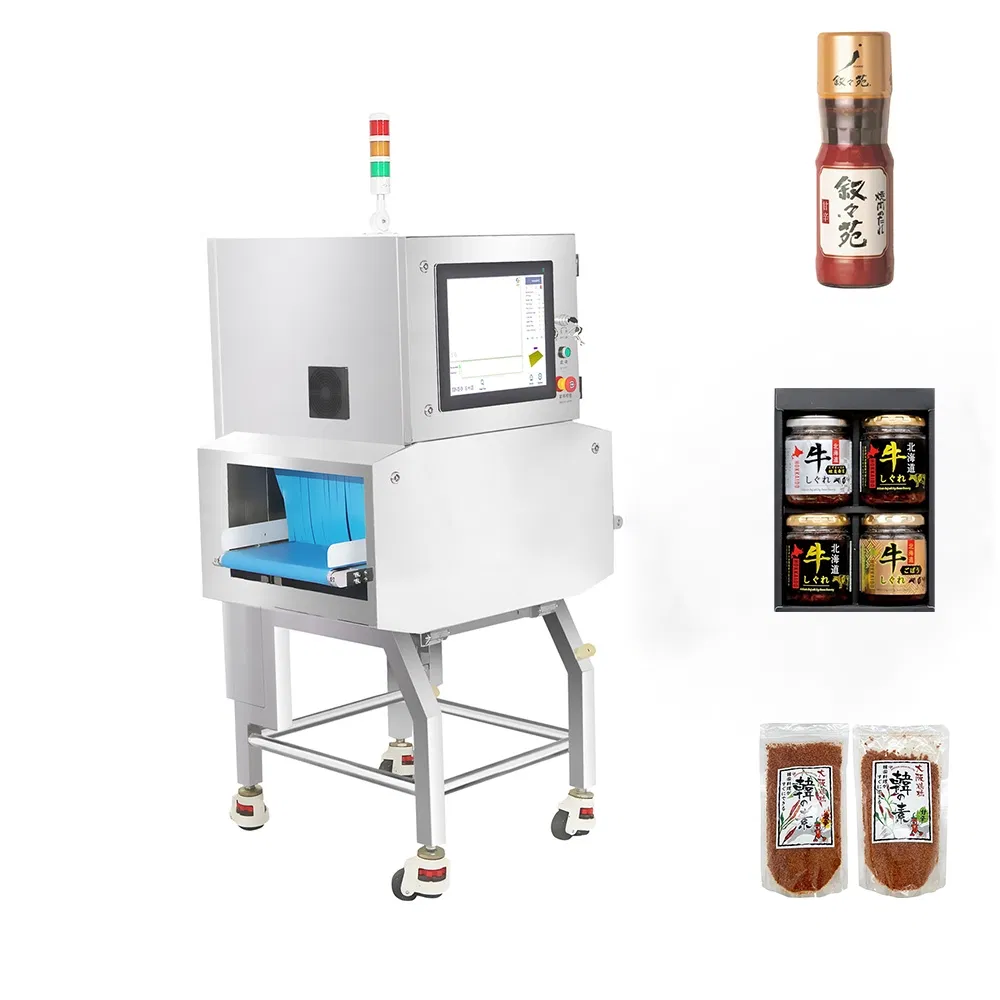

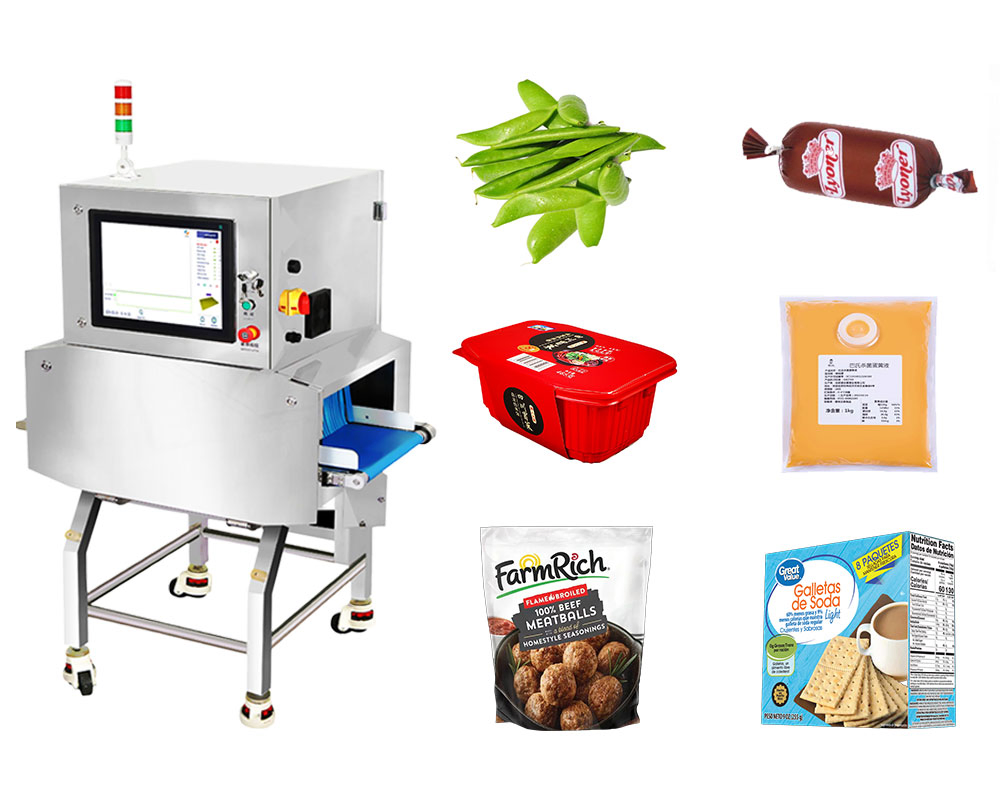

This X-Ray Inspection System provides high cost-effective contaminants detection for food and pharmaceutical manufacturers. It is designed with a focus on safety, ease of use, and simple maintenance.

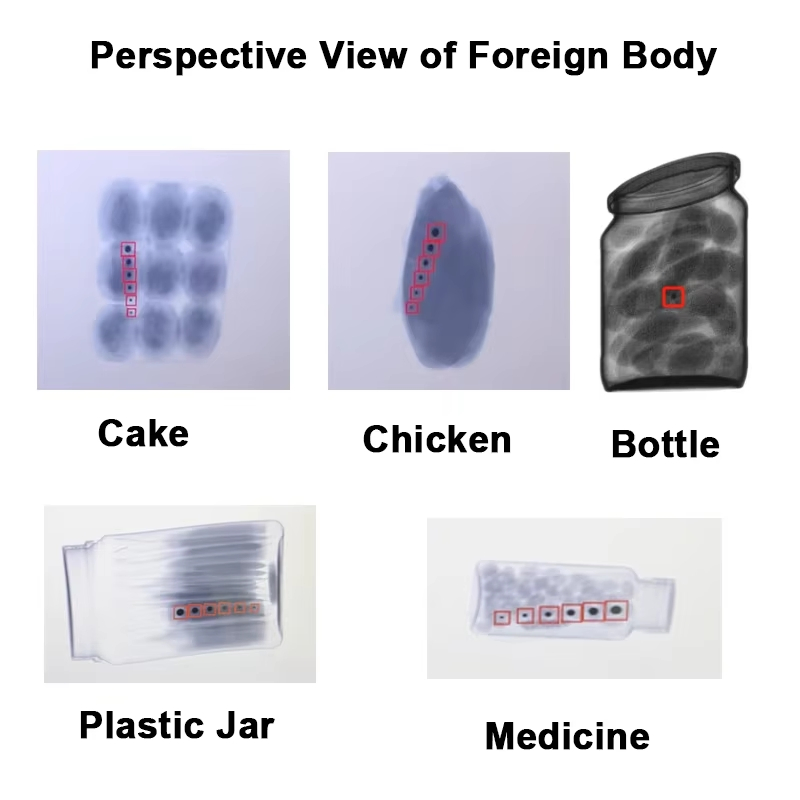

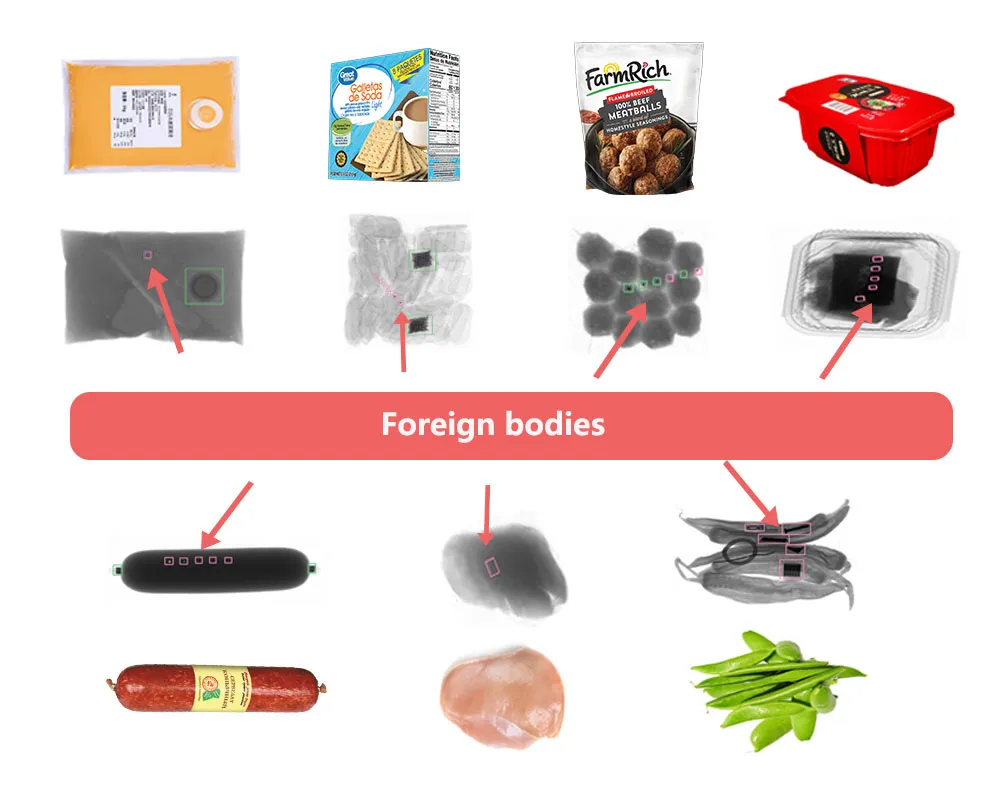

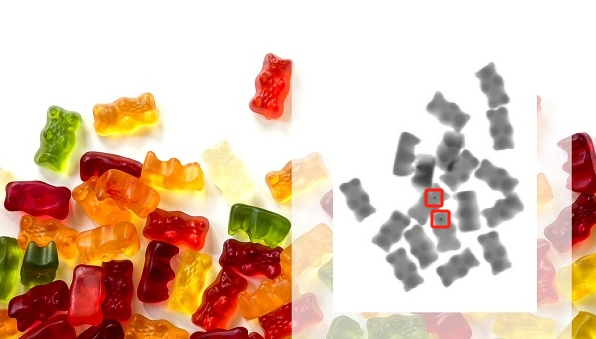

The XR-500D series is specialized for detecting contaminants within small packaged products. It identifies both metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic, even for products wrapped in aluminum foil or metallised film.
| Feature | Specification Details |
|---|---|
| Model# | XR-500D |
| Max Sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
| Conveying Speed | 20-60 m/min |

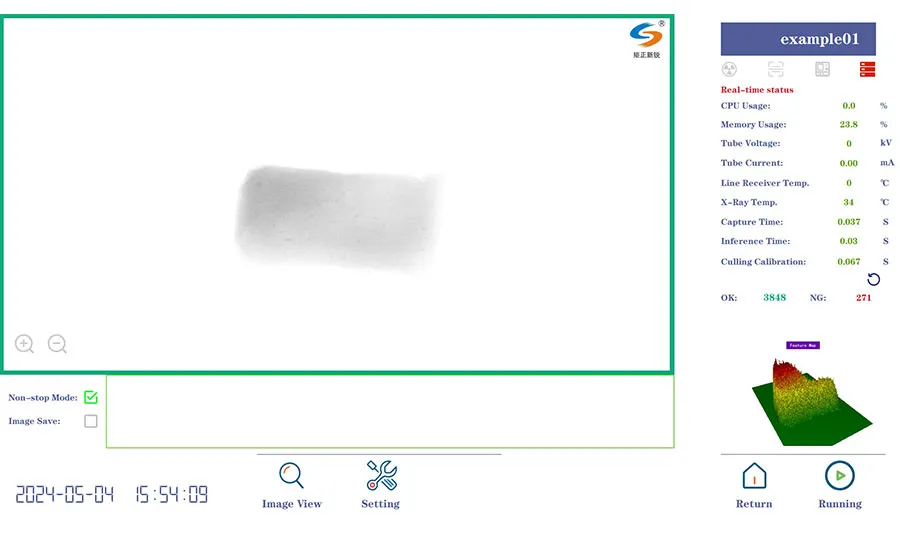

| Screen Display | 21.5 inch full color touchable screen |
| Data Interface | LAN port, USB port |
| Working Temp | -10 to 40ºC (Industrial air conditioning) |

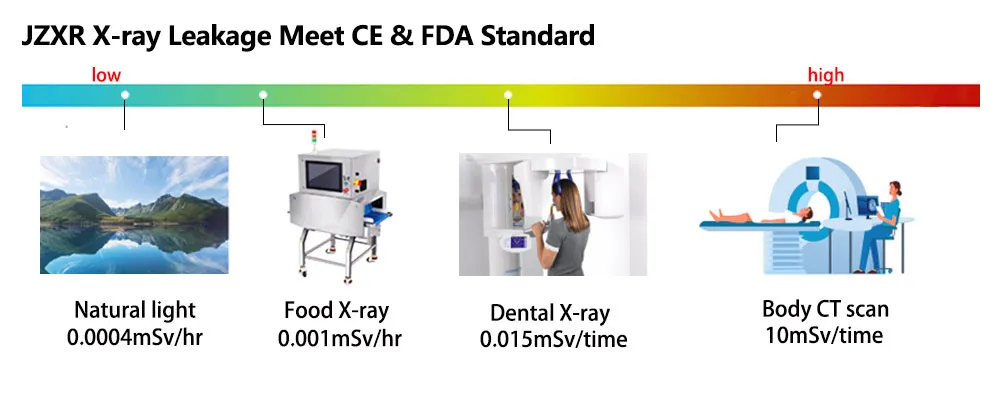

| X-ray Leakage | <1µSv/hour |
| Protective Mode | 6 layers of non-lead food grade soft curtain |
| Power Supply | AC220V ±10% 50/60Hz, 1.5kVA Max |

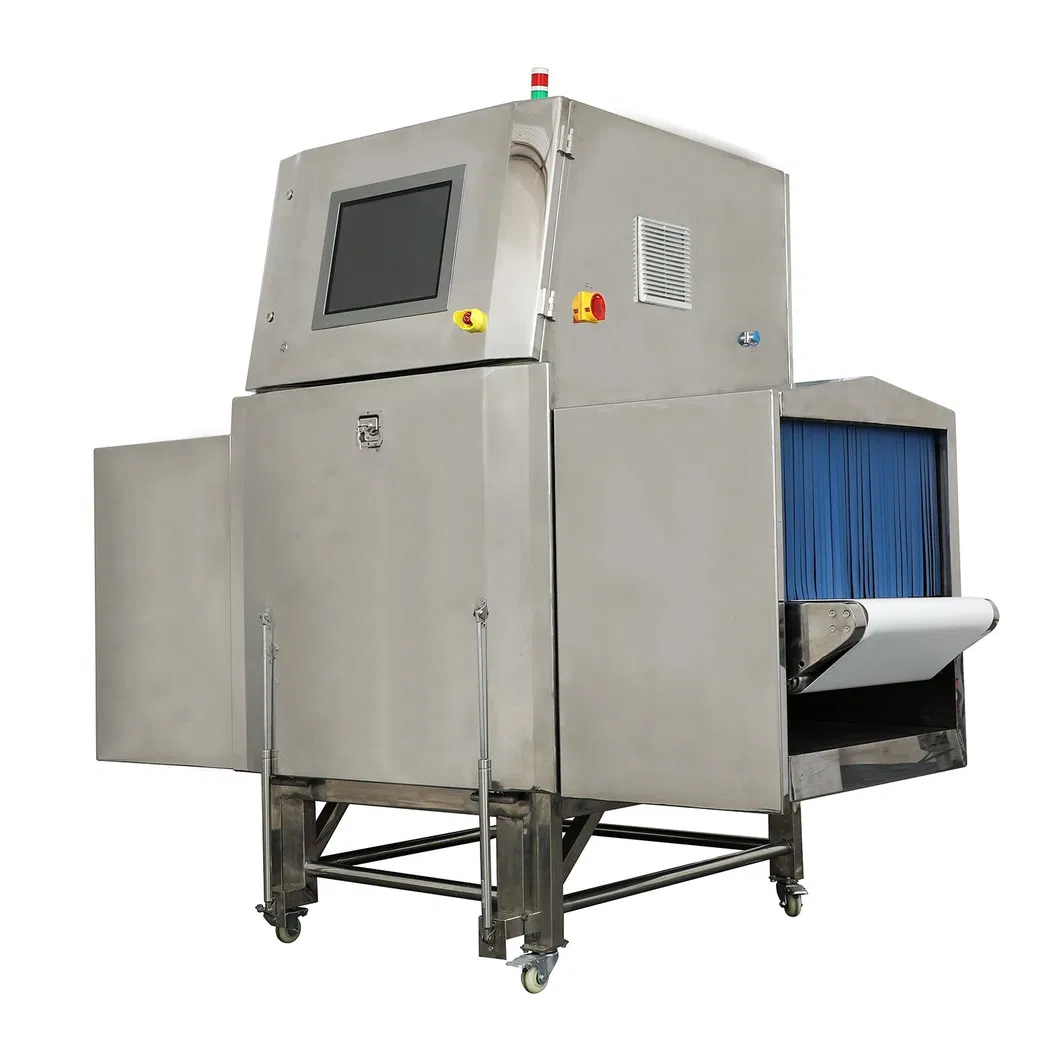

Big Packaged Food System

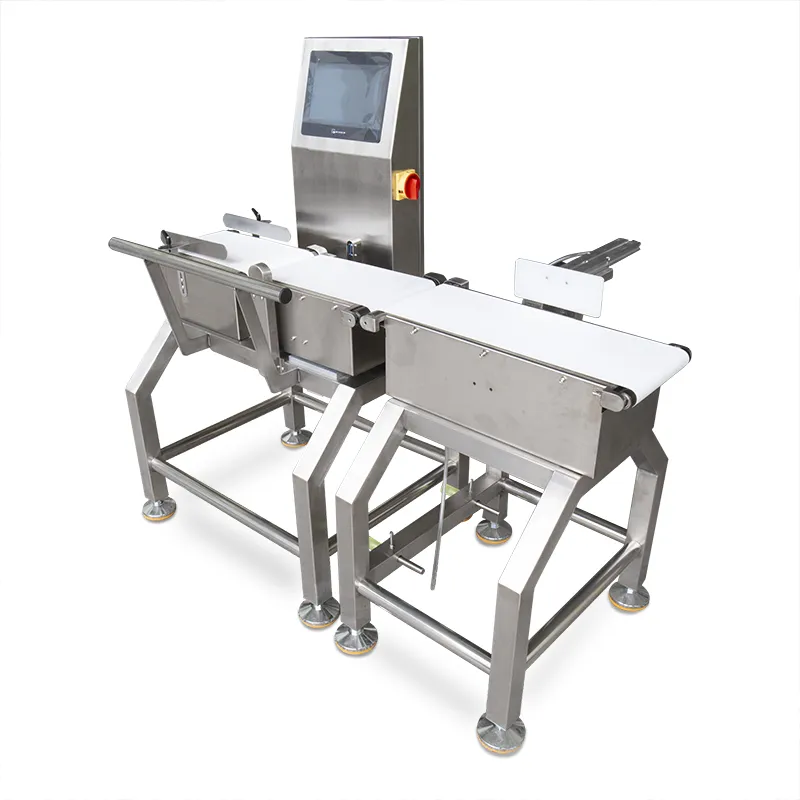

Precise Checkweigher
