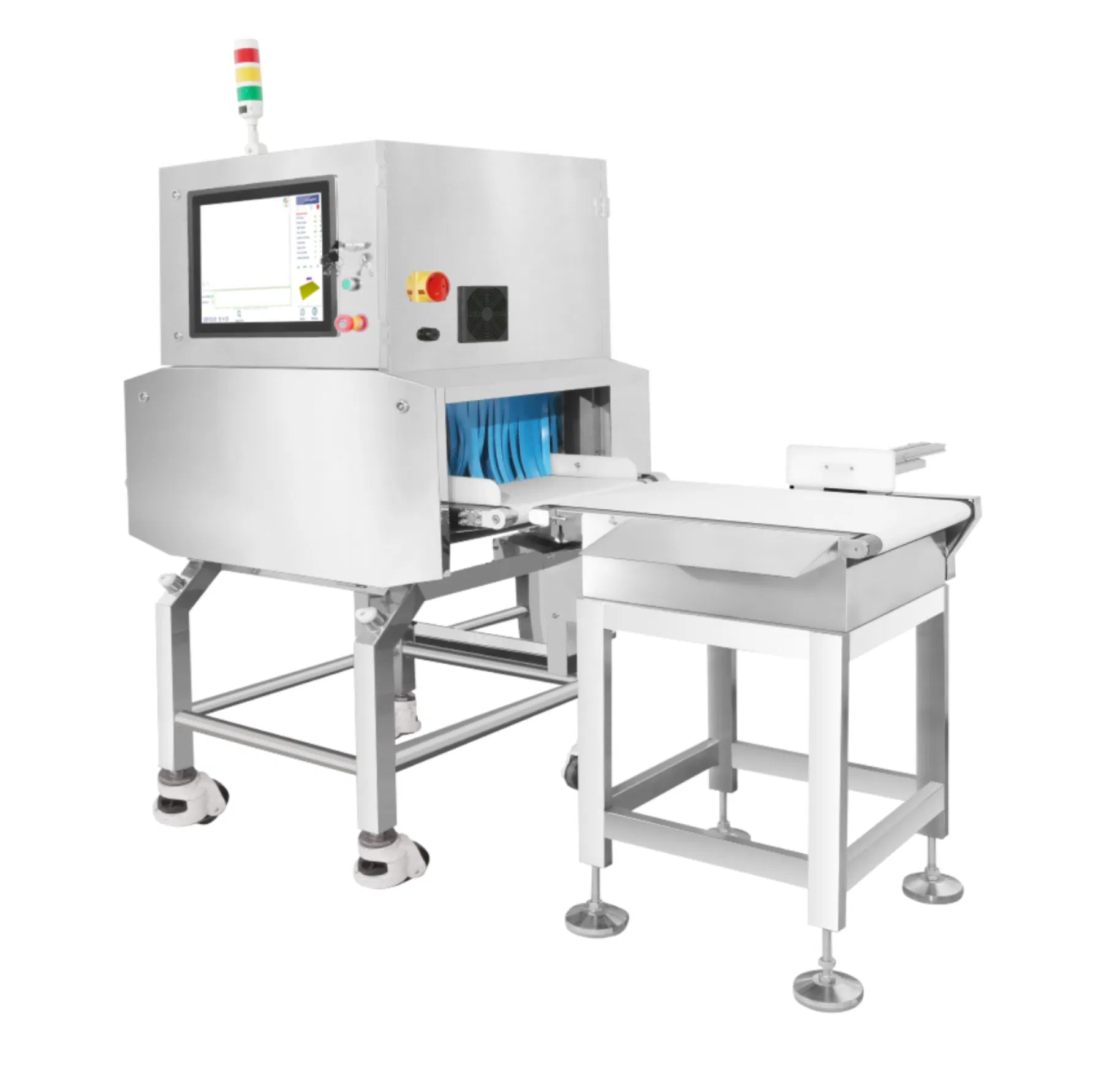

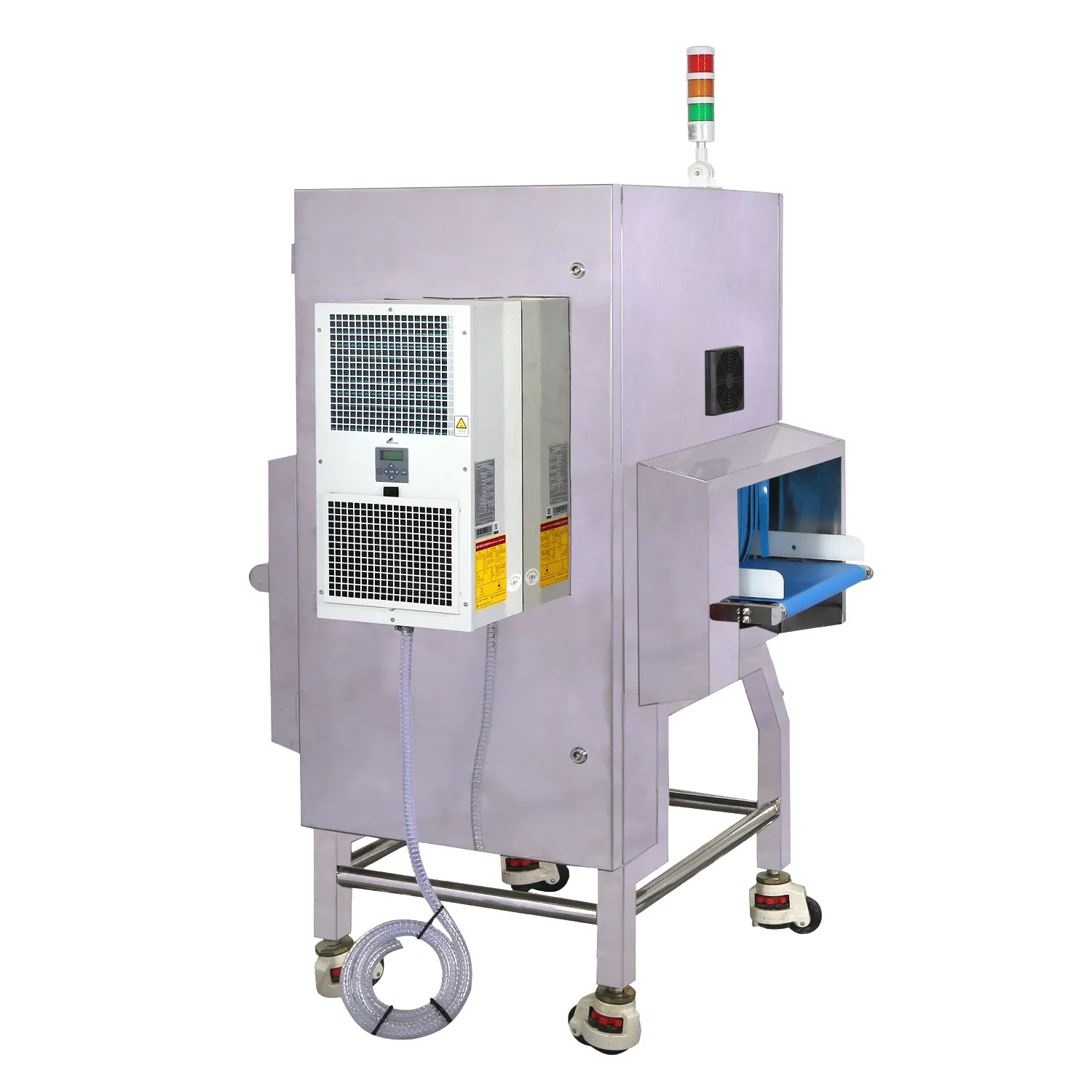

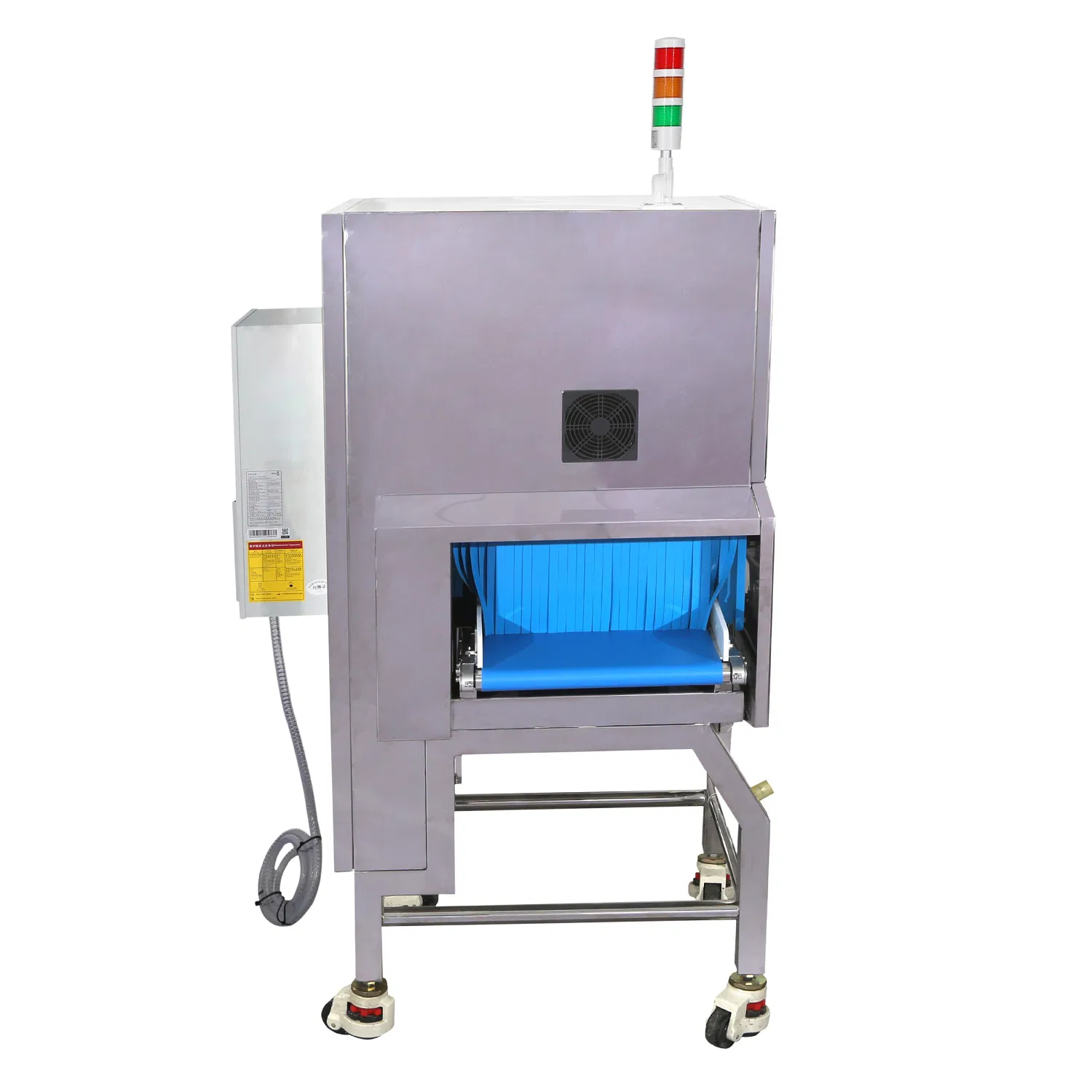

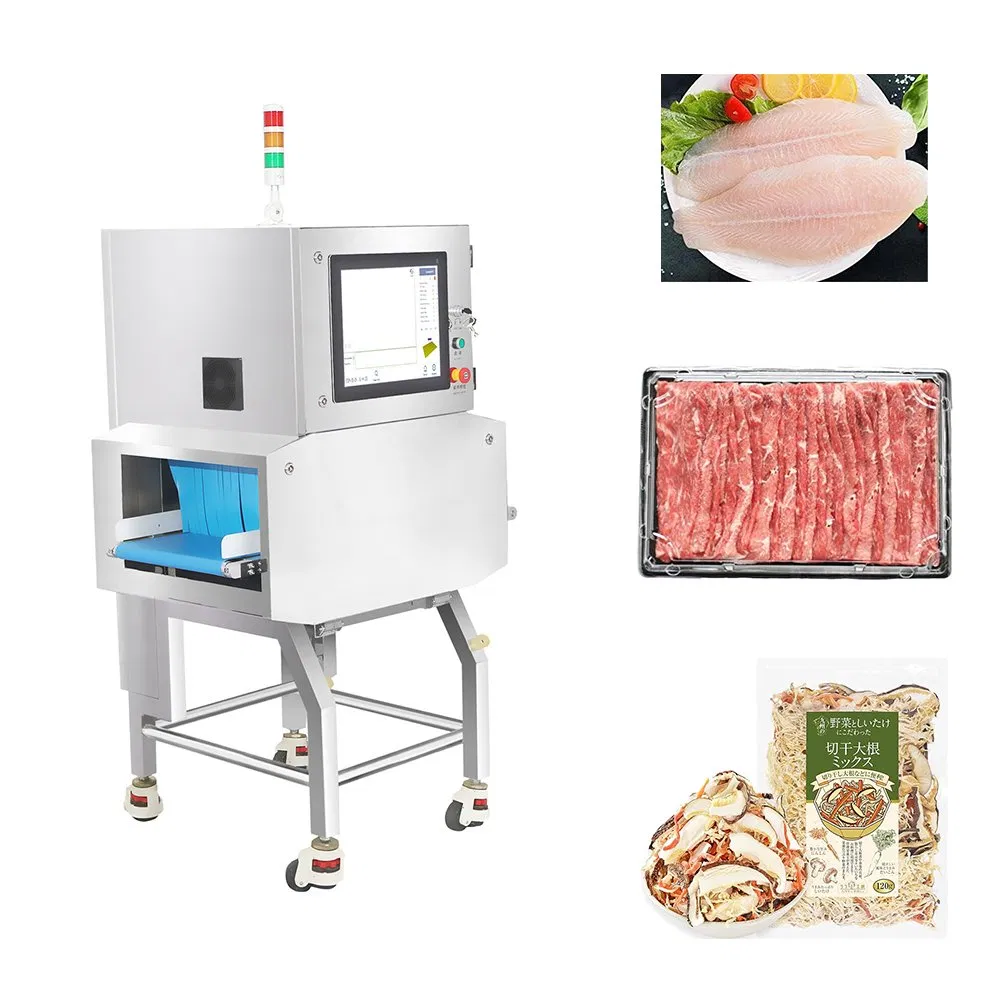

XR-500D High-Speed Digital X-Ray Inspection System for Meat Poultry Seafood Food
Our X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers. The system is designed for safety, ease-of-use, and simple maintenance.

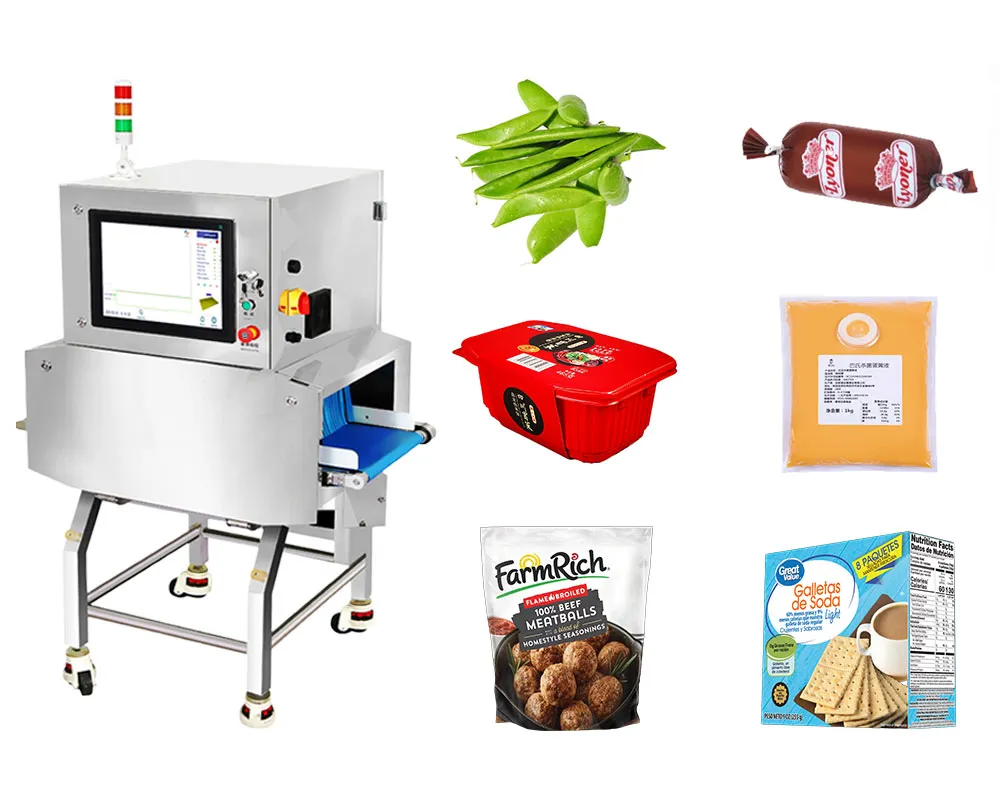

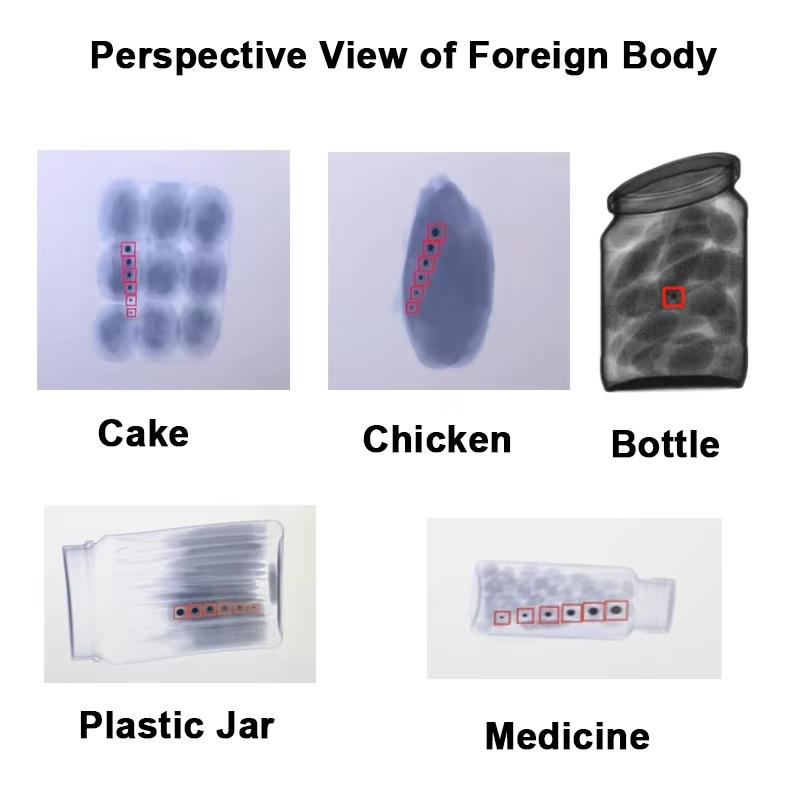

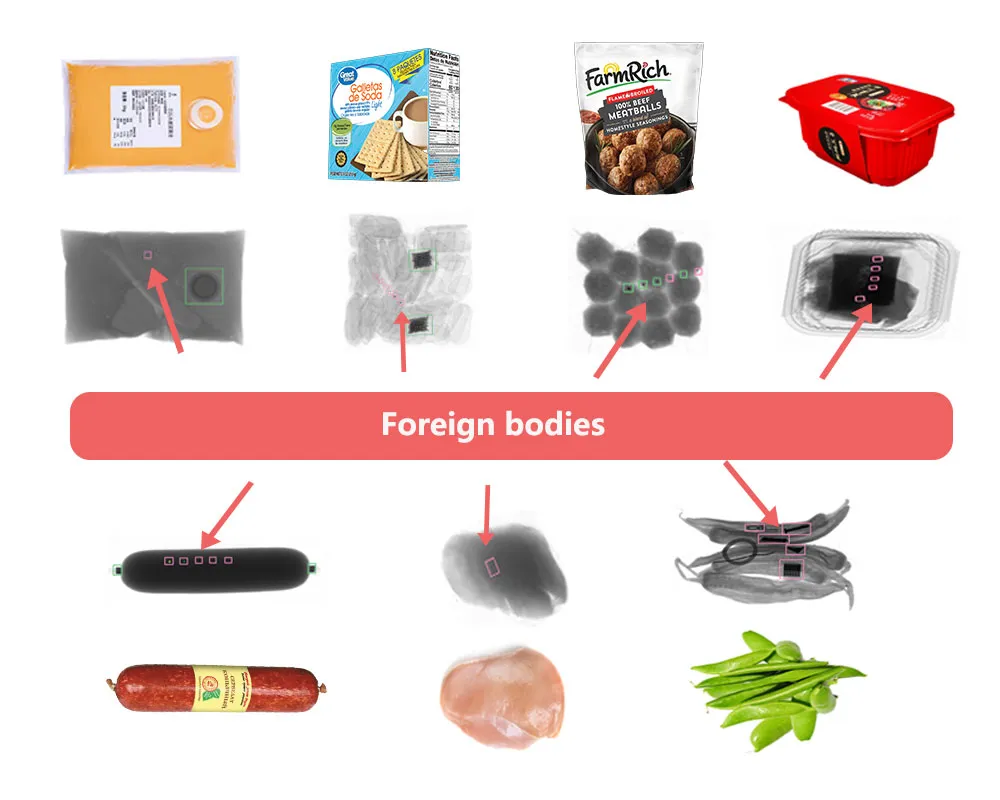

The XR-500D series is used for detecting contaminants inside small packaged products. It identifies metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic—even for products wrapped in aluminum foil or metallised film. Foreign objects are detectable by density; the greater the density, the easier they are found.
| Feature | Specification |
|---|---|
| Model | XR-500D |
| X-ray source | Standard: 150W, 80kV. Optional: 350W, 100kV |
| Tunnel size (W*H) | 440*200mm |
| Max sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
| Conveying speed | 20-60 m/min |
| Screen | 21.5 inch full color touchable screen |
| Data Interface | LAN port, USB port |
| Working environment | Temp: -10-40ºC, Humidity: 30%-90% |

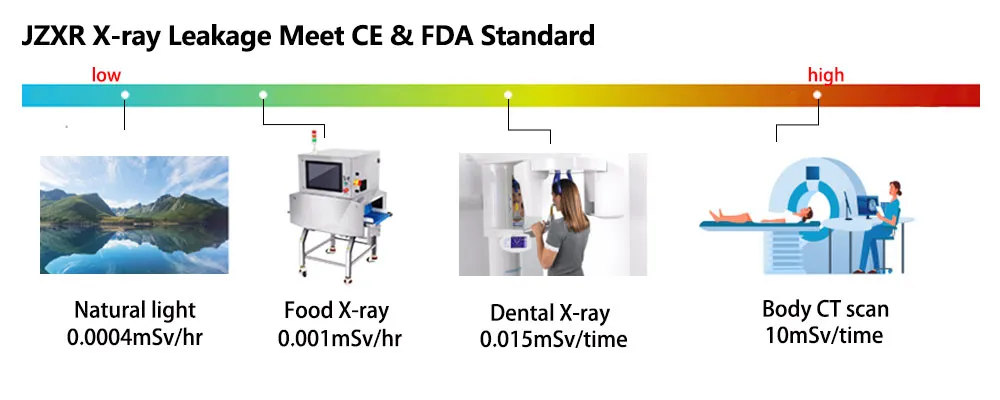

| X-ray leakage | <1µSv/hour |
| Protective mode | 6 layers of non-lead food grade soft curtain |
| Alarm | Standard: Sound and light alarm / Optional: Rejection system |
| Power supply | AC220V ±10% 50/60Hz, 1.5kVA Max |

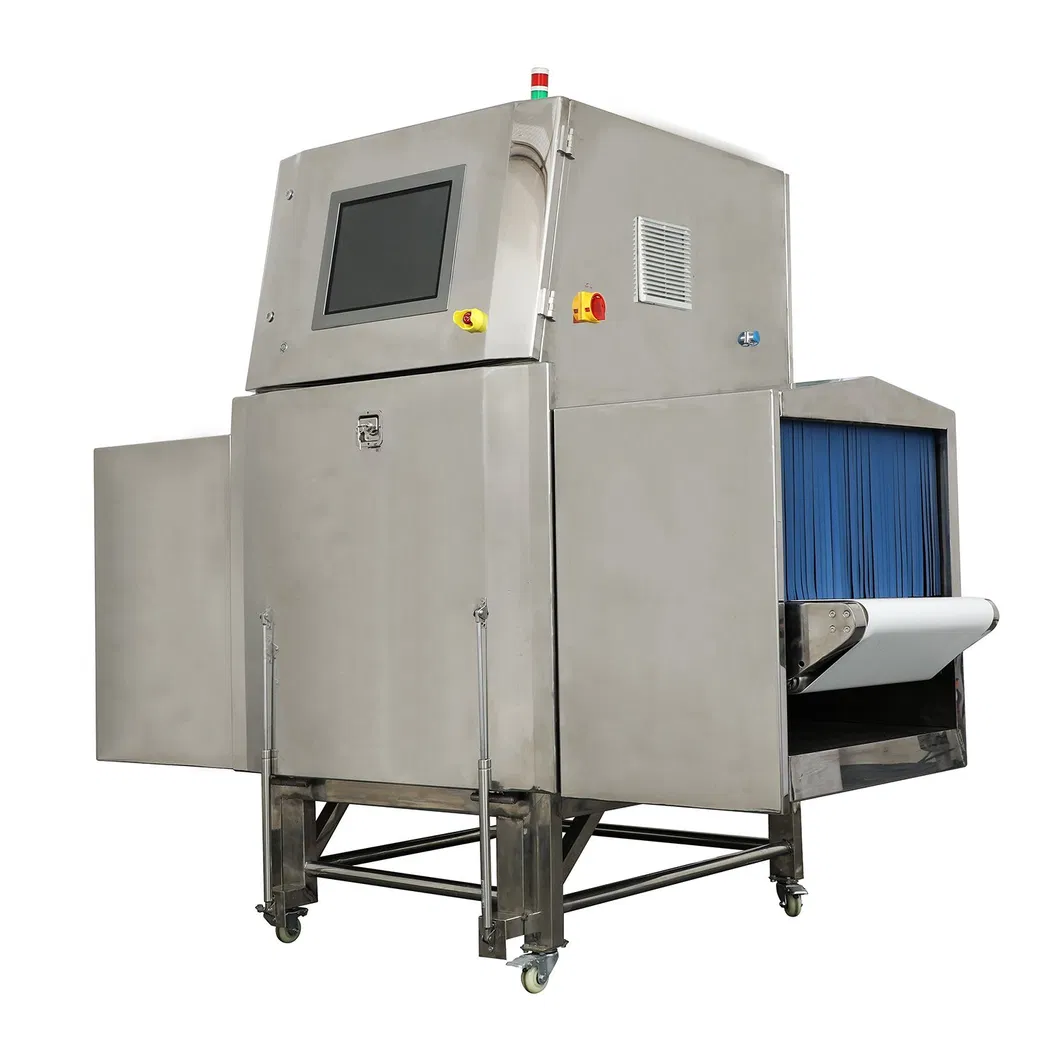

X-ray System for Big Packaged Food

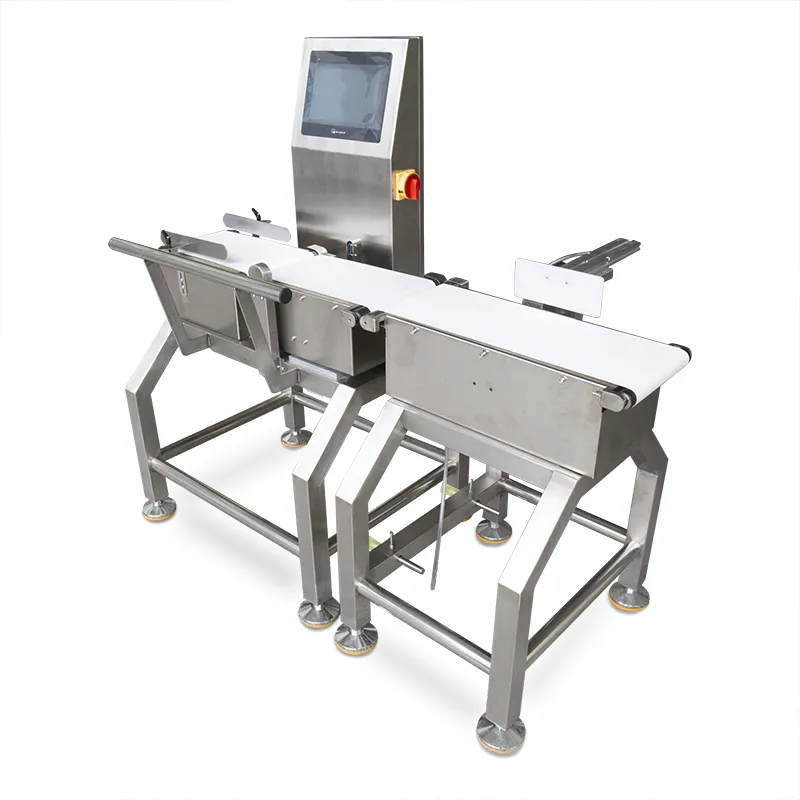

High Precise Checkweigher

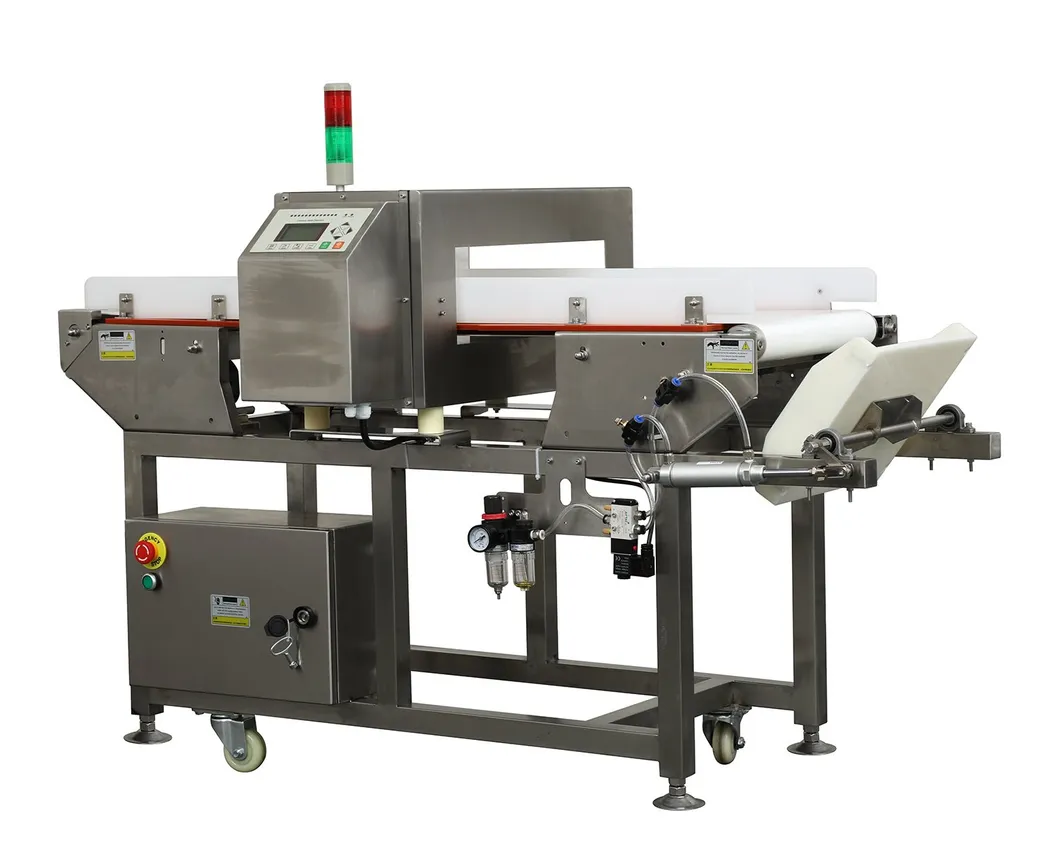

Conveyor Metal Detector

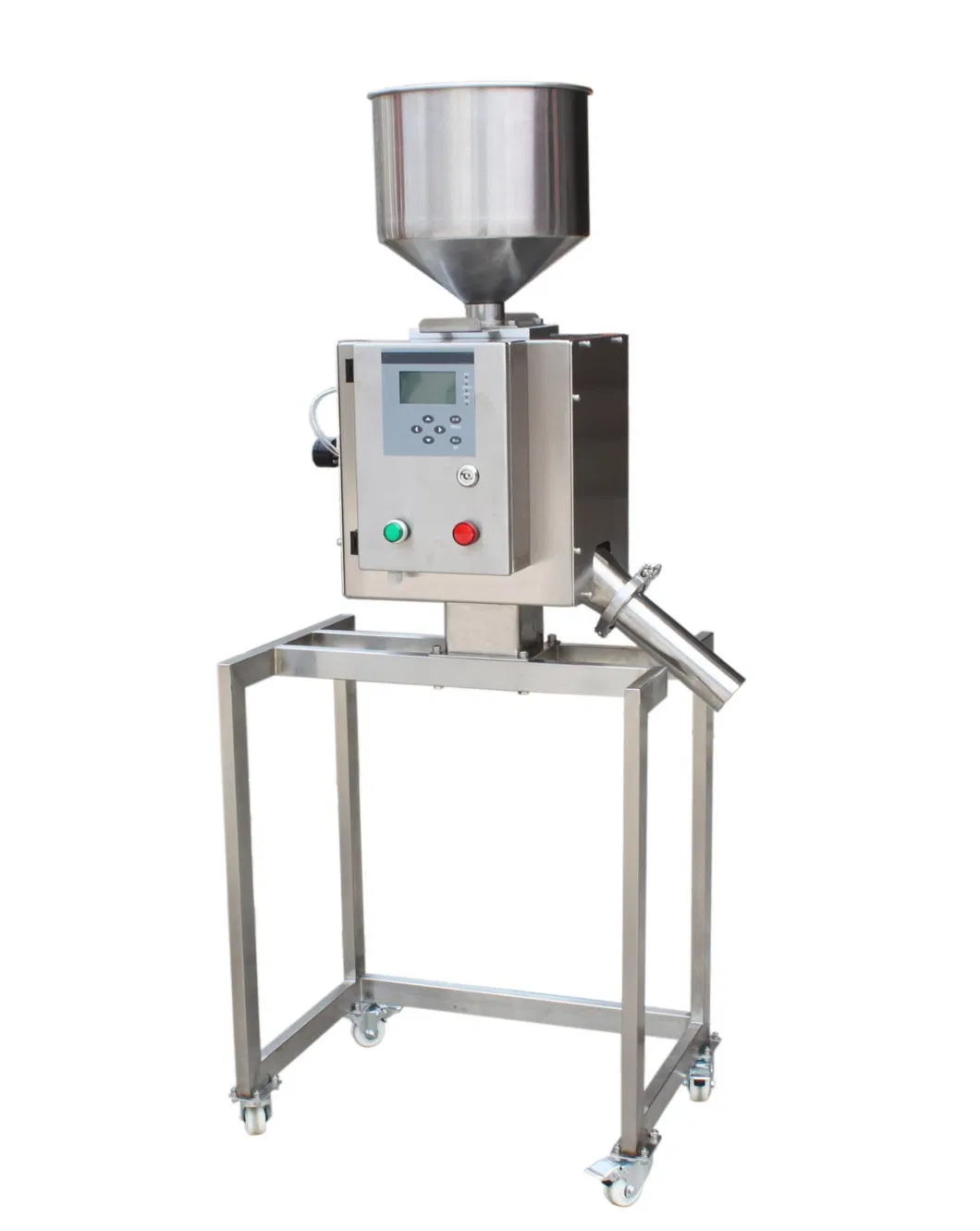

Vertical Fall Metal Detector
