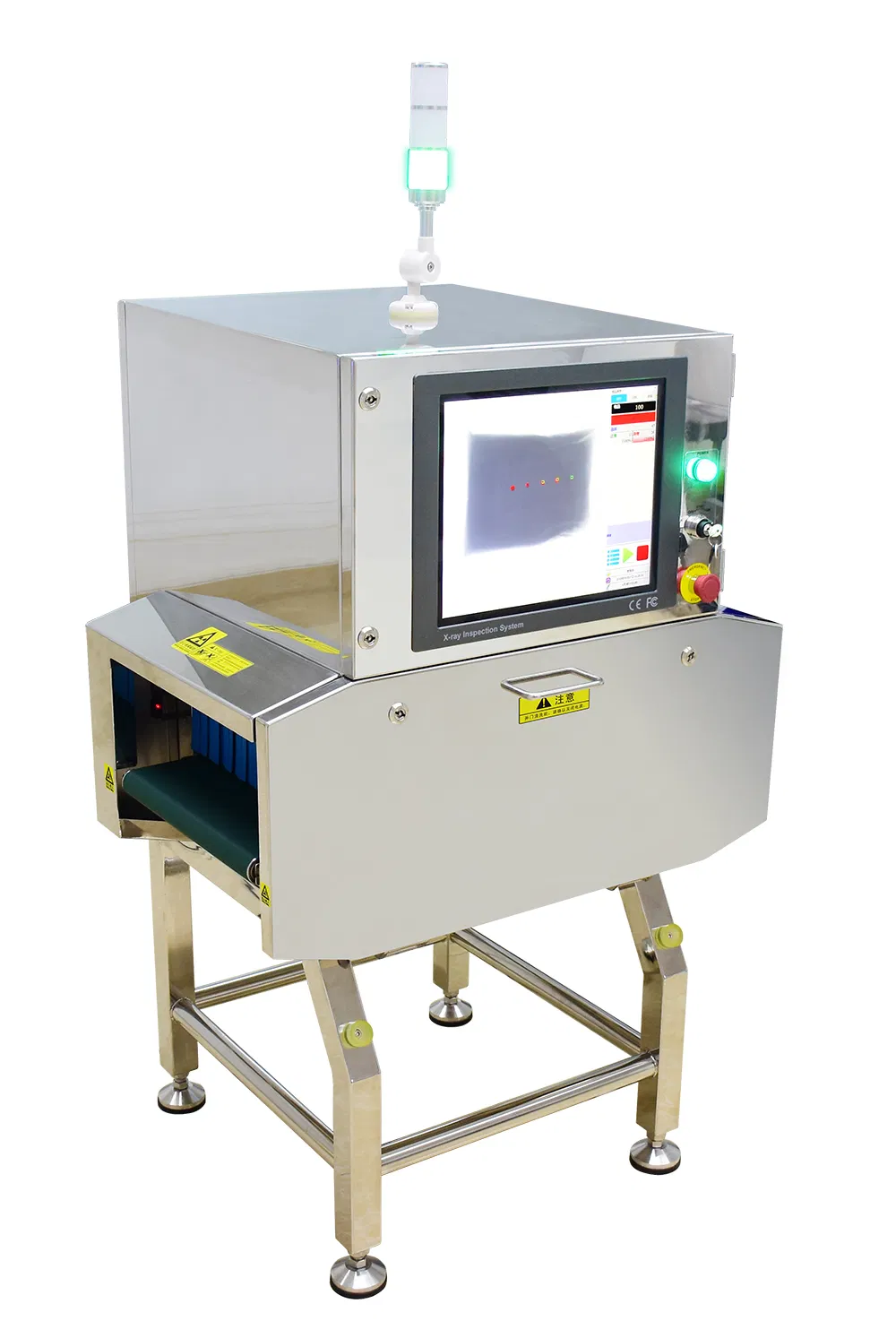

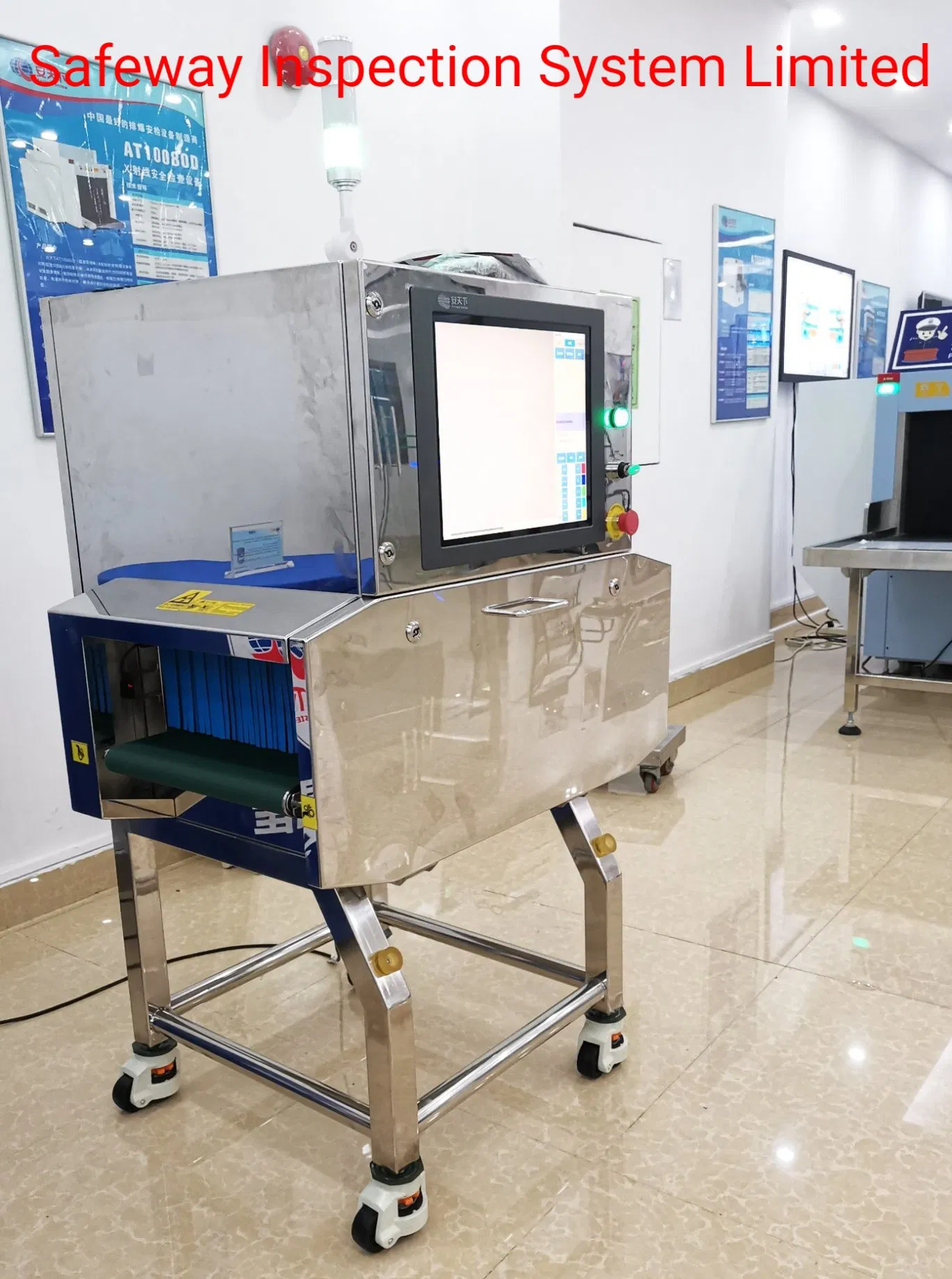

Introduction: The AT4016 X-ray foreign body detector is a single-source X-ray foreign body detection equipment independently developed. The equipment uses an embedded Linux operating system and integrated hardware configuration, ensuring the system runs fast, operation is convenient, and configuration resources are highly integrated.
Applicable Place: Widely used in the food industry, medical industry, textile industry, aquaculture and processing industry, integrated circuit board industry, etc. Quality control meets HACCP and IFS certification, effectively identifying defects such as damage, deformation, bubbles, and missing contents.
Working Principle: Uses the penetrating ability of X-rays to detect all kinds of metal or non-metal foreign bodies. It identifies issues in meat products, aquatic products, fruits, vegetables, additives, milk powder, chocolate, and textiles (broken needles, abnormal labels).

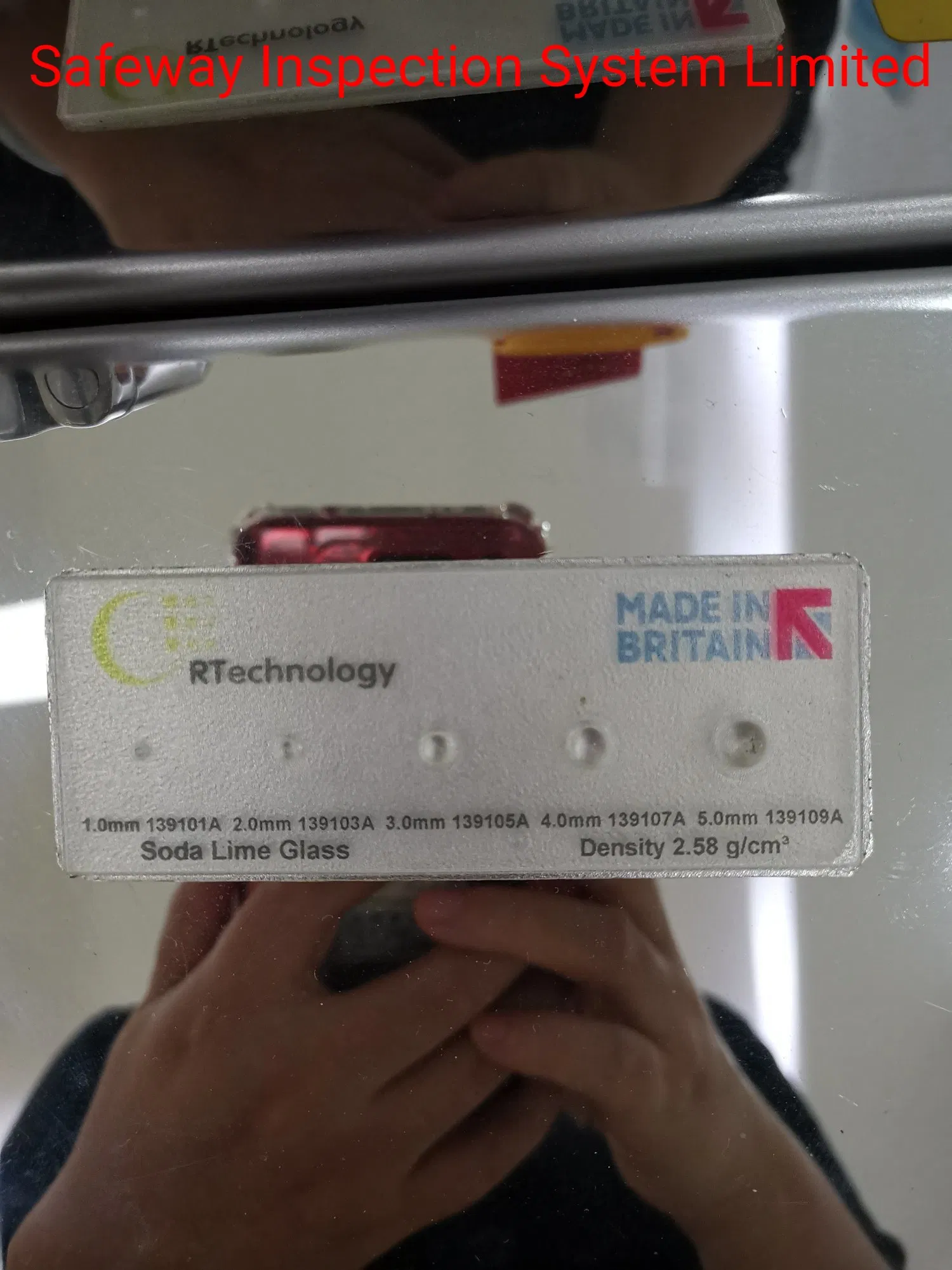

| Best Detection Accuracy | Stainless steel ball Φ0.4mm, wire Φ0.2*2mm, ceramic Φ1.0, glass Φ1.0 |
| Display | 17-inch full-color touch screen |
| Protection Grade | IP66 |
| Body Material | SUS304 Stainless Steel |
| Radiation Safety | Inspection dose < 1.5μGy; Leakage < 0.3μGy/h |
| X-ray Generator | 30-80KV / 1-3mA (Adjustable); Sealed oil cooling |
| Dimensions | 850 mm (L) * 730mm (W) * 1679 mm (H) |
| Power Supply | AC 220V (±10%) 50±3Hz; Power loss 0.5KW |
