Foreign Bodies X-ray Inspection Systems for Food Industry
X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers.

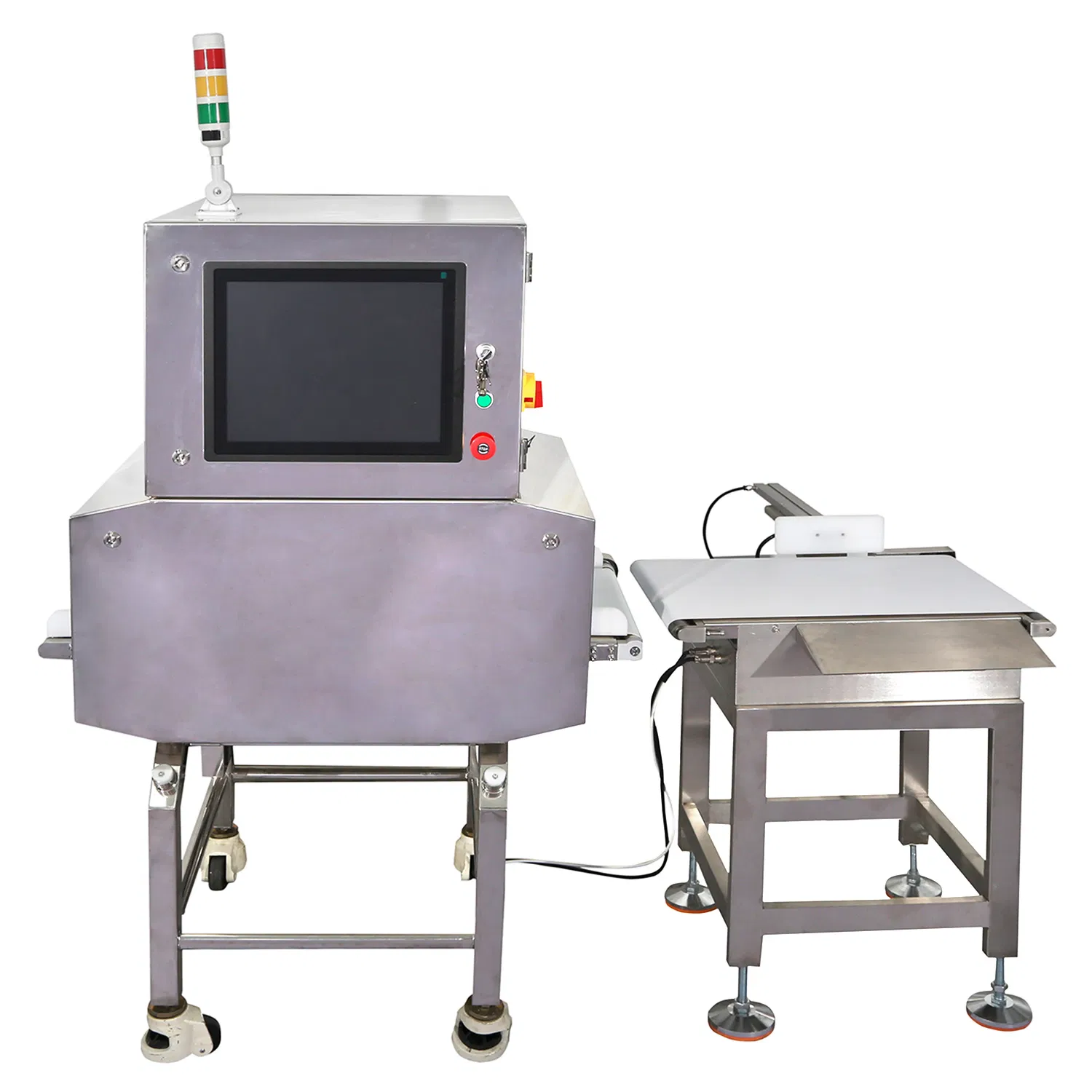

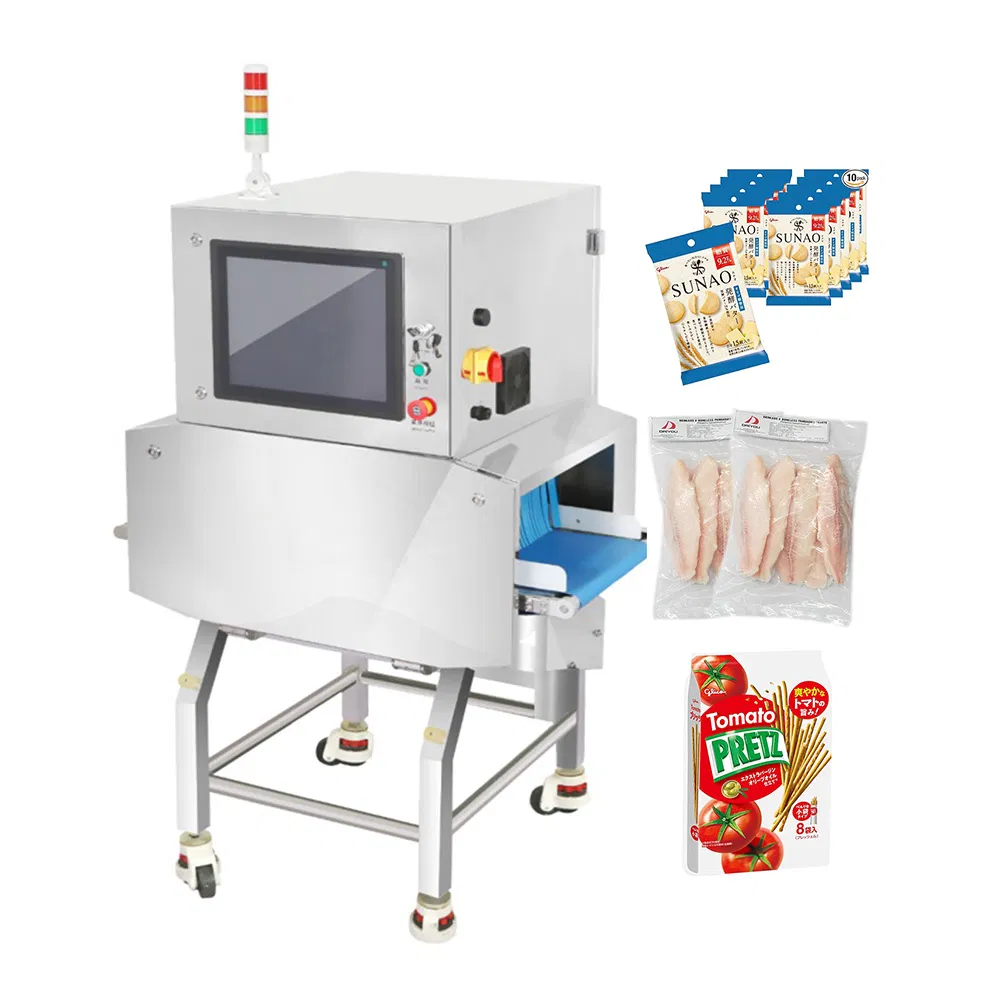

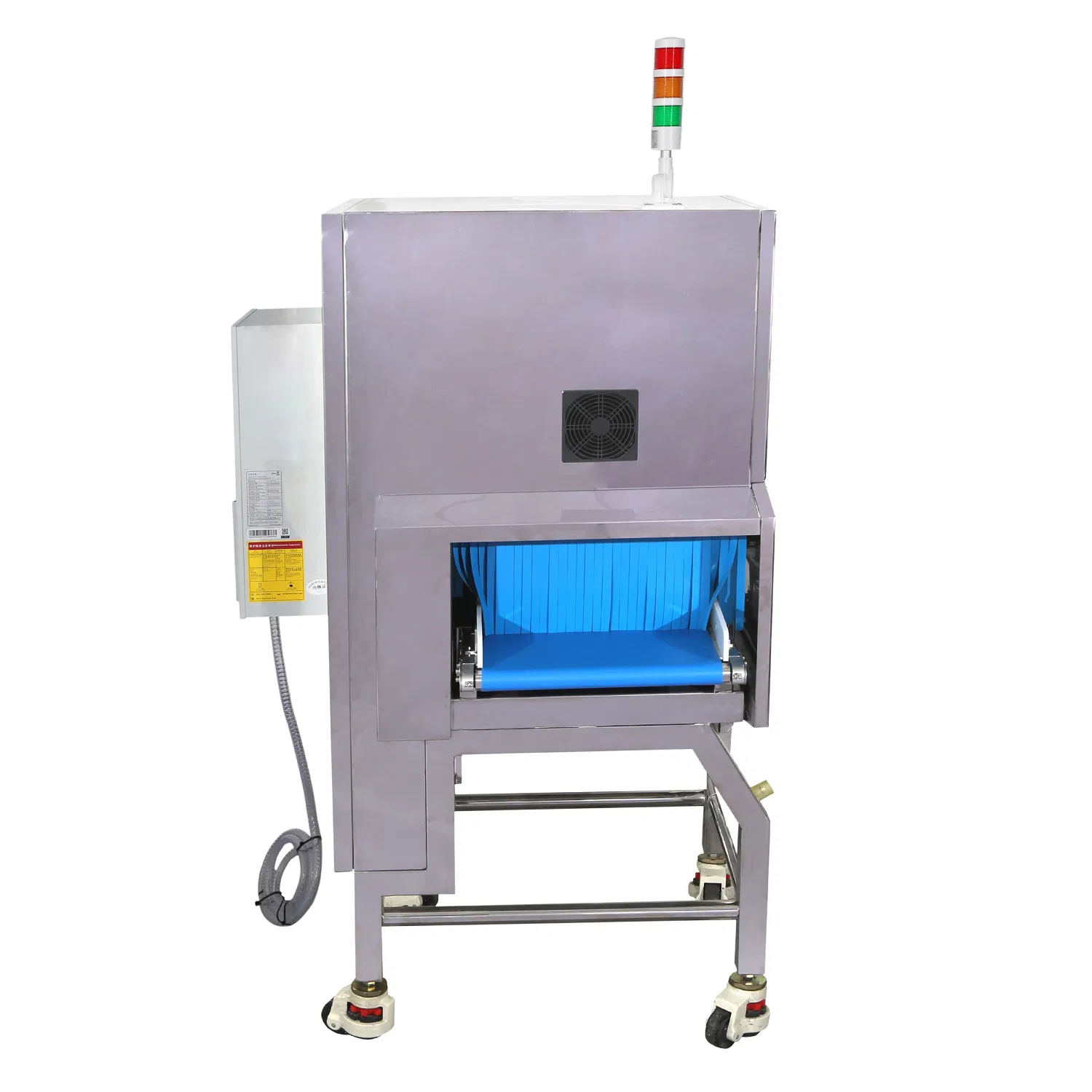

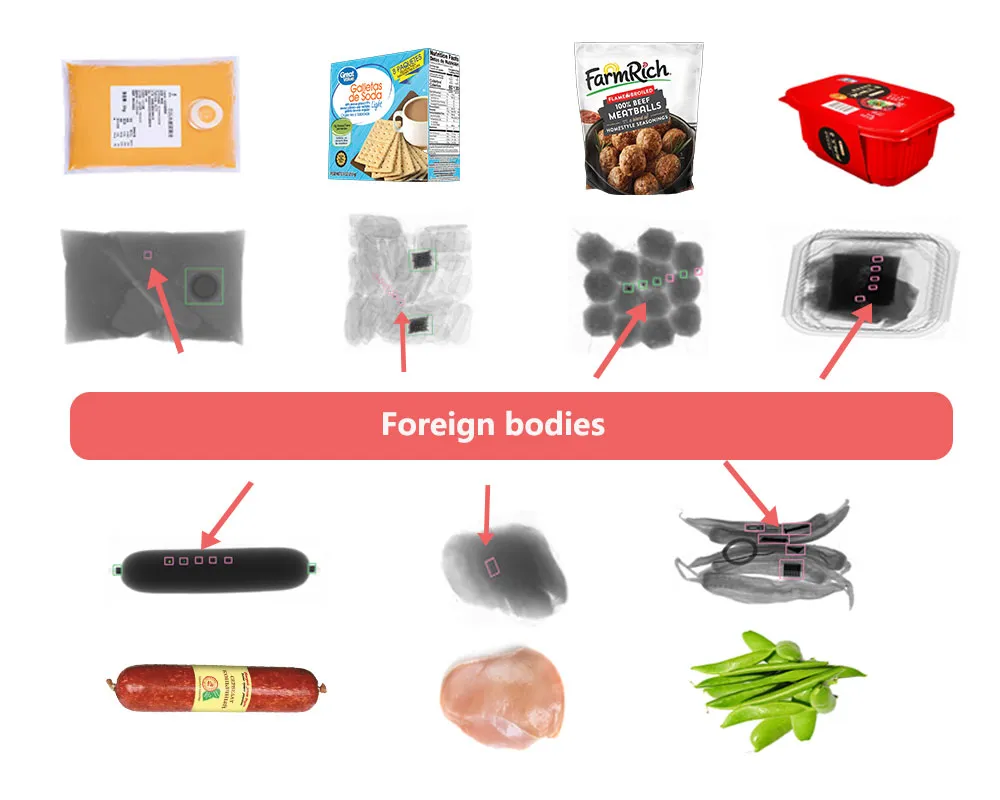

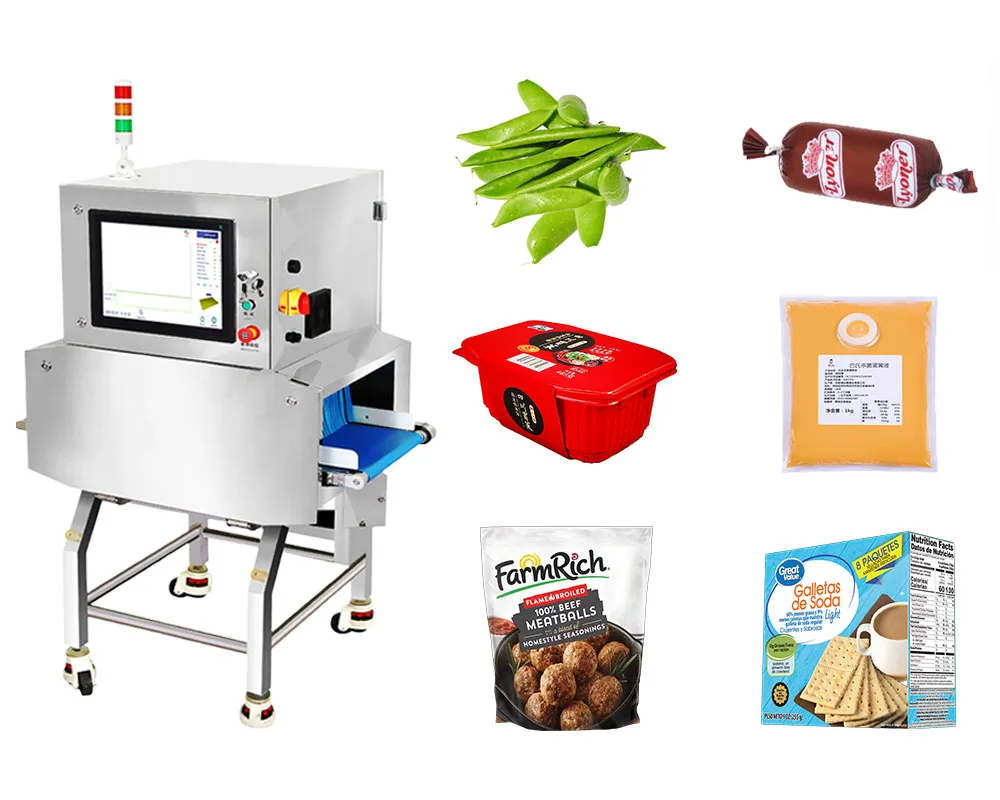

The XR-500D series is specifically designed for detecting contaminants inside small packaged products. Metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic are detectable, even for products wrapped in aluminum foil or metallised film. The foreign object is detectable by its density; the greater the density, the easier it is found.
| Parameter | Specification Details |
|---|---|
| Model# | XR-500D |
| X-ray Source | Standard: 150W, 80kV. Optional: 350W, 100kV |
| Tunnel Size (W*H) | 440*200mm |
| Max Sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
| Conveying Speed | 20-60 m/min |

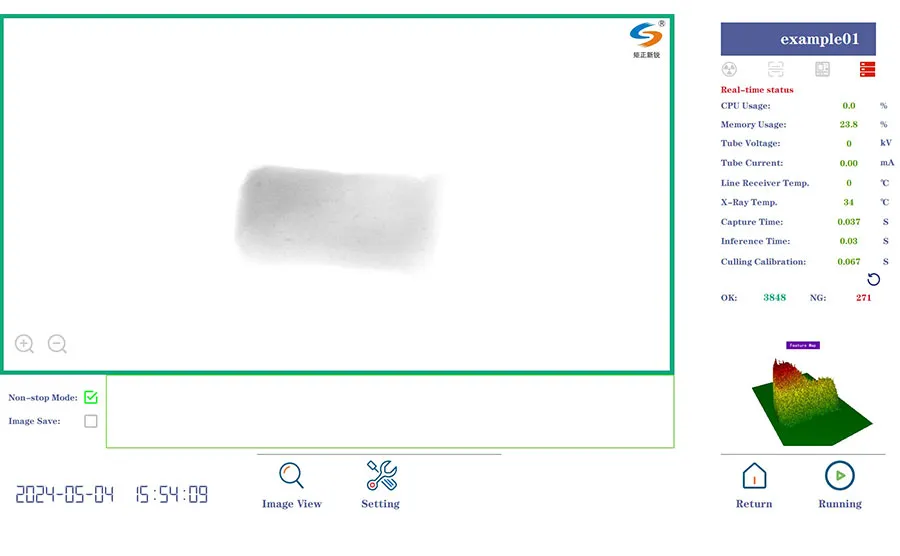

| Screen | 21.5 inch full color touchable screen |
| Interface | LAN port, USB port |

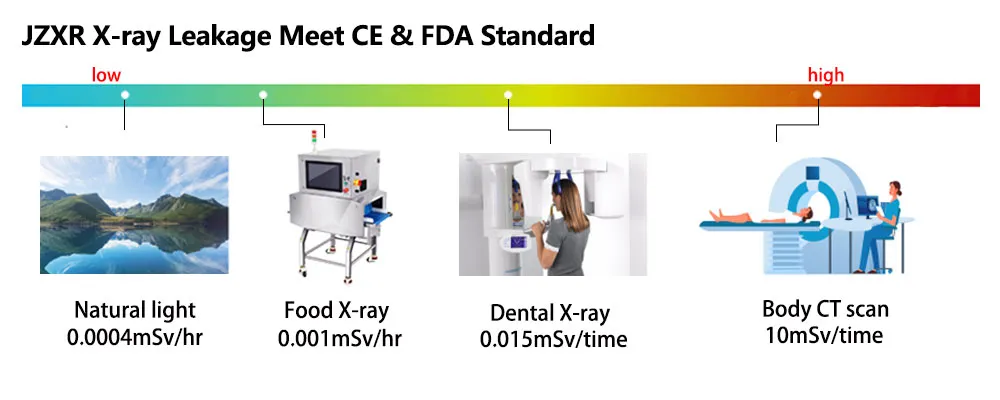

| X-ray Leakage | <1µSv/hour |
| Material | SUS304 Stainless Steel |
| Protective Mode | 6 layers of non-lead food grade soft curtain |
X-ray System for Big Packaged Food

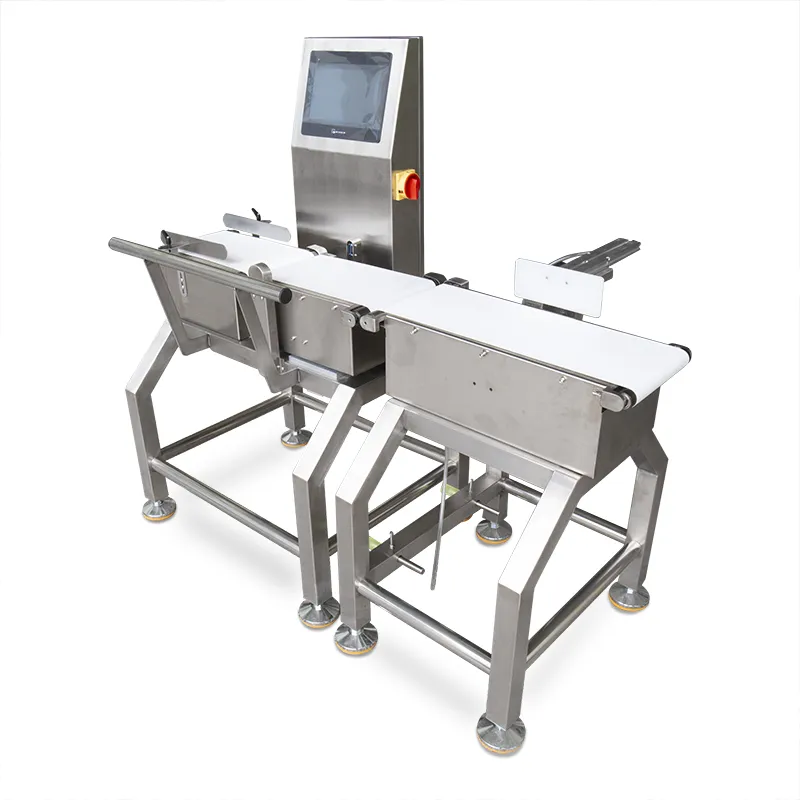

High Precise Checkweigher

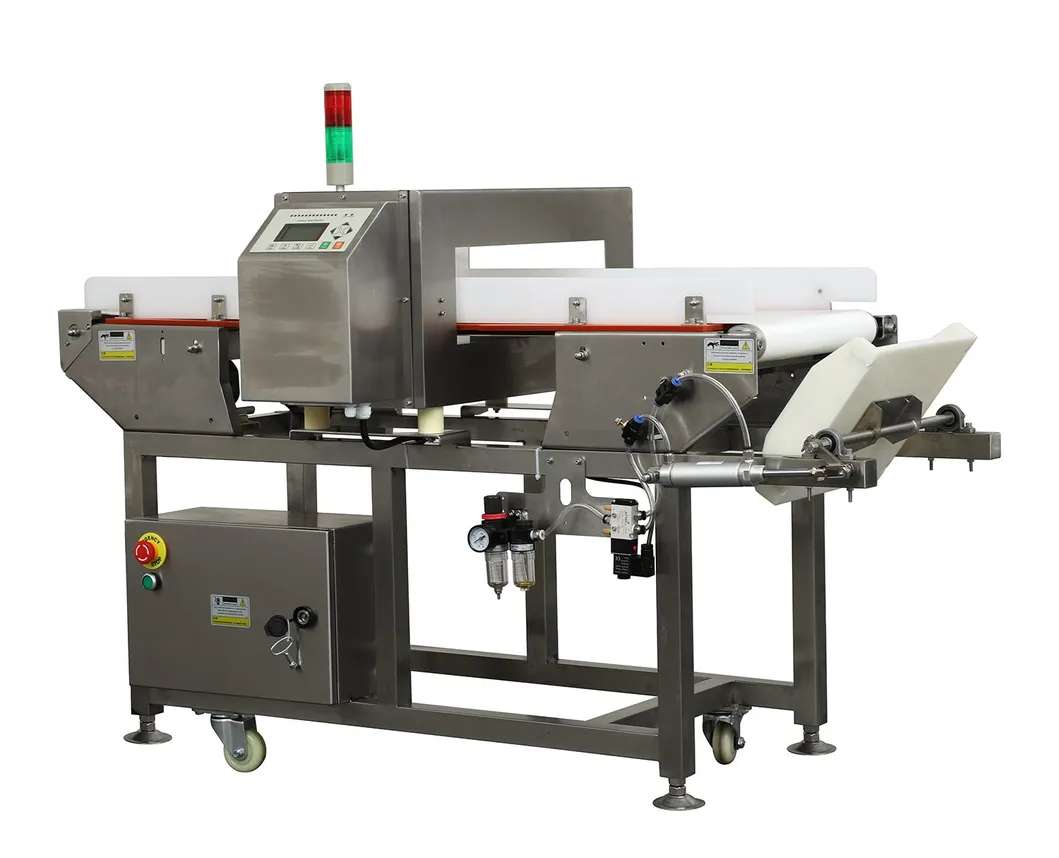

XR-980 Conveyor Metal Detector

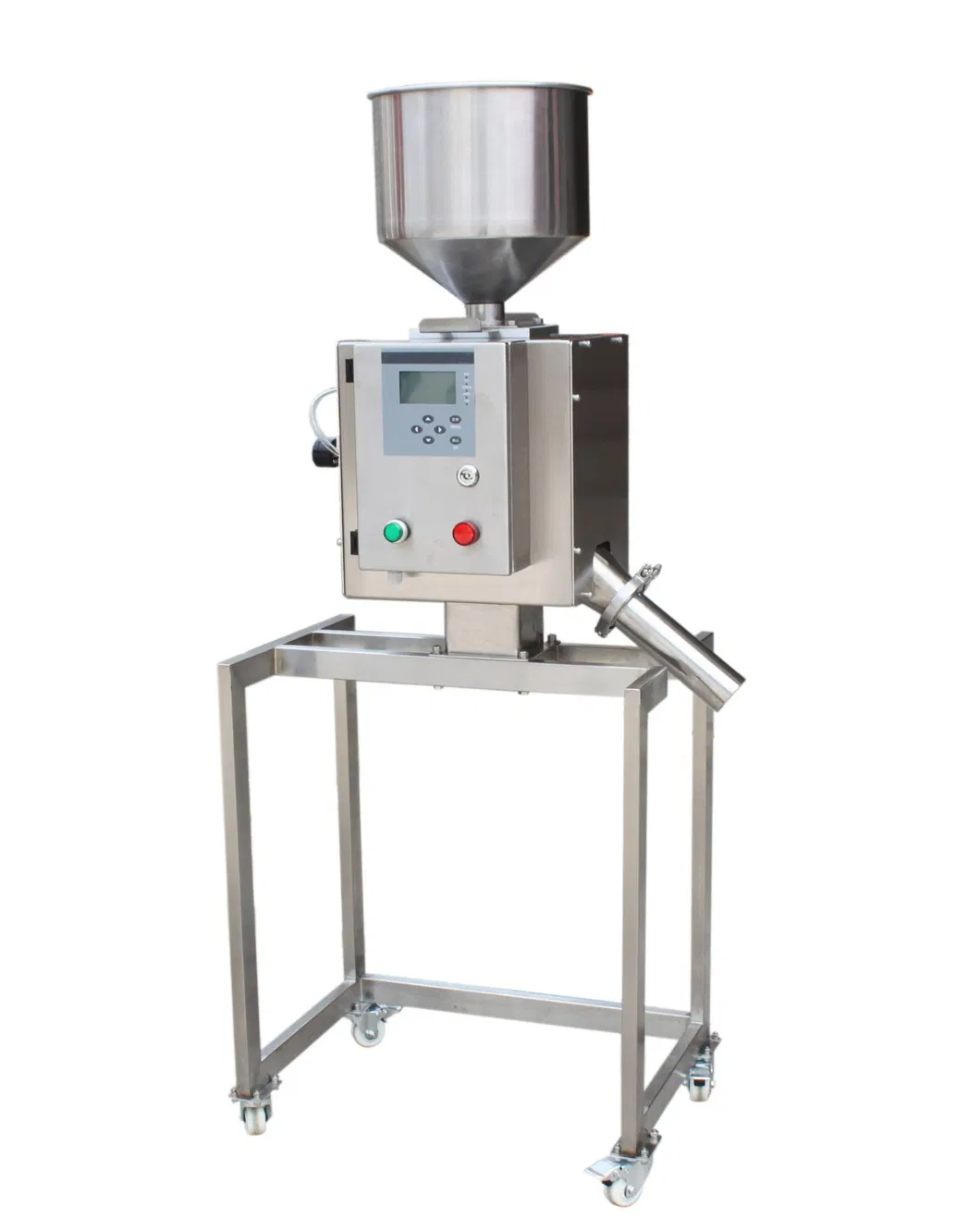

XR-180C Vertical Fall Metal Detector
