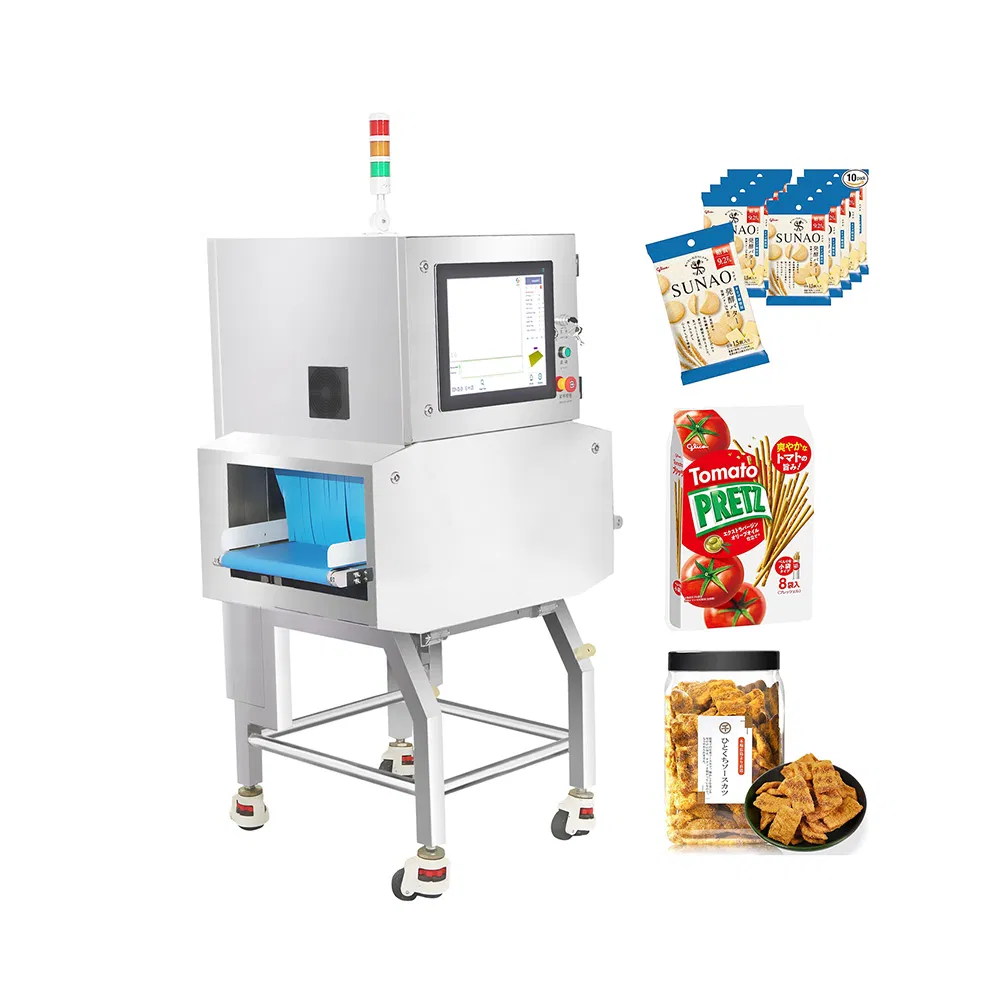

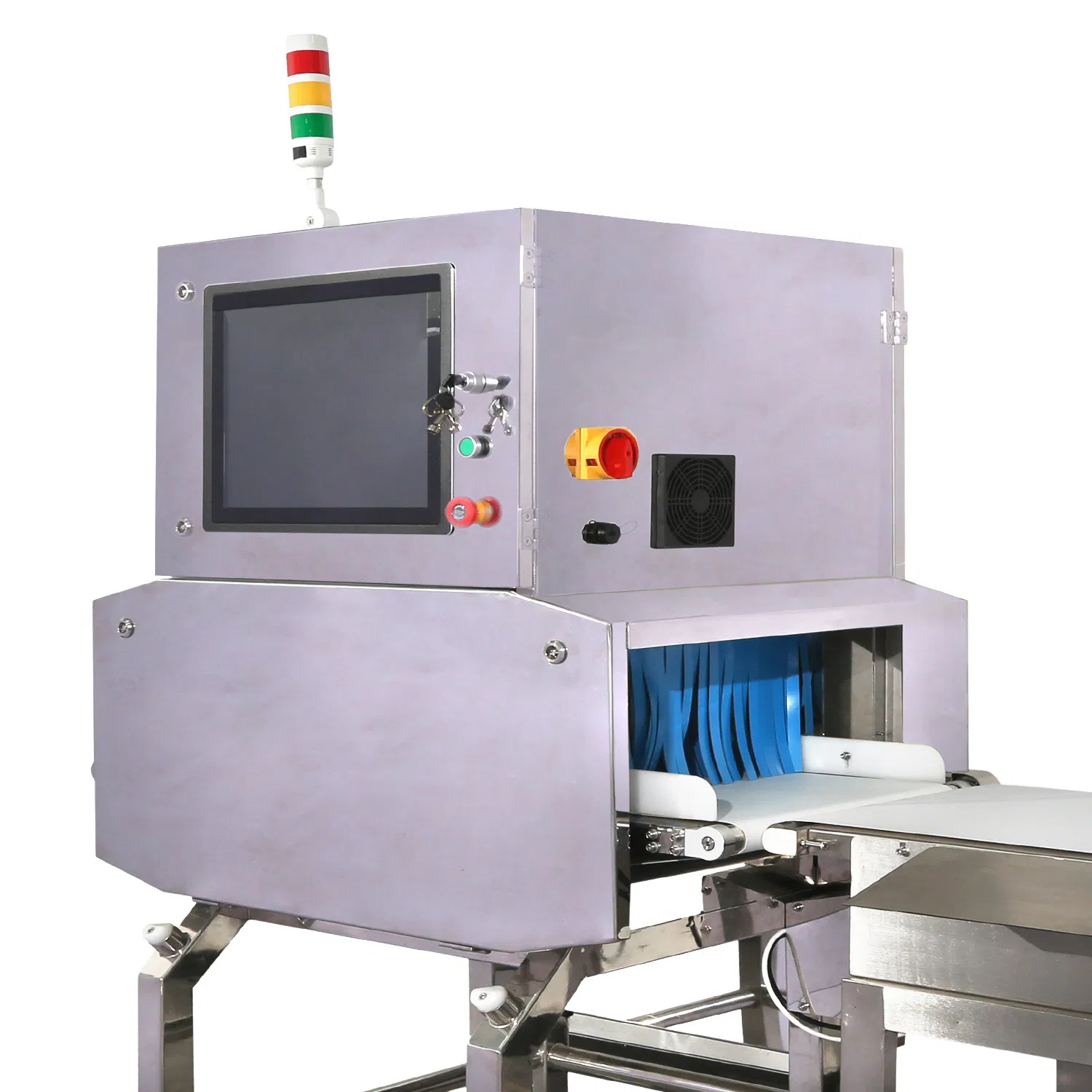

Jzxr Xr-500d Small Packaged Size in Stock Cheap Price X Ray Inspection Systems Food Industry

Customization: Available
After-sales Service: Online Service
Warranty: 12 Months

Product Description

Basic Information

Model NO.
XR-500D
Type
Conveying X-ray Detector
Application
Industrial / Food Industry
Certification
CE, ISO
X-ray Source
150W, 80kv (Optional 350W, 100kv)
Tunnel Size
400mm (W) X 200mm (H)
Accuracy
SUS Ball: 0.4mm
Material
Stainless Steel 304

Product Overview

XR-500D X-Ray Inspection Systems provide highly cost-effective contaminant detection for food and pharmaceutical manufacturers. Designed for small packaged products, this system ensures safety and quality by identifying impurities that traditional detectors might miss.

  • Advanced Detection: Identifies metal (ferrous, non-ferrous, stainless steel) and non-metal impurities (glass, ceramic, stone, bone, hard rubber, and plastic).
  • Density-Based Technology: Foreign objects are detectable even when wrapped in aluminum foil or metallised film.

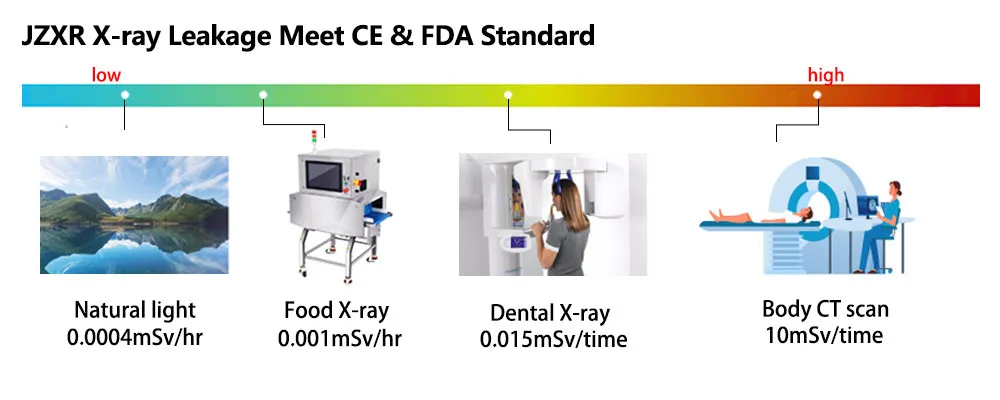

  • Safety Focused: Features lead-free food-grade soft curtains and low X-ray leakage (<1μsv/h).
  • User-Friendly: Equipped with a 17-inch full-color touchable screen for easy operation.

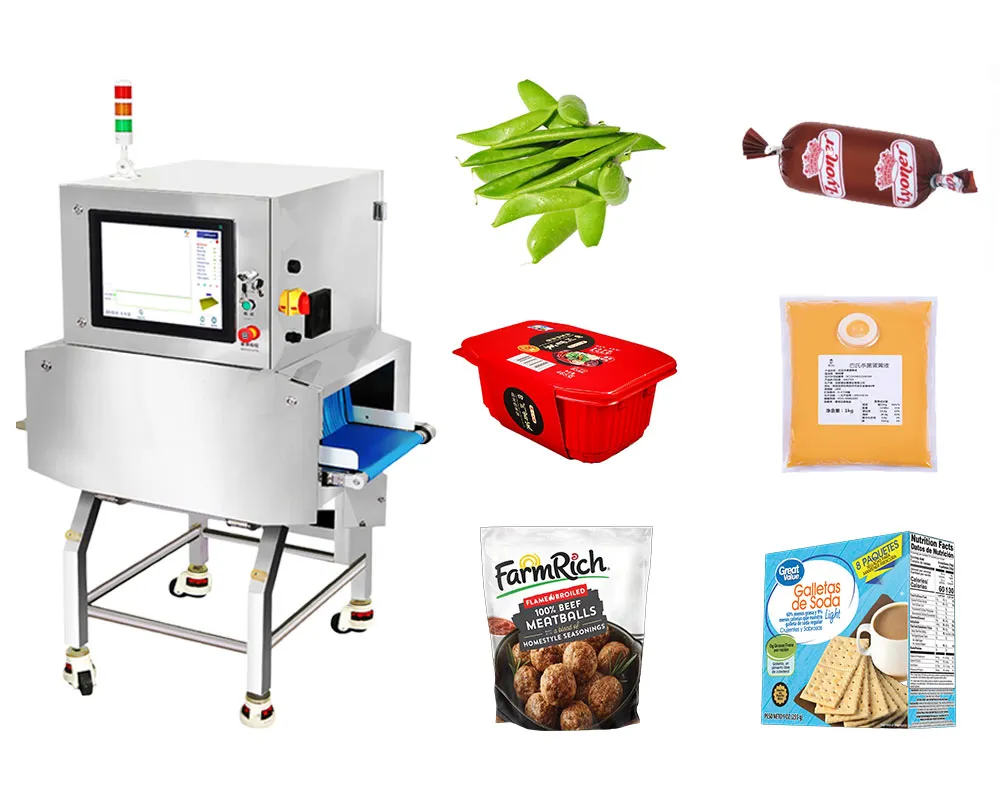

X-Ray Inspection System

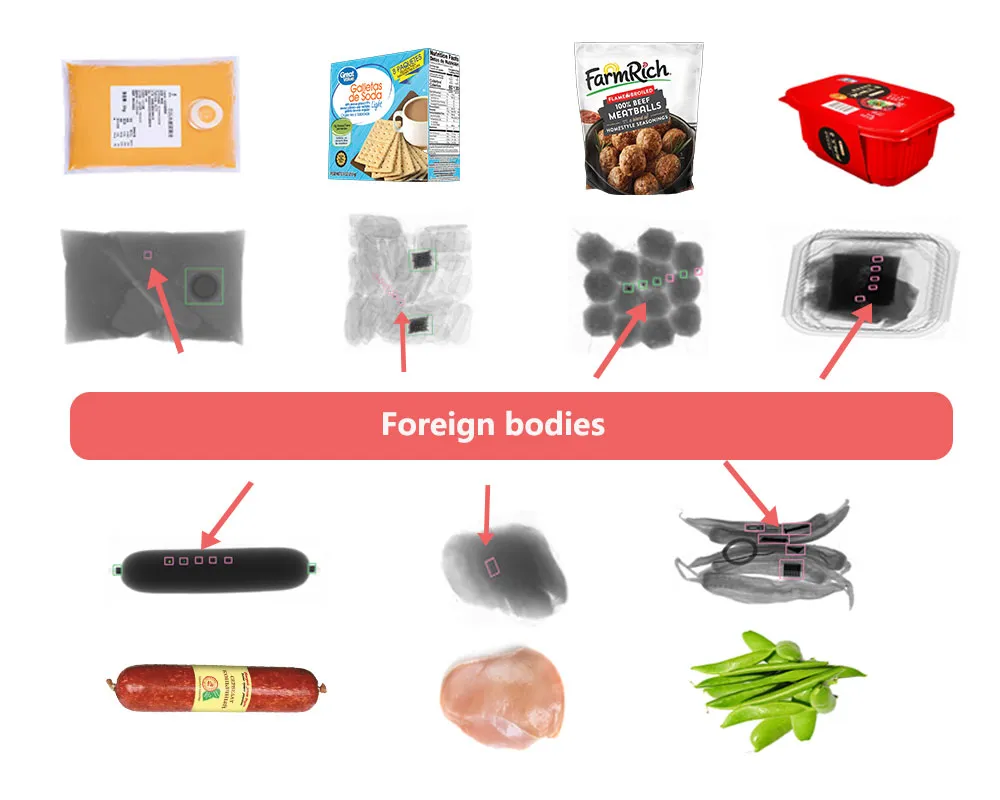

X-Ray Food Inspection

Technical Specifications

Parameter Details
X-ray sourceStandard: 150W, 80kV. Optional: 350W, 100kV
Tunnel size (W*H)440*200mm
Max sensitivitySUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm
Conveying speed20-60 m/min
Screen21.5 inch full color touchable screen
Data InterfaceLAN port, USB port
Working environmentTemp: -10-40ºC, Humidity: 30%-90%
X-ray leakage<1µSv/hour
MaterialStainless Steel 304
Alarm SystemSound and light alarm (Optional: Rejector)
Detection Display
Machine Structure

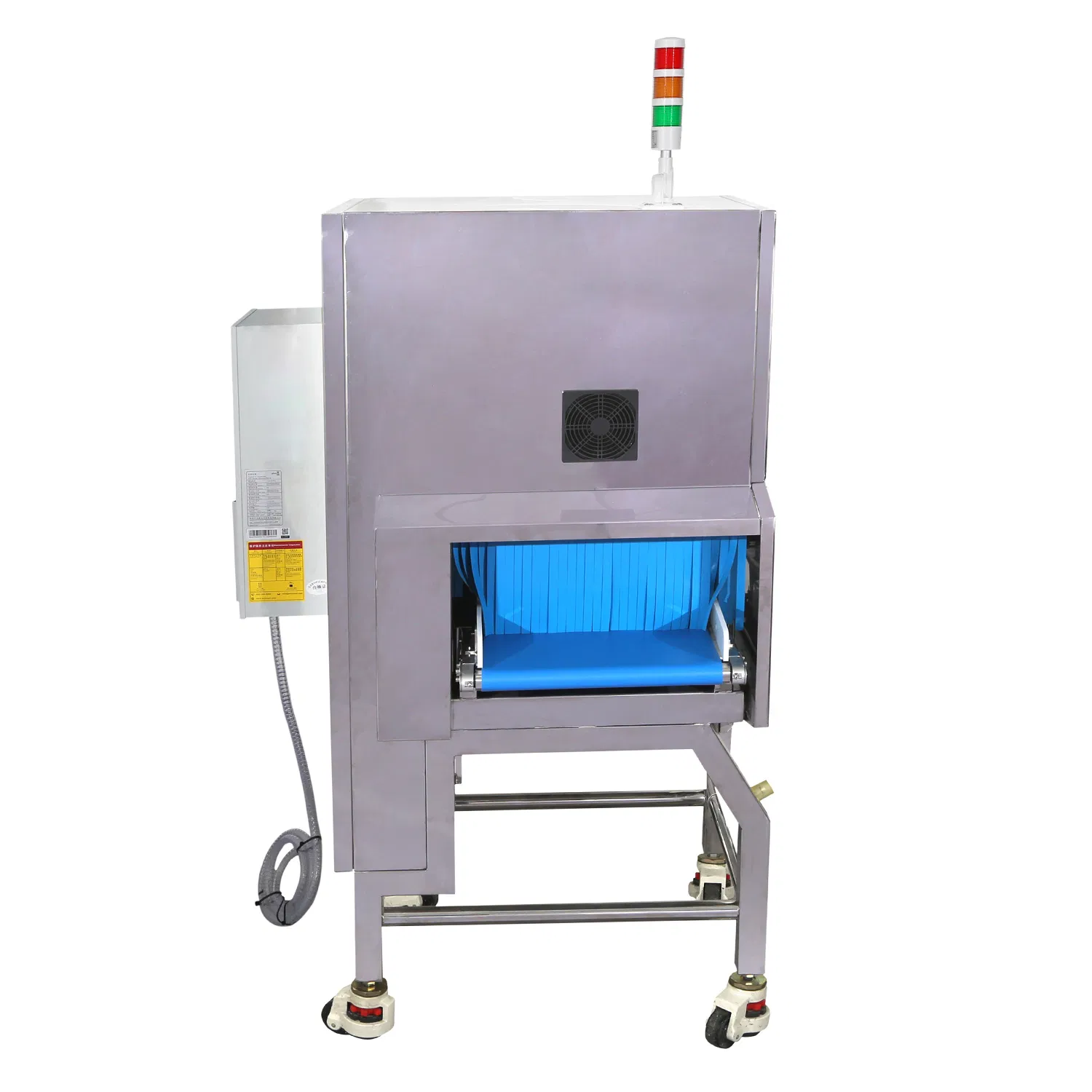

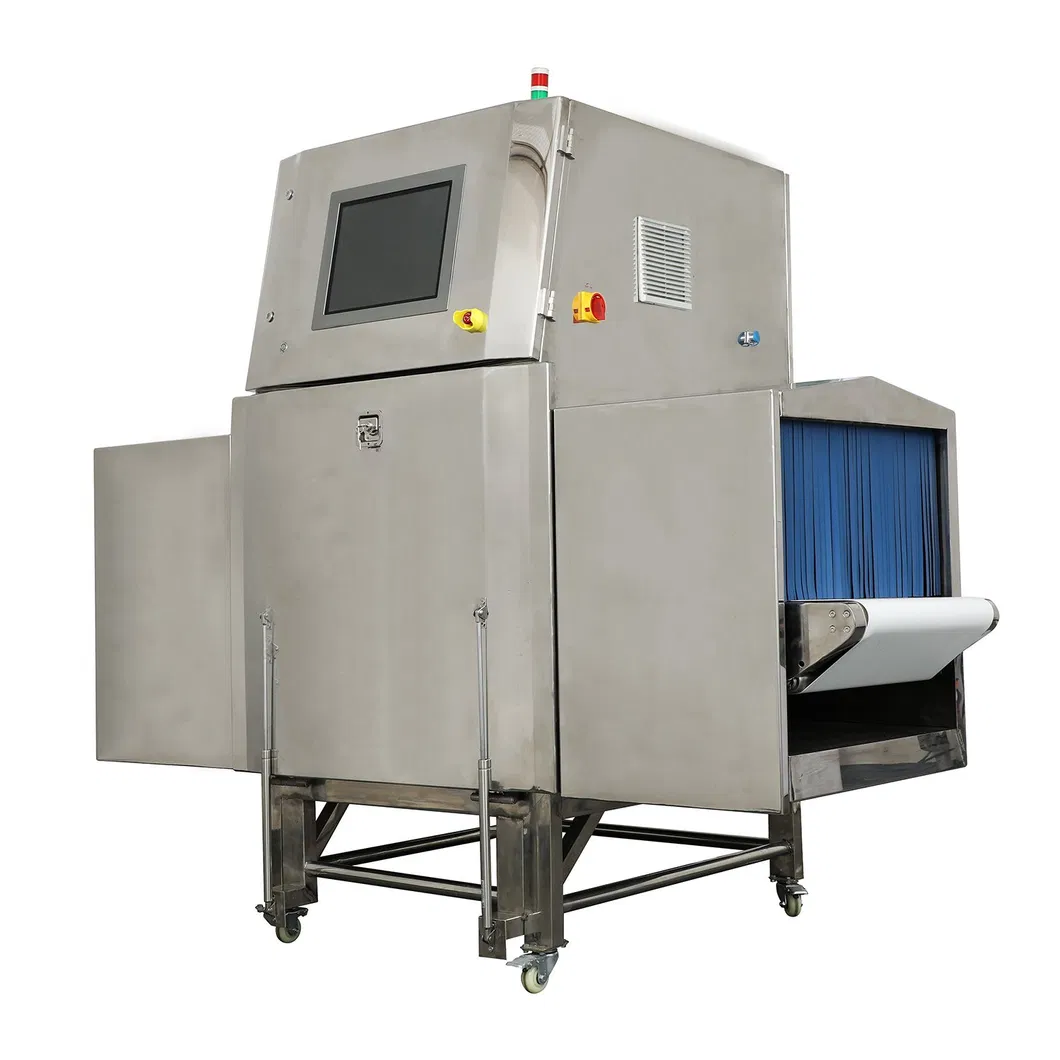

X-ray System Side View

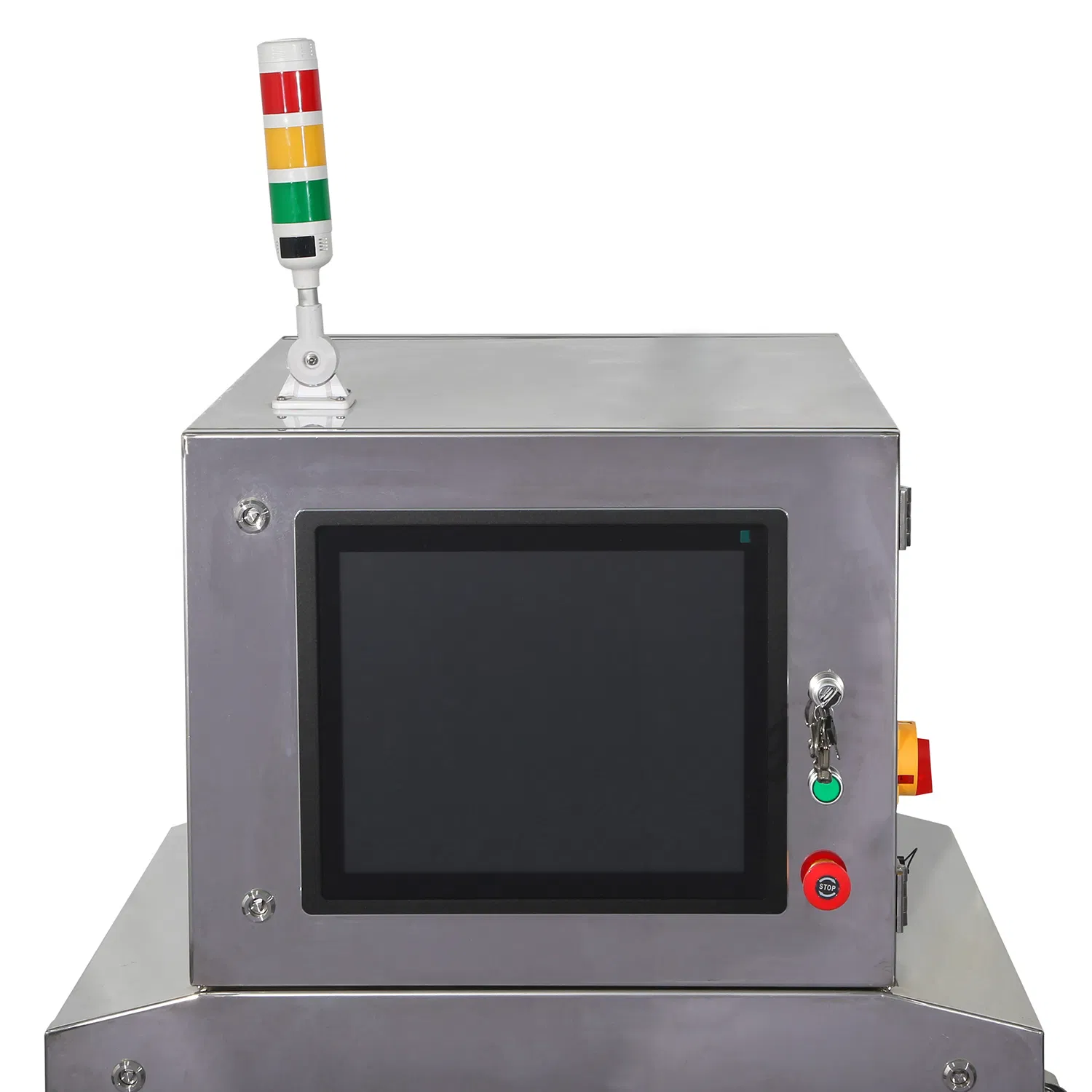

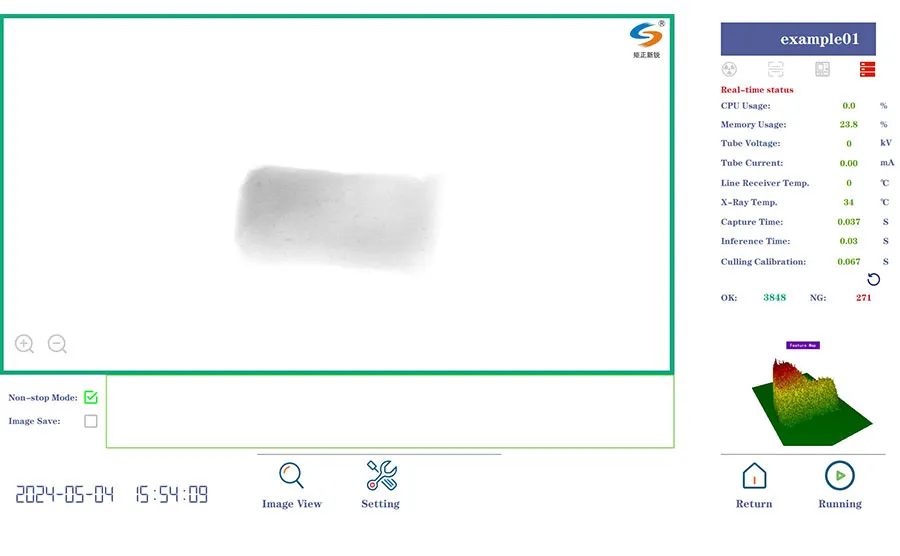

Control Interface
Product Layout
Product Dimensions

Frequently Asked Questions

1. Are you a manufacturer or a trading company?
We are a professional manufacturer with our own dedicated factory facilities including independent departments for purchasing, production, testing, and logistics.
2. Do you provide accessories and spare parts?
Yes, we provide matching parts for all our testing equipment. In case of damage due to natural disasters or power issues, we supply replacement parts at the lowest possible cost.
3. What is your after-sales service policy?
Our standard warranty is 12 months. We offer video guidance for daily troubleshooting and provide overseas engineering support for significant technical requirements.
4. Can products be customized with a specific logo?
Yes, we accept various forms of customization, including custom logos and specific design requirements for our entire product range.
5. What are your primary product categories?
We specialize in metal detectors, X-ray inspection machines, and related electronic quality control systems for industrial applications.
6. How is the detection accuracy of the X-ray machine?
The XR-500D achieves high precision, with the ability to detect SUS balls as small as 0.4mm and glass or ceramic contaminants from 1.0mm to 1.5mm depending on the material.
