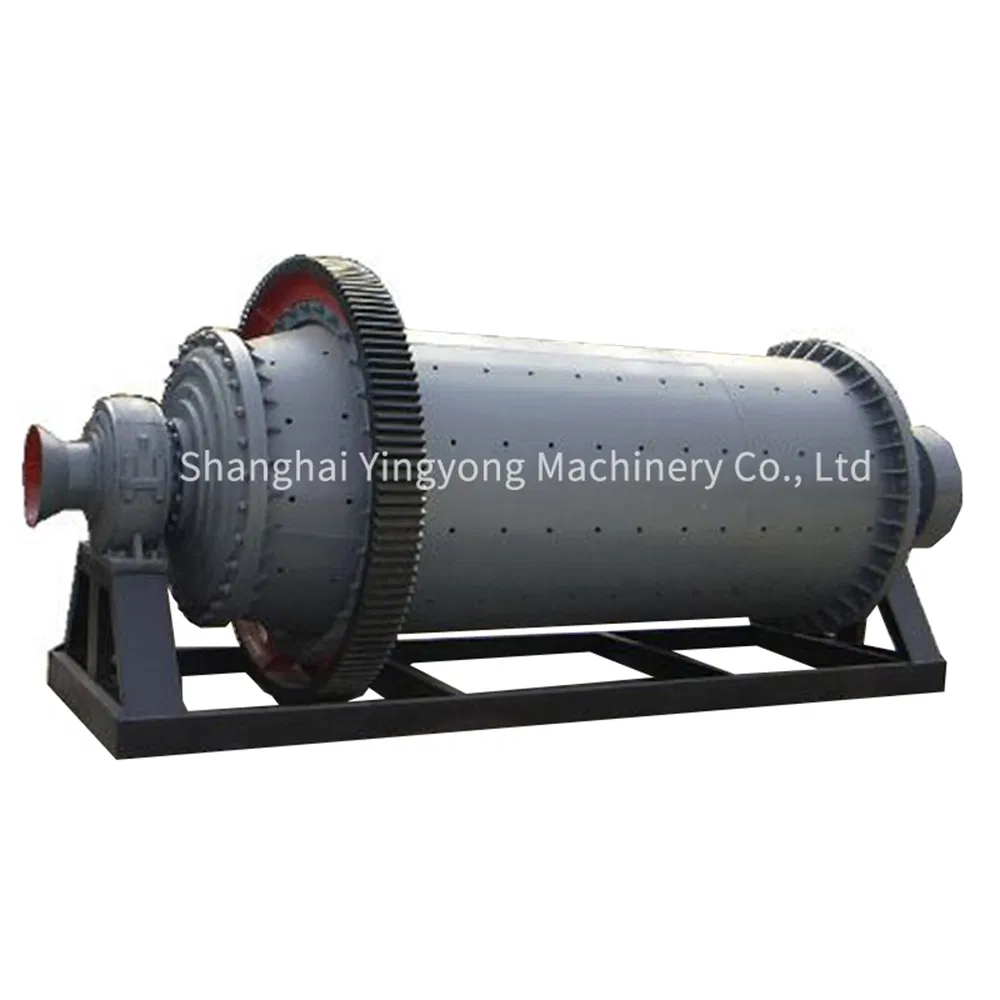

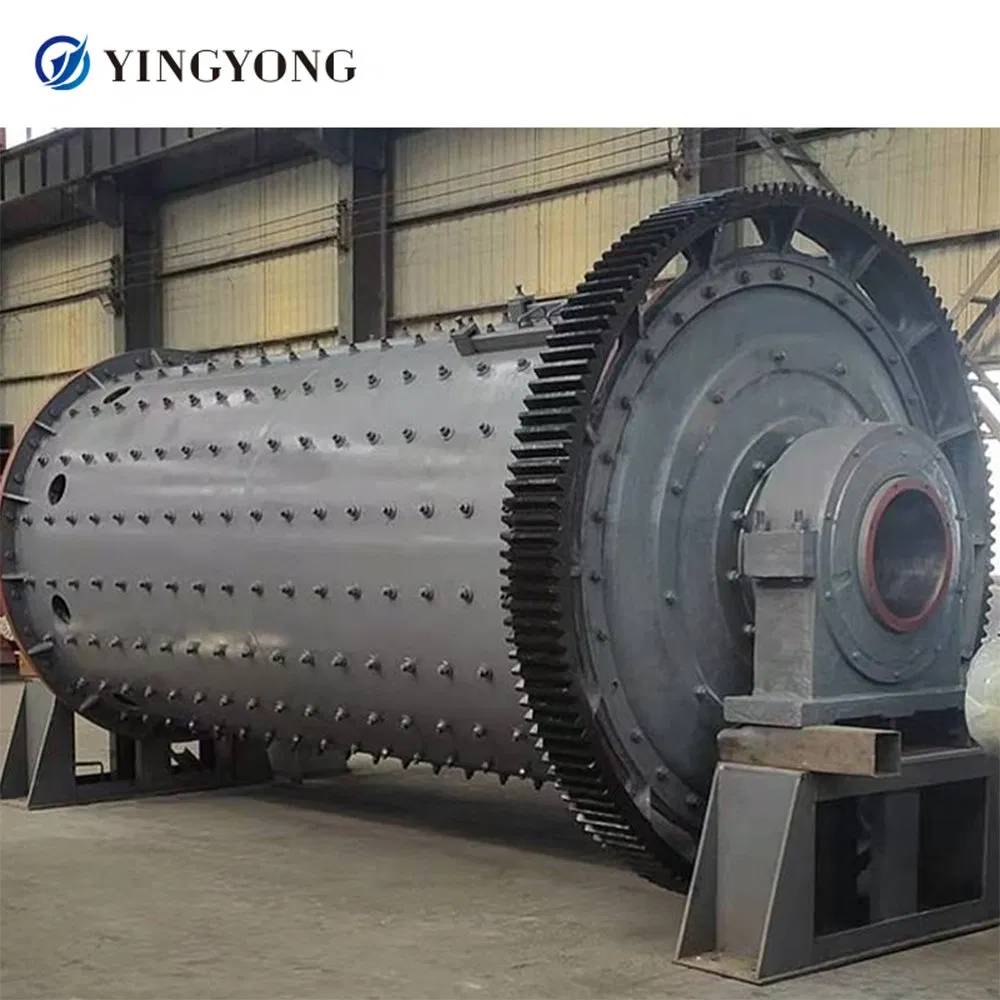

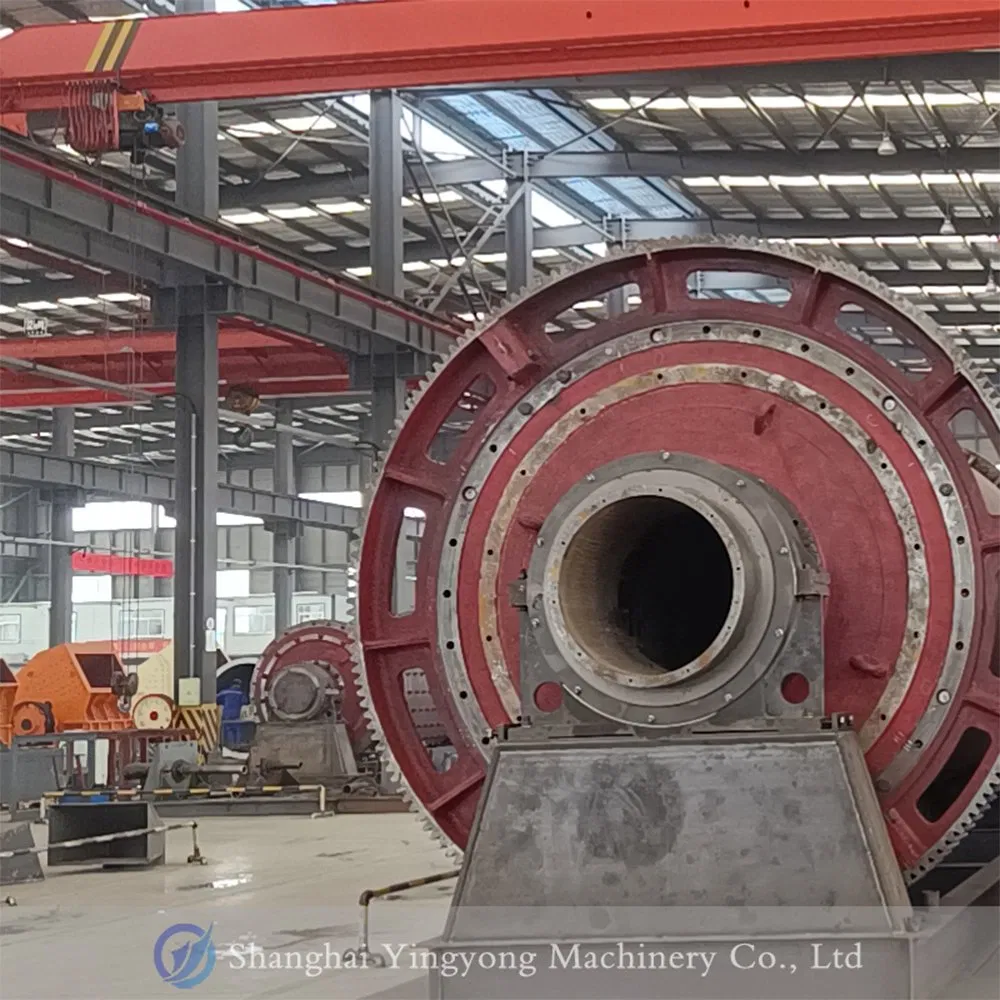

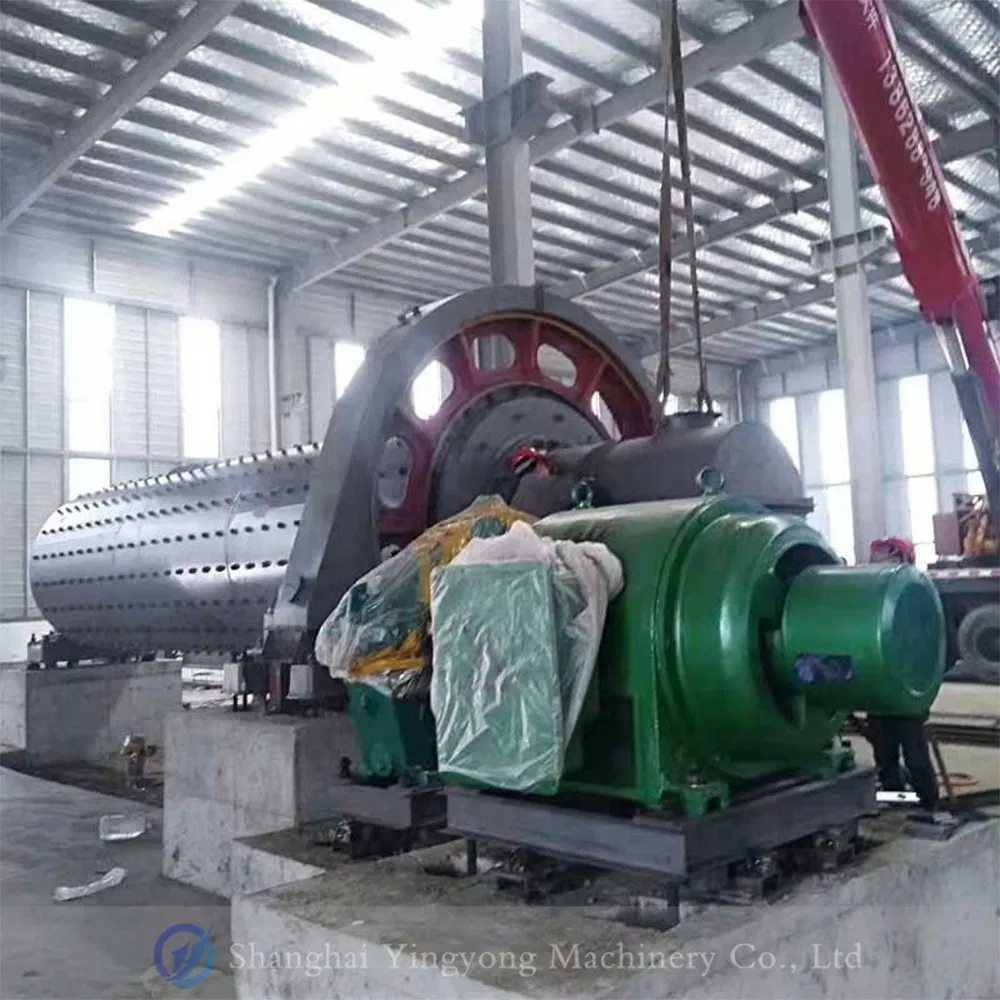

Automatic Control Rod Mill System for Stable Sand Quality in Manufacturing Plants

Customization:	Available
Type:	Ball Mill
Motor Type:	AC Motor

● Basic Information

Motor Power

15KW

Rotationl Speed

13-15r/min

Application

Construction

Materials

Sand

Condition

New

Warranty

1 Year

After-sales Service

Yes

Advantage

High Efficiency Low Energy

Color

Customized

Power Range

800-20000kw

Spare Parts

Available for Life Cycle

Quality Level

High Standard

Certification

CE & ISO

Inspection

Video Outgoing-Inspection Provided

● Product Description

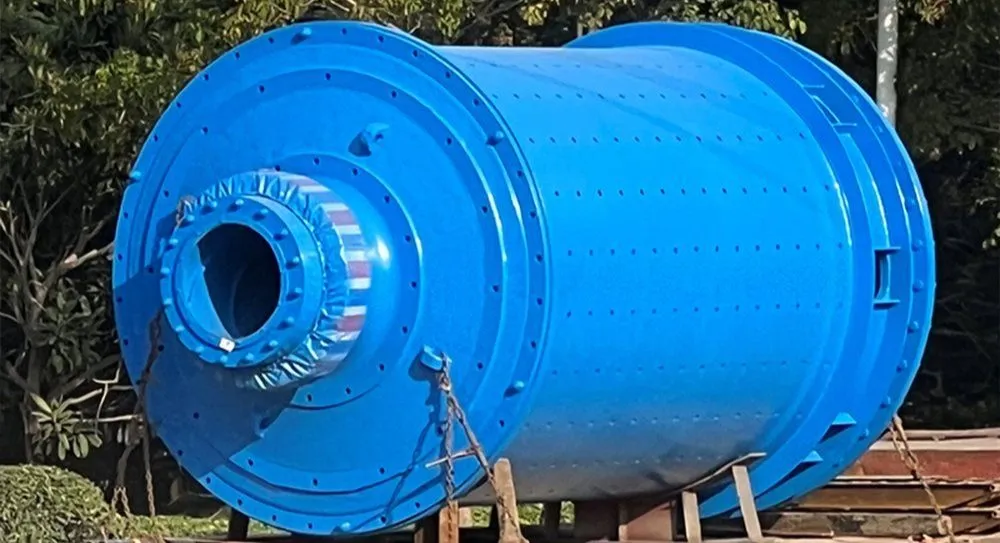

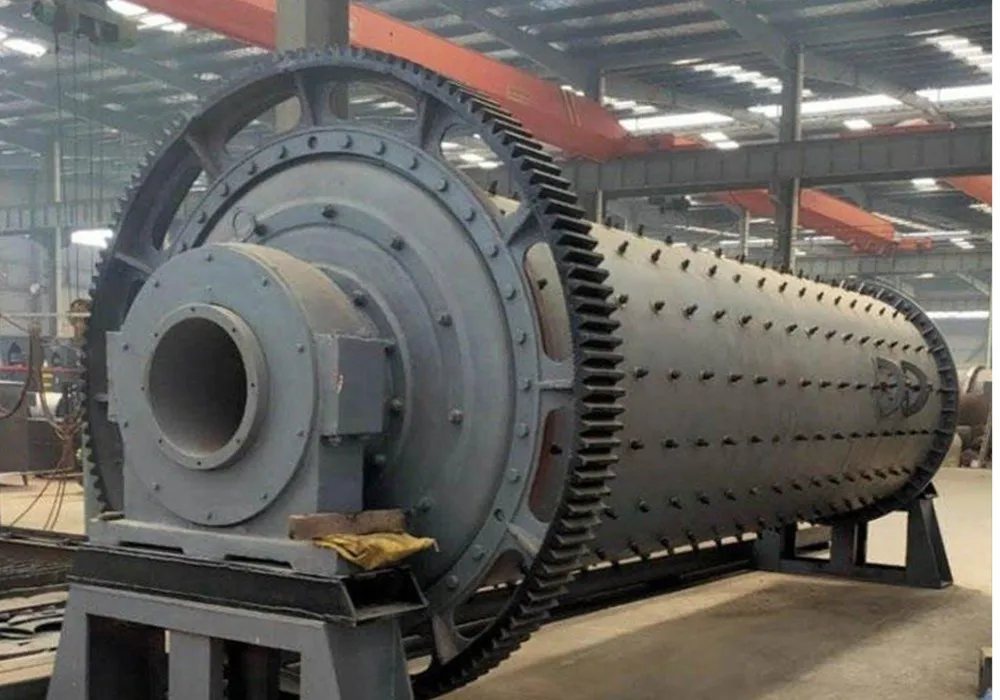

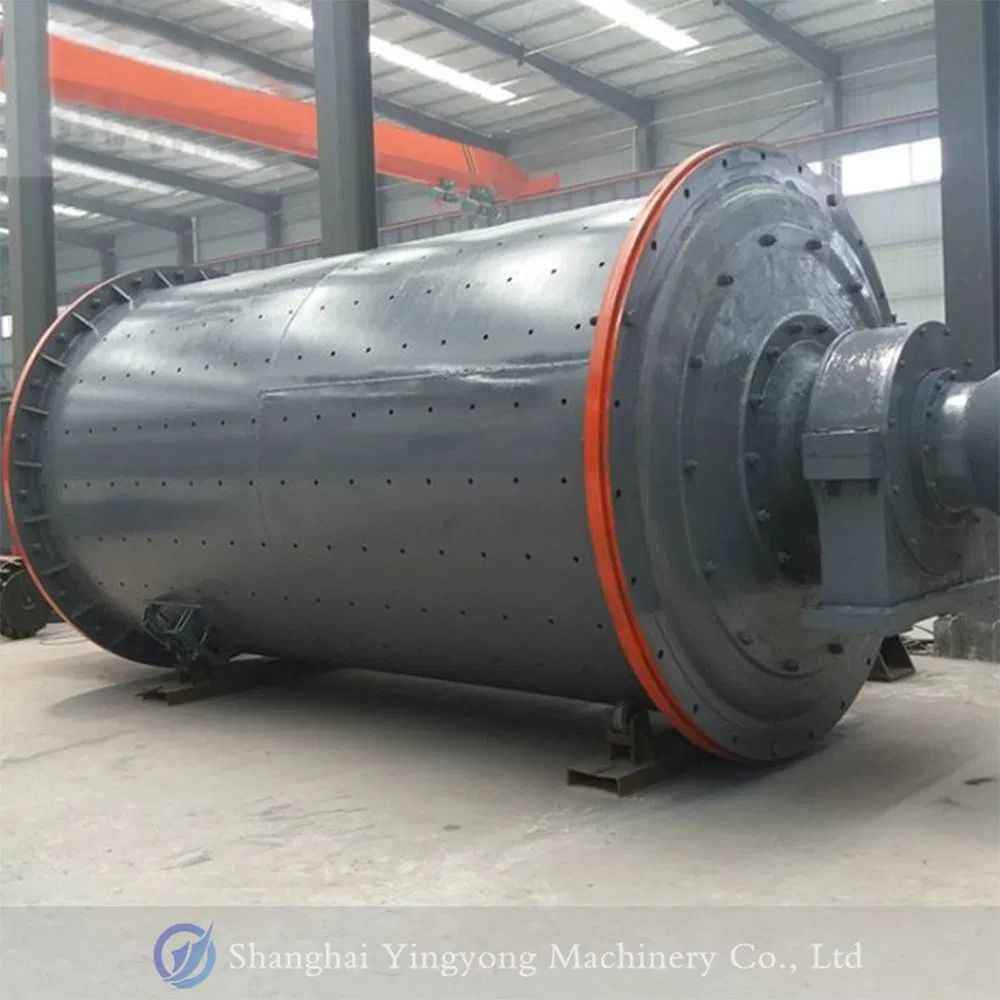

High Performance Rod Mill

The Rod Mill is a type of grinding equipment widely used in metal and non-metal mineral processing, especially effective for sand making, quartz grinding, and coal preparation. It uses steel rods as the grinding medium, which results in uniform particle size, less over-grinding, and efficient operation.

Typically used in the first stage of grinding, it is ideal for materials with medium hardness and high abrasiveness.

Professional Services

One stop EPC service engineering procurement and construction
On site installation and commissioning
Technical training and operation guidance
Spare parts support and after sales maintenance

● Key Features & Applications

Grinding MediumSteel rods for superior crushing uniformity.

Wide ApplicationUsed in artificial sand, quartz sand, and beneficiation.

Discharge TypeCenter or peripheral discharge options available.

Energy SavingDesigned for low steel consumption and high efficiency.

Customizable LinersRubber, manganese steel, or ceramic options.

Flexible DriveCenter drive or edge drive with inverter control.

● Technical Specifications

Model	Shell Diameter (mm)	Shell Length (mm)	Capacity (t/h)	Motor Power (kW)	Rod Load (t)
RM1830	1800	3000	5–12	75	8
RM2130	2100	3000	8–18	90	10
RM2136	2100	3600	10–22	110	12
RM2436	2400	3600	12–25	132	14
RM2745	2700	4500	15–32	160	16

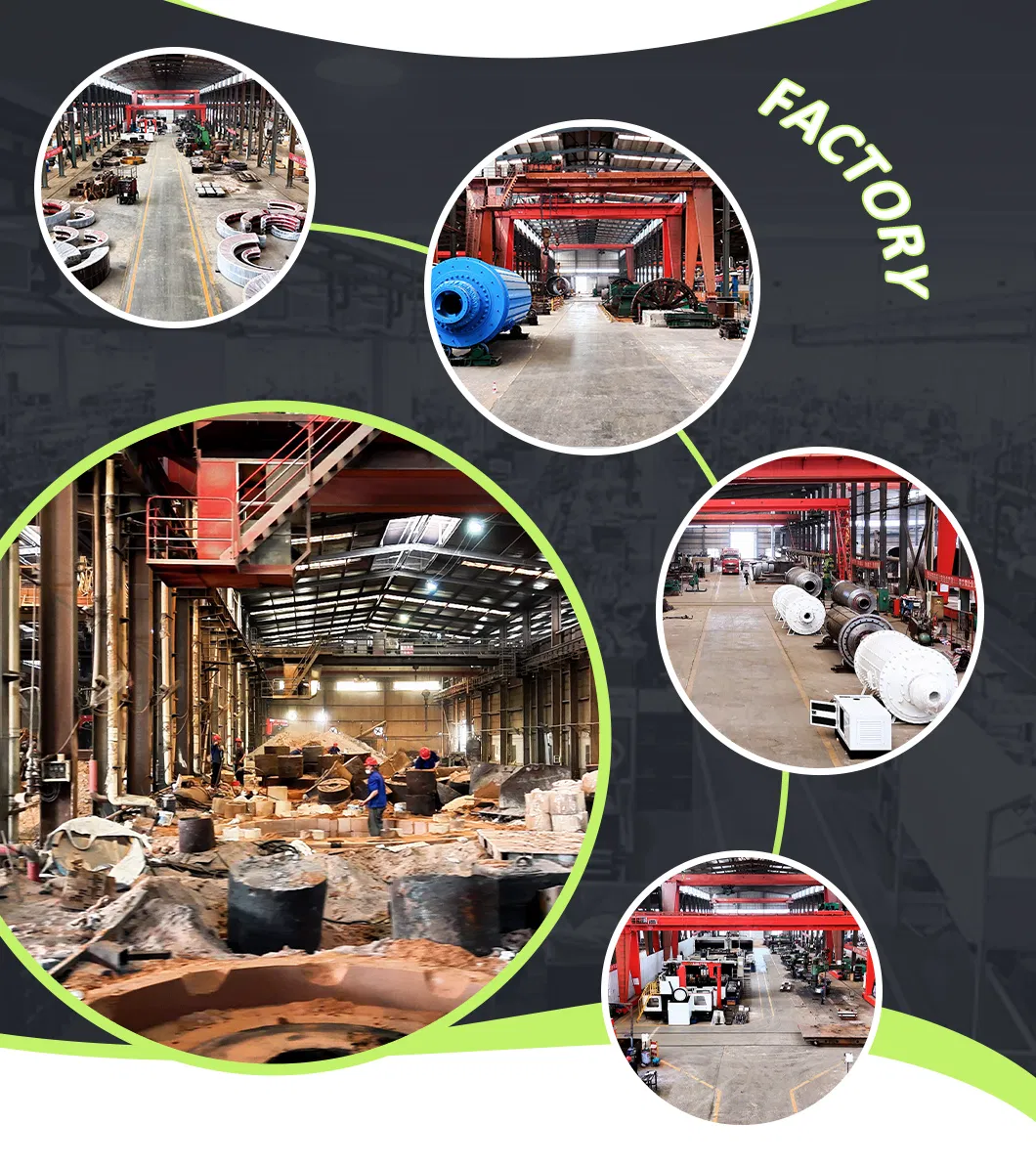

● Manufacturing & Quality Control

Why Choose Our Machinery?

Over 20 years of experience in grinding machinery manufacturing
ISO/CE certified production with strict quality control
Customized engineering designs for specific project needs
Full technical support from installation to daily operation

● Frequently Asked Questions

Q1: What is the main difference between a rod mill and a ball mill?

A1: A rod mill uses steel rods as the grinding medium and is better for coarse grinding; a ball mill uses steel balls and is typically for fine grinding.

Q2: Can the rod mill be used effectively for sand making?

A2: Yes, it is highly efficient in producing artificial sand with controlled particle size distribution and minimal over-grinding.

Q3: What is the output particle size range?

A3: The output size typically ranges from 0.5 to 2 mm, which is adjustable depending on the classification setup.

Q4: Do you support customized voltage and specific motor brands?

A4: Yes, we can configure motors and electrical control systems (like Siemens or ABB) according to local customer standards.

Q5: What technical services are provided with the equipment?

A5: We provide comprehensive equipment supply, foundation drawings, on-site installation guidance, and technical staff training.

Q6: Are spare parts readily available?

A6: We supply all wearing parts (liners, rods, etc.) throughout the entire service life of the machine at competitive prices.
